Frigidaire FGFL77A User manual

PRODUCT NO. BASE MODEL NO. COLOR MARKET
FGFL77ABB FGFL77A black North America
FGFL77ABC FGFL77A black North America
FGFL77AQB FGFL77A bisque North America
FGFL77AQC FGFL77A bisque North America
FGFL77ASB FGFL77A white North America
FGFL77ASC FGFL77A white North America
Publication No.
5995358156
010827
-EN/SERVICE /ECL
369
GAS
RANGE
Model No.
FGFL77A
©2001 White Consolidated Industries, Inc.
All rights reserved
FACTORY
PARTS CATALOG
ELECTROLUX HOME PRODUCTS NORTH AMERICA
P.O. Box 212378, Augusta, GA 30917
SERVICE DATA SHEET - # 316259139
WIRING DIAGRAM - #316255206
OWNER’S GUIDE - # 316257503
INSTALLATION INSTRUCTIONS -# 316259305

08/01 2
Publication No. FGFL77A
5995358156

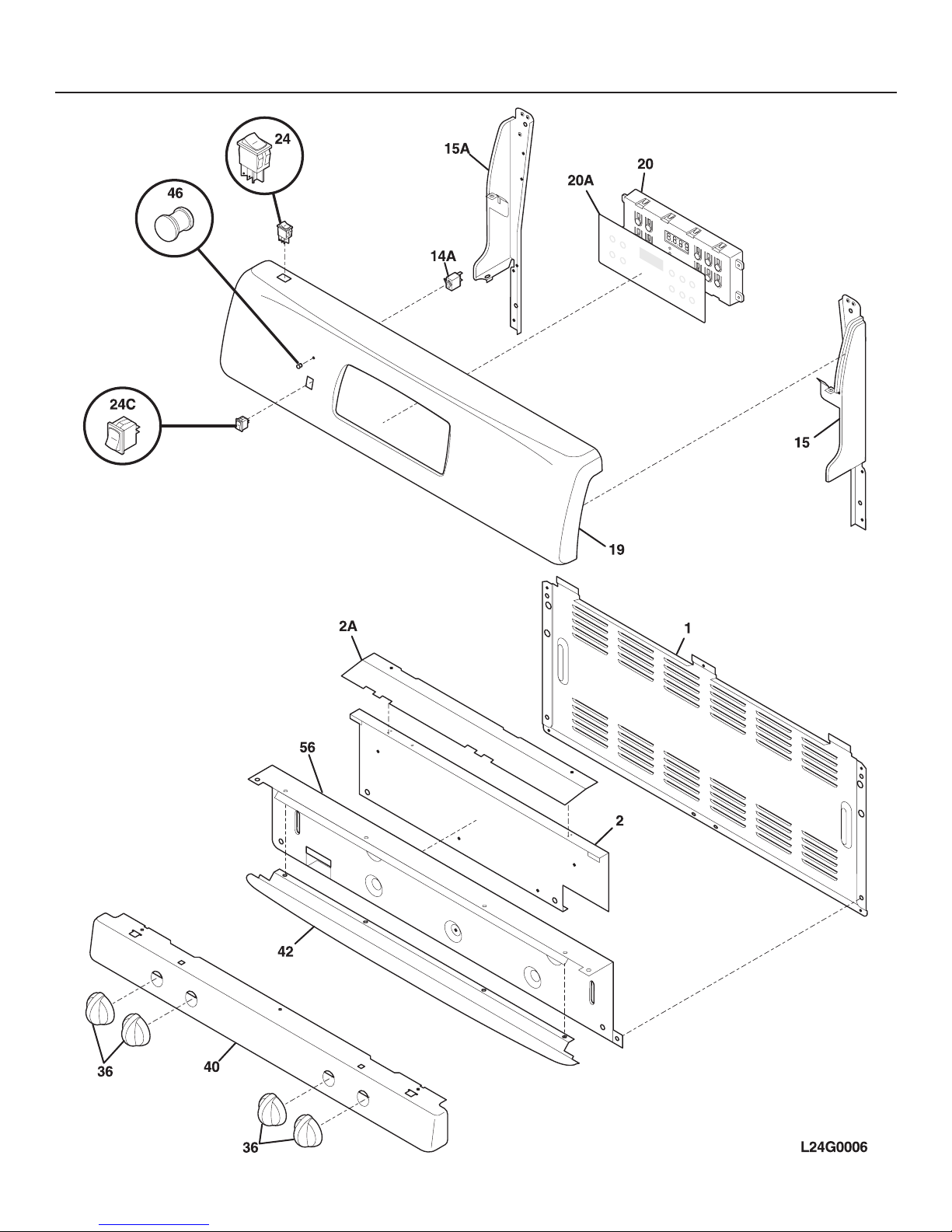

BACKGUARD

# = Fast-moving Parts 3 08/01
* = Non-Illustrated Parts
FGFL77A Publication No.
5995358156
A = FGFL77A (FGFL77ASB)
B = FGFL77A (FGFL77ASC)
C = FGFL77A (FGFL77ABB)
D = FGFL77A (FGFL77ABC)
E = FGFL77A (FGFL77AQB)
F = FGFL77A (FGFL77AQC)
POS. NO PART NO DESCRIPTION
1 316239900 A B C D E F Shield,backguard ,rear wall
1* 316248900 A - C - E - Spacer,shield ,rear wall
2 316051600 A B C D E F Shield,backguard ,inner
2A 316235100 A B C D E F Shield,top ,inner
14A 316022500 A B C D E F Light/Lamp,warmer,indicator ,drawer/zone,125 V
15 316220202 A B - - - - Support,backguard ,white ,RH
15 316220204 - - C D - - Support,backguard ,black ,RH
15 316220208 - - - - E F Support,backguard ,bisque ,RH
15A 316220203 A B - - - - Support,backguard ,white ,LH
15A 316220205 - - C D - - Support,backguard ,black ,LH
15A 316220209 - - - - E F Support,backguard ,bisque ,LH
19 316232652 A B - - - - Panel,backguard ,white
19 316232653 - - C D - - Panel,backguard ,black
19 316232654 - - - - E F Panel,backguard ,bisque
20 # 316222901 A - C - E - Clock/Timer,electronic
20 # 316222906 - B - D - F Clock/Timer,electronic
20A 316220804 A B - - - - Overlay,clock ,white
20A 316220805 - - C D - - Overlay,clock ,black
20A 316220806 - - - - E F Overlay,clock ,bisque
24 # 316246000 A B - - - - Switch,rocker ,white ,oven light
24 # 316246001 - - C D - - Switch,rocker ,black ,oven light
24 # 316246002 - - - - E F Switch,rocker ,bisque ,oven light
24C# 316114000 A B - - - - Switch-Speed Bake,white
24C# 316114002 - - C D - - Switch-Speed Bake,black
24C# 316114004 - - - - E F Switch-Speed Bake,bisque
36 316220000 A B - - - - Knob,top valve ,white ,(4)
36 316220002 - - C D - - Knob,top valve ,black ,(4)
36 316220003 - - - - E F Knob,top valve ,bisque ,(4)
40 316204914 A B - - - - Panel,manifold ,white
40 316204915 - - C D - - Panel,manifold ,black
40 316204916 - - - - E F Panel,manifold ,bisque
42 316236601 A B - - E F Trim,extrusion ,chrome
42 316236600 - - C D - - Trim,extrusion ,black
46 316040201 A B C D E F Lens,indicator light ,red
56 316230701 A B C D E F Shield,backguard ,inner
* 316021108 A B C D E F Screw,cup pt ,8-18 x 0.375 ,chrome
* 316021109 A B C D E F Screw,8-18 x 0.5 ,chrome
* 316021110 A B C D E F Screw,8-18 x 0.5 ,black
BACKGUARD

08/01 4
Publication No. FGFL77A
5995358156

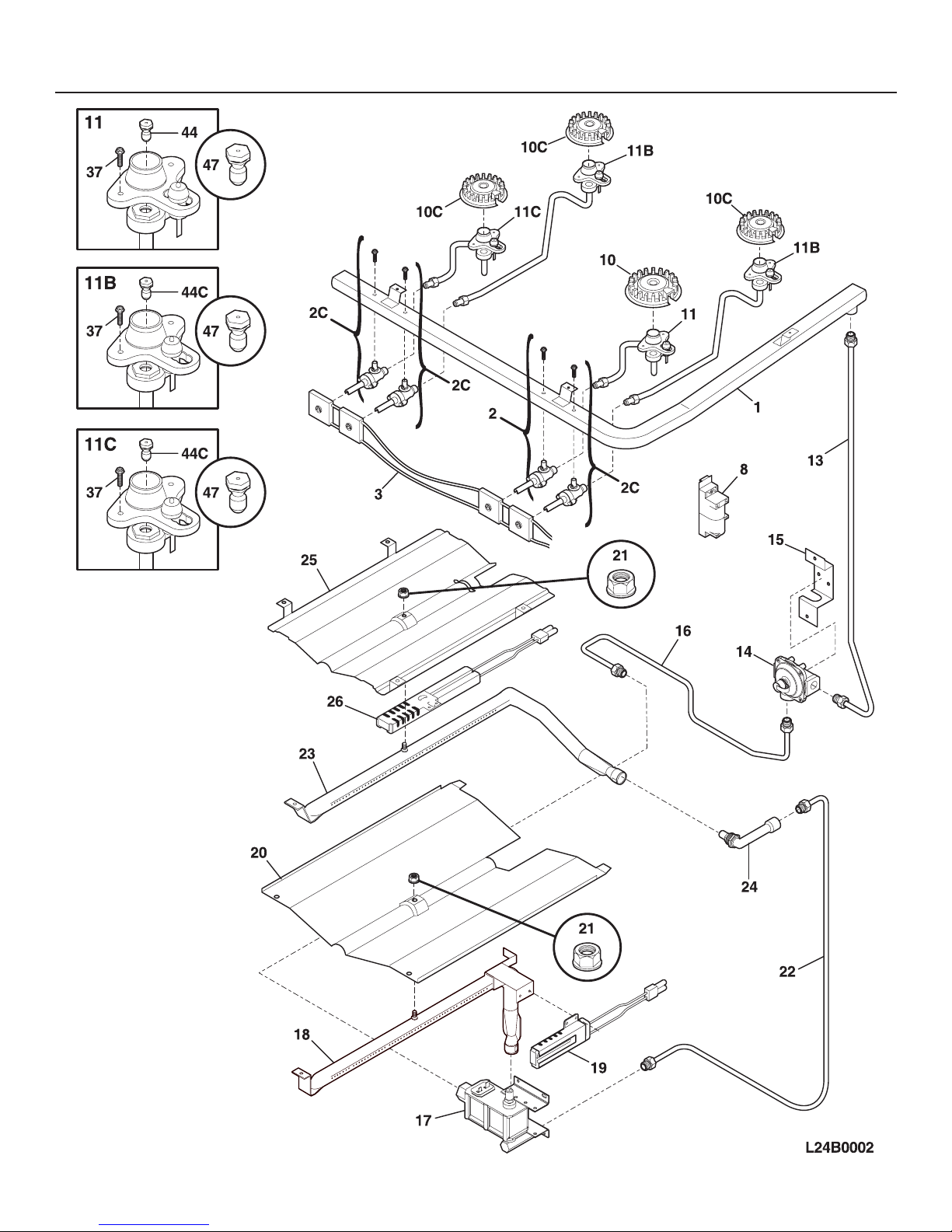

BURNER

# = Fast-moving Parts 5 08/01
* = Non-Illustrated Parts
FGFL77A Publication No.
5995358156
A = FGFL77A (FGFL77ASB)
B = FGFL77A (FGFL77ASC)
C = FGFL77A (FGFL77ABB)
D = FGFL77A (FGFL77ABC)
E = FGFL77A (FGFL77AQB)
F = FGFL77A (FGFL77AQC)
POS. NO PART NO DESCRIPTION
1 # 316204000 A B C D E F Pipe,manifold
2 # 5303935210 A B C D E F Valve,12K top burner ,w/ mtg screw
2C # 5303935213 A B C D E F Valve,9.5K top burner ,w/ mtg screw
* 316134300 A B C D E F • Screw,10-24 ,valve mounting
3 # 316219000 A B C D E F Wiring Harness,w/igntr switch
8 # 316135701 A B C D E F Module,spark
10 # 316212300 A B C D E F Burner,sealed ,12K
10C# 316212400 A B C D E F Burner,sealed ,9.5K
11 # 316237801 A B C D E F Ignitor/orifice assy.,top burner ,front ,12K,w/holder ,tube
11B# 316237701 A B C D E F Ignitor/orifice assy.,top burner ,rear ,9.5K,w/holder ,tube
11C# 316237800 A B C D E F Ignitor/orifice assy.,top burner ,front ,9.5K,w/holder ,tube
13 # 316207000 A B C D E F Tube,3/8 ,aluminum ,rgltr to manf ,with fittings
14 # 316091706 A B C D E F Regulator,pressure
14* 316021104 A B C D E F Screw,hex ,8-18 x 3/8 ,nick ,(3) ,regulator brkt
15 316091600 A B C D E F Bracket,regulator
16 # 316065003 A B C D E F Tube,valve to regul. ,3/8
17 # 5303208499 A B C D E F Valve,safety ,dual
17* 08068018 A B C D E F Shield,wire ,safety valve
18 # 3131290 A B C D E F Burner,oven
19 # 5303935066 A B C D E F Ignitor,oven kit ,w/nut & instr
20 3131284 A B C D E F Baffle,oven burner
21 5303013272 A B C D E F Nut,hex head sems
22 # 316065002 A B C D E F Tube,valve to mixer
23 # 08067935 A B C D E F Burner,broiler
24 # 316070400 A B C D E F Elbow,mixer
24* 316113400 A B C D E F Spacer,mixer elbow
25 5303210379 A B C D E F Baffle,broiler
26 # 316119302 A B C D E F Ignitor,broiler
37 316240600 A B C D E F Screw,assy mtg ,ignitor/orifice
44 316237901 A B C D E F Orifice,top burner ,12K
44C 316237902 A B C D E F Orifice,top burner ,9.5K
47 GRLP1 A B C D E F LP kit,w/instructions
47* 316248105 A B C D E F • Instructions,LP kit
* 5303271648 A B C D E F Screw,wafer hd sq dr ,8-18AB x 0.5
BURNER

08/01 6
Publication No. FGFL77A
5995358156

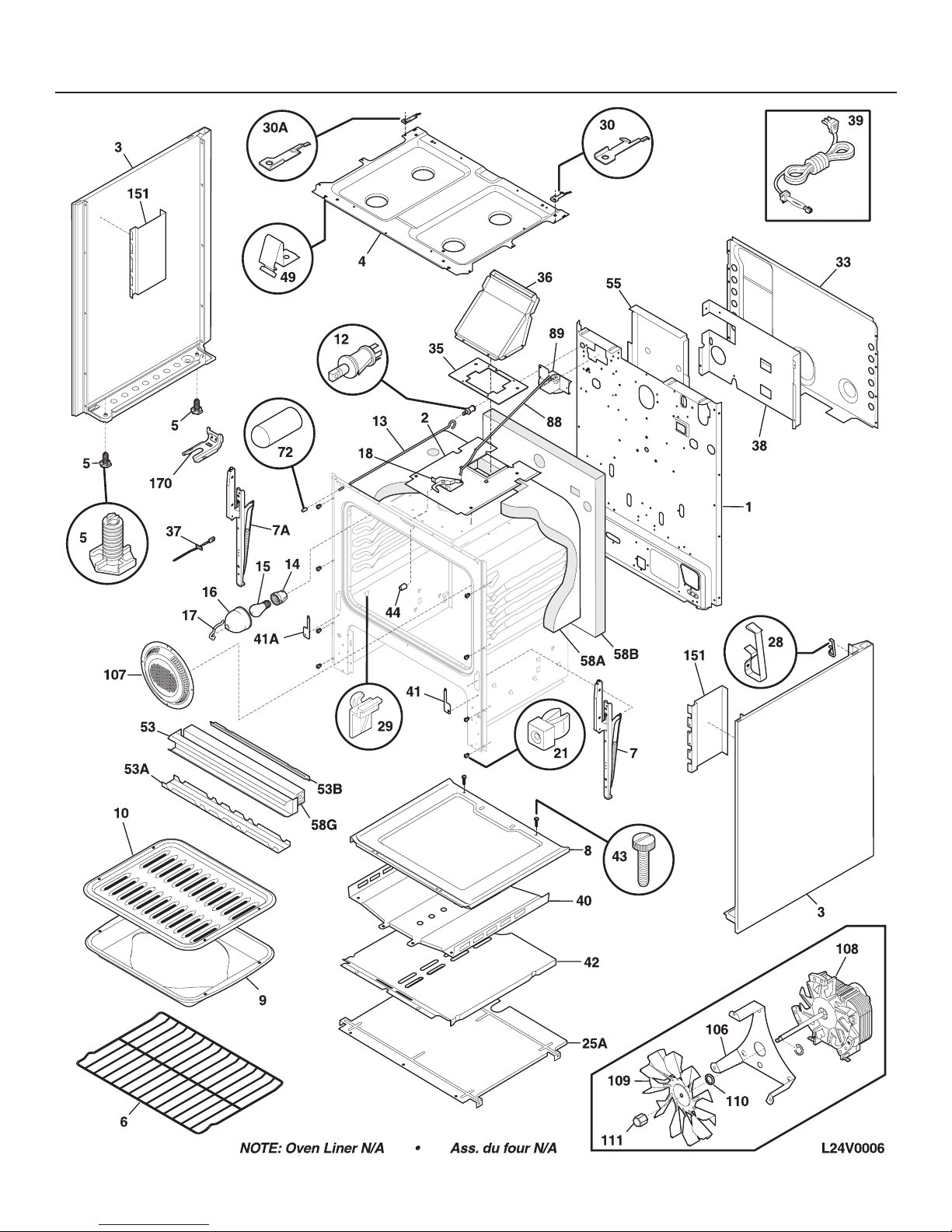

BODY

# = Fast-moving Parts 7 08/01
* = Non-Illustrated Parts
FGFL77A Publication No.
5995358156
A = FGFL77A (FGFL77ASB)
B = FGFL77A (FGFL77ASC)
C = FGFL77A (FGFL77ABB)
D = FGFL77A (FGFL77ABC)
E = FGFL77A (FGFL77AQB)
F = FGFL77A (FGFL77AQC)
POS. NO PART NO DESCRIPTION
1 316029416 A B C D E F Panel,main back
2 3131314 A B C D E F Shield,oven top
3 316230102 A B - - - - Panel,bodyside ,white ,RH
3 316230103 A B - - - - Panel,bodyside ,white ,LH
3 316230104 - - C D - - Panel,bodyside ,black ,RH
3 316230105 - - C D - - Panel,bodyside ,black ,LH
3 316230108 - - - - E F Panel,bodyside ,bisque ,RH
3 316230109 - - - - E F Panel,bodyside ,bisque ,LH
4 316201402 A B C D E F Burner Box
5 316129200 A B C D E F Screw,leveling ,plastic ,with stop
6 316067902 A B C D E F Rack,oven
7 316205000 A B C D E F Hinge,oven door ,RH
7A 316205001 A B C D E F Hinge,oven door ,LH
8 5303300701 A B C D E F Panel,oven bottom
9 316081900 A B C D E F Pan,broiler
10 316082000 A B C D E F Insert,broiler pan
12 # 316027701 A B C D E F Switch,oven light
13 316238800 A B C D E F Rod,light switch
14 # 316116400 A B C D E F Receptacle,oven light
15 5303013071 A B C D E F Bulb/Lamp,oven light
16 08011086 A B C D E F Lens,oven light ,glass
17 316087500 A B C D E F Retainer,lens
18 # 316213900 A B C D E F Latch,oven door
21 3014099 A B C D E F Spacer,bodyside
25A 5303288580 A B C D E F Shield,heat ,lower
28 3011813 A B C D E F Clip,wire ,bodyside
29 3051162 A B C D E F Glide,drawer ,front
30 316217700 A B C D E F Bracket,hinge ,RH ,main top
30A 316217701 A B C D E F Bracket,hinge ,LH ,main top
33 316232800 A B C D E F Shield,rear wall
35 316116600 A B C D E F Gasket,flue
36 316133002 A B C D E F Flue
37 # 316233900 A B C D E F Probe,oven temp
38 316051700 A B C D E F Shield,heat
39 3202006 A B C D E F Cord,electric power
40 3200836 A B C D E F Shield,heat baffle
40* 5303288570 A B C D E F Screw,hd shldr sqdr ,8-18 X 1/2 ,heat shield
41 316233400 A B C D E F Cover,hinge cutout ,RH
41A 316233500 A B C D E F Cover,hinge cutout ,LH
42 5303288578 A B C D E F Shield,bake burner
43 3131732 A B C D E F Screw,8-18 x 1.438 ,oven bottom
44 316246500 A B C D E F Spacer,oven door
49 316234200 A B C D E F Clip,maintop mtg ,(2)
53 5303288579 A B C D E F Shield,main front
53A 08067992 A B C D E F Shield,insulation ,front frame
53B 316211100 A B C D E F Bracket,air dam
55 316107800 A B C D E F Shield,flue
58A 316047708 A B C D E F Insulation,2" ,oven wrapper
58B 316218302 A B C D E F Insulation,oven back
58G 08067973 A B C D E F Insulation,main front
72 316234500 A B C D E F Cover,rod end ,light switch
88 316232700 A B C D E F Rod,auto latch
89 # 316135202 A B C D E F Motor,latch/lock
106 316026600 A B C D E F Bracket,motor mtg
107 316026701 A B C D E F Cover,fan
108# 316234601 A B C D E F Motor,fan
109 316136400 A B C D E F Blade,fan
110 316136500 A B C D E F Washer,fan motor
111 316136600 A B C D E F Nut,fan retainer
BODY

08/01 8
Publication No. FGFL77A
5995358156
BODY

# = Fast-moving Parts 9 08/01
* = Non-Illustrated Parts
FGFL77A Publication No.
5995358156
A = FGFL77A (FGFL77ASB)
B = FGFL77A (FGFL77ASC)
C = FGFL77A (FGFL77ABB)
D = FGFL77A (FGFL77ABC)
E = FGFL77A (FGFL77AQB)
F = FGFL77A (FGFL77AQC)
POS. NO PART NO DESCRIPTION
151 316239300 A B C D E F Shield,bodyside
170 5303935180 A B C D E F Anti-tip Kit,w/bracket,screw
170* 316107200 A B C D E F Bracket,anti-tip
170* 316112500 A B C D E F Template,anti-tip
170* 316116000 A B C D E F Screw,concrete tpg ,1.75 inch ,anti-tip brkt
* # 316253401 A B C D E F Wiring Harness,main
* 316231800 A B C D E F Cover,hole ,conv. element
* 5303305324 A B - - - - Paint,touch-up ,white
* 5303305345 - - C D - - Paint,touch-up ,black
* 5304414035 - - - - E F Paint,touch-up ,bisque
* 316021108 A B C D E F Screw,cup pt ,8-18 x 0.375 ,chrome
* 5303280311 A B C D E F Screw,wafer hd sq dr ,10-32 x 0.312
* 5303285179 A B C D E F Screw,wafer head ,8-32T x 0.500 ,black
* 5303271648 A B C D E F Screw,wafer hd sq dr ,8-18AB x 0.5
BODY

08/01 10
Publication No. FGFL77A
5995358156

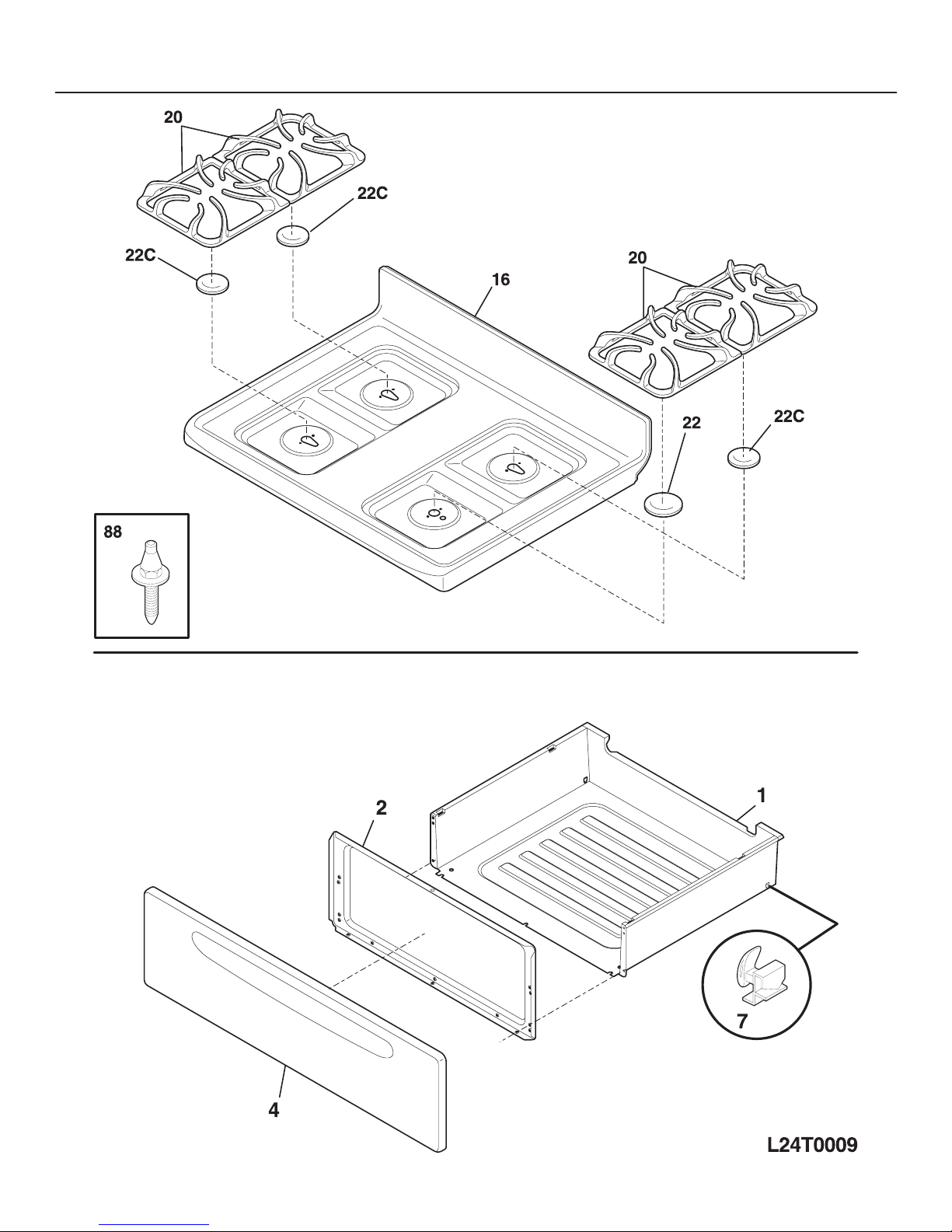

TOP/DRAWER

# = Fast-moving Parts 11 08/01
* = Non-Illustrated Parts
FGFL77A Publication No.
5995358156
A = FGFL77A (FGFL77ASB)
B = FGFL77A (FGFL77ASC)
C = FGFL77A (FGFL77ABB)
D = FGFL77A (FGFL77ABC)
E = FGFL77A (FGFL77AQB)
F = FGFL77A (FGFL77AQC)
POS. NO PART NO DESCRIPTION
1 316011503 A B C D E F Drawer
2 316231400 A B C D E F Liner,drawer
4 316231205 A B - - - - Panel,drawer ,white
4 316231206 - - C D - - Panel,drawer ,black
4 316231209 - - - - E F Panel,drawer ,bisque
7 3051163 A B C D E F Glide,drawer ,rear
16 316202332 A B - - - - Main Top,white
16 316202331 - - C D - - Main Top,black
16 316202334 - - - - E F Main Top,bisque
20 316202401 A B - - - - Grate,gray
20 316202400 - - C D - - Grate,black
20 316202403 - - - - E F Grate,brown
22 316213601 A B - - - - Cap,12K burner ,gray
22 316213600 - - C D - - Cap,12K burner ,black
22 316213603 - - - - E F Cap,12K burner ,brown
22C 316213501 A B - - - - Cap,9.5K burner ,gray
22C 316213500 - - C D - - Cap,9.5K burner ,black
22C 316213503 - - - - E F Cap,9.5K burner ,brown
88 316099500 A B C D E F Pin,guide ,(2)
* 316021108 A B C D E F Screw,cup pt ,8-18 x 0.375 ,chrome
* 316021110 A B C D E F Screw,8-18 x 0.5 ,black
* 5303280311 A B C D E F Screw,wafer hd sq dr ,10-32 x 0.312
TOP/DRAWER

08/01 12
Publication No. FGFL77A
5995358156

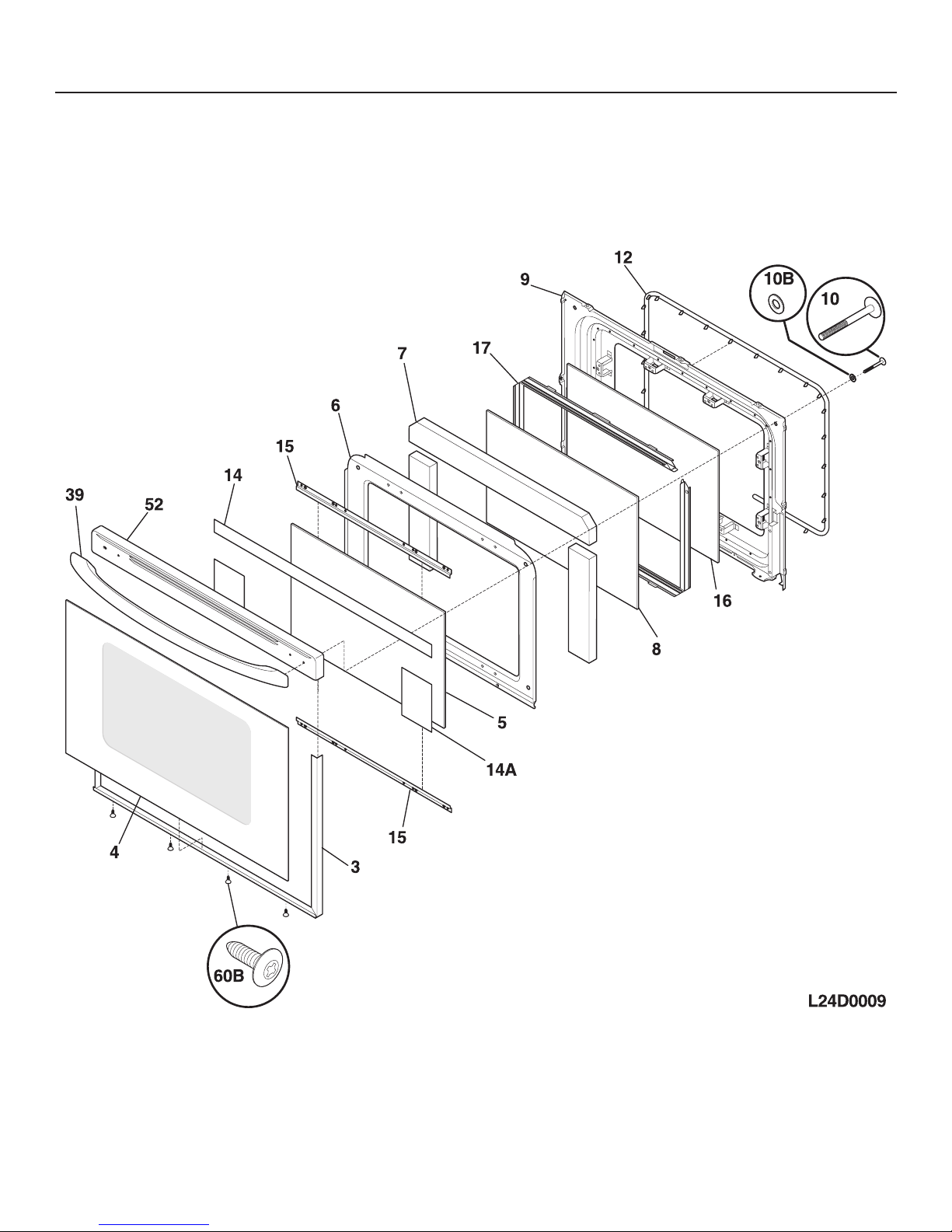

DOOR

# = Fast-moving Parts 13 08/01
* = Non-Illustrated Parts
FGFL77A Publication No.
5995358156
A = FGFL77A (FGFL77ASB)
B = FGFL77A (FGFL77ASC)
C = FGFL77A (FGFL77ABB)
D = FGFL77A (FGFL77ABC)
E = FGFL77A (FGFL77AQB)
F = FGFL77A (FGFL77AQC)
POS. NO PART NO DESCRIPTION
3 5303935192 A B - - - - Trim kit-door,3 sided ,white ,w/tape and foil
3 5303935191 - - C D - - Trim kit-door,3 sided ,black ,w/tape and foil
3 5303935193 - - - - E F Trim kit-door,3 sided ,bisque ,w/tape and foil
4 5303935201 A B - - - - Glass,door kit ,white ,outer ,w/ foil tape
4 5303935200 - - C D - - Glass,door kit ,black ,outer ,w/ foil tape
4 5303935202 - - - - E F Glass,door kit ,bisque ,outer ,w/ foil tape
5 316237000 A B C D E F Glass,oven door ,heat barrier
6 316222707 A B C D E F Shield,wool ,oven door
7 316236700 A B C D E F Insulation,oven door
8 316237100 A B C D E F Glass,oven door ,clear ,inner
9 316230605 A B C D E F Liner,oven door
10 316001013 A B C D E F Screw,wafer head ,10-24 X 1.375 ,handle mtg.
10* 316001016 A B C D E F Screw,handle mtg ,10-12 X .750
10B 316008401 A B C D E F Washer,3/4 OD x 1/4 ID ,steel
12 316230900 A B C D E F Seal,oven door
14 316102207 A B - - E F Foil,1.5" x 29" ,aluminum ,clear
14 316102208 - - C D - - Foil,1.5" x 29" ,aluminum ,black
14A 316102202 A B - - E F Foil,4" x 5.5" ,aluminum ,clear ,(2)
14A 316102205 - - C D - - Foil,4" x 5.5" ,aluminum ,black ,(2)
15 316237201 A B C D E F Bracket,glass support ,(2)
16 316117500 A B C D E F Glass,oven door ,heat barrier
17 316117701 A B C D E F Spacer,door glass ,(2)
39 316203005 A - - - - - Handle,door ,white
39 316203001 - B - - - - Handle,door ,white
39 316203006 - - C - - - Handle,door ,black
39 316203000 - - - D - - Handle,door ,black
39 316203007 - - - - E - Handle,door ,bisque
39 316203003 - - - - - F Handle,door ,bisque
52 316201010 A - - - - - Cap,door trim ,white
52 316201000 - B - - - - Cap,door trim ,white
52 316201011 - - C - - - Cap,door trim ,black
52 316201002 - - - D - - Cap,door trim ,black
52 316201012 - - - - E - Cap,door trim ,bisque
52 316201007 - - - - - F Cap,door trim ,bisque
60B 5303271648 A B C D E F Screw,wafer hd sq dr ,8-18AB x 0.5
* 316065306 A B C D E F Plate,warning/caution
* 3203618 A B C D E F Rivet,pop
* 316021109 A B C D E F Screw,8-18 x 0.5 ,chrome
* 316021110 A B C D E F Screw,8-18 x 0.5 ,black
* 5303280311 A B C D E F Screw,wafer hd sq dr ,10-32 x 0.312
* 5303285179 A B C D E F Screw,wafer head ,8-32T x 0.500 ,black
DOOR

08/01 14
Publication No. FGFL77A
5995358156
WIRING DIAGRAM
