Frigidaire GLES389E User manual

GLES389E.eps LA20BG0052.eps BPLES389ECB.eps LA20CT0060.eps
D79046592500.eps 318271927-1.eps 318271927-2.eps
Product No. GLES389EBA GLES389EBB GLES389EQA GLES389ESA
37956366H5361 37956366H5362 37956364H5341 37956367H5311
Series 30" slide-in 30" slide-in 30" slide-in 30" slide-in
Color black black bisque white
Market North America North America North America North America
Wiring Diagram 318271927 318271927 318271927 318271927
Owner's Guide 318203810 318203810 318203810 318203810
Installation Instructions 318201611 318201611 318201611 318201611
Timer Guide 318200194 318200194 318200194 318200194
Electrolux Major Appliances
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
Publication No.
5995450771
05/10/06
(EN/SERVICE/ECL)
377
30-INCH SLIDE-IN
ELECTRIC RANGE
Model No.
GLES389E
Copyright ©2005 Electrolux Home Products, Inc.
All rights reserved.

Publication No: 5995450771 GLES389E
10/05 2
BACKGUARD

GLES389E Publication No: 5995450771
# Functional Parts 3 10/05
* Non-Illustrated Parts

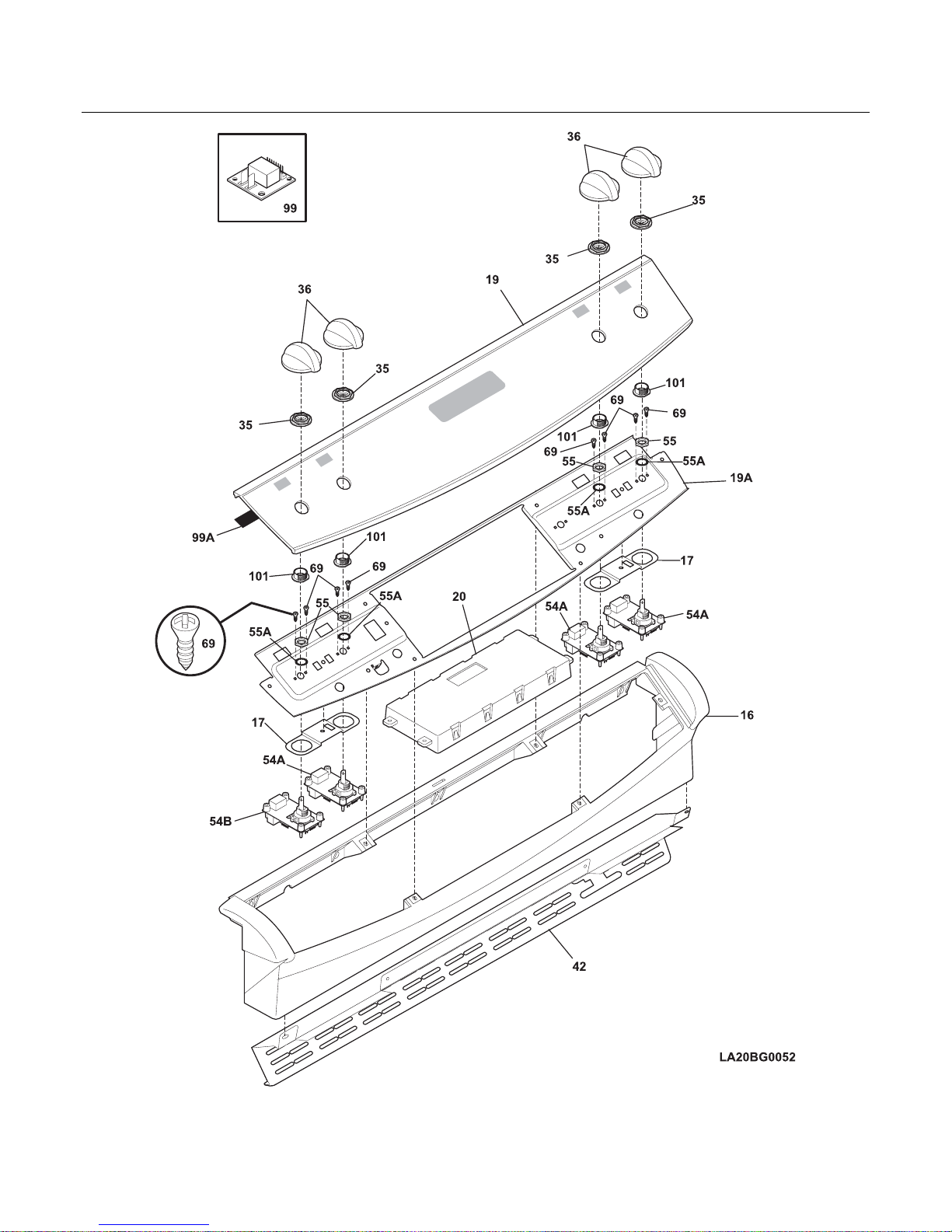

BACKGUARD
Model Index: AGLES389E (GLES389ESA)
BGLES389E (GLES389EBA)
CGLES389E (GLES389EBB)
DGLES389E (GLES389EQA)
POS. NO PART NO. DESCRIPTION
16 318299100 A - - - Console, assy., white
16 318299102 - B C - Console, assy., black
16 318299101 - - - D Console, assy., bisque
17 318306900 A B C D Bracket, bushing, (2)
19 318313800 A - - - Control Panel Assembly, white, w/touch pad
19 318313802 - B C - Control Panel Assembly, black, w/touch pad
19 318313801 - - - D Control Panel Assembly, bisque, w/touch pad
19A 318224405 A B C D Panel,control mtg.
20 # 316418735 A B C D Clock/Timer, electronic, ES510
20* 5304451726 A B C D Screw, control mtg., 8-18 x 1/2"
35 318233711 A - - - Retainer, control panel, white
35 318233710 - B C - Retainer, control panel, black
35 318233712 - - - D Retainer, control panel, bisque
36 316223022 A - - - Knob, control, white
36 316223021 - B C - Knob, control, black
36 316223023 - - - D Knob, control, bisque
42 318298001 A B C D Trim, vent, black, upper
54A# 316441801 A B C D Control, electronic, dual element, (3), w/potentiometer
54B# 316441804 A B C D Control, electronic, left front, dual element, w/potentiometer
55 316247700 A B C D Nut, hex control mtg, (5)
55A 316247800 A B C D Washer, lock, (5), control mtg
69 5303323134 A B C D Screw, 8-32 x 0.188
99 316435702 A B C D Board, power supply
99A 318223900 A B C D Gasket,dark grey
101 318233400 A B C D Bushing, retainer
* # 318228813 A B C D Harness, wiring, main, backguard
* 318083021 A B C D Harness, wiring, to transformer, interface
* # 318224813 A B C D Harness, wiring, timer
* 08016432 A B C D Screw, truss head, 8-18 x 0.375
* 5303300265 A B C D Screw, 8-18 X 1/2, (2)
* 5303311333 A B C D Screw, 8-32 x 3/8

Publication No: 5995450771 GLES389E
10/05 4
BODY

GLES389E Publication No: 5995450771
# Functional Parts 5 10/05
* Non-Illustrated Parts

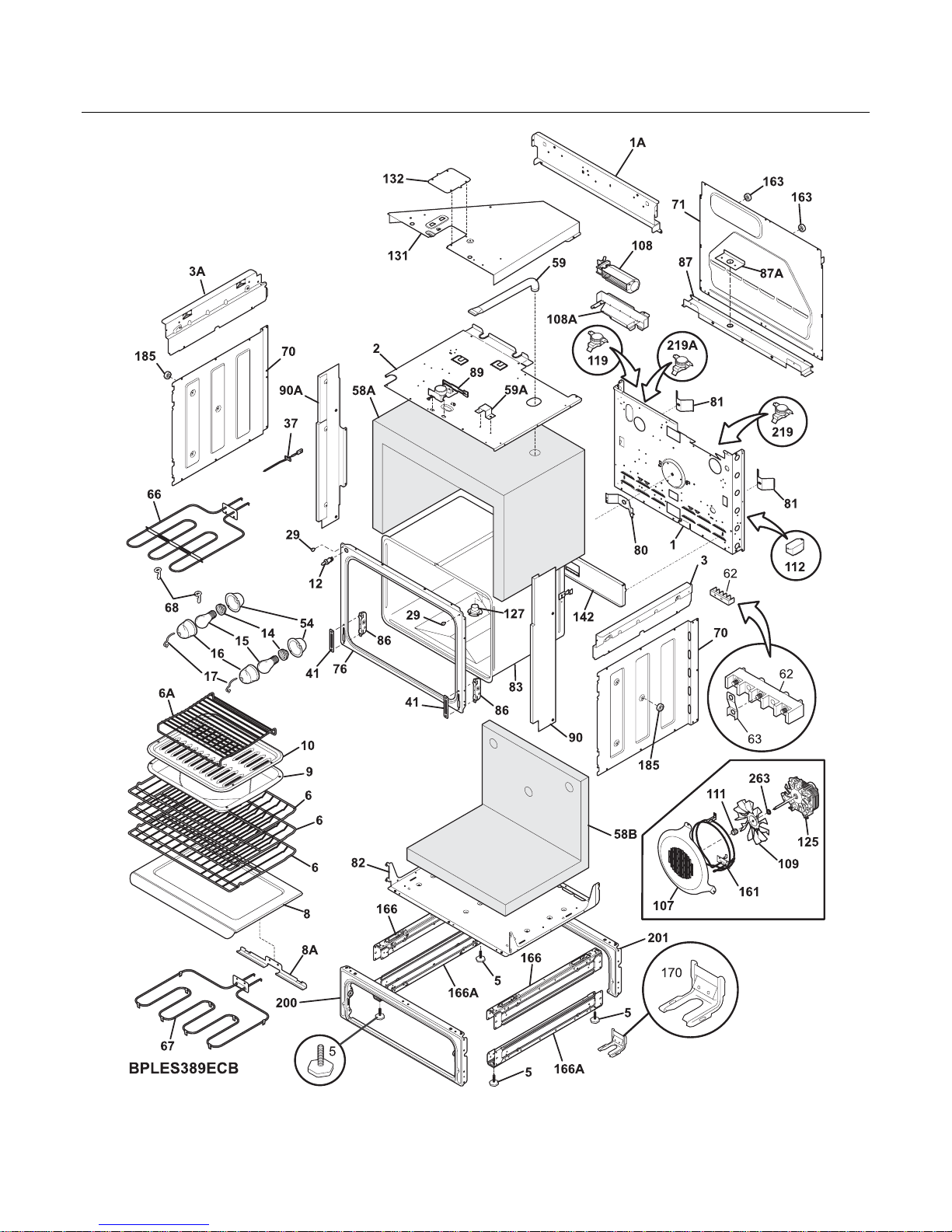

BODY
Model Index: AGLES389E (GLES389ESA)
BGLES389E (GLES389EBA)
CGLES389E (GLES389EBB)
DGLES389E (GLES389EQA)
POS. NO PART NO. DESCRIPTION
1 318259203 A B C D Back, main
1A 318225112 A B C D Panel, main back, upper
2 318258902 A B C D Shield, insulation, upper
3 318225210 A B C D Panel, bodyside, upper RH
3A 318225211 A B C D Panel, bodyside, upper LH
5 318175503 A B C D Screw, leveling
6 318262503 A B C D Rack, oven
6A 318219500 A B C D Rack, broiler pan
8 318262001 A B C D Cover, element
8A 318318600 A B C D Bracket, element, hidden bake
9 5303317977 A B C D Pan, broiler
10 5303317976 A B C D Insert, broiler pan
12 # 318089917 A B C D Switch,light
14 318224000 A B C D Receptacle, oven light
15 5303013071 A B C D Bulb/Lamp, light
16 3201911 A B C D Cover, oven light, glass
17 5304400195 A B C D Retainer, light cover
29 318147411 A B C D Bumper, (2)
37 # 316217002 A B C D Probe, oven temp
41 5303310526 A B C D Cover, hinge cutout
54 318222400 A B C D Housing, oven light
58A 318285055 A B C D Insulation, oven wrapper
58B 318285056 A B C D Insulation, oven back
59 318072560 A B C D Duct, oven vent
59A 318261600 A B C D Bracket, vent tube
62 5303935061 A B C D Terminal Block Kit
62* 5303323139 A B C D Screw, 10-24 x 0.906
62* 5303323144 A B C D Nut,10-32
63 318264200 A B C D Plate, grounding strap
66 # 318255600 A B C D Element, broil, 2750W
67 318254901 A B C D Element, bake, 3400W, 8 pass
68 5304403015 A B C D Support, hanger, (2), broil element
70 318259100 A B C D Shield, insulation, sides, (2)
71 318260007 A B C D Panel, rear box
76 318056217 A B C D Front, oven
80 5303320846 A B C D Plate, oven mtg
81 318192400 A B C D Spring, oven
82 318258708 A B C D Shield, insulation, lower
83 318261400 A B C D Liner, oven assy
86 5303310524 A B C D Receptacle, hinge
87 318260608 A B C D Bracket, cable mtg.
87A 318111804 A B C D Plate, cord set mtg
89 # 318261202 A B C D Motor, latch assy
90 318296902 A - - - Panel, filler, white, RH
90 318296904 - B C - Panel, filler, black, RH
90 318296906 - - - D Panel, filler, bisque, RH
90A 318296903 A - - - Panel, filler, white, LH

Publication No: 5995450771 GLES389E
10/05 6
BODY

GLES389E Publication No: 5995450771
# Functional Parts 7 10/05
* Non-Illustrated Parts
BODY
Model Index: AGLES389E (GLES389ESA)
BGLES389E (GLES389EBA)
CGLES389E (GLES389EBB)
DGLES389E (GLES389EQA)
POS. NO PART NO. DESCRIPTION
90A 318296905 - B C - Panel, filler, black, LH
90A 318296907 - - - D Panel, filler, bisque, LH
107 318219401 A B C D Cover, fan
108# 318073018 A B C D Motor,blower
* 318249401 A B C D Tube, protector
108A 318251300 A B C D Bracket,fan support
109 316136400 A B C D Blade, fan
111 316136600 A B C D Nut, fan retainer
112# 318112703 A B C D Relay
119# 318005212 A B C D Switch,thermal cutout
125# 316415800 A B C D Motor,fan
127 318317100 A B C D Adapter Assembly, vent tube, w/converter
131 318272900 A B C D Box, vent
132 318003000 A B C D Plate, shield
142 318123910 A B C D Deflector
161# 318255503 A B C D Element, convection, 350 W
163 318014110 A B C D Spacer, (6)
166 318298401 A B C D Bracket, base support, upper, (2)
166A 318298402 A B C D Bracket, base support, lower, (2)
170 318335500 A B C D Anti-tip & accessories
185 318165800 A B C D Spacer, (2)
200 318298201 A B C D Frame, drawer, black, front
201 318298210 A B C D Frame, drawer
219# 318003614 A B C D Thermostat, safety
219A 318003613 A B C D Thermostat, safety
263 316136500 A B C D Washer, flat
* # 318224941 A B C D Harness, wiring, main
* 318235300 A B C D Connector assy., w/3 lugs, & instructions
* 3051050 A B C D Screw, shoulder
* 3201861 A B C D Screw, 6 x 0.375, (4)
* 08016432 A B C D Screw, truss head, 8-18 x 0.375
* 5303211311 A B C D Screw, 8 x 0.500
* 5303307980 A B C D Screw, 8-32 x 0.437, (4)
* 5303323129 A B C D Screw, 8 X 0.750
* 5304415832 A B C D Screw, 8-18 x 0.406
* 5304436875 A B C D Screw, 8-18 X 1/2, black

Publication No: 5995450771 GLES389E
10/05 8
TOP/DRAWER

GLES389E Publication No: 5995450771
# Functional Parts 9 10/05
* Non-Illustrated Parts
TOP/DRAWER
Model Index: AGLES389E (GLES389ESA)
BGLES389E (GLES389EBA)
CGLES389E (GLES389EBB)
DGLES389E (GLES389EQA)
POS. NO PART NO. DESCRIPTION
1 318304401 A B C D Drawer, body assembly
1A 318300000 A B C D Panel, warmer drawer, side, (2)
1C 318300300 A B C D Panel, warmer drawer, rear
2 318303901 A B C D Panel, drawer, black, inner
4 318299901 A - - - Panel, drawer, white, front
4 318299903 - B C - Panel, drawer, black, front
4 318299902 - - - D Panel, drawer, bisque, front
13 318259501 A B C D Glide, warmer, inner RH
13A 318259500 A B C D Glide, warmer, inner LH
15B# 318198925 A B C D Element, surface, 6/9, 1200/2500W, dual radiant
15C# 316419901 A B - D Element, surface, dual, 750W/1800W, (2)
15C# 318198930 - - C - Element, surface, dual, 750/1800W, (2)
16 318223638 A - - - Main Top, glass assy., white
16 318223640 - B C - Main Top, glass assy., black
16 318223639 - - - D Main Top, glass assy., bisque
29 318147430 A B C D Bumper, (2)
39 316203001 A - - - Handle, door, white
39 316270200 - B C - Handle, door, black
39 316203003 - - - D Handle, door, bisque
46 318225410 A B C D Box, burner
51 # 318044820 A - - D Light, indicator, red
51 # 318044822 - B C - Light, indicator, clear
52B 318122010 A B C D Spring, element mtg, 1000W/2500W
52C 318122008 A B C D Spring, element mtg
60 5304448455 A B C D Screw, 10-14 x 1/2, (2), handle mtg.
81 # 318255300 A B C D Element, warmer drawer
84 # 318005105 A B C D Thermostat
85 318257600 A B C D Rack, warmer drawer
86 316095800 A B C D Clip, hold down, warmer element
87 318300100 A B C D Panel, warmer drawer, lower
95 318303800 A B C D Shield, wire
124 316105501 A B C D Glide, warmer drawer, outer/RH & LH, (2)
141# 318005211 A B C D Switch,thermal cutout
165 318227503 A B C D Plate, mounting
193 5303325173 A B C D Cap,plug
* # 318228913 A B C D Harness, wiring, cooktop
* 318163600 A B C D Cleaner, cooktop
* 5303325171 A B C D Washer, plastic
* 08016432 A B C D Screw, truss head, 8-18 x 0.375
* 5303211311 A B C D Screw, 8 x 0.500
* 5303300265 A B C D Screw, 8-18 X 1/2, (2)
* 5303311333 A B C D Screw, 8-32 x 3/8

Publication No: 5995450771 GLES389E
10/05 10
DOOR

GLES389E Publication No: 5995450771
# Functional Parts 11 10/05
* Non-Illustrated Parts

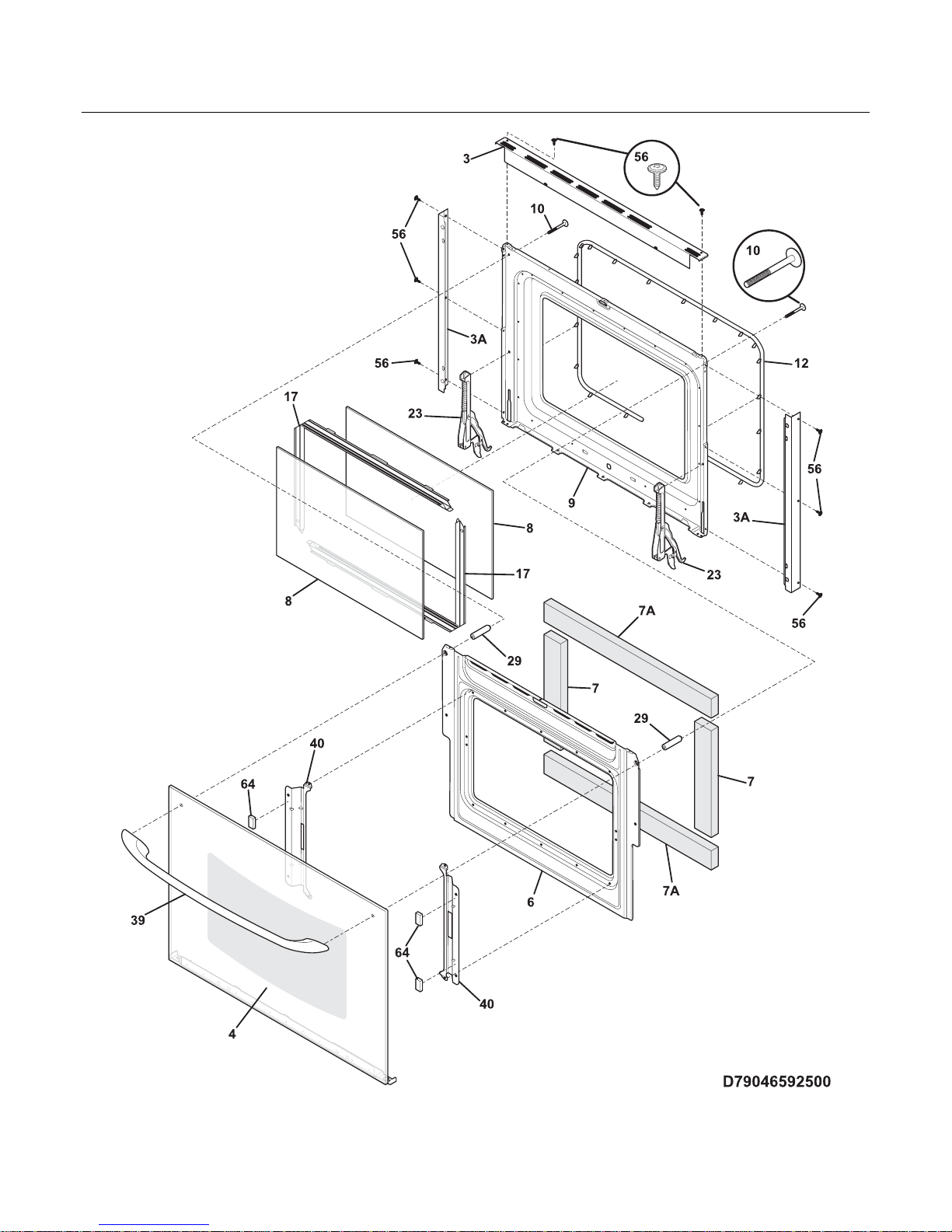

DOOR
Model Index: AGLES389E (GLES389ESA)
BGLES389E (GLES389EBA)
CGLES389E (GLES389EBB)
DGLES389E (GLES389EQA)
POS. NO PART NO. DESCRIPTION
3 318260201 A B C D Trim, oven door, black, upper
3A 318260401 A B C D Trim, oven door, side, (2)
4 318261301 A - - - Glass Assy., oven door, white, outer, w/trim
4 318261300 - B C - Glass Assy., oven door, black, outer, w/trim
4 318261302 - - - D Glass Assy., oven door, bisque, outer, w/trim
6 318260500 A B C D Baffle, door
7 318285057 A B C D Insulation, oven door
7A 318285062 A B C D Insulation, oven door
8 316117500 A B C D Glass, oven door, heat barrier
9 318259601 A B C D Liner, oven door
10 5304416408 A B C D Screw, 10-24 x 1.750, handle mtg
12 318053130 A B C D Seal, oven door
17 316402403 A B C D Spacer, door glass, (2)
23 318024722 A B C D Hinge, upper door, (2)
29 318014402 A B C D Spacer, door
39 316203001 A - - - Handle, door, white
39 316270200 - B C - Handle, door, black
39 316203003 - - - D Handle, door, bisque
40 318242700 A B C D Bracket, glass holder, (2)
56 5304436875 A B C D Screw, 8-18 X 1/2, black
64 318165800 A B C D Spacer, (2)
* 316221001 A B C D Label, anti-tip
* 5304415832 A B C D Screw, 8-18 x 0.406

Publication No: 5995450771 GLES389E
10/05 12

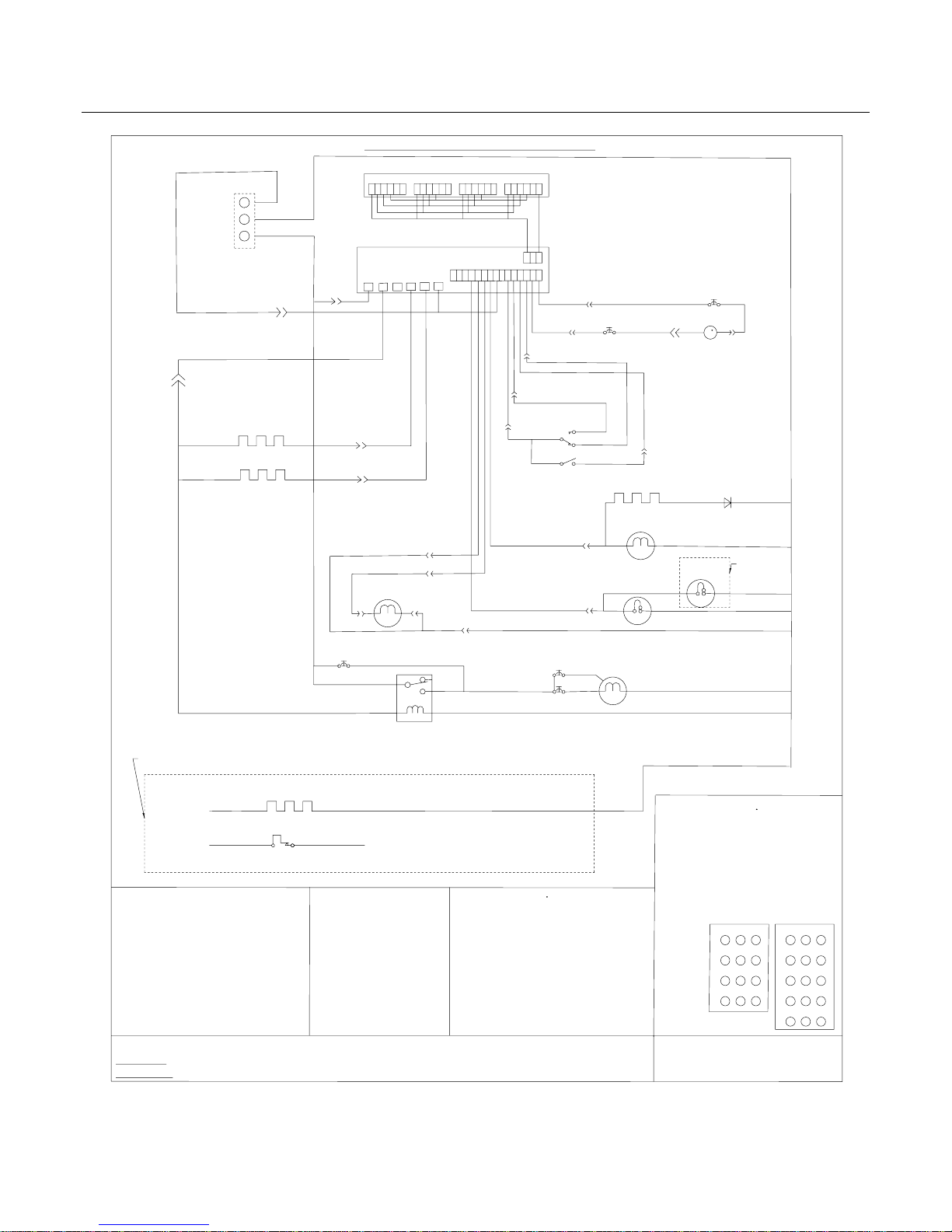

WIRING DIAGRAM
LEGEND/LEGENDE
SW. - SWITCH/INTERRUPTEUR
R.F. - RIGHT FRONT/AVANT DROIT
R.R. - RIGHT REAR/ARRIERE DROIT
L.F. - LEFT FRONT/AVANT GAUCHE
L.R. - LEFT REAR/ARRIERE GAUCHE
LIM.-LIMITOR/LIMITEUR
H.S.-HOT SURFACE/SURFACE CHAUDE
T.B.-TERMINAL BLOCK/BLOC DE
CONNECTION
CON. -CONTROL/CONTROLE ESEC 15
C.T.-COOK TOP/TABLE DE CUISSON
MDL.-MOTOR DOOR LATCH/MOTEUR PORTE VERROU
COLOR CODE/CODE DE COULEUR
G.-GREEN/VERT
W.-WHITE/BLANC
R.-RED/ROUGE
O.-ORANGE/ORANGE
Y.-YELLOW/JAUNE
BR.-BROWN/BRUN
BL.-BLUE/BLEU
BK.-BLACK/NOIR
WIRE GAUGE TEMP.C CSA UL
FIL CALIBRE
1 18 125 CL1251 3173
2 16 125 CL1251 3173
3 14 125 CL1251 3173
4 12 125 CL1251 3173
5 18 150 EXL-150 3321
6 16 150 EXL-150 3321
7 14 150 EXL-150 3321
8 12 150 EXL-150 3321
9 10 150 EXL-150 3321
10 18 200 SEW-1 3122
11 16 200 SEW-1 3122
12 12 250 3252
13 16 250 3252
14 20 150 EXL-150 3321
15 8 150 EXL-150 3321
318271927 REV:A
SHEET/FEUILLE:1/2
CAUTION: DISCONNECT POWER BEFORE SERVICING UNIT.
ATTENTION:COUPEZ L`ALIMENTATION AVANT D`EFFECTUER LA REPARATION.
T.B.
L2
N
L1
W-1
R-9
W-5
BL-2
BK-6
123456
P7
123456
P7
123456
P7
123456
P7
123
P4
6
5
43212 345
678
P5
ELECTRONIC OVEN CONTROL ES 510
COMMANDE FOUR ELECTRONIQUE ES 510
DLB IN
DLB OUT
CONV. BAKE
BROIL L1
1
BROIL ELEMENT
ELEMENT GRIL
BL-6
BL-6
BAKE ELEMENT
ELEMENT CUISSON B10 Y-2
Y-6
Y-6
B14
BR-6
BR-2
t
V-14
B3
B6
B15
CONVECTION MOTOR
MOTEUR CONVECTION
B9
B5
BR-14
B4
B11
BR-1
GY-1
BR-5
MDL
OVEN LAMP
LAMPE FOUR
BR-1
DOOR SWITCH
INTER. PORTE
B8
SW.A
MDL SW.
P8 P7 P9 P3 P2 P1
CON
C
THERMAL CIRCUIT BREAKER
DISJONCTEUR THERMIQUE
PROBE
SONDE
123
654
987
12
11
10
15
14
13
CONNECTOR
CONNECTEUR
B
BL-14
NO
NC
BR-19
BL-5
O-14
BR-10
B1
B4
BK-21
B13
R-6 R-2
BR-5
123
654
987
12
11
10
CONNECTOR
CONNECTEUR
A
V-19
WARMER ELEMENT/ELEMENT RECHAUD
WARMER DRAWER/TIROIR RECHAUD
Y-5 Y-5
W-5BR-5
TIMER
MINUTERIE
P11-1
TIMER
MINUTERIE
P11-2
LO LIMIT THM/THM BASSE LIMITE
TIMER
MINUTERIE
P11-4
OPTIONAL
FACULTATIF
V-14
V-14
BL-19
B12
O-19
BR-19
OVEN CIRCUIT // CIRCUIT DU FOUR
BK-6
BR-5
WIRE GAUGE TEMP.C CSA UL
FIL CALIBRE
16 8 60
17 10 60
18 10 200 SEW-1 3122
19 20 125 SEW-1 3173
20 20 200 SEW-1 3122
21 22 125 CL-1252 3266
22 22 150 10109
BR-10
COOLING RELAY
RELAIS VENTILATEUR
FAN HOLD THERMOSTAT
THERMOSTAT DE MAINTIEN
DU VENTILATEUR
LOW SPEED
BASSE VITESSE
HIGH SPEED
HAUTE VITESSE
BK-5
R-5 R-5
BK-5 W-5
BR-5
R-5
CNO
NC
W-5
R-5R-5
CONVECTION ELEMENT
ELEMENT CONVECTION
O-5 O-5
O-5
OVEN LAMP
LAMPE FOUR
W-5
BK-5
OPTION
FACULTATIF
DIODE
DIODE
MR754
BK-1
BK-9
V-19
THERMAL CIRCUIT BREAKER
DISJONCTEUR THERMIQUE

GLES389E Publication No: 5995450771
# Functional Parts 13 10/05
* Non-Illustrated Parts
WIRING DIAGRAM
