Frigidaire FGHF2344MF User manual

frigidaire.com
Signature Features
23 Cu. Ft. Counter-Depth
Product Dimensions
Height 69-3/8"
(Including Hinges & Rollers)
Width (Doors) 36"
Depth (Including Door) 28-1/4"
More Easy-To-Use Features
Eortless™ Glide Crisper Drawers
Keep your fruits and vegetables fresh in
our crisper drawers which easily glide out,
and are designed to effortlessly close.
Eortless™ Glide Freezer Drawers
Drawers glide out smoothly and fully
extend, giving you easy access to what’s
inside.
Store-More™ Bins
Our gallon-size bins are designed to store
more, so you can fit a gallon of milk.
SpillSafe® Glass Shelves
SpillSafe® glass shelves slide out for easy
access and are designed to keep spills
contained, making cleanup a breeze.
PureAir Ultra® Filters
Our PureAir Ultra® air filters effortlessly
keep the air in your refrigerator fresh.
Energy Saver Plus Technology
Express-Select® Controls On Ice
and Water Dispenser
Easily select options with the touch of
a button.
Designer Lighting
Beautiful, ramp-up lighting keeps contents
clearly visible.
Quiet Design
Sound reduction package.
ENERGY STAR®
Sabbath Mode (Star-K® Certified)
Available in:
1As compared to other consumer refrigeration water
filtration systems.
Store-More™ Full-Width Drawer
A large capacity Cool Zone™ drawer
provides enough space to easily store
anything from sheet cakes and large
platters to snacks and juice boxes.
Fits-More™ Capacity
Our Fits-More™ French Door Refrigerator
offers our most usable space inside, same
space on the outside, so you can easily
find a place for everything.
SpaceWise®
Organization System
Makes it easy to keep food organized
and easy to find when you need it
with a Store-More™ full-width drawer,
gallon-size door bins, and Effortless™
Glide freezer drawers.
Best-in-Class Ice &
Water Filtration1
PureSource Ultra® Water Filtration
offers best-in-class water filtration
so you get cleaner, fresher ice and
water for your family.
French Door Refrigerators
FGHF2344M F / P / E
Stainless
(F)
Pearl
(P)
Ebony
(E)

Specifications
subject to change.
Features
Door Design
Door Handle Design
Cabinet Finish
Door Stops / Door Closers
Door Hinge Covers
Rollers – Front / Rear
Energy Saver Plus Technology
Water Filter Location
Sound Package
Dispenser
Controls
Dispenser Design
Number of Dispenser Buttons
Crushed Ice / Cube Ice / Chilled Water
Ice Option / Freeze Option
Display On / O Option
Lock / Light
Temp / Door Ajar / Power Failure Alerts
Water Filter Change Indicator Light
Air Filter Change Indicator Light
Refrigerator Features
Lighting
Water Filter Type
Air Filter Type
Fixed Shelves
Quarter-Width Sliding Shelves
Half-Width Sliding Shelves
Cantilever Shelves
Store-More™ Full-Width Drawer
Hanging Wine Rack
Hanging Can Dispenser
Crisper Drawer
Humidity Controls
Dairy Compartment
Store-More™ Fixed Door Bins
Fixed Door Bins
Adjustable Door Bins / Dispenser Bin
Non-Slip Bin Liner / Bottle Retainers
Freezer Features
Self-Closing Pull-Out Drawer
Sliding Full-Width Freezer Baskets
Basket Dividers
Lighting
Certifications
Sabbath Mode (Star-K® Certified)
ENERGY STAR®
Specifications
Total Capacity (Cu. Ft.)
Refrigerator Capacity (Cu. Ft.)
Freezer Capacity (Cu. Ft.)
Power Supply Connection Location
Water Inlet Connection Location
Voltage Rating
Connected Load (kW rating)
@ 120 Volts1
Amps @ 120 Volts
Minimum Circuit Required (Amps)
Shipping Weight (Approx.)
1For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded for
safe operation.
Counter-Depth French Door Refrigerators
Frigidaire Gallery
Accessories information available
on the web at frigidaire.com

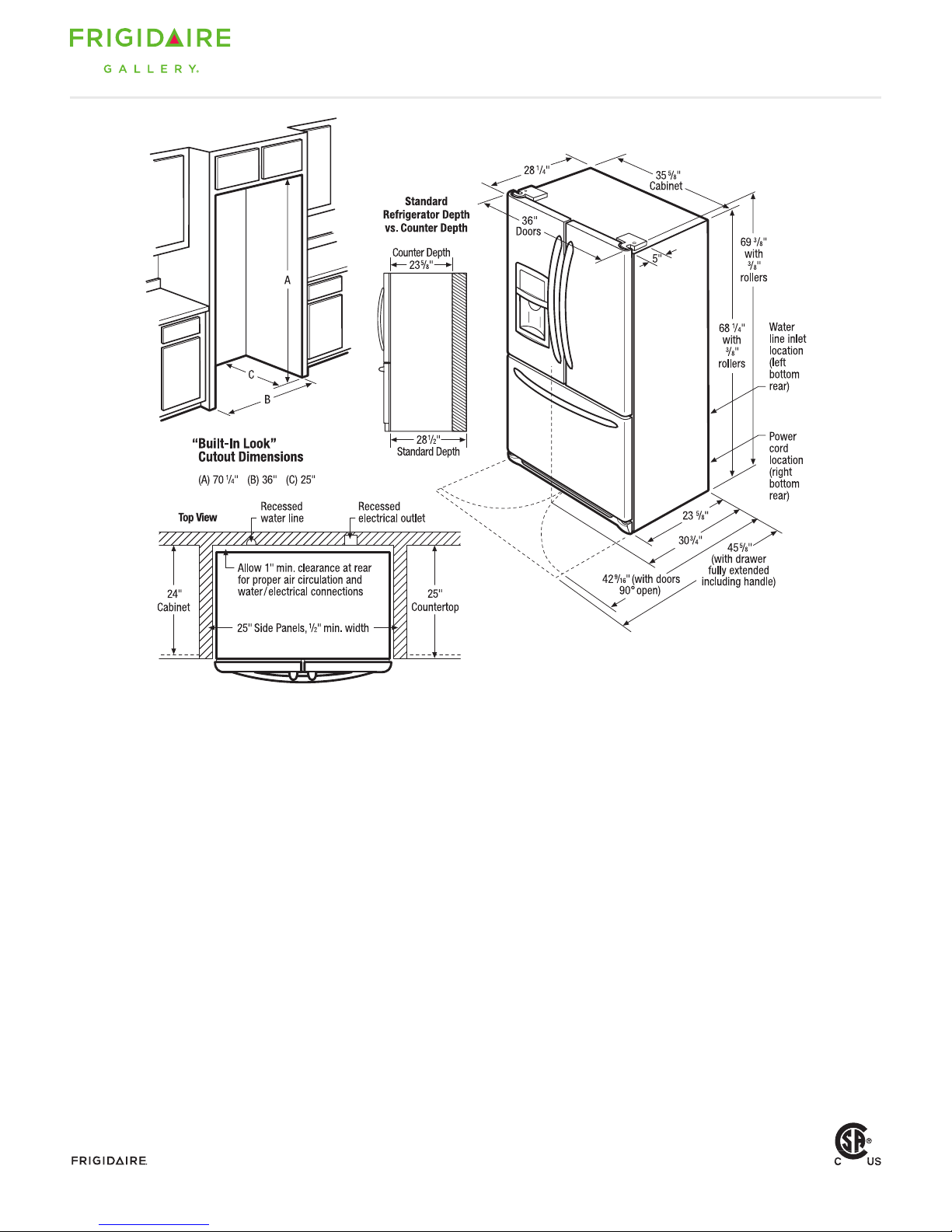

Product Dimensions
A - Height (Incl. Hinges & Rollers)
B - Cabinet Width / Door Width
C - Depth (Incl. Door)
Depth with Door Open 90˚
Depth with Drawer Fully
Extended (Incl. Handle)
69-3/8"
35-5/8" / 36"
28-1/4"
42-9/16"
45-5/8"
"Built-In Look" Cutout Dimensions
Height (Incl. Hinges and Rollers)
Width
Depth
70-1/4"
36"
25"
NOTE: For planning purposes only. Always consult local and national electric and plumbing codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.
Soft-Arc Doors
Stainless Steel (F),
Color-Coordinated (P / E)
Grey (F),
Color-Coordinated (P / E)
Yes / Yes
Hidden
Adjustable / Yes
Yes
Top-Right Fresh
Food Section
Quiet Pack
Express-Select®
Tall, Single-Paddle
8
Yes / Yes / Yes
Yes
Yes / Yes
Yes
Designer
PureSource Ultra®
1 SpillSafe®
3 SpillSafe®
Yes
1 Cool Zone™
2 Clear
2
1 Clear
2 White (1 per door)
1 Half-Gallon / 2-Liter Clear
1 Two-Gallon Clear / 1 Clear
No / 1
Yes
2 Eortless™ Glide
1 (Bottom Basket)
Yes
Yes
Yes
22.6
15.70
6.90
Right Bottom Rear
Left Bottom Rear
120V / 60Hz / 15 or 20A
1.02
8.5
15
350 Lbs.
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
FGHF2344M 04/11 © 2011 Electrolux Home Products, Inc. Printed in the U.S.A.
French Door Refrigerators
FGHF2344M F / P / E 23 Cu. Ft. Counter-Depth

Specifications
subject to change.
French Door Refrigerator Specifications
•Product Shipping Weight (approx.) – 350 Lbs.
•An electrical supply with grounded three-prong receptacle is
required. The power supply circuit must be installed in accordance
with current edition of National Electrical Code (NFPA 70) and
local codes & ordinances.
•Voltage Rating – 120V / 60 Hz / 15 or 20 Amps
•Connected Load (kW Rating) @ 120 Volts = 1.02 kW
•Amps @ 120 Volts = 8.5 Amps
•Always consult local and national electric & plumbing codes.
•Floor should be level surface of hard material, capable of supporting
fully loaded refrigerator.
•When installing refrigerator adjacent to wall, cabinet or other appliance
that extends beyond front edge of unit, 20" minimum clearance
recommended to allow for optimum 120° to 180° door swing, providing
complete drawer / crisper access and removal. (Absolute 4-1/2"
minimum clearance will ONLY allow for 90° door swing which will
provide drawer / crisper access with restricted removal.)
•To ensure optimum performance, avoid installing in direct sunlight or
close proximity to range, dishwasher or other heat source.
•For proper ventilation, front grille MUST remain unobstructed.
•Recess electrical outlet when possible.
•Water recess on rear wall recommended to prevent water line damage.
•Water Pressure – Cold water line must provide between 30 and 100
pounds per square inch (psi).
•Copper tubing with 1/4" O.D. recommended for water supply line
with length equal to distance from rear of unit to household water
supply line plus 7 additional feet. Optional Water Supply Installation
Kits available.
•Adjustable front rollers to assist with door alignment.
“Built-In Look” Specifications
•Minimum opening of 70-1/4" H x 36" W x 25" D required to allow for
ease of installation, proper air circulation, and plumbing / electrical
connections.
•Remove all wall / floor molding prior to installation.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
Counter-Depth French Door Refrigerators
(23 Cu.Ft.) with Dispenser
Frigidaire Gallery
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
FGHF2344M 02/11 © 2011 Electrolux Home Products, Inc. Printed in the U.S.A.
French Door Refrigerators
FGHF2344M F / P / E 23 Cu. Ft. Counter-Depth
