Frigidaire FRS23BH6C User manual

N58L00001.eps N58FCCBBB2.eps N58RCCBBB9.eps N58BAAAAB1.eps
N58SKBEBE1.eps N58TAAAAB3.eps N58CAAAAC0.eps N58XBAAAB0.eps
N58YAAAAA0.eps N58I115.eps W241526901A.eps S241526901A.eps
Product No. FRS23BH6CS2
Series R134a
Color stain/blk
Volts 115

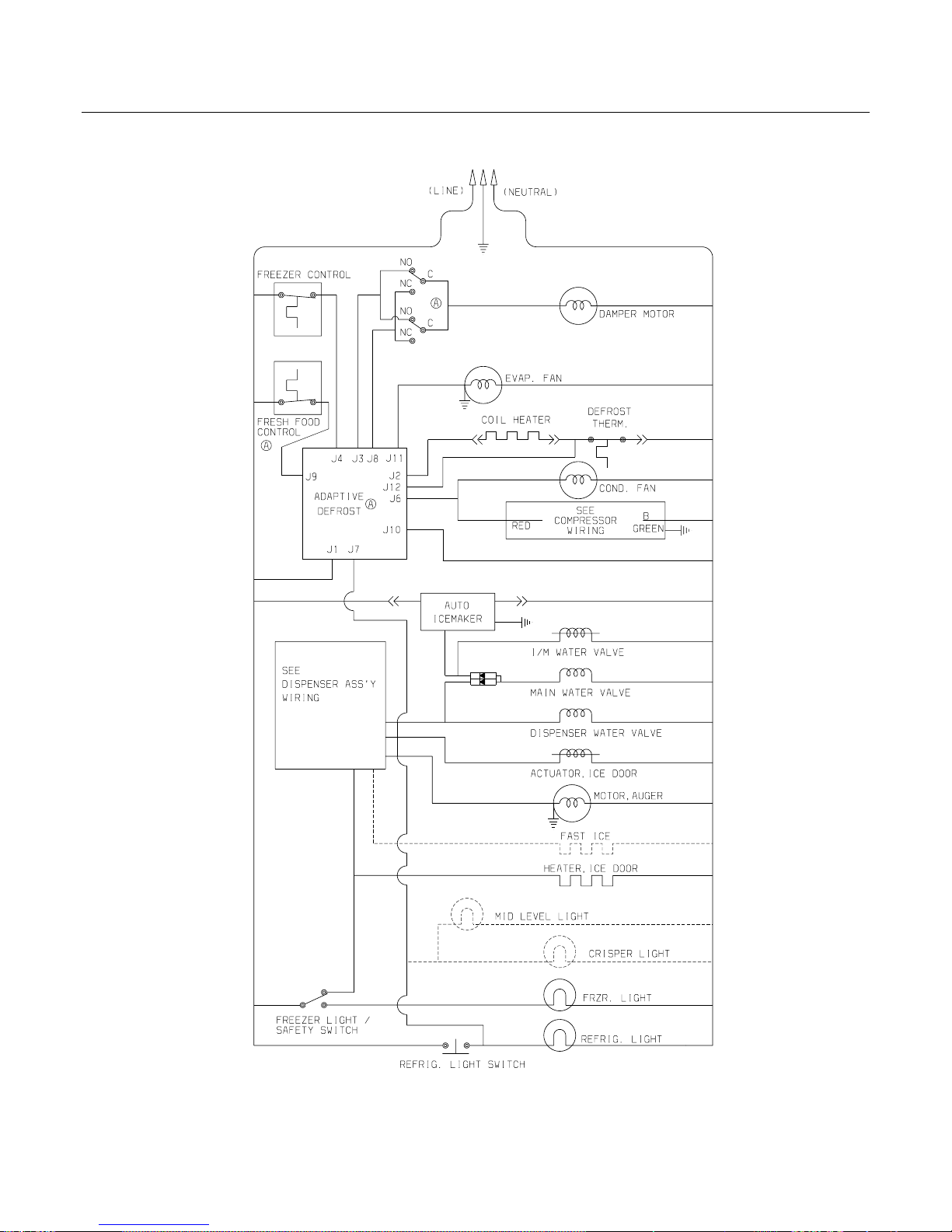

Wiring Diagram 241526901
Owner's Guide 240389311
Market North America
Energy Guide 240592237
Service Data Sheet 240389616
ELECTROLUX HOME PRODUCTS, INC.
P.O. Box 212378, Augusta, GA 30917
Publication No.
5995405353
04/03/05
(EN/SERVICE/DCS)
357
SIDE-BY-SIDE
REFRIGERATOR
Model No.
FRS23BH6C
Copyright ©2004 Home Pr oducts, Inc.
All rights reserved.

Publication No: 5995405353 FRS23BH6CS2
03/04 2

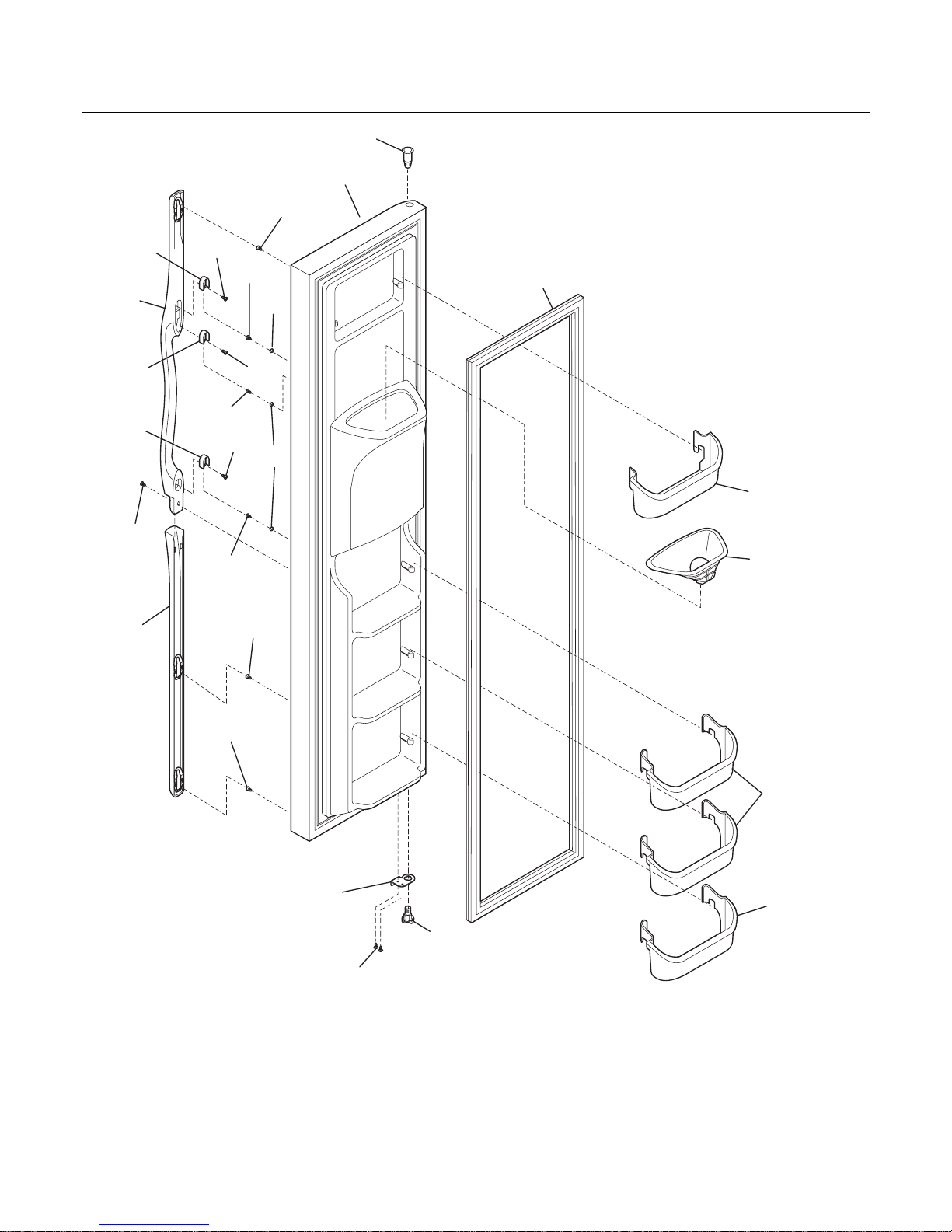

FREEZER DOOR
21C
21
21
21
21C
21C
21
74
74
74
72
72
73
73
73
18
37
22C
11
1
4A
68
4B
4B
13A
22A
21A
N58FCCBBB2

FRS23BH6CS2 Publication No: 5995405353
# Functional Parts 3 03/04
* Non-Ilustrated Parts
FREEZER DOOR
POS. NO PART NO. DESCRIPTION
1 # 240390608 Gasket-frzr door, black, magnetic
4A 240367301 Bin-door, frzr-upper
4B 240359001 Bin-door
11 240554224 Door-frzr, stainless steel, complete assy
13A 240581906 Door Stop, black, frzr
18 240359108 Handle-door, black, LH
21 218781100 Screw, pan head, 8-18 x 0.625
21A 240598401 Screw, 10-32 x 1/2
21C 240521302 Screw, #8-18 x 3/4
22A 240328204 Bearing-hinge, closer
22C 240328404 Bearing-hinge, black, upper
37 240359203 Trim-handle, 30.13", black, lower
68 241525101 Chute-ice
72 240421701 Button-handle mtg, dovetail
73 218396700 Block-handle mtg, dovetail
74 215503200 Screw, cr pan hd, 10-16 x 0.500
* 218490900 Cleaner, stainless steel
* 240352102 Connector-water, straight
* 240552102 Harness-wiring, door
* 5303918256 Dispenser heater kit

Publication No: 5995405353 FRS23BH6CS2
03/04 4
REFRIGERATOR DOOR

FRS23BH6CS2 Publication No: 5995405353
# Functional Parts 5 03/04
* Non-Ilustrated Parts
REFRIGERATOR DOOR
POS. NO PART NO. DESCRIPTION
2 # 240390607 Gasket-refr door, black, magnetic
4 240363702 Bin-door, 2-liter
7 240338303 Door, dairy, clear
12 240449707 Nameplate, black
13 240581905 Door Stop, black, ref
15 240451940 Door-refr, stainless steel, complete assy
18 240359103 Handle-door, black, RH
21 218781100 Screw, pan head, 8-18 x 0.625
21A 240598401 Screw, 10-32 x 1/2
21C 240521302 Screw, #8-18 x 3/4
22 240328203 Bearing-hinge, closer
22B 240328404 Bearing-hinge, black, upper
37 240359203 Trim-handle, 30.13", black, lower
49 240324502 Bin-door, gallon
72 240421701 Button-handle mtg, dovetail
73 218396700 Block-handle mtg, dovetail
74 215503200 Screw, cr pan hd, 10-16 x 0.500
* 218490900 Cleaner, stainless steel

Publication No: 5995405353 FRS23BH6CS2
03/04 6
CABINET
58
58
40 66
40
92
92
38
38
37
37
14A
14
91
41
100
89
83
82
43
21C
21C
28
42
42
23
22
23
22
30A
30
72
10A
N58BAAAAB1
10
90
11
45
45
150
81
81
81
47

FRS23BH6CS2 Publication No: 5995405353
# Functional Parts 7 03/04
* Non-Ilustrated Parts
CABINET
POS. NO PART NO. DESCRIPTION
10 240435905 Cover-air duct
10A 240475906 Cover-evap coil, lower
11 5303208309 Plug-hole, factory test
14 # 240505801 Switch, light/lamp
14A# 215486600 Switch-light/lamp
21C 218252200 Screw, #8 truss hd, 10-32CA x 0.500
22 240457701 Plate-door closer
23 240402701 Screw-#10-32 x 1/4 flat hd
28 240335501 Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special
30 240419103 Bracket-lower hinge, ref
30A 240419104 Bracket-lower hinge
37 240337603 Trim-cabinet corner, black, (2)
38 240327202 Bracket-upper hinge
40 240327007 Cover-upper hinge, black
41 240358701 Grommet-shelf mtg, 1.40" long
41* 240358801 Grommet-shelf mtg, .875" long
42 240578901 Screw-hinge mtg, hex head, 1/4-20 x 5/8
43 240335003 Roller Assy, front, (2)
45 241500301 Screw, hex washer head, 8-18AB x 0.500
47 240349402 Channel-shelf mtg, side, (2)
58 218781100 Screw, pan head, 8-18 x 0.625
66 5304424968 Damper Cover Assy
72 240324405 Grille/Kickplate, black
81 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile
82 5304418225 Roller, compressor base, rear, (2)
83 5303316859 Rivet, flat head, 1/4 OD x 1-3/4, roller pin
89 240326103 Cover, access, system compt, with label
90 218249807 Seal-coil cover
91 240380101 Duct-ice maker
92 216850900 Screw, hex washer hd, 1/4 x 7/8, hinge mtg
100 240423701 Support, crisper cover, front, (4)
100* 240350802 Support, crisper cover, rear, (4)
150 240368701 Guide-control bulb
* 240396801 Clamp, tube/wiring, nylon, black/natural
* 240479601 Plug, button, cab liner holes, (2)
* 240481601 Shim-lower hinge
* 5303305345 Paint, touch-up, black

Publication No: 5995405353 FRS23BH6CS2
03/04 8

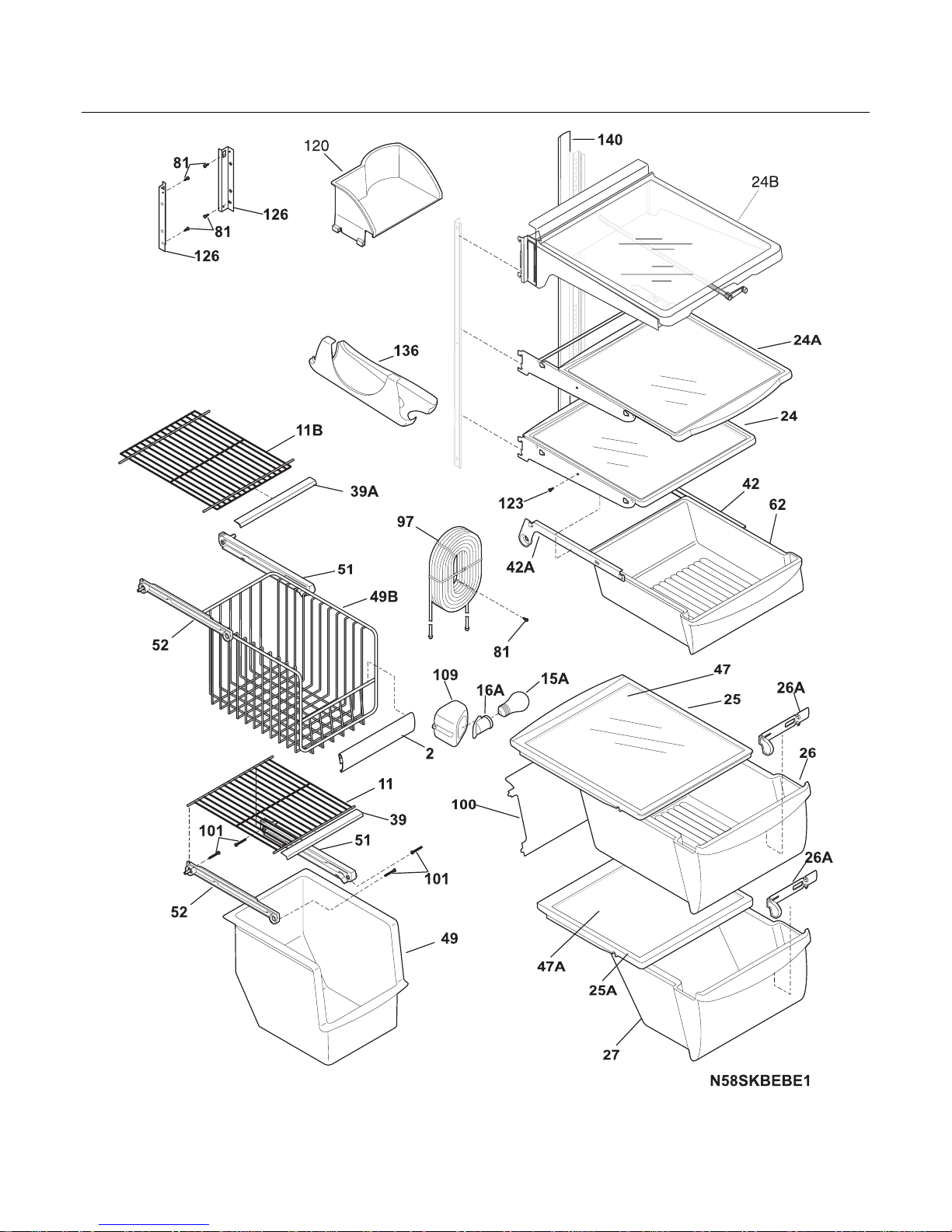

SHELVES

FRS23BH6CS2 Publication No: 5995405353
# Functional Parts 9 03/04
* Non-Ilustrated Parts
SHELVES
POS. NO PART NO. DESCRIPTION
2 241510603 Trim-basket
11 240338801 Shelf-freezer, flip-up
11B 240338703 Shelf-freezer, fixed wire
15A 240436702 Light Bulb/Lamp, A-15, clear, 40 W, 120 V, miniature
16A 241513901 Socket-light
16A* 241537602 Harness-wiring
24 240355201 Shelf-"Spill-Safe", fixed, (1)
24A 240350103 Shelf-"Spill-Safe", sliding, (2)
24B 240424603 Shelf-"Spill-Safe", sliding, "Aspect", complete
25 240354502 Cover-crisper pan, upper
25* 240362101 Clip-slide, cover-crisper
25A 240354602 Cover-crisper pan, lower
26 240354705 Pan-crisper, upper
26* 240349801 Clip-slide, pan-crisper
26A 240351101 Control-humidity
27 240354805 Pan-crisper, lower
39 240430705 Trim-shelf, front
39A 240430701 Trim-shelf, front
42 240356501 Track, meat pan hanger, RH
42A 240349701 Hanger-meat pan, LH
42A* 240349901 Block-meat pan rail, LH
42A* 240350001 Spring-meat pan rail
47 240350613 Insert-pan cover, glass
47A 240350614 Insert-pan cover, glass
49 240564301 Basket-sliding
49B 240530503 Basket-sliding, upper, full
51 240343002 Hanger-basket, RH
52 240343102 Hanger-basket, LH
62 240355505 Pan-meat
81 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile
97 240545303 Water Tank Assy, coiled tubing, front filter
100 240326301 Cover-water tank
101 218493100 Screw, hex washer head, 8-18AB x 1-3/4
109 240351301 Base-crisper light socket
120 240342902 Shelf-ice cream
123 215005100 Screw, hanger/rlr mtg, 8-10 x 0.438
126 218867405 Channel, auger mtg, LH
126 218867406 Channel, auger mtg, RH
136 240424502 Dispenser-can, clear
140 240430501 Channel, wtr tube cover
* 240592237 Energy Guide

Publication No: 5995405353 FRS23BH6CS2
03/04 10
CONTROLS

FRS23BH6CS2 Publication No: 5995405353
# Functional Parts 11 03/04
* Non-Ilustrated Parts
CONTROLS
POS. NO PART NO. DESCRIPTION
5 # 5308000010 Fan Blade, red, evaporator fan
8 5300157666 Bushing-motor mtg, (2)
9 5303292396 Bracket-motor mtg, front
13 # 240369701 Motor-evap fan
13* 215474201 Washer, "slinger", nylon, evap fan shaft
14 5303292397 Bracket-motor mtg, rear
15 240436702 Light Bulb/Lamp, A-15, clear, 40 W, 120 V, miniature
16 241513901 Socket-light
17 240374901 Box-control, front
17* 241537801 Harness-wiring, control box
18 240360801 Knob, temp control
21# 241507701 Control-temperature
21A 5304421067 Control-temperature, frzr section
22 218660702 Tube-insulator
23 # 241508001 Control-defrost, adaptive timer, PC board
23* 5303001259 Screw-timer mtg, pan hd, 6-20 x 0.438, (2)
45 5303001343 Screw, hex washer head, 8-15A x 0.500
53 240369501 Box-control
81 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile
101 218493100 Screw, hex washer head, 8-18AB x 1-3/4
115 241546902 Damper Assy, w/seal
137 240396401 Filter, water, front, cassette
137* 240396701 Bypass, water filter, Optional Part
138 240397301 Button-filter release
139 240396001 Base-water filter
139* 240526901 O-ring, wtr filter base
149 240331607 Shroud-fan orfice
150 240394203 Insulation-water tube cover
151 240373805 Cover-water tube
198 240397401 Retainer
199 240397501 Rod
199* 240398401 Spring-filter release rod
200 240397601 Light Pipe
201 240398501 Label-control box
* 240427201 Heater-freezer control

Publication No: 5995405353 FRS23BH6CS2
03/04 12
SYSTEM

FRS23BH6CS2 Publication No: 5995405353
# Functional Parts 13 03/04
* Non-Ilustrated Parts
SYSTEM
POS. NO PART NO. DESCRIPTION
1 240333602 Condenser
3 218679606 Block-evap coil, styrofoam, (2)
4 # 218944001 Drier-filter, R134a System
6 240346402 Harness-wiring, machine compt
6* 240449601 Harness-wiring
6* 241537801 Harness-wiring, control box
14 # 5303918253 Defrost Heater Kit
15 # 5303918286 Evaporator Kit
16 5308000110 Strap-evap/heater, aluminum, (2)
21 5303918214 Thermostat-defrost, kit
22 240330007 Base-compressor mtg
22* 218252200 Screw, #8 truss hd, 10-32CA x 0.500
23 218513300 Grommet-compr mtg, (4)
25 240491501 Screw-compressor mtg, 1/4-28 x 1.16, shoulder, typ CF
26 240332602 Pan-defrost drain
29 # 5303918299 Compressor, w/electricals
30 # 241527802 Starter
32 241527901 Clamp, elec cont mtg, compressor
34 240405201 Grommet, rubber, black, cond tube/wire
41 240555001 Screw-#8-32 X 3/8
44 215174700 Clamp-service cord, strain relief, galv steel
45 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile
55 218909915 Capacitor-run, 220 VAC, 15 microfarad
57 240542601 Clip-wiring harness
58 240569201 Screw, 8-18 x 0.500
59 240315501 Shroud-cond fan
59* 240346701 Tape-foam seal, shroud
59* 240359401 Screw-fan shroud, (2)
59A 240346501 Bracket-support, cond mtr, (3)
59B 240346601 Grommet-bracket, (3)
60 # 241537901 Motor-condenser fan
60* 240569501 Screw, 8-18 X 1 3/4, (2)
61 241536201 Blade-condenser fan
61B 240564001 Bracket-support, cond mtr, (3)
62 240429401 Trough-drain
70 218990801 Bracket-evap/cvr mtg
82 5304418225 Roller, compressor base, rear, (2)
83 5303316859 Rivet, flat head, 1/4 OD x 1-3/4, roller pin
84 5304421068 Tube-drain, lower
85 240553501 Tube-connector, suction
86 240409302 Spacer-cond tube, black
* 5303918222 Hot Tube Repair Kit, Service
* # 5303918213 Heat Exchanger Kit, suction line

Publication No: 5995405353 FRS23BH6CS2
03/04 14
ICE & WATER DISPENSER

FRS23BH6CS2 Publication No: 5995405353
# Functional Parts 15 03/04
* Non-Ilustrated Parts
ICE & WATER DISPENSER
POS. NO PART NO. DESCRIPTION
1 218976409 Tube-water
1* 218976901 Tube-water inlet, inlet valve, to ice maker
1* 218976903 Tube-water inlet, inlet valve, to filter
1* 218976907 Tube-water inlet, valve to door
4 5304422012 Cover-module, black
8 5304422013 Module-dispenser
10 5304426649 Spring-torsion
14 240323952 Label-module cover, black
15 5304421616 Light Bulb
16 215284900 Socket-light/lamp
17 5304421619 Screw
23 240323603 Drip Tray, black
24 5304422026 Actuator-water, black
24A 5304422025 Actuator-ice, black
30 5304421628 Door Assy-ice chute
30A 5304421624 Door center
30B 5304421625 Insulation-door
30C 5304421629 Door seal
35 5304421620 Damper-rotary
36 5304421824 Carrier
38 5304431764 PC Board-power
38A# 5304421617 Switch-micro, single pole, double throw
38C 5304432170 Board-control
38C* 5304430811 Harness-ribbon cable
39 5304421627 Pin-hinge
41 5304421829 Spring-actuator
43 215296300 Screw, plask h/l, #6 x 3/8
43* 240363401 Screw-#8-18 X 1/2, #6 hd plask
56 5304421830 Screw-micro switch, pan head
87 5304421622 Bearing Plate
87A 5304421621 Bearing Plate
88 5304421615 Shield-light
90 5304421831 Light Pipe, reflector
91 5304421850 Light Pipe, reflector, short
* 5304426535 Insulator-electrical
* 5303918256 Dispenser heater kit

Publication No: 5995405353 FRS23BH6CS2
03/04 16

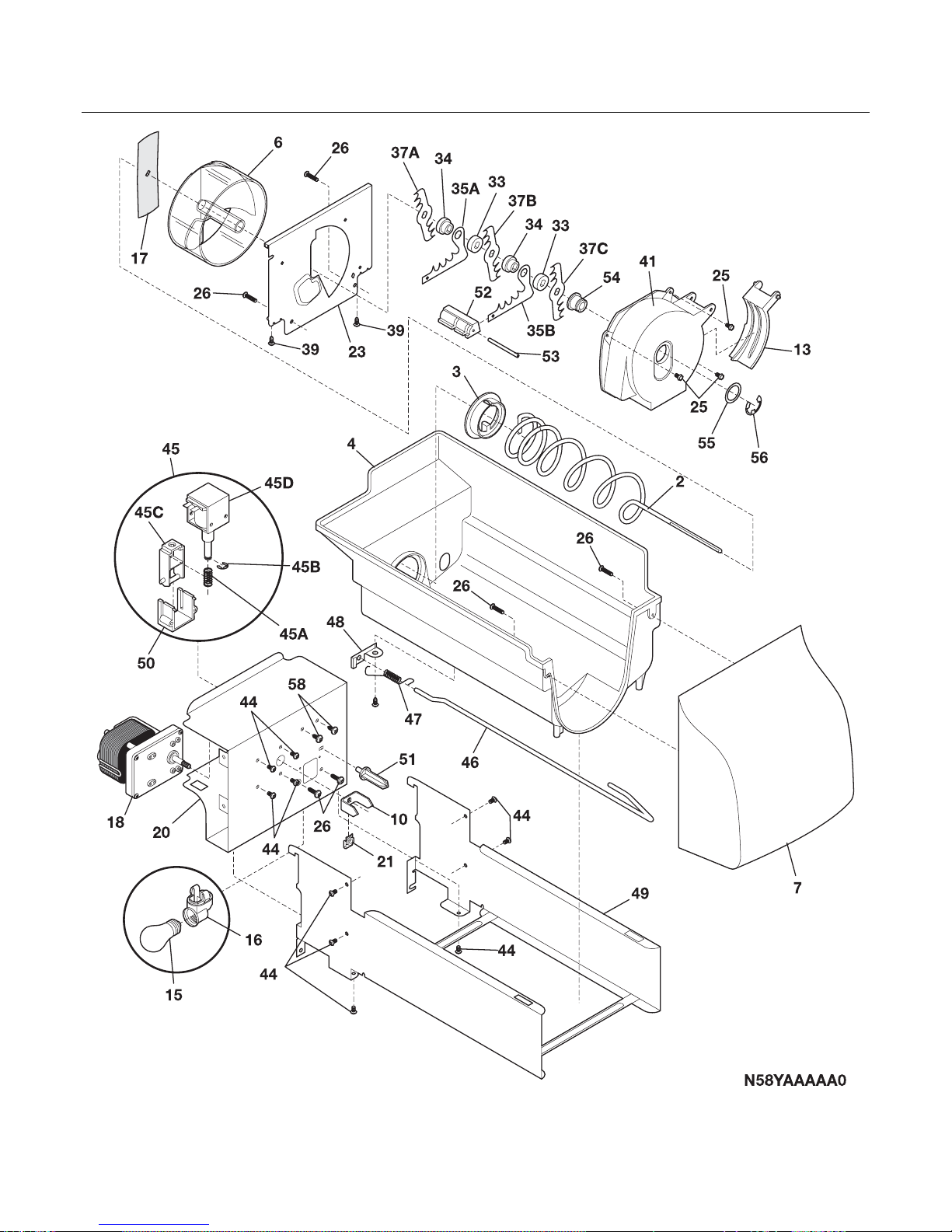

ICE CONTAINER

FRS23BH6CS2 Publication No: 5995405353
# Functional Parts 17 03/04
* Non-Ilustrated Parts
ICE CONTAINER
POS. NO PART NO. DESCRIPTION
2 5304428402 Auger-ice
3 5304404343 Cam-drive
4 218815300 Container-ice, bucket only
6 5304404346 Drum-ice disp
7 5304422805 Front-ice container
10 5304404337 Bar-drive
13 5304404359 Gate
15 5303001179 Light Bulb/Lamp, 40 W
16 5303289050 Socket-light/lamp
17 5304404345 Drive Blade
18 # 241551501 Motor-auger
18* 5304404335 Wiring Harness, auger motor
20 5304404332 Cover-motor
21 215285100 Nut-drive
23 5304404347 Plate-front
25 5304404362 Screw, hex washer head, 8-32T x 0.375
26 215503200 Screw, cr pan hd, 10-16 x 0.500
33 5304404351 Spacer
34 5304404349 Spacer
35A 5304404353 Fixed Blade, round
35B 5304404352 Fixed Blade, square
37A 5304404348 Blade, crusher #1
37B 5304404350 Blade, crusher #2
37C 5304404356 Blade, crusher #3
39 5304404365 Screw
41 5304404358 Housing-crusher
44 218359200 Screw, pan head, 8-32 x 0.250
45 # 5304404333 Solenoid Assy
45A 5304406816 Spring-solenoid
45B 5304406817 E-Ring-solenoid
45C 5304406818 Actuator-solenoid
45D 5304406819 Solenoid
46 5304404341 Control Rod
47 5304404342 Spring-control rod
48 5304404340 Bracket-control rod
48* 5304404364 Screw-bracket
49 5304404880 Rail Assy
50 5304404334 Guide-solenoid
51 5304404336 Rotation Stop
52 5304404354 Spacer-fixed blades
53 5304404355 Pin-spiral, fixed blades
54 5304404357 Nut-auger
55 5304404360 Washer
56 5304404361 E-ring
58 5304404331 Screw-solenoid
* 240323806 Ice Container Assy, w/moving parts

Publication No: 5995405353 FRS23BH6CS2
03/04 18
ICE MAKER

FRS23BH6CS2 Publication No: 5995405353
# Functional Parts 19 03/04
* Non-Ilustrated Parts
ICE MAKER
POS. NO PART NO. DESCRIPTION
1 218976409 Tube-water
1* 218976901 Tube-water inlet, inlet valve, to ice maker
1* 218976903 Tube-water inlet, inlet valve, to filter
1* 218976907 Tube-water inlet, valve to door
1* 240561701 Seal-water inlet, inlet valve, to ice maker
2 5304420650 Spring, shut-off arm
3 3206299 Label, ID plate
4 3206301 Gear
5 3206303 Plate-mounting
6 3206305 Screw-ground wire, 8-32 x 0.250
7 # 3206306 Motor-ice maker
8 3206312 Spacer-hold switch
9 3206313 Cam
10 3206315 Clamp
11 # 3206319 Thermal Cutoff, ICE MAKER, complete assy
12 # 240352601 Wiring Harness, ICE MAKER, internal, with plug
13 # 3206322 Thermostat Assy, ICE MAKER
14 5304420652 Screw, 4 x 0.750, switch mtg.
15 # 3206324 Switch, (3)
16 5304420653 Support, phenolic
17 # 5303320545 Mold-ice maker, Radius Cube, with heater
18 3206328 Ejector-ice
19 3206330 Bearing & Inlet
20 5304408581 Screw, 8-32 x 0.375
21 3206332 Ice Stripper
22 3206333 Shut-off Arm
23 5304408582 Screw, 8-32 x 0.875, mold-to-support, (3)
24 3206335 Lever Arm
25 3206336 Screw, 8-18 x 0.562, lever arm/sprt
26 5304420654 Screw-thermo/sprt, 4-24 x 0.375, (4)
27 3206338 Screw, 4-40 x 1.000, hold switch mtg, (2)
28 3206339 Screw-timing stop, 4-40 x 0.375
29 3206323 Screw, 4-24 x 0.750, (6)
30 3206341 Screw-timing adj, 8-32 x 1.000
31 3206342 Insulator
32 3206343 Plate-valve switch
33 5304408583 Spring-timing adj
34 5304420655 Screw, plazscrew, 8-10, (3)
35 5304408585 Screw
36 3206347 Cover-ice maker
42 5303001199 Clamp-wiring harness, strain relief, galv steel
42* 218515402 Clip, (2), tube mtg.
45 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile
45* 5303001343 Screw, hex washer head, 8-15A x 0.500
46 5303001193 Clamp, .50 ID, steel, water tube
46* 5308000133 Clamp, nylon, .625 ID
51 240387101 Tube-water, ice mold fill, extension
55 # 240531101 Valve-water, triple solenoid
55* 218709100 Screw, hex head, 10-32 x 0.500
55* 240363601 Screw-shoulder
55* 240542901 Cap-water valve
60 5303207328 Screw, hex washer head, 8-15A x 1.000, (2)
61 218721500 Bracket-leveling, ICE MAKER
62 218737900 Screw-IM brkt mtg, hex washer head, 8-32D x 0.375
64 5303001549 Clamp, 0.31 ID, steel, copper wtr line
* 218888001 Adapter-water supply, nut & sleeve, compression ftg
* 240352411 Ice Maker, Radius Cube, 115 V, no instl parts

Publication No: 5995405353 FRS23BH6CS2
03/04 20
WIRING SCHEMATIC
