Frigidaire FRS23BH6C User manual

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS
FRS23BH6CB1 FRS23BH6C R134a black 115
FRS23BH6CS1 FRS23BH6C R134a stainless/black 115
MARKET
North America
Publication No.
5995394490
030821
-EN/SERVICE/DCS
357
SIDE BY SIDE
REFRIGERATOR
Model No.
FRS23BH6C
©2003 Electrolux Home Products, Inc.
All rights reserved
ENERGY GUIDE - 240592237
OWNER’S GUIDE - 240389311
SERVICE DATA SHEET - 240389613
ELECTROLUX HOME PRODUCTS, INC.
P.O. BOX 212378, Augusta, GA 30917
FACTORY
PARTS CATALOG

08/03 2
Publication No. FRS23BH6C
5995394490
FREEZER DOOR

# = Fast-moving Parts 3 08/03
* = Non-Illustrated Parts
FRS23BH6C Publication No.
5995394490
FREEZER DOOR
A = FRS23BH6C (FRS23BH6CB1)
B = FRS23BH6C (FRS23BH6CS1)
POS. NO PART NO DESCRIPTION
1 # 240390608 A B Gasket-frzr door, black, magnetic
4A 240367301 A B Bin-door, frzr-upper
4B 240359001 A B Bin-door
11 240554221 A - Door-frzr, black ,complete assy
11 240451871 - B Door-frzr, stainless steel, complete assy
13A 240537106 A - Door Stop, black, frzr
13A 240581906 - B Door Stop, black, frzr
18 240359108 A B Handle-door, black, LH
21 218781100 A B Screw, pan head, 8-18 x 0.625
21A 5308016566 A - Screw, hex washer head, 8-15A x 0.625, low profile
21A 240598401 - B Screw, 10-32 x 1/2
21C 240521302 A B Screw, #8-18 x 3/4
22A 240328202 A B Bearing-hinge,closer
22C 240328404 A B Bearing-hinge, black, upper
37 240359203 A B Trim-handle, 30.13", black, lower
68 240465801 A B Chute-ice
72 240421701 A B Button-handle mtg, dovetail
73 218396700 A B Block-handle mtg, dovetail
74 215503200 A B Screw, cr pan hd, 10-16 x 0.500
* 240545101 A B Connector-water, straight
* 240552102 A B Harness-wiring, door
* 5303918256 A B Dispenser heater kit
* 218490900 - B Cleaner, stainless steel

08/03 4
Publication No. FRS23BH6C
5995394490

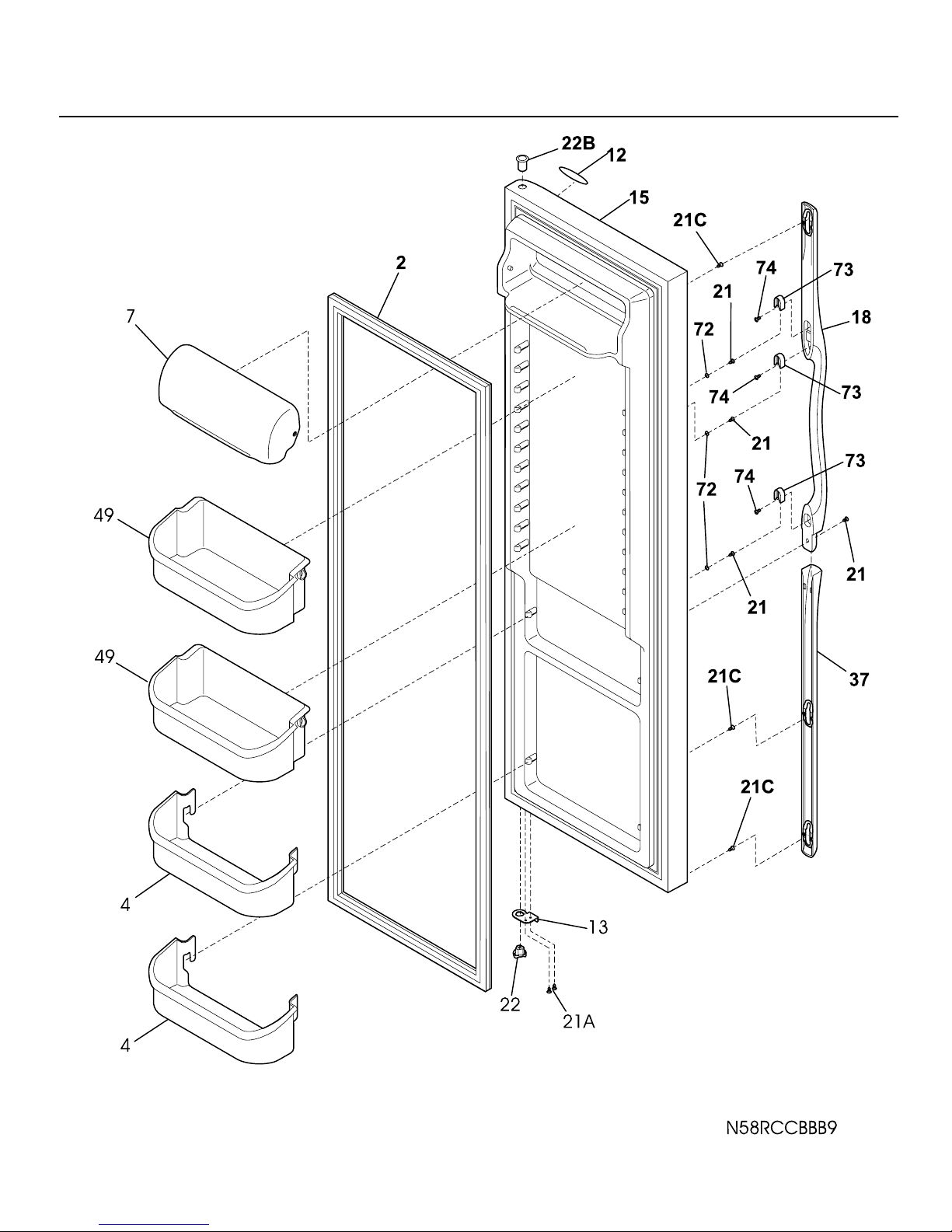

REFRIGERATOR DOOR

# = Fast-moving Parts 5 08/03
* = Non-Illustrated Parts
FRS23BH6C Publication No.
5995394490
A = FRS23BH6C (FRS23BH6CB1)
B = FRS23BH6C (FRS23BH6CS1)
POS. NO PART NO DESCRIPTION
2 # 240390607 A B Gasket-refr door, black, magnetic
4 240363702 A B Bin-door, 2-liter
7 240338303 A B Door,dairy, clear
12 240449707 A B Nameplate, black
13 240537105 A - Door Stop, black ,ref
13 240581905 - B Door Stop, black ,ref
15 240451977 A - Door-refr, black ,complete assy
15 240451940 - B Door-refr, stainless steel, complete assy
18 240359103 A B Handle-door, black, RH
21 218781100 A B Screw, pan head, 8-18 x 0.625
21A 5308016566 A - Screw, hex washer head, 8-15A x 0.625, low profile
21A 240598401 - B Screw, 10-32 x 1/2
21C 240521302 A B Screw, #8-18 x 3/4
22 240328201 A B Bearing-hinge, closer
22B 240328403 A B Bearing-hinge, upper
37 240359203 A B Trim-handle,30.13" ,black ,lower
49 240324502 A B Bin-door, gallon
72 240421701 A B Button-handle mtg, dovetail
73 218396700 A B Block-handle mtg, dovetail
74 215503200 A B Screw, cr pan hd, 10-16 x 0.500
* 218490900 - B Cleaner, stainless steel
REFRIGERATOR DOOR

08/03 6
Publication No. FRS23BH6C
5995394490

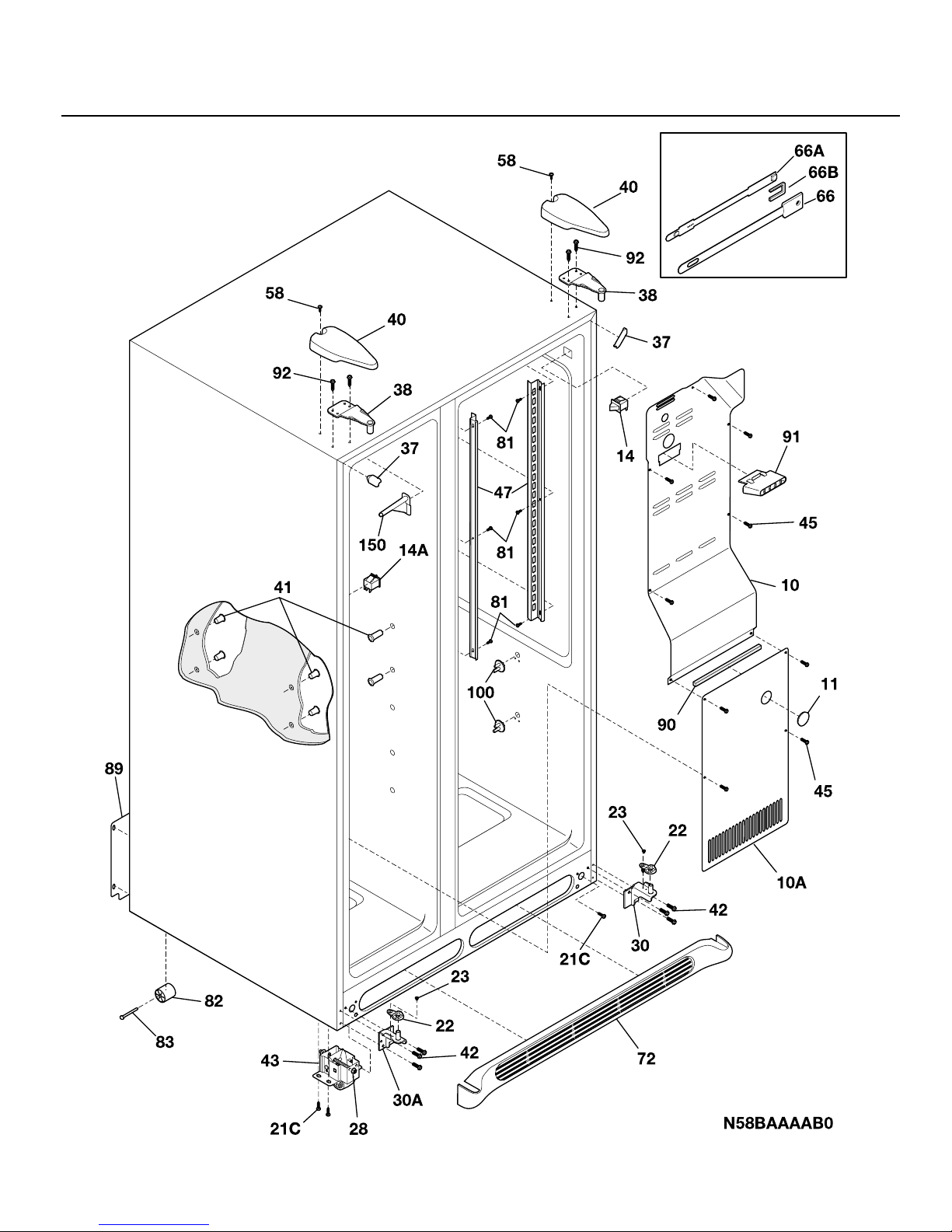

CABINET

# = Fast-moving Parts 7 08/03
* = Non-Illustrated Parts
FRS23BH6C Publication No.
5995394490
A = FRS23BH6C (FRS23BH6CB1)
B = FRS23BH6C (FRS23BH6CS1)
POS. NO PART NO DESCRIPTION
10 240435901 A B Cover-air duct
10A 240475901 A B Cover-evap coil,lower
11 5303208309 A B Plug-hole, factory test
14 # 240505801 A B Switch, light/lamp
14A# 215486600 A B Switch-light/lamp
21C 218252200 A B Screw, #8 truss hd, 10-32CA x 0.500
22 240457701 A B Plate-door closer
23 240402701 A B Screw-#10-32 x 1/4 flat hd
28 240335501 A B Bolt-roller adj,hex wshr hd, 1/4-20 x 4.020, (2)
30 240419103 A B Bracket-lower hinge, ref
30A 240419104 A B Bracket-lower hinge
37 240337603 A B Trim-cabinet corner, black, (2)
38 240327202 A B Bracket-upper hinge
40 240327007 A B Cover-upper hinge, black
41 240358701 A B Grommet-shelf mtg, 1.40" long
41* 240358801 A B Grommet-shelf mtg, .875" long
42 240578901 A B Screw-hinge mtg, hex head ,1/4-20 x 5/8
43 240335003 A B Roller Assy, front, (2)
45 241500301 A B Screw,hex washer head ,8-18AB x 0.500
47 240349402 A B Channel-shelf mtg, side, (2)
58 218781100 A B Screw, pan head, 8-18 x 0.625
66 240504901 A B Cover-damper
66* 240518802 A B Pin-push,push-in ,plastic
66A 240505001 A B Damper-meat keeper
66B 240355901 A B Insulation-damper
72 240324405 A B Grille/Kickplate,black
81 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile
82 5304418225 A B Roller, compressor base, rear, (2)
83 5303316859 A B Rivet, flat head, 1/4 OD x 1-3/4, roller pin
89 240326103 A B Cover, access, system compt, with label
90 218249807 A B Seal-coil cover
91 240380101 A B Duct-ice maker
92 216850900 A B Screw, hex washer hd, 1/4 x 7/8, hinge mtg
100 240423701 A B Support,crisper cover ,front ,(4)
100* 240350802 A B Support,crisper cover ,rear ,(4)
150 240368701 A B Guide-control bulb
* 218515401 A B Clip
* 240396801 A B Clamp, tube/wiring, nylon, black/natural
* 240479601 A B Plug, button, cab liner holes, (2)
* 240481601 A B Shim-lower hinge
* 5303305345 A B Paint, touch-up, black
* 5308016571 A B Plug-button, cab liner holes
CABINET

08/03 8
Publication No. FRS23BH6C
5995394490
SHELVES

# = Fast-moving Parts 9 08/03
* = Non-Illustrated Parts
FRS23BH6C Publication No.
5995394490
A = FRS23BH6C (FRS23BH6CB1)
B = FRS23BH6C (FRS23BH6CS1)
POS. NO PART NO DESCRIPTION
2 240434603 A B Trim-basket
11 240338801 A B Shelf-freezer, flip-up
11B 240338703 A B Shelf-freezer, fixed wire
15A 240436702 A B Light Bulb, A-15, clear, 40 W, 120 V, miniature
16A 241513901 A B Socket-light
16A* 240323102 A B Harness-wiring
24 240355201 A B Shelf-"Spill-Safe”, fixed, (1)
24A 240350103 A B Shelf-"Spill-Safe", sliding, (2)
24B 240424603 A B Shelf-"Spill-Safe", sliding, "Aspect", complete
25 240354502 A B Cover-crisper pan, upper
25* 240362101 A B Clip-slide, cover-crisper
25A 240354602 A B Cover-crisper pan, lower
26 240354705 A B Pan-crisper, upper
26* 240349801 A B Clip-slide, pan-crisper
26A 240351101 A B Control-humidity
27 240354805 A B Pan-crisper, lower
39 240430705 A B Trim-shelf, front
39A 240430701 A B Trim-shelf, front
42 240356501 A B Track,meat pan hanger, RH
42A 240349701 A B Hanger-meat pan, LH
42A* 240349901 A B Block-meat pan rail, LH
42A* 240350001 A B Spring-meat pan rail
47 240350613 A B Insert-pan cover, glass
47A 240350614 A B Insert-pan cover, glass
49 240564301 A B Basket-sliding
49B 240530503 A B Basket-sliding,upper ,full
51 240343002 A B Hanger-basket,RH
52 240343102 A B Hanger-basket,LH
62 240355505 A B Pan-meat
81 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile
97 240545303 A B Water Tank Assy, coiled tubing, front filter
100 240326301 A B Cover-water tank
101 218493100 A B Screw,hex washer head ,8-18AB x 1-3/4
109 240351301 A B Base-crisper light socket
120 240342902 A B Shelf-ice cream
123 215005100 A B Screw,hanger/rlr mtg ,8-10 x 0.438
126 218867405 A B Channel, auger mtg, LH
126 218867406 A B Channel, auger mtg, RH
136 240424502 A B Dispenser-can,clear
140 240430501 A B Channel, wtr tube cover
* 240592237 A B Energy Guide
SHELVES

08/03 10
Publication No. FRS23BH6C
5995394490
CONTROLS

# = Fast-moving Parts 11 08/03
* = Non-Illustrated Parts
FRS23BH6C Publication No.
5995394490
A = FRS23BH6C (FRS23BH6CB1)
B = FRS23BH6C (FRS23BH6CS1)
POS. NO PART NO DESCRIPTION
5 # 5308000010 A B Fan Blade, red, evaporator fan
8 5300157666 A B Bushing-motor mtg, (2)
9 5303292396 A B Bracket-motor mtg, front
13 # 240369701 A B Motor-evap fan
13* 215474201 A B Washer, "slinger", nylon, evap fan shaft
14 5303292397 A B Bracket-motor mtg,rear
15 240436702 A B Light Bulb, A-15, clear, 40 W, 120 V, miniature
16 241513901 A B Socket-light
17 240374901 A B Box-control,front
17* 241508101 A B Harness-wiring,control box
18 240360801 A B Knob,temp control
21# 241507701 A B Control-temperature
21A 5304421067 A B Control-temperature, frzr section
22 218660702 A B Tube-insulator
23 # 241508001 A B Control-defrost, adaptive timer, PC board
23* 5303001259 A B Screw-timer mtg, pan hd, 6-20 x 0.438, (2)
45 5303001343 A B Screw, hex washer head, 8-15A x 0.500
53 240369501 A B Box-control
81 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile
101 218493100 A B Screw, hex washer head, 8-18AB x 1-3/4
115 240521107 A B Damper Assy, w/seal
137 240396401 A B Filter, water, front, cassette
137* 240396701 A B Bypass, water filter, Optional Part
138 240397301 A B Button-filter release
139 240396001 A B Base-water filter
139* 240526901 A B O-ring,wtr filter base
149 240331607 A B Shroud-fan orfice
150 240394203 A B Insulation-water tube cover
151 240373805 A B Cover-water tube
198 240397401 A B Retainer
199 240397501 A B Rod
199* 240398401 A B Spring-filter release rod
200 240397601 A B Light Pipe
201 240398501 A B Label-control box
* 3205266 A B Edge Protector,wiring harness
* 240427201 A B Heater-freezer control
CONTROLS

08/03 12
Publication No. FRS23BH6C
5995394490
SYSTEM

# = Fast-moving Parts 13 08/03
* = Non-Illustrated Parts
FRS23BH6C Publication No.
5995394490
A = FRS23BH6C (FRS23BH6CB1)
B = FRS23BH6C (FRS23BH6CS1)
POS. NO PART NO DESCRIPTION
1 240333602 A B Condenser
3 218679606 A B Block-evap coil,styrofoam ,(2)
4 # 218944001 A B Drier-filter,R134a System
6 240346402 A B Harness-wiring,machine compt
6* 240449601 A B Harness-wiring
6* 241508101 A B Harness-wiring,control box
14 # 5303918253 A B Defrost Heater Kit
15 # 5303918286 A B Evaporator Kit
16 5308000110 A B Strap-evap/heater,aluminum ,(2)
21 5303918214 A B Thermostat-defrost,kit
22 240330007 A B Base-compressor mtg
22* 218252200 A B Screw,#8 truss hd ,10-32CA x 0.500
23 218513300 A B Grommet-compr mtg,(4)
25 240491501 A B Screw-compr mtg, 1/4-28 x 1.16, shoulder, typ CF
26 240332602 A B Pan-defrost drain
29 5303918291 A B Compressor,w/electricals
30 # 218721119 A B Starter,PTC
32 218973501 A B Clamp,elec cont mtg ,compressor
34 240405201 A B Grommet,rubber ,black ,cond tube/wire
41 240555001 A B Screw-#8-32 X 3/8
44 215174700 A B Clamp-service cord,strain relief, galv steel
45 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile
55 # 218909912 A B Capacitor-run,220 VAC ,12 microfarad
57 240542601 A B Clip-wiring harness
58 215004600 A B Screw, hx wshr hd, 8-36 x 7/16, cond fan motor,(2)
59 240315501 A B Shroud-cond fan
59* 240346701 A B Tape-foam seal,shroud
59* 240359401 A B Screw-fan shroud,(2)
59A 240346501 A B Bracket-support,cond mtr ,(3)
59B 240346601 A B Grommet-bracket,(3)
60 # 240334001 A B Motor,condenser fan
61 # 240315401 A B Fan Blade,galv steel ,condenser fan
61A 215004700 A B Nut,speed
61B 215004800 A B Grommet-silencer
62 240429401 A B Trough-drain
70 218990801 A B Bracket-evap/cvr mtg
72 218397000 A B Button-handle mtg,dovetail
82 5304418225 A B Roller, compressor base, rear, (2)
83 5303316859 A B Rivet, flat head, 1/4 OD x 1-3/4, roller pin
84 5304421068 A B Tube-drain, lower
85 240346201 A B Tube-connector, suction
86 240409302 A B Spacer-cond tube, black
* 5303918222 A B Hot Tube Repair Kit, Service
* # 5303918213 A B Heat Exchanger Kit, suction line
SYSTEM

08/03 14
Publication No. FRS23BH6C
5995394490

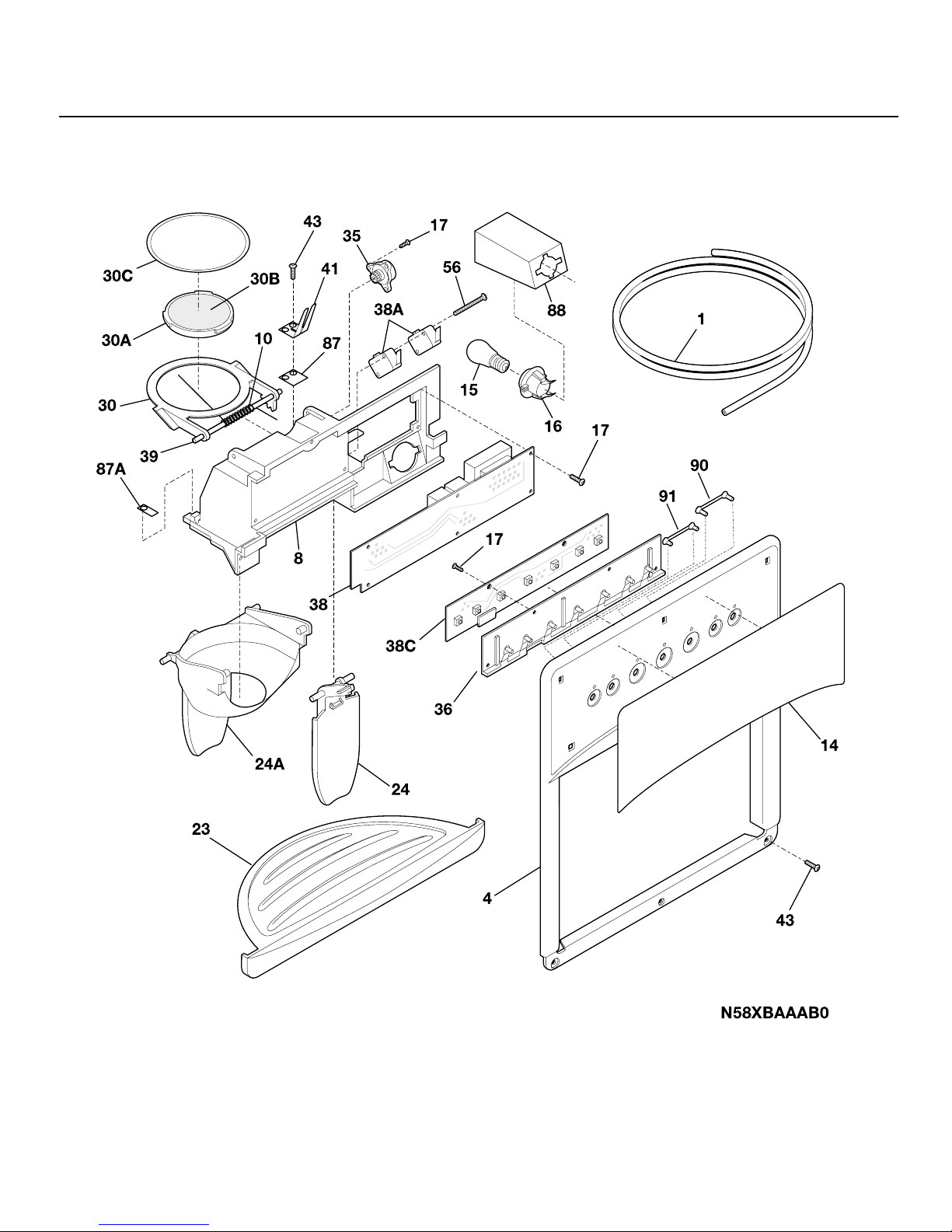

DISPENSER

# = Fast-moving Parts 15 08/03
* = Non-Illustrated Parts
FRS23BH6C Publication No.
5995394490
A = FRS23BH6C (FRS23BH6CB1)
B = FRS23BH6C (FRS23BH6CS1)
POS. NO PART NO DESCRIPTION
1 218976409 A B Tube-water
1* 218976901 A B Tube-water inlet, inlet valve to ice maker
1* 218976903 A B Tube-water inlet, inlet valve to filter
1* 218976907 A B Tube-water inlet, valve to door
4 5304422012 A B Cover-module, black
8 5304422013 A B Module-dispenser
10 5304426649 A B Spring-torsion
14 240323952 A B Label-module cover, black
15 5304421616 A B Light Bulb
16 215284900 A B Socket-light/lamp
17 5304421619 A B Screw
23 240323603 A B Drip Tray, black
24 5304422026 A B Actuator-water, black
24A 5304422025 A B Actuator-ice, black
30 5304421628 A B Door Assy-ice chute
30A 5304421624 A B Door center
30B 5304421625 A B Insulation-door
30C 5304421629 A B Door seal
35 5304421620 A B Damper-rotary
36 5304421824 A B Carrier
38 5304431764 A B PC Board-power
38A# 5304421617 A B Switch-micro,single pole ,double throw
38C 5304432170 A B Board-control
38C* 218515401 A B Clip
38C* 5304430811 A B Harness-ribbon cable
39 5304421627 A B Pin-hinge
41 5304421829 A B Spring-actuator
43 215296300 A B Screw, plask h/l, #6 x 3/8
43* 240363401 A B Screw-#8-18 X ½, #6 hd plask
56 5304421830 A B Screw-micro switch, pan head
87 5304421622 A B Bearing Plate
87A 5304421621 A B Bearing Plate
88 5304421615 A B Shield-light
90 5304421831 A B Light Pipe, reflector
91 5304421850 A B Light Pipe, reflector, short
* 5304426535 A B Insulator-electrical
* 5303918256 A B Dispenser heater kit
DISPENSER

08/03 16
Publication No. FRS23BH6C
5995394490

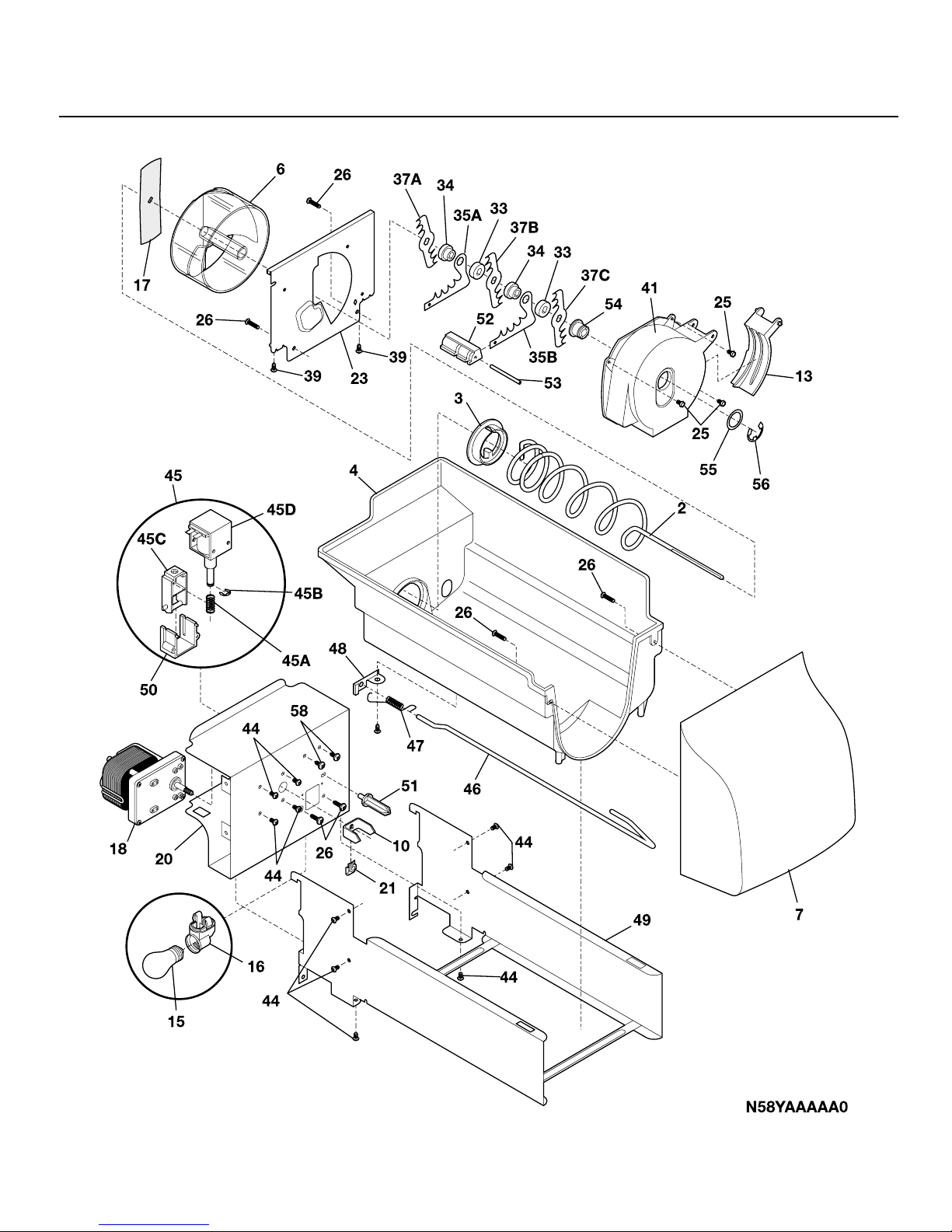

ICE CONTAINER

# = Fast-moving Parts 17 08/03
* = Non-Illustrated Parts
FRS23BH6C Publication No.
5995394490
A = FRS23BH6C (FRS23BH6CB1)
B = FRS23BH6C (FRS23BH6CS1)
POS. NO PART NO DESCRIPTION
2 5304428402 A B Auger-ice
3 5304404343 A B Cam-drive
4 218815300 A B Container-ice,bucket only
6 5304404346 A B Drum-ice disp
7 5304422805 A B Front-ice container
10 5304404337 A B Bar-drive
13 5304404359 A B Gate
15 5303001179 A B Light Bulb/Lamp,40 W
16 5303289050 A B Socket-light/lamp
17 5304404345 A B Drive Blade
18 # 240326901 A B Motor-auger
18* 5304404335 A B Wiring Harness,auger motor
20 5304404332 A B Cover-motor
21 215285100 A B Nut-drive
23 5304404347 A B Plate-front
25 5304404362 A B Screw,hex washer head ,8-32T x 0.375
26 215503200 A B Screw,cr pan hd ,10-16 x 0.500
33 5304404351 A B Spacer
34 5304404349 A B Spacer
35A 5304404353 A B Fixed Blade,round
35B 5304404352 A B Fixed Blade,square
37A 5304404348 A B Blade,crusher #1
37B 5304404350 A B Blade,crusher #2
37C 5304404356 A B Blade,crusher #3
39 5304404365 A B Screw
41 5304404358 A B Housing-crusher
44 218359200 A B Screw,pan head ,8-32 x 0.250
45 # 5304404333 A B Solenoid Assy
45A 5304406816 A B Spring-solenoid
45B 5304406817 A B E-Ring-solenoid
45C 5304406818 A B Actuator-solenoid
45D 5304406819 A B Solenoid
46 5304404341 A B Control Rod
47 5304404342 A B Spring-control rod
48 5304404340 A B Bracket-control rod
48* 5304404364 A B Screw-bracket
49 5304404329 A B Rail Assy
50 5304404334 A B Guide-solenoid
51 5304404336 A B Rotation Stop
52 5304404354 A B Spacer-fixed blades
53 5304404355 A B Pin-spiral, fixed blades
54 5304404357 A B Nut-auger
55 5304404360 A B Washer
56 5304404361 A B E-ring
58 5304404331 A B Screw-solenoid
* 240323806 A B Ice Container Assy, w/moving parts
ICE CONTAINER

08/03 18
Publication No. FRS23BH6C
5995394490
ICE MAKER

# = Fast-moving Parts 19 08/03
* = Non-Illustrated Parts
FRS23BH6C Publication No.
5995394490
A = FRS23BH6C (FRS23BH6CB1)
B = FRS23BH6C (FRS23BH6CS1)
POS. NO PART NO DESCRIPTION
1 218976409 A B Tube-water
1* 218976901 A B Tube-water inlet, inlet valve to ice maker
1* 218976903 A B Tube-water inlet, inlet valve to filter
1* 218976907 A B Tube-water inlet, valve to door
1* 240561701 A B Seal-water inlet, inlet valve to ice maker
2 5304420650 A B Spring, shut-off arm
3 3206299 A B Label, ID plate
4 3206301 A B Gear
5 3206303 A B Plate-mounting
6 3206305 A B Screw-ground wire, 8-32 x 0.250
7 # 3206306 A B Motor-ice maker
8 3206312 A B Spacer-hold switch
9 3206313 A B Cam
10 3206315 A B Clamp
11 # 3206319 A B Thermal Cutoff, ICE MAKER, complete assy
12 # 240352601 A B Wiring Harness, ICE MAKER, internal, with plug
13 # 3206322 A B Thermostat Assy,ICE MAKER
14 5304420652 A B Screw,4 x 0.750 ,switch mtg.
15 # 3206324 A B Switch,(3)
16 5304420653 A B Support,phenolic
17 # 5303320545 A B Mold-ice maker, Radius Cube, with heater
18 3206328 A B Ejector-ice
19 3206330 A B Bearing & Inlet
20 5304408581 A B Screw, 8-32 x 0.375
21 3206332 A B Ice Stripper
22 3206333 A B Shut-off Arm
23 5304408582 A B Screw, 8-32 x 0.875, mold-to-support, (3)
24 3206335 A B Lever Arm
25 3206336 A B Screw, 8-18 x 0.562 ,lever arm/sprt
26 5304420654 A B Screw-thermo/sprt, 4-24 x 0.375 ,(4)
27 3206338 A B Screw, 4-40 x 1.000, hold switch mtg, (2)
28 3206339 A B Screw-timing stop,4-40 x 0.375
29 3206323 A B Screw,4-24 x 0.750 ,(6)
30 3206341 A B Screw-timing adj,8-32 x 1.000
31 3206342 A B Insulator
32 3206343 A B Plate-valve switch
33 5304408583 A B Spring-timing adj
34 5304420655 A B Screw, plazscrew, 8-10, (3)
35 5304408585 A B Screw
36 3206347 A B Cover-ice maker
42 5303001199 A B Clamp-wiring harness,strain relief, galv steel
42* 218515402 A B Clip,(2) ,tube mtg.
45 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile
45* 5303001343 A B Screw, hex washer head, 8-15A x 0.500
46 5303001193 A B Clamp, .50 ID ,steel ,water tube
46* 5308000133 A B Clamp, nylon, .625 ID
51 240387101 A B Tube-water, ice mold fill, extension
55 # 240531101 A B Valve-water,triple solenoid
55* 218709100 A B Screw, hex head, 10-32 x 0.500
55* 240363601 A B Screw-shoulder
55* 240542901 A B Cap-water valve
60 5303207328 A B Screw, hex washer head, 8-15A x 1.000, (2)
61 218721500 A B Bracket-leveling,ICE MAKER
62 218737900 A B Screw-IM brkt mtg,hex washer head, 8-32D x 0.375
64 5303001549 A B Clamp,0.31 ID ,steel ,copper wtr line
* 218888001 A B Adapter-water supply, nut & sleeve, compression ftg
* 240352411 A B Ice Maker, Radius Cube, 115 V, no instl parts
ICE MAKER

08/03 20
Publication No. FRS23BH6C
5995394490

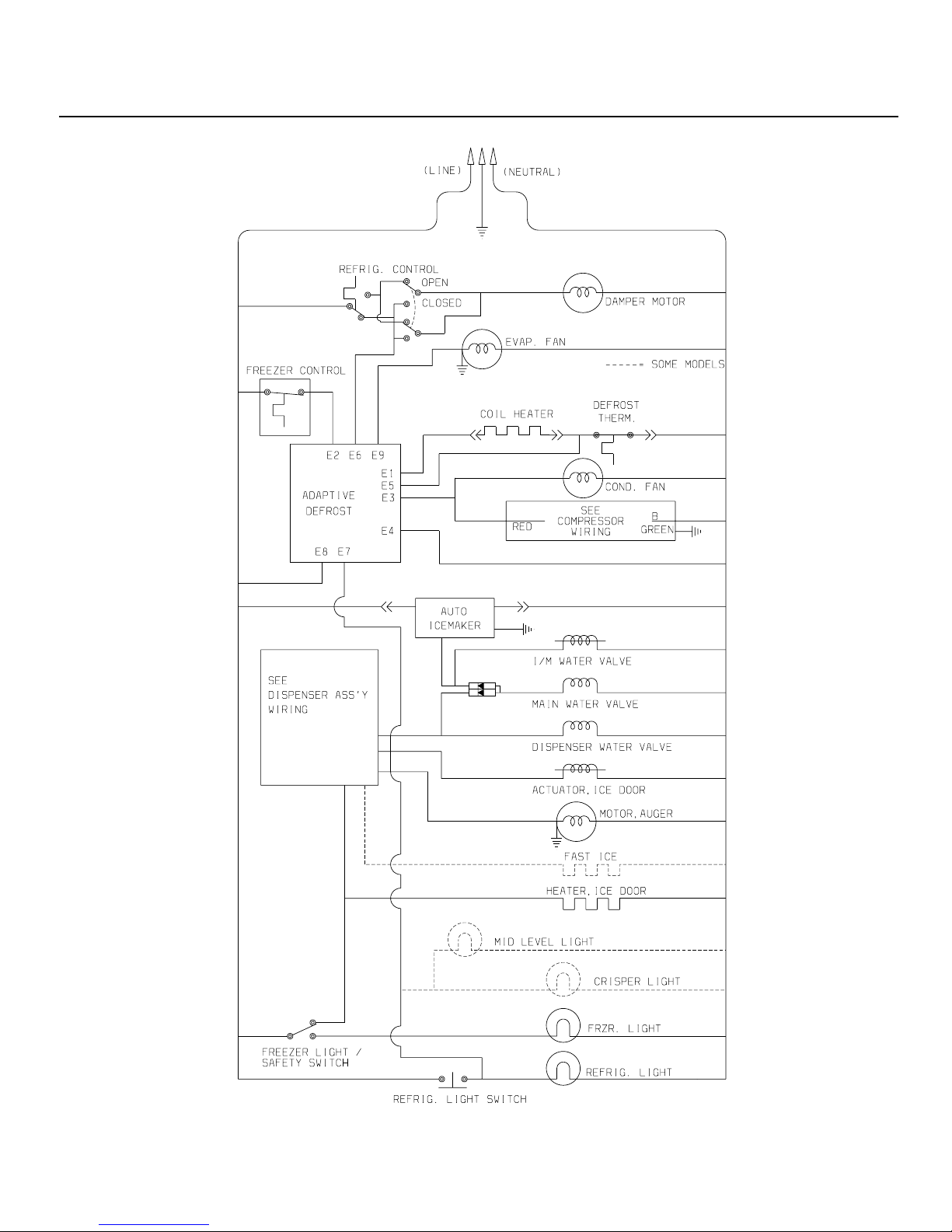

WIRING SCHEMATIC
