Frigidaire FRT17A2A User manual

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS
FRT17A2AQ0 FRT17A2A R134a bisque 115
FRT17A2AW0 FRT17A2A R134a white 115
MARKET
North America
Publication No.
5995357463
010813
-EN/SERVICE/KHB
390
TOP MOUNT
REFRIGERATOR
Model No.
FRT17A2A
©2001 White Consolidated Industries, Inc.
All rights reserved
FACTORY
PARTS CATALOG
ELECTROLUX HOME PRODUCTS NORTH AMERICA
P.O. Box 212378, Augusta, GA 30917
WIRING DIAGRAM - 240379007
OWNER’S GUIDE - 240400104
SERVICE DATA SHEET - 240379007

08/01 2
Publication No. FRT17A2A
5995357463
DOOR

# = Fast-moving Parts 3 08/01
* = Non-Illustrated Parts
FRT17A2A Publication No.
5995357463
A = FRT17A2A (FRT17A2AQ0)
B = FRT17A2A (FRT17A2AW0)
POS. NO PART NO DESCRIPTION
1 # 240370903 A B Gasket-frzr door,white ,magnetic
2 # 240370904 A B Gasket-refr door,white ,magnetic
4 240331404 A B Rack-door,18.65"
5 240311502 A B Support-door rack,2 liter ,RH
6 240311501 A B Support-door rack,2 liter ,LH
7 240337701 A B Door-dairy,w/o graphics ,white
8 240331405 A B Rack-door,16.21"
10 240381302 A - Plug-button,hinge brg hole ,bisque ,(2)
10 240381301 - B Plug-button,hinge brg hole ,white ,(2)
11 240433502 A - Panel-frzr door,bisque ,complete assy
11 240433501 - B Panel-frzr door,white ,complete assy
12 240415203 A - Label-nameplate,bisque
12 240415201 - B Label-nameplate,white
13 240312407 A - Door Stop,bisque ,ref
13 240312403 - B Door Stop,white ,ref
13A 240312408 A - Door Stop,bisque ,frzr
13A 240312404 - B Door Stop,white ,frzr
15 240428802 A - Panel-refr door,bisque ,complete assy
15 240428801 - B Panel-refr door,white ,complete assy
21C 218252200 A B Screw,#8 truss hd ,10-32CA x 0.500
22 240311201 A B Bearing-hinge,natural color ,(8)
96 240345503 A B Plug-foam hole,white
DOOR

08/01 4
Publication No. FRT17A2A
5995357463

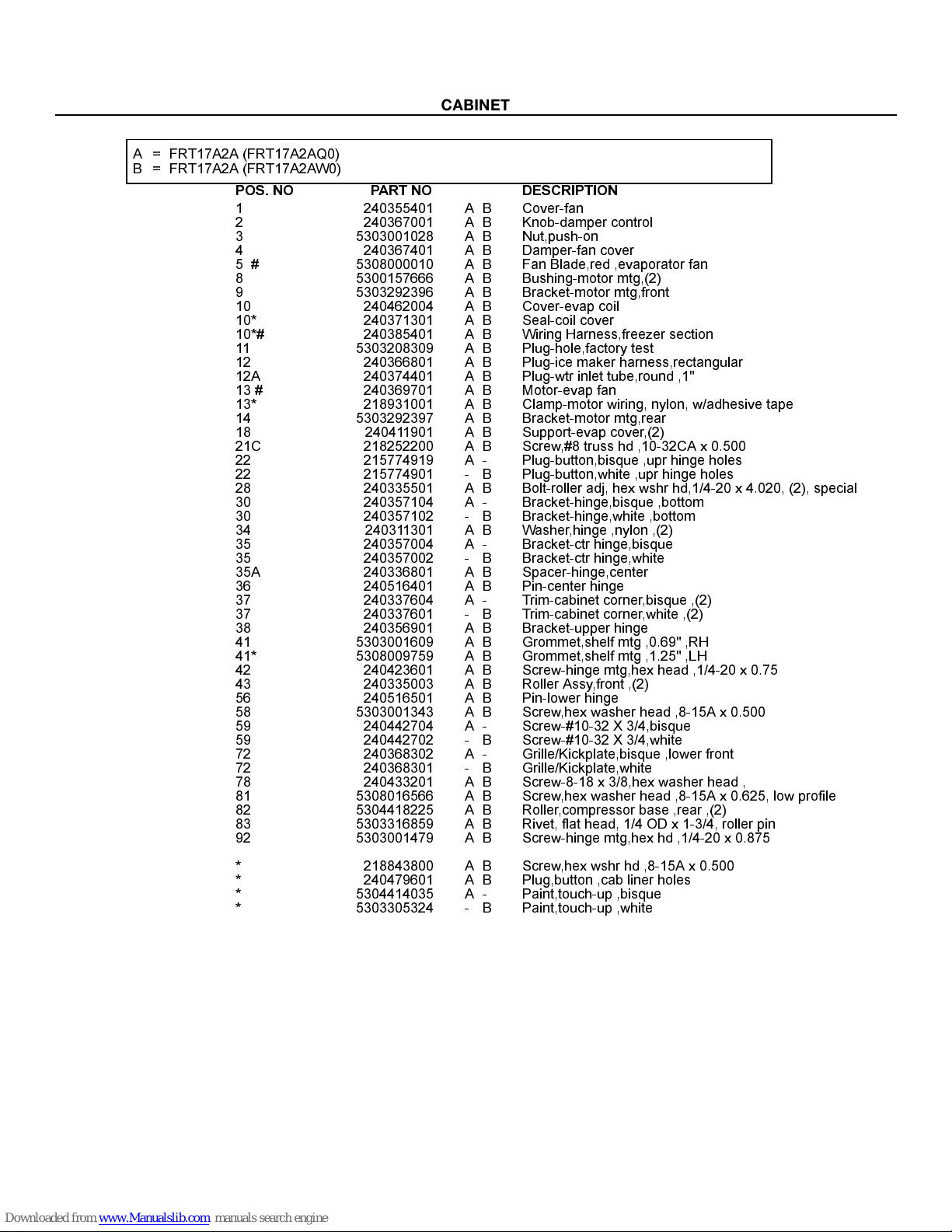

CABINET

# = Fast-moving Parts 5 08/01
* = Non-Illustrated Parts
FRT17A2A Publication No.
5995357463
A = FRT17A2A (FRT17A2AQ0)
B = FRT17A2A (FRT17A2AW0)
POS. NO PART NO DESCRIPTION
1 240355401 A B Cover-fan
2 240367001 A B Knob-damper control
3 5303001028 A B Nut,push-on
4 240367401 A B Damper-fan cover
5 # 5308000010 A B Fan Blade,red ,evaporator fan
8 5300157666 A B Bushing-motor mtg,(2)
9 5303292396 A B Bracket-motor mtg,front
10 240462004 A B Cover-evap coil
10* 240371301 A B Seal-coil cover
10*# 240385401 A B Wiring Harness,freezer section
11 5303208309 A B Plug-hole,factory test
12 240366801 A B Plug-ice maker harness,rectangular
12A 240374401 A B Plug-wtr inlet tube,round ,1"
13 # 240369701 A B Motor-evap fan
13* 218931001 A B Clamp-motor wiring, nylon, w/adhesive tape
14 5303292397 A B Bracket-motor mtg,rear
18 240411901 A B Support-evap cover,(2)
21C 218252200 A B Screw,#8 truss hd ,10-32CA x 0.500
22 215774919 A - Plug-button,bisque ,upr hinge holes
22 215774901 - B Plug-button,white ,upr hinge holes
28 240335501 A B Bolt-roller adj, hex wshr hd,1/4-20 x 4.020, (2), special
30 240357104 A - Bracket-hinge,bisque ,bottom
30 240357102 - B Bracket-hinge,white ,bottom
34 240311301 A B Washer,hinge ,nylon ,(2)
35 240357004 A - Bracket-ctr hinge,bisque
35 240357002 - B Bracket-ctr hinge,white
35A 240336801 A B Spacer-hinge,center
36 240516401 A B Pin-center hinge
37 240337604 A - Trim-cabinet corner,bisque ,(2)
37 240337601 - B Trim-cabinet corner,white ,(2)
38 240356901 A B Bracket-upper hinge
41 5303001609 A B Grommet,shelf mtg ,0.69" ,RH
41* 5308009759 A B Grommet,shelf mtg ,1.25" ,LH
42 240423601 A B Screw-hinge mtg,hex head ,1/4-20 x 0.75
43 240335003 A B Roller Assy,front ,(2)
56 240516501 A B Pin-lower hinge
58 5303001343 A B Screw,hex washer head ,8-15A x 0.500
59 240442704 A - Screw-#10-32 X 3/4,bisque
59 240442702 - B Screw-#10-32 X 3/4,white
72 240368302 A - Grille/Kickplate,bisque ,lower front
72 240368301 - B Grille/Kickplate,white
78 240433201 A B Screw-8-18 x 3/8,hex washer head ,
81 5308016566 A B Screw,hex washer head ,8-15A x 0.625, low profile
82 5304418225 A B Roller,compressor base ,rear ,(2)
83 5303316859 A B Rivet, flat head, 1/4 OD x 1-3/4, roller pin
92 5303001479 A B Screw-hinge mtg,hex hd ,1/4-20 x 0.875
* 218843800 A B Screw,hex wshr hd ,8-15A x 0.500
* 240479601 A B Plug,button ,cab liner holes
* 5304414035 A - Paint,touch-up ,bisque
* 5303305324 - B Paint,touch-up ,white
CABINET

08/01 6
Publication No. FRT17A2A
5995357463
SHELVES

# = Fast-moving Parts 7 08/01
* = Non-Illustrated Parts
FRT17A2A Publication No.
5995357463
A = FRT17A2A (FRT17A2AQ0)
B = FRT17A2A (FRT17A2AW0)
POS. NO PART NO DESCRIPTION
12 240362502 A B Diffuser-air,top
13 240362601 A B Diffuser-air,bottom
13* 240392601 A B Seal-diffuser
14 240505801 A B Switch-light/lamp
15 240436701 A B Light Bulb/Lamp, A-15, 40 W, 120 V, miniature
16 241500701 A B Socket-light/lamp
17 240368001 A B Box-control
17*# 240388701 A B Wiring Harness,control box
18 240360801 A B Knob-control
21 # 5304421256 A B Control-temperature
22A 240468201 A B Tube, sensor sleeve, 31 inch, plastic, white
23 # 215846606 A B Timer-defrost, 60 Hz, 120 V, 10 hour/30 min
23* 5303001259 A B Screw-timer mtg, pan hd, 6-20 x 0.438, (2)
24 240360902 A B Shelf,sliding ,wire
25 240364706 A B Cover-crisper pan
26 240397701 A B Pan-crisper,full-width
81 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile
SHELVES

08/01 8
Publication No. FRT17A2A
5995357463
SYSTEM

# = Fast-moving Parts 9 08/01
* = Non-Illustrated Parts
FRT17A2A Publication No.
5995357463
A = FRT17A2A (FRT17A2AQ0)
B = FRT17A2A (FRT17A2AW0)
POS. NO PART NO DESCRIPTION
1 # 240397901 A B Condenser,static
1* 5303208866 A B Spacer-cond tube,black
1* 240405201 A B Grommet,mounting ,rubber ,black, holds tube/wire
2 5308000296 A B Bracket,condenser mtg ,(4)
2* 5308009617 A B Washer,ext tooth lock ,#10 ,grounding
4 # 218944001 A B Drier-filter,R134a System
6 # 240375401 A B Wiring Harness, machine compt, w/ service cord
6* # 240385401 A B Wiring Harness,freezer section
6* # 240388701 A B Wiring Harness,control box
14 # 5303918203 A B Defrost Heater Kit
15 # 5303918257 A B Evaporator Kit
16 5308000110 A B Strap-evap/heater,aluminum ,(2)
17 240434001 A B Trough-drain
18 240362301 A B Insulation Block,RH
20 240362401 A B Insulation Block,LH
21 # 5303918202 A B Thermostat-defrost,kit
22 240330005 A B Base-compressor
22* 218252200 A B Screw,#8 truss hd ,10-32CA x 0.500
23 216498900 A B Grommet,compressor
25 240420301 A B Screw, shoulder typ CF, 1/4-28 x 0.965, hex wshr hd
26 240346901 A B Pan-defrost drain
27 5303001348 A B Nut,lock ,1/4-20 ,drain pan mtg
28 5303916001 A B Pan Retainer Kit,Service
29 # 5303918233 A B Compressor,R134a ,w/ electricals
30 # 218721113 A B Starter-PTC
32 218740800 A B Clamp,elec cont mtg ,compressor
41 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile
44 5303001199 A B Clamp-wiring harness, strain relief, galv steel
55 # 218909901 A B Capacitor-run,220 VAC ,15 microfarad
57 240403601 A B Clip-wiring harness
82 5304418225 A B Roller, compressor base, rear, (2)
83 5303316859 A B Rivet, flat head, 1/4 OD x 1-3/4, roller pin
84 240367101 A B Tube-drain,lower
85 240346202 A B Tube-connector,suction
* 218843800 A B Screw,hex wshr hd ,8-15A x 0.500
* 240396801 A B Clamp,tube/wiring ,nylon ,black/natural
* # 5303918263 A B Heat Exchanger Kit,suction line
* # 5303918234 A B Hot Tube Repair Kit,Service
SYSTEM

08/01 10
Publication No. FRT17A2A
5995357463
WIRING SCHEMATIC

# = Fast-moving Parts 11 08/01
* = Non-Illustrated Parts
FRT17A2A Publication No.
5995357463
WIRING DIAGRAM
