Fristam Pumps PM Series User manual

Original Instructions
Powder Mixer
PM
Powder Mixer Size:
Powder Mixer No.:

The German version is the original version of the operating instructions manual. Other lan-
guages are translations of the original operating manual.
© Copyright 2010 Fristam Pumpen KG (GmbH & Co.)
All rights reserved. The contents, including graphic images and layout of this
operating instructions manual are subject to copyright protection and to other
laws for the protection of intellectual property. The publication and modification
of the contents are not authorised. Moreover, you may not copy, publish and alter
the contents therein for commercial purposes, or transmit the information to a
third party.
Copyright

3
Table of contents
1 Introduction .......................................................... 5
1.1 Foreword.................................................................. 5
1.2 Manufacturer.......................................................... 5
1.3 Scope of Supply..................................................... 5
1.4 Scope of Documentation................................... 5
1.5 General Information............................................. 6
1.6 Display Conventions............................................ 6
2 Safety........................................................................ 7
2.1 Intended Use .......................................................... 7
2.2 Predictable Misuse................................................ 7
2.3 System-Specific Safety Instructions ............... 7
2.4 Labels ........................................................................ 8
2.5 Noise Emissions ..................................................... 9
2.6 Disposal .................................................................... 10
3 Design and Function......................................... 11
3.1 Principles of Design.............................................. 11
3.2 Funnel ....................................................................... 11
3.3 Pipes........................................................................... 12
3.4 Pumps ....................................................................... 13
3.5 Control Cabinet ..................................................... 13
3.6 Vibratory Motor (Optional)................................ 14
3.7 Screen (Optional) .................................................. 15
3.8 Protective Grating (Optional) ........................... 15
3.9 Sizes and Standard Equipment........................ 16
3.10 Hydraulic Diagram................................................ 17
3.11 Function ................................................................... 18
4 Transportation..................................................... 18
4.1 Safety Instructions ................................................ 18
4.2 Moving With Industrial Truck ........................... 19
4.3 Moving With Crane............................................... 19
5 Storage .................................................................... 19
5.1 Safety Instructions ................................................ 19
5.2 Storage Conditions............................................... 19
5.3 Mothballing of the Powder Mixer................... 20
5.4 Recommissioning ................................................. 20
6 Installation ............................................................. 20
6.1 Safety Instructions................................................. 20
6.2 Installation Location............................................. 20
6.3 Reduction of Noise and Vibration.................... 21
6.4 Powder Mixer Fixation......................................... 21
6.5 Installation of Pipes............................................... 21
6.6 Supply System Connection................................ 22
6.7 Hydraulic Connection .......................................... 22
6.8 Connection of Power Supply............................. 23
6.9 Checking Direction of Rotation of Pumps.... 23
6.10 Cleaning.................................................................... 23
7 Operation................................................................ 24
7.1 Turning On Powder Mixer .................................. 25
7.2 Starting Powder Mixer ......................................... 25
7.3 Monitoring Operation.......................................... 26
7.4 Stopping Powder Mixer ...................................... 26
7.5 Turning Off Powder Mixer .................................. 26
8 Faults......................................................................... 27
8.1 Safety Instructions................................................. 27
9 Maintenance.......................................................... 27
9.1 Safety Instructions................................................. 27
9.2 Replacement Parts ................................................ 28
10 Appendix................................................................. 28
10.1 Specifications.......................................................... 28
10.2 Performance Overview........................................ 29
10.3 Lubricants................................................................. 30
10.4 Troubleshooting Table ........................................ 31
10.5 Maintenance Intervals ......................................... 33
10.6 EC Declaration of Conformity............................ 34

//PM POWDER MIXER ///
4

5
1 Introduction
1.1 Foreword
This operator's manual describes all sizes, models, and versions of the PM powder mixer.
Information on the model, size, version, and accessories applicable to your powder mixer
can be found on the rating plate on your powder mixer and in the "Order-Related Docu-
ments" in the attached documents.
1.2 Manufacturer
FRISTAM Pumpen KG (GmbH & Co.)
Kurt-A.-Körber-Chaussee 55
21033 Hamburg
GERMANY
Tel.: [phone]
Fax: [phone]
E-mail: [email protected]
1.3 Scope of Supply
The package includes the following items:
– Table
Height-adjustable machine legs or wheels (partially pivot)
– Funnel with external electric vibrator (vibratory motor)
optional: protective grating, screen, guard or CIP cover, screw-in bushing for fill level
sensor, filler adapter
– Centrifugal pump type Fristam FZ
optional: enclosure
– Shear pump type Fristam FSP
optional: enclosure
– Piping system with valves, inline sight glass, and connections
optional: adapter, pneumatic or electropneumatic valve drive, bypass
– Control cabinet with switches, buttons, and indicator lights
optional: frequency converter with control panel
– optional: connection cable and CEE three-phase plug in accordance with DIN EN 60309
1.4 Scope of Documentation
The documentation includes the following items:
– This operator's manual
– Powder mixer specifications
– FZ centrifugal pump operator's manual
– FSP shear pump operator's manual
– Vibratory motor operator's manual
– Brief instructions for frequency converter (optional)

//PM POWDER MIXER ///
6
– Circuit diagram for control cabinet
– Order-related documents
Please read this information before installing and operating the powder mixer.
1.5 General Information
Please read this operator's manual completely before using the powder mixer and keep it
available at the mixer installation location.
Heed the applicable national regulations of the owner's country and the company's work
and safety regulations.
All work described here may only be performed by qualified experts with caution.
Danger of contamination: Heed legal and operational safety regulations when pumping or
filling dangerous media.
1.6 Display Conventions
List items are preceded by dashes:
– Part 1
– Part 2
Handling instructions that must be performed in a specified order are numbered:
1. Turn device on.
2. Turn device off.
Handling instructions that do not need to be performed in a specified order are preceded by
triangular bullets:
►Action
►Action
1.6.1 Safety Instructions
A safety instruction with the signal word "Danger" indicates personal hazards causing death
or serious injury.
A safety instruction with the signal word "Warning" indicates personal hazards that may lead
to death or serious injury.
A safety instruction with the signal word "Caution" indicates personal hazards that may lead
to mild to moderate injuries.
A safety instruction with the signal word "Note" warns of the possibility of material damage.

7
2 Safety
2.1 Intended Use
The standard PM powder mixer version is designed for use in the food, pharmaceutical, and
biotechnology industries.
The PM powder mixer is designed for blending liquid base media with powder or liquid ad-
ditive media. In its standard use, the powder mixer is designed for batch mode with individ-
ual powder bags. Continuous operation utilizing conveying equipment is possible with a
special version.
Each PM powder mixer is designed according to customer requirements. The seal materials
in the pumps have been selected for the respective media.
Supply and pumping of the base medium must be done in compliance with the maximum
temperatures and pressures specified for the given powder mixer version and size. See the
attached document entitled "Specifications."
The pump flow direction for the self-priming pump is fixed. The FZ pump can generate a
vacuum in the suction line.
The PM powder mixer may only be used under the operating conditions specified in the cus-
tomer's order. See the attached Order-Related Documents. For other operating conditions,
please contact Fristam.
2.2 Predictable Misuse
– The standard PM powder mixer versions may not be used in explosive atmospheres.
– Introduction and pumping of foreign objects in the mix can block and destroy the pipes,
the valves, or the shear pump.
– Pumping of base media or powders other than those specified can destroy pipes, valves,
or pumps. The seal materials (elastomers) and the pumps have been selected for specific
base media and mixtures. See Specifications and Order-Related Documents.
– Pumping of powders other than those specified or incorrect mixing ratios can clog the
pipes, the valves, or the shear pump. For uninterrupted operations, the maximum allow-
able particle size of the powder must not be exceeded.
– Modifications and changes to the pump are only permissible with the consent of Fristam.
2.3 System-Specific Safety Instructions
Impermissible Pressure or Temperature Range
Personal injury and material damage from leakage or bursting of pumps or pipes and valves.
►Maintain the pump, pipe, and valve pressures within the specified pressure ranges. See
the attached document entitled "Specifications" and the operator's manuals for the
pumps.
Maintain the pump and pipe temperatures within the specified temperature ranges. See the
attached document entitled "Specifications" and the operator's manuals for the pumps.
Hot Equipment Surface
Contact burns from touching the pipes.
►Check the temperature before touching the pipes.
►Only touch the pipes if you are wearing suitable gloves.
Noise Generated By Running Powder Mixer
Permanent hearing damage. The A-weighted sound pressure level of the powder mixer can
be greater than 80 dBA.

//PM POWDER MIXER ///
8
►Always wear ear protectors in the vicinity of the running powder mixer.
►The local noise exposure regulations must be complied with.
►See the noise emission values for the pumps in the attached operator's manuals.
Danger of Crushing When Moving Powder Mixer on Casters
Foot injuries from being run over by casters.
►Wear safety shoes.
Cold Firefighting Water on Hot Pump
Material damage from bursting of pump.
►Do not cool the pump down excessively when extinguishing a fire.
Unsuitable Working Height or Direction
Danger of injury when working on raised table.
►Lift the powder bag using a suitable aid.
►Place a working platform beside the table and use.
►Work on the side of the table designated for this purpose.
2.4 Labels
►Do not alter or remove the labels on the powder mixer.
►Immediately replace damaged or lost labels with ones that are true to the originals.
2.4.1 Safety Labels
Fig. 1 "Hot Surface"
The "Hot Surface" label indicates that parts can become hot during operation or, if applica-
ble, that a hot base medium is being pumped. Check the temperature before touching the
pipes. Only touch the pipes if you are wearing suitable gloves.
Fig. 2 "Do Not Reach Into Funnel"
The "Do Not Reach In" label indicates that the funnel must not be reached into during opera-
tion. There is a danger of injury in the region of the valve.
Fig. 3 "Do Not Bend Over Funnel"
The "Do Not Bend Over Funnel" label indicates that breathing in of dust or aerosols above
the funnel must be avoided. Dust and aerosols can irritate the respiratory tract. Wear a dust
mask if necessary.
Fig. 4 "Do Not Place Small Parts in Funnel"

9
The "Do Not Place Small Parts in the Funnel" label indicates that no hard objects such as
rocks or metal parts should be allowed to get into the powder mixer. If they do, valves and
pumps can be damaged or destroyed and the product will be contaminated. In an emergen-
cy, immediately press the emergency stop button and remove small parts.
Fig. 5 "Wear Ear Protectors"
The "Wear Ear Protectors" label indicate that damaging noise exposure may occur. Wear ear
protectors when operating the powder mixer.
2.4.2 Rating Plate
The rating plate can be found on the lower part of the frame beside the shear pump.
Fig. 6 Rating plate
2.5 Noise Emissions
The operating company must determine the respective sound pressure level for the base
media used and instruct and protect personnel accordingly.
Noise Generated by Running Pump
Hearing damage.
►The local noise exposure regulations must be complied with. For noise emission values
for the pumps, please see the pump operator's manuals.
Noise Generated by Running Vibratory Motor
Hearing damage.
►For powder mixers with two funnels or multiple vibratory motors, increased noise emis-
sions must be taken into account.
1Manufacturer
2Typ: PM powder mixer
3S.-Nr.: serial number of the PM powder mixer
4P: motor output (total) [kW]
5 Year of manufacture
6mttl: mass (total) [kg]
7CE mark
5
1
2
3
7
6
4

//PM POWDER MIXER ///
10
Wear ear protectors when using the powder mixer with pumps or shakers with specified
sound pressure levels of greater than 80 dBA. See Chapter 10.1.2, "Noise Emissions," page 28
and the operator's manual for the vibratory motor.
2.6 Disposal
►Follow the instructions in the operator's manuals for the powder mixer components.
2.6.1 Disposal of Transportation Package
►Recycle the transportation package.
2.6.2 Disposal of Grease
►Dispose of grease and objects saturated with grease in an environmentally friendly man-
ner in accordance with applicable regulations.
2.6.3 Disposal of Lubricating Oil
►Dispose of oil and objects saturated with oil in an environmentally friendly manner in ac-
cordance with applicable regulations.
2.6.4 Disposal of Powder Mixer
1. Carefully clean the powder mixer. Dispose of residues in an environmentally friendly
manner in accordance with applicable regulations.
2. Dismantle the powder mixer into its constituent parts.
3. Dispose of the components in an environmentally friendly manner in accordance with
applicable regulations.
2.6.5 Disposal of Electrical and Electronic Scrap
►Dispose of electrical and electronic scrap in accordance with applicable directives.

11
3 Design and Function
3.1 Principles of Design
A centrifugal pump (P1), a shear pump (P2), a control cabinet, and a funnel are connected to
a pipe system in the PM powder mixer. The components are mounted to a table with a
frame. The standard funnel is equipped with a vibratory motor. The entire system is mount-
ed on casters or legs.

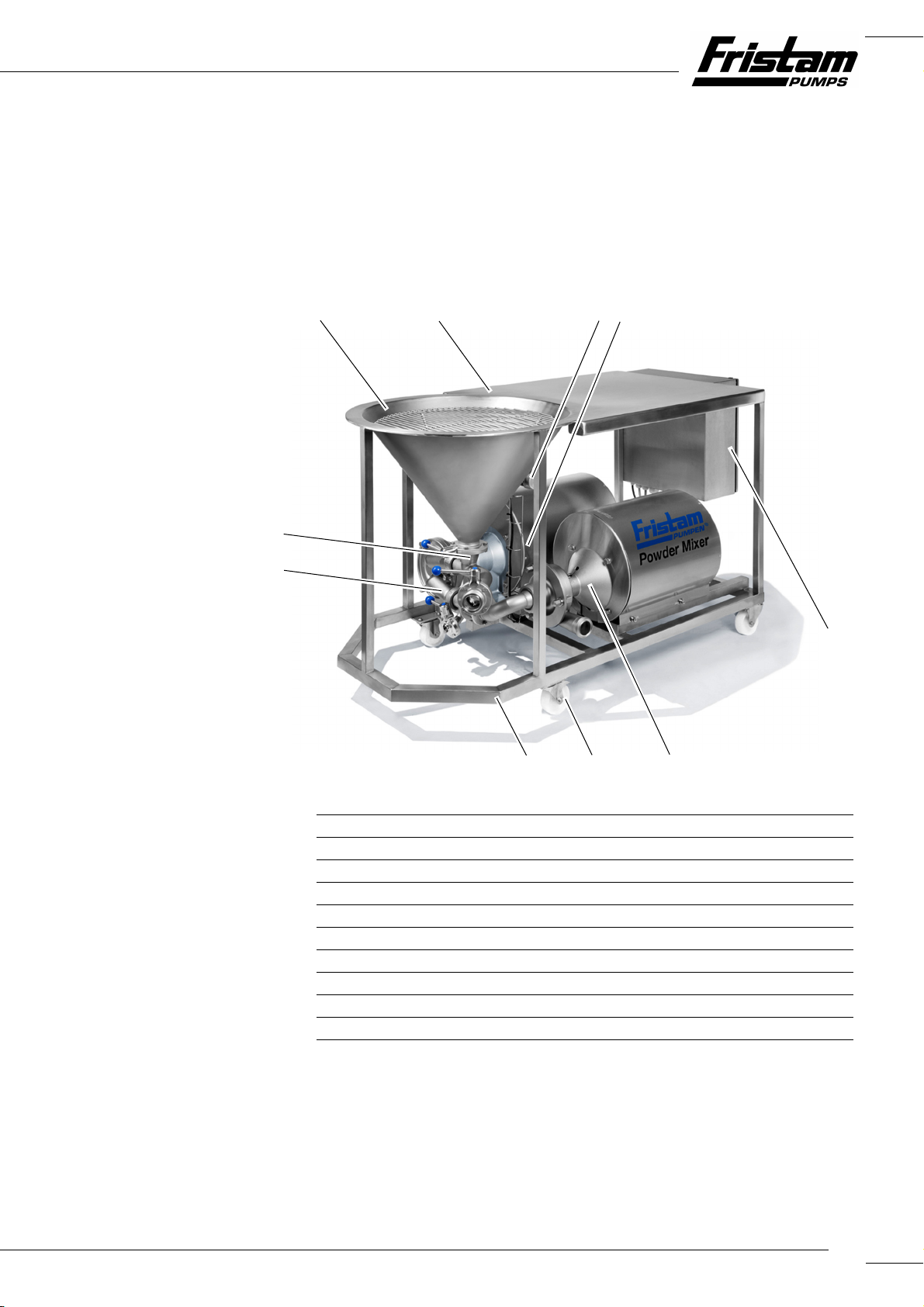

Fig. 7 Powder mixer layout
3.2 Funnel
Powder or liquid additive media is poured into the funnel, where it is then routed to the
base medium in the pipe. The funnel is sealed in the lower region by metering valve V1. In
the standard version, a vibratory motor is mounted on the side of the funnel. Other options
such as protective grating, filter, CIP cover, screw-in bushing, and adapter are available. The
funnel can be mounted on a vibration mount or welded on.
89 10
12
11
16
17
131415
8Funnel, grating optional
9Table
10 Vibratory motor
11 Self-priming pump (FZ pump, P1)
12 Control cabinet
13 Shear pump (FSP pump, P2)
14 Caster (optional)
15 Frame
16 Pipes
17 Powder inlet

//PM POWDER MIXER ///
12
3.3 Pipes
The pipes include connections, manual and pneumatic valves, and the sight glass. Standard
manual valves are equipped with hand levers that can be locked in the 0° and 90° positions.
Other handles or attached drives can optionally be installed.
The premix, made up of the base medium and the powder or added liquid, is formed in the
pipe region between throttle valve V2 and centrifugal pump P1.
The homogeneous end product is formed in shear pump P2 upstream of the discharge-side
connection.
Fig. 8 Pipes, version with hand valves
3.3.1 Valves
The manual valves in the standard version are set as follows:
1. Pull the handle out lengthwise.
2. Rotate the lever to the desired position.
All manual disk valves in the standard version only engage in the positions "On" or "Off."
3.3.2 Variants of Metering Valve V1
Stepless Metering Valve V1
Valve V1 as a manual valve can be equipped with a continuously adjustable hand lever in-
stead of a standard hand lever.
Valve Combination V1.1 + V1.2
Combination metering valve V1.1 stepless and V1.2 pneumatic (optional)
A V1.2 valve can be positioned below a V1.1 continuously adjustable manual valve. It has a
pneumatic drive and can only be set to positions "On" and "Off."
18 Metering valve V1
19 Discharge-side connection
20 Suction-side connection
21 Throttle valve V2
22 Sight glass
23 Drain valve V3
21
18
19202223

13
Metering Valve V1 With Electropneumatic Drive
This metering valve V1 features stepless control via an electropneumatic drive. An impressed
current signal of 4-20 mA is required for this.
3.3.3 Variants of Throttle Valve V2
Stepless Throttle Valve V2
The manual throttle valve V2 can be equipped with a continuously adjustable hand lever.
Valve Combination V2.1 + V2.2
A V2.2 valve can be installed beside a V2.1 continuously adjustable manual valve. It has a
pneumatic drive and can only be set to positions "On" and "Off."
The disk of valve V2.2 is equipped with an appropriately sized drill hole and determines the
degree of throttling at the inlet. The vacuum generated by the FZ pump cannot be varied in
this case.
Metering Valve V2 With Electropneumatic Drive
This throttle valve V2 features stepless control via an electropneumatic drive. An impressed
current signal of 4-20 mA is required for this.
3.4 Pumps
3.4.1 Centrifugal Pump
The FZ series self-priming centrifugal pump draws in the supplied base medium and con-
veys the premix through a short pipe to the shear pump.
Please heed the information in the attached documentation on the FZ pump.
3.4.2 Shear Pump
The FSP series shear pump acts as a rotary homogenizer. It whirls the premix, consisting of
the base medium and the powder, and completely breaks down the remaining clumps with
the help of high turbulence and high circumferential speeds.
Please heed the information in the attached documentation on the FSP pump.
3.5 Control Cabinet
3.5.1 Control and Display Elements
The powder mixer is controlled and monitored via the control and display elements on the
control cabinet. Heed the information in the attached documentation on the frequency con-
verter (FU, optional).
The circuit diagram can be found in the control cabinet.

//PM POWDER MIXER ///
14
Fig. 9 Control cabinet
3.6 Vibratory Motor (Optional)
The vibratory motor causes the funnel to vibrate and facilitates uniform powder flow to the
bottom of the funnel.
If the vibratory motor is activated, it will run in specified switching cycles or switch off.
No. Element Design Function
24 Switch for shear pump
[S3]
Rocker switch with indicator
light
Used to switch voltage supply for
the shear pump frequency con-
verter on and off
25 Switch for FZ pump [S2] Rocker switch with indicator
light
Used to switch FZ pump on and off
26 Vibratory motor switch
"Vibrating" [S4]
Selector switch with set
positions or selector dial
Used to switch external vibrator on
and off
27 Fault indicator "Fault"
[L1]
Indicator light Lights up when faults occur (see
"Faults")
28 Emergency stop button Latching palm button Used to turn off the powder mixer
in an emergency
29 Main switch [S1] Selector dial Used to turn on powder mixer
30 Set point potentiome-
ter (optional)
Control dial Used to adjust the set point for
shear pump speed
31 Graphics and control
terminal for frequency
converter (example)
Panel with LCD, buttons,
and controls
Used to control the frequency con-
verter or start the shear pump
Table 1 Control and display elements on control cabinet
24 25 26 27
30
2831
29

15
3.7 Screen (Optional)
Various screens are available for the funnel. For automated or semiautomated operation
with a pneumatic metering valve, a screen improves powder flow and prevents clumping in
the funnel.
Depending on the application, the screen can facilitate filling of the funnel.
Fig. 10 Funnel with grating
3.8 Protective Grating (Optional)
The protective grating is mounted in the case of powder mixers with V1 automatic valves. It
prevents access to the valve, the position of which cannot be changed by the operator. The
protective grating is permanently mounted in the funnel at a distance of 10-15 cm above
the valve.
32 Funnel
33 Screen (optional)
34 Metering valve (here: disk valve)
32
33
34

//PM POWDER MIXER ///
16
3.9 Sizes and Standard Equipment
The following versions of the powder mixer are available:
Depending on the application, other combinations of pumps and connections can be used.
The dimensions of the pipes and the connections may need to be adjusted for the viscosity
of the end product.
Size Approx.
Dimensions
Connection
Type
Approx.
Weight
FZ Pump Output in
kW
Shear Pump Output in
kW
W/H/D in mm DIN 11851 in kg
PM01 FZ 15 PM 2.0–4.0 FSPE 712 D 4.0–5.5 800
990
1200
On DN40
OFF DN40
250
PM02 FZ 17 PM 4.0–5.5 FSPE 3522 D 4.0–11.0 800
990
1700
On DN50
OFF DN50
300
PM03 FZ 20 PM 5.5–11.0 FSPE 3532 D 7.5–18.5 800
990
1700
On DN50
OFF DN50
350
PM04 FZ 22 PM 11.0–15.0 FSPE 3542 D 15.0–30.0 1050
1000
2010
On DN65
OFF DN65
450
PM05 FZ 25 PM 15.0–18.5 FSPE 3552 D 22.0–45.0 1050
1000
2010
On DN80
OFF DN80
620
Table 2 Powder mixer sizes
Size FL3 pump Dimensions
approx.
Connection
type
Weight
approx.
Power/kW Shear pump Power/kW W/H/D mm DIN 11851 /kg
PMV01 FL2 75 L3 2.0…4.0 FSPE 712 D 5.5…7.5 900
1000
1800
ON DN40
OFF DN40
300
PMV02 FL2 75 L3 4.0…5.5 FSPE 3522 D 7.5…11.0 900
1000
1800
ON DN50
OFF DN50
350
PMV03 FL2 75 L3 5.5…7.5 FSPE 3532 D 11,0…22,0 1000
1000
1800
ON DN50
OFF DN50
400
PMV04 FL2 100 L3 5,5…7,5 FSPE 3542 D 22,0…37,0 1000
1230
1900
ON DN80
OFF DN80
550
PMV05 FL2 100 L3 7,5…11,0 FSPE 3552 D 37,0…75,0 1000
1230
2000
ON DN100
OFF DN100
720
Tabelle 3 PMV sizes
Component Equipment
Powder mixer Permanent installation on height-adjustable machine legs or mobile
installation on 4 casters (2 fixed and 2 pivot)
Control cabinet With/without control cabinet, stainless steel, protection rating IP 54/IP
55 and others, current consumption up to 63 A, selectively with/with-
out cable
Funnel With diameter = 500 mm, H = 470 mm, approx. 35 l capacity; with
diameter = 700 mm, H = 470 mm, approx. 66 l capacity; with/without
vibratory motor, 400 VAC, 45–120 W; with/without screen
Pipes Stainless steel 1.4404, 1.4571, and others
Table 4 Equipment variants for standard sizes

17
3.10 Hydraulic Diagram
The premix, made up of the base medium B1 and the powder, is formed in the pipe region
between throttle valve V2 and centrifugal pump P1. The end product is formed from the
base medium in container B1 and the powder.
3.10.1 Interfaces
Via three-way valves, the operator can control the inflow of the base medium to the suction-
side connection and the outflow of the end product from the discharge-side connection.

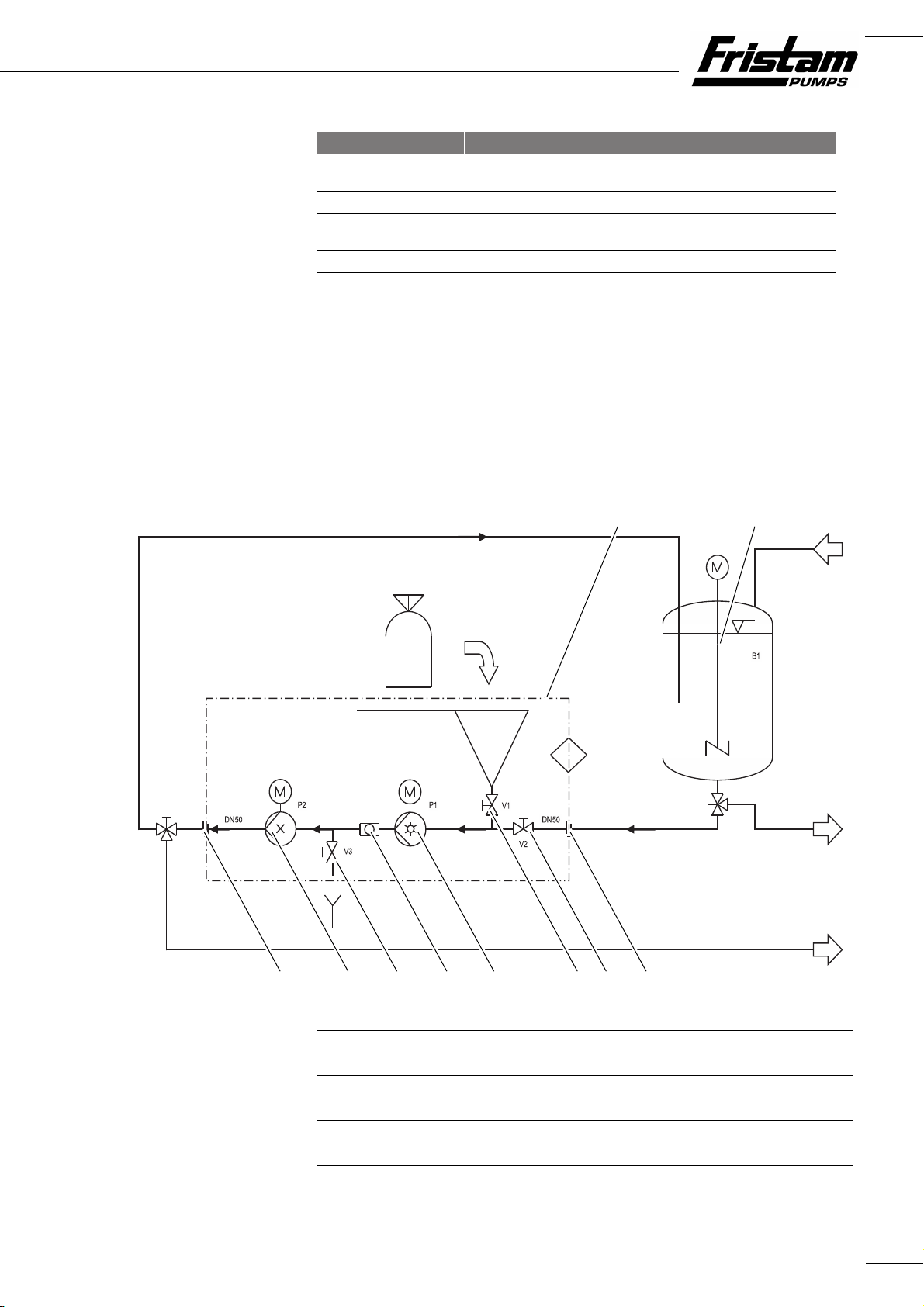

Fig. 11 Hydraulic diagram
Connections Thread: DIN 11851, DIN 11864, RJT, SMS, etc.; flange: DIN, ANSI, etc.;
clamp connections: Tri-clamp, ISO clamp, and others
Pumps With/without enclosure
Seals Rotating seal ring, single/double flush elastomers: VMQ, NBR, FKM,
PTFE/KALREZ, FEP, and others
Drives PTC thermistor (motor), external fan, frequency converter
Component Equipment
Table 4 Equipment variants for standard sizes
43 42
39 40
414446 4547
48
39 Scope of supply for PM powder mixer
40 Container B1 with base medium
41 Suction-side connection
42 Throttle valve V2
43 Metering valve V1
44 Self-priming centrifugal pump (FZ pump) P1
45 Sight glass

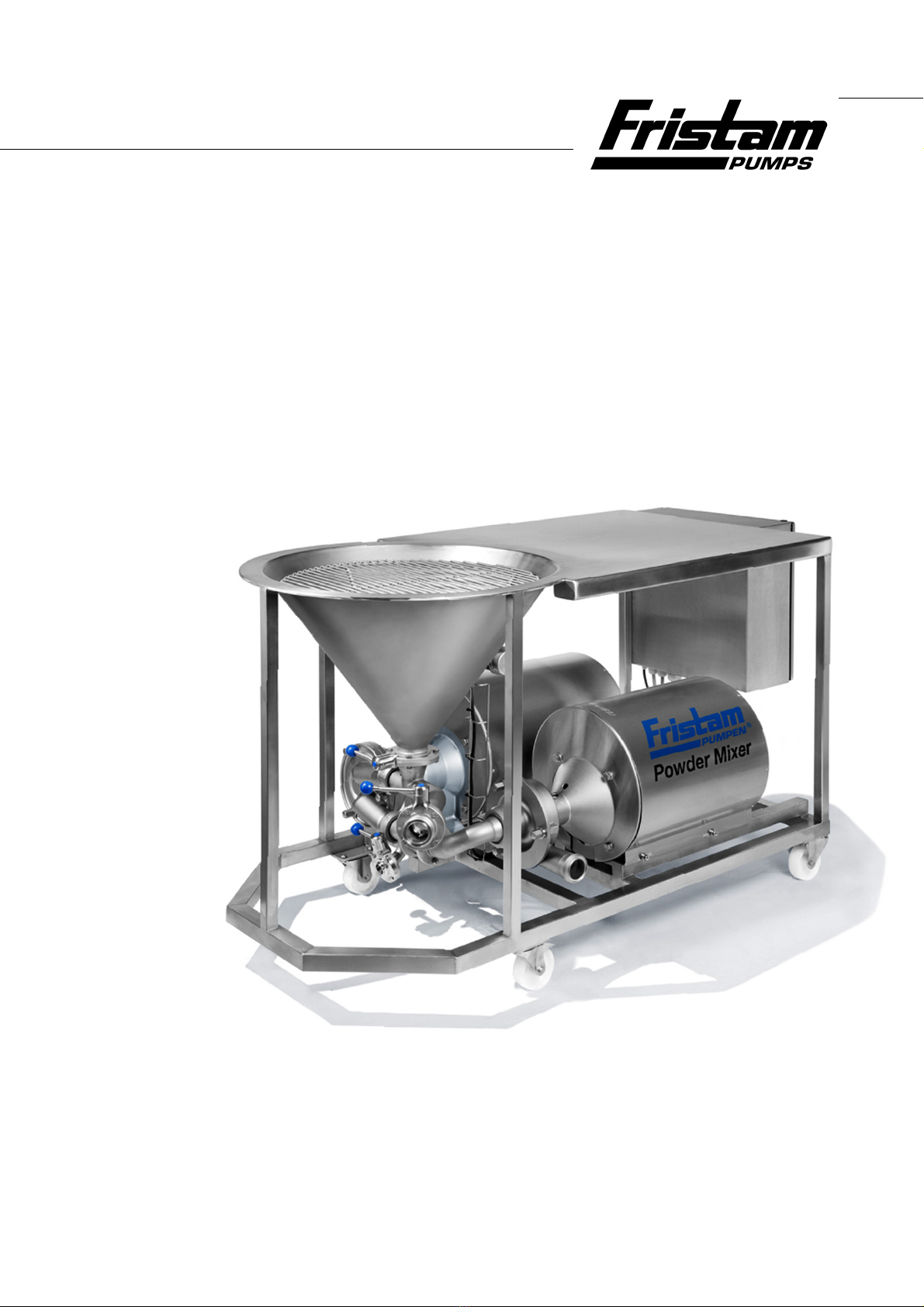

//PM POWDER MIXER ///
18
3.11 Function
The PM powder mixer is a system in which powder or liquid ingredients (e.g., sugar, milk and
cocoa powder, thickeners, oil, flavorings, etc.) are introduced into or dispersed in a base me-
dium solution.
The self-priming centrifugal pump draws in the base liquid supplied in a tank and conveys it
through a short pipe to the shear pump. If the self-priming centrifugal pump is throttled at
the suction side via the throttle valve, a vacuum (of up to approx. 0.5 bar) is built up between
the pump and the valve. This is where the funnel with the inlet for the additive medium is lo-
cated.
The vacuum causes, for example, powder or liquid to be drawn directly into the liquid flow.
First this still-inhomogeneous premix reaches the self-priming centrifugal pump, where it is
premixed. The premix is then pumped by this pump to the shear pump, where the remain-
ing clumps are completely broken up due to the high turbulence at circumferential speeds
of up to 30 m/s.
4 Transportation
Transportation may only be performed by trained personnel.
The powder mixer can be moved using an industrial truck or a crane.
Always move the powder mixer in the installation condition.
4.1 Safety Instructions
Rolling on Sloping Site
Injuries from being crushed or run over, material damage.
►Ensure that the powder mixer is placed on a level surface.
►Lock the casters.
►Additionally secure the frame for operation.
Falling or Unsecured Parts
Danger of injury from impact or crushing.
►Only use suitable means of conveyance and hoists. Information on powder mixer weight
can be found in the "Order-Related Documents" in the attached documents.
►Before moving the powder mixer secure it to prevent it from slipping.
►Secure pipes and attachment parts, and check screwed connections.
Contamination, Impact, and Moisture
Damage to pipes, valves, and pumps.
– Remove the protective film just prior to installation.
– Remove the pipe fitting covers just prior to connection to the pipes.
46 Drain valve V3
47 Shear pump (FSP) P2
48 Discharge-side connection

19
4.2 Moving With Industrial Truck
Preparation
►Ensure that the powder mixer is on the correct pallet and adequately secured.
Procedure
1. Pick up the pallet with the forks on the industrial truck.
2. Carefully move the pallet to the designated location and set down.
4.3 Moving With Crane
Falling Parts
Death from crushing, pinching of extremities, material damage.
►Only use hoists that are designed for the total weight of the powder mixer.
►Ensure that the area below the powder mixer is clear of people.
Swinging Parts
Crushing and serious injuries.
►Start and stop the crane with powder mixer smoothly.
►Ensure that the danger zone of the powder mixer is clear of people.
Auxiliary Equipment
Hoists: round slings tested in accordance with DIN EN 1492-1 and 1492-2
Procedure
1. Wrap the round sling twice around the frame of the powder mixer.
2. Guide both loops to the crane hook and rotate by 180° to ensure that the belt will not
slip on the hook.
3. Position the center of gravity to ensure that the powder mixer is lifted horizontally.
4. Lift the powder mixer.
5 Storage
5.1 Safety Instructions
►Follow the instructions in the operator's manuals for the powder mixer components.
5.2 Storage Conditions
►Store the powder mixer as follows:
– Dry, in low humidity
– Protected against frost and heat, optimally at a temperature of 20°C to 25°C
– Ventilated

//PM POWDER MIXER ///
20
– Dust-free
►All movable powder mixer parts must be rotated every three months.
5.3 Mothballing of the Powder Mixer
If intended to be stored for longer than six months, the powder mixer must be mothballed.
Heed the following:
►Before mothballing completely remove the shaft seals on the pumps and store separate-
ly.
►Open the valves.
5.4 Recommissioning
►After mothballing and before recommissioning, check the pumps' connections, seals,
bearings, and oil levels.
6 Installation
Remove the packaging materials and protective films (also on the casters). Inspect the pow-
der mixer after unpacking. Remove any foreign objects in the funnel or the pipes.
Connect the power to the powder mixer. See Chapter 6.8, "Connection of Power Supply,"
page 23.
6.1 Safety Instructions
Unstable Installation
Severe crush injuries, material damage.
►Tighten screws to the specified tightening torque (see Chapter 10.1.1, "Tightening
Torques," page 28).
►Use a torque wrench or an impact driver with adjustable torque.
6.2 Installation Location
For standard powder mixers, the installation location must meet the following requirements:
– Nonexplosive atmosphere
– Dust-free environment and device for discharge of dust- or aerosol-containing air
– Ambient temperature: –20°C to +40°C
– Moisture and salt contents in ambient air:
The values are given in the operator's manuals for the pump motors; please see the at-
tached documents.
– Foundation sized adequately for the system weight
– Horizontal and level installation surface
– Adequate installation surface strength for powder mixer mass
►Consider the point loads created by the casters or legs on the powder mixer.
– Installation clearances given in the operator's manuals for the pumps
– Adequate clearance for maintenance work
– Adequate air supply for pump cooling
