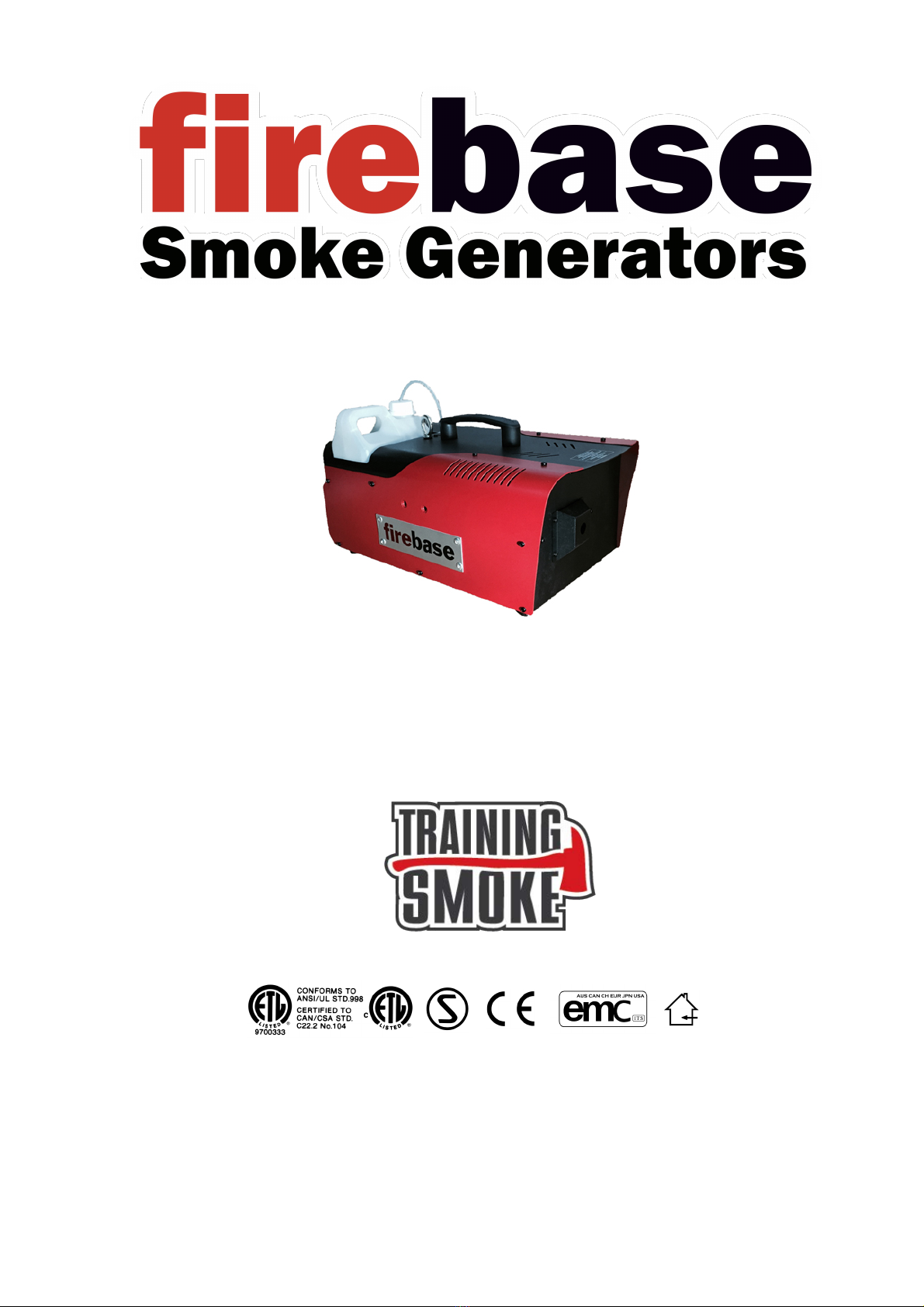

FROGGYS FOG Firebase SG-Z1200 User manual

SG-Z1200 USER MANUAL
Read and save these instructions
Froggys Fog
302 Rutherford Lane
Columbia, TN 38401
[email protected]
877.376.4499

2
User Manual
Firebase SG-Z1200
Smoke Machine
Introduction
Thank you for choosing Firebase Smoke Machines. You now own a rugged and powerful state-of-the-art
machine. Prior to use, we suggest that you carefully read all of the instructions. By following the
suggestions found in this user manual, you can look forward to the reliable and satisfactory performance of
your Firebase Smoke Machine for years to come.
Please follow these operation, safety and maintenance instructions to ensure a long and safe life for your
smoke machine.
CAUTION:
Risk of electric shock. Disconnect the appliance from the electric supply before refilling liquid, cleaning or
performing maintenance on the machine.
Danger of Electric Shock
♦Keep this device dry.
♦For inside use only. Not designed for outside use.
♦For the 110V models, use 3-prong grounded electrical outlet only. Prior to use take care to determine that
the unit is installed at the rated voltage.
♦
Always unplug your Firebase Smoke Machine before filling its tank.
♦
Always keep smoke machine in upright position.
♦Turn off or unplug the machine when not in use.
♦
This machine is not water-proof. If moisture, water, or Smoke fluid gets inside the housing, immediately unplug
the unit and contact a service technician or your Firebase dealer before using it again.
♦
No user serviceable parts inside. Refer to your Firebase dealer or other qualified service personnel.
Danger of Burns
♦For adult use only and must be installed out of the reach of children. Never leave the unit running
unattended.
♦Never aim the output nozzle directly at people.
♦
Smoke machine output is very hot. Avoid coming within 60 cm of the output nozzle during operation.
♦
Locate the smoke machine in a well-ventilated area. Never cover the unit’s vents. In order to guarantee
adequate ventilation, allow a free air space of at least 20 cm around the sides and top of the unit.
♦Never aim the output nozzle at open flames.
♦If the supply cord is damaged, it must be replaced by manufacturer or its service agent or similarly qualified
personnel in order to avoid a hazard.
♦The output nozzle becomes very hot during operation (300°C). Keep flammable materials at least 50 cm
away from the nozzle.

3
♦
Always allow your Firebase smoke Machine to cool down before attempting to clean or service it.
Danger of Explosion
♦
Never add flammable liquids of any kind (such as oil, gas) to the smoke liquid.
♦
Use only high-quality, water-based smoke liquid that your dealer recommends. Other smoke liquids may cause
clogging or “spitting”.
♦Always make sure there is sufficient liquid in the tank. Operating this unit without liquid will cause damage
to the pump as well as over-heating of the heater.
♦
If your Firebase SG-Z1200 Smoke Machine fails to work properly, discontinue use immediately. Drain all smoke
liquid from the tank, pack the unit securely (preferably in the original packing material), and return it to your
Firebase dealer for service.
♦Always drain tank before mailing or transporting this unit.
♦
Never drink smoke liquid. If it is ingested, call a doctor immediately. If smoke liquid comes in contact with skin or
eyes, rinse thoroughly with water.
Note: Pay attention to all warning labels and instructions printed on the exterior of your Firebase Smoke Machine
Unpacking & Inspection
Open the shipping carton and verify that all equipment necessary to operate the system has arrived intact. The
shipping carton should contain the following items:
1.
One unit of SG-Z1200 smoke Machine
2. Power cord
3. Z-8 multi-function remote control with attached cord
4. User Manual
If any equipment is missing contact your Firebase dealer immediately.
Before beginning your initial setup on Firebase SG-Z1200 Smoke Machine, make sure that there is no evident
damage caused by transportation. In the event that the unit’s housing or cable is damaged, do not plug it in and
do not attempt to use it until after contacting your Firebase dealer for assistance.
Setup
♦Remove all packing materials from shipping box. Check that all foam and plastic padding is removed,
especially in the nozzle area.
♦
Place smoke machine on a flat surface and remove smoke liquid tank cap.
♦
Fill with Firebase smoke liquid or other high-quality water-based smoke fluid recommended by Firebase dealer.
Any other types of fluid can damage the unit resulting in spitting and serious clogging problem. When filled,
place cap back on liquid tank. Be careful not to exceed the maximum fluid level. DO NOT OVERFILL.
♦Firmly attach the Z-8 remote control cable to the proper input on the back of the machine.
Operation
♦Add fluid carefully to the liquid tank. Do not overfill the tank.
♦Plug the remote control cord into the slot marked remote control on the back of the machine.
♦Plug power cord into a grounded electrical outlet. Turn the power switch to “ON” on the back of the
machine. The red light on the remote will turn ON once the machine is plugged into a power outlet and the
ON/OFF switch is turn ON. The unit will take a couple of minutes to warm up the heater. During this time the
machine cannot generate smoke. The green light on the remote will turn ON once the machine is ready to
produce smoke.
♦
To emit smoke press the green button on the remote. SG-Z1200 is controlled via the Z-8 remote control.
♦
For detailed instruction on the various functions on operating your SG-Z1200 smoke Machine, see the section
titled “Remote Control Operation”.
Important: Always monitor tank fluid level as you are fogging. Running a smoke machine with no fluid can
permanently damage the unit.

4
If your model includes a mounting bracket designed for overhead installation, it may be installed
floor level or suspended overhead. If the unit is to be mounted using the bracket, it is important
that the fog does not shoot directly at any one’s face. Whatever installation method you choose,
do not allow the unit to have more than a 15 degree angle or onclination.
Note: A fluid level sensor is installed on the unit. The machine will stop to fog if the fluid is lower than the
maximum level.
If you experience low output, pump noise or no output at all, unplug immediately. Check fluid level, the
external fuse, remote control connection and power from the wall. If all of the above appears to be O.K.,
plug the unit again. If fog does not come out after holding the remote button down for 30 seconds, check
the hose attached to the tank to make sure there is fluid going through the hose. If you are unable to
determine the cause of the problem, do not simply continue pushing the remote button, as this may
damage the unit. Return the machine to your Firebase dealer.
Specification
Model Number
SG-Z1200
Power Supply
AC100-120V, AC220-240V / 50HZ-60HZ
Power Consumption
1250 W
Output Volume
ca. 500 m³/min.
Tank Capacity
2.5 Liter
Fluid Consumption
44 min./Liter
Weight
10.9 Kg.
Dimensions(mm)
L458 W243 H177
Remote Included
Z-8
Remote Control Operation
♦
Z-8: 10 meter wired multi-function remote control with 5-PIN plug for Firebase Fog Machine model SG-Z1200.
The Interval knob adjusts the time between discharges when the timer function is engaged. The range is
from 10 seconds to 250 seconds.
The Volume knob controls the volume of the fog produced. The range is from 0% - 100% of maximum
output.
The yellow TIMER button controls the timer function. Depress the button to activate. When activated, the
yellow light will turn ON. Adjusting the interval knob will determine the time between fog output (10 – 250
seconds). The duration of output is set at 15 seconds. The volume can be adjusted using the volume knob
to control the amount of smoke produced.
The red CONTINUOUS button sets the machine to constant smoke production. To activate this function,
depress the red button. The volume knob can be used to regulate the volume of the steady stream of fog
produced.
The green MANUAL button will produce a continuous blast at maximum volume while the button is held
down. When released, the manual function stops and the machine will return to the previous setting; timer,
continuous, or stationary.
Note: The continuous function will override the Timer function. Therefore, if both buttons have been
depressed the SG-Z1200 will smoke continuously. The manual function overrides all functions.
When depressed and held down the SG-Z1200 will smoke at maximum volume for as long as the
button is held down, regardless of the machine’s setting at the time.
Performance Note
♦
All smoke machines develop condensation around the output nozzle. Because this may result in some
moisture accumulation on the surface below the output nozzle, consider this condensation when installing
your unit.
♦
All smoke machines may sputter small amounts of smoke occasionally during operation and for a minute or so
after being turned off.
♦
All smoke machines have a recycling period after long bursts when the machine will shut itself down for a short
period in order to heat up again. During this time no fog can be produced.

5
Maintenance
Do not allow the fog liquid to become contaminated. Always replace the caps on the fog liquid container and
the fog machine liquid tank immediately after filling. After every 40 hours of continuous operation, it is
recommended to run a cleaning solution (Froggy's Fully Clean) through the system to prevent the
accumulation of particulate matter in the heating element.
The recommended cleaning regimen is as follows:
1.
Empty all fog liquid from machine. Add 1 cup of cleaning solution to tank. Plug unit in and begin warm up.
2. Run unit in a well-ventilated area until tank is almost empty. Do not allow the pump to run dry.
3.
Cleaning is now complete. Run fresh Smoke fluid through the machines for a few minutes to clear any cleaning
solution from the pump and heater.
4. Do not operate the fog machine without liquid at any time.
Note: All smoke machines are prone to clogging due to the thick consistency of smoke liquid and the high
temperature at which it vaporizes. However, a properly maintained smoke machine should provide years
of reliable use.
Clean with a dry cloth only. Store dry.
Cleaning your smoke machine regularly will help reduce costly replacement and repair charges.
Storage
When storing run distilled water (not tap water) through the system as described in the cleaning regimen above.
This will help avoid any particles condensing inside the pump or heater.
Please read and save these instructions.

6
Firebase SG-Z1200 on-board DMX Smoke Machine Settings
DMX Setting for SG-Z1200 fog machines with on board DMX
Channel A
0 - 5 = OFF
6 – 249 = Volume Control ( 5% - 95%)
250 – 255 = Maximum Volume Output (100%)
The SG-Z1200 Fog Machine have on-board DMX control. These two models use 1 channel to control volume
output operation. Each channel has a value range of 0 to 255. Timer functions such as duration and interval can
be programmed using the DMX controller or the DMX control software being used by lighting and effects
operator.
If Channel A has a value from 0 to 5, the unit is OFF.
Between the values 6 to 249 the volume of fog output is regulated. With 6 being the minimum volume of
smoke produced and 249 approaching the maximum. The volume output rises as the DMX value is increased.
If Channel A has a value from 250 TO 255, the machine will operate at maximum output.
Note: In the example above, if the machine were assigned the DMX address of 124, Channel A would
correspond to DMX address 124.
In general, Firebase fog machines with onboard DMX conform to the following performance
e
1. Average Operating temperature = 250ºC
2. Smoke Machine can maintain maximum output for 30 seconds or more
3.
Smoke Machine can maintain constant output at 30% volume setting (roughly a value of 75).
