FRP Electric Kids User manual

Electric Kids
Mini Quad ATV

PLEASE BE SAFE WHEN RIDING
ALWAYS WEAR A HELMET AND OBEY ALL LAWS!
1. You MUST charge completely prior to initialuse.(Follow charging
instructions in your Product Handbook)
2. Charge immediately after each use.
3. Charge before storage.You mus tcharge every 30 days if not in use.
4. Charge the unit for 6-8 hours or until the light on the charger turns
red & green.
5. DO NOT allow this unit to deep discharge the battery.
6. For safety purposes, DO NOT charge for over 24 hours.
7. Turn the unit OFF when not in use.
BATTERY MAINTENANCE and CHARGING INSTRUCTIONS
This PRODUCT IS NOT INTENDED FOR EXTREME Use!
Please take care of your motorcycle.
DO NOT JUMP or ABUSE THIS PRODUCT!
DO NOT RIDE IN WET/ICY CONDITIONS!
Failure to follow these instructions properly or abusing
your motorcycle will
VOID YOUR WARRANTY!
IMPORTANT
Failure to follow these INSTRUCTIONS will
VOID YOUR WARRANTY!
2

WARNING
This product does not conform to Federal Motor Vehicle Standards and is
not intended for operation on public streets, roads or highways. Serious
injury can result from the unsafe operations of this product. Operator can
minimize these risks by using certain safety equipment such as: safety
helmet, goggles, gloves, elbow and kneepads and appropriate footwear.
DO NOT operate this product in trafc, on wet, frozen, oily or unpaved
surfaces or under the inuence of drugs and/or alcohol. Avoid uneven
surfaces, potholes, surface cracks and obstacles.
DO NOT use a water hose to clean this product. See Product Handbook
for more information.
This product is recommended for riders 8 YEARS OF AGE and older.
SAFETY
• Persons without excellent vision, balance, coordination, reex, muscle
and bone strength and good decision-making capabilities should not use
this product.
• Minors without adult supervision should not use this product.
• Persons unwilling or unable to take responsibility for their own actions
should not use this product.
• The user of this product assumes ALL risks associated with its use. To
minimize these RISKS, the user must wear appropriate safety gear such as
helmet, goggles, gloves, elbow and kneepads and appropriate footwear.
• THIS PRODUCT IS ELECTRIC! DO NOT RIDE THIS PRODUCT IN WET
CONDITIONS, PUDDLES OR RAINY WEATHER.
IMPORTANT
PLEASE READ BEFORE USING THIS PRODUCT
READ THIS FIRST!
3

SAFETY GUIDE
• The recommended minimum age for riding this E-ATV is 8 years old.
• To avoid damage to the motor and footplate, do not overload the E-ATV.
• Never ride with more than one person.
• Inspect your E-ATV thoroughly before each use for loose or missing parts.
• Avoid unintentional starts by turning the E-ATV off while not in use.
• To avoid the risk of a short circuit in the electrical parts, do not use your
E-ATV in the rain and never spray or wash off your E-ATV with water.
• Do not place the battery near re or heat.
• To avoid damage to the battery, do not use the charger if it has been
damaged in any way.
• Keep hands, face, feet and hair away from all moving parts.
• Do not touch the motor or wheels while they are rotating.
• Brakes are designed to control speed as well as stop the E-ATV. Practice
braking
for proper slowing down and smooth stops.
• Maintain your E-ATV as recommended in this Product Handbook.
• Use only quality replacement parts as recommended by the manufacturer.
• Inspect the entire E-ATV prior to each use. Replace any part that is
cracked, chipped or damaged before use.
*NEVER ALLOW CHILDREN TO OPERATE THE E-ATV WITHOUT ADULT SUPERVISION.
*NEVER ATTEMPT TO OPERATE THE E-ATV WHILE UNDER THE INFLUENCE OF ALCO-
HOL.
If a situation arises that is not covered in the manual,
proceed with caution and use good judgment.
Contact your dealer
if you need further assistance
QUICK REFERENCE
SAFETY GUIDE
4

Your E-ATV comes with the following items in the box. Please
locate all of the following:
1. E-ATV
2. Battery Charger
3. Tool Kit ,User Manual and Fuses
GETTING STARTED
Please read and understand these instructions and the OPERATING
PROCEDURES section, prior to starting or riding your E-ATV
1. Carefully remove the E-ATV from the box.
2. Setting up handle bar
3. Insert the fuse into the fuse holder with engine off, the fuse holder is
in the left side of the E-ATV, see pictures below:
4. When insert the fuse into fuse holder, it may produce minor spark.
05Package Contents
06Assembly
5

06 ASSEMBLY
01 TABLE OF CONTENTS 1
02 IMPORTANT INFORMATION 2-3
03 QUICK REFERENCE SAFETY GUIDE
5
04 PACKAGING CONTENTS
5
05 GETTING STARTED
6-8
07 CHARGING
08 GETTING TO KNOW YOUR ELECTRIC ATV
5
09 WARNNING
5
10 CHARGING
9
11 RIDING 9
9
12 STOPPING & BRAKING 9
13 BRAKING SYSTEM 10
14 ADJUSTING BRAKES 11
15 TIRE PRESSURE 11
16 MAINTENANCE SCHEDULE 12
17 TROUBLESHOOTING GUIDE 13
4
1

• Your E-ATV comes charged out of the carton.
• We still recommend charging the unit for 6-8 hours prior to its
rst use.
• We also recommend charging your E-ATV after each use and
prior to storage.
07Charging

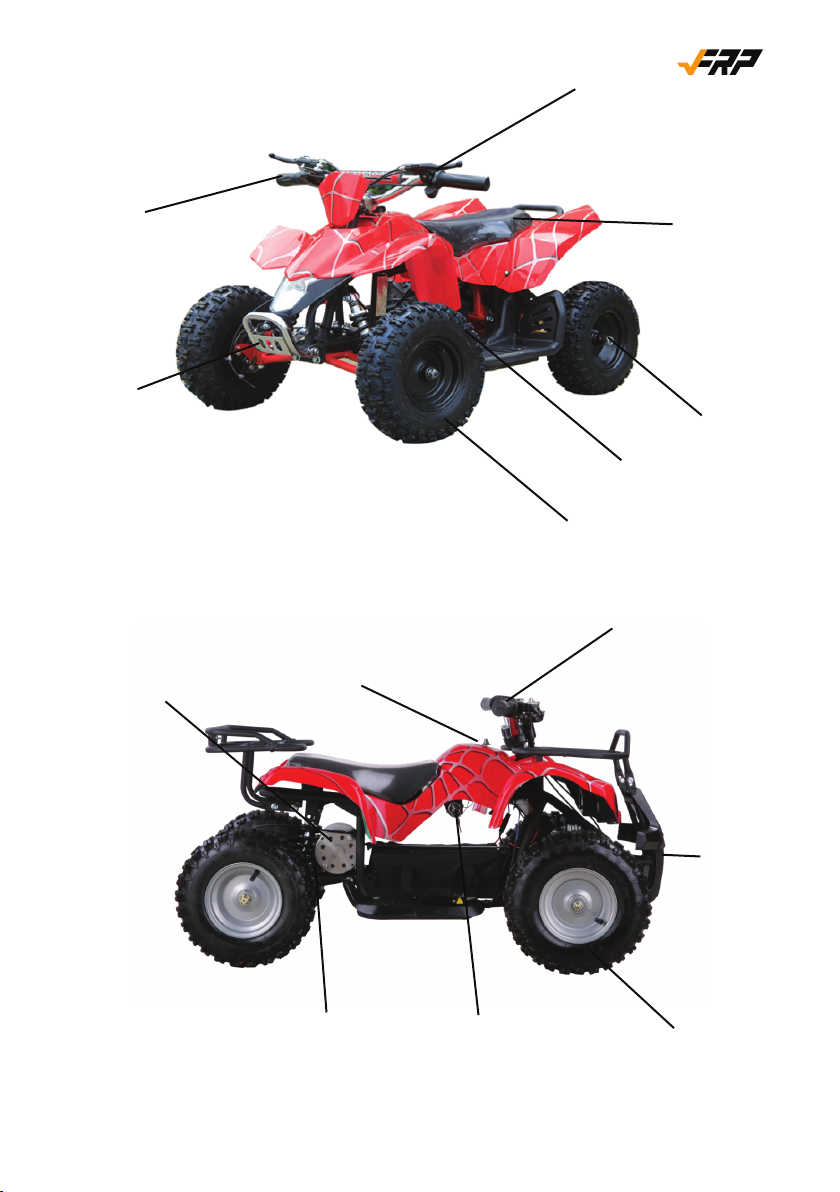

08Getting to know
your electric mini ATV
6
Front light
Motor
Rear tire
Front tire

7
Front light
Hand brakes
Hand brakes
Rear tire
Rear tire
Front tire
Front tire
Battery
F/R switch
Front shock

8
Throttle
Front Bumper
Hand brakes
Seat
Front&Rear
hand brakes
Reverse switch
Rear tire
Front Bumper
Front tire
2 Speed switch 4.10-6 Wheels
Battery box
Motor
Rear Brakes
4.10-6 Wheels

Do not allow your E-ATV to go into deep discharge, as this will
damage the batteries.
1. Make sure unit is turned off.
2. Open the charging socket cover
located on the left side of the
E-ATV frame, near batteries
3. Locate your Battery Charger.
Find the charger socket and that has a
three-prong socket and plug it into the
E-ATV .
4. Next, plug the AC plug into a wall
outlet.
When rst plugged in, the charger has
one red light that will illuminate at the
same time, indicating that the charging
process has started. Once the light on
the charger turns red & green, you
may remove the charger and close the
safety cap.
1. Make sure that all of the exposed bolts and screws are tight-
ened.
2. Push the on/off switch to the ON position.
3. Chose the proper speed via speed control switch
4. Gently rotate the THROTTLE GRIP, on the right side of the handle-
bars. The E-ATV will begin to move on its own power.
9
09Warning
10Charging
11Riding

**Your E-ATV has a variable speed hand throttle. You can control
the speed of your E-ATV by the amount of pressure you use when
rotating the hand throttle. The more you rotate, the faster you will
go. Or you can change the speed by the 2 speed switch or 3
speed switch which at the right of ATV.
1. Tobrake,releasetheTHROTTLEGRIPanddepressthe-
BRAKELEVERS(onthe left/right side of the handlebars. Depressing
the brake will disengage power to the motor. When the unit feels
like it is losing power or not accelerating to full speed, the E-ATV
is ready to be re-charged.
• The E-ATV uses a disc/caliper system .It is activated by a hand
brake lever on the left and right side of the handlebar.
• Squeezing the hand brake lever with your left hand activates
the rear brake.
• Squeezing the hand brake lever with your right hand activates
the front brake.
• Make sure to release the HAND THROTTLE GRIP when engag-
ing the brakes.
• Your E-ATV is equipped with switches on each brake lever that
will disengage power to the motor when the brake levers are
depressed.
Practice braking on a smooth, dry surface to get used to the feel
of the braking system. Braking distance is affected by wet condi-
tions and loose and uneven riding surfaces. 10
12Stopping
& Braking
13Braking System

SQUEAKY BRAKES
The brakes may squeak before they are broken in. This is normal
and will not affect the function or performance of the brakes.
With continued use the squeak should go away.
The tire must be inated to a maximum of 20 P.S.I(4.10-6. It is
also recommended to use a tube additive like Slime, available
from any motorcycle shop, to avoid inconvenient punctures.
Empty all air from the tire, prior to loosening the bolt to split the
rim.
11
14Adjusting the
Brakes
15Tire Pressure
The Brakes on the E-ATV should come fully adjusted from the
factory. However, it may be necessary to adjust the brakes from
time to time.
To adjust the rear brakes:
For brakes that are adjusted too loose:
1. Adjust the tension screw on the right hand brake lever by
rotating it counter-clockwise until the wheel spins freely.
For brakes that are adjusted too tight:
2. Tighten the tension screw on the right hand brake lever by
rotating it clockwise until the wheel has a slight drag.

12
16Maintenance
Schedule
Proper care of your E-ATV will insure optimal performance and
longer life span. The following are a few maintenance sugges-
tions that will keep your E-ATV running in top condition:
Daily Maintenance
Perform each time you ride your E-ATV
• Clean the exterior of the unit with a soft, damp rag. (DO
NOT WASH WITH A HOSE)
• Check that all nuts and bolts are securely tightened.
• Lubricate the chain with any silicone spray, 3:1 oil or
any good clean motor oil.
• Check battery charger for any frayed/cut wires.

13
17Troubleshooting
Guide
SYMPTONS
The charger light
turns green & red
right away
Batteries do not
hold a charge.
Unit does not have
specied travel
range.
Unit moves
intermittently or
very slow.
Unit will not move
when throttle lever
is activated.
Unit stops abruptly
during use.
1. Batteriesnotfully
charged.
2. LooseWire.
3. BadThrottleor
controller.
1. Batteriesnotfully
charged.
2. Brakeswitchesoutof
adjustment
3. Batterieshave
reached the end of
their useful life.
1. FuseBlown
2. Looseorbrokenwire.
1. Replacebatteries or
charger.
2. Loosenbrakes
3. Replace
batteries.
1. ReplaceFuse
2. Checkforloose or
broken wires
and repair/replace.
1. Chargeor replace
batteries.
2. Checkforloose
wires
3. Replace
1. Thisindicatesthe
batteries are
adequately charged.
2. BadFuseoropen
connection between
charger socket and
batteries.
1. Batterieshave
reached the end of their
useful life.
2. Chargeris malfunc-
tioning.
1. ReplaceBatteries
2. ReplaceCharger
Unit.
1. Continueto charge
the batteries for 6-8
hours prior to initial
use.
2. CheckFuse: Look
for loose or discon-
nected wire
POTENTIAL CAUSE SOLUTION
