FrSky Scout VS600 Series User manual

Introduction
Thank you for purchasing the FrSky video transmission device. A simple and clean design, equipped with a
switchable power output and operating band and channel. Paired with a FrSky radio transmitter, the parameters can
be adjusted conveniently through the gTrans.lua script. In addition Scout VS600 BLACK/VS600 RED has a built-in
microphone which transmits audio. To fully enjoy all the features of this device please thoroughly read the
instructions below to set up the device.
Configuration method
1. Manual configuration（by the Button）
Press the button for (3s) to enter the power/channel/frequency selection mode, press the button for (3s) again
to switch between power/channel/frequency.
Features
• Support S.Port
• Support inverted S.Port
• Built-in microphone (Scout VS600 Red & Black)
• Adjustable RF power
• Support set parameters by gTrans.lua / Button
Transmission Frequency
A
B
CH1
5655
5705
CH2
5665
5715
CH3
5675
5725
CH4
5685
5740
CH5
5695
5750
CH
Band
Note: Only Scout VS600 BLACK and Scout VS600 RED support 600 mW power output.
The Scout VS600 Series has a green LED/red LED/blue LED which indicates the RF power/frequency band/chan-
nel. As you press the button key, the LED will flash, indicating the corresponding RF power level/frequency
band/channel.
LED State
LED
Indication
Flash 1 time
Flash 2 times
Flash 3 times
Flash 4 times
Flash 5 times
Flash 6 times
Green
Power
Pit mode
25mW
100mW
200mW
300mW
* 600mW
Red
Band
A
B
/
/
/
/
Blue
Channel
CH1
CH2
CH3
CH4
CH5
Specifications
• Transmission Frequency: 5.7 GHz
• Transmission Power: ＜0.01mW (pit mode) / 25mW / 100mW / 200mW / 300mW / 600mW
* Only Scout VS600 BLACK and Scout VS600 RED support 600 MW power output.
Model Name
Scout VS600 RED
Scout VS600 Black
Scout VS600 Mini
L*W*H (mm)
31.5*23.6*4.5
31*24*4.9
17*15.3*4
Weight (g)
4.2
4
1.2
Available Channel
10CH
10CH
10CH
Operating Voltage
2-6S
2-6S
5V

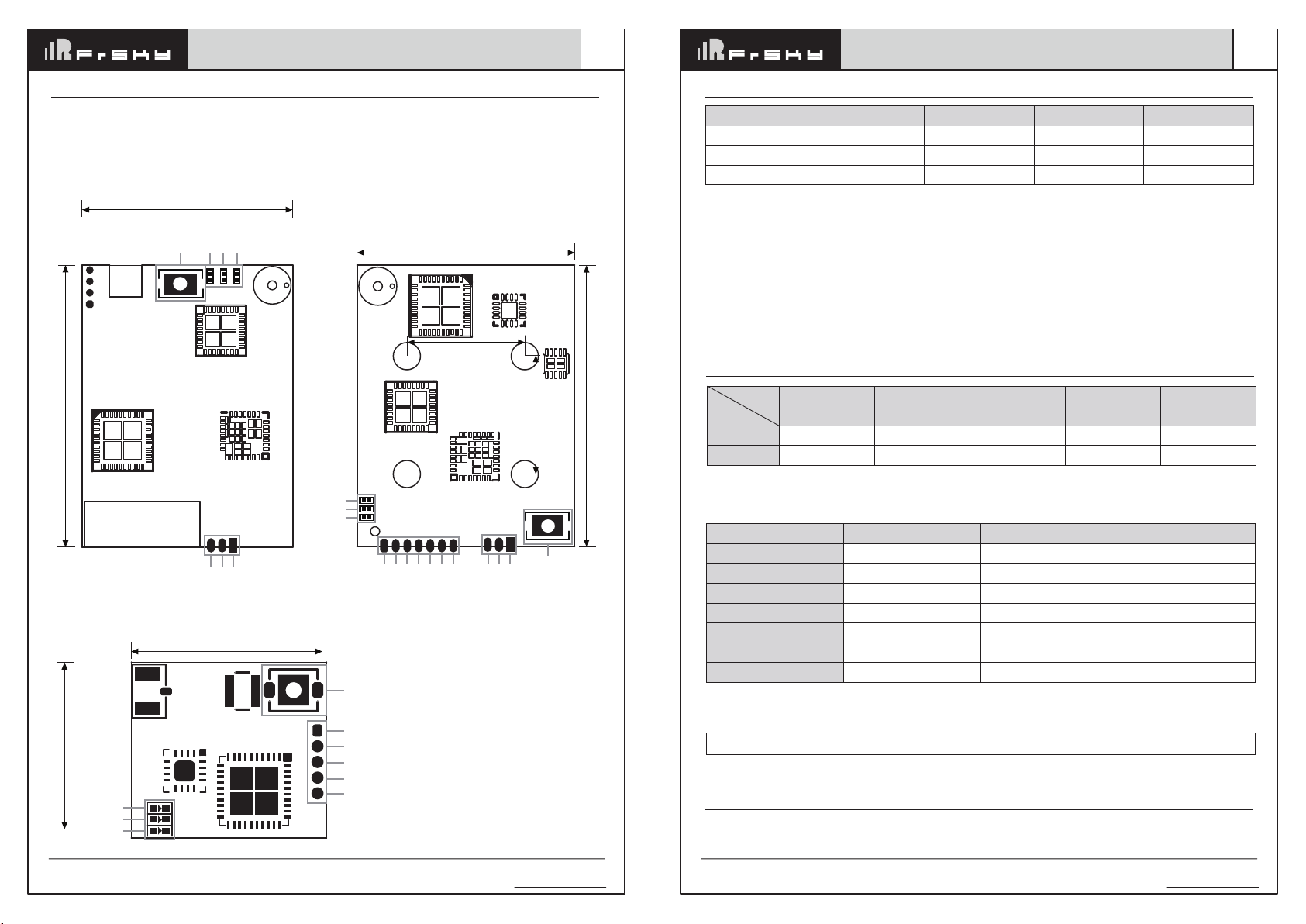

Overview
Scout VS600 BLACK
Inverted S.Port
BLUE
RED
GREEN
Button
5V@3A_OUT
GND GND GND
RX
TX
V_IN
S.Port
VEDIO
24 mm
13 mm
13 mm
31 mm
BLUE RED GREEN Button
GND
GND GND
RX
TX
V_IN
Inverted S.Port
S.Port
VEDIO
Scout VS600 RED
23.55 mm
31.52 mm
5V@3A_OUT
GREEN
RED
BLUE
Button
GND
VEDIO IN
VDD5.0
- S.Port
S.Port
17 mm
15.3 mm
Scout VS600 Mini
FrSky Electronic Co., Ltd. www.frsky-rc.com Contact us: [email protected]
Add: F-4,Building C, Zhongxiu Technology Park, No.3 Yuanxi Road, Wuxi, 214125, Jiangsu, China Technical Support: [email protected]
01140183
Version
1.0
Instruction Manual for FrSky Scout VS600 Series (MIC certificated Version)
FrSky Electronic Co., Ltd. www.frsky-rc.com Contact us: [email protected]
Add: F-4,Building C, Zhongxiu Technology Park, No.3 Yuanxi Road, Wuxi, 214125, Jiangsu, China Technical Support: [email protected]
01140183
Version
1.0
Instruction Manual for FrSky Scout VS600 Series (MIC certificated Version)

Greed LED
On
Off
On
Red LED
On
On
Off
Blue LED
Off
On
On
States
Channel setting mode
RF Power setting mode
Frequency Band setting mode
Operation
Press the BUTTON (1.5S)
to change the channel
Press the BUTTON (1.5S)
to change the RF Power
Press the BUTTON (1.5S)
to change the Frequency Band
Note: When setting Channel/Frequency band/RF Power, please strictly follow local laws and regulations.
Pit Mode
A feature introduced with Scout VS600 Series is Pit Mode, It allows the user to power up their video transmitter
during race events without interfering with other users and still have the ability to change VTX settings and perform
tests mode features all the functions under Normal mode other than operating power.
2. The script configuration
Channel, Operating Band and Operating Power can be set through the transmitter.Run the gTrans.lua which is
on the SD card and start configuration.
The interface is below.
Note: Please running Scout VS600 BLACK/VS600 RED/ VS600 Mini before running the script.
FrSky is continuously adding features and improvements to our products. To get the most from your product, please check
the download section of the FrSky website www.frsky-rc.com for the latest update firmware and manuals.
