Instruction Manual for FrSky FP2CH4/FP2CH6/FP2CH8 extender
FrSky Electronic Co., Ltd. www.frsky-rc.com Contact us : [email protected]
Add: F-4,Building C, Zhongxiu Technology Park, No.3 Yuanxi Road, Wuxi, 214125, Jiangsu, China Technical Support: [email protected]
Introduction
The F.Port 2.0 multichannel extender is a tool that is specifically designed for receivers a single F.PORT 2.0 signal
output. With the extender connected, the Xact servos with installed F.Port 2.0 firmware can now be controlled and
configured by any F.Port 2.0 capable receivers (For example RS, M+, etc.).
Specifications
● FP2CH4:
- Dimension: 36*13*10mm (L*W*H)
- Weight: 3.5g
● FP2CH6:
- Dimension: 36*18*10mm (L*W*H)
- Weight: 4.3g
● FP2CH8:
- Dimension: 38*27*13mm (L*W*H)
- Weight: 10g
- Battery Connector: XT30PW-M

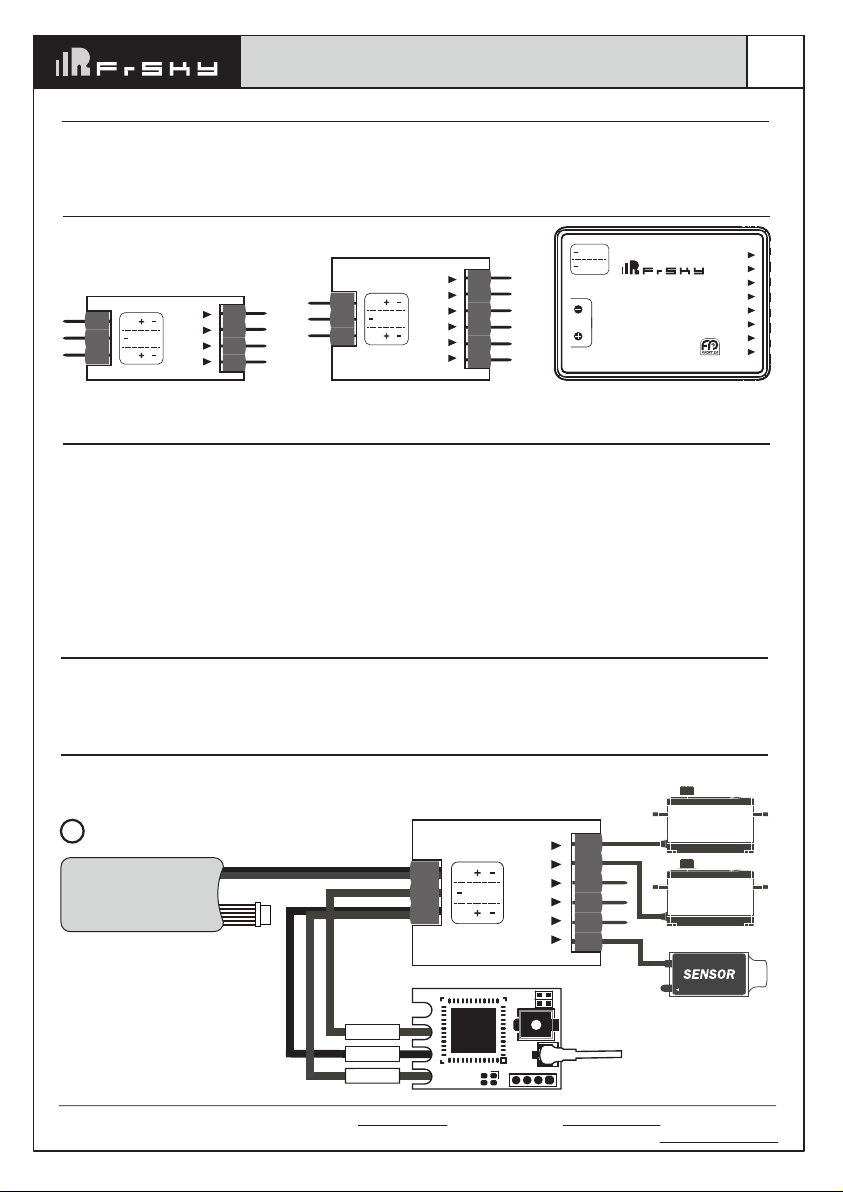

Overview
NC
NC S/F.P
NC
S/F.Port
S/F.Port
S/F.Port
S/F.Port
FP2CH4
S/F.Port
S/F.Port
S/F.Port
S/F.Port
S/F.Port
S/F.Port
NC
NC S/F.P
NC
FP2CH6
NC S/F.P
NC S/F.P S/F.Port
S/F.Port
S/F.Port
S/F.Port
S/F.Port
S/F.Port
S/F.Port
S/F.Port
FP2CH8
BAT
FP2CH8
Layout
Features
● F.Port 2.0 Channel Extender
● S.Port Channel Extender
● Perfect combo with an F.Port 2.0 micro receiver for saving setup space
NC:NO CONNECT
BATTERY Servo
Servo
S/F.Port
S/F.Port
S/F.Port
S/F.Port
S/F.Port
S/F.Port
NC
NC S/F.P
NC
S.Port
GND
VIN
1

FrSky is continuously adding features and improvements to our products. To get the most from your product, please check
the download section of the FrSky website www.frsky-rc.com for the latest update firmware and manuals
Version
1.1
Instruction Manual for FrSky FP2CH4/FP2CH6/FP2CH8 extender
FrSky Electronic Co., Ltd. www.frsky-rc.com Contact us : [email protected]
Add: F-4,Building C, Zhongxiu Technology Park, No.3 Yuanxi Road, Wuxi, 214125, Jiangsu, China Technical Support: [email protected]
BATTERY
BATTERY
Servo
Servo
S/F.Port
S/F.Port
S/F.Port
S/F.Port
S/F.Port
S/F.Port
NC
NC S/F.P
NC
S.Port
GND
VIN
2
Warning: Plugging dual batteries simultaneously is forbidden for FP2CH4/6/8.
Warning: Please select the external battery or BEC according to the capable maximum voltage of the
servo/sensor/receiver.
