FS POEX4 User manual

Copyright © 2009-2022 FS.COM All Rights Reserved
4-PORTS 10/100/1000M GIGABIT PoE+ EXTENDER USER MANUAL
4-Ports 10/100/1000M Gigabit PoE+
Extender User Manual

4-PORTS 10/100/1000M GIGABIT PoE+ EXTENDER USER MANUAL
Contents
1. Package Contents................................................................................................................................................................................. ......................
1
2.1 Physical Port......................................................................................................................................................................................................... 1
2.2 Power over Ethernet.......................................................................................................................................................................................... 1
2.3 Layer 2 Features................................................................................................................................................................................................... 2
2.4 Case and Installation.......................................................................................................................................................................................... 2
2. Product Features......................................................................................................................................................................................................... 1
3. Product Specifications.............................................................................................................................................................................................. 2
4. Hardware Introduction............................................................................................................................................................................................. 4
5. Hardware Installation............................................................................................................................................................................................... 6
6. Power over Ethernet Budget................................................................................................................................................................................ 10
4.1 Three-View Diagram.......................................................................................................................................................................................... 4
4.2 Ports Connection............................................................................................................................................................................................... 5
4.3 LED Indicators...................................................................................................................................................................................................... 6
5.1 Before Installation............................................................................................................................................................................................. 6
5.2 Connecting POEX4 to PSE.............................................................................................................................................................................. 7
5.3 Connecting POEX4 to PD................................................................................................................................................................................ 8
5.4 PoE Power Distribution.................................................................................................................................................................................... 9

4-PORTS 10/100/1000M GIGABIT PoE+ EXTENDER USER MANUAL
1. Package Contents
Thank you for purchasing FS 1-port IEEE 802.3bt PoE++ to 4-port IEEE 802.3af/at Gigabit PoE Extender, POEX4. “Gigabit PoE
Extender” mentioned in this manual refers to the POEX4. Open the box of the Gigabit PoE Extender and carefully unpack it. The
box should contain the following items:
lGigabit PoE Extender x 1
lUser’s Manual x 1
lRubber Feet x 4
If any of these are missing or damaged, please contact your dealer immediately; if possible, retain the carton including the
original packing material, and use them again to repack the product in case there is a need to return it to us for repair.
2. Product Features
2.1 Physical Port
n5 10/100/1000BASE-T Gigabit RJ45 interfaces
- 1-port data + power input
- 4-port data + power output
2.2 Power over Ethernet
n1-port data + power input
- Complies with IEEE 802.3bt PoE++ PD
- Supports PoE input power up to 95 watts
n4-port data + power output
- Complies with IEEE 802.3af/IEEE 802.3at PoE+/end-span PSE
- Up to 4 IEEE 802.3af/802.3at devices powered
- Supports PoE power up to 32 watts for each PoE port
- Auto detects powered device (PD)

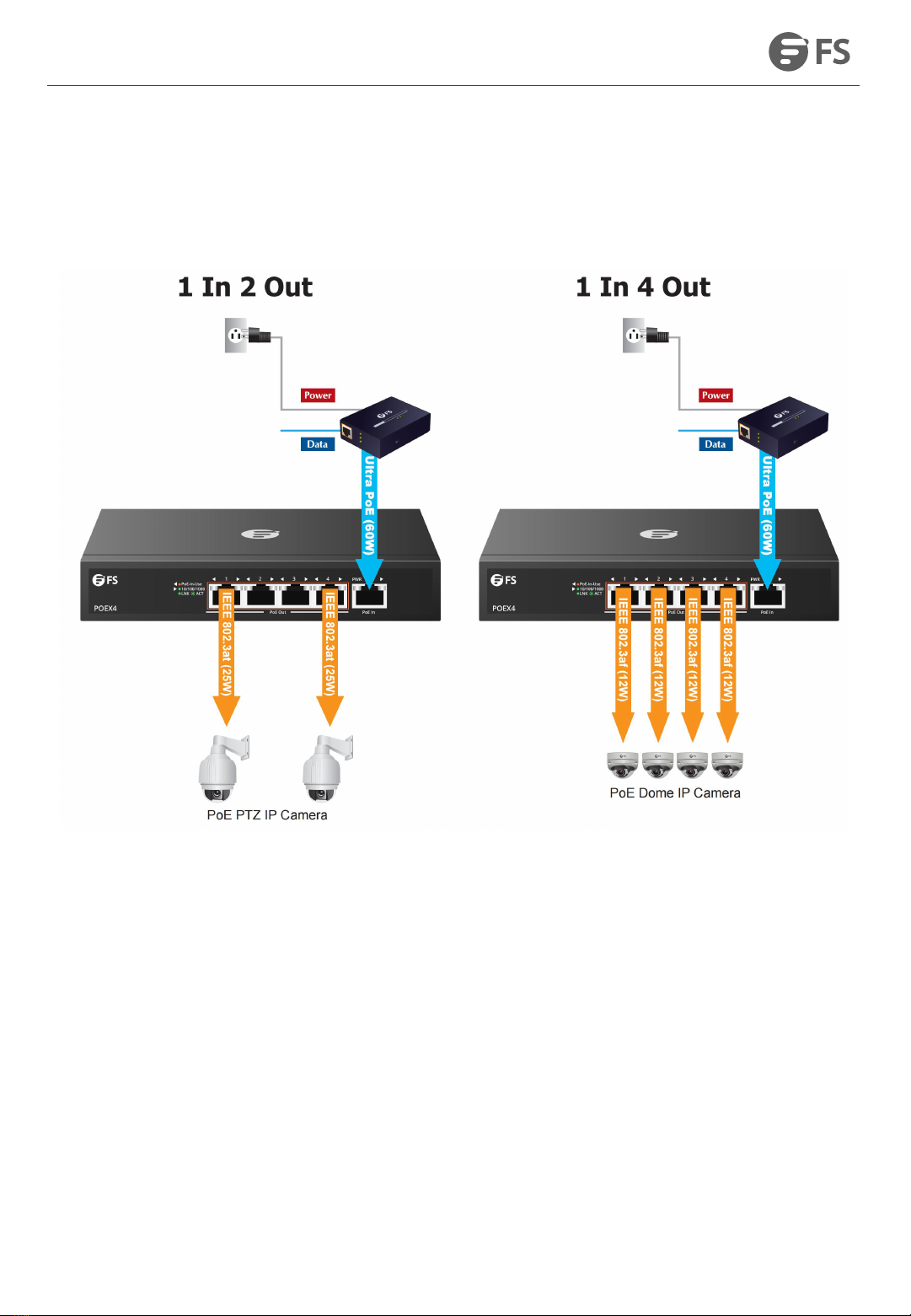

nExtends the range of PoE to an additional 100 meters (328ft.)
nForwards both Ethernet data and PoE power to remote device.
1

4-PORTS 10/100/1000M GIGABIT PoE+ EXTENDER USER MANUAL
2.3 Layer 2 Features
nHardware-based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X
nIntegrates address look-up engine, supporting 2K absolute MAC addresses
n9K jumbo packet support
nFeatures Store-and-Forward mode with wire-speed filtering and forwarding rates
nIEEE 802.3x flow control for full duplex operation and backpressure for half duplex operation
nAutomatic address learning and address aging
2.4 Case and Installation
nNo external power cable installation required
nMade of metal, desktop size design
nWall-mountable, Plug-and-Play installation
n0 ~ 50 degrees C operating Temperature
Note:
PSE (power sourcing equipment) is a device (switch or hub for instance) that will provide power in a PoE setup. The maximum
allowed continuous output power per such device in IEEE 802.3af is 15.4 watts and in IEEE 802.3at is 30 watts.
PD (powered device) such as IP phone, network camera or wireless access point is a PoE-enabled terminal that consumes energy
supplied by PSE.
2
3. Product Specifications
Model
POEX4
Hardware Specification
PoE In Port
1 x 10/100/1000BASE-T Ethernet with IEEE 802.3at/802.3af PoE “Data + DC” in
auto MDI/MDI-X, auto-negotiation RJ45 connector
PoE Out Port
1 x 10/100/1000BASE-T Ethernet with IEEE 802.3at/802.3af PoE “Data + DC” out
auto MDI/MDI-X, auto-negotiation RJ45 connector

4-PORTS 10/100/1000M GIGABIT PoE+ EXTENDER USER MANUAL
3
4. Hardware Introduction
Switch Architecture
Store-and-Forward switch architecture
MAC Address Table
2K
Data Buffer
1Mbits
Switch Fabric
10Gbps
Switch Throughput
7.44Mpps @ 64Bytes
Flow Control
IEEE 802.3x pause frame for full duplex
Back pressure for half duplex
Jumbo Frame
9K bytes
LED Indicators
PoE In Port
10/100/1000 LNK/ACT (green)
PoE Out Port 1 to Port 4
10/100/1000 LNK/ACT (green)
PoE-in-Use (orange)
PWR (orange)
ESD Protection
ESD: Contact 4KV, Air 6KV
Surge: 4KV
Enclosure
Metal
Installation
Desktop/Wall mountabl
Dimensions (W x D x H)
168 x 93 x 32 mm
Weignt
403g
Power Requirements
PoE In: IEEE 802.3bt or 4-pair 802.3at PoE+ compliant with voltage within 50-56V DC
External DC: 50~56V DC
Power Consumption
0.9 watts/3.1BTU (System on)
74 watts/252.4BTU (Full loading with PoE function)
Network Cable
10BASE-T: 4-pair UTP Cat5 up to 100m (328ft)
100BASE-TX: 4-pair UTP Cat5 up to 100m (328ft)
1000BASE-T: 4-pair UTP Cat5e, 6, up to 100m (328ft)
EIA/TIA-568 100-ohm STP (100m, 328ft)
Power over Ethernet
PoE Standard
PoE In Port
IEEE 802.3bt Power over Ethernet Plus Plus end-span and mid-span PD class 4 PD
Per PoE Out Port
IEEE 802.3at Power over Ethernet Plus end-span PSE
IEEE 802.3af Power over Ethernet end-span PSE
PoE Power
PoE In Port 50~56V DC, max. 95 watts input
Per PoE Out Port 50~55V DC, max. 32 watts output
Power Pin Assignment
PoE In Port
1/2 (-), 3/6 (+); 4/5 (+), 7/8 (-)
Per PoE Out Port
1/2 (-), 3/6 (+), end-span (Type A)
PoE Power Budget
65 watts (max.) @ IEEE 802.3bt PoE++ Type 4 PSE input
32 watts (max.) @ IEEE 802.3at PoE+ input

4-PORTS 10/100/1000M GIGABIT PoE+ EXTENDER USER MANUAL
4
Standard Conformance
Regulatory Compliance
FCC Part 15 Class A, CE
Standard Compliance
IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3bt Power over Ethernet Plus Plus
IEEE 802.3x Flow Control
Environment
Operating
Temperature: 0 ~ 50 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
Storage
Temperature: -10 ~ 70 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
Note:
The maximum distance that data and power can transmit depends on the quality of the UTP cable and environment.
4. Hardware Introduction
4.1 Three-View Diagram
The three-view diagram of the Gigabit PoE Extender consists of one auto-sensing 10/100/1000BASE-T 802.3bt PoE In port,
and four auto-sensing 10/100/1000BASE-T 802.3af/802.3at PoE Out ports. The LED Indicators are also located on the port of

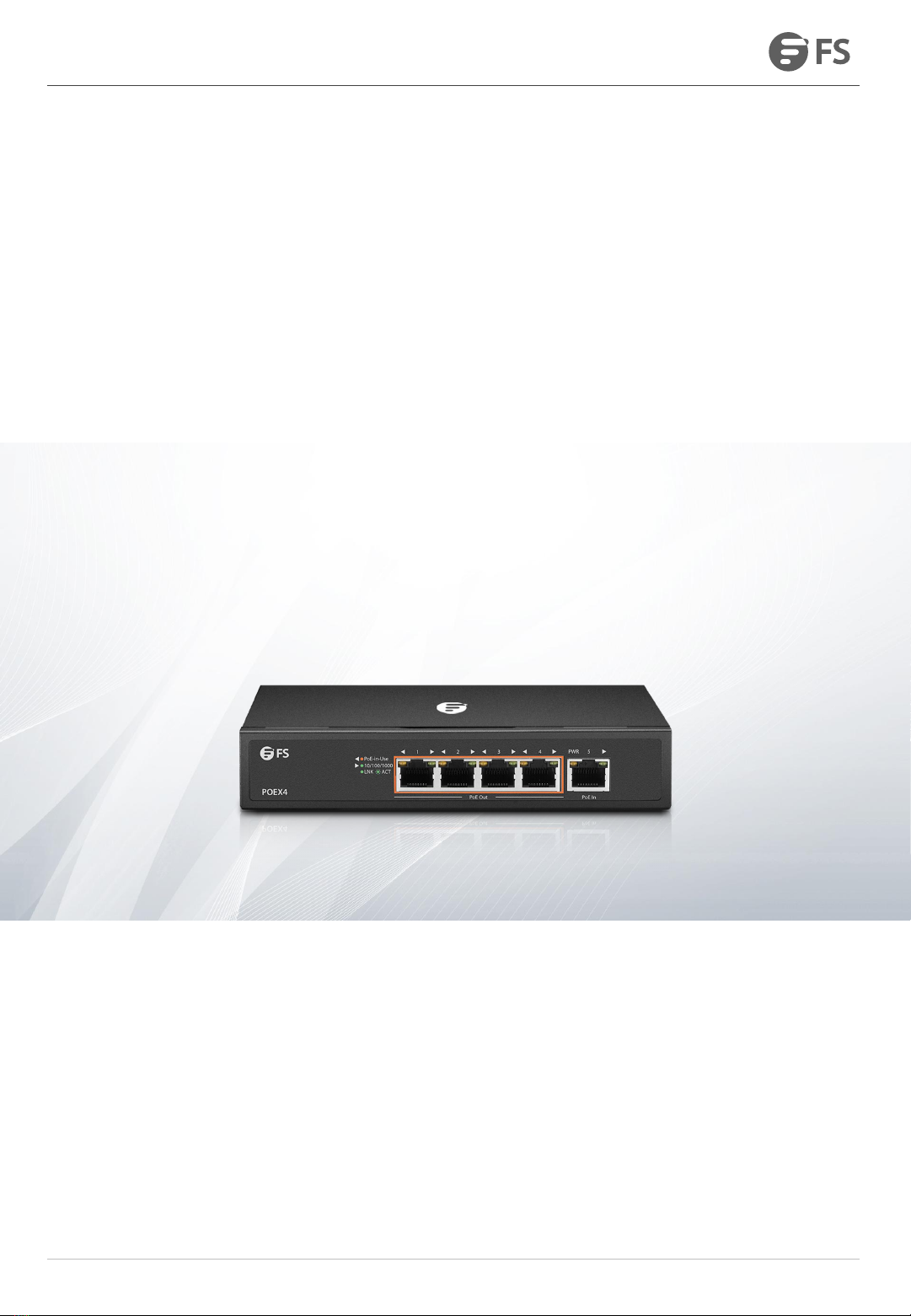

Gigabit PoE Extender front panel.

4-PORTS 10/100/1000M GIGABIT PoE+ EXTENDER USER MANUAL
5
4.2 Ports Connection
PoE IN Port
Connect the PoE IN port from the following 802.3bt PoE++ PSE devices through a
Cat5/5e/6 UTP cable:
l802.3bt PoE++/UPOE/PoH injector
l802.3bt PoE++/UPOE/PoH injector hub
l802.3bt PoE++/UPOE/PoH Ethernet switch

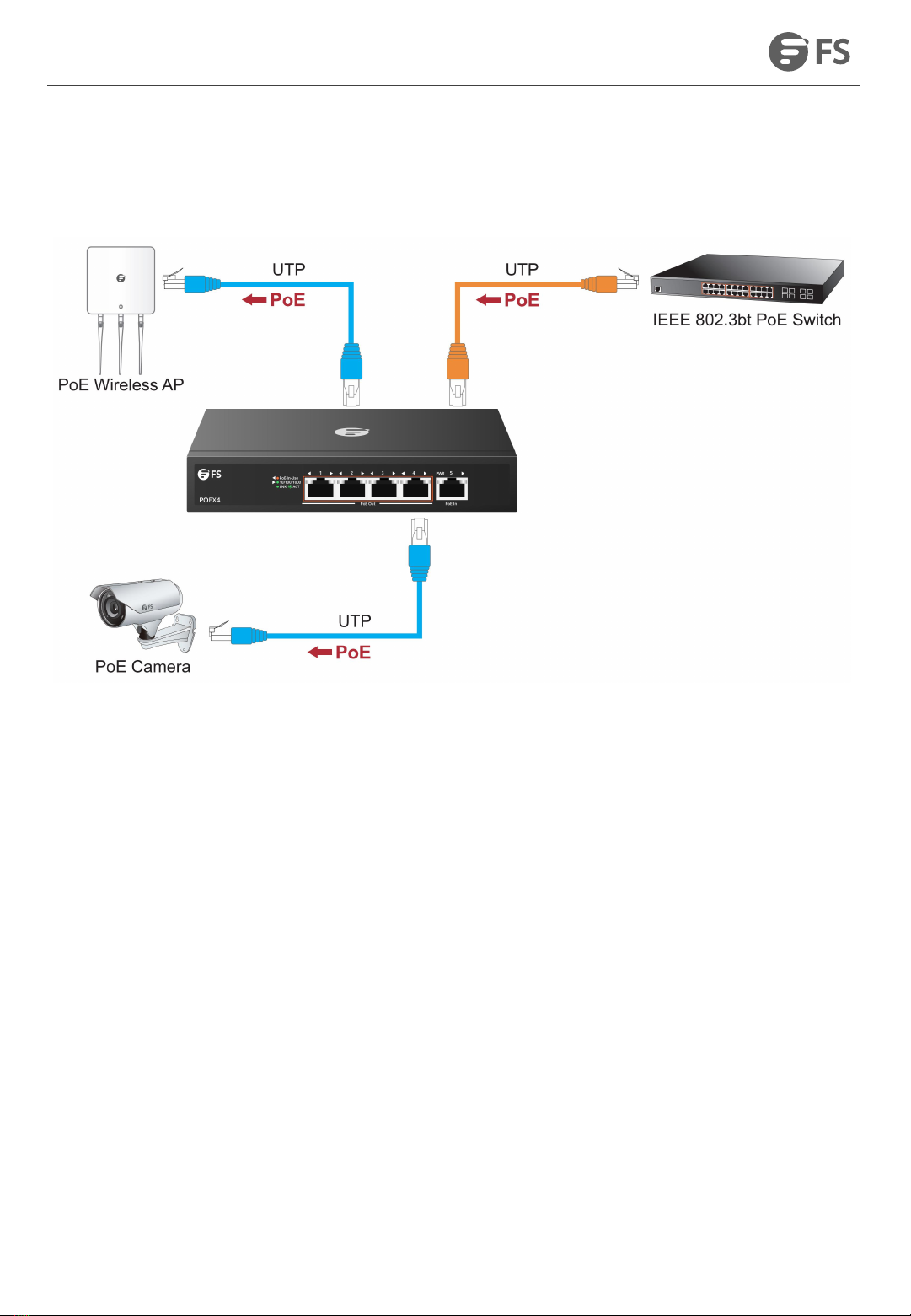

PoE OUT Port
Connect the PoE OUT port to the following 802.3at/af PD devices through a
Cat5/5e/6 UTP cable:
lPoE IP camera
lPoE VoIP phone
lPoE wireless AP
lPoE splitter

4-PORTS 10/100/1000M GIGABIT PoE+ EXTENDER USER MANUAL
6
4.3 LED Indicators
802.3bt PoE IN Port
LED
Color
Function
10/100/1000
LNK/ACT
Green
Lights to indicate the link through that port is successfully established at
10/100/1000Mbps.Blinks to indicate that the port is actively sending or receiving data.
802.3at/af PoE Out Ports
LED
Color
Function
10/100/1000
LNK/ACT
Green
Lights to indicate the link through that port is successfully established at
10/100/1000Mbps.Blinks to indicate that the port is actively sending or receiving data.
PoE-in-Use
Orange
Lights to indicate the port is providing 55V DC in-line power output.
Power
LED
Color
Function
PWR
Orange
Lights to indicate the device is powered on.
5. Hardware Installation
5.1 Before Installation
The POEX4 is installed between the PSE and the PD; it is powered by PSE and forwards the Ethernet data and remaining PoE power
or an external power supply to the PD. It can be installed easily by just Plug and Play without affecting the data transmission
performance.
Note:
1. To provide you with better PoE power and data extension quality, we strongly recommend that you use “Solid UTP Cable” when
installing the POEX4.
2. The POEX4 can be installed with a third-party device if the device complies with IEEE 802.3at/af standard.

4-PORTS 10/100/1000M GIGABIT PoE+ EXTENDER USER MANUAL
7
5.2 Connecting POEX4 to PSE
This section describes how to install Gigabit PoE Extender and make connection to it. Please read the following descriptions and
perform the procedures in the order being presented.
There are 4 RJ45 ports in the Gigabit PoE Extender, of which the “PoE IN” port functions as "PoE (Data and Power) input" and the
four ”PoE Out” ports function as "PoE (Data and Power) output".

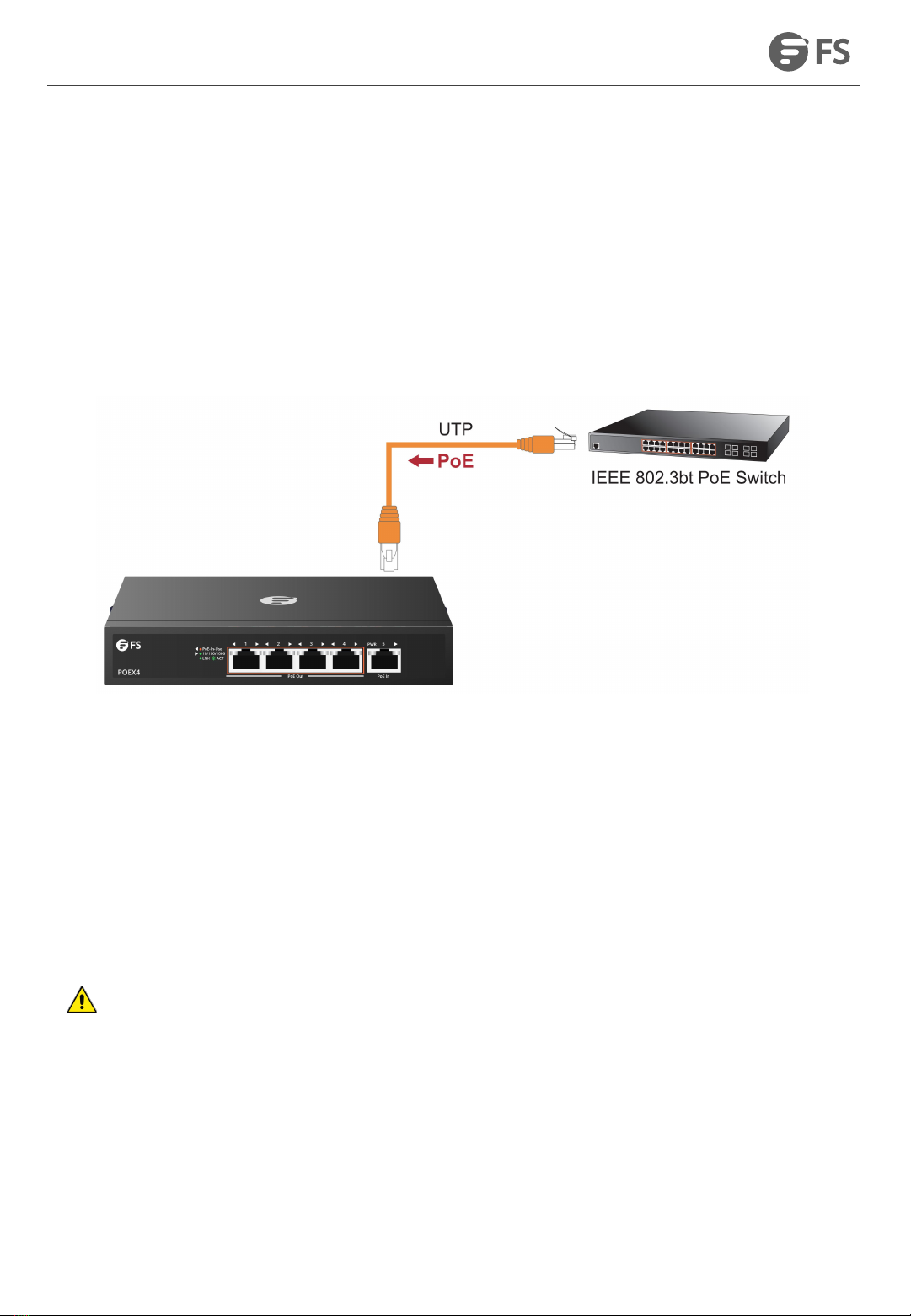

Step 1: Connect a standard Cat5e/6 UTP cable from PSE, such as PoE++ switch, PoE++ injector hub and single port PoE++ injector,
to the “PoE IN” port of the Gigabit PoE Extender.
Step 2: The PSE delivers both Ethernet data and PoE power over UTP cable to the Gigabit PoE Extender.
Note:
1. When the PoE-in-Use LED turns steady orange, it means the Gigabit PoE OUT is supplying power successfully from PSE.
2. If the PoE-in-use LED is not lit, please check the remote PSE or the cable connecting to a PC or a network device to see if the cable
is correct.
Cautions:
Never connect any non-standard PoE PSE to the Gigabit PoE Extender or else it will damage the device permanently.

4-PORTS 10/100/1000M GIGABIT PoE+ EXTENDER USER MANUAL
8
5.3 Connecting POEX4 to PD
Step 1: Connect the additional Cat5e/6 cable that will be used to connect to the remote PD to the “PoE Out” port of the Gigabit
PoE Extender.
Step 2: The "PoE Out" port is also the power injector which transmits DC voltage to the Cat5e/6 cable and transfer data and power
simultaneously between the PSE and PD.
Step 3: Once the Gigabit PoE Extender detects the existence of an IEEE 802.3af/at device, the “PoE-in-Use” LED indicator will be lit
steadily, showing it is providing power.
Note:
1. If the connected device is not fully complying with IEEE 802.3af/at standard or in-line power device, the PoE-in-Use LED indicator
of the Gigabit PoE Extender will not be lit steadily.
2. According to IEEE 802.3af/at standard, the Gigabit PoE Extender will not inject power to the cable if not connected to a standard
IEEE 802.3af/at device.

4-PORTS 10/100/1000M GIGABIT PoE+ EXTENDER USER MANUAL
9
5.4 PoE Power Distribution
The POEX4 can obtain a maximum of 95-watt PoE power from IEEE 802.3bt PoE++ input port and supplies a maximum of 65-watt
PoE power budget to four PoE output ports, extending both the reach of Gigabit Ethernet Data and IEEE 802.3af/802.3at PoE over
the standard 100m (328 ft.) Cat 5/5e/6 UTP cable to up to 200m at the same time.

4-PORTS 10/100/1000M GIGABIT PoE+ EXTENDER USER MANUAL
10
The following table lists how many PoE devices can be powered by POEX4:
6. Power over Ethernet Budget
Power Source
PoE Output Budget*
Max. Number of PDs supported
IEEE 802.3at PoE+ PSE
25 watts max.
Class 4 PD@25-watt
1 unit
Class 3 PD@15-watt
1 unit
Class 2 PD@7-watt
3 units
IEEE 802.3bt PoE PSE
65 watts max.
Class 4 PD@25-watt
2 units
Class 3 PD@15-watt
4 units
Class 2 PD@7-watt
9 units
External Power Adapter
–56V DC, 74W
65 watts max.
Class 4 PD@25-watt
2 units
Class 3 PD@15-watt
4 units
Class 2 PD@7-watt
9 units
Note:
1. The PoE Output Budget means the 4-port PD aggregated power output. The aggregated power consumption will be below 65
watts if with IEEE 802.3bt PoE++ PSE.
2. If the PoE output, whose power source is IEEE 802.3at PoE+, is more than 25 watts, the device will be shut down.
