4-PORTS 10/100/1000M GIGABIT INDUSTRIAL PoE+ EXTENDER USER MANUAL
4-Ports 10/100/1000M Gigabit
Industrial PoE+ Extender User Manual

4-PORTS 10/100/1000M GIGABIT INDUSTRIAL PoE+ EXTENDER USER MANUAL
Contents
1. Package Contents................................................................................................................................................................................. ......................
1
2.1 Front Panel............................................................................................................................................................................................................ 1
2.2 LED Indicators...................................................................................................................................................................................................... 2
2.3 Grounding the Device....................................................................................................................................................................................... 2
2. Hardware Introduction.............................................................................................................................................................................................. 1
3. Installation .................................................................................................................................................................................................................... 3
4. Power over Ethernet Budget.................................................................................................................................................................................... 6
5. Technical Specifications............................................................................................................................................................................................. 7
6. Physical Dimensions.................................................................................................................................................................................................... 8
3.4 Connecting IPOEX4 to PD................................................................................................................................................................................ 4
3.1 DIN-rail Mounting Installation....................................................................................................................................................................... 3
3.2 Wall-mount Plate Mounting........................................................................................................................................................................... 3
3.3 Connecting IPOEX4 to PSE.............................................................................................................................................................................. 3

4-PORTS 10/100/1000M GIGABIT INDUSTRIAL PoE+ EXTENDER USER MANUAL
1. Package Contents
Thank you for purchasing FS Industrial 1-Port 802.3bt PoE++ to 4-Port 802.3af/at Gigabit PoE Extender, IPOEX4. In the following sections,
the term “Industrial PoE Extender” means the IPOEX4.
Open the box of the IPOEX4 and carefully unpack it. The box should contain the following items:
lIndustrial PoE Extender x 1
lUser’s Manual x 1
lRJ45 Dust Cap x 5
lWall Mounting Kit x 1
If any of these are missing or damaged, please contact your dealer immediately; if possible, retain the carton including the original
packing material, and use them again to repack the product in case there is a need to return it to us for repair.
2. Hardware Introduction
This section describes the functionalities of the Industrial PoE Extender’s components.
2.1 Front Panel
Figure 2-1 shows the front panel of Industrial PoE Extender.
Figure 2-1: IPOX4 Front Panel
1

4-PORTS 10/100/1000M GIGABIT INDUSTRIAL PoE+ EXTENDER USER MANUAL

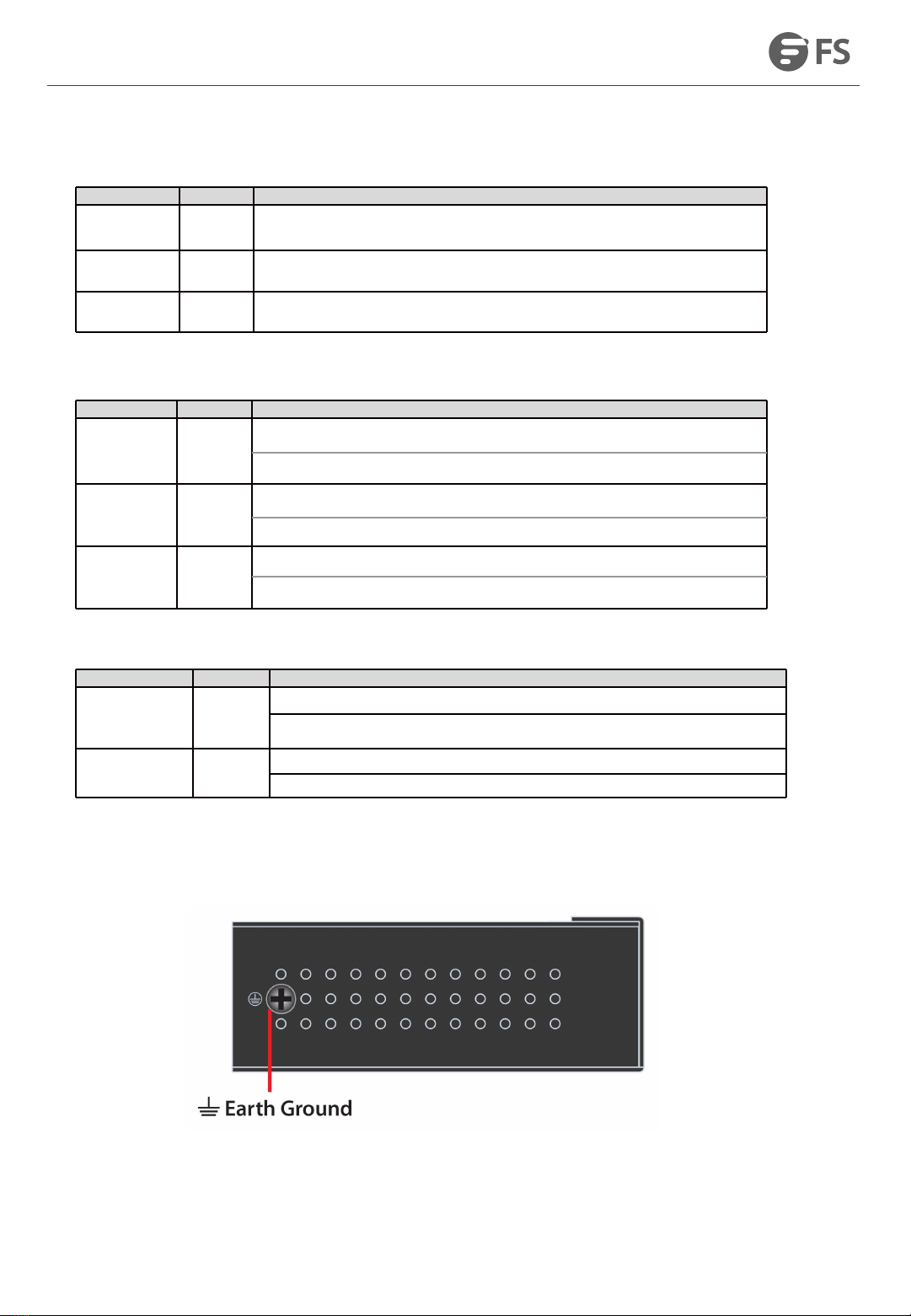

2.2 LED Indicators
lSystem
LED
Color
Function
30W IN
Green
Lights to indicate the IPOEX4 is working in 2-pair mode and offers up to 30-watt
power.
60W IN
Green
Lights to indicate the IPOEX4 is working in 4-pair mode and offers more than 60-
watt power.
90W+ IN
Green
Lights to indicate the IPOEX4 is working in 4-pair mode and offers more than 90-
watt power.
lPoE Power Usage
LED
Color
Function
20W
Amber
Blinks to indicate the system is providing 10W ~ 20W PoE power.
Lights to indicate the system is providing 20W ~ 30W PoE power.
40W
Amber
Blinks to indicate the system is providing 30W ~ 40W PoE power.
Lights to indicate the system is providing 40W ~ 50W PoE power.
60W
Amber
Blinks to indicate the system is providing 50W ~ 60W PoE power.
Lights to indicate the system is providing 60W+ PoE power.
lPer PoE Output Port (Port 1 ~ 4)
LED
Color
Function
LNK/ACT
Green
Lights to indicate the port is linked up.
Blinks to indicate that the IPOEX4 is actively sending or receiving data over that
port.
PoE-in-Use
Amber
Lights to indicate the port is providing PoE power.
OFF to indicate the connected device is not a PoE PD.
2.3 Grounding the Device
Users MUST complete grounding wired with the device; otherwise, a sudden lightning could cause fatal damage to the device.
Note:
EMD (Lightning) DAMAGE IS NOT CONVERED UNDER WARRANTY.
2

4-PORTS 10/100/1000M GIGABIT INDUSTRIAL PoE+ EXTENDER USER MANUAL
3. Installation
This section describes the functionalities of the Industrial PoE Extender’s components and guides you to installing it on the DIN rail and
wall. Please read this chapter completely before continuing.
Note:
This following pictures show how to install the device. However, the device in the picture is not the IPOEX4.

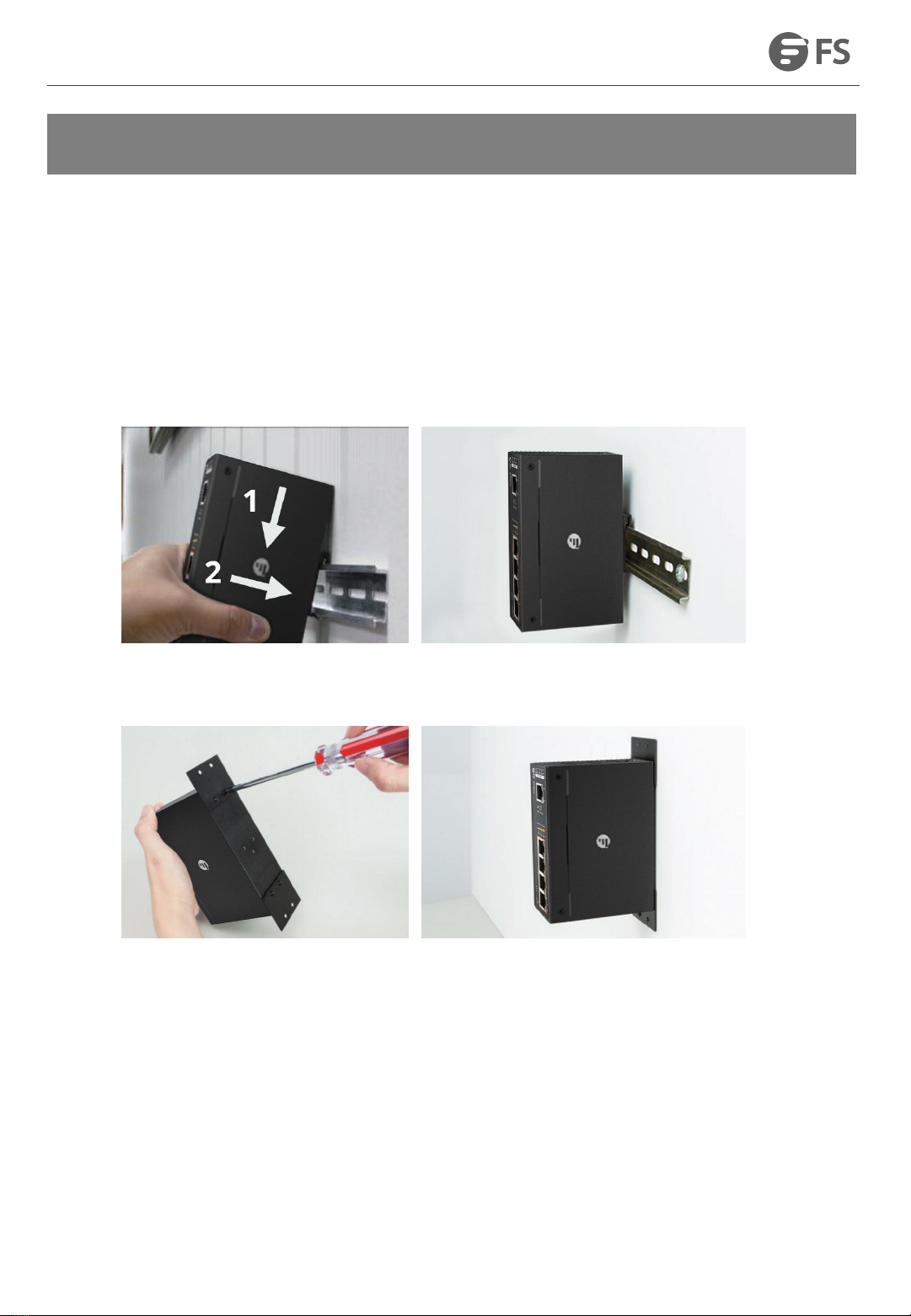

3.1 DIN-rail Mounting Installation
3.2 Wall-mount Plate Mounting
3.3 Connecting IPOEX4 to PSE
The Industrial PoE Extender has five RJ45 ports of which one is the PoE++ In port connected to the PSE and the other four are PoE+
Out ports connected to the PDs.
Step 1: Connect a standard Cat5e/6 UTP cable from a remote PSE, such as PoE switch, to the “PoE++ In” port of the IPOEX4.
3

4-PORTS 10/100/1000M GIGABIT INDUSTRIAL PoE+ EXTENDER USER MANUAL
Step 2: The PSE delivers both Ethernet Data and PoE power over UTP cable to the IPOEX4 and the “PoE IN” LED will be lit steadily.
Note:
1. When the LED turns steady green, it means the IPOEX4 is being powered successfully with PoE.
2. If the LED is not lit, please check the remote PSE or the cable connecting to a PC or a network device to see if the cable is correct.
Or with an 802.3at device such as the target PD, check whether the power injection is correct.
3. Never connect any non-standard PoE PSE to the IPOEX4; it will damage the device permanently.
4. Refer to Chapter 2.2 for more information about LED function.

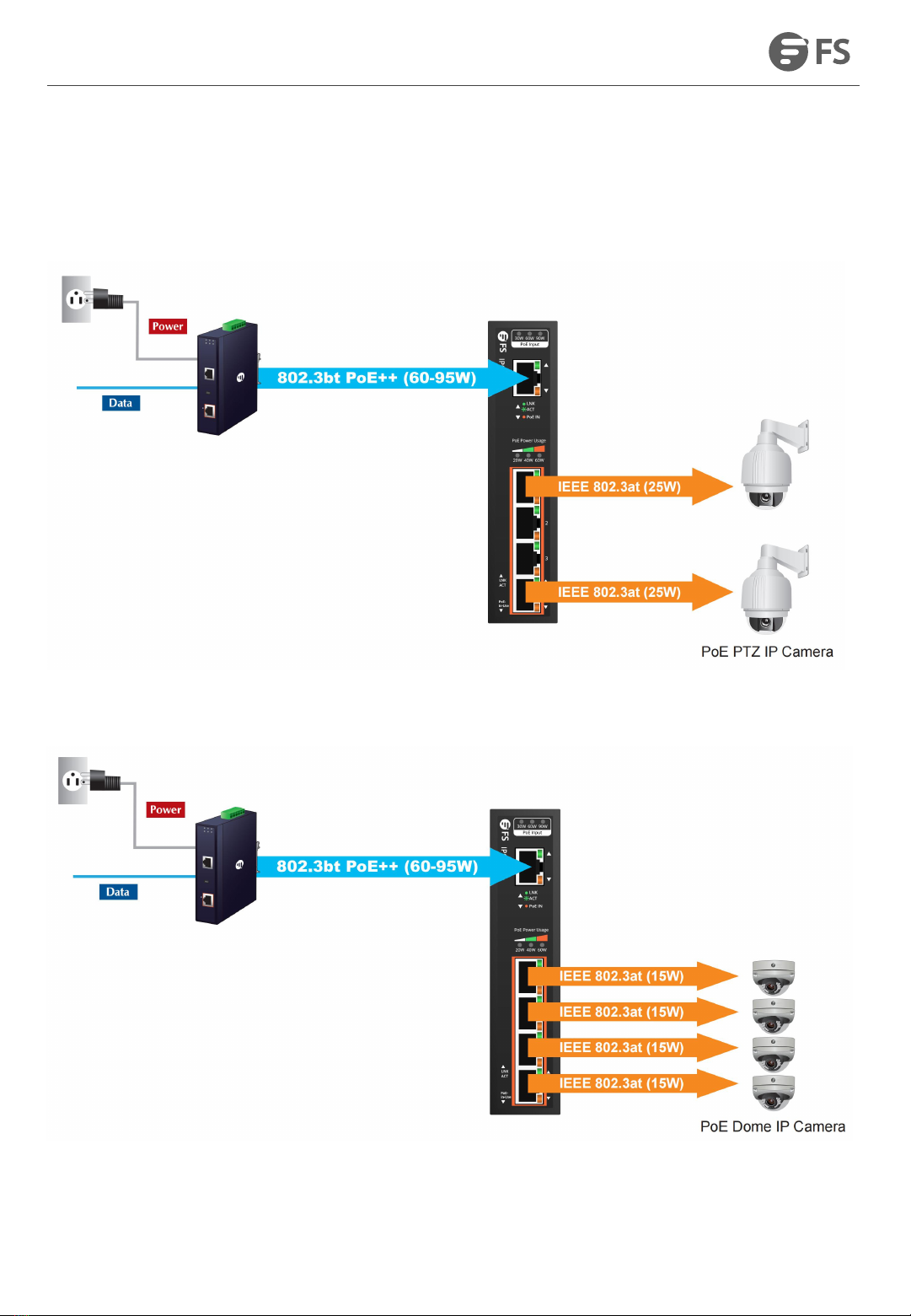

3.4 Connecting IPOEX4 to PD
Step 1: Connect the additional Cat5e/6 cable from the PoE+ Out of the IPOEX4 to a remote PD.
4

4-PORTS 10/100/1000M GIGABIT INDUSTRIAL PoE+ EXTENDER USER MANUAL
Step 2: The PoE+ Out port is also the power injector, which transmits DC voltage to the Cat5e/6 cable and transfers data and power
simultaneously between the PSE and PD.
Step 3: Once the IPOEX4 detects the existence of an IEEE 802.3at/af device, the PoE-in-Use LED indicator will be lit steadily, showing
it is providing power.
3
5

4-PORTS 10/100/1000M GIGABIT INDUSTRIAL PoE+ EXTENDER USER MANUAL
Note:
1. If the connected device is not fully complying with IEEE 802.3af/at standard or in-line power device, the PoE-in-Use LED indicator
of the IPOEX4 will not be lit steadily.
2. According to IEEE 802.3af/at standard, the IPOEX4 will not inject power to the cable if not connecting to a standard IEEE 802.3af/at
device.
3. DO NOT connect any PSE to port 1~ port 4 of the IPOEX4; it may damage the device permanently.
4. Power over Ethernet Budget
The following table lists how many PoE devices can be powered by the IPOEX4 under 1m distance:
Power Source
PoE Output Budget*
Max. Number of PDs supported
95W PoH PSE
75 watts max.
Class 4 PD@25 watts
3 units
Class 3 [email protected] watts
4 units
Class 2 PD@7 watts
4 units
90W 802.3bt PoE++ Type 4
PSE
75 watts max.
Class 4 PD@25 watts
3 units
Class 3 [email protected] watts
4 units
Class 2 PD@7 watts
4 units
60W 802.3bt PoE++ Type 3
PSE
50 watts max.
Class 4 PD@25 watts
2 units
Class 3 [email protected] watts
3 units
Class 2 PD@7 watts
4 units
30W 802.3at PoE+ PSE
25 watts max.
Class 3 [email protected] watts
1 units
Class 2 PD@7 watts
3 units
Remark:
1. The PoE output budget means the aggregated power output of the 4 PSE ports.
2. The aggregated power consumption will be below 60 watts if with PoE+ PSE.
3. Please check the power input LED for optimal power output.
6

4-PORTS 10/100/1000M GIGABIT INDUSTRIAL PoE+ EXTENDER USER MANUAL
5. Technical Specifications
IPOEX4
Hardware Specification
PoE In Port
1 x 10/100/1000BASE-T Ethernet with 802.3bt PoE++ “Data + DC” in
Auto MDI/MDI-X, auto-negotiation RJ45 connector
PoE Out Port
4 x 10/100/1000BASE-T Ethernet with IEEE 802.3af/at PoE “Data + DC” out
Auto MDI/MDI-X, auto-negotiation RJ45 connector
Switch Architecture
Store-and-Forward switch architecture
MAC Address Table
2K MAC address table with auto learning function
Switch Fabric
10Gbps
Switch Throughput
7.44Mpps @ 64Bytes
Flow Control
IEEE 802.3x pause frame for full duplex
Back pressure for half duplex
Jumbo Frame
9K bytes
ESD Protection
ESD: Contact 6KV, Air 8KV
Surge: 6KV
Enclosure
IP30 metal case
Installation
DIN-rail kit and wall-mount ear
Dimensions (W x D x H)
32 x 87.8 x 135 mm
Weignt
430g
Power Consumption
5.6 watts/19.11 BTU (Power On)
6.5 watts/22.18 BTU (Full loading without PoE function)
82.3 watts/280.82 BTU (Full loading with PoE function)
Power over Ethernet
PoE Standard
PoE In Port
- IEEE 802.3bt PoE++ Type 4 standard PD
- PoH (Power over HDBASE-T)
- IEEE 802.3at PoE+ end-span/mid-span PD
Per PoE Out Port
- IEEE 802.3at Power over Ethernet Plus end-span PS
PoE Power
PoE In Port 50~57V DC, max. 95 watt
Per PoE Out Port 44~55V DC, max. 30.8 watt
Power Pin Assignment
PoE In Port
1/2(-), 3/6(+), 4/5(+), 7/8(-) or 1/2(+), 3/6(-), 4/5(+), 7/8(-)
Per PoE Out Port
1/2(+), 3/6(-)
PoE Power Budget
75 watts (max.) @ 802.3bt PoE++ Type 4 input
60 watts (max.) @ 802.3bt PoE++ Type 3 input
75 watts (max.) @ PoH input
25 watts (max.) @ 802.3at PoE+ input
7

4-PORTS 10/100/1000M GIGABIT INDUSTRIAL PoE+ EXTENDER USER MANUAL
8
Standard Conformance
Regulatory Compliance
FCC Part 15 Class A, CE
Stability Testing
IEC60068-2-32 free fall
IEC60068-2-27 shock
IEC60068-2-6 vibration
Standard Compliance
IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3x Flow Control
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3bt Power over Ethernet Plus Plus
IEEE 802.3az Energy Efficient Ethernet(EEE)
Environment
Operating
Temperature: -40 ~ 75 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
Storage
Temperature: -40 ~ 85 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)

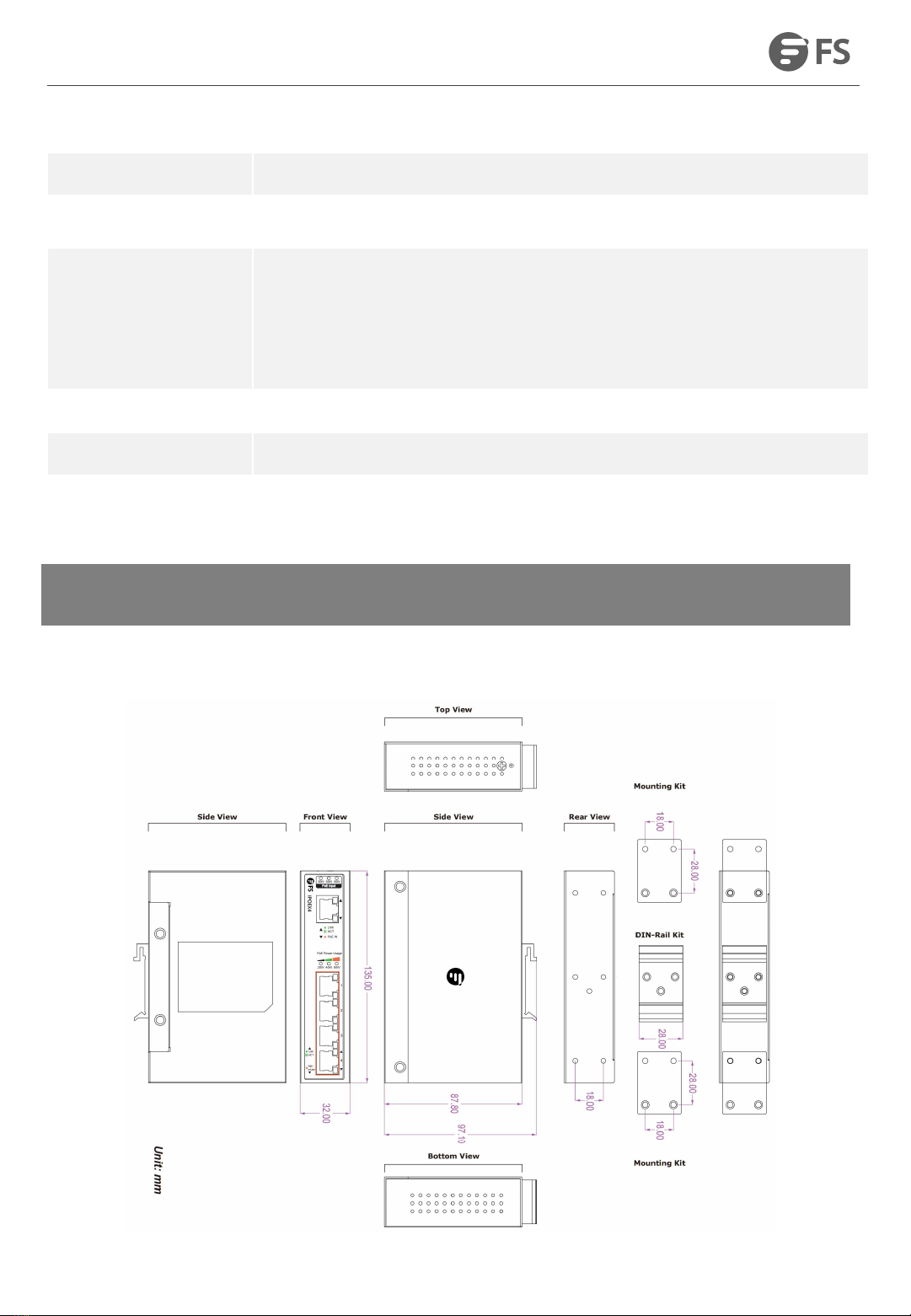

6. Physical Dimensions
The IPOEX4’s dimensions (W x D x H) are 32 x 87.8 x 135 mm.
