A320 Sidestick PRO OEM
Installation & Operation Manual
Version 1.0 – July 2018
by Luciano Napolitano
Ocial website
for information and support:
ENGLISH ME145552
CPT SIDE SKU: 200301
F/O SIDE SKU: 200302

© FSC is a Research & Development Division of Professional Show S
INDEX
1 - BOX CONTENTS, FEATURES AND REQUIREMENTS ............................................... 3
2 - HARDWARE INSTALLATION AND SETUP ................................................................. 4
2.1 HARDWARE CONNECTION ............................................................................. 4
2.2 AXIS CALIBRATION ........................................................................................... 4
2.3 AXIS AND BUTTON ASSIGNMENT IN CLIENT SIMULATOR .......................... 4
2.4 SOFTWARE SETTINGS AND CALIBRATION ................................................... 5
3 – USING FSC DRIVER FOR SOLENOID AUTOPILOT FUNCTION .............................. 12
3.1 USING THE DRIVER IN X-PLANE .................................................................... 12
3.2 USING THE TQ IN FS9, FSX, ESP AND Prepar3D ........................................... 13
3.3 USING THE SIDESTICK WITH AEROSOFT A320/321 ................................... 14
4 - INTEGRATING IN PROSIM-AR ................................................................................... 15
4.1 SOFTWARE CONNECTION - SIDESTICK ...................................................... 15
5 - SCHEMATICS and TECHNICAL DRAWING .............................................................. 16
DISCLAIMER
All product names, logos, and brands are property of their respective owners.
FSC A320 Sidestick PRO OEM Installation & Operation Manual
2

ment Division of Professional Show SpA - 35010 LIMENA (PD) - ITALY
www.fsc.it
1. BOX CONTENTS, FEATURES AND REQUIREMENTS
A320 Sidestick PRO OEM is a professional sidestick with proportional passive force feedback, availa-
ble for both Captain (SKU 200301) and First Ocer side (SKU 200302).
OEM lighter version with no enclosure and USB only interface (no LAN)
The FSC A320 SIDESTICK PRO OEM kit is composed by the following items:
- A320 Sidestick PRO OEM
- 1x 5m USB cable type A to B
- 24V 2A AC to DC Switching Adapter Power Supply
- 1x USB ash drive with the drivers bundle for : FS 2004, FSX, FSX-SE, Prepar3d v1.x/2.x/3.x/4.x
and X-Plane 9.7/10.x/11.x
- Installation & Operation Manual
MAIN FEATURES
• Proportional Force Feedback
• Locking solenoid for Autopilot function, with mechanical
disengage and electronic disengage for both side
• Engineered and produced by FSC
• Solid body built with precision CNC machined parts,
made of aluminium and special steels
• USB 2.0 interface
• Handle made of Single pressed Aluminium body
• MIL-A OTTO 2.5 lbs pressure A/P Disengage button
• The junction with handle is made with nuts and Double
HD-15 connector, as the original A320 one
• You can use the original A320 stick handle without
modication
• High Quality Rubber Gaiter replica
• 12bit high precision A/D converter for accurate axis
reading
www.fsc.it
FSC A320 Sidestick PRO OEM Installation & Operation Manual
3

2. HARDWARE INSTALLATION AND SETUP
2.1 HARDWARE CONNECTION
1. Connect the 24V power supply for Sidestick operation
2. Connect the Sidestick to a computer via USB
USB connection allows to guarantee the full compatibility with FSX/FSX-SE , P3D and X-Plane products.
2.2 AXIS CALIBRATION
Once connected, the unit is seen by the operative system as a standard joystick, which can be calibrated
through Windows Game device setup, as for any other joystick device.
2.3 AXIS AND BUTTON ASSIGNMENT IN CLIENT SIMULATOR
Axis and buttons can be assigned through the facilities supplied into client simulator and/or FSUIPC
(there is no dierence compared to other regular joystick devices)
1
2
FSC A320 Sidestick PRO OEM Installation & Operation Manual
4

2.4 SOFTWARE SETTINGS AND CALIBRATION
Generic Game Controller settings (to be calibrated before conguring FSUIPC or XPLANE)
- Plug the usb cable into PC. Press “START” menù and type “Joy.cpl”
- Click on “Properties” and calibrate
www.fsc.it
FSC A320 Sidestick PRO OEM Installation & Operation Manual
5

- Conrm wizard with NEXT button
- Find center point and conrm with NEXT button
FSC A320 Sidestick PRO OEM Installation & Operation Manual
6

- Move axis from full left to full right and from full up to full down to calibrate and select “Display raw data”
- Press APPLY to save calibration
www.fsc.it
FSC A320 Sidestick PRO OEM Installation & Operation Manual
7

XPLANE : One Control AXIS
From “Settings” menu, select “Joystick, Keys & equipment”, select “axis” tab, move handle to discover
the axis, then assign it from the dropbox to “ roll” and “pitch”.
FSX/P3D ONLY : One control Axis for each Joystick, so You can have a double command one for CPT
and other for F/O.
FSX/P3D With FSUIPC: One control Axis for each Joystick, so You can have a double command one
for CPT and other for F/O.
From “add ons” menu, select “FSUIPC”, select “Axis assignment” tab, move the stick to discover the
axis, then under “type of action required” select the radio-button “send direct to FSUIPC calibration”,
select the axis to be assigned from dropbox menu. Repeat this procedure for pitch axis.
FSC A320 Sidestick PRO OEM Installation & Operation Manual
8

From “Joystick calibration” tab, select “Main Flight controls” page.
From “Ailerons(direct!)” move the stick to discover min,center & max values then press “Set” buttons to
conrm values. Repeat this procedure for Pitch axis.
Magenta FBW with XPLANE/FSX/P3d: Two separate Stick
From FBW main page press “Calibrate” move Stick to discover the axis.
Near the axis press “Sel” to select and calibrate.
www.fsc.it
FSC A320 Sidestick PRO OEM Installation & Operation Manual
9

Under the calibration page select “Assign” button to assign the Axis “Aileron” or “Ailrn F/O”
Aileron direction: rotating the handle left the “out” indicator must slide to the left, if not, select “Invert-
ed” (arrow 1).
FSC A320 Sidestick PRO OEM Installation & Operation Manual
10

Press “Recalibrate” (arrow 2) and move the handle left and right slowly to calibrate the axis.
Look at the input and output values (arrow 3): the “in” value above indicate the raw values from joystick
interface, the “out” value below indicates the calculated range of values to send to simulator according
to calibration ltered by “Aileron response Curve”.
Release the handle to center the Stick, and press “Set Center” (arrow 4)
How to change Response Curve:
Drag with mouse:
- “Null” (arrow 5) to change null zone value (right to enlarge)
- “Width”(arrow 6) for width zone
- “Max” (arrow 7) for % max excursion
- The Output Axis will move between “Null” and “Wdth”, with deection from 0% to “Max” % of calibrat-
ed value (arrow 3, “out”)
Then click:
- “Default” (arrow 8) for straight response,
- “Curve” (arrow 9) for progressive response (like in the picture)
- You can draw your own curve directly with your mouse pointer (arrow 10)
- To end calibration process, click “Lock Calibration” (arrow 11)
www.fsc.it
FSC A320 Sidestick PRO OEM Installation & Operation Manual
11

3. USING FSC AIRBUS DRIVER FOR SOLENOID AUTOPILOT FUNCTION
The Sidestick has a solenoid to lock the handle when the autopilot is engaged. By applying some degree
of additional force to the handle, the solenoid unlocks and the autopilot disconnects, allowing to continue
the ight “manually”.
The solenoid / autopilot function is provided through FSC Airbus driver, which is compatible with most
ight simulator client software and their add-ons. The driver is usually supplied in an USB key and doesn’t
need an installation: to use it, just copy the provided executable application anywhere on your hard drive
or onto the desktop, and run it directly from there.
3.1 USING THE AIRBUS DRIVER IN X-PLANE
In order to work as expected, the Airbus driver requires X-Plane and XPUIPC started in the following
sequence:
1. Start X-Plane, making sure that it loads also the XPUIPC plug-in as indicated below:
From the Plug-in Admin menu, XPUIPC/XPWideFS must be set as Enabled.
2. If the Sidestick is connected to a slave computer (say computer “B”) not running X-Plane, you
will have to run XPWideClient on computer B, conguring the IP address of the computer where
XPlane runs. The Airbus driver will be executed on computer B too.
For rst time use, XPWideClient needs to be congured in order to communicate with X-Plane.
In the sample shown above, XPWideClient is congured to communicate with X-Plane running
on the same computer where XPWideClient and the TQ driver are used (IP address of 127.0.0.1,
meaning “itself”).
XPWideClient is congured by directly editing its INI le by a text editor (for example, Windows
Notepad). Please consult the documentation shipped with XPWideClient to know how to edit its
INI le and congure it as required.
If the Sidestick is connected to the same computer where X-Plane runs, step 2 can be skipped.
FSC A320 Sidestick PRO OEM Installation & Operation Manual
12

3. Start the Airbus driver by running the provided executable
NOTE: to get XPUIPC, not supplied with this software, please visit http://www.tosi-online.de/
3.2 USING THE TQ IN FS9, FSX, ESP AND Prepar3D
In order to work properly, the TQ requires FSUIPC installed and registered into the client simulator soft-
ware that you would like to use. Most cockpit builders and general users already have FSUIPC installed
and registered because it is required by most add-ons. In case you don’t have it, you may buy a license
from simmarket.com
- Run the client simulator normally
- Make sure that no other hardware is sending pitch/roll input (check the axis / buttons assignment
of the client simulator and clear all the settings)

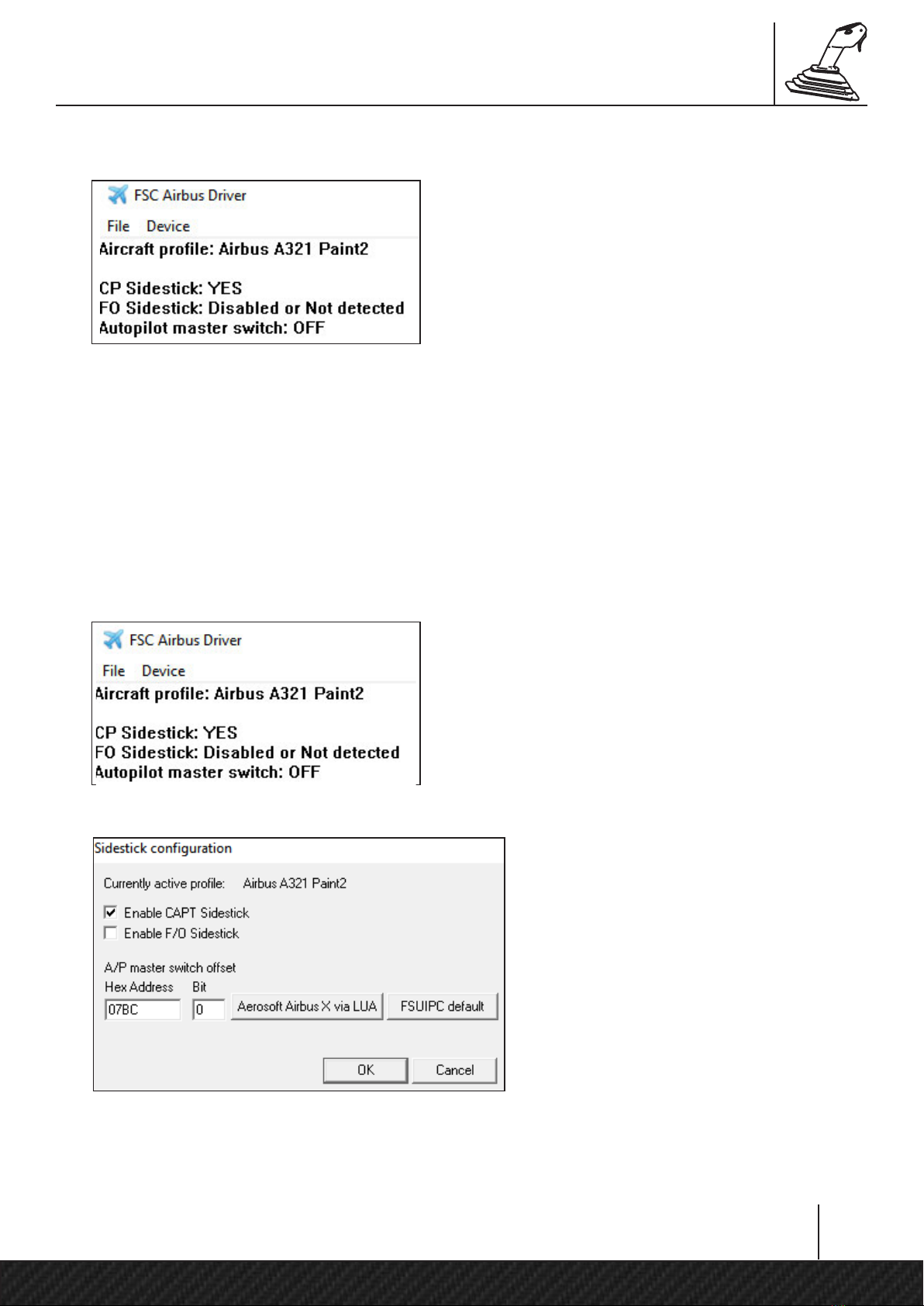

- Run the provided Airbus driver:
To access the conguration, use Device > Sidestick conguration...
The Airbus driver works by aircraft prole: it detects automatically the currently active aircraft in the
client simulator, and activate the latest saved conguration for such aircraft.
www.fsc.it
FSC A320 Sidestick PRO OEM Installation & Operation Manual
13

You can enable or disable selectively Captain’s or First Ocer’s sidestick, furthermore, you can specify
an oset from where the status of autopilot (engaged or disengaged) is read or set.
This lets the handle blocking function, via solenoid, to work accordingly to autopilot setting.
The default FSUIPC oset, working with most default and add-ons airplanes, is 07BC (bit 0).
You can customize it as needed, accordingly to the oset actually used by your client simulator.
3.3 USING THE SIDESTICK WITH AEROSOFT A320/321
In order to work properly, Aerosoft Airbus requires a specic autopilot oset address and a LUA le to be
loaded via FSUIPC.
- To access the Sidestick conguration, use Device > Sidestick conguration...
Make sure the oset address is set to 04F0
- Copy the supplied “FSC-Airbus-Sidestick.lua” in the same folder where FSUIPC is installed, for
example C:\Program Files (x86)\Microsoft Games\Microsoft Flight Simulator X\Modules.
Then, open FSUIPC4.INI (found in the same folder) and make sure the followings line exists:
[Auto]
1= FSC-Airbus-Sidestick.lua
(if you already use other LUA les that are loaded automatically once the simulator starts,
you will see them listed in the same section: in such case, just add FSC-Airbus-TQ as last
entry, respecting the order number in your INI le)
- Now you can start Aerosoft Airbus and enjoy the sidestick with fully operative solenoid locking
function.
FSC A320 Sidestick PRO OEM Installation & Operation Manual
14

4. INTEGRATING IN PROSIM - AR
4.1 SOFTWARE CONNECTION - SIDESTICK
The Sidestick must be connected to Prosim-AR with USB interface.
Set sidestick axis in conguration page, combined settings, Flight Controls, Lever:
Assign the Roll and Pitch axis as above, calibrate the min, max , center , and null zone.
Go to combined settings, Flight Controls, Switch:
Assign the red pushbutton over the stick to “Sidestick captain priority takeover pushed”.
Go to Autoight , indicator:
Assign the AP1 and AP2 value to FSUIPC 16 bit S 0x66C0 oset for locking solenoid activation.
66C0 is a custom free oset for personal use, if You are already using it You can assign another oest
from the free to use range, and change it in the Lua script.
Copy the lua script “FSC_A320_Prosim_AR.lua” in “modules “ folder of Your sim, then edit the FSUIPCx.
ini (where “x” could be “4” or “5”) and add these lines:
[AUTO]
1=lua FSC_A320_Prosim_AR
www.fsc.it
FSC A320 Sidestick PRO OEM Installation & Operation Manual
15

5. SCHEMATICS and TECHNICAL DRAWING
FSC A320 Sidestick PRO OEM Installation & Operation Manual
16

98765432
REV
3.1
E E
Piedinatura A320 Sidestick Handle P/N.
282275-020500
A
A
1
DD
1
A
Ground Chassis
CC
B
A
B
2
B B
2
03
02
01
REV.
REV. ENOISSIMEENOIZIRCSED APPROVATO
TOLLERANZEGENERICHE PER QUOTE DI LAVORAZIONE ( UNI 5307-63 )
segnarecon una croce il grado di precisione indicato per questo particolare MATERIALE
Alluminium
3,2 1,6 0,8 0,2
GRADODI PRECISIONE <6 6-30 30-120 120-315 315-1000 1000 - 2000 2000 - 4000 >4000
A
Painted
GROSSOLANO 0,2 0,5 0,8 1,2 2 3 4 5 A
MEDIO 0,1 0,2 0,3 0,5 0,8 1,2 2 3
UNI EN ISO 22768
PESO Kg
x
PRECISO 0,05 0,1 0,15 0,2 0,3 0,5 / /
N DISEGNO:
P/N 282275-020500
SVILUPPO mm
QUANTITA'
FSC A320 SIDESTICK HANDLE
ME134908 - V.1.1 MARCH 2017
1
PROGETTO:
A320 CPT Handle Wired
Data
SCALA
1:2
FOGLIO
1 di 1 20/12/2016
A3
1101987654321
1
THE DATA CONTAINED HEREIN CONSTITUTES PROPRIETARY INFORMATION OF PROFESSIONAL SHOW S.P.A
AND SHALL NOT BE USED, DUPLICATE, OR DISCLOSED IN WHOLE OR IN PART, EXCEPT FOR RIGHTS
EXPRESSLY GRANTED BY CONTRACT,WITHOUT THE PRIOR WRITTEN AUTHPRIZATION OF PROFESSIONAL
SHOW S.P.A.
11
APPROVED
REVISIONS
DESCRIPTIONCOLOR
Black
Pin 10
Pin 8
Pin 13
Pin 8
Pin 13
Pin 10
Pin 15
MASSIMOGRADO DI
RUGOSITA'AMMESSA RIMUOVERE EVENTUALI
BAVE DI LAVORAZIONE TRATTAMENTO
SUPERFICIALE
Questo disegno è di proprietà della
Professional Show S.p.A.
Via Praimbole, 15
35010 LIMENA (PD)
Ph: +39.049.8657111
Progettista/Designer
Luca Pranovi
TUTTELE PIEGHE SONO A 90
SENON DIVERSAMENTE SPECIFICATO:
ALTEZZASALDATURE 0,7 VOLTE LO SPESSORE MINIMO DEL
MATERIALE
La riproduzione e divulgazione,
anche parziale, è vietata ai sensi
delle norme vigenti.
10
DATE
Handle for A320 SIM20/12/2016 GirardiLeonardo
A
B
A
B
98765432
REV
3.1
E E
:NOITACILPPALACIPYTstraPscitamehcS
DD
9
8
2
610 3
CC
1
B
4USB B
5
9
B B
7JOYSTICK BOARD
ytQetraporemuN.ggO
1 282275-020501 Manopola sn Joystick_002_d-vers04 1
1kcitsotteihcrepoC305020-5722822
03
1ottellirG205020-5722823
02
1752-SDamayiMetnasluP705020-5722824
01
282275-020505 Perno grilletto ISO 8734 3x40
REV.
REV. ENOISSIMEENOIZIRCSED APPROVATO
5 1 TOLLERANZEGENERICHE PER QUOTE DI LAVORAZIONE ( UNI 5307-63 )
segnarecon una croce il grado di precisione indicato per questo particolare MATERIALE
Alluminium
3,2 1,6 0,8 0,2
GRADODI PRECISIONE <6 6- 30 30-120 120 - 315 315-1000 1000 - 2000 2000 - 4000 >4000
6 1
A282275-020508 Molla intercom Vanel C.095.070.0125.A
Painted
GROSSOLANO 0,2 0,5 0,8 1,2 2 3 4 5 A
MEDIO 0,1 0,2 0,3 0,5 0,8 1,2 2 3
7 657497 Connettore DSUB 9 poli maschio pannello CSE09P 2
UNI EN ISO 22768
PESO Kg
x
PRECISO 0,05 0,1 0,15 0,2 0,3 0,5 / /
N DISEGNO:
P/N 282275-020500
SVILUPPO mm
1sbl5,211111-1PottOetnasluP1007928 QUANTITA'
FSC A320 SIDESTICK HANDLE
ME134908 - V.1.1 MARCH 2017
1
PROGETTO:
A320 CPT Handle Wired
9 ISO 7047 SCREW M3x8-H STEEL GRADE A COUNTERSUNK RAISED HEAD 6
1LEETSAEDARG21&3MWERCS9204OSI01
Data
SCALA
1:2
FOGLIO
1 di 1 20/12/2016
A3
1101987654321
1
THE DATA CONTAINED HEREIN CONSTITUTES PROPRIETARY INFORMATION OF PROFESSIONAL SHOW S.P.A
AND SHALL NOT BE USED, DUPLICATE, OR DISCLOSED IN WHOLE OR IN PART, EXCEPT FOR RIGHTS
EXPRESSLY GRANTED BY CONTRACT,WITHOUT THE PRIOR WRITTEN AUTHPRIZATION OF PROFESSIONAL
SHOW S.P.A.
11
APPROVED
REVISIONS
DESCRIPTIONCOLOR
Black
Pin 8
Pin 13
Pin 10
Pin 15
Pinout:
Pin 8-13:Disengage
Pin10-15: Push/Talk
MASSIMOGRADO DI
RUGOSITA'AMMESSA RIMUOVERE EVENTUALI
BAVE DI LAVORAZIONE TRATTAMENTO
SUPERFICIALE
Questo disegno è di proprietà della
Professional Show S.p.A.
Via Praimbole, 15
35010 LIMENA (PD)
Ph: +39.049.8657111
Progettista/Designer
Luca Pranovi
TUTTELE PIEGHE SONO A 90
SENON DIVERSAMENTE SPECIFICATO:
ALTEZZASALDATURE 0,7 VOLTE LO SPESSORE MINIMO DEL
MATERIALE
La riproduzione e divulgazione,
anche parziale, è vietata ai sensi
delle norme vigenti.
10
DATE
Handlefor A320 SIM20/12/2016Girardi Leonardo
www.fsc.it
FSC A320 Sidestick PRO OEM Installation & Operation Manual
17

A
1
APPROVALS
DRAWN
REV
DATE
CONTRACT NO.
Size
SCALE SHEET of
File No.
A2
Baggio
Schema A320 SIDESTICK
HANDLE – originale Schema A320 SIDESTICK HANDLE – originale
Schema A320 SIDESTICK HANDLE – originale
A320 Sidestick Handle
Originale.vsd
B
C
D
E
A
B
E
234 5 6 7 89 10 11
1 2 345678 9 10 11
13/01/2017
PRINT
DATE
DATE
0 0
----
APPROVED
DATEDESCRIPTIONREVCOLOR REVISIONS
THE DATA CONTAINED HEREIN CONSTITUTES PROPRIETARY INFORMATION OF PROFESSIONAL SHOW S.P.A
AND SHALL NOT BE USED, DUPLICATE, OR DISCLOSED IN WHOLE OR IN PART, EXCEPT FOR RIGHTS
EXPRESSLY GRANTED BY CONTRACT, WITHOUT THE PRIOR WRITTEN AUTHPRIZATION OF PROFESSIONAL
SHPW S.P.A.
Wiring in A320 Sidestick Handle ( Real Aviation )
Pin 8
Pin 4
Pin 13
Pin 10
Ground Chassis
Pin 8
Pin 4
Pin 13
Pin 10
Pin 15
A
A
B
B
A
B
A
B
1
1
2
2
13/01/2017
FSC A320 Sidestick PRO OEM Installation & Operation Manual
18

531,9
684,8
420,3
495,3
...
...
...
...
...
...
...
...
...
Questo disegno è di proprietà della
Professional Show S.p.A.
Via Praimbole, 15
35010 LIMENA (PD)
Ph: +39.049.8657111
La riproduzione e divulgazione,
anche parziale, è vietata ai sensi
delle norme vigenti.
03
02
01
REV.
A2
Data
UNI EN ISO 22768
/ /
PRECISO
MEDIO
Progettista/Designer
APPROVATO
TRATTAMENTO
EMISSIONE DESCRIZIONE
REV.
RIMUOVERE
03
02
01
REV.
N DISEGNO:
Data
FOGLIO
PROGETTO:
0,2
0,8
1,6
MASSIMO GRADO DI
RUGOSITA' AMMESSA
SCALA
0,5 / /0,30,20,150,10,05
1,2 2 30,80,50,30,20,1
3 4 521,20,80,5
0,2
PRECISO
MEDIO
GROSSOLANO
Progettista/Designer
APPROVATO
EMISSIONEDESCRIZIONE
REV.
Questo disegno è di proprietà della
Professional Show S.p.A.
Via Praimbole, 15
35010 LIMENA (PD)
Ph: +39.049.8657111
La riproduzione e divulgazione,
anche parziale, è vietata ai sensi
delle norme vigenti.
UNI EN ISO 22768
SE NON DIVERSAMENTE SPECIFICATO:
TUTTE LE PIEGHE SONO A 90
ALTEZZA SALDATURE 0,7 VOLTE LO SPESSORE MINIMO DEL
MATERIALE
QUANTITA'
SVILUPPO mm
PESO Kg
SUPERFICIALE
TRATTAMENTO
MATERIALE
TOLLERANZE GENERICHE PER QUOTE DI LAVORAZIONE ( UNI 5307-63 )
segnare con una croce il grado di precisione indicato per questo particolare
GRADO DI PRECISIONE < 6 6 - 30 30 - 120 120 - 315 315 - 1000 1000 - 20002000 - 4000 > 4000
RIMUOVERE EVENTUALI
BAVE DI LAVORAZIONE
3,2
A2
16/05/2017
2 di 2
1:3
x
x
Marco Fantino
129940-00 Sidestick CPT_Pass
x
x
299. 5
1 9 2
500. 8
1 3 9
Ogg. Numero parte Tipo Nomenclatura Quan.
1 129940-01-00 Assieme Assieme fisso 1
2 129940-03-00 Assieme Assieme pitch 1
3 129940-04-00 Assieme Assieme roll 1
4 129940-02-00 Assieme Assieme giunto
posteriore
1
5 129940-06-00 Assieme Assieme giunto ant
asse roll
1
6 107924-04-00 Assieme Gruppo molle doppio
effetto
ammortizzate pitch
1
7 107924-05-00 Assieme Gruppo molle doppio
effetto
ammortizzate roll
1
1 0
201. 3
3 9 7
2 6 3
2
3
1
4
5
7
6
www.fsc.it
FSC A320 Sidestick PRO OEM Installation & Operation Manual
19

HEADQUARTERS
Via Praimbole, 15
35010 Limena (PD) ITALY
Ph. [phone]
Fax [phone]
[email protected]
MILAN Branch
Professional Show S.p.A.
Via Santa Maria, 83/85
20093 Cologno Monzese (MI)
Ph. [phone]
Fax [phone]
ROME Branch
Professional Show S.p.A.
Via Monte Pertica, 33
00195 ROMA ITALY
Ph. [phone]
Fax [phone]
© FSC is a Research & Development Division of Professional Show SpA
www.fsc.it
FSC A320 Sidestick PRO OEM Installation & Operation Manual
