FSR AirShare DV-AS-21 User manual

DV-AS-21
AirShare USER MANUAL
244 Bergen Blvd Woodland Park NJ 07424
973-785-4347 www.fsrinc.com
43367 LIT1765

2/ 72
1 Limited Warranty
The DV-AS-21 is warranted against failures due to defective parts or faulty workmanship for a period
of three years after delivery to the original owner. During this period, FSR will make any necessary
repairs or replace the unit without charge for parts or labor. Shipping charges to the factory or repair
station must be prepaid by the owner, return-shipping charges (via UPS Ground) will be paid by FSR.
This warranty applies only to the original owner and is not transferable. In addition, it does not apply to
repairs done by other than the FSR factory or Authorized Repair Stations.
This warranty shall be cancelable by FSR at its sole discretion if the unit has been subjected to
physical abuse or has been modified in any way without written authorization from FSR. FSR’s liability
under this warranty is limited to repair or replacement of the defective unit.
FSR will not be responsible for incidental or consequential damages resulting from the use or misuse
of its products. Some states do not allow the exclusion of incidental or consequential damages, so the
above limitations may not apply to you. This warranty gives you specific legal rights, and you may also
have other rights which vary from state to state.
Warranty claims should be accompanied by a copy of the original purchase invoice showing the
purchase date (if a Warranty Registration Card was mailed in at the time of purchase, this is not
necessary). Before returning any equipment for repair, please read the important information on
service below.
SERVICE
Before returning any equipment for repair, please be sure that it is adequately packed and cushioned
against damage in shipment, and that it is insured. We suggest that you save the original packaging
and use it to ship the product for servicing. Also, please enclose a note giving your name, address,
phone number and a description of the problem.
NOTE: all equipment being returned for repair must have a Return authorization (RMA) Number. To
get a RMA Number, please call the FSR Service Department (1-800-332-FSR1). Please display your
RMA Number prominently on the front of all packages.
CONTACT INFORMATION
FSR INC.
244 Bergen Blvd.
Woodland Park, NJ 07424
Phone: [phone]Order Desk Fax: [phone]
E-mail: [e-mail]
Web Site: http://www.fsrinc.com

3/ 72
Table of Contents
1Limited Warranty ...........................................................................................................................2
2Features:.......................................................................................................................................6
3Overview .......................................................................................................................................6
3.1 AirShare System .................................................................................................................... 6
3.2 AirShare system diagram ....................................................................................................... 7
4Specification:................................................................................................................................. 8
5Panel Layout ...............................................................................................................................10
5.1 AirShare Front Panel............................................................................................................ 10
5.2 AirShare Rear Panel ............................................................................................................ 11
5.3 Software Interface ................................................................................................................ 14
5.3.1 Home Page ................................................................................................................... 14
5.4 Quick Start for Screen Sharing............................................................................................. 17
6Installation ................................................................................................................................... 18
6.1 Mounting methods for the Base unit ..................................................................................... 18
6.2 Antennas.............................................................................................................................. 19
6.3 AirShare Power Connection ................................................................................................. 20
6.4 AirShare Video Connection. ................................................................................................. 20
6.5 AirShare Audio Connection .................................................................................................. 21
6.6 AirShare LAN connection ..................................................................................................... 22
6.7 LAN Indicator ....................................................................................................................... 23
6.8 USB device connection ........................................................................................................ 23
6.9 Wiring Diagram .................................................................................................................... 25
6.10 AirShare Client Software and Client Connection setup......................................................... 25
6.10.1 Enable Portable Hotspot (WIFI)..................................................................................... 26
6.10.2 Enable LAN connection................................................................................................. 27
6.11 Client Sharing....................................................................................................................... 28
6.11.1 For a shared PC/Laptop ................................................................................................ 28
6.11.2 For a Shared Mobile Device .......................................................................................... 29
7“Setting” Menu.............................................................................................................................30
7.1 Ethernet: .............................................................................................................................. 31

4/ 72
7.1.1 IP Address .................................................................................................................... 31
7.1.2 Ethernet MAC address .................................................................................................. 31
7.1.3 Proxy & IP settings........................................................................................................ 31
7.1.4 PPPoE settings ............................................................................................................. 33
7.2 Wireless network.................................................................................................................. 35
7.2.1 Wireless network configuration wizard .......................................................................... 35
7.2.2 Show SSID and PASS when mirroring .......................................................................... 35
7.2.3 Auto change Wi-Fi hotspot password ............................................................................ 35
7.2.4 Wifi analyzer ................................................................................................................. 36
7.3 Moderator Control ................................................................................................................ 42
7.3.1 Preview Windows.......................................................................................................... 42
7.3.2 Auto share for WMT-mini .............................................................................................. 43
7.4 General setting..................................................................................................................... 44
7.4.1 Auto create launcher ..................................................................................................... 44
7.4.2 Auto Standby................................................................................................................. 44
7.4.3 Airplay screen quality .................................................................................................... 45
7.4.4 HDMI output resolution.................................................................................................. 45
7.4.5 HDMI input auto switch ................................................................................................. 46
7.4.6 Home screen background image................................................................................... 46
7.5 Security setting:.................................................................................................................... 46
7.5.1 LAN discovery & Connection......................................................................................... 47
7.5.2 Remote view lock .......................................................................................................... 47
7.5.3 Clear history after meeting ............................................................................................ 47
7.5.4 Change admin password............................................................................................... 47
7.6 Language ............................................................................................................................. 48
7.7 System Update..................................................................................................................... 49
7.8 Date & Time ......................................................................................................................... 49
7.9 About Device........................................................................................................................ 50
7.9.1 Model number: .............................................................................................................. 50
7.9.2 Software version: .......................................................................................................... 50
8Updating AirShare ....................................................................................................................... 50

5/ 72
8.1 Upgrading the AirShare Base Unit:....................................................................................... 50
8.2 Upgrading Launcher (PC client software): ............................................................................ 56
9Operation ....................................................................................................................................58
9.1 Transmitting PC desktop ...................................................................................................... 58
9.1.1 For Microsoft Windows PC/Laptop ................................................................................ 58
9.2 Transmitting MAC OS PC/Laptop and IOS mobile device .................................................... 58
9.2.1 How to use airplay/screen mirroring? ............................................................................ 59
9.2.2 “WirelessMedia Lite” App for IOS .................................................................................. 59
9.3 Transmit Android device wireless ......................................................................................... 63
9.3.1 “WirelessMedia Lite” App for Android ............................................................................ 63
9.4 HDMI Input Select ................................................................................................................ 67
10 WIFI Recommendation Setting.................................................................................................... 68
10.1 Check the WIFI config on AirShare (See WiFi Analyzer section).......................................... 68
10.2 Check the WIFI RSSI on PC or Mobiles ............................................................................... 68
11 Troubleshooting........................................................................................................................... 68

6/ 72
2 Features:
Supports VESA PC resolution input, auto-detecting.
Can transmit PC’s mirror/extended desktop or Macbook's mirror desktop.
Can transmit smart devices' mirror, photos, videos, music, etc.
Supports remote viewing of the active display using the WirelessMedia Lite app on smart devices.
Supports remote control of the active source devices from other smart devices.
Supports "Airplay" for apple device.
3 Overview
3.1 AirShare System
AirShare allows connecting or participating in a meeting simply by clicking a visual button. It also
allows others to join making the meeting more efficient and productive. A typical AirShare system
contains:
Fig 1.1
ID
Name
Description
1 Base Unit Host unit
2 WirelessMedia Lite for
Android APK
For smart android devices to share the
screen, transmit photos/music/video/files,
exchange files, remote view and review
mouse.
3 WirelessMedia Lite APP
for IOS
For smart IOS devices to share the screen,
transmit photos/music/video/files, exchange
files, remote view and review mouse.

7/ 72
ID
Name
Description
1 Antenna
2 pcs of antenna are included in the box. To
avoid damage, they are not pre-mounted.
The antenna can rotate for a better wireless
connection.
2 Power adapter
International plug inter-changeable power
adapter, of which the plugs includes US,
Europe, UK, Australia standard.

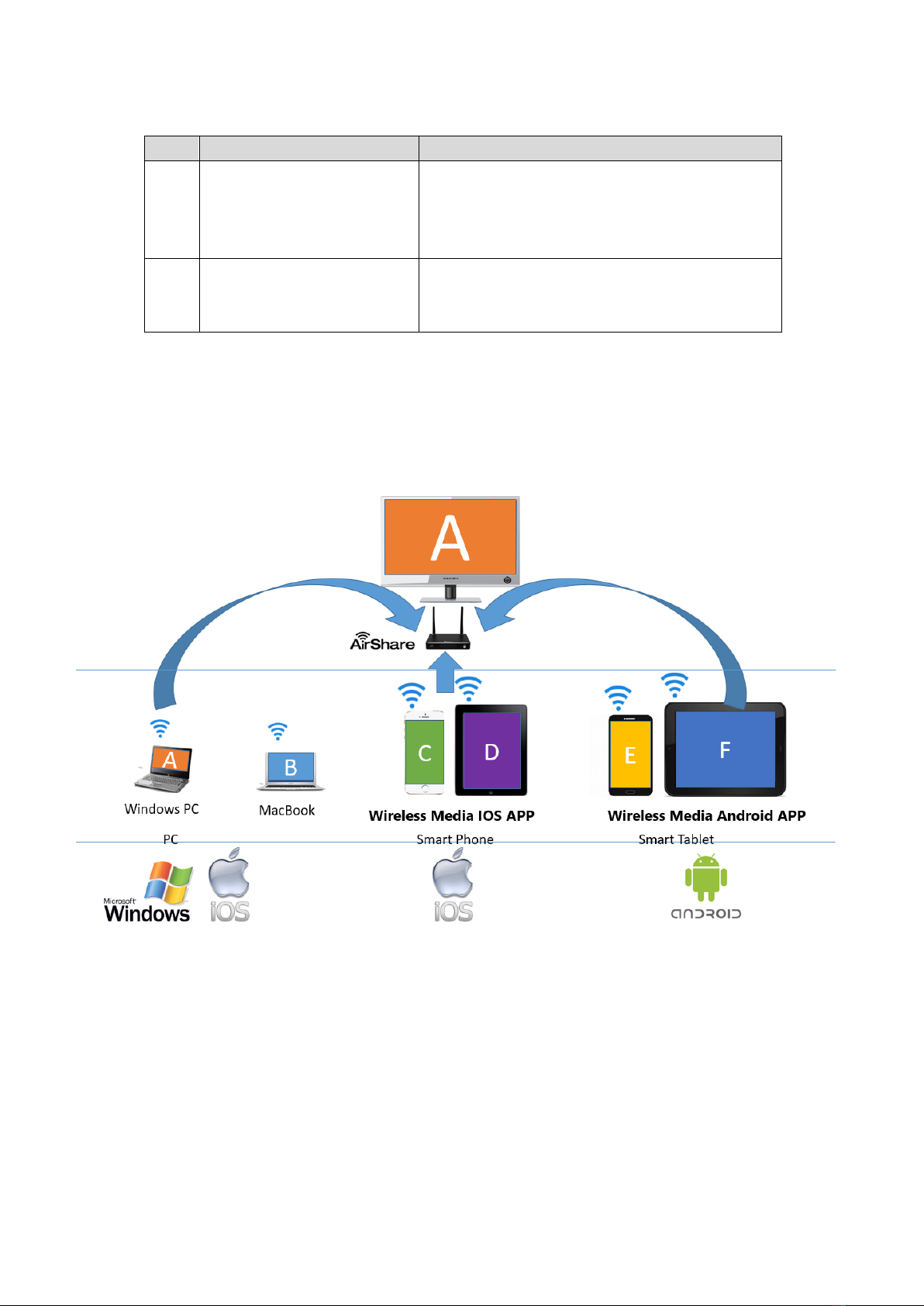

3.2 AirShare system diagram
Fig 1.2

8/ 72
4 Specification:
Specifications
Features
SW format
WirelessMedia Lite.exe for Windows
Security
WPA/WPA2
Required Windows OS
Windows XP/Vista/7/8/8.1/10 and above, 32 & 64 bit
Video Capacity
Wireless Transmission 1080P@ ≤ 60Hz
Distance
35m without obstacles between laptop WIFI module and AirShare
Control
Button
Visual button on Laptop
Indicator
Green/Red visual indicator on visual button
Specifications of AirShare
Supported Formats
Video Input Formats
1x Wireless, 1x HDMI
Format Compliance
WIFI 11n/ac
Video Output Formats
1x HDMI
Video Output Resolution
1920x1080@60Hz,1920x1200@60Hz
Format Compliance
HDMI1.4
Audio Input Formats
1x DVI Audio in
Audio Output Formats
HDMI: embedded digital audio
De-embedded analog stereo audio: 20 kΩ impedance
Inputs Connectors
Wireless Input
WIFI 11n/ac
Outputs Connectors
HDMI Output
1x HDMI 19-pin female connector
Analog Audio Output
1x 3.5mm PC audio female connectors
Features
Number of window
simultaneous on screen
1
Number of simultaneous
connections
≤14
Data rate wireless
Up to 300Mbps, depending on the WIFI module of the laptop
Video Playback Frame
Rate
20-30 FPS
Wireless transmission
protocol
IEEE 802.11 a/g/n/ac
Frequency band
2.4 GHZ and 5 GHz
Video Capacity:
1080P @ ≤ 60Hz Airplay for IOS devices
1080P @ ≤ 60Hz "WirelessMedia Lite" app

9/ 72
Specifications
Remote Viewing
Mirroring remote view on mobile by app installed
Mobile Capability
Free IOS app, Free Andriod app
Encryption
AES WPA PSK, WPA2 PSK
Remote Mouse
Remote control moderator's PC
Control
On-Screen Setting
Configuration Visual Button, by HID mouse, or remote control on
APP
Ethernet
Telnet
Mechanical
Dimensions (W x D x H)
5.5” x 3.74“ x 0.63” (140mm x 95mm x 16mm)
Weight
0.4 lbs (200g)
Construction
1~2mm plastic with matte black finish
Environmental
Operating Temperature
+32° to +104° F (0° to +40° C)
Storage Temperature
-4° to +140° F (-20° to +60° C)
Humidity (Storage /
Operating)
20% to 90% (non-condensing)
Power
DC Power
5V
Power Consumption
10W (max.)
Accessories Included
1x DC adapter with four plug-in, US, Europe, UK, Australia

10 / 72
5 Panel Layout
5.1 AirShare Front Panel
ID
Name
Description
1 Front USB connector
Used to update the software of the
AirShare.
Used for connecting a mouse or USB-based
touch screen to select local HDMI Input,
control the SETTING configuration and
open the Help Page.
2 POWER button / back-lit
LED indicator
Powers the unit on and off and indicates
power status of the AirShare Base Unit.
NOTE: Applying power by connecting the
Power adapter to the AirShare Base Unit
will power the unit on without having to
press the Power button. The Power button
can turn the unit off or back on without
removing the Power adapter once it is
connected.

11 / 72
5.2 AirShare Rear Panel
ID
Name
Description
1
DC Power
Input
Connect the included power adapter to this jack, and
connect the AC plug to an available electrical outlet
2 LAN Ethernet
port
Connect an Ethernet cable between
this jack and a LAN to connect AirShare to LAN
3
Front / Rear
USB connector
Connect mouse, touch screen, USB stick, etc…
4
Reset
Reset button to restore to the factory default setting
5 HDMI output Connect an HDMI cable from this port to an
HD display.
6 Line audio
output
2 channel analog audio output, Connect a 3.5mm mini-
jack PC connector from this jack to the Line In jack of
an audio system.
7 HDMI input Connect a local HDMI input, up to 4K_60Hz, HDCP2.2
from source device
8 Line audio
input
2 channel analog audio output, Connect a 3.5mm mini-
jack PC connector from this jack to the Line In jack of
an external audio source devices
9
Antenna
connection
points
Screw the two included antennas into these two ports

12 / 72

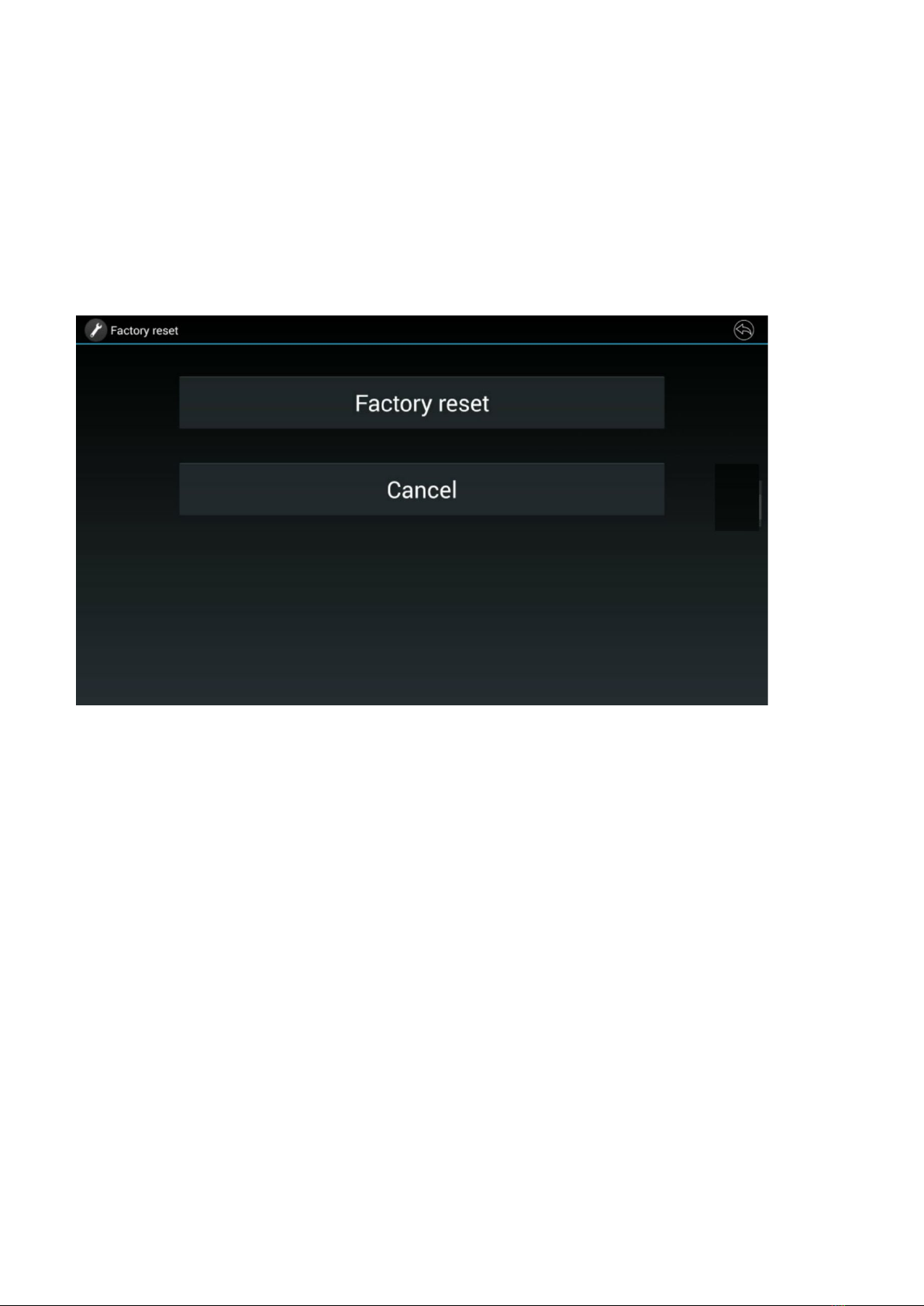

Restore default configuration via Reset button:
Power up the Base unit.
When the Home Page appears, press the reset button at the rear panel of AirShare using a pen
tip or small screwdriver for at least 2 seconds until the factory reset page is shown.
Connect a mouse to the AirShare Base unit and click Factory Reset. The Base unit will reboot
after 3 seconds to the default configuration. Or click Cancel to return.
Default Configuration Settings:
The Default Configuration Settings are as follows:
Ethernet:
Proxy: None
IP setting: DHCP
Wireless network:
Portable Wi-Fi hotspot: ON
SSID: AirShare
Security: WPA2 PSK
Frequency: 2.4GHZ
Channel: 6Hz
AirShare setting:
Airplay screen quality: High
Output resolution: 1920x1080_60Hz,
Home screen background image: Supports customized changeable background
Volume: 50

13 / 72
Security setting
LAN connection: Disabled
Presenter Lock:: Disabled (Remote view the main screen from mobile device application)
Language:
English
Date & time:
Automatic date & time: (uses network-provided time)
Attention: LAN connection default is set to “disable” when unit settings are restored. For a corporate
LAN connection, you will need to manually turn it on. Refer to Page [Security setting:]on how to turn it
on.

14 / 72
5.3 Software Interface
5.3.1 Home Page
ID
Name
Description
1
SSID: (Service
Set Identifier)
Name
Displays the AirShare SSID name
2 PASS:
(Password)
Displays the password when connecting to the
WIFI SSID of the AirShare. Generates new
password if desired.
3
WIFI IP address
LAN IP address
Displays the Corporate WIFI IP address and LAN
IP address of the AirShare.
4 Download Downloads launcher (PC software) to a USB Stick
5 Information Toggles the visibility of the
SSID/PASS/IP
information.
6 HDMI input
Switches to the local HDMI input.
7 Settings
Connect a mouse to either USB port and click to
open the “Settings” menu.

15 / 72
ID
Name
Description
8 Help Access documents for installation, operation or
after sales support
9
Quick start for
PC operating
system
Steps for how to transmit PC/Laptop desktop onto
the main screen.
10
Quick start for
Android/IOS
operating system
Steps for how to transmit smart mobile devices
either powered by Android or IOS desktop onto the
main screen.
Changeable PASS (password)
For AirShare FW version 1.1.5 or above, PASS (password) is changeable randomly every 5
minutes. For AirShare FW version above 1.2.6, PWD (password) is configurable is the Setting
page. Setting choices are: Never Change, 5m, 30m, 1h, 2h, 4h 24h.
If only the PWD (password) is changed, smart mobile device has to enter the correct SSID and
PASS (password) to connect the AirShare hotspot, in order to access all “WirelessMedia Lite”
functionality.
When AirShare is disconnected with the launcher (PC software) for 15s, it’ll open up a dialog box
for user to confirm whether to clear the meeting history, including all data/files to be temporarily
memorized in the AirShare.
WIFI IP address & LAN IP address:
WIFI IP address shows the hotspot’s IP and LAN IP address shows the corporate LAN (Local
Area Network).
Attention: When it shows “N/A”, it means that the AirShare is not connected to WIFI or the
LAN (Local Area Network) by CAT cable or it failed to get an available IP address by the
corporation router.
Download
Click this button to download the launcher (PC software) for PC to a USB Stick.
Information
Click this button to set the information of SSID/PASS/IP address invisible, re-click to set the
information of SSID/PASS/IP address visible.
HDMI Input
Click this button to switch to the local HDMI source on the AirShare.

16 / 72
Settings Sub Menus
It gives a way to control all the configuration of AirShare over a LAN (local Area Network). User shall
use the USB connected mouse or the Remote Mouse function in the “WMB for Android” Apk or “WMB
for IOS” application.
It includes the sub-menu as below
Ethernet
Wireless network
Moderator Control
General setting
Security setting
Language
System Update
Date & Time
About Device
Help
User Manual
FAQ
Readme

17 / 72
5.4 Quick Start for Screen Sharing
PC/Lap quick start steps
Step 1: Connect PC/Laptop to AirShare via WIFI
Step 2: Enter WIFI IP or plug USB Stick to AirShare to download “WMW” exe
Step 3: Run ”WMW” on PC/Laptop open the “WMW” GUI and view the list of available AirShare
Devices
Step 4: Select your AirShare from the list and select “Ready to share” to show your screen
Smart mobile devices quick start steps
Step 1: Download “WMW”APK/APP”
Step 2: Connect to wireless network “***” and enter password
Step 3: Open the “WMW” application and click “Mirror” to share your mobile screen or “TV Mirror”
to view the Moderator screen on your mobile device.

18 / 72
6 Installation
Overview
Mounting methods for the Base unit
Table mounting
Wall mounting
Recommendations about antenna placement and orientation
AirShare Power Connection
AirShare Video Connection
AirShare Audio connection
AirShare LAN connection
About USB device connection
Wiring Diagram
6.1 Mounting methods for the Base unit
The Base unit can be installed in different ways in a meeting room.
Actual mounting hardware depends on the specific mounting surface and are not provided.
Table mount (simply place on the table surface or secure with included mounting brackets)
Wall mount (Secure to wall using included mounting brackets)
Attention: For optimal performance, install the Base unit close to the display and avoid obstacles
between the Base unit and PC/Laptop.
How to mount the AirShare Base Unit:
Note: Mounting screws and anchors are not included in the AirShare box. The type of screws
depend on the mounting surface (stone, wood, plasterboard ...) you are mounting the Base Unit
to. Make sure the head of the screw is not larger than the keyhole in the bracket.
1. Drill two holes in the wall as indicated on the drawing.
Horizontal distance: 177 mm ± 0.15
2. Attach the two offset brackets with the four Phillips flathead screws to the tapped holes at the
bottom of the AirShare Base. The brackets should be installed properly to create an offset between
the base unit and the wall.

19 / 72
3. Insert an appropriate wall anchor in each hole depending on the wall type and drive in two screws .
Leave the screws at least 0.15mm space to place the bracket between the screw head and the
wall. (See note above)
4. Place the AirShare on the wall, so that the holes on the bracket match the two screws that were
left loose on the wall and slide the Base Unit downwards until it bottoms on the keyholes.
5. Tighten the two screws while holding the Base Unit down to secure.
6.2 Antennas
Screw the two Antennas into the antenna terminals on the rear of the AirShare Base Unit. The
articulated antennas can be rotated for a better wireless connection.
Antenna placement rules:
The antennas should be oriented vertically, perpendicular to the ceiling and parallel to the walls.
The antennas should be installed far enough (at least 50cm/1.6ft) from metallic surfaces to avoid
unwanted reflections and far enough (at least 1m/3.3ft) from other radio equipment that operates in
the same frequency range, e.g. other Wi-Fi access points, cordless telephones, microwave ovens,
etc.
It is best to install antennas at least 15 cm (6 inches) from concrete walls.
The ideal situation would be a direct line of sight between the Base Unit antennas and any shared
devices. Any obstruction will cause the signal to follow a longer propagation path, which can result
in performance degradation.
Due to the radio pattern of the dipole antennas, they should not be placed in the walking path of
AirShare users.

20 / 72
6.3 AirShare Power Connection
The AirShare Base unit can be powered by the external universal power adapter included. The unit
powers up and boots when the power adapter is connected and it is not necessary to push the power
button.
How to connect the external power adapter:
Connect the power adapter plug to the AirShare Base Unit DC Input jack.
Push and slide the appropriate AC power plug (US, UK, EU or AU shown below) to the power adapter.
Press the locking tab and slide to remove the AC power plug if a different style is required at any time.
Connect the AC power cable plug into the wall outlet.
6.4 AirShare Video Connection.
Connect an HDMI cable from the AirShare HDMI Output to the HDMI input of an HD display.
Connect the power adapter to the AirShare Base Unit
After a moment, the Home Page is displayed:
