FSR HD-H70-SP-Tx User manual

HD-H70-SP
HDBaseT HDMI EXTENDER SET
BASED ON V1.0.0
244 Bergen Boulevard, Woodland Park, NJ 07424 Tel [phone] 
FAX [phone] Web: www.fsrinc.com
43063 LIT1504A
User Manual

2
Important Safety Instructions
Contents are subject to change without notice
Warnings
To reduce the risk of fire, electric shock or product damage:
1. Do not expose this device to
rain, moisture, dripping or
splashing and that no objects
filled with liquids, such as vases,
shall be placed on the unit.
6. Clean this device only
with dry cloth.
2. Do not install or place this unit
in a bookcase, built-in cabinet or
in another confined space.
Ensure the unit is well ventilated.
3. To prevent risk of electric
shock or fire hazard due to
overheating, do not obstruct
the unit’s ventilation openings
with newspapers, tablecloths,
curtains, and similar items.
4. Do not install near any heat
sources such as radiators, heat
registers, stoves, or other device
(including amplifiers) that
produce heat.
5. Do not place sources of open
flames, such as lighted candles,
on the unit.
7. Unplug this device
during lightning storms or
when unused for long
periods of time.
8. Protect cables and
cords from being walked
on or pinched particularly
at
p
lu
g
s.
9. Only use
attachments/accessories
specified by FSR.
10. Refer all servicing to
qualified service
personnel.

3
Table of Contents
Overview .................................................................................................. 4
Features ................................................................................................... 5
Package Includes:.................................................................................... 5
HD-H70-SP-Tx Front Panel...................................................................... 6
HD-H70-SP-Tx Rear Panel ...................................................................... 7
HD-H70-SP-Rx Front Panel ..................................................................... 9
HD-H70-SP-Rx Rear Panel.................................................................... 10
Hardware Installation...............................................................................11
IR Control ............................................................................................... 13
Scenario 1....................................................................................... 13
Scenario 2....................................................................................... 14
RS-232 Control and Firmware Updates ................................................. 15
Scenario 1: Firmware Update ....................................................... 15
Scenario 2: RS-232 Control.......................................................... 15
Glossary ................................................................................................. 18
Specifications ......................................................................................... 19

4
Overview
HD-H70-SP HDBaseT HDMI EXTENDER SET is designed to extend HDMI
signals up to 70 meters via a single CAT5e / CAT6 / CAT6A / CAT 7 cable. The
system is powered from a single power supply via its bi-directional PoE function.
The Extenders can control the source from the display's location or vice versa via
the IR pass-through or bi-directional RS-232 control functions. The transmitter
and receiver modules are easy to install and space saving. The Extenders are
ideal for home, office, digital entertainment centers, control centers, conference
rooms, schools and corporate training environments.

5
Features
FSR HDBaseT 70 Meter HD-H70-SP Ultra Slim Pack Transmitter & Receiver
Set:
70 Meter units are Class B HDBaseT Units known as HDBaseT Lite
Transmits uncompressed full HD Digital HDMI Video, Audio, Control
(Bi-Directional IR & RS-232), and Power
Input resolutions: 4k 2160p (3840x2160) / 1080p / 1080i / 720p /
576p / 480p / 576i / 480i
Cable Distances & Resolutions:
For best resolution and ESD performance Shielded CAT6A in a TIA / EIA 568B
wiring configuration is recommended.
CAT5e / CAT6:
60 Meters: 1080p @60 Hz. (36 bpp)
35 Meters: 1080p @60 Hz. (48 bpp) or 3D and 4k 2160p
(3840x2160 @ 30 Hz.)
CAT6A / CAT7:
70 Meters: 1080p @60 Hz. (36 bpp)
40 Meters: 1080p @60 Hz. (48 bpp) or 3D and 4k 2160p
(3840x2160 @ 30 Hz.)
Power supply can power the set from the HD-H70-SP-Tx Transmitter or
the HD-H70-SP-Rx Receiver (Tx-Rx or Rx-Tx)
Package Includes:
HD-H70-SP-Tx transmitter
HD-H70-SP-Rx receiver
18V 1A DC power supply
Under Table Mounting Brackets
2 IR emitter cables
2 IR receiver cables

6
HD-H70-SP-Tx Front Panel
ID Name Description
1 Power LED On: Unit is powered on.
Off: Unit is powered off.
2 Status LED Blinking: Normal operating condition.
Off: Fault.
3 Link LED On: Transmitter and receiver are linked to each
other.
Off/Blinking: Fault in unit(s) or cabling
4 HDCP LED On: HDCP video is being transmitted.
Blinking: No HDCP video is being transmitted.
FSR HD-H70-SP-Tx
PWR STATUS LINK HDCP
4321

7

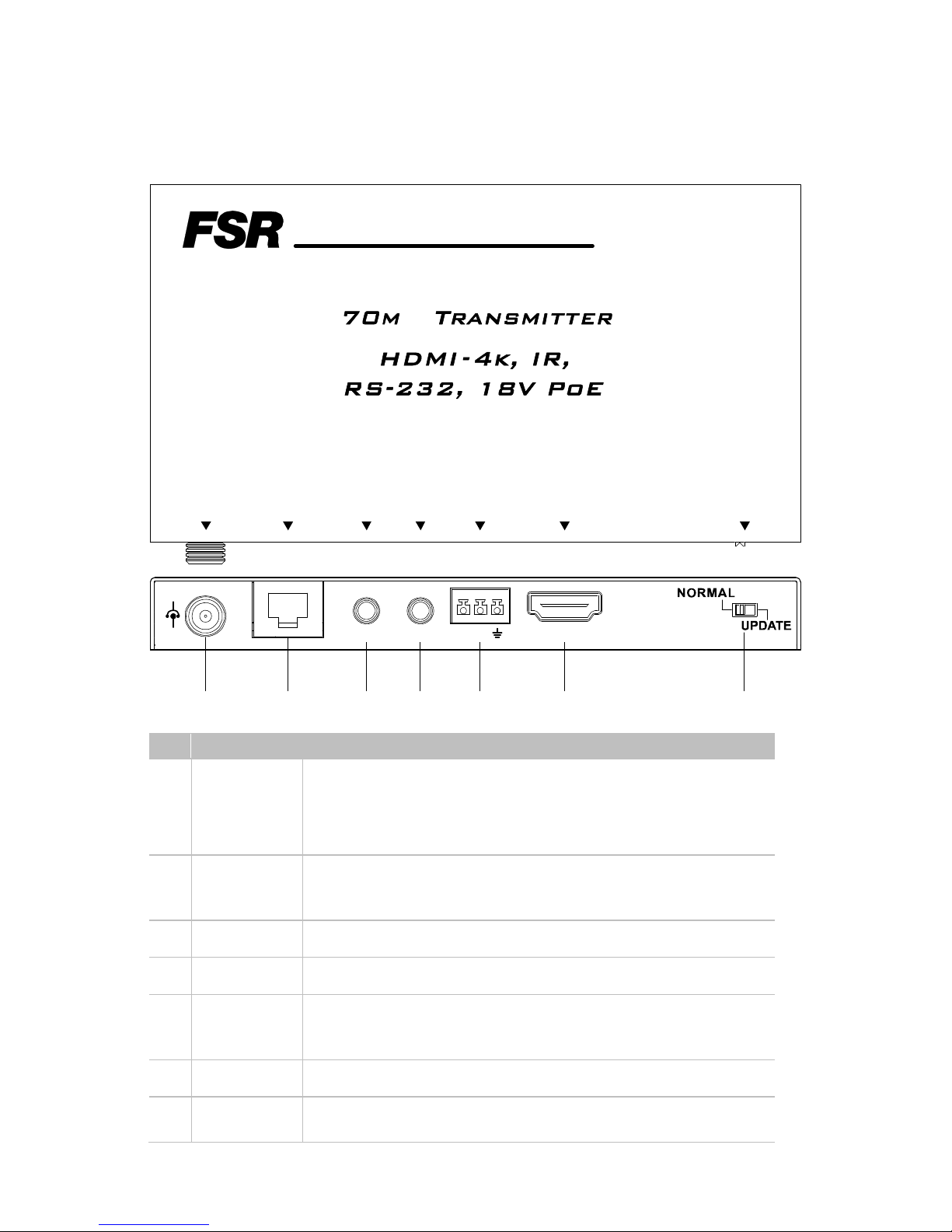

HD-H70-SP-Tx Rear Panel
ID Name Description
1 Power Connect to a power supply via a power adapter to either
the transmitter or receiver side 18VDC input.
Note: It is only necessary to power one side (Tx or Rx)
2 HDBT
OUT
RJ-45 connection to the receiver via a CAT5e/CAT6
CAT6A / CAT7 cable.
3 IR IN Connect to an IR receiver cable.
4 IR OUT Connect to an IR emitter cable.
5 RS-232 Used to connect to a computer to update firmware or
connect a RS-232 control device.
6 HDMI IN Connect to a source device via an HDMI cable.
7 Switch Normal:
HD-H70-SP-Tx
DC18V HDB T OUT HDMI INRS-232IR IN IR OUT RS-232 MODE
IR IN IR OUT Tx Rx HDMI IN
+
-
123456 7

8
ID Name Description
Mode RS-232 pass through capability enabled
Firmware cannot be updated.
Update:
RS-232 pass through capability disabled
Firmware can be updated.

9
HD-H70-SP-Rx Front Panel
ID Name Description
1 Power LED On: Receiver is powered on.
Off: Receiver is powered off.
2 Status LED Blinking: Normal operating condition
Off: Fault
3 Link LED On: Receiver and Transmitter are linked to each
other.
Off/Blinking: Fault in unit(s) or cabling
4 HDCP LED On: HDCP video is being transmitted.
Blinking: No HDCP video is being transmitted.
4321
FSR HD-H70-SP-Rx
PWR STATUS LINK HDCP

10
HD-H70-SP-Rx Rear Panel
ID Name Description
1 Power Connect to a power supply via a power adapter to
either the transmitter or receiver side 18VDC input.
Note: It is only necessary to power one side (Tx or
Rx)
2 HDBT IN Connect to the transmitter via a CAT5e / CAT6 /
CAT6A / CAT7 cable.
3 IR IN Connect to an IR receiver cable.
4 IR OUT Connect to an IR emitter cable.
5 RS-232 Used to connect to a computer to update firmware or
connect a RS-232 control device.
6 HDMI OUT Connect to a Display via an HDMI cable.
7 Mode Switch Normal:
HD-H70-SP-Rx
DC18V HDBT IN HDMI OUTRS-232IR IN IR OUT RS-232 MODE
123456 7
IR IN IR OUT Tx Rx HDMI OUT
+
-

11
ID Name Description
RS-232 pass through capability enabled
Firmware cannot be updated.
Update:
RS-232 pass through capability disabled
Firmware can be updated.
Hardware Installation
Warnings
Before the installation, disconnect the power supply from all the
devices.
Do not connect or disconnect cables from the Transmitter and
Receiver when they are powered on. To connect or disconnect
cables from the units, power them off first.
For best resolution and ESD performance Shielded CAT6A in a TIA
/ EIA 568B wiring configuration is recommended.Please use care
when installing, connecting and disconnecting cables.
1. Connect the source to HDMI IN on the Transmitter via an HDMI cable.
2. Connect an IR emitter cable to IR OUT and an IR receiver cable to IR IN on
transmitter.
3. Connect a Display to HDMI OUT on Receiver.
4. Connect an IR emitter cable to IR OUT and an IR receiver cable to IR IN on
the Receiver.
5. Connect HDBT OUT on the Transmitter to HDBT IN on the Receiver via a
shielded CAT5e / CAT6 / CAT6A / CAT7 cable.
6. Connect the power supply to either the transmitter or receiver.

12
IR IN IR OUT Tx Rx HDMI OUT
NORMA L
UPDATE
+
-
IR IN IR OUT Tx Rx HDMI IN
NORMA L
UPDATE
+
-
HD-H70-SP-Rx
HD-H70-SP-Tx
ETHERNET
BLU-RAY
DVD
TV
IR RECEIVER
CABLE
IR RECEIVER
CABLE
IR EMITTER
CABLE
TV REMOTE
IR EMITTER
CABLE
DVD REMOTE
HDBaseT

13
IR and RS-232 Operation
IR Control
The IR pass-through function in the Transmitter and Receiver allows you to
control the source from the Display’s location or control the Display from the
source's location.
Scenario 1
In this case, IR IN on the Transmitter is connected to an IR receiver cable and IR
OUT on Receiver is connected to an IR emitter cable. The TV can be controlled
from the Transmitter’s location with the TV remote.
IR IN IR OUT Tx Rx HDMI OUT
NORMA L
UPDATE
+
-
IR IN IR OUT Tx Rx HDMI IN
NORMA L
UPDATE
+
-
HD-H70-SP-Rx
HD-H70-SP-Tx
ETHERNET
BLU-RAY
DVD
TV
IR RECEIVER
CABLE
TV REMOTE
IR EMITTER
CABLE
HDBaseT

14
Scenario 2
In this case, IR OUT on the Transmitter is connected to an IR emitter cable and IR
IN on the receiver is connected to an IR receiver cable. The DVD-player can be
controlled from the Receiver's location with the DVD remote.
IR IN IR OUT Tx Rx HDMI OUT
NORMA L
UPDATE
+
-
IR IN IR OUT Tx Rx HDMI IN
NORMA L
UPDATE
+
-
HD-H70-SP-Rx
HD-H70-SP-Tx
ETHERNET
BLU-RAY
DVD
TV
IR RECEIVER
CABLE
IR EMITTER
CABLE
DVD REMOTE
HDBaseT

15
RS-232 Control and Firmware Updates
The RS-232 port on the Transmitter or Receiver can be connected to a computer
to update firmware. An RS-232 device can be connected to communicate with
another RS-232 device on the other extender's side via a CATx cable.
Scenario 1: Firmware Update
Scenario 2: RS-232 Control
Baud rate max is 115.2 Kbps.
IR IN IR OUT Tx Rx HDMI OUT
NORMA L
UPDATE
+
-
IR IN IR OUT Tx Rx HDMI IN
NORMA L
UPDATE
+
-
Set switch to UPDATE
Set switch to UPDATE
HD-H70-SP-R
x
HD-H70-SP-Tx
PC
OR
IR IN IR OUT Tx Rx HDMI OUT
NORMA L
UPDATE
+
-
IR IN IR OUT Tx Rx HDMI IN
NORMA L
UPDATE
+
-
HD-H70-SP-R
x
HD-H70-SP-Tx
ETHERNET
RS232 DEVICE
RS232 DEVICE
Set switch to NORMAL
Set switch to NORMAL
HDBaseT

16
This page is intentionally blank

17
Troubleshooting
Why is the power LED off?
Check that the power supply is powered on.
Check that all the cables are properly connected.
Why is the Link LED off or blinking?
Check that power supplies of all the devices are powered on.
Check that all the cables connected properly.
Check that the length of cable is appropriate. For more information, see
cable specifications in the Specifications section.
Why does the display connected to the Receiver show no picture?
Check that power supplies of all the devices are powered on.
Check that all the cables are connected properly.
Check that the display works properly, and that source device has a
normal signal output.
Check that your Display is switched to the correct source input mode,
such as switching to HDMI 1, HDMI 2, etc.
Check that no compatibility issues exist between Receiver and Display.
If so, replace the Display with another model.

18
Why does the Display connected to the Receiver display snow or mosaic?
Check that all the cables are qualified and connected properly.
Check that HDBaseT cables are CAT5e/CAT6 or better cables.
Check that the input sources have no problems, such as snow, mosaic
or a damaged disc. If so, replace them with the normal input sources.
Check that there are no compatibility issues between the Receiver and
Display. If so, replace the Display with another model.
Glossary
ESD Electro-static Discharge
HDBT HDBaseT
HDCP High-bandwidth Digital Content Protection
HDMI High Definition Multimedia Interface
IR Infra-red
LCD Liquid Crystal Display
LED Light Emitting Diode

19
Specifications
HD-H70-SP-Tx
Technical
Input 1 x HDMI IN
Input Signal Type HDMI 1.4 with 4K2K
Input Resolution
Support
4k 2160p (3840x2160) / 1080P / 1080i / 720P /
576P / 480P / 576i / 480i
Input Video Level 0.5-1.2 V p-p
Output 1 x HDBT OUT
Output Signal Type HDBT
Video Impedance 100Ω
Maximum Pixel
Clock
297MHz
Operating
Temperature
32°F to 95°F (0°C to 35°C)
10% to 90%, non-condensing
Storage
Temperature
-4°F to 140°F (-20°C to 70°C)
10% to 90%, non-condensing
Power Supply DC 18V 2A with locking connector
Power Consumption HD-H70-SP-Rx powers HD-H70-SP-Tx (or visa
versa): 12.2W for both devices.
ESD Protection Human-body Model:
±8kV (Air-gap discharge)
±4kV (Contact discharge)
Surge Protection IEC 61000-4-4 (EFT) 40A (5/50ns); IEC 61000-4-5
(Lightning) 25A (8/20μs)

20
Cable Specifications
For best resolution and ESD performance Shielded CAT6A in a TIA / EIA
568B wiring configuration is recommended.
Cable Type Range Supported Video
CAT5e/CAT6 60 m 1080p 60Hz (36 bpp)
35 m 1080p 60Hz (48 bpp)
1080p 60Hz 3D
4K 2160p (3840x2160@30Hz)
CAT6A/CAT7 70 m 1080p 60Hz (36 bpp)
40 m 1080p 60Hz (48 bpp)
1080p 60Hz 3D
4K 2160p (3840x2160@30Hz)
General
Shipping Weight (set) 2.1 lbs. (0.95 kg)
Dimension (W x H x D) 5.3'' x 0.6''x3'' (135 mm x 14 mm x 77 mm)
Certification FCC, RoHS
