0. Control elements and connections
0.1. Receiver front panel

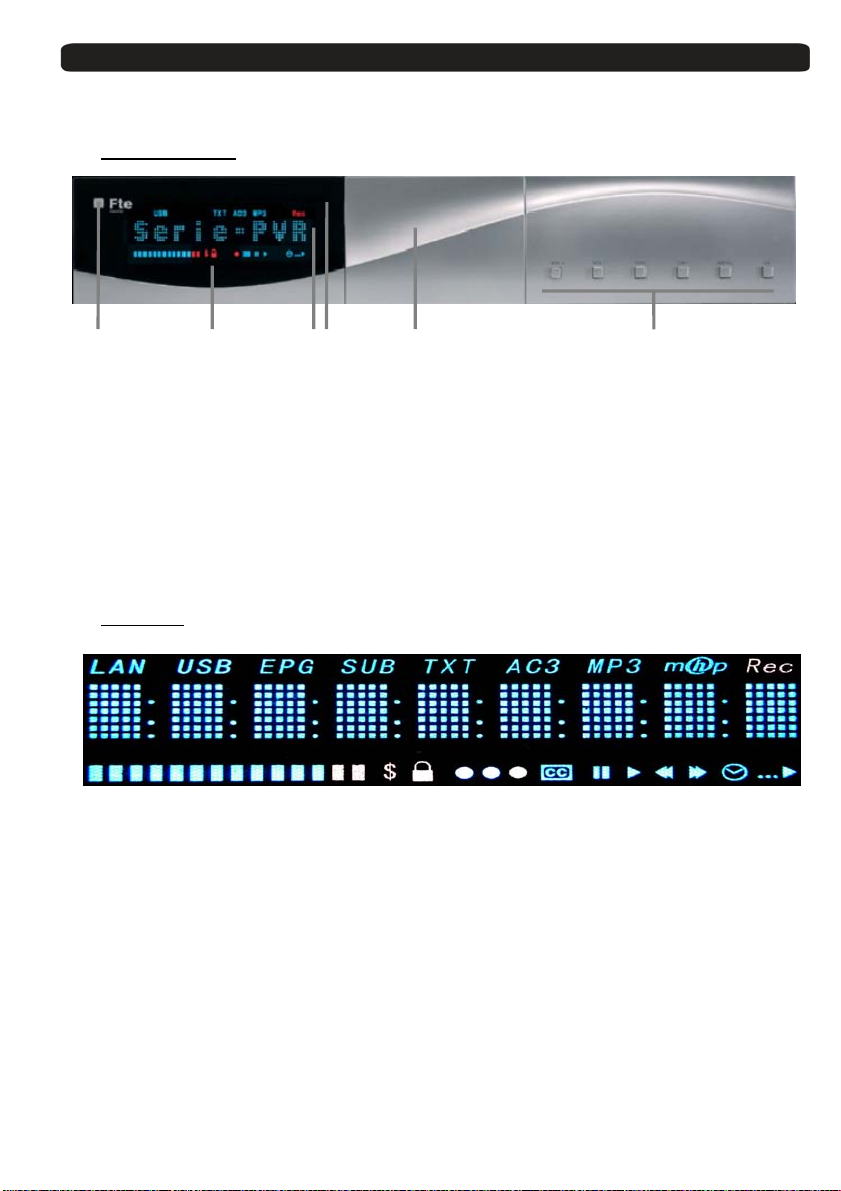

1 2 3 4 5 6
1 POWER: Switches the receiver ON or in Standby mode. For total switching off,
use the main switch at the back side of the receiver.
2 VFD-DISPLAY: Shows information like channel name and receiver functions
3 STAND-BY-LED: Shows if the receiver is in Standby mode (when LPC mode is ON)
4 IR-SENSOR: Reception sensor for the IR remote control signals
5 FRONT COVER: Opening the front cover, you will access to the Conditional Access system
and to the USB connector.
6 BUTTONS: These buttons allow controlling the main functions of the receiver, and
provide the same functionality as the remote control ones.
0.2. VFD-Display
1 2 3 4 5 6 7 8 9
10
11 12 13 14 15 16 17 18 19 20 21 22 23 24
1 Without function currently 13 Channel is locked by password
2 USB-device is connected 14 Tuner 1 signal OK
3 Channel have EPG- information 15 Tuner 2 signal OK
4 Subtitle available 16 Without function currently
5 Channel have TXT information 17 Without function currently
6 Audio signal in AC3 available 18 Time shifting is working
7 Without function currently 19 Record is playing
8 Without function currently 20 Record will be moved backward
9 Receiver records one channel 21 Record will be moved forward
10 Alpha numeric display 22 Sleep mode is active
11 Bar to show adjusted volume 23 Without function currently
12 Channel is coded 24 Without function currently

User’s manual · I-PVR ST192 CI HDMI
Technical changes and mistakes reserve - 4- I-PVR ST192 CI HDMI Version en_1.0 FTE Maximal
0.3. Receiver back panel

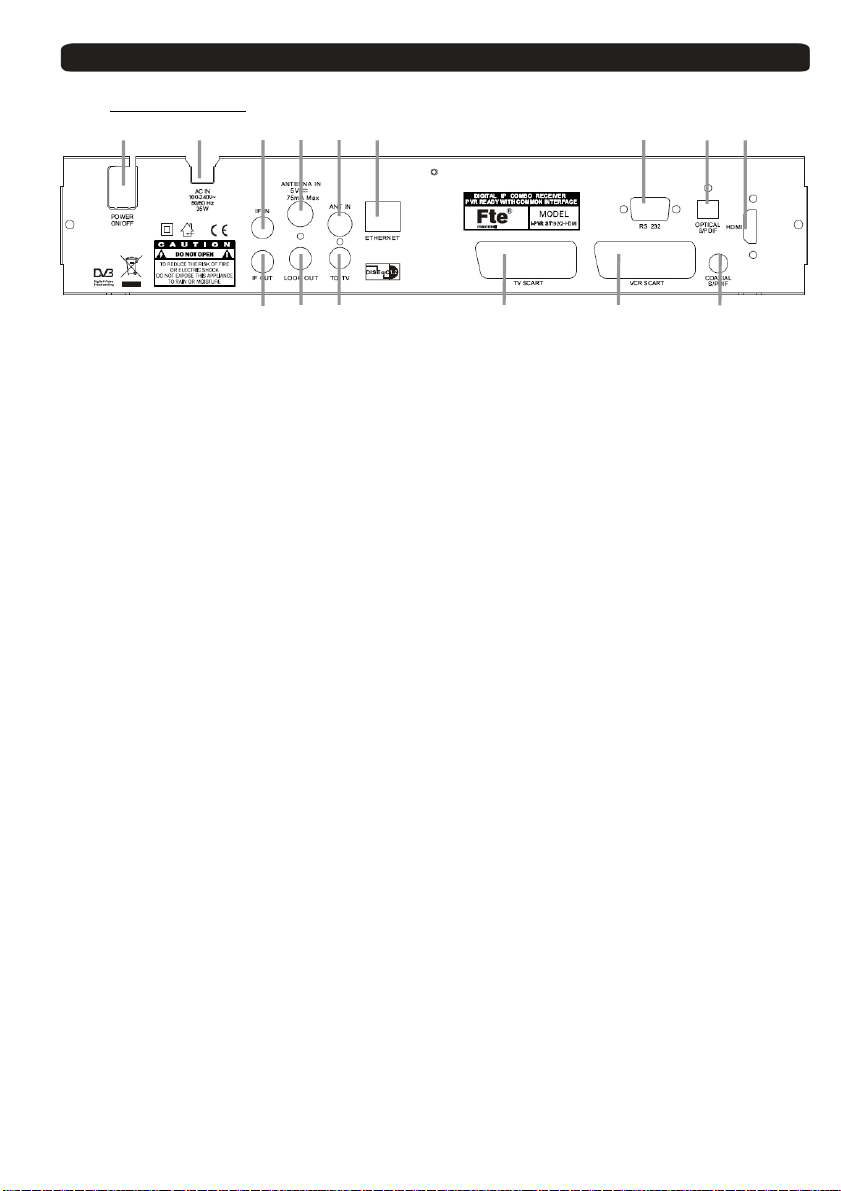

1 2 3 4 5 6 7 8 9
10 11 12 13 14 15
1 POWER ON/OFF: Main switch to switch off totally the receiver.
2 AC IN: Power cord 230VAC/50Hz.
3IF IN: Satellite input.
4 ANTENNA IN: Terrestrial input of the digital tuner.
5 ANT IN: Input of the modulator.
6ETHERNET: Network connection of the receiver.
7 RS-232: Serial port to update the firmware of the receiver.
8 OPTICAL S/PDIF: Optical output for digital audio (AC3)
9 HDMI: Video & Audio Output to connect the TV.
10 IF OUT: Satellite output for cascading to other devices.
Note: The operation of another receiver at the same time is only possible with limited
channel selection.
11 LOOP OUT: Terrestrial output for cascading to others devices.
12 TO TV: Modulator output to connect one TV set. Audio signal is available in Mono.
13 TV SCART: SCART output for connecting one TV set
14 VCR SCART: SCART connector for video recorder, DVD recorder or DVD player.
15 COAXIAL S/PDIF: Coaxial output for digital audio (AC3)

User’s manual · I-PVR ST192 CI HDMI
Technical changes and mistakes reserve - 5- I-PVR ST192 CI HDMI Version en_1.0 FTE Maximal
0.4. Remote control
1. POWER: Switches receiver ON or in stand-by-mode.
2. 3-set LED: Shines as function control,
showing the selected transmission code 1, 2 or 3
3. TV/R: Switches between TV and Radio channels.
4. CODE: Changes transmission code of the remote control.
5. MUTE: Switches audio on and off.
6. NUMERIC KEYS: For direct typing values and names.
7. INFO: Shows channel information with signal bar.
8. : Starts Picture In Picture function.
9. VOL+ VOL-: Adjusts audio volume up and down.
10.CH+ CH-: Changes channel up and down.
11.Back: Watch the last viewed channel.
12.EXIT: Exit menus or stop operations.
13.EPG: Shows the EPG information.
14.MENU: Opens the main menu.
15. :Confirms selections or opens channel list.
16. :Adjusts audio volume or controls the cursor in menus.
17. :Changes channels volume or controls the
cursor in menus.
18. : Quick start for recording.
19. : Opens PVR menu.
20. : Start / Stop button for recording and TimeShift.
21. : Stop button for recording and TimeShift.
22. : Backward button for recording and TimeShift.
23. : Forward button for recording and TimeShift.
24. : Places marks within recording process.
25.List: Opens channel list.
26.Audio: Opens audio menu.
27.Fav: Opens favourite channel list.
28.App: Without function currently.
29.Sub: Switches subtitle on and off.
30.TEXT: Opens and closes teletext.
31.Pup Pdw: Moves cursor in block steps
32.Zoom: Zoom function.
33.Fav+ Fav-: Moves favourite channel up and down.
34.Color Keys: Controls menu options.
35.Green Button: Start sending video streaming.
36.Red Button: Stop sending video streaming.
►II
◄◄
►►
■
PVR
MARK
REC
PIP
OK
Back: Battery box
1 2
7 8
9 10
11
12
22
16
21
24
18
13 14
15
19
2320
1717
6
3 4 5
16
25 26 27
28 29
30 31 32 33
34
35
36

User’s manual · I-PVR ST192 CI HDMI
Technical changes and mistakes reserve - 6- I-PVR ST192 CI HDMI Version en_1.0 FTE Maximal
1. First installation
1.1. Complete Content

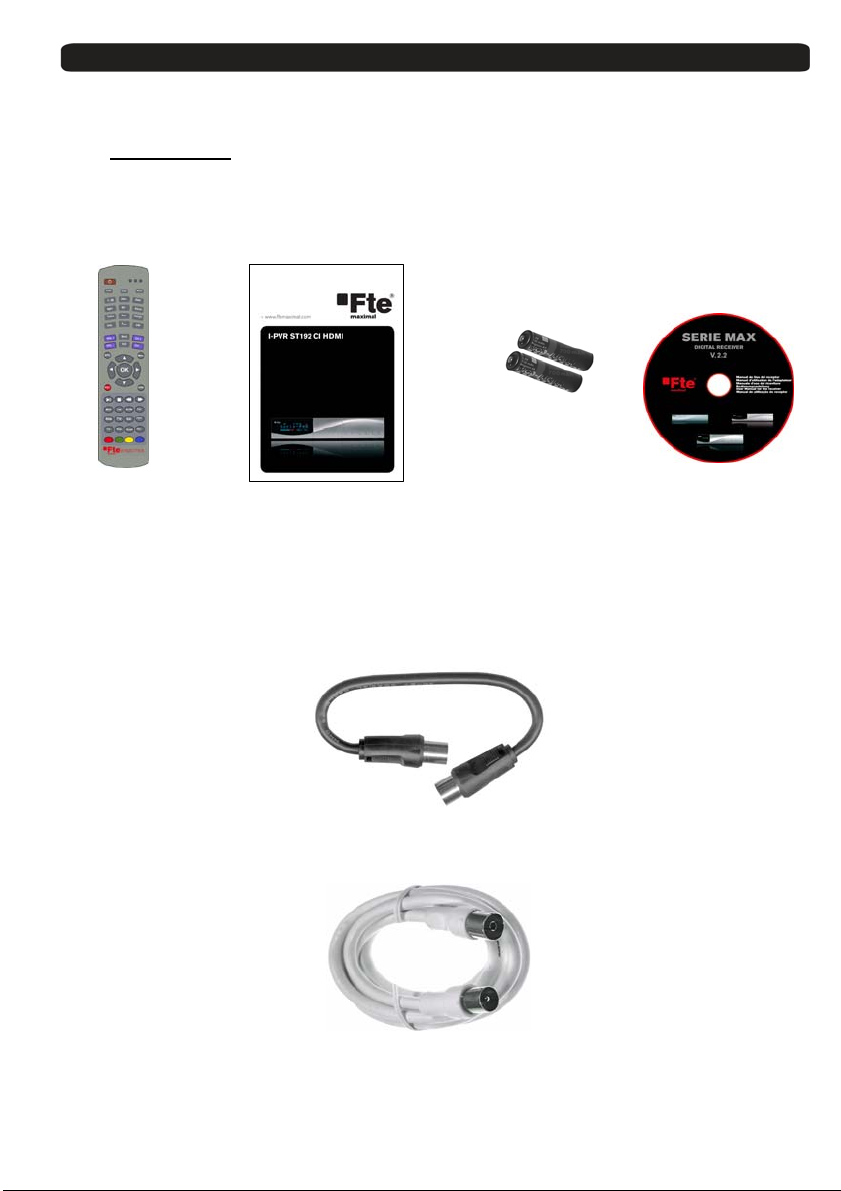

The following goods must be included in this package when you open it for the first time.
Remote Control Installation Guide Two batteries CD-Rom
Type AAA, Micro, 1,5V
IEC Bridge cable
IEC connection cable

User’s manual · I-PVR ST192 CI HDMI
Technical changes and mistakes reserve - 7- I-PVR ST192 CI HDMI Version en_1.0 FTE Maximal
DiGimax
1.2. Accessories and installation examples
DIGIMAX Active DVB-T- outdoor antenna Code: 9002029
LOG 3235 F VHF-UHF DVB-T- outdoor antenna Code: 0203235
DVB-T Antenna Active DVB-T- indoor antenna Code: 9002024
PR 80 AB Offset Dish 80cmØ Code: 0798021
LNC 54 U LNC universal single Code: 0400065
UMS 125 DiSEqC Switch Code: 0702218
LG 229 DVB-T Mast Amplifier Code: 9000329
MF 103 Mixer Terr-SAT Code: 9000104
LPS 1222 Power Supply Code: 9901222
AO 90S 3 connectors outlet Code: 0500094

User’s manual · I-PVR ST192 CI HDMI
Technical changes and mistakes reserve - 8- I-PVR ST192 CI HDMI Version en_1.0 FTE Maximal
1.3. Safety rules
Please read the manual carefully before using the receiver.
You will receive a lot of information to use this product correctly and you will prevent incidents.
Please keep the manual on a safe place.
This sign warns you about
high voltages, with risk
of electric shock
Caution: Do not open the housing of
this receiver. Repairs can only be
made by professionals authorized by
Fte maximal. If not, warranty will not be
valid anymore.
This sign informs about
special information which is
important to know.
Caution: Keep this receiver far away from liquids. Do not place it on placements close to water like flowers
vases, wash basin, aquariums or pools. It exists a high risk of electric shock when water or high humidity
filters inside the receivers. Never place other devices on it; they can overheat the receiver as well as daring
fire risk. The receiver must be used only with original power cord to 230V main plug.
Please read carefully this manual and do not hesitate to contact to professional help if you have any doubt.
Opening the receiver housing as well as the Hard Disk case will mean a total lost of warranty.
Installation:
1. Never work during a thunderstorm or staying near of the antenna systems.
2. Before adjusting the receiver, make sure that your antenna is well aligned and works properly.
3. Unplug the main connection (230V) every time you work with receiver connections. Do it also when you stay
away for a long time out of home like in holiday periods.
4. The best placement for the receiver is close to the TV and your other equipment like DVD, VCR, CD, and game
stations. Select a stable place where you can make the necessary connections in a safety way.
The 230V main plug should be in a place easy to reach, that you can unplug it when it is necessary.
Cleaning: Before cleaning the receiver with a slightly damped cloth, please disconnect the main 230 V connection from
the receiver. Please use only mild cleaners.
Accessories: Please, do not use accessories which are not agreed by the manufacturer of the receiver.
Unsuitable accessories could increase the risk of getting on fire, an electrical impact or other damages.
Placement: Select a placement where the Receiver has air circulation enough, otherwise it may have overheating
accumulation. Do not cover the openings of the housing. Unsuitable placements are also places close to heaters or soft
locations like e.g. sofas and beds.
Power connection: Select a main plug with easy access, in case of unplugging necessity; it will be easier and faster.
Please, make sure that the cord as well as the plug is in perfect conditions. Do not pull the cable, use always the plug.
Housing: Please, make sure that no liquid will filter into the housing of the receiver. If so, disconnect immediately the
receiver from the main 230 V plug and bring the receiver to a professional.
Air humidity: When you take the Receiver from a cold to a warm place, please wait until the receiver gets the same
temperature as the new environment, in order to avoid problems of humidity condensation.
Maintenance / Repairing: Within the warranty time all the repairing processes should be done by Fte Maximal technical
staff. Otherwise, the warranty will be lost.
RISK OF ELEKTRIC SHOCK
DO NOT OPEN
CAUTIONR

User’s manual · I-PVR ST192 CI HDMI
Technical changes and mistakes reserve - 9- I-PVR ST192 CI HDMI Version en_1.0 FTE Maximal
1.4. Fast installation guide
Please, follow the instructions for a faster and simpler installation of the receiver.
Step 1: Connections
Connect the ETHERNET input of the receiver to the network.
Connect the cable from the LNB and Dish:
Connect the cable with the Satellite signal to the IF IN input of the receiver.
Connect the cable of the terrestrial antenna:
Connect the cable with the Terrestrial signal to the ANTENNA IN connector.
Connecting TV set, LCD or video beamer:
You can connect in different ways your TV set or other display system:
Scart This is the connector which will be normally used to connect the TV.
For this purpose, you will need a Scart – Scart connector.
HDMI Connector Connect this output to the TV to get the Video & Audi signals.
Modulator The modulator output gives the lowest picture quality. You only will need this output if
your TV set only have IEC input. You can use the IEC connection cable that is included.
On the receiver, you have to use the connector TO TV.
Please note that with the modulator, you only will have available mono audio signal.
Output LOOP OUT You can connect this output to the antenna input of your TV or VCR to receive the
analogue terrestrial signal.
Recorder / DVD At the VCR - Scart connector, you can connect a Video or DVD-Recorder.
Also the signal coming from a DVD player is possible to be watched if your TV set has
Scart connections.
You will find further information at chapter TV Settings.
You can obtain further information in chapter Receiver back panel.
This receiver has a main switch at the back panel of the receiver.
If a message “short-circuit” in shown, you have a short-circuit in your antenna system.
Please check it and restart the receiver.
When you set up the system for the first time, the current date will be stored in Menu > System Settings > Version
as beginning date for the warranty period.
Step 2: Main settings on receiver
When you start the first time the receiver or when you execute a “factory default” process, you will see this
installation guide in English language.
The selection of the menu options will be done with the arrow buttons , and the button
OK of the remote control.
Please, choose the code for your remote control in the first window.
Fte Maximal gives you the possibility of using a IP, a DVB-T and a DVB-S
receivers at the same time.
For this purpose, your new receiver is selected by factory with code 1.
Please press now the button Code on your remote control until the LED 1 is
lighting.
You have to select the same position in the receiver than in the remote control.
If you have problems with remote control devices, you can change the
transmission code if you go to Menu > System Settings > OSD Settings after
finishing the quick installation guide.

User’s manual · I-PVR ST192 CI HDMI
Technical changes and mistakes reserve - 10 - I-PVR ST192 CI HDMI Version en_1.0 FTE Maximal

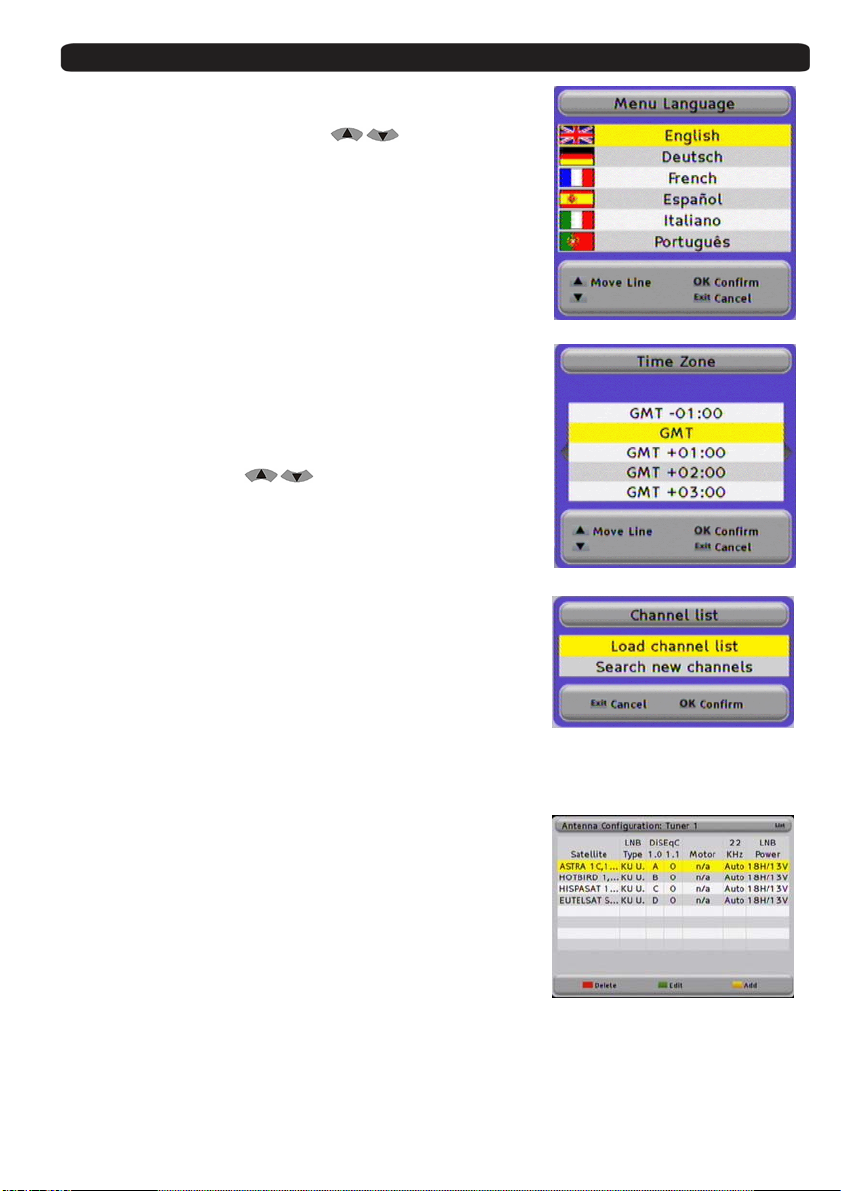

Menu Language:
Here you have to select the language for the Receiver menu and information.
Select the language with the arrow buttons and press the OK
button.
Time Zone:
In order to the receiver is able to display the correct time and adjust the timer
recordings correctly, it is needed to fix the time zone to the place you live.
Select here the time delay according to your position comparing to
Greenwich Time.
In UK: Summer time: +1 hours
Winter time: GMT hour
Select with the arrow buttons and press the OK button.
Selection of the satellite list of channels pre-loaded
This option allows loading the channel list stored in your receiver, and you
will not need to tune channels. The list includes Astra / Hot Bird / Hispasat
/ Turksat channels, and it is supposed that the same input signal is
available in both inputs.
If you select Load Channel List, the installation assistant finishes at this
point and it begins the viewing of the channels.
In case of having a different configuration, please select Tune new
channels and continue with the installation assistant, configuring the antennas.
Antenna configuration:
In this menu, you should configure the connected signals in the IF IN of
your receiver.
By default, the equipment comes with the configuration that you can see in
the Picture, with four satellites.
The available options in this screen allow:
Red Button: Deletes the selected satellite. It asks for confirmation.
Green Button: Edits the selected satellite. The options appear at the image
below.
Yellow Button: Adds a satellite. The options appear at the below image.

User’s manual · I-PVR ST192 CI HDMI
Technical changes and mistakes reserve - 11 - I-PVR ST192 CI HDMI Version en_1.0 FTE Maximal

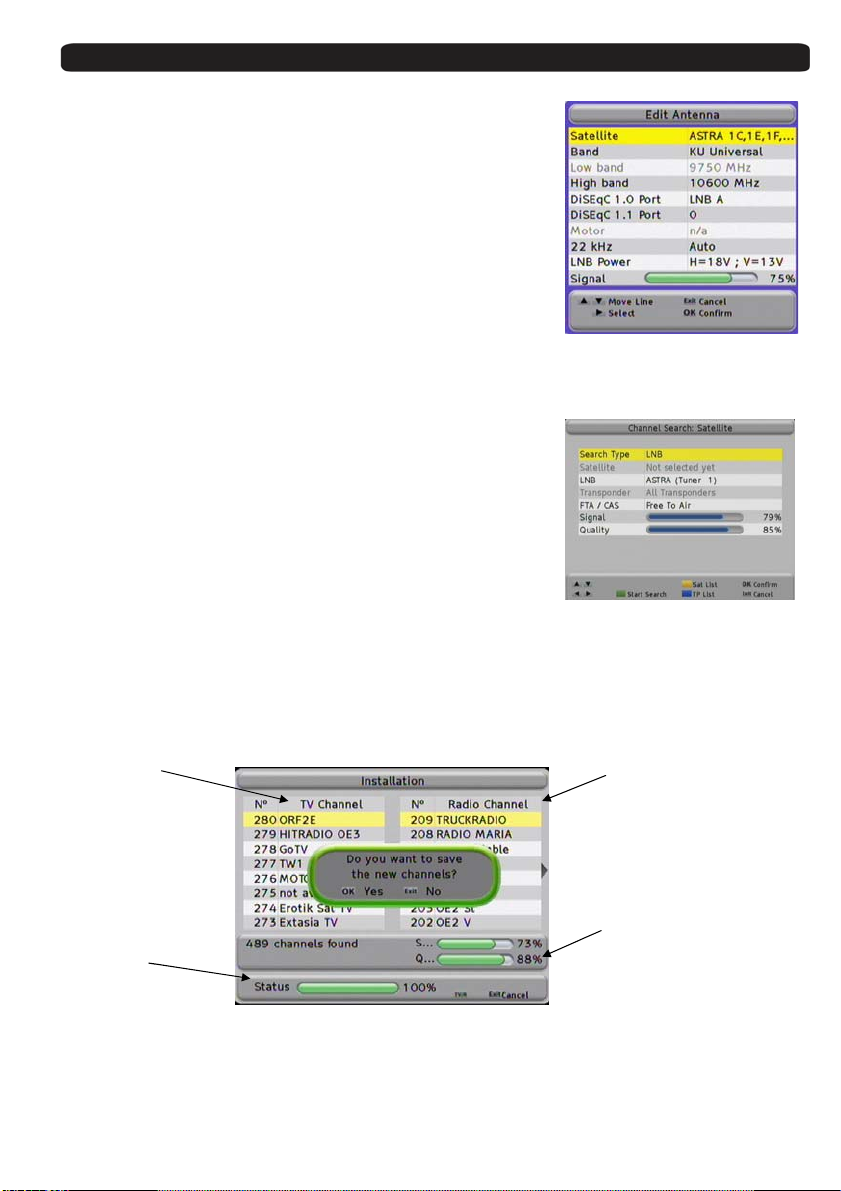

Antenna Options:
−Name: Your receiver disposes of several pre-configured satellites. You
can find the one you want in the list or add a new one. They are sorted
by its orbital position.
−Band: There are two available bands: C and Ku. The differences
basically are the frequencies in the transmission. The Ku band has two
possibilities; the most common is the Universal Ku.
−Low Band / High Band: It is used when the band selection is the Ku, and
it programmes the local oscillators of the LNC.
−DiSEqC 1.0 / 1.1 Port: To configure the use of switches.
−Motor: Activates the motor option to direct the antenna.
−22 KHz: tone of switching the band of the LNC.
−LNB Power: LNB Feeding. By default the selection is for an Universal
LNB.
−Signal: It shows if there is available signal in this selected configuration.
Alter whatever change, it should be confirmed with the OK key when you exit the menu.
Channel Search: Satellite
Once the antenna configuration is completed, you should proceed to tune
the satellite channels that you have selected. There are different ways to
tune the channels: through LNB, through Satellites and through
Transponders.
When you select the channel searching through LNB, you only can select
one LNB, which corresponds to the programmed tuner.
When you are searching by satellites, you are allowed to select a Wide range
of satellites, so you could programme the searching of all the satellites that
you have configured.
The searching through Transponder is the most selective. It allows selecting all the frequencies that you’re
going to tune and searching channels.
In whatever selection, you always will have available to search Free To Air channels (uncoded channels),
channels with Conditional Access or All the channels.
Please, choose the searching pressing the Green button. Once you have finished (the time will depend on
the number of transponders it will have to find) you will get a window like the following one:
DetectedTV Detected
Channels Radio Channels
Level and Quality
Searching process
Meter
You can select the channel searching whenever pressing the Exit button.
Once the searching is finished, you must confirm the storing of a new Channel List. Press the OK button.
The receiver will come back to the Channel Search menu.
You can search again if you want, or exit by pressing the Exit button.

User’s manual · I-PVR ST192 CI HDMI
Technical changes and mistakes reserve - 12 - I-PVR ST192 CI HDMI Version en_1.0 FTE Maximal
Channel Searching: Terrestrial:
This receiver has no pre programmed channel list, because DVB-T
configuration changes in every different area.

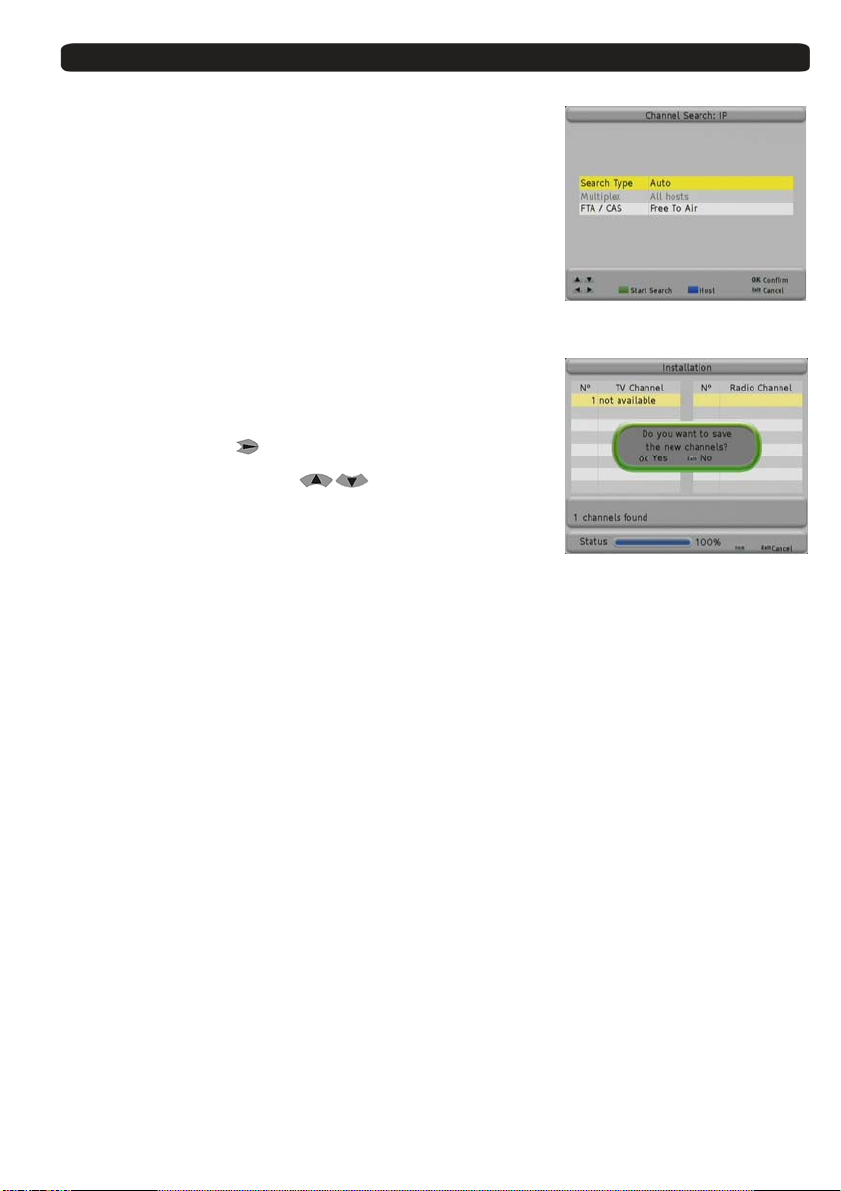

Start the channel searching process by pressing the Green Button.
The receiver searches now in all TV frequencies.
You may stop searching by pressing the button Exit .
Once the search is finished, you must confirm if the new found channels have to be stored.
Press for confirm the OK-button.
Now you come back to menu Channel Search.
You can start a new search again, or you can close the menu now with the button Exit .
Network Configuration
The receiver will require the introduction of the needed parameters to be
able to get connected to a network, as well as to be visible to other
equipments so that receive streaming of video and audio.
You should introduce the following parameters:
IP Address Number of 32 bits expressed in 4 numbers
between 0 and 255 which identifies the receiver
inside its network.
Every device in the network should have a
different IP Address and it is highly recommended
that all of them are in the same subnetwork and
with IP addresses into the following range:
10.x.x.x
172.16.0.0 – 172.31.255.255
192.168.x.x
Subnet Mask Number in IP format that, combined with the IP address, identifies where the equipment is.
Search status
Current channel
Radio Channels
detected
Channels which the receiver
has found, currently 11
Signal Power and Quality
meter related to the selected
frequency

User’s manual · I-PVR ST192 CI HDMI
Technical changes and mistakes reserve - 13 - I-PVR ST192 CI HDMI Version en_1.0 FTE Maximal
IP LAN Soft: IP address of the PC where the application for exchanging video streamings between the
PC and the receiver is installed.
If you want, you can download the application IP LAN Soft from the Website:
www.ftemaximal.com
MAC Device address at hardware level. It is unique in each device and it comes from the factory.
You can move through the menus with the buttons and .
With the Red button you delete the last character.
Press OK to save the changes.
Streaming Configuration
This receiver can send streaming to other equipment connected to the
network.
You can send video streamings in Unicast and Multicast modes.
- Unicast is when the information is sent from a unique sender to a
unique receiver.
- Multicast in when the information is sent through a network to
multiple destinations simultaneously. The equipment that work in
multicast mode send the information into an IP range between
224.0.0.0 and 239.255.255.255.


This receiver can only send terrestrial channels streams
In this window you can configure the network parameters of the device at destination:
Streaming You should select On so that the receiver sends the streaming.
Address IP Address of the destination device.
You can simultaneously send the streaming to different devices in case that in this
field a multicast IP address is introduced.
Destination port Communications port where the information is sent.
The port must be a pair number into the range between 1024 – 65534.
Streaming protocol You can select the communications protocol. Options: UDP or RTP.
Current Channel It allow you to fix the number of transponder that is going to be sent to the destination receiver.
No: Always will be sent to the receiver at destination the indicated cannel in the field Channel,
and the origin receiver only will be able to see any cannel belonging to the same transponder
which is indicated in the Channel field, or IP channels.
When you see an IP channel, the streaming sending process will stop.
Yes: the receiver will send the channel which is tuned locally. Every time you
change the channel in the receiver, you must tune the same in the destination
receiver.
Channel: Service to be sent. Only available when you select No in the field Current Channel.
You can move through the menu with the buttons and .
With the Red button you delete the last character.
Press OK to save the changes.

User’s manual · I-PVR ST192 CI HDMI
Technical changes and mistakes reserve - 14 - I-PVR ST192 CI HDMI Version en_1.0 FTE Maximal
Search IP Channels
The receiver will carry out a search for channels broadcasted by other
equipment connected to the network.
You can receive transmissions of other equipment in mode Unicast and
Multicast.
- Unicast is when the information is sent from a unique sender to a
unique receiver.
- Multicast in when the information is sent through a network to
multiple destinations simultaneously. The equipment that work in
multicast mode send the information into an IP range between
224.0.0.0 and 239.255.255.255.
In Search Type select Auto to search for all the channels which are
broadcasted by other equipment in your network in multicast mode. If you
select the Host option, it will look for transmissions of the equipment present
in the list Network Management that you select.
In the field Multiplex you should select the hosts from the list Network
Management in which you with to search for channels.
Pressing the Blue button or a new window will appear, where you can
select the hosts.
You can move the cursor with .
With the Green button you select the hosts.
Press Exit to go back to the search menu.
If you press the Green button, it will carry out a search of the video IP
channels.
Press Exit to exit.
The Fast install guide is now finished.

User’s manual · I-PVR ST192 CI HDMI
Technical changes and mistakes reserve - 15 - I-PVR ST192 CI HDMI Version en_1.0 FTE Maximal
1.5. Menu overview
Main menu
Channel Management
System Settings
Move, rename or delete channels,
Program and, create favourite list.
Main settings for receiver
for OSD and adapt TV set
Factory default
Software upgrade
PVR - Management
Tools Parental Control
Administration for recordings,
Pictures and MP3 files as well as
connecting external USB devices
Calculator,
Calendar with date management
Activate parental control
Timers
CAS Management Installation
Manual activation for timer events
Conditional access system
information.
Receiver and antenna settings
Network adjustments
Search channels
Backup

User’s manual · I-PVR ST192 CI HDMI
Technical changes and mistakes reserve - 16 - I-PVR ST192 CI HDMI Version en_1.0 FTE Maximal
2. Standard functions
2.1. Switch on the receiver
The receiver has a main switch at the back panel. To switch on, take the switch in position 1.
Now the receiver begins to run and show information on its display.
2.2. StandBy
To switch the receiver from Standby (sleep mode) to the working mode, press Orange Power button on the left corner
at the top of the remote control.
If the receiver had been working before and you did not switch on by main switch, the receiver show the last displayed
channel.
When you press it again, the receiver goes back to the stand by mode.
2.3. Teletext
The button Text opens the teletext generator.
Automatically the receiver loads page 100 as standard.
Like in your TV set you can open the pages by pressing the buttons 0-9.
If you want to open, for example, the page 140, you
have to press the buttons 1 – 4– 0.
When you want close the page, press Exit.
2.4. MUTE
With this function, you will be able to shut down the audio completely.
To do it, press the button Mute and the warning symbol will be displayed.
By pressing again the button Mute the function will be disabled.
2.5. Numeric block on remote control
Over the numeric block in the remote control, you can select directly channels the when you know the stored program
place. If you want for example place 23, you have to press the buttons 2 and 3 and after the button OK .
2.6. Switch channels
With the buttons CH+ / CH- or you can change the channels also.
Press one button for getting one channel up or down.
2.7. Change between TV- and Radio channels
When you want change between TV and Radio channels, you have to press the button TV/R on the remote control.
2.8. Vol+/Vol- Volume
With the buttons Vol+ / Vol- or you can regulate the audio volume.
To do it, you will see a graphic like the one at the left side.
For using this function properly, you need to make an alignment with you TV set.
Turn off the volume of the receiver. For this, press the button MUTE on remote control. Now turn up the volume on TV
until the moment you hear a noise. Now turn down the volume until the noise desapears. Normally this is around 50-
75% of the total volume of the TV set.
2.9. Stop the functions
With the button Exit you can stop functions like channels search or close menus.
2.10. Open Main menu
To open the main menu, you have to press the button MENU.
The menu system is made in a tree structure

User’s manual · I-PVR ST192 CI HDMI
Technical changes and mistakes reserve - 17 - I-PVR ST192 CI HDMI Version en_1.0 FTE Maximal
2.11. Watch the last viewed channel
With the Back button, you can access to the channel viewed previously.

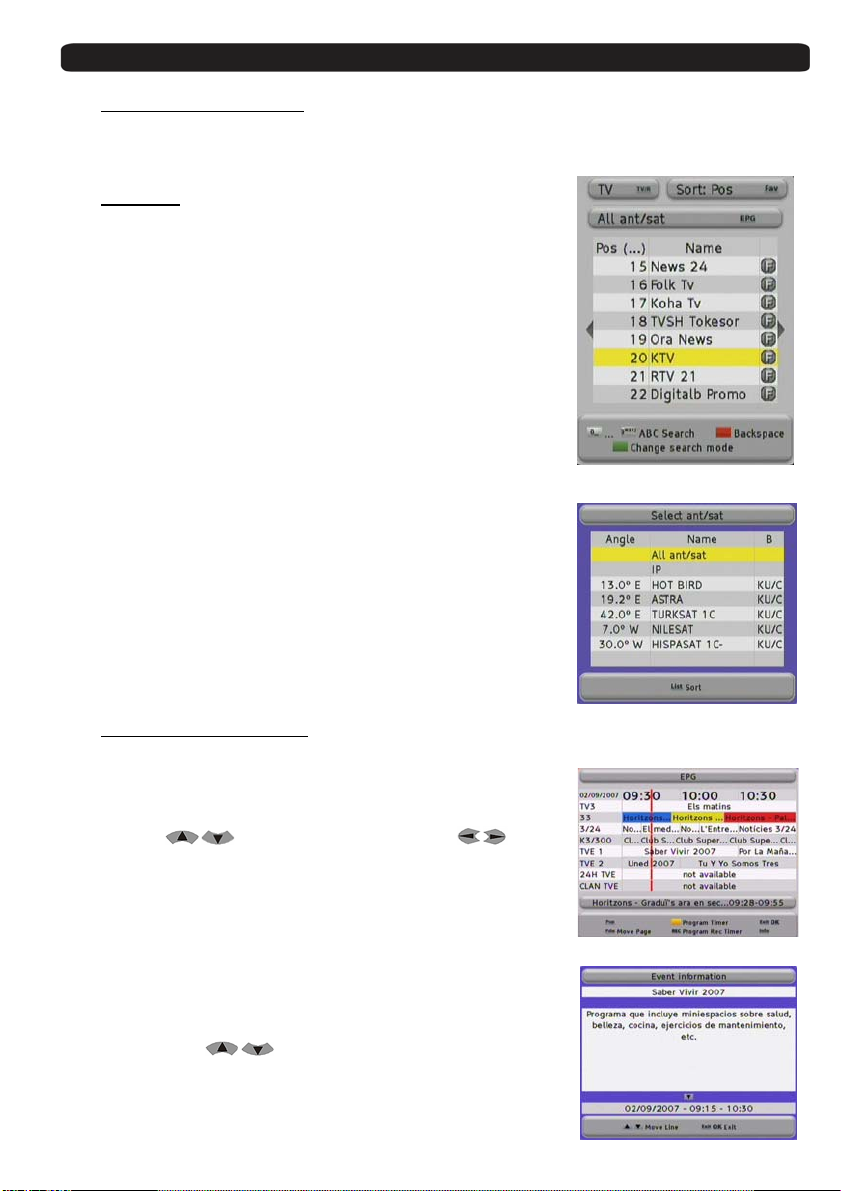

2.12. Channel list
When all the menus are closed, you can open a channel list by pressing the
button OK.
With the button TV/R you can switch between TV and Radio channels.
With the button FAV you can sort this list as follows:
POS, Position in channel list
Name, by alphabetic sort
FTA / CAS sort by free or coded channels
If the position or the name of the channel fits, you can carry out a searching.
Press the Green button to select the searching mode until the symbol (…)
appears in the row Pos or Name, and introduce the characters with the
alphanumeric keyboard.
The handling of the keyboard is like in a mobile phone.
When you press one button several times you will have different results.
Example: If you press button 2: a, b, c and 2
You will get a channel list with the information requested.
With the EPG button, you can filter the channels shown in the list.
A window will appear where all the inputs of your receiver are shown.
You can select only the channels of one concrete satellite, the IP channels, the
terrestrial channels or all the channels.
In this window, if you press List you will change the sort of the list (by name, or
by angle).
2.13. EPG Electronic Program Guide
By pressing the button EPG you will start the electronic program guide.
The receiver gets the information of the tuned channel. The information
only will be available in case that the streaming contains it or the broadcaster
transmits it.
With the buttons you can select a channel and with one
event. The Blue colour field highlights the current selected event and the
Red line shows the current time.
With the Yellow button you can mark one event. The receiver will switch to
this channel once the event has begun. If you select an event which has
already started, the receiver switches to this channel immediately.
Using the REC button (over and event) the receiver will record this event
into the external hard disk.
Pressing the button INFO you will get more detailed information about the event.
With the arrow buttons you can move along the text.

User’s manual · I-PVR ST192 CI HDMI
Technical changes and mistakes reserve - 18 - I-PVR ST192 CI HDMI Version en_1.0 FTE Maximal
2.14. Favourite channel list
If no menu is opened, you can get your favourite channels list by pressing the
button FAV.
With the buttons Pup / Pdw you can switch between 8 different lists, if you have
marked channels before.
With the buttons you can select a channel from this list.
2.15. Menu Audio
If all menus are closed you can open the menu Audio by pressing the button
Audio.
You can change here the audio output in Stereo, Left and Right audio format.
Testing the channels, you will be able to make the most suitable selection.
Standard selection is Stereo.
2.16. Signal and Channel information
Pressing the INFO button, with no menu activated,
You will see the channel information and the Signal Level Bar. This
information is the same that appears when you change the channels.
In the signal bar we can see the following information:
Channel Number, Channel Name, current Time and Date, Name of the
current event and brief description given by EPG.
Start and Stop time of the event and the indication of the current time
from the beginning in yellow colour.
This menu disposes of 2 keys of advanced functions. Blue and Yellow
keys. Through Blue key, you can get the technical information of the
shown channel at the top part of the window, as you can see in the
image:
Yellow key allows seeing which will be the next event indicated by EPG, with its start and stop times.
2.17. Changing favourite channels
With the buttons FAV+ and FAV- you can switch the favourite channels directly.
The Sequence for the channels is the established one before in main channel list.
2.18. Zoom Function
With the Zoom button you can see more details of the image.
By pressing the button OK you can select the enlargement.
If you want to stop, please press Exit.
2.19. Subtitles
When no menu is opened, you can start with Sub button the subtitle function.
Subtitles only can be displayed when the operator transmit them.
2.20. Direct buttons in the streaming function
Pressing the Green button out of the menus, it automatically start sending the video streaming that you have configured
in the menu Streaming Configuration.
With the Red button, it stops sending.

User’s manual · I-PVR ST192 CI HDMI
Technical changes and mistakes reserve - 19 - I-PVR ST192 CI HDMI Version en_1.0 FTE Maximal

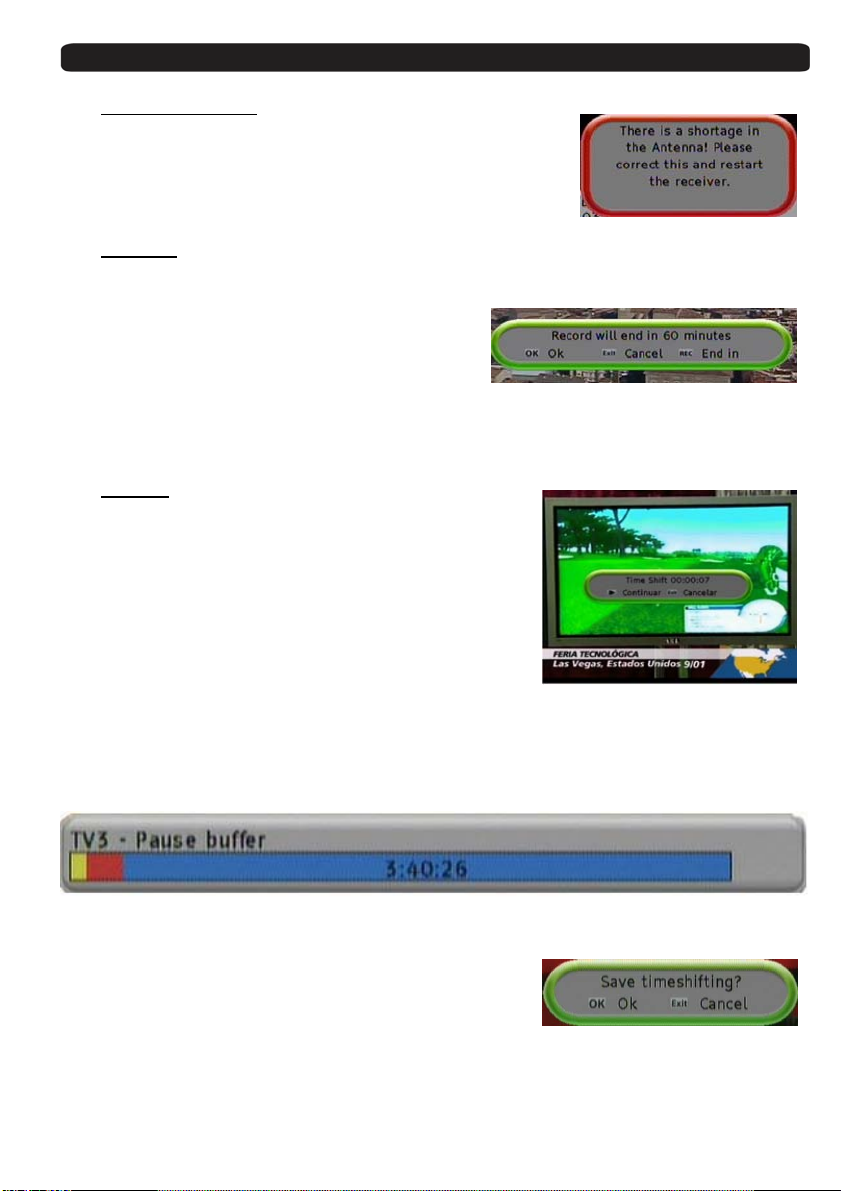

2.21. Short-circuit protection
If you see one message like this, you have a short circuit or to high powerin the
antenna system.
In this case switch off the receiver and check the system.
The displayed information stops automatically when the problem is solved.
2.22. Fast record
If you want to record one event immediately you must press only
the button REC on the remote control. You will see the event as usually
and you will see a red point for a while in screen.
If you press REC more that one time, you can select how long the
record will be.
Selection: 30min, 60min, 90min, 120min, 180min, 240min
If you press only one time the record time will be according your
selection, which will be done in:
Menu > System Settings > Recording settings
2.23. Time Shift
If you want to use time shift function to stop one event, you only need to
press only the button ►II one remote control.
The program stops and it will be stored on the hard disk until you restart to
watch it. The OSD shows you the information about the time delay from the
original event.
When you want continue you only press again ►II.
As the information you see now comes from the hard disk, you can also
use forward and backward functions.
If you press several times ►► you can adjust the speed for forward.
Selection: 2x, 4x, 8x speed.
You also have the option 5m, in this case the receiver moves in 5 minutes steps.
Through INFO Key, you can see the time difference between you playback and the realtime, in an horizontal bar which
appears in the top part of the picture.
The maximum time that the equipment allows recording meanwhile it is paused is for 4 hours.
The red bar is the recorded time, the yellow bar is the played time, the rest of time is the time in Time Shifting mode.
When you exit of the Time Shifting mode, the receiver will give you the
option of storing the Time Shifting in the Hard Disk like a recording.
Press OK to save the recording.

User’s manual · I-PVR ST192 CI HDMI
Technical changes and mistakes reserve - 20 - I-PVR ST192 CI HDMI Version en_1.0 FTE Maximal
3. Channel management
3.1. TV-Channel list
Here you will find an overview about all channels.
Channels can be administrated, moved, deleted or blocked.
The navigation is with the buttons and .
With the button TV/R you will switch between TV and Radio
channels.
With the button LIST you can sort this list as follows:
POS, Position in channel list
Name, alphabetically
FTA / CAS sort by free or coded channels
To see the PID information, you have to press the button TEXT.
This information will be read by the receiver automatically and it gives
the information where the program is in the data stream.
It is not necessary to change it, but it can be done by the numeric keys
of the remote control.
With the EPG button, you can filter the channels shown in the list.
A window will appear where all the inputs of your receiver are shown.
You can select only the channels of one concrete satellite, the IP channels, the
terrestrial channels or all the channels.
In this window, if you press List you will change the sort of the list (by name, or
by angle).
3.1.1. Skip channels
With this function it is possible to skip selected
with the buttons CH+ / CH- or .
If you want mark channels for skipping, you have to select the channel and then press
the Blue Button Skip. Doing this, you will see that the channel has a symbol
like the one at the right side. Marked channels only will be opened by channel list.
3.1.2. Lock channels
If you want to lock channels with a password needed for opening them,
you can do it with this function.
If you want to mark channels, please select the channel by
buttons and than press the Yellow button Lock.
Doing this, you will see that the channel now has a symbol like the one at the right side.
In order the function works properly, you have to activate the password
function in menu Parental Control.
±
