FTI TT Series Application guide

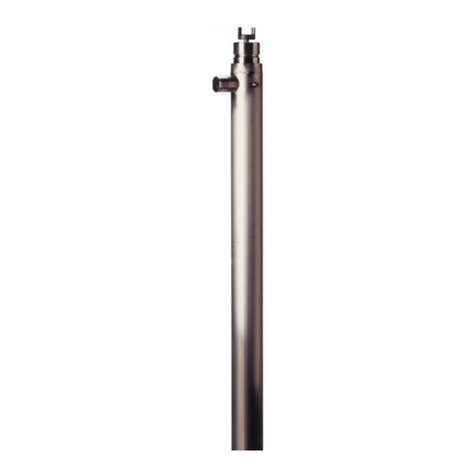

TT SERIES PUMPS
TTS, TTC, & STTS
OPERATION & PARTS MANUAL
108102 R7

EU Declaration of Conformity
Finish Thompson Inc. hereby declares that the following machine(s) fully comply with the applicable health
and safety requirements as specified by the EU Directives listed. The product may not be taken into service
until it has been established that the drive motor for the centrifugal pump complies with the provisions of all
relevant EU Directives. The complete product complies with the provisions of the EU Directive on machinery
safety provided motors carry CE marking.
This declaration is valid provided that the devices are fully assembled and no modifications are made to
these devices.
Type of
Device:
Drum and Container Pump
Tubes/Accessories
Models:
TTC/TTS-27/40/48
Nozzles (111030)
EU Directives:
Machinery Safety (2006/42/EC)
Applied Harmonized Standards:
EN ISO 12100:2010
EN 809:1998+A1:2009+AC:2010
Manufacturer: Finish Thompson Inc.
921 Greengarden Road
Erie, Pennsylvania 16501-1591 U.S.A
Signed,
Product Engineer
26 May 2023
Person(s) Authorized to Compile Technical File: Finish Thompson GmbH
Otto-Hahn-Strasse 16
Maintal, D-63477
DEU Telephone:
49 (0)6181-90878-0

Declaration of Conformity
Finish Thompson Inc. hereby declares that the following machine(s) fully comply with the applicable health
and safety requirements as specified be the UKCA Directives listed. The product may not be taken into service
until it has been established that the drive motor for the Drum and Container Pump complies with the
provisions of all relevant UKCA Directives. The complete product complies with the provisions of the UKCA
Directive on machinery safety provided motors manufactured by Finish Thompson Inc. are used.
This declaration is valid provided that the devices are fully assembled and no modifications are made to these
devices.
Type of
Device:
Drum and Container Pump
Tubes/Accessories
Models:
TTC/TTS-27/40/48
Nozzles (111030)
UKCA Directives (and their applicable amendments):
The Supply of Machinery (Safety) Regulations 2008 (UKSI 2008 No. 1597)
Applied Designated Standards:
EN ISO 12100:2010
EN 809:1998+A1:2009+AC:2010
Manufacturer:
Finish Thompson Inc.
921 Greengarden
Road
Erie, Pennsylvania 16501-1591
U.S.A
Signed,
Product Engineer
28 June 2023

4
Introduction
This manual pertains to the TT Series drum pumps and accessories. Finish Thompson Inc. thanks
you for choosing our products. We believe the use of our products will be fully satisfactory. When
properly installed and operated, your Finish Thompson motor and pump will provide long, trouble-
free service; therefore, please read this manual carefully before carrying out any operations on
the pump/motor unit. Any use other than that described herein is considered incorrect; and, con-
sequently, Finish Thompson Inc. shall not be held responsible for any damages to people or prop-
erty. In case of doubt or enquiries, please reply to our Technical Service department directly at the
following address:
Finish Thompson, Inc.
921 Greengarden Rd.
Erie, PA 16501 U.S.A.
Tel. [phone]; Fax [phone]
www.finishthompson.com; fti@finishthompson.com
Index
Introduction............................................................................................................................... 5
Warranty, General Terms & Conditions.............................................................................. 6
Safety.......................................................................................................................................... 7
Important Safety Information for Pumping Flammable or Hazardous Substances...8
Pump Specifications ............................................................................................................... 9
Installation ................................................................................................................................. 10
Operation................................................................................................................................... 10
Cleaning (STTS Only).............................................................................................................. 10
Maintenance
Disassembly ........................................................................................................................ 10
Inspection ............................................................................................................................ 11
Reassembly ......................................................................................................................... 11
Exploded View
TTS/TTC................................................................................................................................ 12
STTS ...................................................................................................................................... 13
Pump Tube Spare Parts List
TTS/TTC................................................................................................................................ 14
STTS ...................................................................................................................................... 15
Troubleshooting....................................................................................................................... 16
Technical Service Hotlne: 1-800-888-3743 or email techservice@finishthompson.com

5
Warranty, General Terms & Conditions
Finish Thompson, Inc (manufacturer) warrants this pump product to be free of defects in materials and workmanship for a period
of one year from date of purchase by original purchaser. If a warranted defect, which is determined by manufacturer’s inspection,
occurs within this period, it will be repaired or replaced at the manufacturer’s option, provided (1) the product is submitted with proof
of purchase date and (2) transportation charges are prepaid to the manufacturer. Liability under this warranty is expressly limited to
repairing or replacing the product or parts thereof and is in lieu of any other warranties, either expressed or implied. This
warranty does not apply to normal wear of the product or components. This warranty does not apply to products or parts broken due
to, in whole or in part, accident, overload, abuse, chemical attack, tampering, or alteration. The warranty does not apply to any other
equipment used or purchased in combination with this product. The manufacturer accepts no responsibility for product damage or
personal injuries sustained when the product is modified in any way. If this warranty does not apply, the purchaser shall bear all cost
for labor, material and transportation.
Manufacturer shall not be liable for incidental or consequential damages including, but not limited to, process down time, transporta-
tion costs, costs associated with replacement or substitution products, labor costs, product installation or removal costs, or loss of
profit. In any and all events, manufacturer’s liability shall not exceed the purchase price of the product and/or accessories.
Warranty Registration
Thank you for your purchase of this quality Finish Thompson product. Be sure to take a minute to register your pump at
Finishthompson.com/warranty. Simply provide the model number, serial number and a few other pieces of information.

6
Safety
1. Introduction
This manual contains all the information needed for the correct installation, use and maintenance of your new Finish Thompson
pump and accessories. It should be read and understood by all the personnel involved in installation, operating and servicing of
the pump before it is started.
2. Operator Qualification and Training
The personnel in charge of the installation, the operation, and the maintenance of the pump must be qualified and able to per-
form the operations described in this manual. Finish Thompson, Inc. shall not be held responsible for the training level of
personnel and for the fact that they are not fully aware of the contents of this manual.
3. Safety Instructions
FOR YOUR OWN SAFETY
BEFORE using or servicing your pump or accessories, please make sure to wear the proper clothing, eye protection and follow
standard safety procedures when handling corrosive or personally harmful materials.
ALWAYS use a stainless steel pump tube with an explosion proof electric motor or air motor and static protection kit with
grounded discharge hose when pumping or mixing flammable or combustible material.
ALWAYS ensure the pump, hose, and motor are bonded to ground, and the tanks/containers are separately bonded to
ground.
ALWAYS inspect the integrity of the ground wire connections prior to each use.
NEVER leave the pump unattended while in use.
NEVER run the pump dry without fluid.
NEVER run the pump with a closed valve (deadhead) for longer than 1 minute.
ALWAYS use and store the pump and motor in an upright position.
NEVER use in pressurized containers.
ALWAYS use a chemically compatible hose rated for the temperature of the product being pumped.
ALWAYS tighten and torque a stainless steel hose clamp to 25 in-lbs (2.8 N·m)
ALWAYS check the pump for leaks on a regular basis. If leaks are noticed, the pump must be repaired or replaced immediately.
DANGER: POWER SUPPLY
Refer to instructions in the appropriate motor Operation & Installation Manual.
4. Noise Level
Refer to specifications in the appropriate motor Operation & Installation Manual.
5. Modifications and Spare Parts
Any changes concerning the service of the pump or accessories as originally purchased can be executed only after written
approval from Finish Thompson Inc. It is recommended to use only genuine Finish Thompson Inc. spare parts and approved ac
cessories. The use of non-original spare parts or non-approved accessories will void warranty and removes any responsibility on
the manufacturer’s behalf for any damage caused to people or things.
6. Cleaning
It is highly recommended to flush pumps and accessories with clean water or some other neutralizing fluid compatible with
pump materials when done pumping or when switching chemicals.

7
IMPORTANT SAFETY INFORMATION FOR PUMPING FLAMMABLE OR HAZARDOUS SUBSTANCES
Read these instructions before operating the pump and motor equipment. The manufacturer will not be responsible for any damage to property or to persons
caused by improper use of the equipment.
WARNING: It is the responsibility of the user to operate the pump in conformance with OSHA rules for dispensing liquids. Pump containers should be
grounded when using with flammable or combustible liquids to avoid static electricity.
1. Use only an explosion-proof rated electric or non-electric (air) motors on stainless steel pump tubes with a Static Protection Kit when transferring flammable
or combustible liquids.
WARNING: Never use an open, splash-proof, TEFC, battery-operated or non-explosion-proof rated motor or a plastic pump tube when transferring flammable
or combustible liquids.
2. When operating a drum pump (especially when pumping flammable, combustible or hazardous liquids) follow all electrical and safety codes.
a) In the United States: the United States Occupational Safety and Health Act (OSHA), most recent National Electrical Code (NEC), National Fire
Protection, Inc. (NFPA) Code 30 (Flammable and Combustible Code), NFPA 77 (Static Electricity), NFPA 251 (Standard Method of fire Test of Building
Construction), NFPA 704 (Identification of the Fire Hazards of Materials), and other NFPA codes, local codes and ordinances.
b) Outside the United States: the ATEX equipment directive 2014/34/EU where applicable, the ATEX workplace 99/92/EC directive where applicable, in
addition the precautions of the U.S. codes listed herein and all other local codes and ordinances.
3. Pumping hazardous, flammable, or combustible liquids should only be done in buildings, rooms, or areas suited for this purpose. (See NFPA 30, NFPA 78,
NFPA 80, NFPA 251, NFPA 704, other suitable NFPA codes, OSHA, ATEX workplace 99/92/EC directive insurance companies, and other local codes and ordi-
nances.)
4. When filling cans, drums, etc. with combustible or flammable liquids, both container pumping from and container pumping to, should be bonded and
grounded to dissipate possible accumulations of static electricity, and minimize sparks caused by static electricity (refer to NFPA 77 and CLC/TR 60079-32-1
for specific details).
WARNING: Avoid splashing. Splash filling can create static electricity and is extremely hazardous. Reduce motor speed to prevent splashing.
WARNING: Fluid velocity must be 3 feet/.9 meter/second maximum (7 gpm/26.5 lpm in 1” hose and 4 gpm/15 lpm in ¾” hose) to reduce risk of static electric-
ity. Reduce motor speed to reduce the fluid velocity.
5. Before using, confirm that the pump and any accessories (hose, nozzle, flow meter, etc.) materials of construction are suitable for the material to be pumped
and that the maximum temperature is not exceeded.
INFORMATIONS IMPORTANTES SUR LA SÉCURITÉ DURANT LE POMPAGE DE SUBSTANCES INFLAMMABLES OU DANGEREUSES
Veuillez lire attentivement ces instructions avant d’utiliser la pompe et l’équipement du moteur. Le fabricant ne sera pas tenu responsable des dommages matéri-
els ou corporels causés par une utilisation inappropriée de l’équipement.
AVERTISSEMENT: Il est de la responsabilité de l’utilisateur de faire fonctionner la pompe conformément aux règles OSHA (Santé et Sécurité au Travail)
relatives à la distribution de liquides. Les conteneurs de pompes doivent être électriquement mis à la terre lors de l’utilisation de liquides inflammables ou
combustibles afin d’éviter toute électricité statique.
1. Lors du transfert de liquides inflammables ou combustibles, utilisez uniquement des moteurs électriques ou non électriques (pneumatiques) antidéflagrants
sur des tubes de pompe en acier inoxydable dotés d’un dispositif de protection antistatique.
AVERTISSEMENT: N’utilisez jamais de moteur ouvert, à l’épreuve des éclaboussures, TEFC, alimenté par piles ou non antidéflagrant, ni un tube de pompe en
plastique lors du transfert de liquides inflammables ou combustibles.
2. Lors de l’utilisation d’une pompe à tambour (en particulier lors du pompage de liquides inflammables, combustibles ou dangereux), respectez tous les codes
électriques et les codes de sécurité.
a) Aux États-Unis : Loi américaine sur la sécurité et la santé au travail (OSHA); le code national de l’électricité (NEC) le plus récent; le code 30 de la
NFPA (code d’inflammabilité et de produits combustibles); le code NFPA 77 (électricité statique); le code NFPA 251 (Méthode standard de test
d’incendie de la construction de bâtiments); le code NFPA 704 (Identification des risques d’incendie des matériaux) et autres codes et règlements de
la NFPA.
b) En dehors des États-Unis : La directive sur les équipements ATEX 2014/34 / EU, le cas échéant, la directive ATEX sur le lieu de travail 99/92 /EC, le
cas échéant, ainsi que les précautions des codes des États-Unis énumérés dans la présente et de tous les autres codes, lois et règlements locaux.
3. Le pompage de liquides dangereux, inflammables ou combustibles ne doit être eectué que dans des bâtiments, des pièces ou des zones adaptées à cet
usage. (Voir NFPA 30, NFPA 78, NFPA 80, NFPA 251, NFPA 704, autres codes NFPA appropriés, OSHA, les directives des compagnies d’assurance ATEX 99/92
/CE, et autres codes, lois et règlements locaux.)
4. Lors du remplissage de bidons, fûts, etc. avec des liquides combustibles ou inflammables, les conteneurs d’où le liquide est pompé et le conteneur
recevant le liquide doivent être reliés et mis à la terre pour éviter toute accumulation éventuelle d’électricité statique et minimiser ainsi les étincelles
causées par l’électricité statique (voir NFPA 77). et CLC / TR 60079-32-1 pour des détails spécifiques).
AVERTISSEMENT: Évitez les éclaboussures. Les éclaboussures peuvent créer de l’électricité statique et sont extrêmement dangereuses. Réduisez la vitesse
du moteur pour éviter les éclaboussures.
AVERTISSEMENT: La vitesse du fluide doit être au maximum de 3 pieds / 0,9 mètre / seconde (7 gpm / 26,5 lpm dans un tuyau de 1”; et 4 gpm / 15 lpm
dans un tuyau de ¾”) afin de réduire le risque d’électricité statique. Réduisez la vitesse du moteur afin de réduire ainsi la vitesse du fluide.
5. Avant utilisation, assurez-vous que les matériaux de la pompe et des accessoires (tuyau, ajutage, débitmètre, etc.) sont compatibles avec le
fluide et que la température maximale n’est pas dépassée.

8
PUMP SPECIFICATIONS
MODEL TTS MODEL TTC MODEL STTS
Outer Tube Diameter 1-1/2” (3.8 cm) 1-5/8” (4.1 cm) 1-1/2” (3.8 cm)
Discharge Thread 1” hose barb 1” hose barb 1” hose barb
Max. Specific Gravity 1.8 1.8 1.8
Max. Viscosity* 2000 cP 2000 cP 2000 cP
Min./ Max. Fluid
Temperature
-20°F Min. to 150°F Max. 34°F Min. to 150°F Max. -10°F Min. to 150°F Max.
(-29°C Min. to 66°C Max.) (1.1°C Min. to 66°C Max.) (-23°C Min. to 66°C Max.)
Wetted Materials 316 Stainless Steel, PTFE CPVC, Alloy 625, PTFE 316 Stainless Steel, PTFE
8 1/32"
DIM 'C' DIM 'B' DIM 'A'
13 3/16"
5 15/32"
MOUNTING FACE
MTV MOTOR PICTURED
MODEL DIM A(in) DIM B (in) DIM C (in) DIM A (mm) DIM B (mm) DIM C (mm)
TTS/TTC-27 27-1/16 29 42-7/32 687.3 736.6 1072.4
TTS/TTC-40 40-1/16 42 55-7/32 1017.5 1066.8 1042.6
TTS/TTC-48 48-1/16 50 63-7/32 1220.3 1270 1605.8
STTS-40 40 44-1/5 57-23/32 1016.0 1122.7 1449.6
*Dependant on motor used.

9
Installation, Operation, & Maintenance Instructions
Installation
1. Remove the drum pump and motor from the packaging and inspect for shipping damage. Turn the pump coupling the mating
motor coupling to verify there is no binding.
2. Adjust the drum pump coupling so that the empty slots in the insert are at 3 and 9 o’clock with the drum pump discharge at 12
o’clock.
4. Install the motor according to instructions in the appropriate motor manual.
5. Attach discharge hose and secure with hose clamp. Torque Finish Thompson hose clamps to 25 in-lbs (2.8 N·m).
6. Install into the container.
Operation
1. Make sure the motor (electric or air) is properly installed on the pump tube and is in the o position. See motor instruction
manual for installation instructions.
2. Insert the pump tube into the fluid to be dispensed and the hose into the container to be filled prior to starting the pump. Bung
adapters are available to provide a tighter fit between the pump tube and bung opening of a standard drum. Check drum pump
accessories at www.finishthompson.com or contact your local Finish Thompson distributor for bung adapter info.
3. Make sure the pump’s discharge hose is properly secured before operating the motor.
4. Begin pumping by turning the motor on and verifying that there are no leaks. If leaks are noticed immediately turn the motor o
and check all discharge hose connections.
NEVER allow the pump to run dry.
Cleaning (STTS only)
The STTS model is designed to come apart easily to aid in cleaning.
1. Remove the union nut (item 5) and, grabbing the bearing housing, pull the shaft assembly from the intake tube (item 10). The
shaft assembly and intake tube internals can now be cleaned and flushed.
2. Always inspect the union nut gasket (item 7) for cuts or damage.
3. Reverse the process to reassemble this model.
Maintenance
Disassembly
1. Loosen the setscrew and remove the half coupling (item 2) from the end of the pump shaft.
2. Carefully hold the intake tube (the bearing housing on the STTS model after the cleaning disassembly step) so as not to crush
the tube, use a 3/8” punch and hammer to drive the bottom of the shaft toward the top. This will drive the bearing assembly up
out of the TTS/TTC head or STTS bearing housing.
3. When the bearing is completely out, use a pair of needle nose pliers and carefully straighten the four slightly bent “feet” at the
bottom of the intake tube on the TTS model. This will allow you to use the pliers to remove the bottom bearing (item 13).

10
4. Then use a 1/8” punch to drive out the roll pin that holds the bearing onto the top of the pump shaft. Remove the bearing from
the pump shaft, and remove shaft assemble down through the bottom of the intake tube. On STTS models, pull the shaft
assembly down out of the bearing housing.
5. Remove the seal assembly from the pump head on the TTS/TTC or the bearing housing on the STTS and discard it.
Inspection
1. Inspect the shaft locating hole in the center of the bottom bearing (item 13 on the TTS/TTC and 16 on the STTS. If the inside diam-
eter is .400 or larger than replace it.
2. Visually check the all the compressors (item 9 on TTS/TTC and item 12 on STTS) for damage. If they need replaced, you must
remove the pin first.
3. Visually inspect the center bearings (item 12 on TTS/TTC or item 15 on STTS), the spacers (item 10 on TTS/TTC or item 13 on
STTS), and the impellers (item 8 on TTS/TTC or item 11 on STTS). Replace as needed.
4. Never reuse the seal assembly (item 4). Always install a new seal during reassembly.
5. Inspect the bearing assembly (item 3), and replace if needed.
6. Inspect the pump shaft for wear in the seal area, the center bearing area, and the bottom bearing area. Replace if needed.
Reassembly
1. With the center bearings, compressors, spacers, and impellers in place on the shaft, insert the shaft up through the bottom of
the TTS/TTC intake tube (up through the bottom of the bearing housing on the STTS).
2. Warm up the seal assembly (item 4) prior to installation by using a heat lamp or soaking them in hot water. This will aid in the
ease of proper seal installation. Make sure there are no metal burrs on the pump shaft in the bearing hole location or the cou-
pling half setscrew location that could “cut” the seal during installation.
3. Lubricate the end of the shaft with Vaseline to aid in the seal installation. Carefully install the seal down over the shaft with the
two “slots” facing up toward the bearing assembly. The raised lip in the center of the seal (that faces the bottom of the pump)
must go on straight and not buckle on one side.
4. After the seal is on the shaft correctly, install the bearing assembly (item 3) onto the shaft. Use the bearing assembly to push the
seal further down the shaft until the hole in the center of the bearing assembly matches up to the hole in the shaft. Install the roll
pin through the bearing assembly and shaft.
5. Turn pump intake tube (bearing housing on the STTS) upside down and press on the shaft end to slide the bearing assembly into
the pump head (bearing housing on the STTS). Use a block of wood and a mallet if needed to drive the assembly into the pump
head.
6. Install the coupling (item 2) on the end of the shaft and tighten the set screw into the dimple on the shaft.
7. On STTS models insert the shaft assembly into the intake tube from the top, making sure to install the union nut gasket (item 7)
and tighten the union nut (item 5).
8. Reinstall the bottom bearing (item 13 on TTS/TTC and item 16 on STTS), and gently bend the four “feet” in slightly to keep the
bottom bearing in place on the TTS and STTS models.
9. Turn the pump coupling to insure there is no binding.
Note: Repair instructions can be downloaded from our web site at www.finishthompson.com or contact Technical Service at
1-800-888-3743.

11
TTC/TTS SPARE PARTS EXPLODED VIEW
13
1
2
3
4
7
6
5
8
9
11
10
12

12
ITEM QTY DESCRIPTION PART NUMBER
1 1 COUPLING INSERT
J100014
2 1 COUPLING HALF
J100013
3* 1 BEARING ASSEMBLY
W/ ROLL PIN A101672
4* 1 SEAL ASSEMBLY
PTFE A100284
5 1 LOCK WASHER
#8 BRASS (TTS ONLY) J100823
6 1 SCREW
#8-32 X 1/4 BRASS PAN HEAD M/S (TTS ONLY) J100822
7 1
INTAKE TUBE ASSEMBLY
27” 316 STAINLESS STEEL (TTS) A100927-1
40” 316 STAINLESS STEEL (TTS) A100927-4
48” 316 STAINLESS STEEL (TTS) A100927-3
27” CPVC (TTC) A100926-1
40” CPVC (TTC) A100926-4
48” CPVC (TTC) A100926-3
8 1
IMPELLER ASSEMBLY
PTFE WITH STAINLESS STEEL PIN (TTS) A100030
PTFE WITH ALLOY 625 PIN (TTC) A100039
9* 4
COMPRESSOR
PTFE WITH STAINLESS STEEL PIN (TTS) A100044
PTFE WITH ALLOY 625 PIN (TTC) A100325
10 2
SPACER SET
FEP (TTS/TTC-40) A100043-1
FEP (TTS/TTC-48) A100043-2
11 1
SHAFT
27” 316 STAINLESS STEEL (TTS) M100972-1
40” 316 STAINLESS STEEL (TTS) M100972-7
48” 316 STAINLESS STEEL (TTS) M100972-3
27” ALLOY 625 (TTC) M100972-4
40” ALLOY 625 (TTC) M100972-8
48” ALLOY 625 (TTC) M100972-6
12* 1 CENTER BEARING
PTFE M100039
13* 1 BOTTOM BEARING
PTFE M100047
TTS/TTC SPARE PARTS LIST
*Recommended Spare Parts

13
STTS SPARE PARTS EXPLODED VIEW
1
2
3
4
5
6
7
10
9
8
11
12
14
13
15
16

14
STTS SPARE PARTS LIST
ITEM QTY DESCRIPTION PART NUMBER
1 1 COUPLING INSERT
J100014
2 1 COUPLING HALF
J100013
3* 1 BEARING ASSEMBLY
WITH ROLL PIN A101672
4* 1 SEAL ASSEMBLY
PTFE - FDA COMPLIANT 108401
5 1 UNION NUT
316 STAINLESS STEEL J100083
6 1 BEARING HOUSING
316 STAINLESS STEEL M100078
7 1 UNION NUT GASKET
NEOPRENE - FDA COMPLIANT J100084
8 1 LOCK WASHER
#8 BRASS J100823
9 1 SCREW
#8-32 X 1/4 BRASS PAN HEAD M/S J100822
10 1
INTAKE TUBE ASSEMBLY
316 STAINLESS STEEL W/ 1” HOSE BARB A100080-1
316 STAINLESS STEEL W/ 1” TRI-CLAMP 108381
11 1 IMPELLER ASSEMBLY WITH STAINLESS STEEL PIN
PTFE - FDA COMPLIANT A101674
12* 1 COMPRESSOR
PTFE WITH STAINLESS STEEL PIN - FDA COMPLIANT A101673
13 1 SPACER SET
FEP - FDA COMPLIANT A100043-1
14 1 SHAFT
316 STAINLESS STEEL M100974-1
15* 1 CENTER BEARING
PTFE - FDA COMPLIANT M100039
16* 1 BOTTOM BEARING
PTFE - FDA COMPLIANT 108546
*Recommended Spare Parts

Service 1-800-888-3743
P/N 108102 Rev. 7, 12/15/2023
DRUM PUMP TROUBLESHOOTING
General Notes:
• Do not pump liquids containing metallic particles or other foreign material.
• Always store the pump upright as used.
• Contact our Technical Service Department at 1-800-888-3743 or by email at techservice@finishthompson.com if you have any questions regarding product
operation or repair.
No or Insucient Discharge:
• Closed valve or nozzle
• System head higher than anticipated
• Viscosity or specific gravity too high
• Clogged pump tube
• Clogged or damaged impeller
Vibration/Noise:
• Missing or damaged coupling insert
• Damaged bearing assembly
• Viscosity or specific gravity too high
• Pump cavitation from improper discharge
• Pump or piping not properly secured
• Clogged or damaged impeller
