Fugro SeaSTAR 8200 HP User manual

OmniSTAR 8200HP
User Manual
Issue 1.07, October 2008

OmniSTAR 8200HP User Manual
Issue 1.07, 10/2008
ii
Notice to Customers
This manual has been produced to ensure the very best performance from
your OmniSTAR receiver. The manual has been clearly set out with simple
instructions to ensure trouble free usage of your OmniSTAR receiver.
This publication could contain technical inaccuracies or typographical errors.
Changes are periodically made to the information herein; these changes will
be incorporated in new editions of the manual.
Should you require further assistance please contact your local dealer or the
OmniSTAR office.
OmniSTAR Customer Support and 24 Hour Help Line
The Netherlands:
OmniSTAR B.V.
Dillenburgsingel 69
2263 HW Leidschendam
The Netherlands
Tel: +31 70 317 09 00
Fax: +31 70 317 0919
Web : www.omnistar.nl
E-Mail: info@omnistar.nl
Australia: South Africa:
OmniSTAR Pty Ltd OmniSTAR Pty Ltd
Tel: +61 8 9322 5295 Tel: +27 11 315 0420
Fax: +61 8 9322 4164 Fax: + 27 11 312 1774
Web : www.omnistar.com.au Web : www.omnistar.co.za
E-Mail: omnistar@omnistar.com.au E-Mail: sales@omnistar.co.za
Singapore: USA:
Fugro OmniSTAR Pte Ltd OmniSTAR Inc.
Tel: +65 6542 5001 Tel: +1 713 785 5850
Fax: +65 6542 2208 Fax: +1 713 785 5164
E-Mail: sales@omnistar.com.sg Web: www.omnistar.com
E-Mail: dgps2@omnistar.com

OmniSTAR 8200HP User Manual
Issue 1.07, 10/2008
iii
One-Year Limited Hardware Warranty
OmniSTAR B.V and its operating companies world-wide (OmniSTAR),
warrants this product to be free from defects in workmanship and material for a
period of one year from the date of original sale by OmniSTAR or its
authorised dealers, to the original purchaser or end user.
OmniSTAR reserves the right to repair and/or replace, at its option, any part or
parts found to be defective, provided such defects, in their opinion, are due to
faulty material or workmanship and are not caused by unauthorised or
improper repair or abuse, or normal wear. Purchaser shall be responsible for
shipping and insurance of the returned product for repair under this warranty.
OmniSTAR will pay shipping and insurance for the product's return to
purchaser provided that the product returned proves to be defective under this
limited warranty.
This warranty applies only to normal usage of the product. It does not apply to
units or electronic circuit boards defective due to improper installation or
handling. Physical damage due to lightning or other electrical discharge and
units subjected to fresh or salt-water contamination are not covered.
OmniSTAR reserves the right not to warrant the product if, upon request,
sufficient proof of recommended installation compliance as laid out in this
manual is not provided. No other warranties are expressed or implied. No other
warranties exist.
OmniSTAR assumes no responsibility for any consequential or incidental
losses or damages of any nature with respect to the use of this product.
REVISION HISTORY
Issue 1.0 August 2006 First release
Issue 1.02 August 2006 Small textual changes, firmware
upgrade procedure added.
Issue 1.03 September 2006 Sales e-mail OSSA changed
GPS status indication in GGA/RMC
NMEA messages clarified.
Issue 1.04 December 2006 CAN / NMEA2000 messages clarified
Description of lock display screen
revised.
Issue 1.05 April 2007 NMEA digits changed to 8
Issue 1.06 May 2007 DB9 pin layout added
Issue 1.07 October 2008 Modifications to pin layout
Manual Reference: OmniSTAR 8200HP User Manual
Copyright OmniSTAR B.V. 2007. No part of this manual can be reproduced
without the express permission of OmniSTAR B.V.

OmniSTAR 8200HP User Manual
Issue 1.07, 10/2008
iv
TABLE OF CONTENTS
INTRODUCTION ............................................................................................. 2
ABOUT THIS MANUAL ..................................................................................... 2
SYSTEM FEATURES ........................................................................................ 2
RECEIVER FEATURES ..................................................................................... 3
Housing .................................................................................................... 3
Accessories.............................................................................................. 4
INSTALLATION AND SET UP ........................................................................ 6
INSTALLATION CONSIDERATIONS ..................................................................... 6
COUNTER ELECTROMAGNETIC FORCE (CEMF)................................................ 7
CABLE INSTALLATION ..................................................................................... 8
FEATURES AND INFORMATION ......................................................................... 9
Strobes..................................................................................................... 9
Receiver status......................................................................................... 9
MOUNTING THE RECEIVER............................................................................... 9
ANTENNA LOCATION..................................................................................... 10
POWER SUPPLY REQUIREMENTS .................................................................. 10
OPERATING CONSIDERATIONS................................................................. 11
NUMBER OF VISIBLE SATELLITES.................................................................... 11
MULTIPATH.................................................................................................. 11
POSITION DILUTION OF PRECISION (PDOP) ................................................... 12
SATELLITE ELEVATIONS ................................................................................ 12
OMNISTAR CORRECTIONS ........................................................................... 12
INTERFERENCE ............................................................................................ 12
OPERATION ................................................................................................. 13
GETTING STARTED....................................................................................... 13
COMMUNICATING WITH THE RECEIVER ........................................................... 13
STARTING THE RECEIVER ............................................................................. 13
THE RECEIVER HOME SCREEN ...................................................................... 14
THE 8200HP MENU STRUCTURE ................................................................... 16
Top-level: home...................................................................................... 17
Top-level: Status .................................................................................... 17
Top-level: Configuration.......................................................................... 17
Sub-menu: Display Options .................................................................... 17
Sub-menu: GPS Status .......................................................................... 22
Sub-menu: DGPS Status........................................................................ 23
Sub-menu: Receiver Status.................................................................... 30
Sub-menu: CAN Status .......................................................................... 36
Sub-menu: GPS Config .......................................................................... 37
Sub-menu: DGPS Config........................................................................ 40
Sub-menu: Port A Config........................................................................ 44
Sub-menu: Port B Config........................................................................ 49
Sub-menu: Port C Config........................................................................ 50
Sub-menu: CAN A Config....................................................................... 50
APPENDIX A................................................................................................. 55

OmniSTAR 8200HP User Manual
Issue 1.07, 10/2008
v
TECHNICAL SPECIFICATIONS ......................................................................... 55
Performance........................................................................................... 55
Environmental ........................................................................................ 55
Power requirements ............................................................................... 56
RF input / LNA power output................................................................... 56
Input / output data interface.................................................................... 56
Input / output connectors ........................................................................ 56
Physical dimensions............................................................................... 56
APPENDIX B................................................................................................. 58
NMEA 0183 MESSAGE OPTIONS .................................................................. 58
NMEA 0183 MESSAGE FORMATS ................................................................. 59
GGA –GPS Fix Data ........................................................................ 59
GLL -Geographic Position – Latitude/Longitude .............................. 60
GRS –GPS Range Residuals........................................................... 60
GSA –GPS DOP and Active Satellites............................................. 61
GST –GPS Pseudorange Noise Statistics ....................................... 62
GSV –GPS Satellites in View........................................................... 63
MSS –Beacon Receiver Signal Status ............................................. 64
PTNLSM –Proprietary (RTCM Special)............................................ 64
PTNLEV –Proprietary (Event Marker).............................................. 65
PTNLID –Proprietary (Receiver ID) ................................................ 65
PTNLDG –Proprietary (DGPS Receiver Status)............................... 66
PTNL,GGK –Time, Position, Position Type, DOP ............................. 67
RMC –Recommended Minimum Specific GPS Data..................... 68
VTG –Course Over Ground and Ground Speed............................... 69
ZDA –Time and Date....................................................................... 70
APPENDIX C................................................................................................. 71
ACRONYMS USED IN THIS MANUAL ................................................................. 71
APPENDIX D................................................................................................. 72
UPDATING THE 8200HP FIRMWARE ............................................................... 72
APPENDIX E................................................................................................. 78
OMNISTAR REFERENCE STATIONS................................................................ 78
APPENDIX F................................................................................................. 79
RECEIVER SERVICE PROCEDURE .................................................................. 79
APPENDIX G ................................................................................................ 80
OMNISTAR RECEIVER PROBLEM REPORT FORM ........................................... 80
USER NOTES ............................................................................................... 81
LIST OF FIGURES
Figure 1: 8200HP Back End ............................................................................ 4

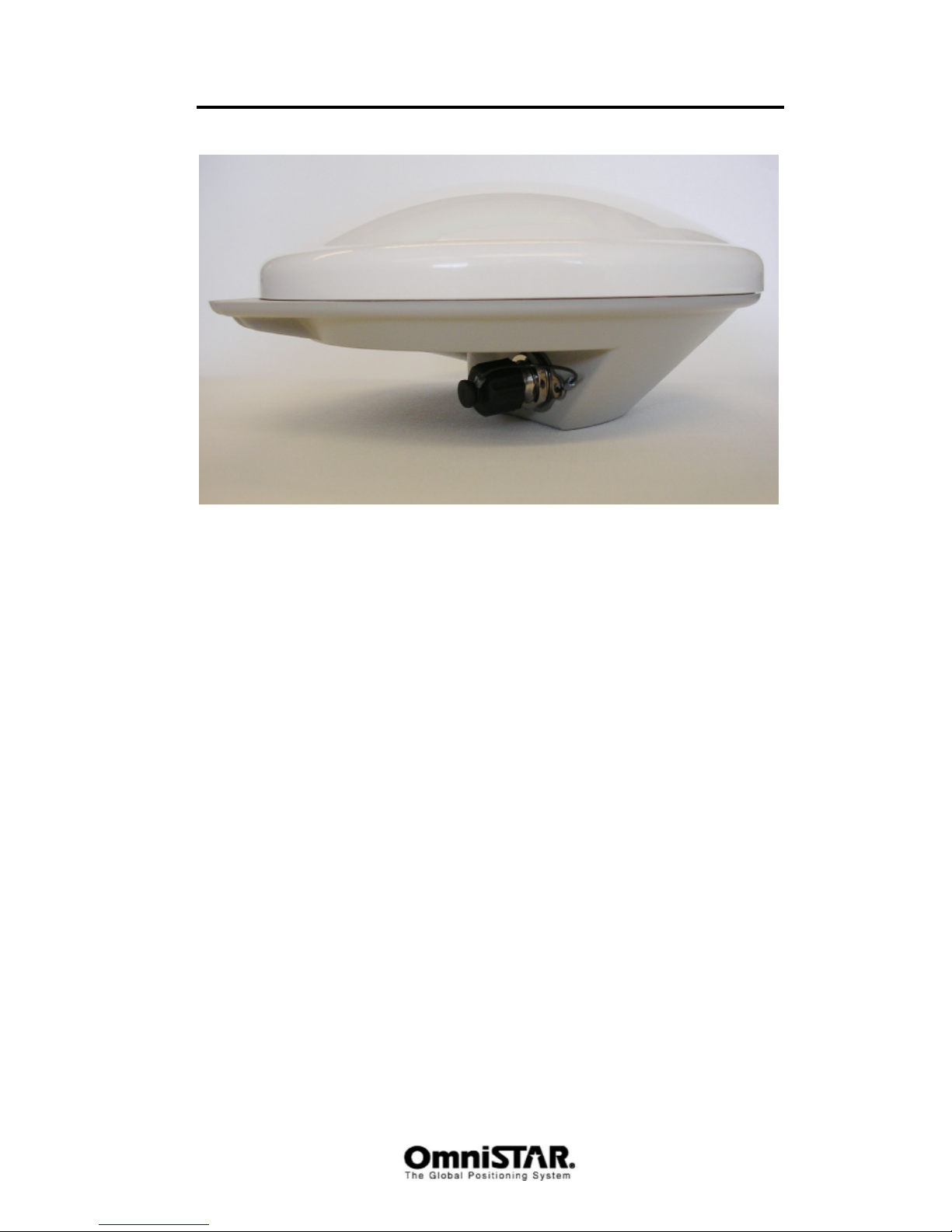

Figure 2: Z+ antenna ....................................................................................... 5

OmniSTAR 8200HP User Manual
Issue 1.07, 10/2008
vi
Figure 3: Zener Diode Connected.................................................................... 7
Figure 4: Multipath......................................................................................... 11
Figure 5: Home screen when OmniSTAR HP corrections are received ......... 14
Figure 6: Status screen ................................................................................. 17
Figure 7: Configuration screen....................................................................... 17
Figure 8: Contrast screen .............................................................................. 18
Figure 9: User level screen............................................................................ 18
Figure 10: Lock Display screen...................................................................... 18
Figure 11: Lock Display - Enter Password screen.......................................... 19
Figure 12: Language screen .......................................................................... 19
Figure 13: Units screen ................................................................................. 19
Figure 14: SNR Units screen ......................................................................... 20
Figure 15: Clear BB RAM screen................................................................... 21
Figure 16: Update Receiver screen ............................................................... 21
Figure 17: Update Receiver - Enter Password screen ................................... 21
Figure 18: GPS Lat/Long screen ................................................................... 22
Figure 19: GPS Altitude screen ..................................................................... 22
Figure 20: GPS Speed and Heading screen .................................................. 22
Figure 21: GPS Channel Status screen......................................................... 23
Figure 22: GPS DOP values screen .............................................................. 23
Figure 23: DGPS Sat Tracking screen........................................................... 24
Figure 24: Service ID screen ......................................................................... 24
Figure 25: DGPS Data Source screen........................................................... 24
Figure 26: Age of DGPS/Sync screen ........................................................... 25
Figure 27: VBS Info screen: User Code......................................................... 25
Figure 28: VBS Info screen: User Enabled .................................................... 25
Figure 29: VBS Info screen: Stop .................................................................. 26
Figure 30: VBS Info screen: Received Data .................................................. 26
Figure 31: VBS Info screen: VBS Service Level ............................................ 26
Figure 32: VBS Info screen: VBS version ...................................................... 26
Figure 33: VBS Info screen: Figure of merit................................................... 27
Figure 34: HP/XP Info screen: User Code ..................................................... 27
Figure 35: HP/XP Info screen: Initialisation.................................................... 27
Figure 36: HP/XP Info screen: Solution convergence .................................... 27
Figure 37: HP/XP Info screen: Stop............................................................... 28
Figure 38: HP/XP Info screen: Subscription type ........................................... 28
Figure 39: HP/XP Info screen: Subscription mode......................................... 28
Figure 40: HP/XP Info screen: HP version..................................................... 29
Figure 41: XP/HP Info screen: Srvc ID screen 1............................................ 29
Figure 42: XP/HP Info screen: Srvc ID screen 2............................................ 29
Figure 43: UTC time and day......................................................................... 30
Figure 44: UTC date and GPS week.............................................................. 30
Figure 45: Receiver serial number................................................................. 30
Figure 46: Receiver firmware version ............................................................ 31
Figure 47: Receiver Options: Fast Rate......................................................... 31
Figure 48: Receiver Options: Base Station.................................................... 31
Figure 49: Receiver Options: Everest Multipath Rejection ............................. 32
Figure 50: Receiver Options: Modem Control ................................................ 32
Figure 51: Receiver Options: D&E Sub.......................................................... 32
Figure 52: Receiver Options: TNL Sub .......................................................... 32
Figure 53: Receiver Options: Carrier Phase .................................................. 32

OmniSTAR 8200HP User Manual
Issue 1.07, 10/2008
vii
Figure 54: Receiver Options: VRS Processing .............................................. 33
Figure 55: Receiver Options: Tilt Sensor ....................................................... 33
Figure 56: Position error caused by a tilted, high-mounted receiver antenna . 33
Figure 57: Receiver Options: WAAS.............................................................. 34
Figure 58: Receiver Options: CMR Input ....................................................... 34
Figure 59: Receiver Options: Point/Line/Area ................................................ 34
Figure 60: Receiver Options: CAN Bus.......................................................... 34
Figure 61: System voltages ........................................................................... 35
Figure 62: System temperature ..................................................................... 35
Figure 63: Incident code ................................................................................ 35
Figure 64: J1939 Address Claim Channel A .................................................. 36
Figure 65: J1939 Address Claim Channel B .................................................. 36
Figure 66: Channel A TPCAN Connections ................................................... 36
Figure 67: Channel B TPCAN Connections ................................................... 37
Figure 68: Restore GPS Defaults .................................................................. 37
Figure 69: GPS Mode.................................................................................... 37
Figure 70: System Masks .............................................................................. 38
Figure 71: PDOP Settings ............................................................................. 38
Figure 72: Position Filter................................................................................ 39
Figure 73: Carrier Code Filter ........................................................................ 39
Figure 74: Position Rate ................................................................................ 39
Figure 75: Dynamic Mode.............................................................................. 40
Figure 76: GPS Diagnostics .......................................................................... 40
Figure 77: DGPS Source Select .................................................................... 40
Figure 78: DGPS Backup Source Select ....................................................... 41
Figure 79: DGPS Correction Age................................................................... 41
Figure 80: EZ Sat .......................................................................................... 42
Figure 81: Satellite frequency ........................................................................ 42
Figure 82: Satellite baudrate.......................................................................... 42
Figure 83: HP/XP Autoseed........................................................................... 43
Figure 84: HP/XP Init mode........................................................................... 43
Figure 85: HP/XP Convergence limit ............................................................. 44
Figure 86: OmniSTAR HP/XP Debug Information screen .............................. 44
Figure 87: Port A I/O configuration settings ................................................... 44
Figure 88: Port-A Modem control options ...................................................... 46
Figure 89: NMEA messages 1....................................................................... 47
Figure 90: NMEA messages 2....................................................................... 48
Figure 91: NMEA messages 3....................................................................... 48
Figure 92: NMEA/TSIP output rates .............................................................. 48
Figure 93: 1Hz NMEA message output.......................................................... 49
Figure 94: NMEA Quality configuration.......................................................... 49
Figure 95: Port B I/O configuration settings ................................................... 50
Figure 96: Port C Out screen......................................................................... 50
Figure 97: CAN-bus baudrate setting............................................................. 51
Figure 98: CAN-bus address setting.............................................................. 51
Figure 99: CAN-bus messages...................................................................... 51
Figure 100: CAN-bus message rates............................................................. 52
Figure 101: NMEA 2000 messages 1 ............................................................ 52
Figure 102: NMEA 2000 messages 2 ............................................................ 52
Figure 103: NMEA 2000 message rates ........................................................ 53
Figure 104: TPCAN protos ............................................................................ 53

OmniSTAR 8200HP User Manual
Issue 1.07, 10/2008
viii
Figure 105: CAN-bus self-configured address ............................................... 54
Figure 106: Pin layout (receiver connector) ................................................... 57
Figure 107: Flashloader main screen............................................................. 72
Figure 108: Firmware image selection screen ............................................... 73
Figure 109: Establishing communication with the receiver............................. 73
Figure 110: Receiver selection screen........................................................... 74
Figure 111: Uploading firmware screen ......................................................... 75
Figure 112: Erasing program space screen ................................................... 75
Figure 113: Programming new firmware screen............................................. 76
Figure 114: Flashing completed successfully ................................................ 76
LIST OF TABLES
Table 1: 8200HP Interfaces ............................................................................. 4
Table 2: Position types .................................................................................. 15
Table 3: Differential information..................................................................... 16
Table 4: XP/HP Subscription types................................................................ 29
Table 5: 8200HP input protocols.................................................................... 45
Table 6: 8200HP output protocols ................................................................. 46
Table 7: (D)GPS quality indicators................................................................. 49
Table 8: NMEA 2000 default message rates ................................................. 53
Table 9: 8200HP Power/data Port Pin-Out Descriptions (both port A and B) . 57
Table 10: NMEA 0183 messages available for the 8200HP........................... 58
Table 11: Description of the GGA message................................................... 59
Table 12: Description of the GLL message.................................................... 60
Table 13: Description of the GRS message................................................... 60
Table 14: Description of the GSA message................................................... 61
Table 15: Description of the GST message. .................................................. 62
Table 16: Description of the GSV message................................................... 63
Table 17: Description of the MSS message................................................... 64
Table 18: Description of the PTNLSM message. ........................................... 64
Table 19: Description of the PTNLEV message............................................. 65
Table 20: Description of the PTNLID message.............................................. 65
Table 21: Description of the PTNLDG message. ........................................... 66
Table 22: Description of the PTNL,GGK message......................................... 67
Table 23: Description of the RMC message. ................................................. 68
Table 24: Description of the VTG message. .................................................. 69
Table 25: Description of the ZDA message. .................................................. 70

OmniSTAR 8200HP User Manual
Issue 1.07, 10/2008
2
Introduction
About This Manual
This manual has been produced to assist the typical user with the installation
and operation of the OmniSTAR 8200HP DGPS Receiver.
System Features
The OmniSTAR 8200HP DGPS Receiver is part of the OmniSTAR world-wide
DGPS Service. The OmniSTAR service is a full-time differential GPS (DGPS)
broadcast system delivering corrections from an array of GPS reference
stations located around the globe. Reference stations provide industry
standard formatted corrections to Network Control Centres (NCC’s) at strategic
geographic locations, where the corrections are decoded, checked, and
repackaged in a highly efficient format for broadcast. The data is modulated
onto an RF carrier that is then up-converted for transmission to an L-band
communications satellite.
The signals are received at the user's location by an antenna, demodulated by
areceiver, and are made available, after selection of the desired individual
reference site's data set, as corrections for use in a GPS, differential-capable,
receiver.
The OmniSTAR 8200HP series of receivers support the following OmniSTAR®
services:
HP, this is the High Performance service where dual frequency GPS carrier
phase measurements are used in an intelligent and innovative way to create
wide area positioning results of unmatched accuracy and performance.
XP, this is the Extended Position service where precise orbit and clock data is
used to determine the position worldwide without using any reference stations.
VBS,this is the Virtual Base Station service where single frequency GPS code
phase measurements are used to create RTCM corrections data optimised for
the users current position.

OmniSTAR 8200HP User Manual
Issue 1.07, 10/2008
3
Receiver Features
The OmniSTAR 8200HP receiver has the following features:
•12 parallel GPS code/carrier tracking channels (L1 C/A-code and
carrier, L2 carrier only)
•LCD front panel display
•Receiver configuration using the front panel
•Submeter differential accuracy (RMS), assuming at least five
satellites and a PDOP (Position Dilution of Precision) of less than
four (OmniSTAR VBS)
•Decimeter differential accuracy (OmniSTAR HP/XP)
•Low power consumption
•1, 5, 10 Hz position output data (user selectable)
•Voltage and temperature monitoring and reporting
•Arugged, environmentally-sealed enclosure
•Everestmultipath rejection technology
•Two combined power/data ports with Deutsch-brand connectors,
supporting the following protocols:
CAN 2.0B:
J1939 and NMEA 2000 messages (ISO 11783 compliant,
supporting some ISO 11783 messages)
RS-232:
NMEA-0183 output, RTCM SC-104 input and output, TSIP
binary standard input and output protocol, ASCII input, CMR
input (if enabled)
1PPS (Pulse per second) strobe signal to enable an external
instrument to synchronize its internal time with a time derived
from the very accurate GPS system time.
•GPS antenna port
Housing
The 8200HP is housed in an enclosure to provide a complete receiver solution.
When connected to an antenna and a power source, the 8200HP is a fully
functioning GPS/VBS/XP/HP receiver.
The enclosure offers protection against environmental conditions and RF
interference. In addition, it provides an easy-to-use interface to the data, power
and status signals of the GPS card and a rugged, water, shock and vibration
resistant housing for outdoor applications.

OmniSTAR 8200HP User Manual
Issue 1.07, 10/2008
4
Accessories
The following accessories are included with the 8200HP:
•1right angle combined power/data cable
•1GPS antenna type Z Plus
•1antenna cable (5 meters)
•1magnetic antenna mount
•ACD containing PC utilities and product documentation
Figure 1: 8200HP Back End
Name Description
ADC power input, RS-232 signals, CAN signals and
auxiliary strobe signal
BDC power input, RS-232 signals, CAN signals and
auxiliary strobe signal
ANT Antenna connection
Table 1: 8200HP Interfaces

OmniSTAR 8200HP User Manual
Issue 1.07, 10/2008
5
Figure 2: Z+ antenna

OmniSTAR 8200HP User Manual
Issue 1.07, 10/2008
6
Installation and Set Up
Installation Considerations
Before commencing installation of the OmniSTAR 8200HP in a vehicle or
aircraft, the following should be considered:
•Determine the preferred location for each unit. Consider cable length,
connector attachment space (cable bend radius), stowing excess cable,
moisture, chemical corrosion, vibration and heat exposure.
•Before drilling holes, consider using existing hardware and locations
where equipment was previously installed. Avoid drilling holes that may
damage other equipment (e.g. structural frame members, electrical
cables or fluid lines).
•High vibration and high temperature locations should be avoided
whenever possible.
•In application where vibration exceeds 5Gs acceleration, shock mounts
are required. (Refer to Customer support for mounting
recommendations).
•Vehicle primary power has voltages that may be harmful to personnel and
equipment. Disconnect the battery cable from the battery –Ve (negative)
terminal before making connection to any power terminal within the
vehicle.

OmniSTAR 8200HP User Manual
Issue 1.07, 10/2008
7
Counter Electromagnetic Force (CEMF)
Apotential problem inherent in any installation of electronic systems within a
vehicle is Counter Electro-magnetic Force (CEMF).
CEMF is caused when relays or solenoids, connected to the vehicle DC power
distribution, are de-energised. The voltage produced may exceed – 400 volts.
CEMF is produced by equipment such as the following:
•Electric fan brakes
•Air conditioners
•Starter relays
•Electric pump relays
CEMF is more than sufficient to damage or cause erratic operation of any
electronic system that is also connected to the same vehicle DC power supply.
CEMF can be eliminated by installing diodes at the relays and solenoids that
cause the problem, and more importantly at the power supply cable
connections on the receiver.
A47V, 5W, Zener diode (1N5368 or equivalent) should be connected between
the receiver +ve (positive) power input terminal and ground, as illustrated in
Figure 3.
Figure 3: Zener Diode Connected
Ground
Battery +ve (positive) supply
Zener Diode

OmniSTAR 8200HP User Manual
Issue 1.07, 10/2008
8
Cable Installation
Cables must be correctly installed for optimum system operation. Therefore,
the following should be noted:
•Do not route an L-Band receiver remote antenna cable with the cabling of
any other radio system. This may cause interference between both
systems.
•If at all possible, do not run L-Band receiver antenna cables parallel to
other radio system cabling closer than 30 centimetres.
•If cables must cross, ensure that they cross at an angle of
90°. This minimises the possibility of interference.
•As far as is practicable, ensure that cables and I/O connectors are unique
and fit only in their allocated location.
•Avoid routing cables along-side power generator cabling and other high
electrical noise sources. This can cause interference.
•Do not kink cables or force cables into sharp bends that may damage the
cables and cause system failure.
•After installation, ensure that excess cable is looped and clamped or tied
safely away from any control cables, fuel lines, hydraulic lines or moving
parts.
•When stowing over length cabling, form loops not less than 150 mm
minimum cable bend radius.
•Cable routing must avoid high temperature exposure
(e.g. exhaust manifold).

OmniSTAR 8200HP User Manual
Issue 1.07, 10/2008
9
Features and Information
This section contains information on the features of the 8200HP receiver.
Strobes
On the 8200HP, a set of outputs that provide status and synchronisation
signals are given. These signals are called strobes. Access to the 8200HP
strobe signals can be obtained through both data ports.
The strobe available on the 8200HP is the One Pulse Per Second (1 PPS)
signal. The falling edge of this signal is synchronised with GPS time.
Receiver status
The 8200HP is equipped with an LCD display showing the status of the
receiver. Using the display and the buttons around the display, the receiver
can be configured without the need to connect a computer. The functions of
the LCD display and the configuration menus are described further on in this
manual.
Mounting the receiver
The 8200HP casing is equipped with four slotted mounting holes to facilitate
mounting the receiver to a surface. This section provides information on how
to mount the receiver.
Note: The receiver casing was not designed for mounting in high-dynamics or
high-vibration environments.
To mount the 8200HP receiver:
1. Using the slotted holes as a template, drill four holes in the mounting
surface.
2. Use screws to secure the casing to the mounting surface. When using
machine screws, tap the mounting holes to fasten the receiver to the
mounting surface. Alternatively, self-tapping screws can be used.
3. Make sure not to mount the receiver in a location where it can easily be
damaged during normal operation. Try to protect the receiver against
harsh environmental conditions.

OmniSTAR 8200HP User Manual
Issue 1.07, 10/2008
10
Antenna Location
Antenna positioning is critical to system performance.
The following conditions must be met for optimum system performance:
1. Antenna must be mounted at least 1.5 metres away from transmitting
antennas of any frequency. Closer positioning may cause overloading of
receiver RF circuits.
2. The antenna should be mounted at the highest practical point that will
give a good view of the horizon and be as near level as possible.
3. The antenna must be located along the vehicle centre-line, or at a
relevant reference point on the vehicle.
4. The antenna should not be mounted in a location where it can easily be
damaged during normal operation.
Power Supply Requirements
The 8200HP can be powered by a vehicle or by a customer-supplied power
source of 10-32 VDC, capable of delivering at least 5W continuous output
power. For continued protection against the risk of fire, the power lead to the
8200HP receiver should be provided with a 10 A (maximum) fuse.
Warning: Before powering the receiver, make sure the antenna
cable and antenna are connected and the power/data
cable is connected and secured. Connecting or
disconnecting an antenna or antenna cable when the
receiver is already powered may permanently damage the
receiver’s antenna port or the antenna itself, voiding your
warranty. Connecting or disconnecting the power/data
cable to/from the receiver when the cable is already
powered may result in increased wear or an early failure of
the power/data connector.
Warning: If the voltage supplied is below the minimum specification,
the receiver will suspend operation. If the voltage supplied
is above the maximum specification, the receiver may be
permanently damaged, voiding your warranty.

OmniSTAR 8200HP User Manual
Issue 1.07, 10/2008
11
Operating considerations
The 8200HP has proven to be a high-quality positioning device. The accuracy
that the user can obtain depends on several factors, including:
•Number of visible satellites
•Multipath
•Dilution of Precision (DOP)
•Satellite elevations
•OmniSTAR corrections
Number of visible satellites
Aminimum of four satellites is required to calculate a 3-dimensional position.
In general it can be said that every increase in the number of visible satellites
will result in an increase in the systems’ accuracy. As the GPS satellites orbit
the earth the number of visible satellites will change in time. The GPS
constellation has been designed to provide a minimum of 4 visible satellites at
any location at all times. The number of visible satellites can decrease due to
blockage by objects such as trees and buildings.
Multipath
It is possible for satellite signals to reflect off large nearby objects such as
buildings, cars or even the ground, thereby resulting in an erroneous
distance measurement. This phenomenon is known as multipath. Multipath
can cause significant errors in the position determination and it is therefore
important to place the receiver in an environment, which is free of large
reflective surfaces. It is also recommended to mount the receiver directly
onto a surface, while maintaining a clear view of the sky in all directions.
Figure 4: Multipath

OmniSTAR 8200HP User Manual
Issue 1.07, 10/2008
12
Position Dilution of Precision (PDOP)
The Position Dilution of Precision (PDOP) is a measure of the satellite
geometry. The closer to 1 the PDOP value, the more accurate the GPS
position will be.
Satellite elevations
The signal from a satellite that is low on the horizon will travel a greater
distance through the atmosphere. This results in a lower signal strength and a
delayed reception, thereby causing erroneous and noisy data. By default the
8200HP is configured to ignore any GPS satellites that have an elevation
angle lower than 5°for VBS and lower than 8°for HP.
OmniSTAR corrections
For accurate positioning it is essential that the differential corrections are
received. In order to ensure reception of the OmniSTAR satellite signal the line
of sight towards the satellite must not be blocked by objects such as trees and
buildings. To find out which OmniSTAR satellite(s) can be received at your
geographic position, please visit the surveyplanner website
(http://www.surveyplanner.com/).
Interference
Although the 8200HP has been designed to provide optimal system
performance under most circumstances, due to the nature of radio
communications it is possible, that the system performance degrades as a
result of local interference sources. When interference levels are too high, the
8200HP may even lose lock to either the OmniSTAR satellite or the GPS
satellites.
Interference sources include radio and television transmitters, radars,
microwave ovens, poorly shielded spark plugs and aeronautical
radionavigation systems, in short: any device producing electromagnetic
energy (directly or through harmonic frequencies) in the 1525 - 1580 MHz
band.

OmniSTAR 8200HP User Manual
Issue 1.07, 10/2008
13
Operation
Before operating the receiver for the first time, ensure that you follow the
following installation instructions.
1. Mount the 8200HP receiver in a suitable place (see also page 9).
2. Mount the OmniSTAR antenna in a suitable place (see also page 10).
3. Connect the antenna cable to the antenna and the receiver, making sure
the right angle connector is connected to the antenna. Secure the
antenna cable using tie wraps.
4. Connect the data/power cable to port A of the 8200HP receiver. If
desired, also connect the data connector (9 pin sub D connector).
5. Connect the power leads to a suitable (10-32 V DC) power supply.
Getting Started
The purpose of this section is to get you started with the 8200HP as quickly as
possible. The guide will address receiving the satellite data carrier, and then
checking the functionality and status of the HP Process.
Generally, when the receiver is supplied to you it will be configured for the
mode and data link(s) you have subscribed to. In most cases getting up and
running will be a case of connecting the appropriate cables and applying power
to the system.
Communicating with the Receiver
Communicating with the receiver is possible using the receiver’s front panel
and LCD screen, the AgRemote program on a Microsoft Windows-based
computer or Viewall on a PDA. The AgRemote program will communicate with
the 8200HP through a standard serial port using the TSIP-protocol. AgRemote
will copy the front panel interface (LCD screen and buttons) to your desktop,
providing you with a familiar interface when the receiver’s front panel is hard to
reach. Because the 8200HP’s display is small, the receiver uses a number of
menus and submenus to access all of the receiver’s possible information and
configuration screens.
Starting the Receiver
The receiver’s software resides in read-only memory. As such, the unit “self-
boots” when turned on and undergoes a complete self-test. When the receiver
is first turned on, it will show the following boot sequence:
Starting Up (followed by a progress indicator bar on the second line of
the display)
