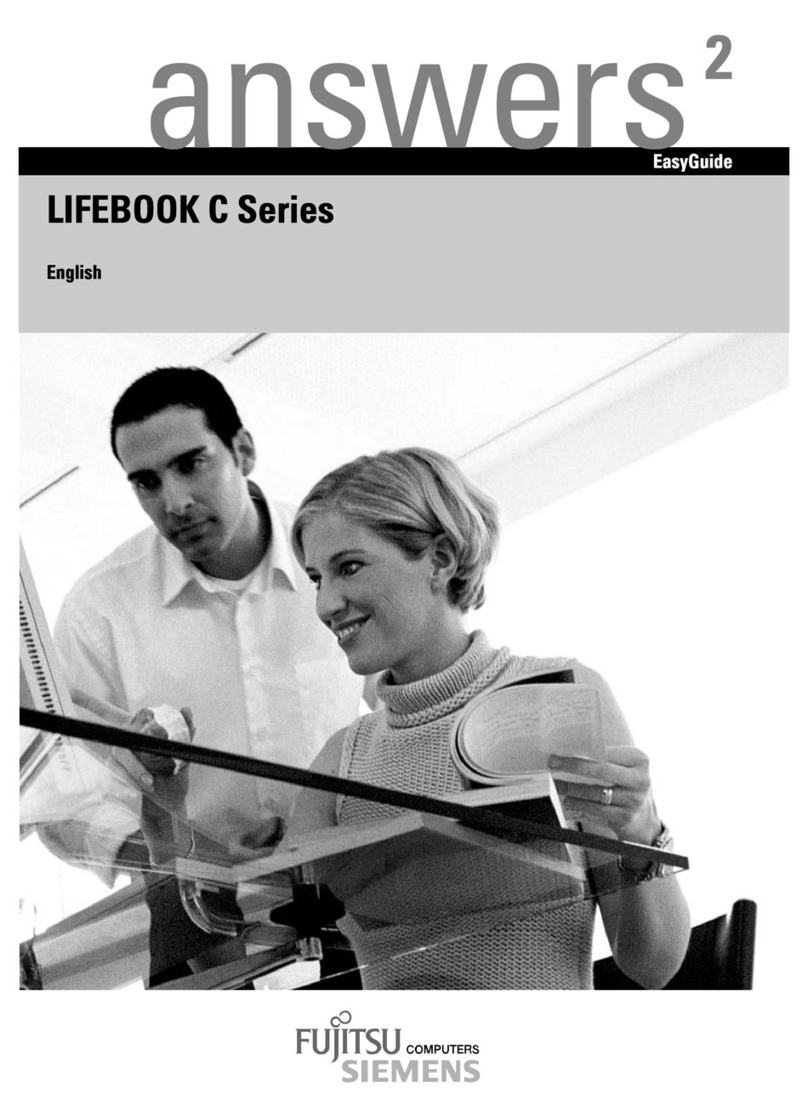

Fujitsu Siemens Computers answers 2 LIFEBOOK C Series User manual

Getting Started
LIFEBOOK C Series

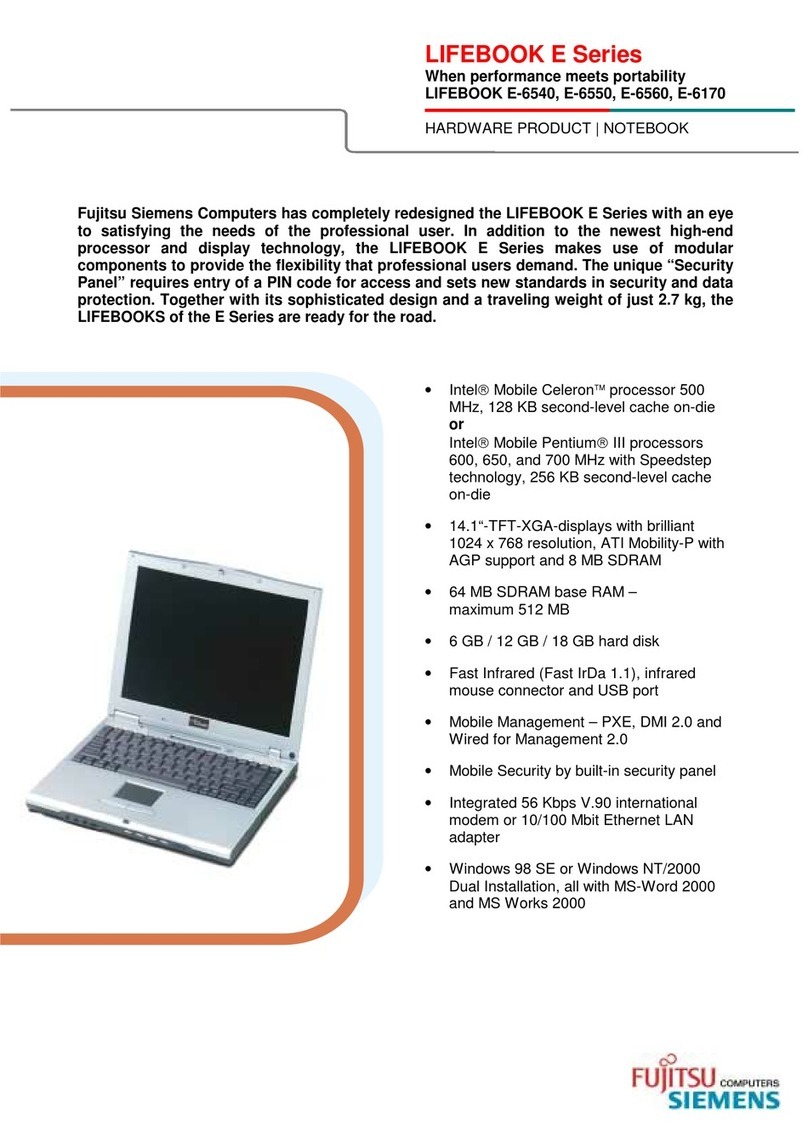

LIFEBOOK E Series
English
answers2

Are there ...
... any technical problems or other questions which you would like to be clarified?
Please contact:
• your sales partner
• your sales outlet
Additional information is contained in the "Warranty" manual and the Help Desk list.
The latest information on our products, tips, updates, etc., can be found on the internet under:
http://www.fujitsu-siemens.com

Dieses Handbuch wurde auf Recycling-Papier gedruckt.
This manual has been printed on recycled paper.
Ce manuel est imprimé sur du papier recyclé.
Este manual ha sido impreso sobre papel reciclado.
Questo manuale è stato stampato su carta da riciclaggio.
Denna handbok är tryckt på recyclingpapper.
Dit handboekwerd op recycling-papier gedrukt.
Published by
Fujitsu Siemens Computers GmbH
Order No.: A26391-K136-Z100-1-7619
Printed in the Federal Republic of Germany
AG 0503 05/03
A26391-K136-Z100-1-7619

LIFEBOOK C Series
LIFEBOOK E Series
May 2003 edition

Microsoft, MS, MS-DOS, Windows, and Windows NT are registered trademarks of Microsoft
Corporation.
VESA and DPMS are trademarks of Video Electronics Standards Association.
PS/2 is a registered trademark of International Business Machines, Inc.
Adobe and Acrobat are trademarks of Adobe systems Incorporated and may be protected in
certain countries.
Intel is a registered trademark of Intel Corporation, USA.
All other trademarks referenced are trademarks or registered trademarks of their respective
owners, whose protected rights are acknowledged.
Copyright
 Fujitsu Siemens Computers GmbH 2003
All rights, including rights of translation, reproduction by printing, copying or similar methods,
in part or in whole, are reserved.
Offenders will be liable for damages.
All rights, including rights created by patent grant or registration of a utility model or design,
are reserved.
Delivery subject to availability. Right of technical modification reserved.
This manual was produced by
cognitas. Gesellschaft für Technik-Dokumentation mbH
www.cognitas.de

A26391-K136-Z100-1-7619
Contents
Your LIFEBOOK .............................................................................................................................. 1
Notational conventions.............................................................................................................. 1
Important notes................................................................................................................................. 2
Declarations of Conformity........................................................................................................ 2
The "EasyGuide" manual and other sources of information ...................................................... 2
Safety notes.............................................................................................................................. 2
Additional safety precautions for devices with wireless LAN ..................................................... 3
Preparation for use and operation..................................................................................................... 4
Unpacking and checking the delivery........................................................................................ 4
Selecting a location................................................................................................................... 4
Connecting the power adapter .................................................................................................. 5
Switching on the notebook for the first time............................................................................... 6
Switching the notebook off........................................................................................................ 7
Touchpad and touchpad buttons............................................................................................... 7
Battery...................................................................................................................................... 9
System settings................................................................................................................................ 9
BIOS Setup............................................................................................................................... 9
Drivers and utilities.................................................................................................................... 9
"Windows Recovery CD"..........................................................................................................10
Troubleshooting and tips..................................................................................................................10
The notebook cannot be started...............................................................................................10
No display appears on screen, power-on indicator flashes.......................................................10
The battery indicator flashes....................................................................................................11
The battery discharges too quickly...........................................................................................11
The Suspend/Resume button does not respond properly.........................................................12
No sound or minimal volume....................................................................................................12
The CD/DVD does not function................................................................................................12
Contact with hotline/help desk..................................................................................................12

A26391-K136-Z100-1-7619 1
Your LIFEBOOK ...
is a versatile and ergonomic notebook. Innovative technology and an ergonomic design make your
notebook a reliable, convenient mobile PC. Your operating system is pre-installed on the hard disk
for your convenience when you use your notebook for the first time.
This "Getting Started" operating manual tells you how to put your notebook into operation. If a
technical problem should arise, helpful information can be found in the "Troubleshooting and tips"
chapter.
Notational conventions
The meanings of the symbols and fonts used in this manual are as follows:
!
Indicates information which is important for your health or for preventing
physical damage. Failure to follow the instructions may lead to loss of
data, invalidate your warranty, destroy the notebook, or endanger your
life.
i
Indicates important information which is required to use the system
properly.
Ê Text which follows this symbol describes activities that must be performed
in the order shown.
This font indicates screen outputs.
This font indicates programme names, commands, or menu items.
"Quotation marks" indicate names of chapters, data carriers, and terms that are being
emphasised.

LIFEBOOK C Series / E Series
2A26391-K136-Z100-1-7619
Important notes
This chapter contains references to other sources of information. It is essential that you observe the
safety information for your notebook.
Declarations of Conformity
The "Declarations of Conformity" concerning this notebook can be found at our internet address:
http://www.driver-cd.com.
Hereby, Fujitsu Siemens Computers, declares that this LIFEBOOK C Series is in compliance with the
essential requirements and other relevant provisions of Directive 1999/5/EC.
Hereby, Fujitsu Siemens Computers, declares that this LIFEBOOK E Series is in compliance with the
essential requirements and other relevant provisions of Directive 1999/5/EC.
The "EasyGuide" manual and other sources of information
Detailed instructions and technical information for your notebook are contained in the "EasyGuide"
manual. This manual is only available as a PDF file. If you connect a printer to your notebook, you
can print out the "EasyGuide" manual.
On Windows systems
The programme Adobe Acrobat Reader must be installed to be able to open the "EasyGuide" manual.
If the installation file can be found in the menu Start - AddOn, install the programme by double-
clicking on the installation file. If you cannot find the installation file, the programme Adobe Acrobat
Reader has already been preinstalled.
The "EasyGuide" manual can be opened from the menu Start - AddOn or by double-clicking on the
symbol in the C:\Progs\EasyGuide folder.
Further information about your notebook can also be found:
• on the CD "Drivers & Utilities"
• in the "Safety" manual
• in the "Warranty" manual
• in the information files (e.g. *.TXT,*.DOC,*.WRI,*.HLP, *.PDF)
• in your operating system documentation
• on the internet at http://www.fujitsu-siemens.com/
Safety notes
!
It is essential that you observe the following safety information, as well as safety
information provided in the "Safety" manual.
Observe the sections in the manual marked with the symbol on the left.
• During installation and before operating the device, observe the instructions on environmental
conditions in the chapter entitled "Preparation for use and operation" as well as the instructions
in the "Technical Data" chapter of the "EasyGuide" manual.
• When connecting and disconnecting cables, observe the relevant notes in the "EasyGuide"
manual.
• When cleaning the notebook, observe the relevant notes in the "EasyGuide" manual.

LIFEBOOK C Series / E Series
A26391-K136-Z100-1-7619 3
• Your notebook is equipped with numerous security functions that offer you a high level of
security according to a multi-level concept. Details are contained in the "Safety functions"
chapter in the "EasyGuide" manual.
• If you have a device with a wireless LAN, also observe the information in the section
"Additional safety precautions for devices with wireless LAN".
This notebook complies with the relevant safety regulations for data processing equipment. If you
have questions as to whether you can set up the notebook in the intended environment, please
contact your sales point or our hotline/help desk.
Additional safety precautions for devices with wireless LAN
If a wireless LAN component is integrated in your notebook, you must be sure to observe the
following safety precautions when using your notebook:
• The transmitted radio waves can cause an unpleasant humming in hearing aids.
• Switch off the notebook when you are in an aircraft or driving in a car.
• Switch off the radio components on the notebook when you are in a hospital, an operating
room or near a medical electronics system. The transmitted radio waves can impair the
operation of the medical devices.
• Keep the notebook at least 20 cm from a pacemaker, as otherwise the proper operation of the
pacemaker may be impaired by radio waves.
• Do not let the notebook near flammable gases or into hazardous environments (e.g.
paintshops) with radio components switched on, as the transmitted radio waves can cause an
explosion or a fire.
• The range of the radio connection is dependent on environmental and ambient conditions.
• With data traffic via a wireless connection, it is also possible for unauthorised third parties to
receive data.
The company Fujitsu Siemens Computers GmbH cannot be held responsible for radio or television
faults arising from unauthorised changes made to this device. Fujitsu Siemens is, furthermore, not
responsible for replacing and / or exchanging connector cables and devices which have not been
specified by Fujitsu Siemens Computers GmbH. The user is solely responsible for repairing faults
arising from such unauthorised changes made to a device and for replacing and / or exchanging
devices.

LIFEBOOK C Series / E Series
4A26391-K136-Z100-1-7619
Preparation for use and operation
!Please observe the safety information in the previous chapter.
You must charge the battery and install the application programmes before you can work with the
notebook. The operating system and drivers required are preinstalled.
The battery supplies your notebook with the necessary power during mobile use. If you use the
notebook in a normal office situation, you can run it from the mains using the power adapter.
Unpacking and checking the delivery
Ê Unpack all the individual parts.
Ê Check the delivery for damage incurred during transportation.
!
Should you discover damages incurred during transportation, notify your local sales outlet
immediately!
i
Do not discard the original packing material of the devices. Keep the original packing
material in case you need to ship the equipment again.
Selecting a location
Select a suitable location for the notebook before setting it up. Consider the following points when
looking for a location:
• Do not place it on a soft surface (e.g., a carpet or soft furnishings). The space between the
notebook's feet must be clear.
• Place the notebook on a stable, flat, nonslippery surface. In view of the multitude of different
finishes used on furniture, it is possible that the rubber feet of the notebook will mark the
surface they stand on.
• Never place the notebook and the power adapter on a heat-sensitive surface.
• The notebook and the power adapter should be at least 200 mm apart.
• Keep other objects 100 mm away from the notebook and its power adapter to ensure adequate
ventilation.
• Never cover the fan intake or exhaust openings of the notebook or the power adapter.
• Do not expose the notebook to extreme environmental conditions.
• Protect the notebook from dust, humidity, and heat.
• For wireless data transfer, you must align the notebook's infrared interface with that of the
partner device (e.g. PC). The devices must not be more than one metre apart.

LIFEBOOK C Series / E Series
A26391-K136-Z100-1-7619 5
Connecting the power adapter
!
Please take note of the information in the section "Selecting a location".
The power cable supplied conforms to the requirements of the country in which you
purchased your notebook. Make sure that the power cable is approved for use in the
country in which you intend to use it.
The power adapter's AC cord should only be connected to a mains outlet if the notebook
is connected to the power adapter.
Upon delivery, the battery can be found in the battery compartment.
Do not use the power adapter for other notebooks or devices.
Do not use a power adapter that is not specially intended for this notebook.
1
2
3
Ê Connect the power adapter cable to the DC jack (DC IN) of the notebook (1).
Ê Connect the power cable to the power adapter (2).
Ê Plug the power cable into the mains supply (3).
The battery indicator of the notebook appears in the status indicator panel. The notebook
battery is charging.

LIFEBOOK C Series / E Series
6A26391-K136-Z100-1-7619
Switching on the notebook for the first time
When you switch on your notebook for the first time, the supplied software is installed and
configured. You should plan some time for this, as this process must not be interrupted.
To make it easier to use the notebook for the first time, the operating system has been preinstalled
on the hard disk.
2
1
Ê Slide the release button in direction of the arrow (1) and open the LCD screen (2).
Ê Press the Suspend/Resume button to switch on the notebook (3).
The power-on indicator of the notebook appears in the status indicator panel.
!
After switch-on a self-test (POST, Power On Self Test) is automatically carried out. Never
switch the notebook off during the self-test.
Leave the external power adapter connected to your notebook during the initial
installation.
Once the installation has been started, the notebook must not be switched off!
During installation, the notebook may only be rebooted when you are requested to do so!

LIFEBOOK C Series / E Series
A26391-K136-Z100-1-7619 7
Ê During installation, follow the instructions on screen.
Consult the operating system manual if there is anything unclear about the requested input data.
i
If there is installed on your notebook a Windows operating system the "Drivers°&°Utilities"
CD is included in the delivery scope. You will find further information on the system,
drivers, utilities, updates, manuals etc. on this "Drivers & Utilities" CD.
Switching the notebook off
Ê Close all programmes and shut down your operating system (please see operating system
manual).
Ê If the notebook does not switch off automatically, press the Suspend/Resume button for
approx. 3-4 seconds (1).
Ê Close the LCD screen of the notebook (2) so that it locks into place.
Touchpad and touchpad buttons
!
Keep the touchpad clean, protect it from dirt, liquids, and grease.
Do not use the touchpad if your fingers are dirty.
Do not rest heavy objects (e.g. books) on the touchpad or the touchpad buttons.
The touchpad enables you to move the mouse pointer on the screen. The touchpad buttons allow
the selection and execution of commands. They correspond to the buttons on a conventional
mouse.

LIFEBOOK C Series / E Series
8A26391-K136-Z100-1-7619
2
1
1 = Touchpad 2 = Touchpad keys and touchpad scroll keys
Moving the pointer
Ê Move your finger on the touchpad.
The pointer will move accordingly.
Selecting an item
Ê Move the pointer to the item you wish to select.
Ê Tap the touchpad once or press the left button once.
The item will be selected.
Executing a command
Ê Move the pointer to the field you wish to select.
Ê Tap the touchpad twice or press the left button twice.
The command will be executed.
Dragging an object
Ê Move the pointer to the item you wish to select.
Ê Select the desired object, and leave your finger on the touchpad.
Ê Drag the object to the desired position.
Ê Lift your finger from the touchpad.
The item will be moved.
Scrolling up
Ê Press the upper side of the touchpad scroll button to scroll up.
The information/texts above the display area appear.

LIFEBOOK C Series / E Series
A26391-K136-Z100-1-7619 9
Scrolling down
Ê Press the lower side of the touchpad scroll button to scroll down.
The information/texts below the display area appear.
Battery
The battery supplies your notebook with the necessary power during mobile use. The battery
indicator displays the current state of the battery.
!
The battery in the notebook is not fully charged at the time of delivery. You must first
charge the battery with the power adapter connected to the mains supply (see
"Connecting the power adapter").
Information on how to install and remove the battery, how to maintain and service it, and how to
optimise the battery operating time can be found in the "EasyGuide" manual.
System settings
In BIOS Setup you can set the system functions and the hardware configuration of the notebook. The
"Drivers & Utilities" CD contains useful software and drivers required for the optimum configuration
of your notebook. With the “Windows Recovery CD" you can restore the operating system on your
notebook.
BIOS Setup
With the BIOS Setup you can change a number of parameters and therefore the configuration of your
notebook. For example, you can use the BIOS Setup to set the date and time. In addition, the
BIOS Setup is also used to assign passwords and monitor energy-saving functions. You can start the
BIOS Setup by pressing the
[F2] key while booting the system. The BIOS Setup is ended with the Exit
menu. Additional information on the BIOS Setup is contained in the "EasyGuide" manual.
Drivers and utilities
CD "Drivers & Utilities" for Windows systems
If there is installed on your notebook a Windows operating system the "Drivers°&°Utilities" CD is
included in the delivery scope.
The "Drivers & Utilities" CD contains useful software and drivers required for the optimum
configuration of your notebook. Additional information for your notebook and Readme files for the
software provided are also included.
Should you have to carry out a new installation of your operating system, then the original drivers
and software for your notebook can be restored onto the hard disk with the "Drivers & Utilities" CD.
You will always find the drivers available when the device was shipped on the "Drivers & Utilities"
CD.
Driver updates are available at: http://www.driver-cd.com.

LIFEBOOK C Series / E Series
10 A26391-K136-Z100-1-7619
"Windows Recovery CD"
With the “Windows Recovery CD" you can restore the operating system on your notebook.
Additional information is contained in the "EasyGuide" manual.
Troubleshooting and tips
This chapter describes problems that may occur when working with your notebook. If you fail to
correct the problem, proceed as described in the section "Contact with hotline/help desk".
The notebook cannot be started
If the notebook does not start after switch on, this may be due to one of the following:
The battery is not installed correctly.
Ê Switch the notebook off.
Ê Check whether the battery is installed correctly in its compartment.
Ê Switch the notebook on.
The battery is dead.
Ê Charge the battery.
or
Ê Install a charged battery.
or
Ê Connect the power adapter to the notebook.
The power adapter is not connected correctly.
Ê Switch the notebook off.
Ê Check whether the power adapter is connected correctly to the notebook.
Ê Check whether the power cable is plugged properly into the power adapter and into the mains
outlet. The indicator on the power adapter should illuminate.
Ê Switch the notebook on.
No display appears on screen, power-on indicator flashes
If no display appears on the screen and the power-on indicator flashes, this may have the following
causes:
The screen power-management feature may be active.
Ê Press any key to activate the display.
The notebook is in Standby or Suspend mode.
Ê Press the Suspend/Resume button to end the Standby or Suspend mode.

LIFEBOOK C Series / E Series
A26391-K136-Z100-1-7619 11
The display angle or brightness may not be properly adjusted.
Ê Change the display angle and set the brightness by pressing the key [Fn] together with the key
[F6] (darker) or [F7] (brighter) until the picture appears correct.
The notebook is set so that the picture only appears on the external screen.
Ê Press the key combination [Fn] + [F10] to switch over the display to the LCD screen or to
specify the simultaneous display on the LCD screen and the external screen.
If you are operating the notebook with a battery, you may have overlooked the reference to
the low battery level and the notebook has switched over to Standby mode.
Ê Connect the power adapter.
Ê Press the Suspend/Resume button.
The battery indicator flashes
The battery is dead.
If the battery indicator flashes, the battery is not charged.
Ê Charge the battery.
If this does not succeed, you must change the battery for a new one. When you dispose of used
batteries, please observe the safety instructions in the "EasyGuide" manual.
The battery discharges too quickly
The battery is either too hot or too cold. In this case the battery indicator flashes.
Ê Bring the notebook up / down to a normal temperature again.
If the operating time of the battery mode is extremely short, the battery is probably old and should
be replaced.
You may have an application running that consumes a great deal of power due to frequent
accessing of the hard disk or CD-ROM drive.
Ê Use the power adapter as frequently as possible.
The maximum brightness may have been set for the screen.
Ê Set the screen somewhat darker with the key [Fn] and the key [F6] to reduce the power
consumption.
The power-management features have been deactivated.
Ê Check the settings in the BIOS Setup (in the Processor menu), and adjust the parameters.

LIFEBOOK C Series / E Series
12 A26391-K136-Z100-1-7619
The Suspend/Resume button does not respond properly
The system may be processing.
Ê Wait until the system has completed processing.
You have not pressed the Suspend/Resume button long enough to switch off the notebook.
Ê Press the Suspend/Resume button of the workstation for approx. 4 seconds.
No sound or minimal volume
Check that the hardware volume control is correctly set.
Ê Double-click on the volume indicator in the task bar and adjust the volume. Make sure that the
loudspeaker is not switched off here.
Ê Make sure that the sound driver is correctly installed under Control Panel - System - Device
Manager.
Ê Use the key combination [Fn] + [F3] to check the mute status.
Ê Use the key combination [Fn] + [F8] or [Fn] + [F9] to check the volume.
The CD/DVD does not function
Check whether the CD/DVD has been properly inserted into the drive.
Ê Check whether the CD/DVD is scratched, warped, dirty or damp.
Ê Make sure that you use a CD/DVD that complies with the standards.
Ê Use the key combination [Fn] + [F3] to check the mute status.
Ê Use the key combination [Fn] + [F8] or [Fn] + [F9] to check the volume.
Contact with hotline/help desk
If you are unable to solve a certain problem, please contact the hotline/help desk. The telephone
numbers are contained in the supplied help desk list. Please have the following information ready
when you call:
• The model name and serial number of the notebook. The serial number is located on a sticker
on the underside of the notebook.
• Notes of any messages that appear on the screen and information on acoustic signals.
• Any changes you have made to the hardware or software after receiving the notebook.
• Any changes you have made to the BIOS Setup settings after receiving the notebook.
• Your system configuration and all peripheral devices connected to your system.
• Your sales contract.
