Fujitsu Siemens Computers CELSIUS H250 Product information sheet

Professional Notebook / Workstation English
EasyGuide
CELSIUSH/LIFEBOOKESeries

Are there ...
... any technical problems or other questions you need clarified?
Please contact:
• our Hotline/Help Desk (please refer to the enclosed Help Desk list or look up the
contact details on our website at: "www.fujitsu-siemens.com/support/")
• Your authorized distributor
• your sales office
Additional information is contained in the Help Desk list and the "Warranty" manual. The
"Warranty" manual can be found on the "Drivers & Utilities" CD/DVD.
The latest information on our products, tips, updates, etc. can be found on
our website at: "www.fujitsu-siemens.com"

This manual was produced by Xerox Global Services
Published by
Fujitsu Siemens Computers GmbH
AG 08/08
Edition 2
Order no.: A26391-K226-Z120-1-7619

CELSIUS H /LIFEBOOK E Series
Innovative technology… 1
Notational conventions 2
Important notes 3
Ports and operating elements 4
Removing and installing components
during servicing 21
Technical data 27
Index 30
EasyGuide

Adobe and Acrobat are trademarks of Adobe Systems Incorporated and may
be protected in certain countries.
The Bluetooth trademarks are the property of Bluetooth SIG, Inc., U.S.A. and
licensed to Fujitsu Siemens Computers GmbH.
Intel is a registered trademark and Core is a trademark of Intel Corporation, USA.
Kensington and MicroSaver are registered trademarks of ACCO World Corporation.
Macrovision is a trademark of Macrovision Corporation, USA.
Microsoft, MS, MS-DOS, Windows, Windows NT and Windows Vista are registered
trademarks of the Microsoft Corporation.
All other trademarks referenced are trademarks or registered trademarks of their
respective owners, whose protected rights are acknowledged.
Copyright © Fujitsu Siemens Computers GmbH 2008
All rights reserved, including rights of translation, reproduction by printing, copying
or similar methods, in part or in whole.
Offenders will be liable for damages.
All rights reserved, including rights created by patent grant or registration of a utility model or design.
Subject to availability and technical modifications.

Contents
Contents
Innovativetechnology… ............................................................... 1
Notationalconventions ................................................................ 2
Importantnotes ........................................................................ 3
Ports and operating elements ......................................................... 4
OpenedNotebook ...................................................................... 4
Leftside ................................................................................ 5
Rightside .............................................................................. 5
Rear ................................................................................... 6
Under side . . . .......................................................................... 7
Switching on the notebook . . . . ........................................................... 8
SwitchingofftheNot
ebook . . . ........................................................... 9

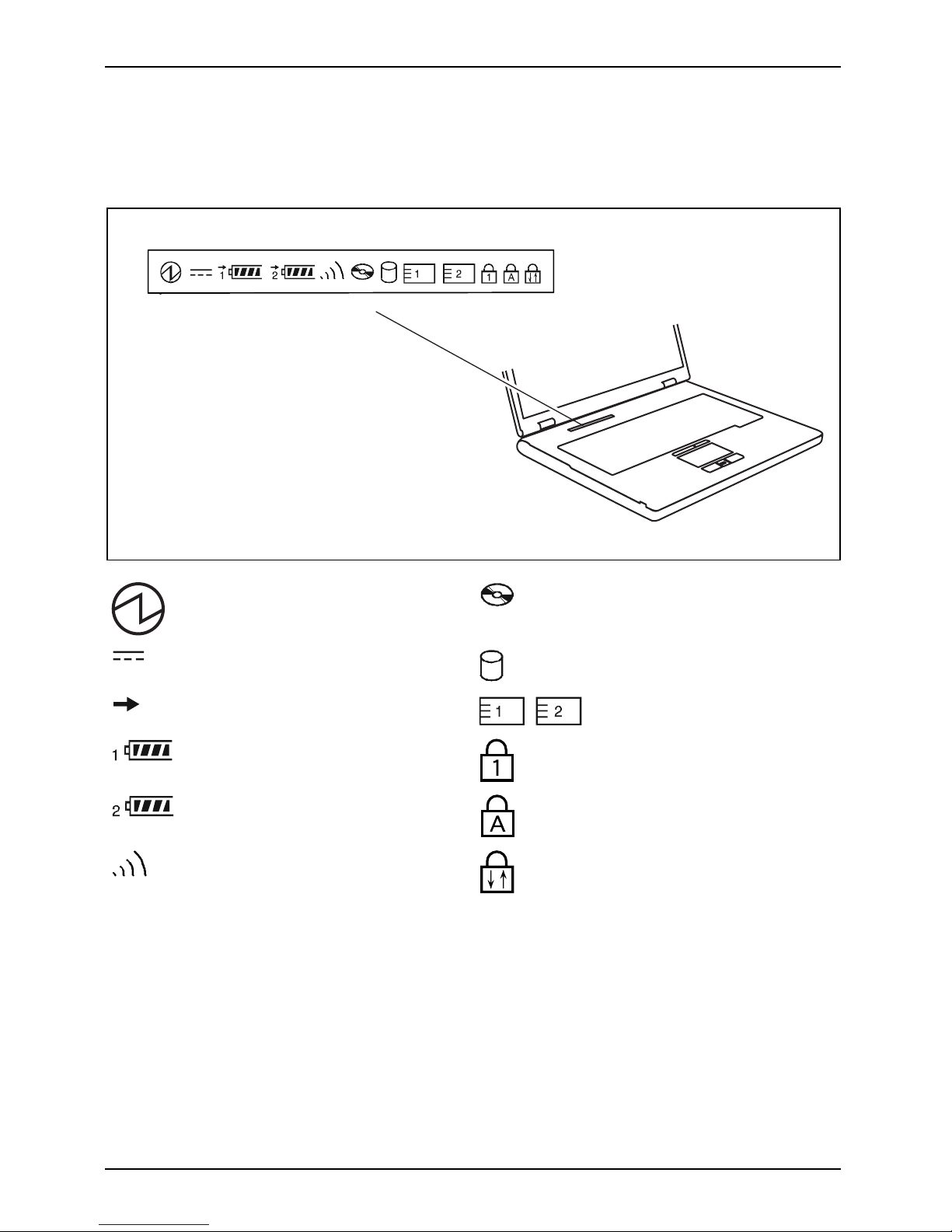

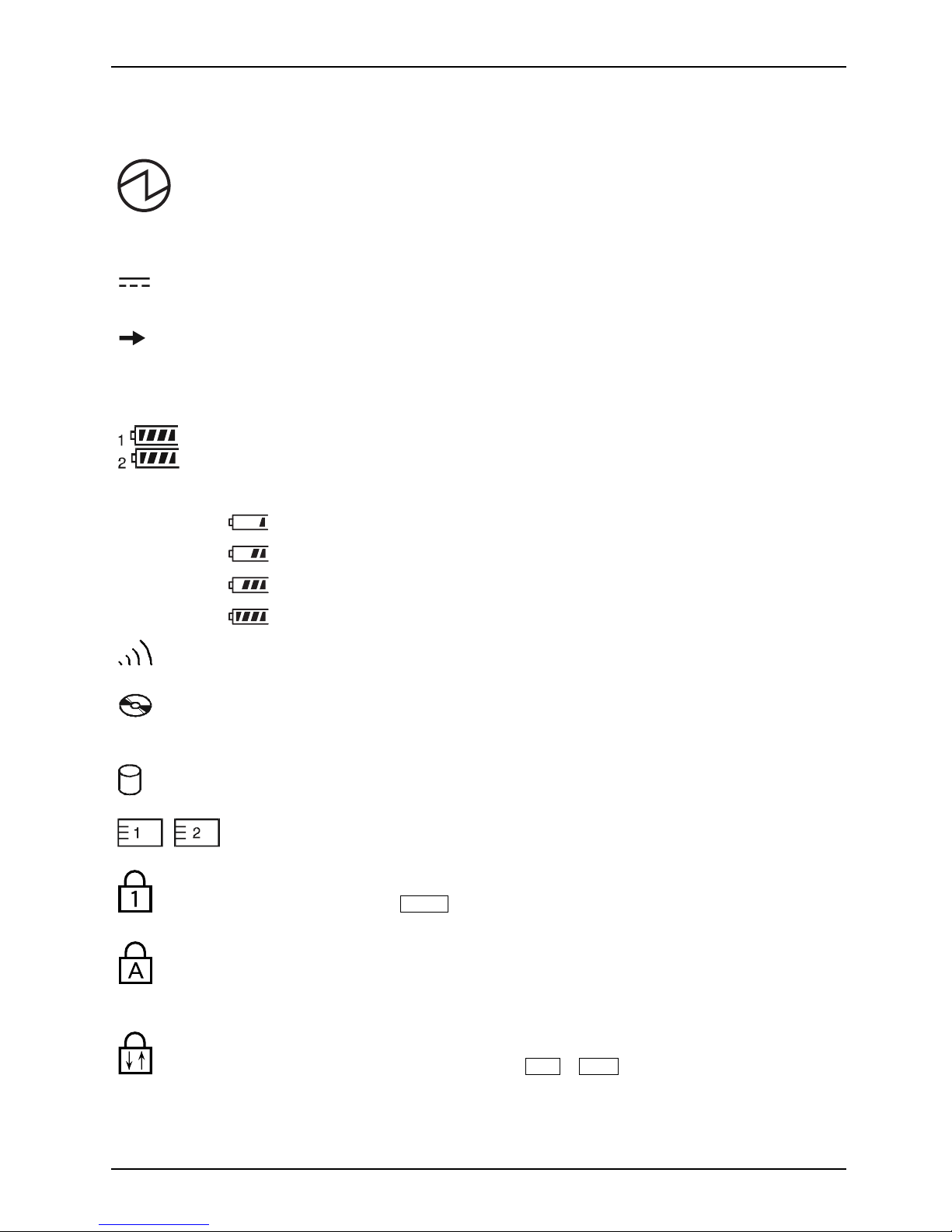

Status indicator panel ................................................................... 10

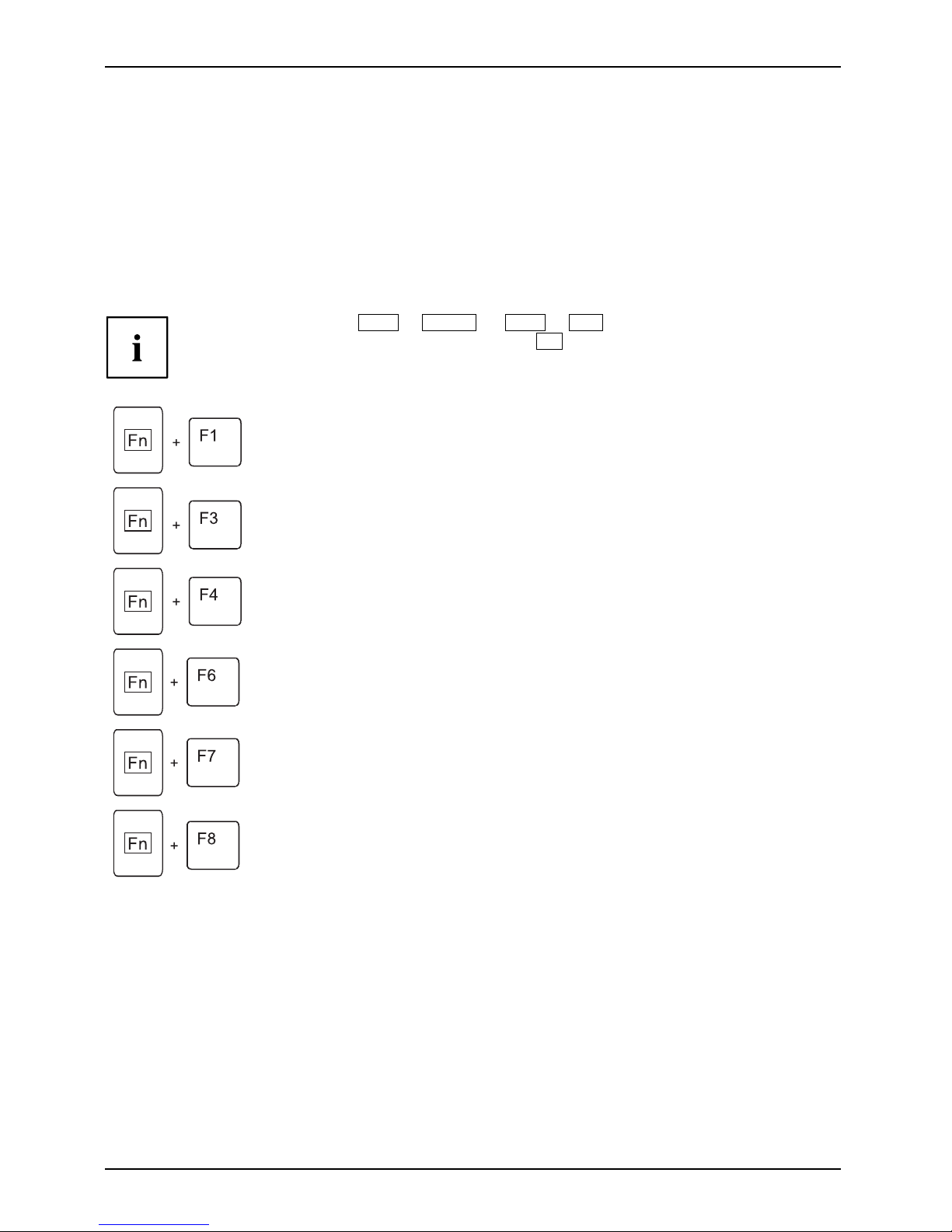

Keycombinations ....................................................................... 12
Application buttons ...................................................................... 14
Programming the application keys .................................................... 14
Camera (optional) ....................................................................... 15
Removing and installingthebattery ....................................................... 15
Removing the battery ................................................................ 16
Installing battery .................................................................... 16
Removing and installing the air filter ...................................................... 17
Air filter removal .................................................................... 17
Install air filter ...................................................................... 18
SIM card ............................................................................... 18
Inserting theSIMcard ............................................................... 19
RemovingaSI
Mcard ............................................................... 19
Radio components:UMTS(optional)/wirelessLAN/Bluetooth ................................ 20
Switching the radio components on and off ............................................ 20
Removing and installing components during servicing . . . . ............................. 21
Noteson installingandremovingboardsandcomponents .................................. 21
Removing andinstalling the hard disk .................................................... 21
Removing the cover ................................................................. 22
Harddiskremoving .................................................................. 22
Installing the hard disk ............................................................... 23
Attachingthecover .................................................................. 23
Removing andinstalling memorymodules ................................................ 24
Coverremoval ...................................................................... 25
Removing memorymodules .......................................................... 25
Installing amemorymodule .......................................................... 25
Attachingthecover .................................................................. 26
Technicaldata ......................................................................... 27
CELSIUS H250/LIFEBOOK E8410 ....................................................... 27
Battery ................................................................................. 28
Mains adapter 80W . . . .................................................................. 29
100Wmainsadapter .................................................................... 29
Index .................................................................................. 30
A26391-K226-Z120-1-7619, edition 2

Contents
A26391-K226-Z120-1-7619,edition2

Innovative technology…
Innovative technology…
... and an ergonomic design make your notebook a reliable, convenient mobile PC.
This manual describes the CELSIUS H250 mobile workstation and the LIFEBOOK E8410. Most of
the sections in this manual apply to all models – any differences are indicated separately.
Your notebook features the very latest technology so that you get the best performance from
your computing experience. Depending on which model you own, you have access to:
• Upto4Gbyteofmainmemory(RAM)
• A PC card slot for using a type I or type II PC card
• An ExpressCard slot for operating an ExpressCard/34 or ExpressCard/54
• aSIMcardslotinwhichyoucaninsertaSIMcard
• a memory card slot for transferring digital photos, music and videos quickly onto your notebook
• a SmartCard reader to protect your notebook from unauthorised access
• An internal modem for connecting to the internet
• an S-Video Out socket for connecting your notebook to your television
• A FireWire port for connecting high speed devices such as digital camcorders
• A module bay for operating the following modules:
• Second battery
• Second hard disk drive
• Combo drive (CD-RW/DVD)
• Super-multi format DVD burner with double layer support
• Weight Saver
• a touchpad and an additional touchstick
• an integral camera to take photos and to video chat
• an audio controller, two built-in microphones and two internal loudspeakers
• You can even connect an external microphone and external loudspeakers
to obtain an even better sound quality
With the user-friendly BIOS-Setup you can control the hardware of your notebook and protect your
system better against unauthorised access by using the powerful password properties.
This operating manual tells you how to put your notebook into operation
and how to operate it in daily use.
Further information on this notebook is provided:
• in the "Professional Notebook" operating instructions
• in the "Safety" and "Warranty" manuals
• in the "Wireless LAN" manual
• in the documentation of the operating system
•Intheinformationfiles (e.g. *.TXT, *.DOC, *.WRI, *.HLP, *.PDF)
You can find information on accessories for your notebook at
"www.fujitsu-siemens.com/accessories".
A26391-K226-Z120-1-7619, edition 2 1

Notational conventions
Notational conventions
Pay particular attention to text marked with this symbol. Failure to observe
this warning will endanger your life, will damage the device or lead to loss
of data. The warranty will be invalidated if you cause defects in the device
through failure to take notice of this warning
indicates important information that is required to use the device properly.
►indicates an activity that must be performed in the order shown
indicates a result
This style flags data entered using the keyboard in a program dialog or command
line, e.g. your password (Name123) or a command to launch a program
(start.exe)
This style refers to information displayed by a program on the screen, e.g.:
Installation is completed
This style is for
• terms and texts in a software user interface, e.g.: Click Save.
• names of programs or files, e.g. Windows or setup.exe.
"This style" is for
• cross-references to another section, e.g. "Safety information"
• cross-references to an external source, e.g. a web address: For more
information, go to "www.fujitsu-siemens.com"
• indicates names of CDs and DVDs as well as names and titles of other
materials, e.g.: "CD/DVD Drivers & Utilities" or "Safety" manual
Abc refers to a key on the keyboard, e.g.: F10
This style flags concepts and text that are emphasised or highlighted, e.g.: Do not
switch off device
2 A26391-K226-Z120-1-7619, edition 2

Important notes
Important notes
Take note of the safety hints provided in the "Safety" manual, in the "Professional
Notebook" operating manual and in this manual.
A26391-K226-Z120-1-7619, edition 2 3

Ports and operating elements
Ports and operating elements
Ports
This chapter presents the individual hardware components of your device. This will provide
you with an overview of the ports and operating elements on the device. Please familiarise
yourself with these components before starting to work with your device.
Opened Notebook
FrontViewBuilt-inmicrophone (depen dingon mo del)Built-inmicrop hone (depen dingon mo del)LoudspeakerStatusindicator panelEasyLau nchk eysOn/OffswitchTou c h S t i c kTouchStickkeysTo u ch p a dScrollbarorfingerprints ensorTouchpadkeys
4
3
56
7
811
2
12
9
3
10
12
14
13
1=Camera
2 = Built-in microphones
3 = Loudspeaker
4 = Status indicator panel
5 = Easy Launch keys
6 = On/Off switch
7 = TouchStick
8 = TouchStick keys
9 = Touchpad
10 = Scroll bar or fingerprint sensor
11 = Touchpad keys
12 = Screen lock
13 = Memory card slot
14 = ON/OFF switch for radio components
4 A26391-K226-Z120-1-7619, edition 2

Ports and operating elements

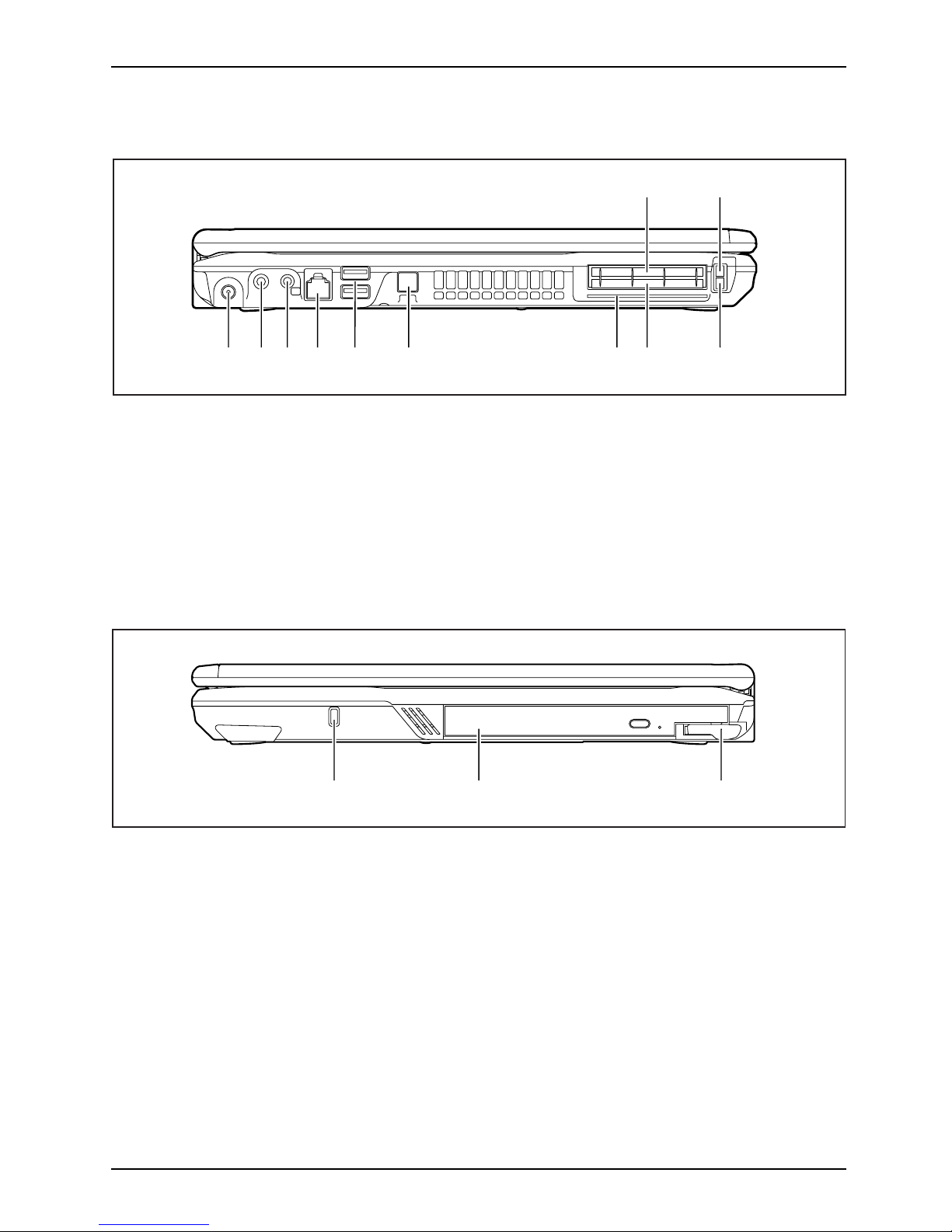

Left side
DCINjackMicrophoneportModemp ortUSBportFireW ire po rtSm artCardreaderPCcardslotExpressCard slotCard ejectbuttonHeadphon eport/SPD IF
1234 5 6 78
9
9
10
1=DCINjack
2 = Microphone port
3 = Headphone port / SPDIF (CELSIUS
H250 only)
4 = Modem port
5=USBports
6 = FireWire port
7 = SmartCard reader
8 = PC card slot
9 = Card eject button
10 = ExpressCard slot
Right side
RightsideViewModuleKens ingtonLock
12 3
1 = Kensington Lock
2 = Module
3 = Eject lever for module
A26391-K226-Z120-1-7619, edition 2 5

Ports and operating elements
Rear
ViewRearKensingtonLockUSBportParallelportSerialportMonitorport(VGA)S-VideoOUTsocketLANport
1
23 4567
1 = Kensington Lock
2 = USB ports
3 = Parallel port
4 = Serial port
5 = Monitor port (VGA)
6 = LAN port
7 = S-Video OUT socket
6 A26391-K226-Z120-1-7619, edition 2

Ports and operating elements
Under side
UndersideBatterylockBatteryPortforportreplicatorAirfilterMemorymodule
1
2
3
4
55
1=Airfilter
2 = Port for port replicator
3 = Cover for memory modules
4 = Battery
5 = Battery lock
A26391-K226-Z120-1-7619, edition 2 7

Ports and operating elements

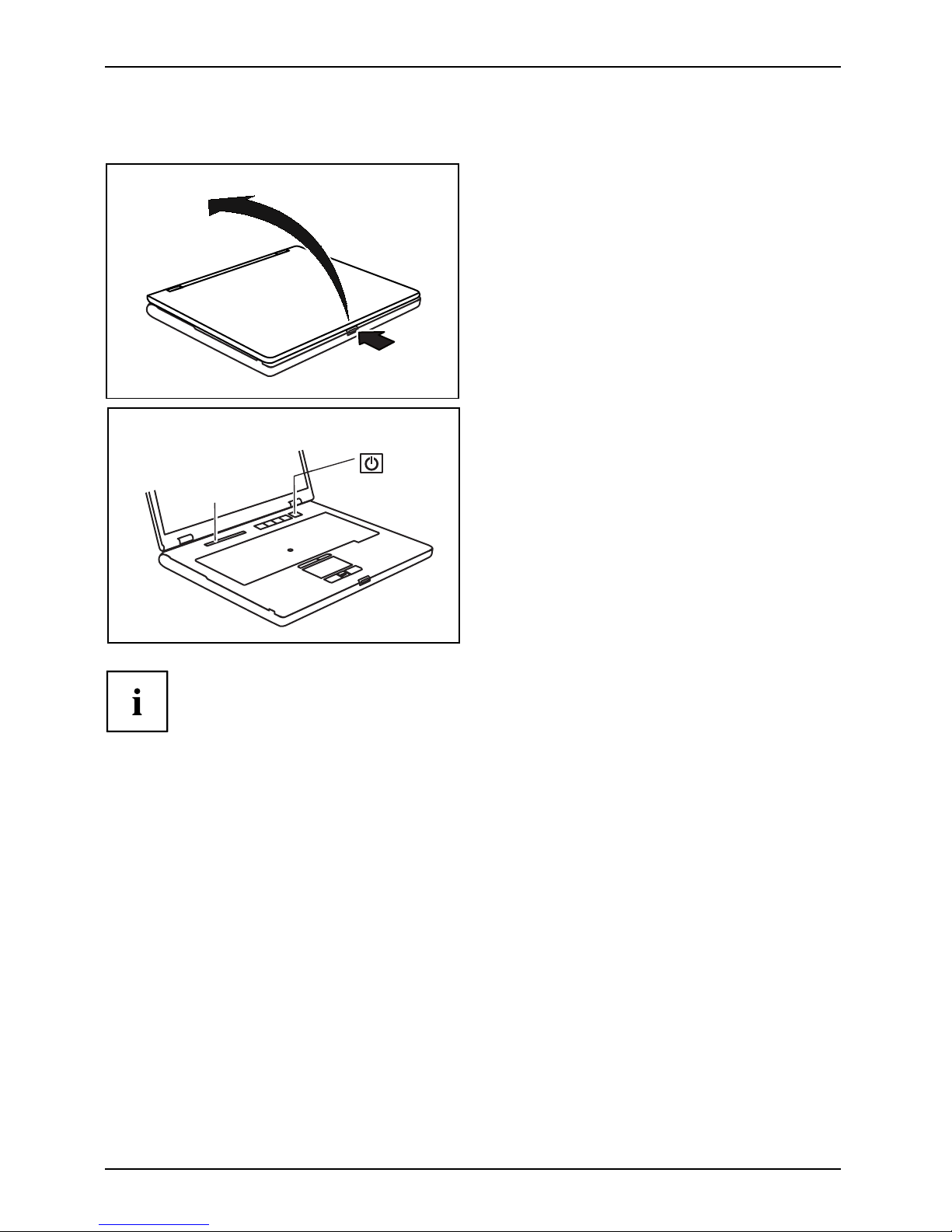

Switching on the notebook
1
2
►Press the release button (1) and open
the LCD–display panel (2).
1
2
►Press the ON/OFF button (1) to switch
the notebook on.
The power-on indicator of the notebook
appears in the status indicator panel (2).
Windows XP
You can configure the ON/OFF switch under Start – (Settings) – Control Panel –
Performance and Maintenance – Power Options – Advanced.
Windows Vista
You can configure the ON/OFF switch under Start symbol – (Settings) –
Control Panel – Mobile PC – Power Options.
If you have assigned a password, you must enter this when requested to do so, in
order to start the operating system password. You can find more information in the
"Professional Notebook" operating instructions, "Security functions" section.
8 A26391-K226-Z120-1-7619, edition 2

Ports and operating elements
Switching off the Notebook
►Close all applications and shut down your operating system (please
see operating system manual).
If the notebook cannot be shut down properly, press and hold the ON/OFF button for
approximately four seconds. The notebook will switch off. Any unsaved data may be lost.
►Close the LCD screen so that it
locks into place.
A26391-K226-Z120-1-7619, edition 2 9

Ports and operating elements
Status indicator panel
Statusindicator panel
The status indicator panel is a small LCD panel on which various symbols appear. These symbols
provide information about the status of the power supply, the drives, and the keyboard functions.
Power-on indicator CD/DVD indicator
Power indicator Hard disk indicator
Battery charging indicator PC card/ExpressCard
indicators
First battery indicator Num Lock indicator
Second battery indicator Caps Lock indicator
Radio components indicator Scroll Lock indicator
10 A26391-K226-Z120-1-7619, edition 2

Ports and operating elements
The meanings of the symbols are as follows:
Power-on indicator
Power-onindi catorI ndicator
• Indicator lights up: The notebook is switched on.
• The indicator flashes (1 second on / 1 second off): The notebook is in power
saving mode.
• The indicator does not light up: The notebook is switched off.
Power indicator
Powerindicat orIndicator
Indicator lights up: The mains adapter is supplying power to the notebook.
Battery charging indicator
Batterychargi ngindicatorIndicator
• Indicator lights up: The battery is not being charged/has reached more than
90% of its maximum charge, or the battery is being charged.
• The indicator is not lit: The battery is faulty.
Battery indicators
IndicatorIndi catorBattery
The charging state of the batteries is shown by two battery indicators. 1 indicates
that the information applies to the first battery in the battery compartment. 2
indicates that the information applies to the second battery in the module bay.
indicates that the battery is 0 % to 25 % charged.
indicates that the battery is 25 % to 50 % charged.
indicates that the battery is 50 % to 75 % charged.
indicates that the battery is 75% to 100% charged
Radio components indicator
IndicatorIndi catorBluetoothIndicatorWirelessLAN
• Indicator lights up: one or more radio components are active.
CD/DVD indicator
IndicatorCD/DVD indicator
• Indicator lights up: The CD/DVD in the optical drive is being accessed. You
may only remove the CD/DVD when the indicator is dark.
Hard disk indicator
Harddiski ndicatorIndicator
Indicator lights up: The hard disk drive of the notebook is being accessed.
PC card/ExpressCard indicators
Indicator Indicator PCCardExpressCard
Indicator lights up: A PC card or an ExpressCard is being accessed.
Num Lock indicator
IndicatorNum Lock
Indicator lights up: The Num key has been pressed. The virtual numeric keypad is
activated. You can output the characters located at the upper right on the keys.
Caps Lock indicator
IndicatorCap sLock
Indicator lights up: The Caps Lock key has been pressed. All the characters you
type appear in upper case. In the case of overlay keys, the character printed on the
upper left of the key appears when that key is pressed.
Scroll Lock indicator
IndicatorScrollLock
Indicator RollLock
Indicator lights up: The key combination Fn +Scr has been pressed. The effect
this key has varies from programme to programme.
A26391-K226-Z120-1-7619, edition 2 11

Ports and operating elements
Key combinations
The following description of key combinations refers to functions when using
Microsoft Windows. Some of the following key combinations may not function in
other operating systems and with some device drivers.
Key combinations are entered as follows:
►Press and hold the first key in the combination.
►While holding the first key down, press the other key or keys in the combination.
The key combination Ctrl +Alt Gr or Ctrl +Alt canbeusedon
external keyboards that do not not feature a Fn key.
Sleep mode
Fn+F1Sleepmode
This key combination is used to activate the suspend mode (S3).
Enable/disable loudspeakers
Fn+F3LoudspeakersLoudspeakers
This key combination switches your notebook’s loudspeakers off and on.
An audible signal will be produced when the loudspeakers are switched on.
Switching the touchpad on/off
Fn+F4TouchpadLoudspeakers
This key combination enables and disables the touchpad.
Decrease screen brightness
Fn+F6Screenbrightness
This key combination decreases the brightness of the screen.
Increase screen brightness
Fn+F7Screenbrightness
This key combination increases the brightness of the screen.
Decrease volume
Fn+F8Volume
This key combination reduces the volume of the integrated loudspeakers.
12 A26391-K226-Z120-1-7619, edition 2
