Fujitsu Siemens Computers lifebook S6010 User manual

i
Copyright
Fujitsu Limited has made every effort to ensure the accuracy and completeness of this document. However, as
ongoing development efforts are continually improving the capabilities of our products, we cannot guarantee the
accuracy of the contents of this document. We disclaim liability for errors, omissions, or future changes.
LifeBook is a trademark of Fujitsu Limited.
Microsoft, Windows, MS, MS-DOS, and Windows NT are registered trademarks of the Microsoft Corporation of the
United States in the United States and other countries.
Intel is a registered trademark of the Intel Corporation of the United States.
Macrovision :-
This product incorporates copyright protection technology that is protected by method claims of certain U.S.patents
and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this
copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and
other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or
disassembly is prohibited. Apparatus Claims of U.S. Patent Nos. 4,631,603, 4,577,216, 4,819,098 and 4,907,093
licensed for limited viewing uses only.
Dolby :-
Manufactured under license from Dolby Laboratories. “DOLBY”, “PRO LOGIC” and the double-D symbol are
trademarks of Dolby Laboratories. Copyrights 1992-1999 Dolby Laboratories, All rights reserved.
Phoenix is a registered trademark of Phoenix Technologies Corporation of the United States.
K56flex is a trademark of Rockwell International Corporation and Lucent Technologies Corporation.
Other product names are trademarks or registered trademarks of their respective companies.
Other products are copyrighted by their companies.
Copyright© 1981-2001 Microsoft Corporation, All rights reserved.
Copyright© 2001 Phoenix Technologies, Ltd., All rights reserved.
All other products are trademarks or registered trademarks of their respective companies.
Explanations of the adjustments for the track pad cursor control are taken in part from the ALPS GlidePoint Driver
User’s Guide, copyright by LCS/Telegraphics in 1996.
© Copyright 2002 Fujitsu Limited. All rights reserved. No part of this publication may be copied, reproduced, or
translated, without the prior written consent of Fujitsu Limited.No part of this publication may be stored or transmitted
in any electronic form without the written consent of Fujitsu Limited.
Operations are subject to the following two conditions:
(1) This device may not be allowed to cause harmful interference, (2) This device must accept any interference
received, including interference that may cause undesired operation.
Wesbite: www.fujitsu-pc-asia.com
Laurel (Intro) 22/4/02, 02:29 PM1

ii
1. Read these instructions carefully. Save these instructions for future reference.
2. Follow all warnings and instructions marked on the product.
3. Unplug this product from the wall outlet before cleaning.Do not use liquid cleaners or aerosol cleaners.
Use a damp cloth for cleaning.
4. Do not use this product near water.
5. Do not place this product on an unstable cart, stand, or table. The product may fall, causing serious
damage to the product.
6. Slots and openings in the cabinet and the back or bottom are provided for ventilation; to ensure reliable
operation of the product and to protect it from overheating, these openings must not be blocked or
covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other
similar surface. This product should never be placed near or over a radiator or heat register, or in a
built-in installation unless proper ventilation is provided.
7. This product should be operated from the type of power indicated on the marking label. If you are not
sure of the type of power available, consult your dealer or local power company.
8. This product is equipped with a 3-wire grounding-type plug, a plug having a third (grounding) pin.This
will only plug into a grounding-type power outlet. This is a safety feature. If you are unable to insert the
plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the purpose
of the grounding-type plug.
9. Do not allow anything to rest on the power cord. Do not locate this product where persons will walk on
the cord.
10. If an extension cord is used with this product, make sure that the total ampere rating of the equipment
plugged into the extension cord does not exceed the extension cord ampere rating. Also, make sure
that the total rating of all products plugged into the wall outlet does not exceed 15 amperes.
11. Never push objects of any kind into this product through cabinet slots as they may touch dangerous
voltage points that could result in a fire or electric shock. Never spill liquid of any kind on the product.
12. Do not attempt to service this product yourself, as opening or removing covers may expose you to
dangerous voltage points or other risks. Refer all servicing to qualified service personnel.
13. Unplug this product from the wall outlet and refer servicing to qualified service personnel under the
following conditions:
a. When the power cord or plug is damaged or frayed.
b. If liquid has been spilled into the product.
c. If the product has been exposed to rain or water.
d. If the product does not operate normally when the operating instructions are followed. Adjust
only those controls that are covered by the operating instructions since improper adjustment
of other controls may result in damage and will often require extensive work by a qualified
technician to restore the product to normal condition.
e. If the product has been dropped or the cabinet has been damaged.
f. If the product exhibits a distinct change in performance, indicating a need for service.
14. CAUTION. When replacing the battery, be sure to install it with the polarities in the correct
position. There is a danger of explosion if the battery is replaced with an incorrect type or is
mistreated. Do not recharge, disassemble or dispose of in fire. Replace only with the same or
equivalent type recommeded by the manufacturer. Dispose of the used battery according to
the manufacturer’s instructions.
15. Use only the proper type of power supply cord set (provided in your accessories box) for this unit. It
should be a detachable type: UL listed/CSA certified, BS1363, ASTA,SS145 certified, rated 10A 250V
minimum, VDE approved or its equivalent. Maximum length is 15 feet (4.6 meters).
IMPORTANT SAFETY INSTRUCTIONS
Laurel (Intro) 22/4/02, 02:29 PM2

iii
High Safety Required Use
This Product is designed, developed and manufactured as contemplated for general use, including
without limitation, general office use, personal use, household use and ordinary industrial use, but is
not designed,developed and manufactured as contemplated for use accompanying fatal risks or
dangers that, unless extremely high safety is secured, could lead directly to death, personal
injury,severe physical damage or other loss (hereinafter‘High Safety Required Use’), including without
limitation, nuclear power reactioncore control in nuclear atomic facility, airplane automatic aircraft
flight control, air traffic control, operation control in mass transport control system,medical instrument
for life support system, missile launching control in weapon system.You shall not use this Product
without securing the sufficient safety required for the High Safety Required Use.
Laurel (Intro) 22/4/02, 02:29 PM3

iv
The only effective protection for the data stored in a computer, such as on a hard disk, is for you,
Purchaser to regularly back up the data. Fujitsu and its affiliates, suppliers, service providers and
resellers shall not be responsible for any software programs, data or other information stored or
used on any media or part of any Product returned to Fujitsu or its service providers for Warranty
Service or other repair, including but not limited to the costs of recovering such programs, data or
other information. It is solely your responsibility as the Purchaser to back up any software programs,
data, or information stored on any storage media or any part of a Product returned for Warranty
Service or repair to the designated service centers.
Data Storage Media
and Customer Responsibilities
Laurel (Intro) 22/4/02, 02:29 PM4

v
AUSTRALIAN WARNINGS
WARNING
FOR SAFETY REASONS, ONLY CONNECT EQUIPMENT WITH A TELECOMMUNICATIONS
COMPLIANCE LABEL. THIS INCLUDES CUSTOMER EQUIPMENT PREVIOUSLY LABELLED
PERMITTED OR CERTIFIED.
Connection of Non Certified/Approved peripherals may result in the equipment operating
outside the Australian EMI Standards.
Modems connected to the Australian telecommunications network must be operated in accordance with
the Labelling Notice. This modem has been specifically configured to ensure compliance with the ACA
Standards. Do not adjust your modem or software outside the values indicated below. To do so would
result in your modem being operated in a non-compliant manner.
Call Attempts/Retries:
Applications software shall be configured so that no more than 3 attempts are made to establish a connection
to a given number (Note:if the modem can detect service tones, up to 10 attempts can be made). If the call
sequence is unsuccessful, there shall be a delay of at least 30 minutes before attempting to call the
number again.
Failure to set the modem, and any application software used with the modem, to the values shown above
will result in the modem being operated in a non-compliant manner. Consequently, this would be in violation
of the Labelling Notice for this equipment, and the Telecommunications Act 1997 prescribes penalties for
the connection of non-compliant equipment.
Laurel (Intro) 22/4/02, 02:29 PM5

vi
NEW ZEALAND WARNINGS
The grant of a Telepermit for any item of terminal equipment indicates only that Telecom has accepted
that the item complies with minimum conditions for connection to its network. It indicates no
endorsement of the product by Telecom, nor does it provide any sort of warranty. Above all, it provides
no assurance that any item will work correctly in all respects with another item of Telepermitted
equipment of a different make or model, nor does it imply that any product is compatible with all of
Telecom’s network services.
This equipment is not capable under all operating conditions of correct operation at the higher speeds
forwhichitisdesigned.56KBPSconnectionsarelikelytoberestrictedtolowerbitrateswhenconnected
to some PSTN implementations. Telecom will accept no responsibility should difficulties arise in such
circumstances.
Immediately disconnect this equipment should it become physically damaged, and arrange for its
disposal or repair.
This equipment shall not be used in any manner, which could constitute a nuisance to other Telecom
customers.
This equipment shall not be set to make automatic calls to the Telecom “111” Emergency Service.
This device is equipped with pulse dialling while the New Zealand standard is DTMF tone dialling.
There is no guarantee that Telecom lines will always continue to support pulse dialling. It is strongly
recommended that pulse dialling is not used.
Some parameters required for compliance with Telecom’s Telepermit requirements are dependent
on the equipment (PC) associated with this device. The associated equipment shall be set to operate
within the following limits for compliance with Telecom’s Specifications:
For repeat calls to the same number.
There shall be no more than 10 call attempts to the same number within any 30 minute period
for any single manual call initiation, and
The equipment shall go on-hook for a period of not less than 30 seconds between the end of
one attempt and the beginning of the next attempt.
For Automatic calls to different numbers.
The equipment shall go on-hook for a period of not less than 5 seconds between the end of
one attempt and the beginning of the next attempt.
For Automatically answered Incoming Calls
Incoming calls shall be answered between 3 and 30 seconds from the start of the ringing.
For correct operation, the total of the RNs of all devices connected to a single line at anytime should
not exceed 5. The RN of this Equipment is 0.5.
WARNING
Connection of Non Certified/Approved peripherals may result in the equipment operating
outside the New Zealand EMI Standards.
Laurel (Intro) 22/4/02, 02:29 PM6

vii
Note: Modem setting in Windows 98 / Windows Me
The default modem setting in Windows 98 / Windows Me operating system is United States of
America. If you are residing in Australia or New Zealand, please choose the appropriate country
where you are located.
The Modem will only operate with Tone Dialing; Selection of Pulse dialing is not possible.
Please see below instruction for quick modem setup.
A. If you are located in Australia
1. Go to Control panel, select modem icon.
2. Choose Australia in “What country/region
are you in now?”
3. Select Phone system as “Tone Dialing”
4. Close
B. If you are located in New Zealand
1. Go to Control panel, select modem icon.
2. Choose New Zealand in “What country/
region are you in now?”
3. Select Phone system as “Tone Dialing”
4. Close
Laurel (Intro) 22/4/02, 02:29 PM7

viii

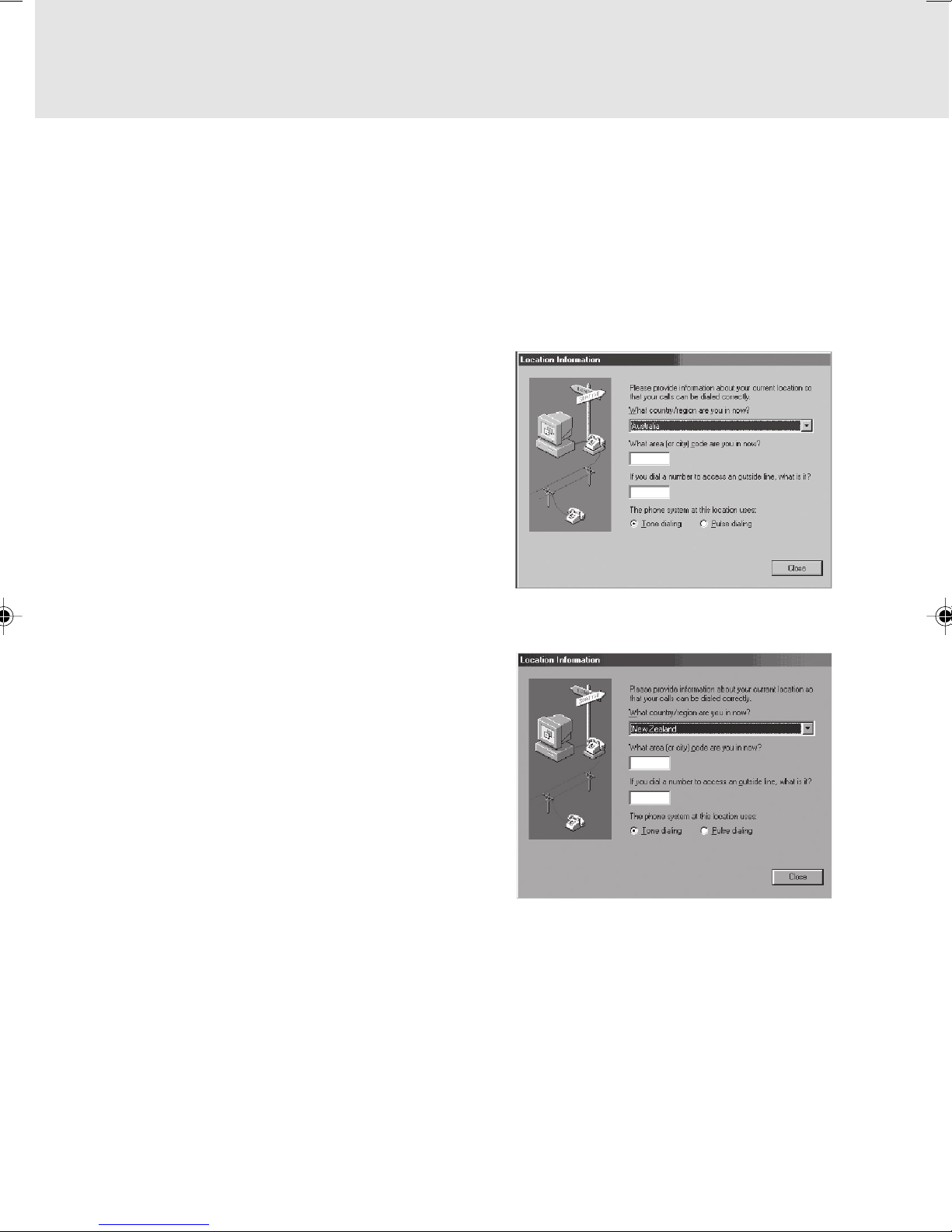

Note: Modem setting in Windows XP
A. If you are located in Australia
1. Click Start select Control panel select “Phone and
Modem Options”.
2. Double click New Location.
3. Choose “Australia” in Country/region pull down
menu bar.
4. Select Phone system as “Tone Dialing”.
5. Click OK and Apply.
Note:
The screens and illustrations shown in this examples may slightly vary depending on the operating
environment that you have installed.
B. If you are located in New Zealand
1. Click start select Control panel select “Phone and
Modem Options”.
2. Double click New Location.
3. Choose “New Zealand” in Country/region pull down
menu bar.
4. Select Phone system as “Tone Dialing”.
5. Click OK and Apply.
Laurel (Intro) 22/4/02, 02:29 PM8

ix
Warnings
This manual uses a variety of icons as visual marks so that you can use this computer safely
and correctly and avoid damage and danger to yourself and to others. These icons and their
meanings are as follows. Please learn these icons before reading this manual. Learning these
icons will be useful for understanding this manual.
Icon Meaning
Incorrect handling ignoring this warning can cause a dangerous situation
that could result in death or severe injury.
Incorrect handling ignoring this warning can cause a dangerous situation
that could result in moderate or minor injury or could result in equipment
damage.
The symbols below are used together with the icons above to indicate what type of danger or
damage is involved.
symbols Meaning
The symbol indicates warning or caution.The symbol indicates the
concrete nature of the warning. (The example on the left is a
caution for electric shock.)
The circle and slash indicates prohibited behavior. The symbol inside
the circle indicates the concrete nature of the prohibition. (The example
on the left indicates that disassembly is prohibited.)
The indicates instructions that must be followed. The symbol inside
indicates the concrete nature of those instructions. (The example on
the left tells you to unplug the power plug from the socket.)
Key notation and operation methods
Explanations of key operations do not show all the characters on the keyboard. Instead they
indicate just the keys necessary to the explanation as follows.
Examples: [Ctrl] key, [Enter] key, [ →] key
When multiple keys are to be pressed at the same time, this is indicated by connecting them
with [+].
Examples: [Ctrl] +[F3] keys; [Shift] +[ ↑] key
Screen examples
The screens shown in this manual are examples. Please understand that the file names and
screens you use may be different.
NOTATION IN THIS DOCUMENT
WARNING
CAUTION
Laurel (Intro) 4/24/02, 2:27 PM9

x
Critical Points
Column
dir c:
Notation in text
Here is what symbols in text mean.
Symbol Meaning
Critical Point Indicates a point necessary for correctly operating the
hardware or software.
Column Gives the meaning and brief explanation of a term.
→Indicates the page to see elsewhere in this manual.
Command input (key input)
Within the text of this manual, command input (giving commands to the computer by pressing
keys) is indicated as follows.
Example:
↑
In the position indicated in the example above by the ↑, the space left between the characters
indicates that a space needs to be left in the entry by pressing the space bar (the long key with
nothing written on it at the center of the front of the keyboard). Commands are written in this
manual as lowercase latin letters, but uppercase letters may be used.
Product names
The following product names are abbreviated as follows in this manual.
“Microsoft®Windows XP® operating system” is written as “Windows XP”.
“Microsoft®Windows®2000 operating system” is written as “Windows 2000”.
“Microsoft® Millennium® Edition operating system” is written as “Windows Me”.
“Microsoft®Windows®98 operating system” is written as “Windows 98”.
“Windows NT 4.0” and “Windows NT 3.51” are both written as Windows NT.
“LifeBook” is written as “this computer” or “the computer main unit”.
Laurel (Intro) 22/4/02, 02:29 PM10

xi
Configuration of this Manual
SECTION 1
This section explains basic operations and basic items for using this computer, including the
names of the parts and their functions, flat point operation methods, floppy disk unit handing,
and battery operation.
SECTION 2
This section explains installation of options for this computer.
SECTION 3
This section explains what to do when trouble occurs with this computer and when messages
are displayed. Read this section as the necessity arises.
SECTION 1
SECTION 2
SECTION 3
Laurel (Intro) 22/4/02, 03:09 PM11

xii
CONTENTS
SECTION 1
1 Names of the Parts and their Functions .......................... 2
Front features of the computer ......................................................... 2
Left/right features of the computer ................................................... 5
Rear features of the computer .......................................................... 8
Bottom features of the computer ...................................................... 9
Status indicator LCD ...................................................................... 10
2 Pointing Device ................................................................. 12
About the Flat Point ........................................................................ 12
How to use the Flat Point ............................................................... 13
3 Keyboard ........................................................................... 15
Keyboard ........................................................................................ 15
4 Replacing the Internal Battery Pack ............................... 19
SECTION 2
1 Options .............................................................................. 22
Options ........................................................................................... 22
Peripherals ..................................................................................... 23
2 Using a PC Card ............................................................... 24
Precautions for PC Cards ............................................................... 24
Installing a PC card ........................................................................ 26
Ejecting a PC card .......................................................................... 27
3 Using a CD/DVD ................................................................ 30
Loading a disc ................................................................................ 32
Ejecting the disc ............................................................................. 34
4 About Memory .................................................................. 37
5 Expanding Memory .......................................................... 42
6 Using a Mobile Multi-bay Unit ......................................... 46
7 Port Replicator .................................................................. 49
Installing the Port Replicator .......................................................... 49
Removing the Port Replicator......................................................... 50
8 About the Integrated Wireless Lan
(For selected model) ........................................................ 51
Before Using This Device ............................................................... 51
Wireless Lan Modes ....................................................................... 51
Connecting Windows®98/2000 Systems ........................ 52
Workflow ......................................................................................... 52
Setting Parameters ......................................................................... 52
Network Connection:Windows 98 .................................. 55
Network Settings ............................................................................ 55
Network Connection: Windows 2000 .............................................. 59
Laurel (Intro) 4/24/02, 11:59 AM12

xiii
Sharing ........................................................................................... 61
Checking the Connection ............................................................... 63
Connecting Windows XP Systems.................................. 64
Workflow ......................................................................................... 64
Setting Parameters ......................................................................... 64
Network Connection ....................................................................... 65
Sharing ........................................................................................... 67
Checking the Connection ............................................................... 69
Troubleshooting ............................................................... 70
If a Second LAN Device is Installed................................ 76
About IP Addresses ......................................................... 77
Specifications ................................................................... 78
Glossary ............................................................................ 79
9 About the Internal Modem ............................................... 81
10 Using Internal LAN ........................................................... 83
Connecting a LAN cable ................................................................. 84
11 Connecting a USB Device ............................................... 86
Connecting a USB device............................................................... 87
12 LifeBook Security/Application Panel .............................. 88
LifeBook Security / Application Panel ............................................. 88
Setting up your LifeBook Security Panel ........................................ 88
Passwords ...................................................................................... 89
Operating your LifeBook Security/Application Panel ...................... 90
Precautions .................................................................................... 91
Uninstalling the security Panel Application ..................................... 91
Configuring your LifeBook Application Panel ................................. 93
Configure your E-mail Account Settings ......................................... 96
Desktop Control Panel.................................................................. 101
13 Connecting a Mouse ...................................................... 103
Connecting a USB mouse ............................................................ 103
14 Printer .............................................................................. 105
Connecting Printer........................................................................ 105
15 Connecting an External Display.................................... 107
Connecting an external display .................................................... 107
SECTION 3
1 When This Happens ....................................................... 110
2 Care and Maintenance ................................................... 115
3 Glossary .......................................................................... 120
Laurel (Intro) 4/24/02, 11:59 AM13

This section explains basic
operations and basic items for
using this computer, including the
names of the parts and their
functions, Flat point operation
methods, floppy disk unit handing,
and battery operation.
SECTIONSECTION
SECTIONSECTION
SECTION
SECTIONSECTION
SECTIONSECTION
SECTION
11
11
1
11
11
1
SECTION 1
Laurel Sec 1 (01-11) 17/04/02, 9:46 AM1

2
1LCD display
The monitor of your computer.
Critical Points
About the characteristics of LCD displays
For reasons of characteristics specific to LCD displays, the following phenomena may occur
but they are not defects in your LCD display.
• The TFT color liquid crystal display (LCD) of you computer consists of more than
2,350,000 pixels (dots) (if the resolution is 1024x768), which are arranged in rows and
columns through the utilization of high-level technology. For technical reasons, however,
some dots on your LCD display may not light up or be always lit, but this does not mean
that the display is defective.
• There may be a slight difference in color between your LCD display and another LCD
display because of differences in manufacturing condition. Moreover, your LCD display
may produce colors somewhat unevenly because of temperature changes, etc.
2Status indicator LCD
Displays the operating status of the computer.
3Built-in microphone
Used for sound recording.
Front features of the computer
1
2
3
4
5
6
7
8
9
SECTION 1
1 Names of the Parts and their Functions
Laurel Sec 1 (01-11) 17/04/02, 9:46 AM2

3
SECTION 1
Critical Points
The microphone may cause a howling noise when you are using, for example, a karaoke
software program for which the microphone needs to be used along with the internal speakers.
If howling occurs, adjust the volume on your computer or use commercially available
headphones or an external microphone.When the microphone is not in use, you should cut
it off (mute).
The built-in microphone may not pick up all the sounds depending on the distance or direction
from the sound source. It is recommended that you use an external microphone if you want
to record sounds clearly.
4One-touch buttons/Security panel
These buttons are used to set/reset security lock, password input during power on of the PC unit
and application start-up.
5SUS/RES (Suspend/Resume) switch
Used to turn on your computer, to put it into standby (suspending operation) mode, or to resume
system operation.
6Speakers
A sound output device of the computer
7Keyboard
Allows you to type in letters and give commands to the computer.
8Flat Point
Used to move the mouse pointer on the screen. The scroll button at the center allows you to
scroll a window up or down.
Critical Points
For some applications, windows may not be scrolled using the scroll button.
9Latch
This latch locks the liquid crystal display (LCD) to avoid accidental opening.
Press it to unlock and open the LCD.
Laurel Sec 1 (01-11) 17/04/02, 9:46 AM3

4
❑Top of the PC Main Unit
1
1Built-in wireless LAN antenna (for models with a wireless LAN module)
Your PC came with a built-in LAN antenna.
Note:
Wireless LAN ugradeability is only applicable to selected countries. Please contact your local sales
representative for more information.
Critical Points
When using your PC, especially when using the build-in wireless LAN module for
communication, take care not to touch the antenna. To avoid degradation in communication
quality, do not place your PC close to a conductor (substance that allows electricity to pass
along or through it).
Laurel Sec 1 (01-11) 4/24/02, 11:57 AM4

5
SECTION 1
Left/right features of the computer
❑Left panel of the computer
1Mobile multi-bay
Your computer came with a Combo Drive (DVD & CD-RW) or CD-RW drive built into this bay.
Depends which model you have.
Critical Points
To avoid damage to your computer, do not use the computer when the mobile multi-bay is
vacant.
2Mobile multi-bay unit release lever
Raise the lever when removing the unit from the mobile multi-bay.
3Antitheft lock port
Used to connect a commercially available antitheft cable.
Critical Points
The antitheft lock port supports the Kensington’s Micro Saver Security System.
When an anti-theft lock is connected, the mobile multi-bay unit cannot be removed.
1
23
Laurel Sec 1 (01-11) 17/04/02, 9:46 AM5

6
CAUTION
HEARING LOSS
• Before connecting a cable to the headphone jack, LINE IN jack, or microphone jack,
lower the volume on the computer to a minimum by pressing the [F8] key while
holding down the [Fn] key. Otherwise, the device connected could sustain damage
or a very loud noise could impair your hearing.
1Air Vents
This is the air ventilation hole.
2Microphone jack
Used to connect a commercially available monaural microphone (with a f3.5-mm mini plug) for
sound recording. Some types of microphones (e.g., dynamic microphones) cannot be used with
your computer.So before purchasing a microphone, make sure it is compatible with your computer.
3LINE IN jack
This is an analog input (LINE IN) terminal used to connect the computer to the LINE OUT
terminal of an AV system (with a 3.5-mm stereo mini plug).
❑Right panel of the computer
1
89 11
10
234 657
Laurel Sec 1 (01-11) 17/04/02, 9:46 AM6

7
SECTION 1
4Headphone jack
Used to connect commercially available headphones (with a f3.5-mm mini plug). Headphones
with some types of plugs cannot be connected. So before purchasing headphones, make sure
they are compatible with your computer.
CAUTION
HEARING LOSS
• Don’t raise the volume too high especially when you are listening with headphones.
Listening to very loud sound for a long time could impair your hearing.
HEARING LOSS
• Don’t turn on or off the computer while you are wearing headphones, or noise could
impair your hearing.
5Modem port
This connector allows you to connect the computer to a telephone line and enables PC
communications and Internet connection through the modular cable.
6LAN port
Used to connect the computer to a local-area network (LAN) via an optional LAN cable so that
you can use your computer on a network or connect to the Internet.
7Main switch
Used to turn on your computer.
8PC card slot
Used to install a PC card.
Critical Points
Your computer came with a dummy card in the PC card slot.
9PC card eject/lock button
Used to eject the PC card.This button also prevents the PC card from accidentally coming out of
the slot.
!IEEE 1394 (DV) port
Used to connect a peripheral device, e.g., a digital video camera (DV), to the computer via a DV cable.
"USB port
You can connect separately available USB standard peripherals such as a FDD unit or printer to
this port.
Laurel Sec 1 (01-11) 17/04/02, 9:46 AM7
