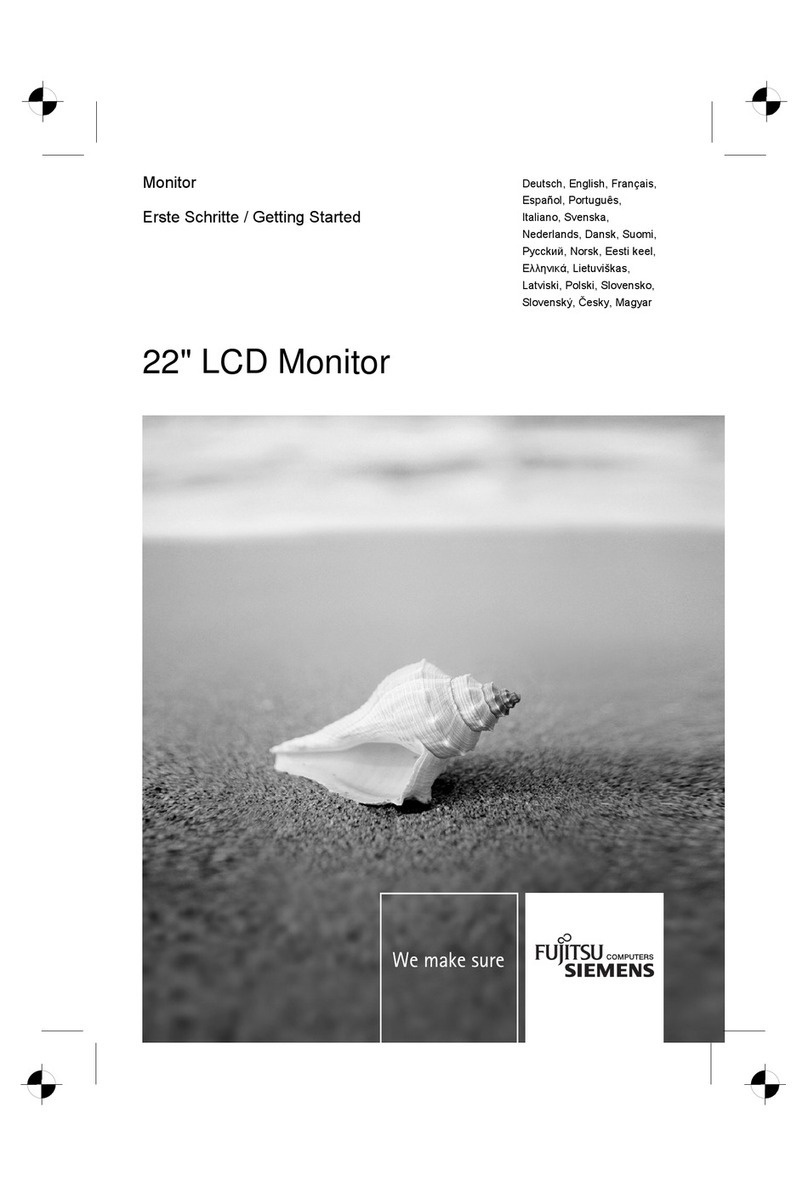

Fujitsu Siemens Computers D22W-1 User manual

Monitor
Getting Started
Deutsch, English, Français,
Español, Português, Italiano,
Svenska, Nederlands, Dansk,
Suomi, Pycckий, Norsk, Eesti
keel, Ελληνικά, Lietuviškas,
Latviski, Polski, Slovensko,
Slovenský, Česky, Magyar,
Български, Română, Türkçe
22" LCD Monitor
Downloaded from ManualMonitor.com Manuals

Downloaded from ManualMonitor.com Manuals

Are there ...
... any technical problems or other questions you need clarified?
Please contact
our Help Desk (see Warranty Booklet).
The latest information on our products, tips, updates, etc., can be found on the Internet under:
http://www.fujitsu-siemens.com
Downloaded from ManualMonitor.com Manuals

Downloaded from ManualMonitor.com Manuals

22" LCD Monitor
Edition 2
OSD-Description
Icon Functions Detail
AUTO ADJUSTMENT * Optimize the picture performance automatically.
THEME MODE * Activate the built-in color engine to enhance the graphic effects according to the different
situations of the display. contents
BRIGHTNESS * Adjust the luminance level of the screen.
CONTRAST * Adjust the contrast level of the screen.
INPUT SIGNAL SELECT * Select the input signal from Analog, or Digital Inputs (Optional).
OSD MENU LANGUAGE * Select your own preference of language of OSD menu.
DISPLAY RATIO
* Select the display ratio from Native, and Full Screen
* Full Screen: adjust and enlarge the display screen to full screen size (16:10)
* Native: keep the display format as the input signal (4:3, 5:4, etc), and enlarge the display
screen to the maximum w/o losing any content (part of the screen may be blank)
COLOR TEMPERATURE
* Select the setting of screen color-Cool, Warm or User.* Cool: Select the setting of
screen color to be bluish white.* Warm: Select the setting of screen color to be reddish
white.
SYSTEM * Adjust the mechanical specifications regarding the display.(Power Saving Mode, White
Balance, Clock, Phase, Horizontal Position, Vertical Position, Information)
POWER SAVINGMODE
* Select between Standard and Advanced power saving modes. See addendum for
details.
* Standard: Fulfill EPA Energy Star power management requirement
* Advanced: Activate monitor Life-Extension function
WHITE BALANCE * Adjust the balance of the input signal.
HORIZONTAL POSITION * Shift the screen left or right
VERTICAL POSITION * Shift the screen up or down
PHASE * Adjust the monitor internal signal phase
CLOCK * Adjust the monitor internal sampling clock rate
DDC/CI * Select turn on or turn off DDC/CI function
ACR * Select turn on or turn off ACR function
DEMO * 2 seconds after activation of this function, some of the menus will stimulate feature-
grading effects 2 times over.
INFORMATION * Show the frequency, resolution, input interface and other operating details about this
display.
RECALL * Reset monitor parameters back to factory preset values.
Downloaded from ManualMonitor.com Manuals

Technical data
Dimensions and weight (LCD monitor)
Visible diagonals: 558.7 cm ( 22 ''wide)
Screen size : 473.8mm x 296.1mm
Dimensions (W x H x D) incl. monitor base : 510 x 423mm x 225mm
Dimensions box (W x H x D): 569 mm x 481 mm x 130 mm
Weight : 4.94 kg / 6.77kg
Dot pitch : 0.282 mm
Maximal resolution : 1680 x 1050 pixels
Electrical data
Video: analogue, positive, 0.7 Vpp, 75 Ohm, (digital),
DVI-D)
Synchronisation : Separate H/V-sync
Horizontal frequency: 31.5 kHz ~83 kHz
Refresh rate: 56 Hz ~ 76 Hz
Maximum pixel rate: 146.25 MHz
Power supply: AC 100~240V, 50～60Hz
Total power consumption: < 55 W
< 2 W (standby)
Environmental conditions
Environment class 3K2, IEC 721
Operating range: 5°C~ 35°C
Humidity: 10 % ~85 %
Condensation must be avoided.
Preset operating modes
The picture position and size have been set set to optimum values at the factory for the
operating modes listed above.
Display resolution Refresh rate Horizontal frequency
640 x 480
640 x 480
720 x 400
800 x 600
800 x 600
1024 x 768
1024 x 768
1280 x 1024
1280 x 1024
1440 x 900
1680 x 1050
60Hz
75 Hz
70 Hz
60Hz
75 Hz
60Hz
75 Hz
60Hz
75 Hz
60Hz
60Hz
31.5kHz
37.5kHz
31.5kHz
37.9kHz
46.9 kHz
48.4 kHz
60 kHz
64 kHz
80 kHz
59.9kHz
65.3kHz
Downloaded from ManualMonitor.com Manuals

22" LCD Monitor
Getting Started
Deutsch
Magyar
Русский
English
Български
Norsk
Français
Română
Eesti keeles
Español
Türkçe
Ελληνικά
Português
WEEE
Lietuviškas
Italiano
Latviski
Svenska
Polski
Nederlands
Slovensko
Dansk
Slovenský
Suomi
Česky
August 2007 edition
Downloaded from ManualMonitor.com Manuals

Copyright © Fujitsu Siemens Computers GmbH 2007
VESA, DDC and DPMS are registered trademarks of Video Electronics Standards
Association.
All rights, including rights of translation, reproduction by printing, copying or similar methods,
even of parts are reserved.
Offenders will be liable for damages.
All rights, including rights created by patent grant or registration of a utility model or design,
are reserved.
Delivery subject to availability. Right of technical modification reserved.
Downloaded from ManualMonitor.com Manuals

Inhalt
Einleitung.............................................................................................................................................. 1
Weitere Informationen .................................................................................................................. 1
Wichtige Hinweise ................................................................................................................................ 2
Sicherheitshinweise...................................................................................................................... 2
Netzleitung ................................................................................................................................... 3
Transport ...................................................................................................................................... 3
Reinigung ..................................................................................................................................... 4
CE-Kennzeichnung ...................................................................................................................... 4
Überprüfen der Lieferung ..................................................................................................................... 4
Anschließen des Bildschirms ............................................................................................................... 5
Bedienen des Bildschirms .................................................................................................................... 6
Fehlerbehandlung................................................................................................................................. 7
Montage des Bildschirmfußes .............................................................................................................. 9
Ausgabe 2 Deutsch
