/0 1233 12&33
A2
636
1-K
58
1-Z1
00
-1-
5
E1
9


 

MCM 17P2
Farbbildschirm
Color monitor
Moniteur couleur
Monitor de color
Monitor a colori
Färgskärm
Kleurenbeeldscherm
Betriebsanleitung
Operating Manual
Deutsch
En
g
lish
Fran
ç
ais
Español
Italiano
Svenska
Nederlands
TCO'99
Ausgabe Oktober 1999
October 1999 edition

VESA, DDC und DPMS sind eingetragene Warenzeichen der Video Electronics Standards
Association.
Alle Rechte vorbehalten, insbesondere (auch auszugsweise) die der Übersetzung, des
Nachdrucks, der Wiedergabe durch Kopieren oder ähnliche Verfahren.
Zuwiderhandlungen verpflichten zu Schadenersatz.
Alle Rechte vorbehalten, insbesondere für den Fall der Patenterteilung oder GM-Eintragung.
Liefermöglichkeiten und technische Änderungen vorbehalten.
Copyright Fujitsu Siemens Computers B. V. 1999
VESA, DDC and DPMS are registered trademarks of Video Electronics Standards
Association.
All rights, including rights of translation, reproduction by printing, copying or similar methods,
even of parts are reserved.
Offenders will be liable for damages.
All rights, including rights created by patent grant or registration of a utility model or design,
are reserved.
Delivery subject to availability. Right of technical modification reserved.

A26361-K581-Z100-2-5E19 English
Contents
Introduction....................................................................................................................................... 1
Notational conventions.............................................................................................................. 1
Important notes................................................................................................................................. 2
Safety ....................................................................................................................................... 2
Manufacturer’s notes................................................................................................................. 3
Note on X-ray radiation ............................................................................................................. 4
FCC Class B Compliance Statement ........................................................................................ 4
Important note on power cable.................................................................................................. 4
Disposal and recycling.............................................................................................................. 5
Checking the contents of the consignment........................................................................................ 6
Installing an ergonomic video workstation......................................................................................... 6
Connecting the monitor..................................................................................................................... 7
Operation of the monitor ................................................................................................................... 8
Switching the monitor on........................................................................................................... 8
Switching the monitor off........................................................................................................... 9
Notes on power management ................................................................................................... 9
Changing the monitor settings................................................................................................. 10
Notes on ergonomic color adjustment..................................................................................... 16
Technical data ................................................................................................................................17
VESA-DDC-compatible VGA interface.................................................................................... 18
Preset operating modes.......................................................................................................... 18
Pin assignment D-SUB (15-pin) .............................................................................................. 19
Tilting and turning area ........................................................................................................... 19
Error handling ................................................................................................................................. 20

A26361-K581-Z100-2-5E19 English - 1
Introduction
Your new MCM 17P2 monitor supplies you with a high-quality color image with high resolution and
ergonomic refresh rates. It possesses a whole range of useful features and functions, e. g.:
• 17" (40 cm) high-resolution CRT (0.26 mm dot pitch)
• automatic scanning of all horizontal frequencies from 30 to 96 kHz and all refresh rates (vertical
frequencies) from 50 to 160 Hz
• digital screen controller with microprocessor for storing 24 different display modes
• freely adjustable color alignment for matching the screen colors to the colors of various input
and output devices
• VESA-DDC compatibility
• power management for reducing power consumption by up to 95% when the PC system is not
in use
• compliance with the latest ergonomic standards (ISO 9241-3)
• compliance with the recommendations in accordance with TCO '99
This Operating Manual contains important information you require to start up and run your monitor.
The monitor interacts closely with the screen controller (graphics card) of your PC. It processes the
data supplied to it by the screen controller. The screen controller/the associated driver software is
responsible for setting the modes (resolution and refresh rate).
Target group
You don't need to be an "expert" to perform the operations described here. Do, however, read the
chapter "Important notes" in the Operating Manual of your PC and in this Operating Manual.
In the event of any problems occurring, please contact your sales outlet or our customer service
center.
Further information
Details of how you set the resolution and refresh rate are provided in the documentation on your
screen controller/the associated driver software.
Notational conventions
The meanings of the symbols and fonts used in this manual are as follows:
!Pay particular attention to texts marked with this symbol. Failure to observe this warning
endangers your life, destroys the system, or may lead to loss of data.
iSupplementary information, remarks and tips follow this symbol.

Texts which follow this symbol describe activities that must be performed in the order shown.
"Quotation marks" indicate names of chapters and terms that are being emphasized.

Color monitor MCM 17P2
2 - English A26361-K581-Z100-2-5E19
Important notes
!In this chapter you will find information regarding safety which is essential to take note of
with your monitor.
Safety
This device complies with the relevant safety regulations for data processing equipment, including
electronic office machines for use in an office environment. If you have any questions, contact your
sales outlet or our customer service center.
• If the device is brought into the installation site from a cold environment, condensation can
form. Before operating the device, wait until it is absolutely dry and has reached approximately
the same temperature as the installation site.
• During installation and before operating the device, please observe the instructions on
environmental conditions in the chapter entitled "Technical data" as well as the instructions in
the chapter "Installing an ergonomic video workstation".
• To ensure adequate ventilation the monitor may only be operated with the monitor foot
installed.
• The color monitor must not be exposed to strong magnetic fields (e. g. caused by magnetic
paper clip holders or loudspeakers). Strong magnetic fields could result in a permanent blotchy
image.
• The monitor is automatically degaussed when switched on. This results in a magnetic field
around the metal edge of the picture tube, which may damage the data on data carriers nearby.
Therefore, never keep magnetic data carriers near the monitor.
• The device automatically sets itself to the correct voltage within the range from 100 V to 120 V
and 200 V to 240 V. Ensure that the local mains voltage lies within these limits.
• The device must be installed in such a way that the user has good access to the appliance
socket.
• The ON/OFF switch does not disconnect the device from the line voltage. To disconnect the
line voltage completely, remove the power plug from the socket.
• Lay all cables so that nobody can stand on them or trip over them. When attaching the device,
observe the relevant notes in the chapter "Connecting the monitor".
• No data transmission cable should be connected or disconnected during a thunderstorm.
• Please ensure that no objects (e. g. necklaces, paperclips etc.) or liquids can get into the
interior of the device (this may cause an electrical shock or short circuit).
• In emergencies (e. g. damaged casing, elements or cables, penetration of liquids or foreign
matter), switch off the unit, disconnect the power plug and contact your sales outlet or our
customer service center.
• Only qualified technicians should repair the device. Unauthorized opening and incorrect repair
may greatly endanger the user (electric shock, fire risk).
• Tampering with the device, in particular adjusting the high voltage or installing a different type
of CRT tube, may result in a large amount of X-ray radiation being emitted. Devices modified in
this way no longer comply with their license and may not be used.

Color monitor MCM 17P2
A26361-K581-Z100-2-5E19 English - 3
• You may set only those resolutions and refresh rates specified in the "Technical data" chapter.
Otherwise you may damage your monitor. If you are in any doubt, contact your sales outlet or
customer service center.
• Keep this Operating Manual together with your device. If you pass on the device to third
parties, you should include this manual.
Cleaning noteMCM 17P2
• Always pull out the power plug before you clean the monitor.
• Do not clean any interior parts yourself, leave this job to a service technician.
• Do not use any cleaning agents that contain abrasives or may corrode plastic.
• Ensure that no liquid will run into the system.
• Ensure that the ventilation areas of the monitor are free.
• When cleaning the surface of the screen, always use a soft, slightly damp cloth in order to
avoid scratching the glass.
Wipe the monitor housing with a dry cloth. If the monitor is particularly dirty, use a cloth which has
been moistened in mild domestic detergent and then carefully wrung out.
Transport notes
• When transporting the monitor ensure that it is not exposed to strong magnetic fields.
• Transport the monitor with care and only in its original packaging or another corresponding
packaging fit to protect it against knocks and jolts.
• Above all, never drop the monitor. If the CRT is damaged, there is a risk of implosion!
Manufacturer's notes
Energy Star The Fujitsu Siemens multiscan color monitor MCM 17P2 is designed to
conserve electricity by dropping to less than 10 W when it goes into
standby/suspend mode and to less than 5 W when it goes into OFF mode.
With this new power management the MCM 17P2 qualifies for the U.S.
Environmental Protection Agency's (EPA) Energy Star Computers award.
The EPA estimates that computer equipment uses 5% percent of all business electricity and it is
growing rapidly. If all desktop PCs and peripherals enter a low-power mode when not in use, the
overall savings in electricity could amount to $ 2 billion annually. These savings could also prevent
the emission of 20 million tons of carbon dioxide into the atmosphere - the equivalent of 5 million
automobiles.
As an Energy Star Partner, Fujitsu Siemens Computers B. V. has determined that this product
meets the Energy Star guidelines for energy efficiency.
CE certificate
The shipped version of this device complies with the requirements of the EEC directives
89/336/EEC "Electromagnetic compatibility" and 73/23/EEC "Low voltage directive".

Color monitor MCM 17P2
4 - English A26361-K581-Z100-2-5E19
Note on X-ray radiation
This device complies with the German X-ray regulations (Röntgenverordnung - RöV). The local
dosage emitted is less than 1 µSv/h (micro-Sievert per hour) at a distance of 0.1m.
FCC Class B Compliance Statement
If there is an FCC statement on the device, then:
The following statement applies to the products covered in this manual, unless otherwise specified
herein. The statement for other products will appear in the accompanying documentation.
NOTE:
This equipment has been tested and found to comply with the limits for a "Class B" digital device,
pursuant to Part 15 of the FCC rules and meets all requirements of the Canadian Interference-
Causing Equipment Regulations. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in strict accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
Fujitsu Siemens Computers B. V. is not responsible for any radio or television interference caused
by unauthorized modifications of this equipment or the substitution or attachment of connecting
cables and equipment other than those specified by Fujitsu Siemens Computers B. V. The
correction of interferences caused by such unauthorized modification, substitution or attachment will
be the responsibility of the user.
The use of shielded I/O cables is required when connecting this equipment to any and all optional
peripheral or host devices. Failure to do so may violate FCC rules.
Important note on power cable
To guarantee safe operation, use the cable supplied. Use the following guidelines if it is necessary
to replace the original cable set.
• The female/male receptacles of the cord set must meet CEE-22 requirements.
• The cable has to be HAR-certified or VDE-certified. The mark HAR or VDE will appear on the
outer sheath or on the insulation of one of the inner conductors.
• For devices which are mounted on a desk or table, type SVT or SJT cable sets may be used.
For devices which sit on the floor, only SJT type cable sets may be used.
• The cable set must be selected according to the rated current for your device.
Power cable for devices distributed in the US and Canada
In the United States and Canada the cord set must also be UL-listed and CSA-labelled. The voltage
rating should be min. 250 volts a.c.

Color monitor MCM 17P2
A26361-K581-Z100-2-5E19 English - 5
Please consult the following table for the selection criteria for power cables used in the United
States and Canada.
Cable type Size of conductors in cable Maximum current rating of the device
SJT 18 AWG
16 AWG
14 AWG
10 Amps
12 Amps
12 Amps
SVT 18 AWG
17 AWG 10 Amps 12 Amps
For the United Kingdom
Should the plug on the flexible cord not be of the type for your socket outlets, do not use an adapter
but remove the plug from the cord and discard. Carefully prepare the end of the supply cord and fit a
suitable plug.
WARNING
THIS APPLIANCE MUST BE EARTHED
IMPORTANT
The wires in this mains lead are coloured in accordance with the following code:
Green and Yellow: Earth
Blue: Neutral
Brown: Live
As the colours of the wires in the mains lead of this appliance may not correspond with the coloured
markings identifying the terminals in your plug, proceed as follows:
• The wire which is coloured Green and Yellow must be connected to the terminal in the plug
which is marked with the letter E or by the earth symbol or coloured Green or Green and
Yellow.
• The wire which is coloured Blue must be connected to the terminal which is marked with the
letter N or coloured Black.
• The wire which is coloured Brown must be connected to the terminal which is marked with the
letter L or coloured Red.
Disposal and recycling
This device has been manufactured to the greatest possible degree from materials which can be
recycled or disposed of in a manner that is not environmentally damaging. The CRT contains no
cadmium
The device is taken back after use, to be recycled, provided that it is returned in a condition that is
the result of normal use. Any components not reclaimed will be disposed of in an environmentally
acceptable manner. We herewith declare that it will be possible to repair any device marked with
the eco-label for at least 5 years after production of that device has
discontinued.

Color monitor MCM 17P2
6 - English A26361-K581-Z100-2-5E19
If you have any questions on disposal, please contact your local office, our customer service center,
or:
Fujitsu Siemens Computers GmbH
Recyclingcenter
D-33106 Paderborn
Tel.: ++ 49 5251 - 818 010/ Fax: ++ 49 5251 - 818 015
Checking the contents of the consignment
 Unpack all the individual parts.
 Check the delivery for damage incurred during transportation.
 Check whether the delivery agrees with the details in the delivery note.
The complete shipment comprises:
− one monitor with data cable
− one power cable
− a Guarantee Booklet
− this Operating Manual
Should you discover that the delivery does not correspond to the delivery note, notify your local
sales outlet immediately.
iIt is recommended not to throw away the original packing material. Keep it for future
transportation.

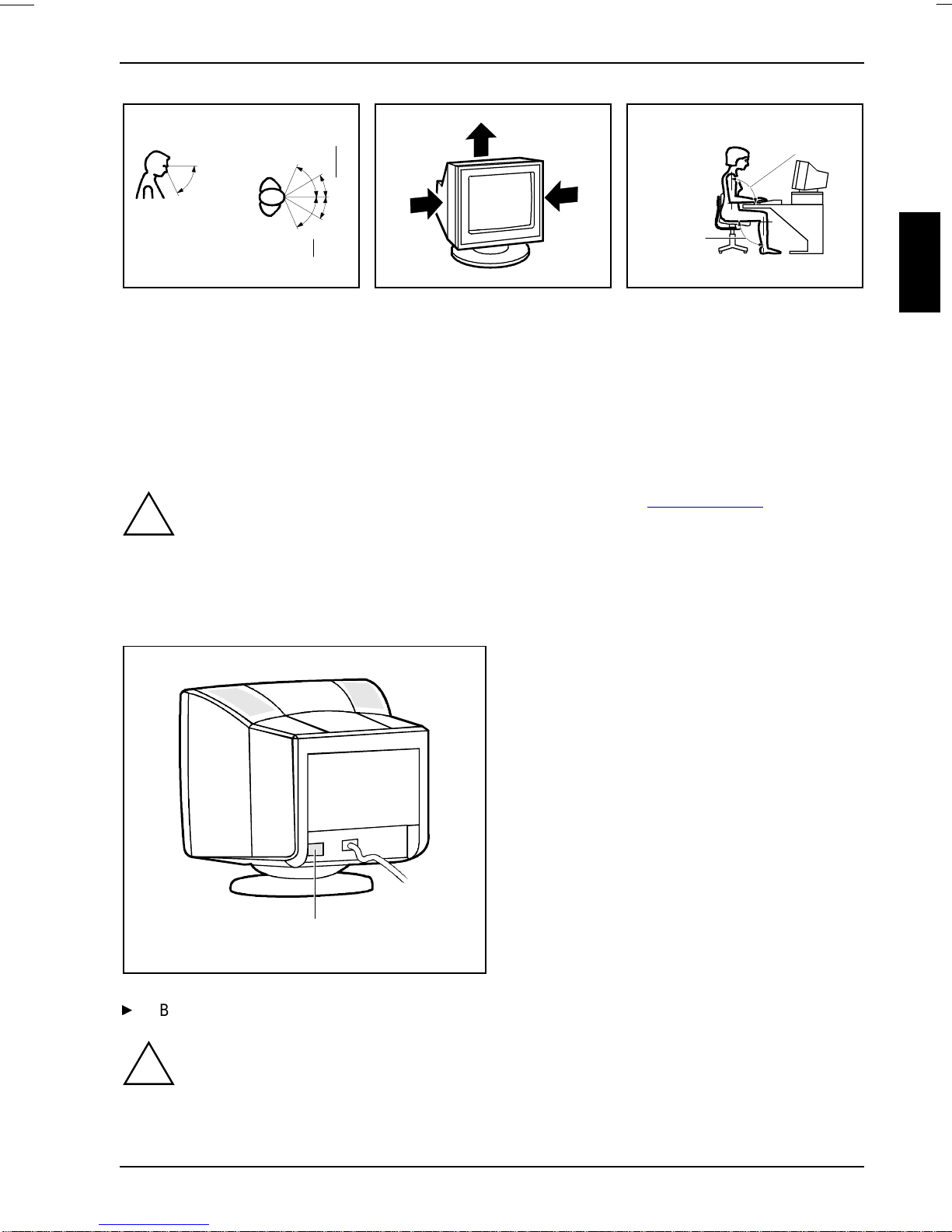

Installing an ergonomic video workstation
Before you set up your equipment you should select a suitable position for working at the monitor.
Please observe the following advices when installing a video workstation.
Window
permissible
reachin
g
sector
600 mm
ed
g
e of desk
permissible
reachin
g
sector
600 mm
Avoid direct and reflected glare. Avoid glare from electric
lighting. Position the keyboard where it is easiest to reach.

Color monitor MCM 17P2
A26361-K581-Z100-2-5E19 English - 7
30°
30°
65°
65°
0°
60°
preferable viewin
g
sector
permissible viewin
g
sector
permissible
viewin
g
sector approx. 90°
and
more
approx. 90°
Position the monitor for
optimum viewing. The viewing
distance to the monitor should
be approximately 50 cm.
Keep ventilated areas clear. Remember to maintain correct
posture.
Connecting the monitor
See your PC's operating manual for details of the ports on the system unit.
!Please note the "Safety" information provided in the chapter "Important notes" in the
Operating Manual of the PC.
Do not cover the ventilation openings of the monitor.
If you are assembling monitors beside each other, there must be a minimum distance of
30 cm between monitors of the same constructional type, to avoid image distortion. With
different monitors, the distance must be increased, if necessary.
2
11 = Power connector
2 = Data cable

Be sure that the monitor and the system unit are switched off.
!The system unit's power plug must be pulled out!

Color monitor MCM 17P2
8 - English A26361-K581-Z100-2-5E19
The data cable (2) is permanently attached to the monitor. It has a 15-pin D-SUB connector for the
screen controller of the system unit.
See your PC's operating manual for details of the ports on the system unit.
 Connect the 15-pin connector of the data cable to the (active) monitor port on the system unit
and secure the plug-in connection by tightening the safety screws.
iIf your system unit has two monitor ports ("onboard" screen controller and separate
graphics card), the monitor port for the separate graphics card is usually active.
 Plug the power cable supplied into the power connector of the monitor.
 Plug the power cable into the monitor connector at the rear of the system unit.
 Plug the power connector of the system unit into a properly grounded power outlet.
iWhen you start working with your monitor for the first time you should install the
appropriate graphics drivers for your application software. Details of how to do this are
provided in the documentation on your screen controller/the associated driver software.

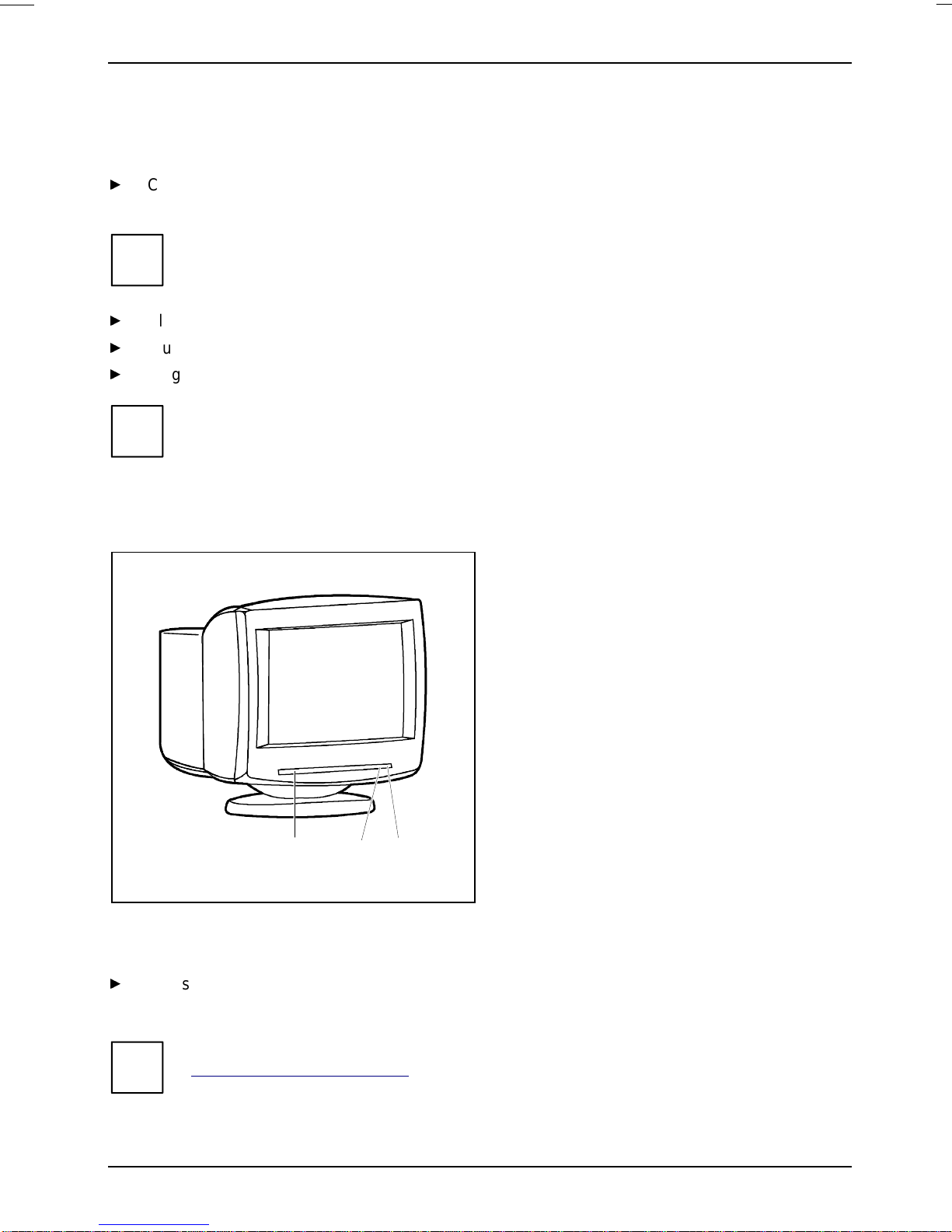

Operation of the monitor
12
31 = Control panel with buttons for the OSD
menu (On-Screen Display)
2 = Power indicator
3 = ON/OFF switch
Switching the monitor on
 Press the ON/OFF switch (3).
The power indicator (2) lights up green when the system unit is turned on.
iIf your PC has a power management function (energy-saving mode), you should read the
"Notes on power management" of the monitor in this chapter.

Color monitor MCM 17P2
A26361-K581-Z100-2-5E19 English - 9
Switching the monitor off

Press the ON/OFF switch (3).
The power indicator (2) is dark.
Notes on power management
If your PC has a VESA DPMS (Video Electronics Standard Association, Display Power
Management Signaling) power management function (energy-saving mode), your monitor will fully
support this function. The monitor has a four-stage power management system.
Stage ON Standby
mode Suspend mode OFF mode
Power indicator green yellow yellow amber
Function Monitor
operating
normally
Monitor
is dark Monitor is dark Monitor is dark
Power
consumption normal < 100 W reduced to < 10 W reduced to < 10 W reduced to < 3 W
If your PC detects inactivity (no input) it sends an appropriate signal to the monitor to reduce the
power consumption. The power indicator of the monitor changes color to indicate the status change.
If there is still no input, power consumption is further reduced (OFF mode).
Once an input is made at the PC the screen contents are redrawn and full power is restored.
The length of the individual stages is determined by the power management system of the PC. For
detailed information on how energy-saving mode operates refer to the Operating Manual or
Technical Manual of your PC.
iThe service life of your monitor will be extended if the OFF mode is switched to after
30 minutes at the earliest (setting in screen saver or in your PC's BIOS setup).
When the monitor is switched to OFF mode by the power management system a power
consumption of up to 3 W is maintained to feed the circuit for redrawing the screen
contents.
To cut off power consumption totally, press the ON/OFF switch on the front of the monitor.

Color monitor MCM 17P2
10 - English A26361-K581-Z100-2-5E19
Changing the monitor settings
Using the buttons on the control panel and the setting control on the underside of the monitor, you
can call and operate the integrated OSD menu (On-Screen Display) on screen.
iThe OSD menu is available in five languages. The English menu names are used in the
following description (default setting). How you set a different language for the OSD menu
is described in the section "Setting display options (ADVANCED CONTROLS)".
123 4
1 = Bright button
2 = Contrast button 3 = OSD button 4 = Setting control (on underside of monitor)
Adjusting the brightness and contrast
Contrast and brightness are adjusted directly with the corresponding buttons.
iYou will increase the life of your screen if you adjust the contrast and brightness to
medium.
 Press the Brightness or Contrast button.
A window is displayed with a setting range.
 Turn the setting control to set the desired function.
The setting window disappears after approximately 5 seconds if no further setting is made. All
changes are stored automatically.

Color monitor MCM 17P2
A26361-K581-Z100-2-5E19 English - 11
Settings with the OSD menu
To set the OSD menu, perform the following steps:

Press the OSD button to activate the OSD menu.
The main menu appears on the screen with icons for the setting functions.
1024 x 768 68.7KHZ 85HZ
MAIN MENU
SIZE & POSITION
GEOMETRY
COLOR TEMPERATURE
ADVANCED CONTROLS
MONITOR STATUS
DEGAUSS
EXIT OSD
RESET
For preset modes you will find information about
the current resolution, horizontal frequency and
refresh rate in the top line.
For all non-preset modes, New Mode is
displayed.

Turn the setting control to mark the desired
submenu.
(If you wish to exit the OSD menu, select
EXIT OSD.)

Press the OSD button to select the
highlighted submenu (e. g. .SIZE &
POSITION).
The corresponding setting window or submenu (here: SIZE & POSITION)is displayed.
SIZE & POSITION
ZOOM
HORIZONTAL POSITION
HORIZONTAL SIZE
VERTICAL POSITION
VERTICAL SIZE
SAVE & RETURN TO MAIN MENU
RECALL

Turn the setting control to mark the desired
icon.

Press the OSD button to select the
highlighted icon.
Depending on the function, a window with a
setting range or a selection menu is displayed.

Turn the setting control to make the setting.

Press the OSD button to return to the
submenu.
All changes are stored automatically. The OSD menu disappears after a short time (e. g.
10 seconds). The time can be set under OSD TIMER in the ADVANCED CONTROLS menu.
The OSD menu can be hidden beforehand by selecting the symbol to save your settings and to
return to the main menu. Select the symbol to cancel the setting and return to the main menu.

Color monitor MCM 17P2
12 - English A26361-K581-Z100-2-5E19
Setting picture size and position (SIZE & POSITION)
Calling the SIZE & POSITION sub menu
Proportional picture size (ZOOM): Increasing or reducing picture size while retaining
the side ratios
Horizontal picture position (HORIZONTAL POSITION): Shifting the picture to the left
or to the right
Horizontal picture size (HORIZONTAL SIZE): Making the picture narrower or wider
Vertical picture position (VERTICAL POSITION): Shifting the picture down or up
VERTICAL SIZE: Making the picture shorter or longer
Saving the setting and returning to the main menu
Aborting and returning to the main menu
