Fujitsu AOYG24LALA User manual

INVERTER SPLIT TYPE
AIR CONDITIONER (50Hz)
CEILING TYPE
CONTENTS
SPECIFICATIONS. . . . . . . . . . . . . . . . . . .
1
DIMENSIONS. . . . . . . . . . . . . . . . . . . . . .2
CIRCUIT DIAGRAM
. . . 3 REFRIGERANT SYSTEM DIAGRAM
. . . . . . . . . . . . . . . . . 4

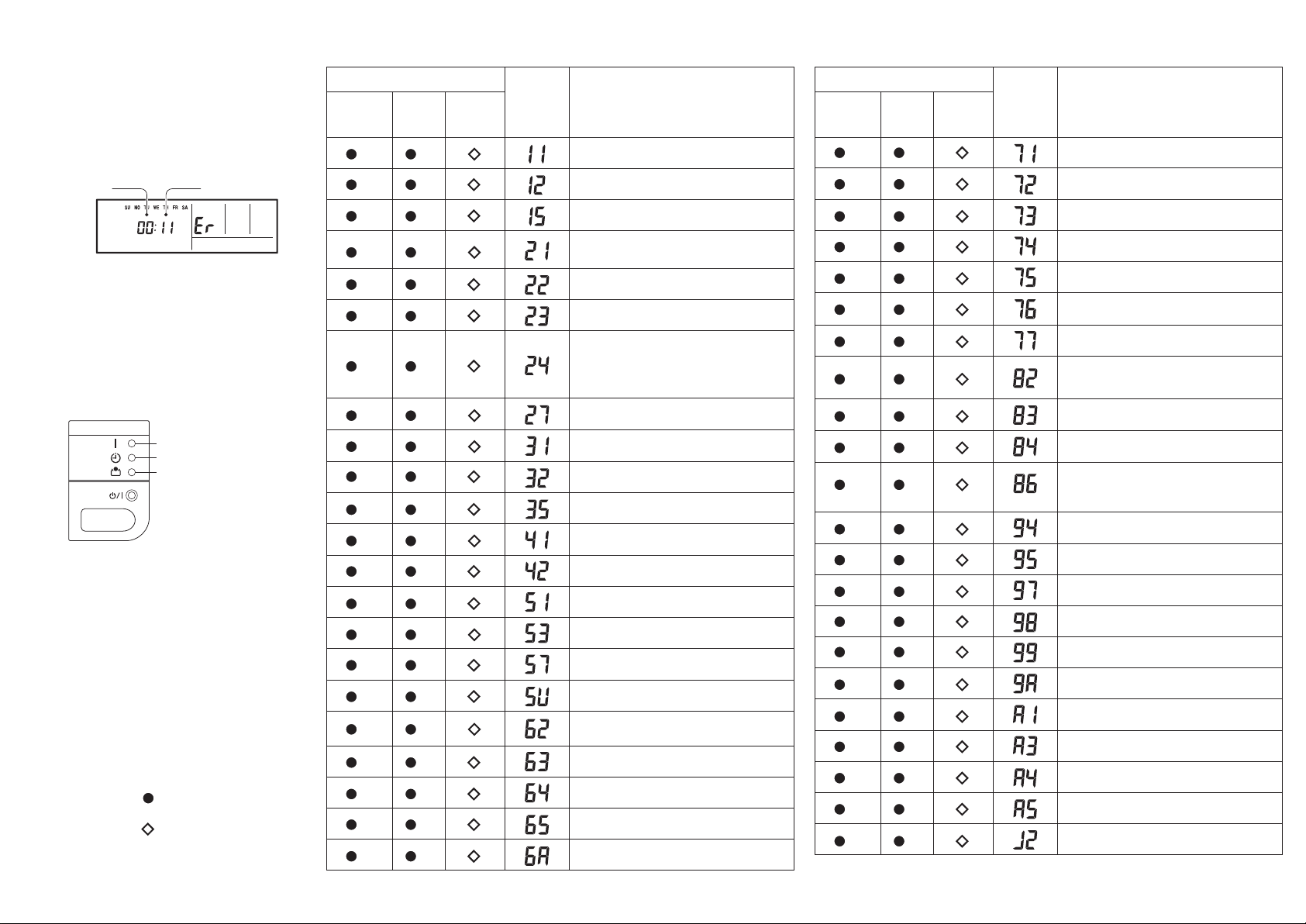

ERROR DETECTION
. . . . . 5 INDOOR PCB CIRCUIT DIAGRAM
. . .8 OUTDOOR PCB CIRCUIT DIAGRAM
. . . . . . . . . . . . . . .10
PARTS (INDOOR UNIT). . . . . . . . . . . . .12
PARTS (OUTDOOR UNIT) . . . . . . . . . . 19
ACCESSORIES . . . . . . . . . . . . . . . . . . . 21
Indoor unit Outdoor unit
ABYG24LVTA AOYG24LALA

2013.03.26 1
SPECIFICATIONS
TYPE Inverter cool & heat
INDOOR UNIT ABYG24LVTA
OUTDOOR UNIT AOYG24LALA
COOLING CAPACITY 6.80 kW
HEATING CAPACITY 8.00 kW
POWER SOURCE 230 V
FREQUENCY 50 Hz
RUNNING CURRENT
Cooling 9.7 A
Heating 9.9 A
INPUT WATTS
Cooling 2.21 kW
Heating 2.26 kW
E.E.R.
COP
Cooling 3.08 kW/kW
Heating
Cooling
Heating
3.54 kW/kW
MOISTURE REMOVAL 2.9 L/hr
MAXIMUM CURRENT
12.0 A
13.5 A
TYPE Hermetic type, 4 poles
DISCRIMINATION DA150A1F-20NA
COMPRESSOR WEIGHT (with oil)
10.0 kg
REFRIGERANT TYPE
PRECHARGED REFRIGERANT
R410A
1,700 g
MFH-24RVL
1,040 r.p.m.
950 r.p.m.
800 r.p.m.
740 r.p.m.
1,050 r.p.m.
MFE-24ROAM
Discrimination
Discrimination
High
FAN SPEED
INDOOR UNIT Medium
Low
OUTDOOR UNIT
Heating
1,050 r.p.m.Cooling

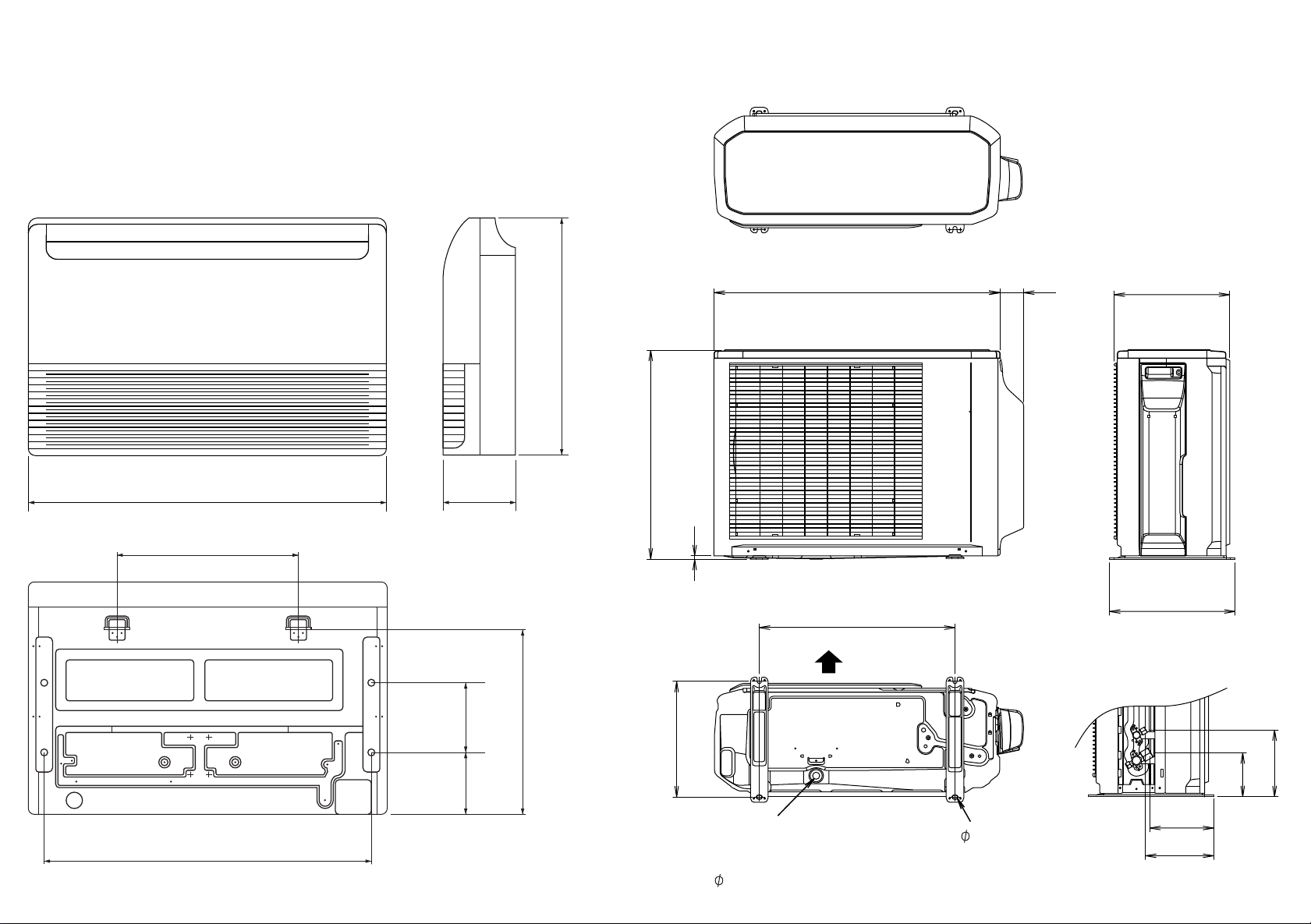

DIMENSIONS
INDOOR UNIT 190 x 990 x 655 mm
H x W x D
H x W x D
OUTDOOR UNIT 570 x 790 x 315 mm
INDOOR UNIT
OUTDOOR UNIT
ELECTRICAL DATA
COMPRESSOR AND REFRIGERANT
AIR FLOW, INDOOR UNIT 980 m3/h
AIR FLOW, OUTDOOR UNIT 2,470 m3/h
Pipe length 15 m 1,700 g
FULL CHARGE
20 m 1,800 g
25 m
30 m
1,900 g
2,000 g
MAXIMUM PIPE HEIGHT 20 m
ADDITIONAL CHARGE 20 g/m
NOISE LEVEL
WEIGHT
Net / Shipping
Net / Shipping 27 kg / 36 kg
44 kg / 48 kg
High 48 dB
INDOOR UNIT
Medium 44 dB
Low
Quiet
Quiet
Cooling
Heating
40 dB
35 dB
52 dB
53 dB
OUTDOOR UNIT

DIMENSIONS
Unit : mm
INDOOR UNIT
2013.02.20 2
Drain pipe
mounting place
( 20)
189
177
347
540
315
66
790
121
578
320
10
184
4- 10mm hole
OUTDOOR UNIT
Air flow
990
900
500
655
530
200175
199

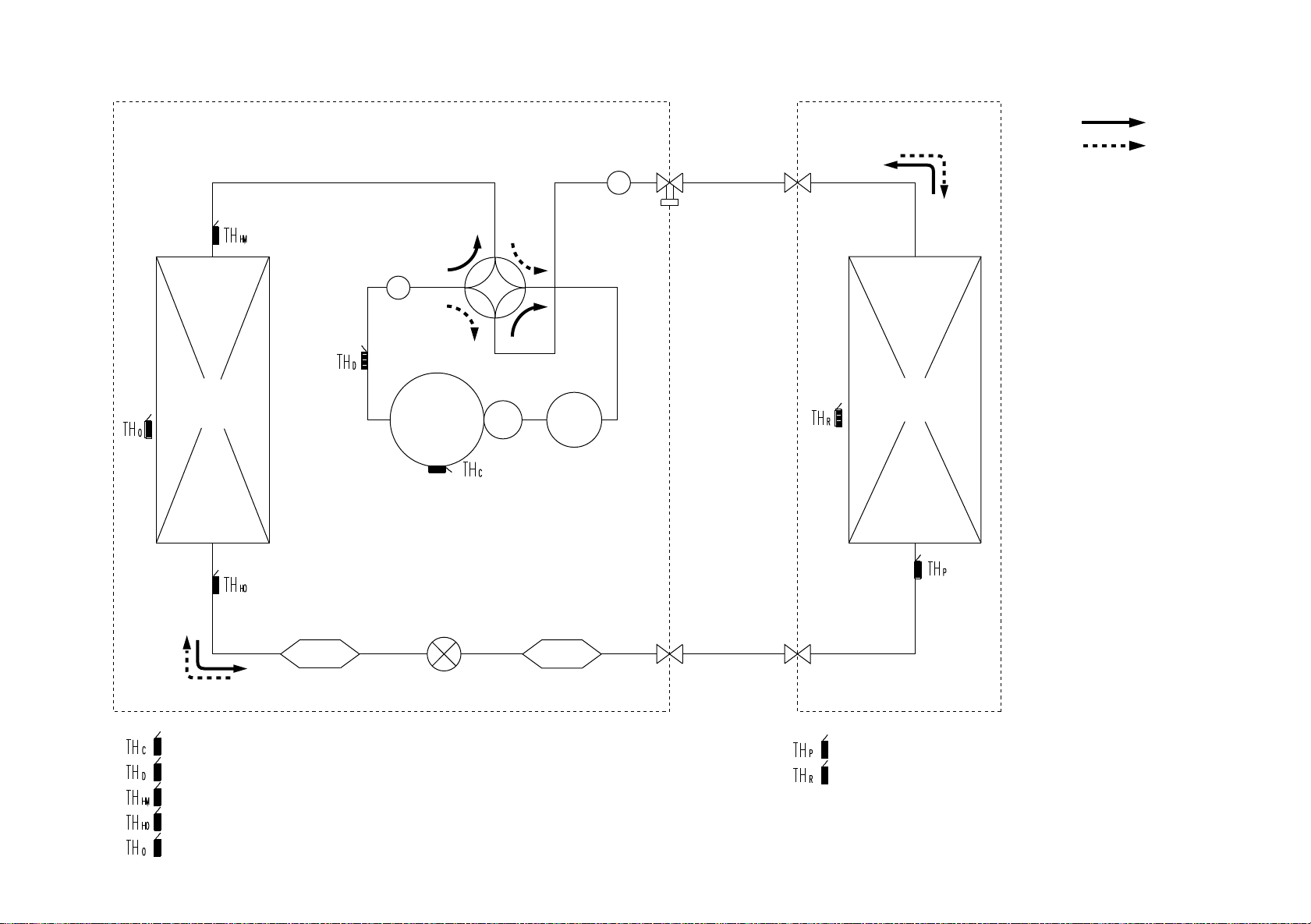

REFRIGERANT SYSTEM DIAGRAM
OUTDOOR UNIT INDOOR UNIT
2011.10.24 3
StrainerStrainer
4-Way
valve
2-Way
valve
3-Way
valve
Muffler
Muffler
Expansion
valve
Compressor
Accumulator
Heat exchanger
Heat exchanger
Cool
Refrigerant flow
Heat
: THERMISTOR (COMPRESSOR TEP.) : THERMISTOR (PIPE TEP.)
: THERMISTOR (ROOM TEP.)
: THERMISTOR (DISCHARGE TEP.)
: THERMISTOR (HEAT EXCHANGER MED TEP.)
: THERMISTOR (HEAT EXCHANGER OUT TEP.)
: THERMISTOR (OUTDOOR TEP.)
Refrigerant pipe diameter
Liquid : 1/4" (6.35 mm)
Gas : 5/8" (15.88 mm)

BLACK
RED
WHITE
YELLOW
BLUE
RED
WHITE
BLACK
RED
BROWN
BLUE
ORANGE
YELLOW
WHITE
BLACK
BLACK
BLACK
BLACK
BLACK
BLACK
BLACK
WHITE
WHITE
RED
BROWN
BROWN
BROWN
BROWN
BLACK
BLACK
WHITE
RED
YELLOW YELLOW
GREEN
BLACK BLACK
BLACK
1
2
3
4
5
6
1
2
3
4
5
6
1
2
3
4
5
6
1
2
3
4
5
6
1
2
3
1
2
3
1
2
3
1
2
3
1
2
1
2
1
2
1
2
1
2
3
4
1
2
3
4
12
1
2
1
2
3
1
2
3
RED
WHITE
BLACK
CN71
CN73
CN72
CN70
W4
W2
W1
W3
W11
W10
CN40
CN801
W7
W8
W9
CN30 4-WAY VALVE
4WV
PMV
F M
S (S)
C (T)
R (R)
FAN MOTOR
EXPANSION VALVE
COMPRESSOR
C M
REACTOR
FUSE 250V 5A
TERMINAL
POWER SOURCE
2
(N)
1 3 L N
FUSE
250V
20A
MAIN PCB
GRAY GRAY
GRAY
GRAY GRAY GRAY GRAY GRAY GRAY GRAY GRAY
RED
WHITE
BLACK
RED
ORANGE
YELLOW
WHITE
BLUE
PURPLE
GRAY
BLACK
BLACK
BLACK
BLACK
GRAY
GRAY
RED
WHITE
BLACK
BROWN
RED
ORANGE
YELLOW
WHITE
BROWN
RED
ORANGE
YELLOW
WHITE
BROWN
YELLOW
WHITE
BLACK
RED
GREEN GREEN
GREEN /
YELLOW
1 2 3456 7 8
1 2 3456 7 8
1 2 3456 7 8
1 2 3456 7 8
1 2 3
1 2 3
1 2 3
1 2 3
1 2
1 2 1 2 1 2
1 2
1
2
1
2
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
1
2
3
4
5
6
1
2
3
4
5
6
7
1
2
3
4
5
6
7
1
2
3
1
2
1
2
3
1
2
3
4
5
1
2
3
4
5
1
2
3
4
5
1
2
3
4
5
1
2
3
4
5
1
2
3
4
5
1
2
3
4
5
1
2
3
4
5
1
2
3
1
2
1
2
3
4
5
6
1
2
3
4
5
6
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
81 2 31 2 1 2
E101 E102
CN102 CN103 CN106
CN104 CN101
W105
W102
W101
CN4 CN1
CN5 CN7 CN8
CN12
CN11
CN9
CN10
CN3
CN13
CN14
CN6
THERMISTOR ( PIPE TEMP. )
THERMISTOR ( ROOM TEMP. )
INDICATOR PCB
TERMINAL
TERMINAL
WIRED REMOTE CONTROL
( OPTION )
1 2 3
1 2 3
F M
FAN MOTOR
CN105
EX IN ( OPTION )
EX OUT ( OPTION )
M
M
MAIN PCB
POWER SUPPLY
PCB
LOUVER
LOUVER THERMISTOR ( PIPE TEMP. )
THERMISTOR ( DISCHARGE TEMP. )
THERMISTOR
( COMPRESSOR TEMP. )
THERMISTOR ( PIPE - M I D. TEMP. )
THERMISTOR ( OUTDOOR TEMP. )
INDOOR UNIT OUTDOOR UNIT

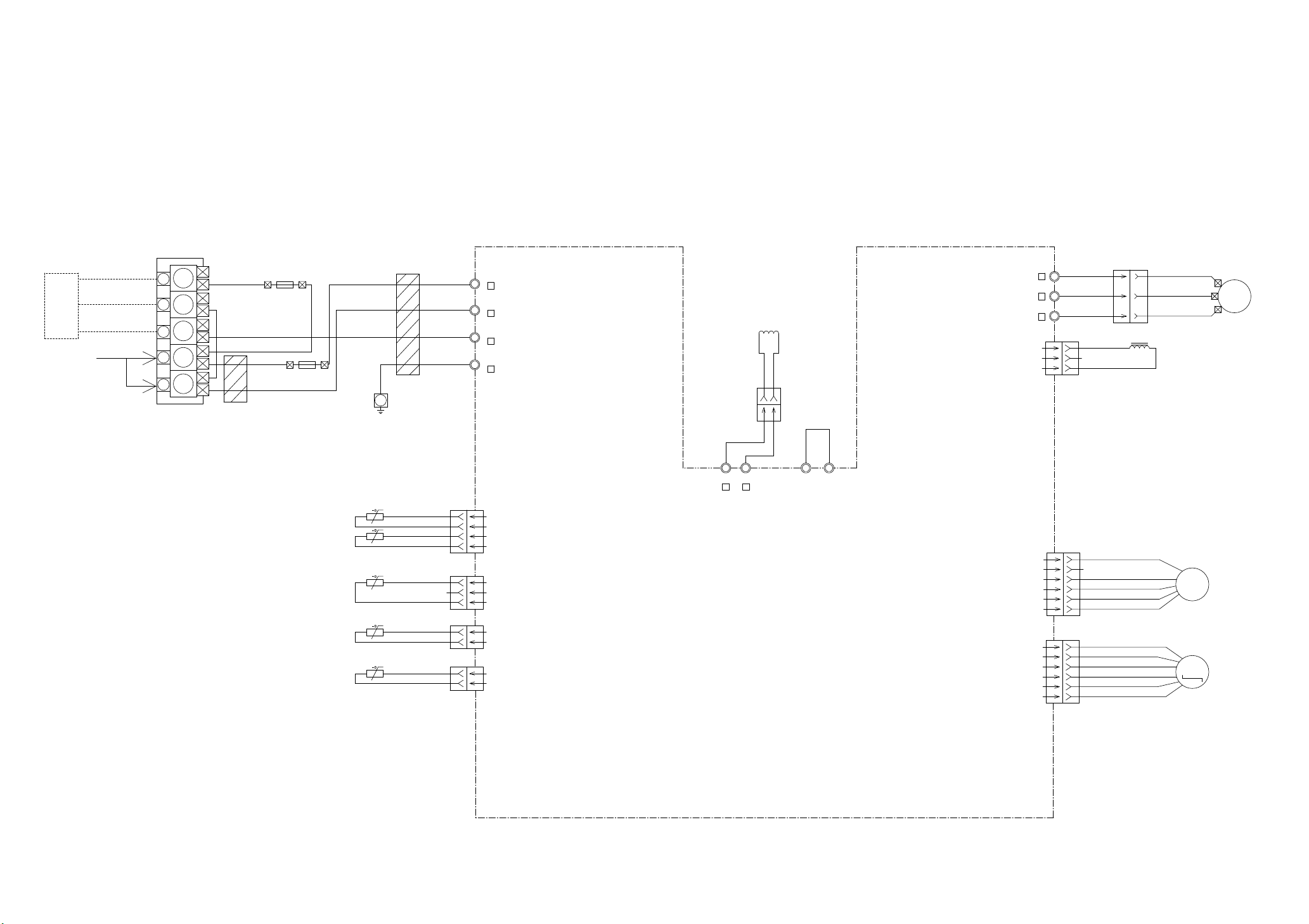

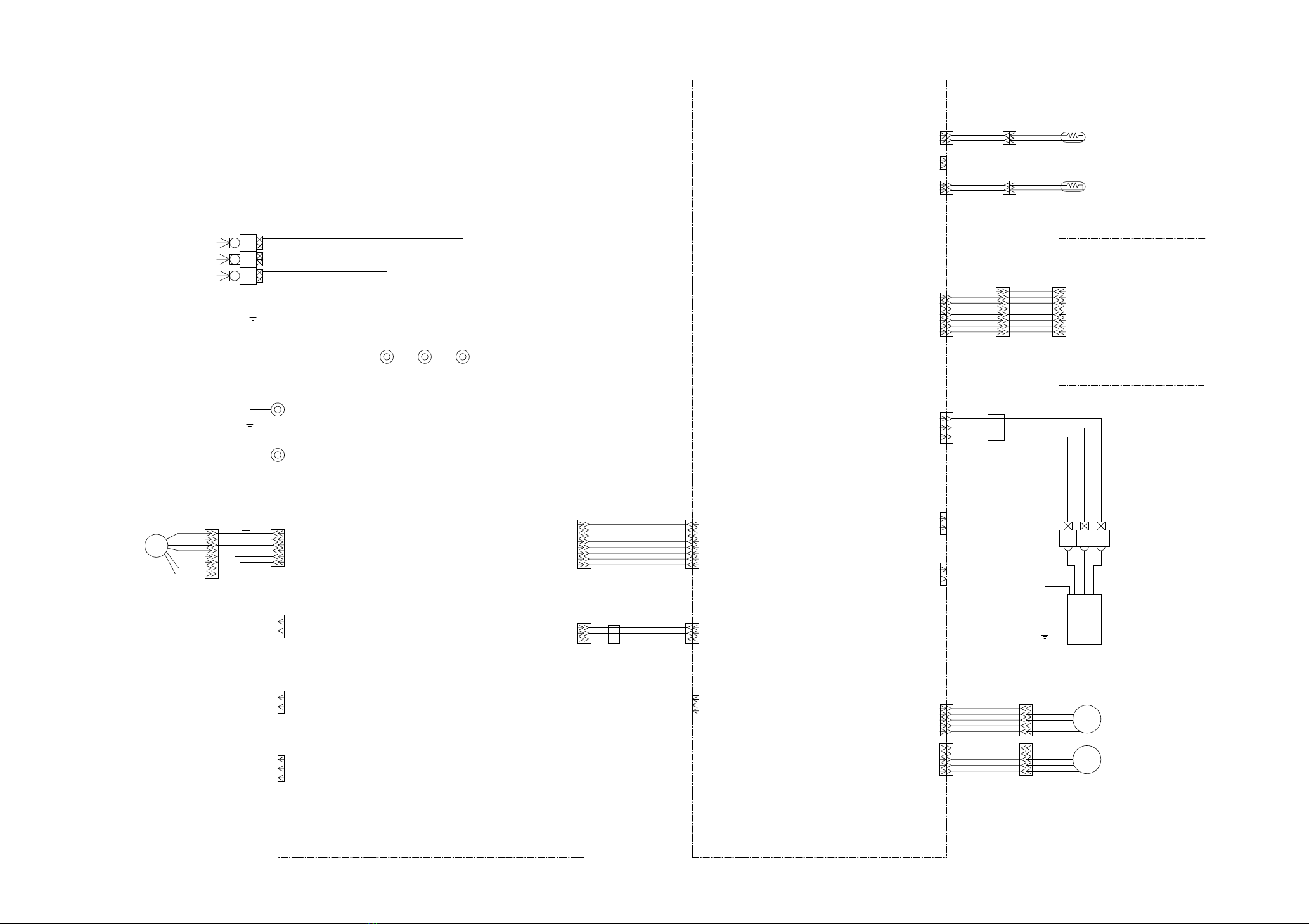

CIRCUIT DIAGRAM
2013.03.23 4

CN201-1
CN201-2
CN201-3
CN201-4
CN201-5
CN201-6
CN201-7
CN201-8
CN13-1
CN13-2
CN13-3
CN13-4
CN13-5
CN13-6
CN13-7
CN11-1
CN11-2
CN11-3
CN11-4
CN11-5
CN12-1
CN12-2
CN12-3
CN12-4
CN12-5
CN1-1
CN1-2
CN1-3
CN9-1
CN9-2
CN9-3
CN4-1
CN4-2
CN4-3
CN4-4
CN4-5
CN4-6
CN4-7
CN4-8
CN104-1
CN104-2
CN104-3
CN104-4
CN104-5
CN104-6
CN104-7
CN104-8
CN101-1
CN101-2
CN101-3
CN105-6
CN105-5
CN105-4
CN105-3
CN105-2
CN105-1
CN106-1
CN106-2
CN103-1
CN103-2
CN102-1
CN102-2
CN102-3
CN6-1
CN6-2
CN10-1
CN10-2
CN14-1
CN14-2
CN14-3
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
CN102
B3B-XH-AM
WHITE
EX. IN
CN103
B2B-XH-AM
WHITE
EX. OUT
CN106
B2P3-VH-B-E
BLUE
DRAIN PUMP
CN105
B5P6-VH-B
WHITE
DC FAN MOTOR F M
E101
E102
UL1015 AWG16
GREEN
UL1015 AWG16
GREEN
TERMINAL
HP-T3031-3-L1
L
N
SERIAL
E
1
2
3
W101 W102 W105
CN104
B08B-PASK-1
WHITE
POWER DRIVE
DC SUPPLY
CN101
B03B-PASK-1
WHITE
CN4
B08B-PASK-1
WHITE
CN1
B03B-PASK-1
WHITE
CN9
B03B-XARK-1-A
RED
FLOAT SWITCH
CN8
B2B-XASK-1-A
WHITE
CN5
B2B-XAKK-1-A
BLACK
CN7
B2B-XAYK-1-A
YELLOW
CN13
B07B-PASK-1
WHITE
CN14
B3B-XAKK-1-A
BLACK
CN6
B02B-PAMK-1
GREEN
CN10
B02B-PAOK-1
ORANGE HEATER
FLESH AIR
CN11
B05B-XASK-1-A
WHITE
CN12
B05B-XARK-1-A
RED
TERMINAL
LOUVER ( UP / DOWN )
LOUVER ( LEFT / RIGHT )
M
M
WIRED REMOTE CONTROL
( OPTION )
32 1
EARTH WIRE
CN201
S08B-PASK-2
WHITE
THERMISTOR ( PIPE TEMP. )
THERMISTOR ( ROOM TEMP. )
GRAY
GRAY
BLACK
BLACK
RED
ORANGE
YELLOW
WHITE
BLUE
PURPLE
GRAY
UL1430 AWG22 BLACK
UL1430 AWG22 WHITE
UL1430 AWG22 RED
BROWN
RED
ORANGE
YELLOW
WHITE
BROWN
RED
ORANGE
YELLOW
WHITE
GRAY
GRAY
GRAY
GRAY
GRAY
GRAY
GRAY
GRAY
GRAY
GRAY
GRAY
RED
BLACK
WHITE
YELLOW
BROWN
UL1015 AWG20 BLACK
UL1015 AWG20 WHITE
UL1015 AWG20 RED
POWER SOURCE
AC230V
50Hz
EMI FILTER
ZCAT2132-1130
1 T
EMI FILTER
ZCA1518-0730
1 T
EMI FILTER
ZCA1518-0730
2 T

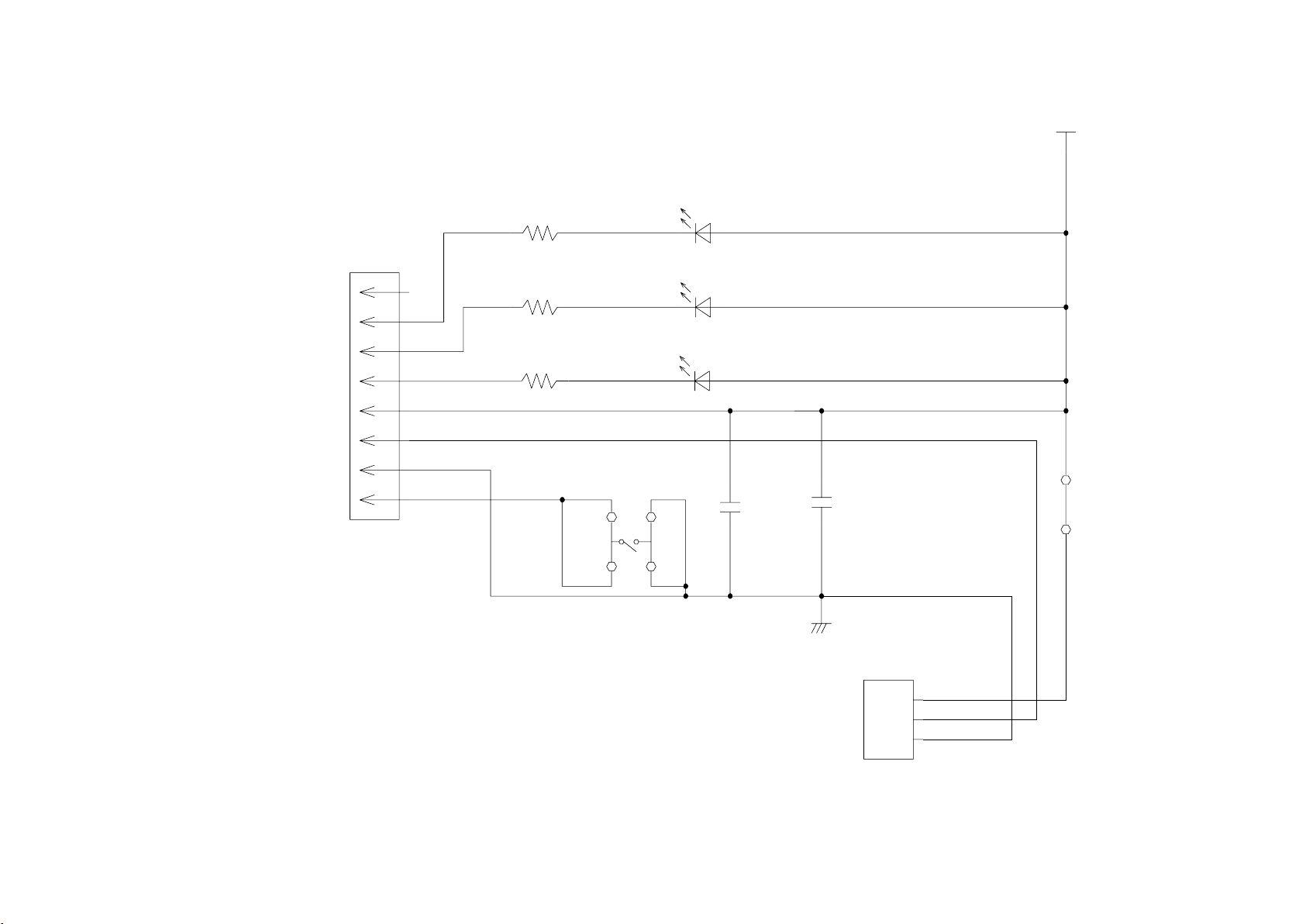

INDICATOR PCB
K04EI-1001HSE-D0
POWER SUPPLY PCB
K06AL-1009HSE-P0
MAIN PCB
K06AK-1211HSE-C1
CONTROL UNIT
EZ-0122CHSE
INDOOR PCB
CIRCUIT DIAGRAM
2013.01.22 5

5V
C29
0.1
<F>
R57
1.0k
<1/10W>
R59
10k
<1/10W>
C30
0.1
<F>
R58
1.0k
<1/10W>
R60
49.9k
<1/10W>
C34
0.1
<F>
R62
1.0k
<1/10W>
R61
49.9k
<1/10W>
CN9
B03B-XARK-1-A
FLOAT SWITCH
5V
R45
10k
<1/10W>
R46
1.0k
<1/10W>
C31
0.01
<F>
5V 5V
THERMISTOR ( ROOM TEMP. )
CN8
B02B-XASK-1-A
CN7
B02B-XAYK-1-A
THERMISTOR ( PIPE TEMP. )
CN5
B02B-XAKK-1-A
CN15
B06B-XASK-1-A
( FLASH )
CN13
B07B-PASK-1
( I NDICATOR PCB )
CN14
B03B-XAKK-1-A
WIRED REMOTE CONTROL
5V
R68, R52
10k <1/10W> x 2
5V
R41
1.0k
<1/10W>
R43, R44
10k <1/10W>
x 2
R42
47
<1/10W>
C24
1000p
<R>
C23
0.01
<F>
C25
10/
50V
+C26
0.01
<F>
12V
5V
5V
13.5V
13.5V
R47
390
<1/10W>
R35
1.0k
<1/10W>
R36
0R0
I C6-2
BA10393F
I C6-1
BA10393F
R55
10k
<1/10W>
12V
12V
D3
D1FS4A
D2
DAN217U
R54
15.4k
<1/10W>
R53
28k
<1/10W>
R48
10k
<1/10W>
I C4
uLN2003
BZ1
PKM13EPYH-4000-A0
CN11
B05B-XASK-1-A
CN12
B05B-XARK-1-A
LOUVER ( UP / DOWN )
LOUVER ( RIGHT / LEFT )
Q2
DTC124EKA
5V I C7
S80842
R56
100k
<1/10W>
C27
0.1
<B>
C38
0.1
<B>
R69
10k
<1/10W>
R40
10k
<1/10W>
C13
0.1
<B>
I C5
S-93C66BD0 I
I C1
uPD78F0536
C36
0.47
<F>
JM5
0R0
C8 - C10
0.1 <F> x 3
5V
5V
R4 - R6
1.0k <1/10W> x 3
R1 - R3
10k <1/10W> x 3
JM1
JM2
JM3
C32
100/
6.3V
+C33
0.1
<F>
C28
0.1
<F>
R19 - R22
1.0k <1/10W> x 4
5V
12V13.5V
5V
C3
0.01
<F>
+
D1
1SS355
I C2
NJM7805
+
C1
10/
50V
C2
10/
50V
I C8
NJM7812
D4
1SS355
5V R15 - R18
10k <1/10W> x 4
R70
10k
<1/10W>
Q3
DTC124EKA
5V
5V
5V
C20 - C22
0.1 <F>
x 3
13.5V
R7 - R10
1.0k <1/10W> x 4
R11 - R14
10k <1/10W> x 4
SW1
CFS-0402MC
I C3
uPA2003
R29
390
<1/10W>
R28
10k
<1/10W>
C16
0.01
<F>
Q1
DTC124EKA
C15
0.01
<F>
C14
1000p
<R>
5V
C17
0.01
<F>
C18
0.01
<B>
R27
330
<1/10W>
R34
1.0k
<1/10W>
R33
10k
<1/10W>
R31
10k
<1/10W>
13.5V
13.5V
R25
1.0k
<1/10W>
R26
10k
<1/10W>
C35, C12, C11
1000p <R> x 3
C37
0.1
<F>
R67
1.0k
<1/10W>
5V
13.5V
R24, R23, R32
10k <1/10W> x 3
R63 - R65
1.0k <1/10W> x 3
R66
10k
<1/10W>
X1
8.00MHz
<FCR>
CN4
B08B-PASK-1
POWER DRIVE
CN3
B06B-PASK-1
( TEST )
CN2
B5P-SHF-1AA
CN1
B03B-PASK-1
DC SUPPLY 1
2
3
1
2
1
2
1
2
1
2
3
4
5
6
1
2
3
4
5
6
7
1
2
3
1
2
3
4
5
1
2
3
4
5
1
2
3
4
5
6
7
8
1
2
3
4
5
6
1
3
2
3
2
1
8
7
6
5
4
3
2
1
9
16
15
14
13
12
11
10
8
1
2
3
4
5
6
7
SK
O1
O2
O3
O4
O5
O6
O7
GND
I 1
I 2
I 3
I 4
I 5
I 6
I 7
SK
O1
O2
O3
O4
O5
O6
O7
GND
I 1
I 2
I 3
I 4
I 5
I 6
I 7
9
16
15
14
13
12
11
10
8
1
2
3
4
5
6
7
1
3
2
2
1
3
4
VDD
OUT
NC
GND
1
2
3
4
5
1
2
3
1
2
1
2
1
2
3
I
G
O
I
G
O
1
2
3
CN6
B02B-PAMK-1
( FRESH AIR )
( HEATER )
CN10
B02B-PAOK-1
1
2
3
6
8
4
7
5
CS
SK
D I
NC
VCC
DO
NC
GND
NC
34
39
36
43
44
45
46
33
32
31
30
29
28
27
26
18
19
20
21
22
23
11
12
13
14
38
37
41
40
25
9
42 52
51
50
49
48
47
56
55
54
53
8
7
6
5
4
3
2
1
64
63
62
61
60
59
58
57
17
16
15
24
10
35AVREF
I C
RST*
P00
P01
P02
P03
P10
P11
P12
P13
P14
P15
P16
P17
P20
P21
P22
P23
P24
P25
P30
P31
P32
P33
XT1
XT2
X1
X2
AGND
GND0
GND1 P75
P74
P73
P72
P71
P70
P67
P66
P65
P64
P57
P56
P55
P54
P53
P52
P51
P50
P47
P46
P45
P44
P43
P42
P41
P40
P36
P35
P34
VDD1
VDD0
AVDD
3
1
2
3
1 2
+
12
3
-
76
5
+
-
( SP PCB )
C4
0.01
<F>
C5
1000p
<R>
C7
1000p
<R>
C19
0.1
<B>
R37
10k
<1/10W>
B Z
R50
10k
<1/10W>
INDOOR UNIT
MAIN PCB
K06AK-1211HSE-C1
2013.01.22 6

5V
D206 EMPG3863X GREEN
D207 EMAA3863X ORANGE
R202 330
<1/4W>
R203 330
<1/4W>
PHA201
P I C-37143TH5
JM201
VCC
OUT
GND
2
1
3
C201
0.1
<F>
C202
10/
16V
+
SW201
EVQPAG04K
13
24
1
2
3
4
5
6
7
8
CN201
08 / 08 JC25 / XMR
BROWN
RED
ORANGE
YELLOW
WHITE
BLUE
PURPLE
GRAY
INDOOR UNIT
INDICATOR PCB
K04EI-1001HSE-D0
2013.01.22 7
D208 EMPG3863X GREEN
R204 330
<1/4W>

W7
B
U
W8
B
V
W9
B
W
UL3271 AWG16
RED
WHITE
BLACK
RED
WHITE
BLACK
COMPRESSOR
C M
4-WAY VALVE
BLACK
BLACK
1
2
3
CN30
B2P3-VH-B-C
BLACK
CN801
B5P6-VH-B-L
WHITE
CN40
B6B-XARK-1-A
RED
1
2
3
4
5
6
1
2
3
4
5
6
1
2
3
4
1
2
3
1
2
1
2
RED
BLACK
WHITE
YELLOW
BROWN
RED
BROWN
BLUE
ORANGE
YELLOW
WHITE
BLACK
BLACK
BROWN
BROWN
BLACK
BLACK
BROWN
BROWN
BLACK
BLACK
UL1015
AWG14
BLACK
UL1015
AWG14
WHITE
UL1015
AWG20
RED
UL1015
AWG16
GREEN
W103
UL1015
AWG20
BLACK
W100
UL1015
AWG20
WHITE
W102
UL1015 AWG20 BLACK
W101
UL1015 AWG14
BLACK
F201
20A 250V
F202
5A 250V
TERMINAL
L
N
SERIAL
1
2
3
4
5
TO INDOOR UNIT
EARTH
DC FAN MOTOR
F M
PMV EXPANSION
VALVE
CN71
B04B-PASK-1
WHITE
CN70
B03B-PASK-1
WHITE
CN73
B02B-XAMK-1-A
GREEN
CN72
B2B-XH-AM
WHITE
W1
B
W2
B
W4
B
W3
B
W11
B
W10
B
W6 W5
REACTOR
UL3271
AWG14
RED
UL3271
AWG14
WHITE UL1015
AWG14
ORANGE
THERMISTOR ( PIPE TEMP. )
THERMISTOR ( DISCHARGE TEMP. )
THERMISTOR ( OUTDOOR TEMP. )
THERMISTOR ( COMPRESSOR TEMP. )
THERMISTOR ( PIPE - M I D. TEMP. )
POWER SOURCE
AC230V
50Hz
EMI FILTER
ATFC-25-15-12
2 T
EMI FILTER
ATFC-25-15-12
1 T
MAIN PCB
K06AX-1200HUE-C1
INVERTER ASSEMBLY
EZ-0121EHUE
OUTDOOR PCB
CIRCUIT DIAGRAM
2013.01.22 8

5V
I C102-4
BA2901F
-
R171
4.7k
+
11
10 13
-
+
6
71
-
+
5
67
-
+
2
31
2
3
1
2
3
1
3
21
-
+
5
67
-
+
-
+
-
+
5
672
31
-
+
13
12 14
-
+
-
+ 14 9
8
5
42
-
+
3
212
6
4
1
5
7
3
VCC
SO
GND
GAT I N
S I
D I
NC
14
13
12
11
10
9
8
1
2
3
4
5
6
7
3
2 1
-
+
12
3
-
+
75
6
-
+
3
2
1
-
+
76
5
3
2
1
-
+
6
57
3
2 1
2
3 4
1
2
34
1
3
2
4
1
4
12
3
3
1
2
3
1
2
3
2 1
4
2
1
3
3
2 1
3
2 1
9
10 8
-
+
-
+
6
57
3
21
-
+
3
2
1
3
21
33
2 1 2 1
2
1 3
G
I O
8
7
5
1
2
3
4
S
S
D
M
S
S
C
1
2
3
4
5
10
9
8
7
6
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
P
W
V
U
NW
NV
NU
VCC
COM
I N
I N
I N
VFO
CFOD
CSC
I N
VCC
VB
VS
I N
VCC
VB
VS
I N
VCC
VB
VS
2
7
9
16
4
5
12
13
3
6
11
14
1
8
10
15
O1
O2
O3
O4
GND1
GND2
GND3
GND4
I 1
I 2
I 3
I 4
COM1
COM2
NC1
NC2
16
15
14
13
12
11
10
9
1
2
3
4
5
6
7
8
1B
2B
3B
4B
5B
6B
7B
E
1C
2C
3C
4C
5C
6C
7C
COM
3
4
2
1
VDD
OUT
NC
GND
1
2
3
6
8
4
7
5
VCC
DO
NC
GND
CS
SK
D I
NC
3
1 2
3
1 2
3 3
1212
17
16
2
35
3
59
58
60
21
34
47
27
28
29
30
31
32
33
57
41
42
43
44
10
9
8
7
5
6
4
22
23
56
11
25
26
40
36
37
38
39
12
45
46
50
51
52
53
54
55
14
15
18
20
64
63
62
61
1
19
48
13
24
49
P63
P62
P46
P12
P50
P37
P36
P40
MD2
P11
P26
P02
P03
P04
P05
P06
P07
P10
C
P20
P21
P22
P23
P57
P56
P55
P54
P52
P53
P51
X0
X1
VCC
AVCC
P00
P01
P17
P13
P14
P15
P16
AVR
P24
P25
P30
P31
P32
P33
P34
P35
P60
P61
MD0
MD1
P44
P43
P42
P41
P45
RSTX
P27
AGND
GND
GND
2
13
1
2
3
4
5
6
7
8
9
10
1
2
3
4
5
6
1
2
3
4
5
6
1
2
1
2
1
2
3
4
1
2
3
1
2 = 3
I C500
MB90F462
+
FAN I N/17P
FANPWM/2P
PFCSW/35P
CT/3P
TEST/59P
PFC/58P
TTXD/60P
TAUX3/21P
CTDW/34P
CP-POS/47P
V4-AC/27P
ACFAN/28P
V4-DC/29P
LED/30P
PR/31P
SO/32P
I PM-TR I P/33P
E2CS/41P
EPV2/42P
EPV4/43P
EPV3/44P
TH/10P
I PM-CR/9P
DCV/8P
ACV/7P
TE/5P
TA/6P
TD/4P
TAUX/25P
E2SK/40P
ZXH/36P
ZXL/37P
E2D I/39P
EPV1/45P
PFC-TR I P/46P
U/50P
X/51P
V/52P
Y/53P
W/54P
Z/55P
PFCEN/14P
TMODE/18P
MD1/64P
MD2/63P
TCK/62P
TRXD/61P
MD0/1P
/TRES/19P
S I/48P
E2D I/39P
E2SK/40P
E2CS/41P
TAUX/25P
TTXD/60P
TRXD/61P
TMODE/18P
TAUX3/21P
TCK/62P
/TRES/19P
87654321
18 14 10 5 4 3 21
SO/I C80-2
V4-AC/I C80-3
FANPWM/2P
FAN I N/17P
EPV3/44P
EPV4/43P
EPV2/42P
EPV1/45P
CTDW/34P
LED/30P
SO/32P
V4-AC/27P
V4-DC/29P
PR/31P
ACFAN/28P
TH/10P
TE/5P
TD/4P
TA/6P
SO/I C80-2
V4-AC/I C80-3
PR/I C80-5
PFCSW/35P
PFCEN/14P
PFC-TR I P/46P
I PM-CR/9P
I PM-TR I P/33P
DCV/8P
CT/3P
ACV/7P
U/50P
V/52P
W/54P
X/51P
Y/53P
Z/55P
5V
R218
4.7k
<1/10W>
5V
15V
I C570
M93C46
5V
C570
0.1
<F>
R570
10k
5V
R93, R92, R91, R90
10k x 4
MD0/1P
MD1/64P
MD2/63P
TEST/59P
I C560
S80842
5V
R560
100k
R561
1.0k
C561
0.01
<F>
C503
0.1
<F>
C501
10/
25V
C502
0.1
<F>
X500
8.00MHz
<CSTLS>
C500
0.1
<F>
12V
I C80
uLN2003
12V
R80
2.2k
D80
SLR-332VR
<RED>
I C10-2
BA2903F
R19
1.0k
C13
0.1
<F>
C14
0.1
<F>
5V
15V R18
10k
I C10-1
BA2903F
12V
I C40
TD62064
12V
C41
0.1
<F>
C40
0.1
<F>
R40 - R43
1.5k <1/10W> x 4
C12
0.1
<F>
C10, C11
0.1 <F>
x2
R13
10k
R11
10k
L70
BL02Rn1
5V
R12
13k
1%
R10
4.75k
1%
R71 4.75k
1%
R75
10k
R76
10k
R72
13k
1%
C72
0.1
<F>
R77
10k
C75
0.1
<F> C73
0.1
<F>
R73
38.3k
1%
C71
0.1
<F>
R14
2.2k
1%
R16
2.2k
1%
R17
2.2k
1%
R15
2.87k
5V
C801
0.01
<F>
R804
1.0k
D600
DAN217U
5V
R803
10k
<1/10W>
5V
R801
1.0k
<1/4W>
R802
560
<1/4W>
C800
100/
25V
+
15V
Q800
DTC143EUA
Q801
DTA143EUA
C802
0.1
<F>
L800
BL02Rn1
K32
G5N-1A JM30
JM31
JM32
CR30
RE1201
0.1/120
15V
DCV-F POW_GND
POW_GND
5V
12V
K1
DX12D1-O(M)
15V
-12V
D105
DAN217U
D101
LL25XB60
R1
ZPR0RCH400
5V
PR/I C80-5
PFC/58P
+
-
W5
ORANGE
W6
ORANGE
W10
WHITE
W11
RED D100
LL25XB60
REACTOR
+
-
5V
ZXL/37P
S I/48P
PFCEN/14P
Q103
DTC143EUA
Q102
DTC143EUA
R132
2.2k
I C3-1
BA4560
R129
100k
1%
C117
1.0
<B>
I C3-2
BA4560
R130
220
1%
R131
10
R154
120k
R142
1.2k
1%
+
R400 - R407
0.2 <1W> 1%
x 8
15V
5V-2
5V
L130
CAL45VB470K
+
5V
R126
100k
1%
I C103-1
BA4560
R127, R128
10k 1%
x 2
R153 120k
1%
R155
100k
R156
100k
1% x 2
C137
0.1
<F>
C138
2.2/
50V
R157
4.7k
R21
39k
<1/10W>
R20
1.0k
<1/10W>
R22
1.0k
<1/10W>
C21
0.1
<B>
C20
0.022
<F>
R23
27k
<1/10W>
15V
15V
5V 5V
R162
68k
1%
I C105-1
BA2903F
C130
0.1
<F>
R159
4.7k
R160
68k
1%
C129
1000p
<B>
R161
1.5k
1%
R163
10k
1%
I C105-2
BA2903F
ZXH/36P
-12V R134, R133
10k 1% x 2
I C104-1
BA2902F
15V
-12V
C115
0.1
<F>
C116
0.1
<F>
I C104-4
BA2902F
R168
22k
R169
22k
COMP
5V
R500
10k
R502
1.0k
R503
10k
JM500
R585
1.0k
5V
5V
D113
DAN217U
C134
0.1
<F>
+
C133
2.2/
50V
C132
2.2/
50V
+
C131
0.1
<F>
R583
1.0k
R581
10k
R582
10k
R584
22k
C580
0.1
<F>
15V
I C50
TOP243PN
C51
1.0
<B>
+
R51
47
C50
47/
35V
L50, L51
BLm21
<AG601>
x 2
D52
1SS355
D51
UDZS8.2B
D50
1SS355 T60
RPZ-1F
D53
UF4005
R57
0R0
C52
2200p
<E>
R56
150k
<2W>
R52
470k
<1/8W>
1%
R53
510k
<1/8W>
1%
R54
510k
<1/8W>
1%
R55
510k
<1/8W>
1%
DCV-F
POW_GND
C66
100/
25V
D62
D1FL20
+
D61
D1FL20U
D60
D1FL20U
D64
1SS355
-12V
C69
100/
25V
+
I C60
BA7805
D63
1SS355
+C64
330/
25V
12V
5V
+
+R61
10k
C68
100/
25V
C67
0.1
<F>
C65
470/
25V
15V
R311
8.66k
1%
R309
5.76k
1%
R310
143
1%
C86
470p
<B>
C84
0.1
<F> C87
330p
<B>
R83
27k
<1/10W>
5V
+
I C302-2
BA2903F
C85
10/
25V
R81
1.0k
<1/10W>
C300
100p
<CH>
15V D304, D303
DAN217U x 2
R307
195k
<RN-1/2W>
R308
195k
<RN-1/2W>
POW_GND
I PM-G
R305, R303, R301
R306, R304, R302
195k <RN-1/2W>
1% x 6
WV U
I C300-2
BA4560
-12V
5V 5V
5V 5V
R339
10k
R334
10k
1%
Q300
DTC114EUA
R337
100k
1%
I 302-1
BA2903F C339
0.01
<F>
C330
1000p
<B>
R335, R336, R333
10k 1% x 3
R331
47k
1%
R329
47k
1%
I C300-1
BA4560
D302
RB751V
R328
1.0k
C311
1000p
<B>
R327
22k
C320
0.15
<ECQV>
D301
DAN217U
5V
4.7k 1%
x 2
R330
R332
I PM-G
C306
0.1
<F>
C305
0.1
<F>
15V
C213
0.022
<F>
C206 - C208, C215 - C217
2200p <B> x 6
R219
1.0k
R220
1.0k
C219
1000p
<B>
I PM-G
C214
2200p
<B>
R210
1.0k
390 <1/10W> x 6
R204
R205
R206
R207
R208
R209
POW_GND
R107
3.83k
1%
D112
DAN217U
+C109
2.2/
50V
C108
2.2/
50V
+C107
0.1
<F>
R111
10k
I C102-3
BA2901F
R165
22k
C112
0.1
<F>
C128
0.1
<F>
+
I C102-1
BA2901F
C127
2.2/
50V
C126
2.2/
50V
+
C125
0.1
<F>
R164
22k
C110
0.1
<F>
R117
22k
1%
C111
4700p
<B>
R119
10k
1% R112
10k
1%
5V-2
R115
22k
1%
R116
15k
1%
5V-2
R118
10k
1%
D107
RB751V
R114
15k
1%
C136
0.01
<F>
R101
4.7k
C141
1000p
<B>
R113
4.7k
1%
C106 0.1
<F>
5V-2 5V
D106
DAN217U
R167
10k
I C101
TC74HC00AF
R110
6.8k
DCV
15V-2
+
R105, R106
195k <RN-1/2W>
1% x 2
C104
10/
25V
C105
0.1
<F>
I C100
TA8316
R124
4.7k
15V
R109
22
<1/4W>
R108
47
<1/4W>
L100
BL02Rn1
DCV-F
POW_GND
DCV R200
39
<1/2W>
F100
15A
250V
D200 D201 D202
US1J x 3
+++
FH2
FH1
F4
3.15A
250V
C100 - C102
660uF / 450V x 3
+ + +
R104
220k
<2W>
C103
0.1
<HCP>
D102
UF4007
R103
100
<1/2W>
Q100
GT30J122
R102
47k
I PM-G
U V W
DCV
I C200
FSBB20CH60
R211
R212
R213
R214
R215
R216
0.15
<1W>
1%
x 6
W8W7 W9
U V W
15V
L300
CAL45VB470K
+
C209 - C212, C221
0.1 <F> x 5
C222 1.0 <F> D203 ZP1027-TP
C220 47 / 35V
C201 0.1 <F>
C200 47 / 35V
R201 330k C203 0.1 <F>
C202 47 / 35V
R202 330k C205 0.1 <F>
C204 47 / 35V
R203 330k
JM101
JM102
JM103
JM100 TEST
COMP CP-POS/47P
D109
RB751V
I C104-2
BA2902F
D108
RB751V
R141
10k
1%
R135
10k
1%
R137 10k 1% R136 10k 1%
R138 10k 1%
R140
10k
1%
R143
39k
1%
R139
10k
1%
I C104-3
BA2902F
R146
39k
1%
C124
2200p
<B>
R152
4.7k
1%
C123
2200p
<B>
R149
4.7k
1%
R144
22k
1%
R145
22k
1%
D111
DAN217U
D110
DAN217U
R147, R150
R148, R151
195k <RN-1/2W>
1% x 4
D115, D114
DAN217U x 2
C142
0.1
<F>
C113
2700p
<B>
I C102-2
BA2901F
R121
100k
1%
C140
0.1
<F>
C139
2.2/
50V
R120
4.7k
1%
R125
4.7k
R122
4.7k
1%
R123
4.7k
1%
R166 3.9k R158 3.9k
I C103-2
BA4560
-12V
C119
0.1
<F>
C120
0.1
<F>
L1
RCH4716-070PF07
C1
1.0
<LE>
SA1
RA-302M
VA1
470V
<TNR>
VA2
470V
<TNR>
W1
BLACK
L
W2
WHITE
N
W3
GREEN
EARTH
W4
RED
SERIAL
CN30
B2P3-VH-B-C
BLACK
CN801
B5P6-VH-B-L
WHITE
CN40
B06B-XARK-1-A
RED
CN73
B02B-XAMK-1-A
GREEN
CN72
B2B-XH-AM
CN71
B04B-PASK-1
CN70
B03B-PASK-1
THERMISTOR ( OUTDOOR TEMP. )
THERMISTOR ( PIPE TEMP. )
THERMISTOR ( DISCHARGE TEMP. )
THERMISTOR ( COMPRESSOR TEMP. )
THERMISTOR ( PIPE - MID. TEMP. )
ELECTRIC EXPANSION VALVE
DC FAN MOTOR
4-WAY VALVE COIL
I C104
BAYPASS CAPACITOR
I C105
BAYPASS CAPACITOR
I C102
BAYPASS CAPACITOR
I C103
BAYPASS CAPACITOR
I C300
BAYPASS CAPACITOR
POWER SOURCE
AC230V
50Hz
H Y I C 1
H U 2 0 0 1 R 3
C4
0.01
<KH>
C5
0.01
<KH>
C6
3.3
<LE>
FC51FL x 2
R338
3.3k
1%
12V
L40
C572
1.0k
C573
1000p
<B>
C574
1000p
<B>
OUTDOOR UNIT
MAIN PCB
K06AX-1200HUE-C1
2013.01.23 9

Indoor unit Wired
remote
control
Description
OPERATION
lamp
(green)
TIMER
lamp
(orange)
ECONOMY
lamp
(green)
(1) (1) Serial communication error
(1) (2) Wired remote control communication error
(1) (5) Check run unfinished
(2) (1)
Unit number or Refrigerant circuit address setting error
[Simultaneous Multi]
(2) (2) Indoor unit capacity error
(2) (3) Combination error
(2) (4)
Connection unit number error (indoor slave unit)•
[Simultaneous Multi]
Connection unit number error (indoor unit or branch unit) •
[Flexible Multi]
(2) (7) Master unit, slave unit set-up error
Power supply interruption error
[Simultaneous Multi]
(3) (2) Indoor unit PCB model
information error
(3) (5) Manual auto switch error
(4) (1) Inlet air temp. sensor error
(4) (2) Indoor unit Heat Ex. Middle temp. sensor error
(5) (1) Indoor unit fan motor error
(5) (3) Drain pump error
(5) (7) Damper error
(5) (15) Indoor unit error
(6) (2) Outdoor unit main PCB model information error
or communication error
(6) (3) Inverter error
(6) (4) Active filter error, PFC circuit error
(6) (5) Trip terminal Lerror
(6) (10)
Display PCB microcomputers communication error
: 0.5s on / 0.5s off
: 0.1s on / 0.1s off
( ) : Number of flashing
This is possible only on a wired remote control.
If an error occurs, the following display will be shown.
(“Er” will appear in the set room temperature display.)
2013.03.26
ERROR DETECTION
10
(3) (1)
Indoor unit Wired
remote
control
Description
OPERATION
lamp
(green)
TIMER
lamp
(orange)
ECONOMY
lamp
(green)
(7) (1) Discharge temp. sensor error
(7) (2) Compressor temp. sensor error
(7) (3) Outdoor unit Heat Ex. liquid temp. sensor error
(7) (4) Outdoor temp. sensor error
(7) (5) Suction Gas temp. sensor error
(7) (6) 2-way valve temp. sensor error•
3-way valve temp. sensor error•
(7) (7) Heat sink temp. sensor error
(8) (2) Sub-cool Heat Ex. gas inlet temp. sensor error•
Sub-cool Heat Ex. gas outlet temp.sensor error•
(8) (3) Liquid pipe temp. sensor error
(8) (4) Current sensor error
(8) (6) Discharge pressure sensor error•
Suction pressure sensor error•
High pressure switch error•
(9) (4) Trip detection
(9) (5) Compressor rotor position detection error
(permanent stop)
(9) (7) Outdoor unit fan motor error
(9) (9) 4-way valve error
Coil (expansion valve) error
Outdoor unit fan motor 2 error
(10) (1) Discharge temp. error
(10) (3) Compressor temp. error
(10) (4) High pressure error
(10) (5) Low pressure error
(13) (2) Branch boxes error
[Flexible Multi]
(9) (8)
(9) (10)
WIRED REMOTE CONTROL
.
Error codeUnit number of
indoor unit
EX. Self-diagnosis
INDOOR UNIT
OPERATION Lamp (green)
TIMER Lamp (orange)
ECONOMY Lamp (green)

PARTS
INDOOR UNIT
12
8
4
4
7
3
6
5
12
5 Hanger Bracket L 9358596005
6 Hanger Bracket R 9358595008
7 Cosmetic Panel R 9358535028
8 Cosmetic Panel L 9358536025
1 Remote Control 9379219037
2 Remote Control Holder 9305642045
3 Top Cover 9358534021
4 Arm 9358565001
Ref. Description Part number
2012.04.24

INDOOR UNIT
13
14 Control Box 9358600054
-- Room Thermistor 9703299087
16 Main PCB 9709245378
15 Control Box Cover Assy 9359097006
18 Terminal 3P 9306489045
19 Terminal 3P 9703345012
970739827417 Power Supply PCB
Ref. Description Part number
2013.03.26
12 Cap 9358563007
13 Base Bracket 9358586006
11 Base Assy 9359061014
15
17
18
14
16
19
12
12
13
12
12
11

INDOOR UNIT
14
23 Indicator PCB 9705798090
21
22 Side Cover R Assy 9359069102
Panel 9358531259
Ref. Description Part number
2012.04.24
24 Air Filter 9358567029
26 Arm Bracket 9359281009
27 Grille Support 9358602003
28 Filter Bracket 9358607008
25 Grill F 9358532027
21
22
23
27
28
27
24
25
24
26

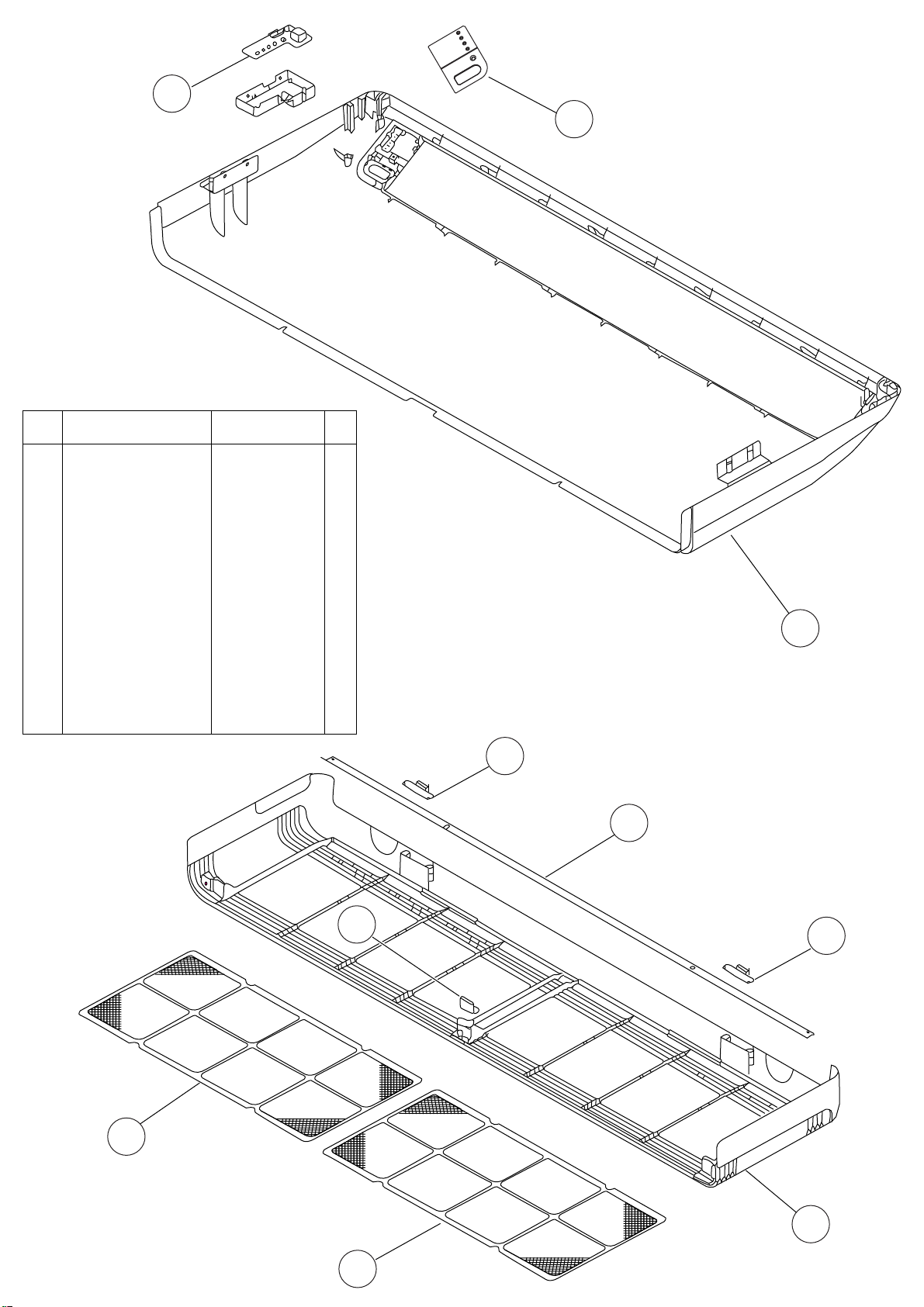

INDOOR UNIT
15
35
37
32
36
38
39
41
40
43
34
31
31
33
42
33 Flap (Upper) F 9358538029
34 Kit (Flap Lower) 9372671023
31 Bushing 9357942001
32 Bushing C 9358553008
36 Louver Link 9358556009
37 Louver Shaft 9358557006
38 Louver Link Cover 9358558010
42 Flap Link-Upper (Step V) 9358551004
43 Flap Link-Lower (Step V) 9358552001
41 Motor Rod-A (Step V) 9358550007
40 Motor Base 9358562017
35 Step Motor H 9900297015
39 Step Motor-V 9900362010
Ref. Description Part number
2012.04.24

INDOOR UNIT
16
54
59
57
57
53
53
51
58
52
55
56
55 Louver 9358561027
56 Bushing B 9358554005
59 Motor Rod 9358560013
53 Protect Cover 9358564011
54 Support Stay 9358599006
57 Louver Stopper 9358555002
58 Louver Rod 9358559017
52 Flap Base 9358537022
51 Kit (Flap Base) 9372670040
Ref. Description Part number
2012.04.24

17
INDOOR UNIT
65 Drain Hose Assy 9377785060
61 Kit (Separate Wall A) 9372666012
63 Kit (Drain Pan Assy) 9372669013
-- Pipe Thermistor 9900022020
67 Evaporator Sub Assy 9359051268
66 Kit (Insulation Flap Base) 9372672013
62 Kit (Separate Wall B) 9373448013
64 Drain Cap 9358746004
Ref. Description Part number
2012.04.24
62
61
63
66
67
65
64

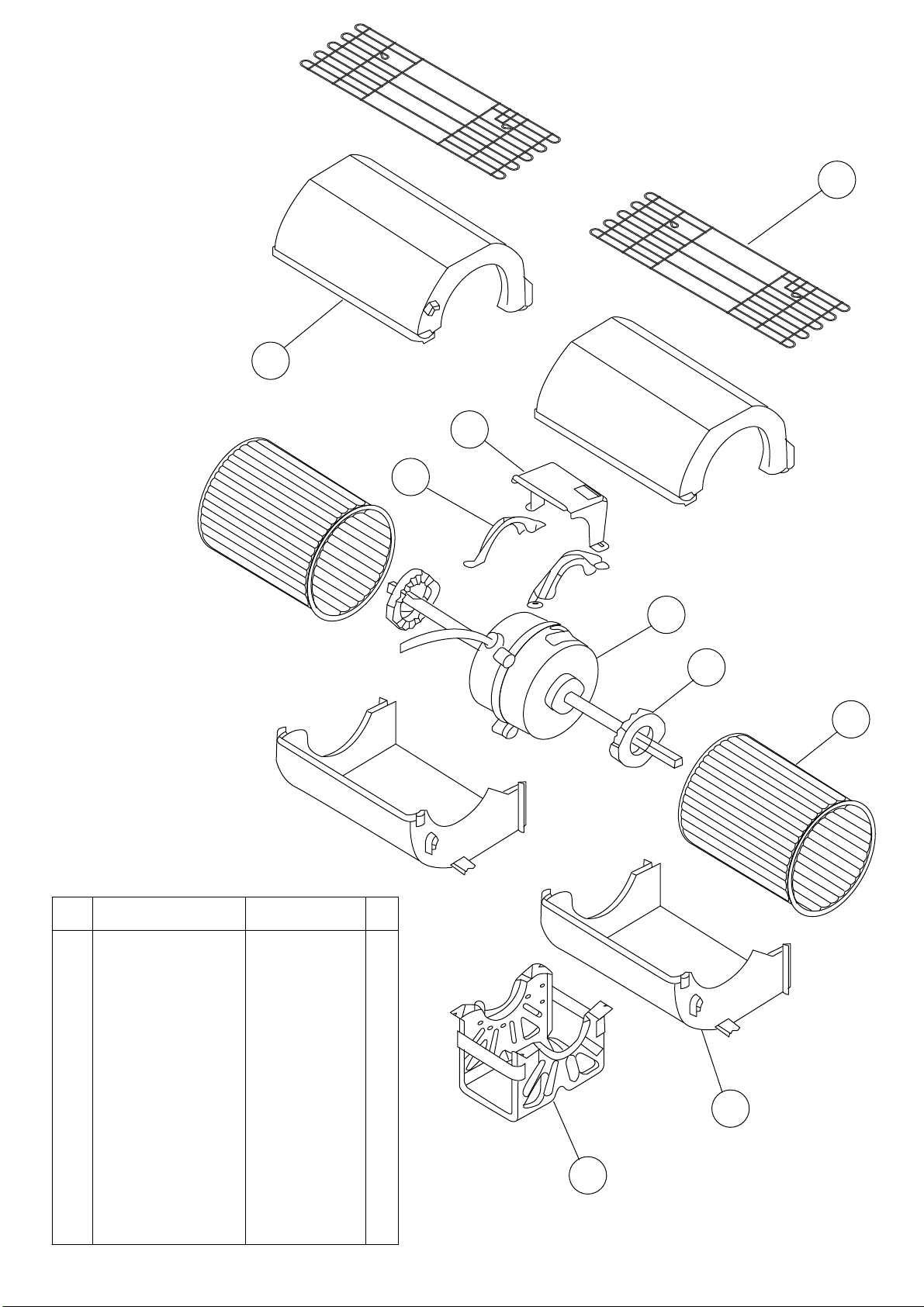

INDOOR UNIT
18
78
79
74
75
72
77
71
73
76
72 Sirocco Fan Assy 9385258006
77 Rubber 9385102002
73 Casing 9358543009
71 Motor Fixing Table 9358591000
76 Fan Motor Assy 9380636007
79 Motor Fixture 9358594001
78 Protector 9359282006
74 Casing Cover 9358544006
75 Barrier 9380671008
Ref. Description Part number
2012.04.24

2013.03.20 19
2
10
1
7
11
6
4
5
9
OUTDOOR UNIT
PARTS
82 Top Panel Assy
4 Cabinet
5 Blow Down Grille
11 Cabinet Right Assy
6 Fan Ring
7 Grip
1 Protective Net
8 Emblem
10 Switch Cover Assy
9309230057
9314809019
3 Cabinet Assy 9312799459
9309237032
9308884015
9309236028
9308885012
9308880017
9315033017
9319151007
9 Fan Guard Cover 9378110014
Ref. Description Part number
16 Propeller Fan
17 Nut With Washer
15 Fan Motor
Reactor Assy14
9309909014
9304902003
13 Drain Assy 9303029015
9602451012
9900354015
14
12
13
17
15
16 12 Base Assy 9315296030
3
21
20
18
19
Terminal19
18 Main PCB
9703874031
Heat Sink A20 9314410017
Heat Sink B21 9314090011
9707427561

2013.02.19 20
OUTDOOR UNIT
35 4-way Valve Assy
41 Pulse Motor Valve Assy
31 Condenser Total Assy
39 3-way Valve Assy
40 2-way Valve Assy
42 Expansion Valve Coil
32 Compressor Assy
34 Solenoid Coil
Thermistor Assy--
-- Heat Exchanger Thermistor
Outdoor Thermistor--
Ref. Description Part number
33 Compressor Thermistor
9315311023
9315310019
9312322091
9900403010
9315414014
9313062019
38 3WV Joint Pipe Assy
37 Suction Pipe Assy
36 Discharge Pipe Assy
9315308023
9315313027
9315312020
9900057039
9315297037
9970055010
9900148027
9900210045
9900156046
35
42
31
32
33
39
41
37
36
38
34
40
