Fujitsu ASTG12KMCA Service manual

AIR CONDITIONER
Wall Mounted type
DESIGN & TECHNICAL MANUAL
INDOOR
OUTDOOR
ASTG09KMCA
ASTG12KMCA
AOTG09KMCA
AOTG12KMCA

1. INDOOR UNIT
WALL MOUNTED TYPE:
ASTG09KMCA
ASTG12KMCA
DTR_AS081E_01
2013.07.19

WALL MOUNTED TYPE ASTG09-12KMCA WALL MOUNTED TYPE ASTG09-12KMCA
CONTENTS
1. INDOOR UNIT
1. FEATURES.............................................................................................................. 01 - 01
2. WIRELESS REMOTE CONTROLLER............................................... 01 - 03
3. SPECIFICATIONS.............................................................................................. 01 - 05
4. DIMENSIONS........................................................................................................ 01 - 06
5. WIRING DIAGRAMS........................................................................................ 01 - 08
6. CAPACITY TABLE............................................................................................ 01 - 09
6-1. COOLING CAPACITY...................................................................................... 01 - 09
6-2. HEATING CAPACITY....................................................................................... 01 - 10
7. FAN PERFORMANCE.....................................................................................01 - 11
7-1. AIR VELOCITY DISTRIBUTION......................................................................01 - 11
7-2. AIRFLOW........................................................................................................... 01 - 13
8. OPERATION NOISE (SOUND PRESSURE)................................. 01 - 15

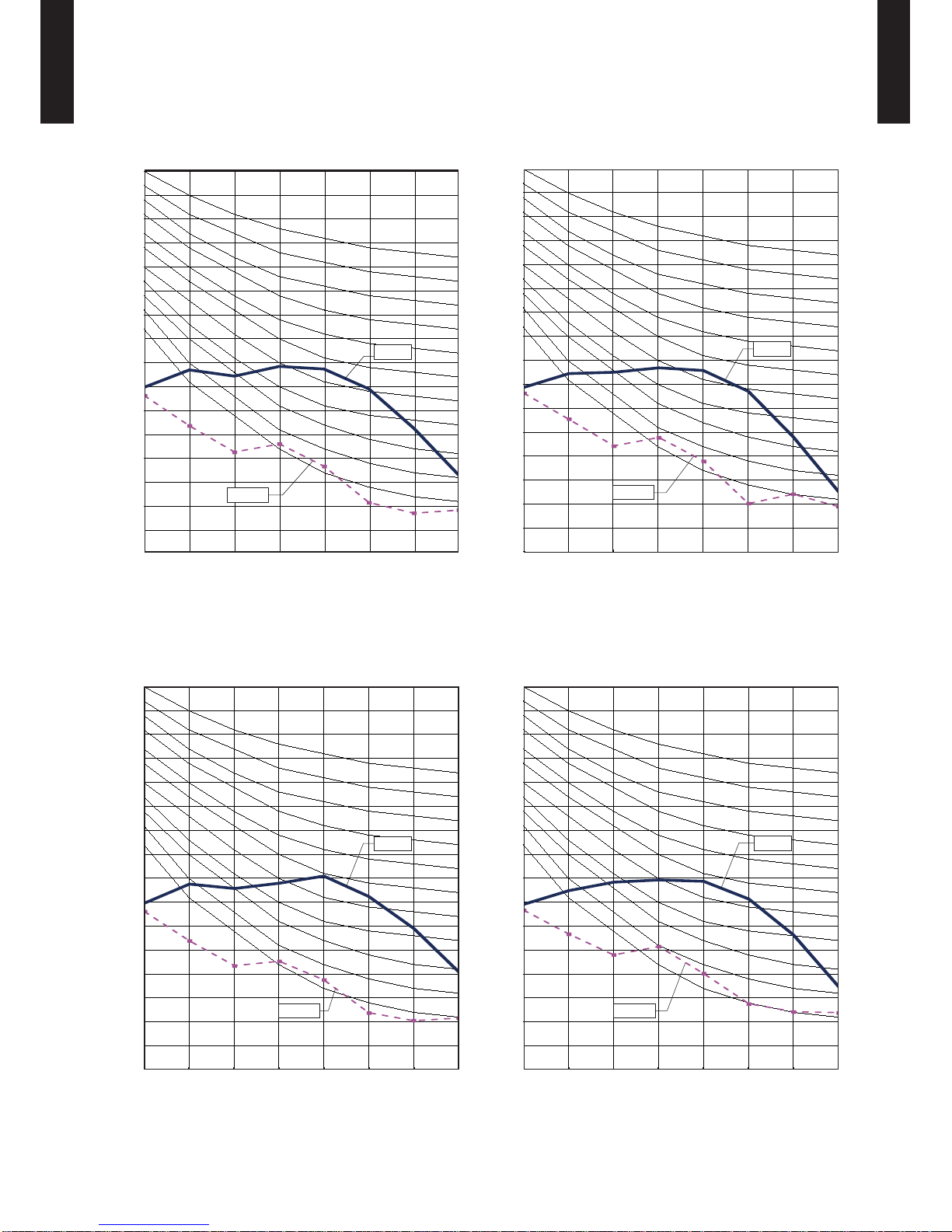

8-1. NOISE LEVEL CURVE .................................................................................... 01 - 15

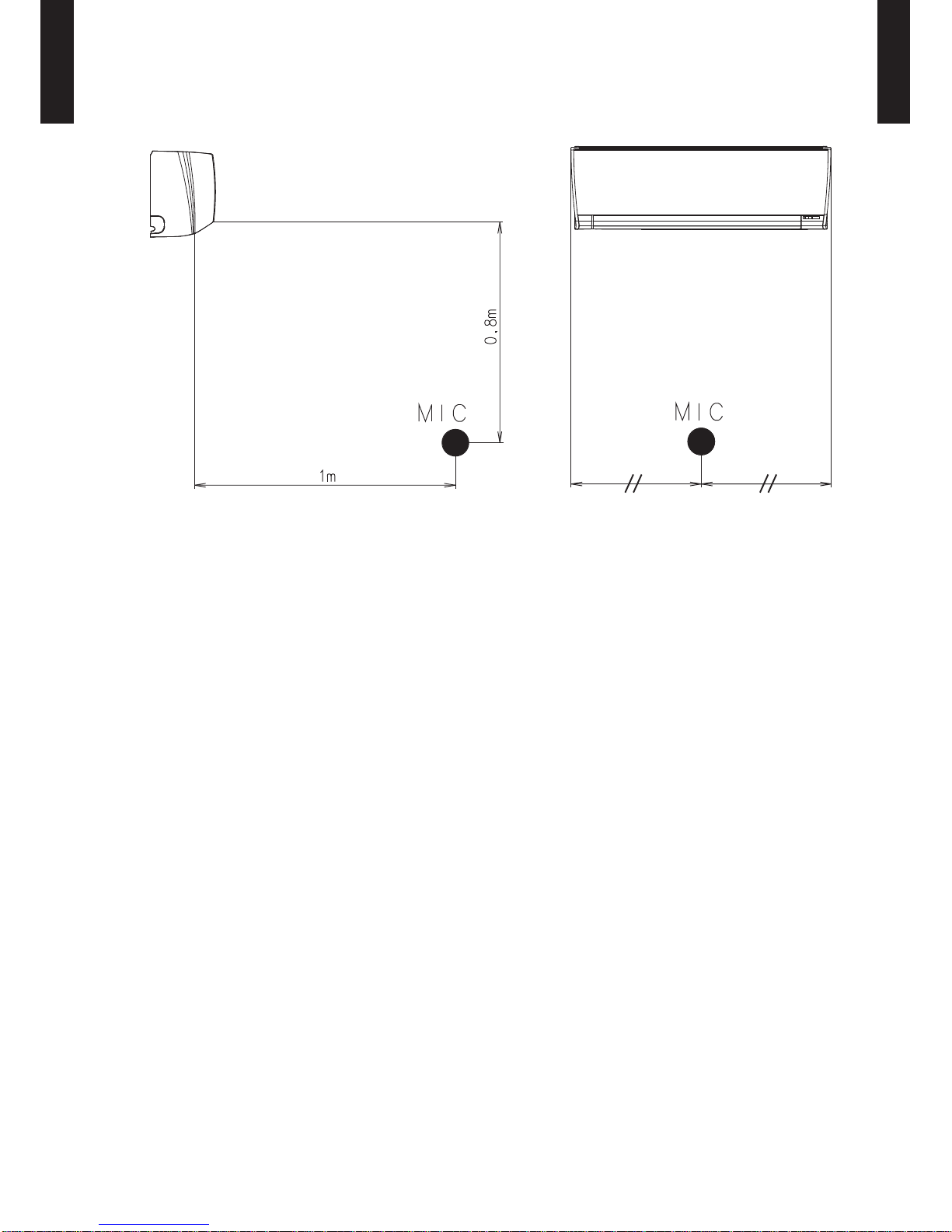

8-2. SOUND LEVEL CHECK POINT..................................................................... 01 - 16
9. ELECTRICAL CHARACTERISTICS................................................... 01 - 17
10. SAFETY DEVICES............................................................................................ 01 - 18
11. EXTERNAL INPUT & OUTPUT............................................................... 01 - 19
11-1. EXTERNAL INPUT........................................................................................... 01 - 19
11-2. EXTERNAL OUTPUT....................................................................................... 01 - 20
12. FUNCTION SETTINGS.................................................................................. 01 - 22
13. OPTIONAL PARTS........................................................................................... 01 - 26
13-1. CONTROLLERS............................................................................................... 01 - 26
13-2. OTHERS............................................................................................................. 01 - 26

-
(
01 - 01
)
-
WALL MOUNTED TYPE ASTG09-12KMCA WALL MOUNTED TYPE ASTG09-12KMCA
FEATURES1.MODEL

ASTG09KMCA / AOTG09KMCA
ASTG12KMCA / AOTG12KMCA

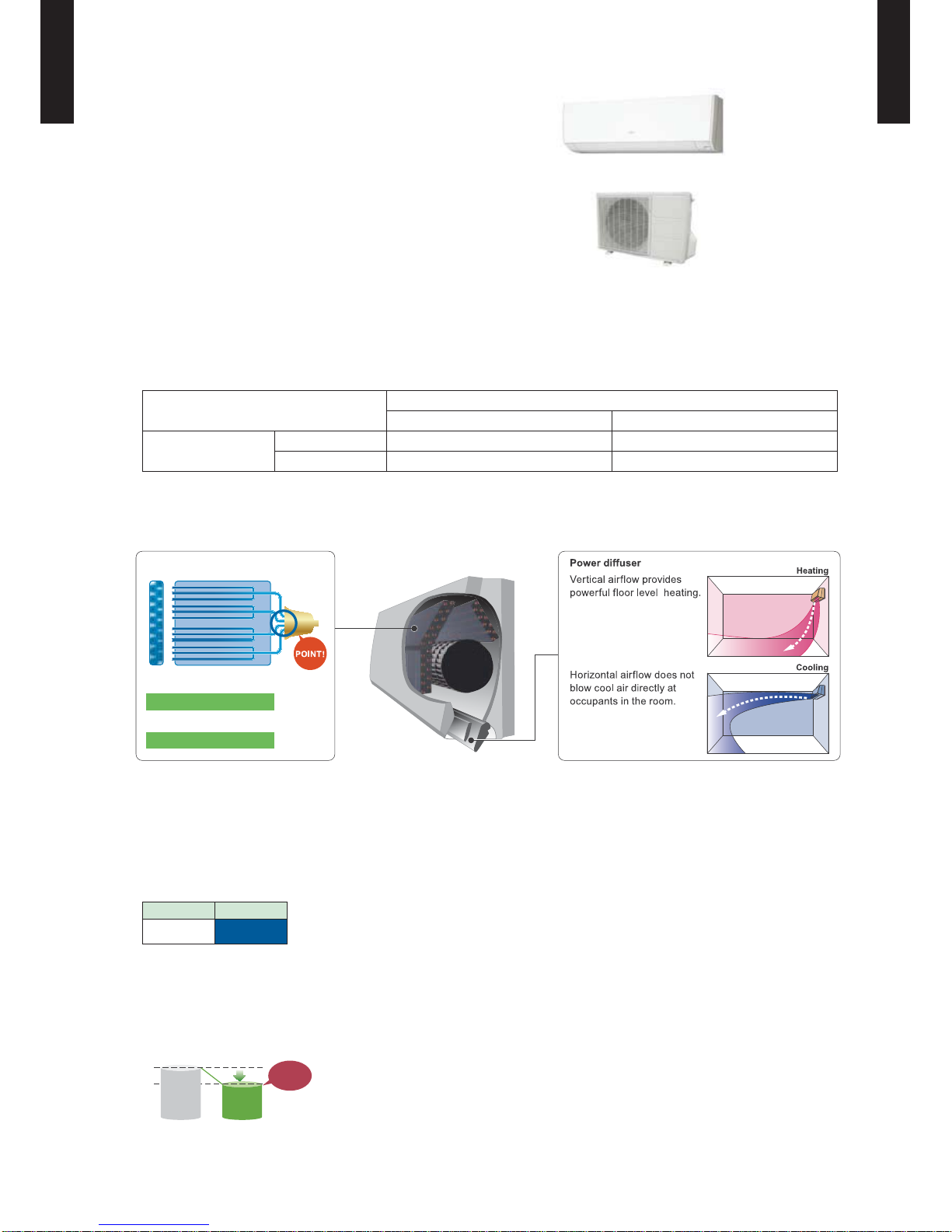

FEATURES

Energy efficiency

MODEL
ASTG09KMCA ASTG12KMCA
STAR RATING
INDEX
Cooling 5.0 3.5
Heating 5.0 4.5
High efficient compact design
 More comfortable airflow
Quiet operation

INDOOR UNIT
Airflow mode can be set in 4 steps and more detailed airflow setting is possible.
*21dB only at cooling operation (22dB at heating operation)
Fan speed Noise level
Quiet 21dB(A)
Outdoor unit low noise

When air-conditioner operates in large capacity, operation noise of outdoor unit will be
suppressed. ＊In case of room temperature being close to setting temperature, operation noise may not decrease.
Noise level in
Max. power
operating
3 dB
Down
Low noise
mode
Cross section of
copper pipes
Smooth flow of the refrigerant
(Schematic)
1,Copper pipe diameter 5 mm
High density technology
2, Refrigerant branches 4
Multiple path technology

-
(
01 - 02
)
-
WALL MOUNTED TYPE ASTG09-12KMCA WALL MOUNTED TYPE ASTG09-12KMCA

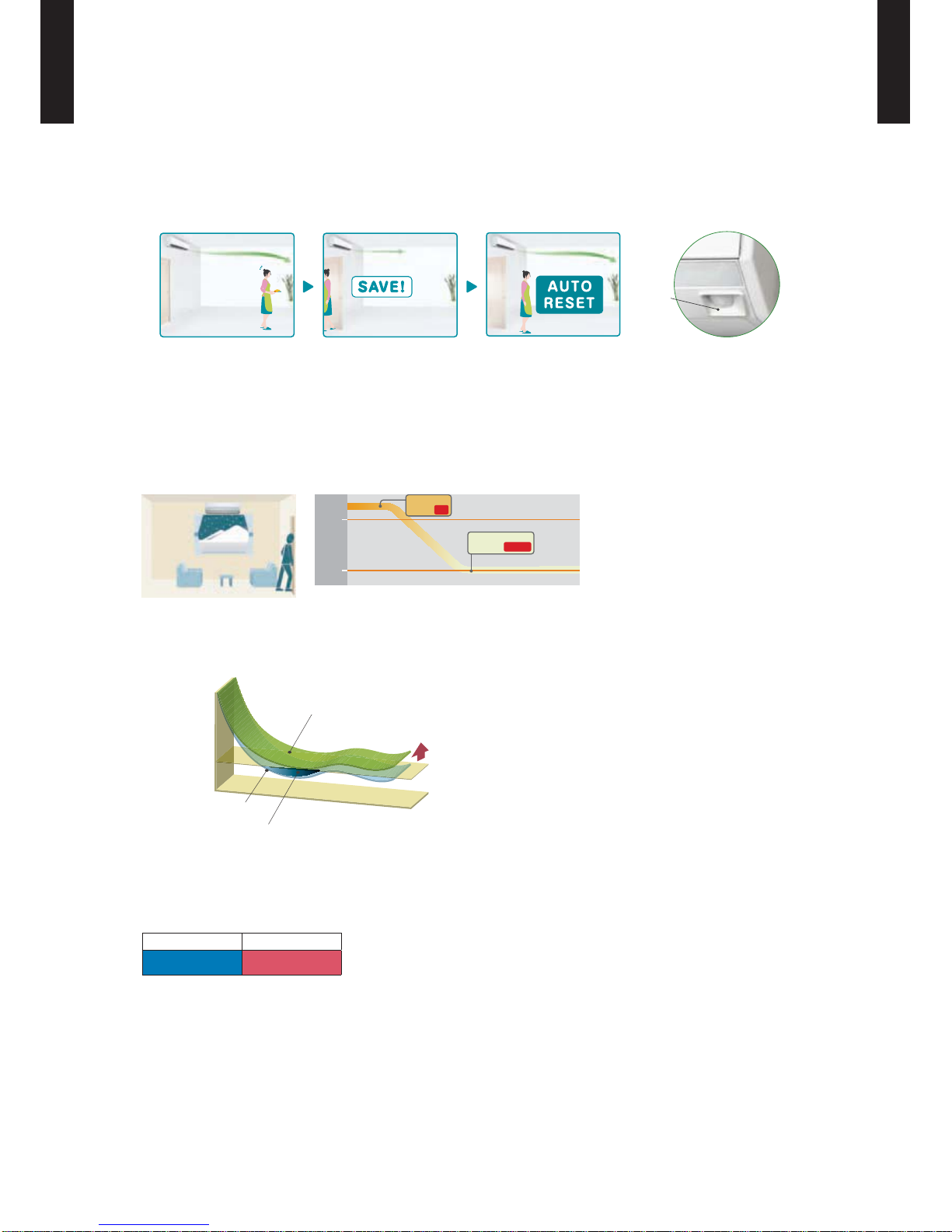

Energy saving control

Human sensor catches movements of people in a room, and operates with lower capacity when the room
is empty. When people come back to the room, it automatically returns to the previous operating mode.
10°C HEAT operation
 *Only available with Wireless RC.
The room temperature can be set to go no lower than 10 °C,
thus ensuring that the room does not get too cold when not occupied
NOTE:
When the room temperature is higher than 10 °C, “•10°C HEAT” operation will not start. Operation starts and maintains the room
temperature at 10 °C when the temperature drops below 10 °C.
Economy operation

Example : Cooling operation
Temp.
Economy operation Shift
setting
temp
Control maximum current
Normal operation Time
Set temperature
Low outdoor air temperature correspondence

Corresponds to cooling operation at 10 °C outdoor air temperature
Corresponds to heating operation at -15 °C outdoor air temperature
Cooling Heating
10 to 46 °C -15 to 24 °C
Demand Control

Restricts the operation of air-conditioner based on the demand from
energy providers in order to cut the peak load.
10°C
20°C
“10°C HEAT”
Button ON
Indoor unit
operation START
Economy operation is energy saving, as the set•
temperature of indoor unit is shifted by 1 °C and
the maximum electric value of the outdoor unit is
suppressed.
Energy saving operation by detecting someone’s movement
Human
sensor

-
(
01 - 03
)
-
WALL MOUNTED TYPE ASTG09-12KMCA WALL MOUNTED TYPE ASTG09-12KMCA

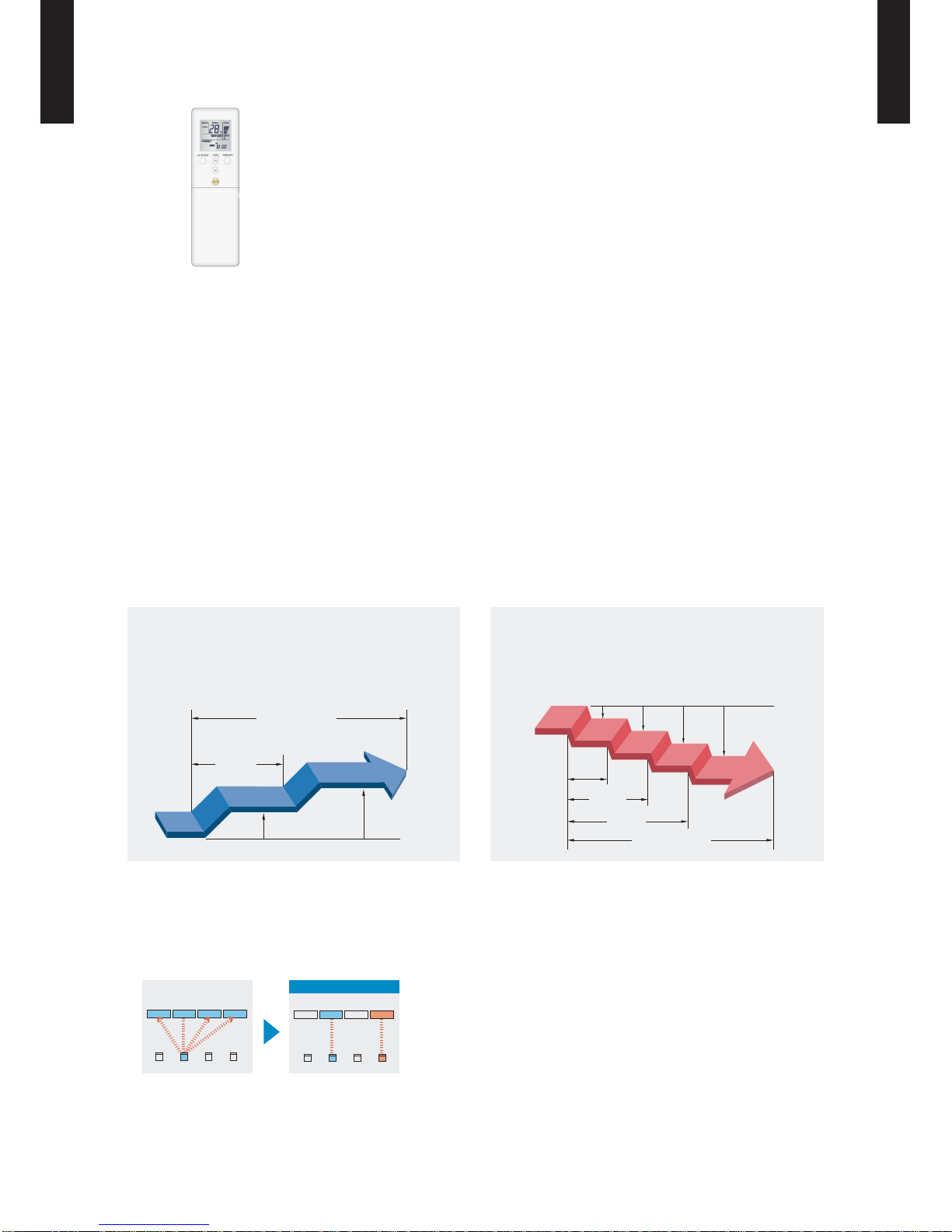

WIRELESS REMOTE CONTROLLER2.FEATURES

5 mode timer setup available (ON / OFF / WEEKLY /

PROGRAM / SLEEP).
Easy operation.

Easy to change signal code (max. 4 signal codes) by button operation.

Built-in timers

Select from 5 different timer programs (ON / OFF / WEEKLY / PROGRAM / SLEEP).
Weekly timer

Weekly timer can be easily set by wireless remote controller.
On and off can be set up to 4 times in a day, and up to 28 times in a week.
Program timer

The program timer operates the on and off timer once within a 24-hour period.
Sleep timer

The sleep timer function automatically corrects the temperature thermostat setting according to
the timer setting to prevent excessive cooling and heating while sleeping.
60min.
1 °C 2 °C
Timer setting 1 °C
30min.
60min.
90min.
2 °C 3 °C 4 °C
Timer setting
Cooling operation/dry operation
When the sleep timer is set, the set temperature
automatically rises 1 °C every hour. The set
temperature can rise up to a maximum of 2 °C.
Heating operation
When the sleep timer is set, the set temperature
automatically drops 1 °C every 30 minutes. The set
temperature can drop to a maximum of 4 °C.
Simple function setting

Setting of the air conditioner selection function is performed by remote controller.
Switching remote controller signal code

AB C D
ABCD
Mixed-up
I.U. I.U. I.U. I.U. I.U. I.U. I.U. I.U.
After code change
Code selector switch eliminates unit

•
being wrongly switched.
(Up to 4 signal codes can be set.)
*I.U.=Indoor unit

-
(
01 - 04
)
-
WALL MOUNTED TYPE ASTG09-12KMCA WALL MOUNTED TYPE ASTG09-12KMCA

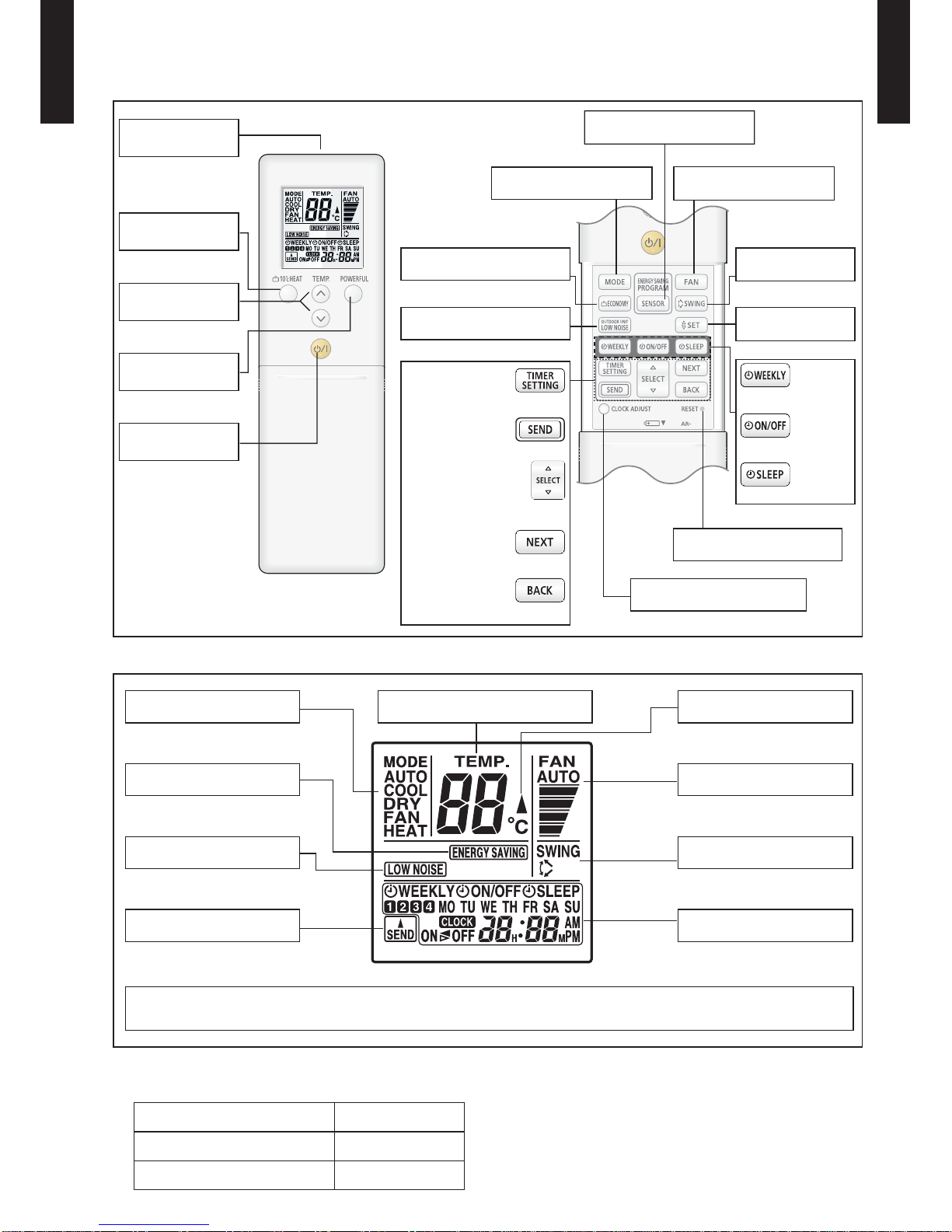

FUNCTIONS

4'('
Signal
transmitter
10°C HEAT
button
TEMP.
button
POWERFUL
button
Start/Stop
button
MODE button
SENSOR button
ECONOMY button
OUTDOOR UNIT
LOW NOISE button
SWING button
TIMER SETTING button
SEND button
SELECT button
NEXT button
BACK button
SET button
WEEKLY button
ON/OFF button
SLEEP button
FAN button
RESET button
CLOCK ADJUST button
Display panel
To facilitate explanation, the accompanying illustration has been drawn to show all possible indicators; in actual operation,
however, the display will only show those indicators appropriate to the current operation.
Mode indicator
Energy Saving
Mode indicator
Low Noise Mode
indicator
Turns on when the

SENSOR button is operated.
Clock & Timer
indicator
Send indicator
Temperature indicator Transmit indicator
Fan Speed indicator
Swing indicator
SPECIFICATION

SIZE (H × W × D mm) 205 × 61 × 17
WEIGHT ( g ) 122
ACCESSORY Holder
NOTE: Some button operations may not be available for all
units or systems.
For details, refer to the operation manual.

-
(
01 - 05
)
-
WALL MOUNTED TYPE ASTG09-12KMCA WALL MOUNTED TYPE ASTG09-12KMCA
SPECIFICATIONS3.
Type WALL MOUNTED
INVERTER HEAT PUMP
Model name ASTG09KMCA ASTG12KMCA
Power source 240 V ~ 50 Hz
Available voltage range 198 V - 264 V
Star rating index 10-star standard Cooling 5.0 3.5
Heating 5.0 4.5
Capacity
Cooling
Rated kW 2.50 3.50
Btu/h 8,500 11,900
Min.-Max. kW 0.90 - 3.60 0.90 - 4.10
Btu/h 3,100 - 12,200 3,100 - 13,900
Heating
Rated kW 3.20 3.70
Btu/h 10,900 12,600
Min.-Max. kW 0.90 - 5.30 0.90 - 5.60
Btu/h 3,100 - 18,000 3,100 - 19,100
Input power
Cooling Rated
kW
0.51 0.86
Min.-Max. 0.25 - 1.14 0.25 - 1.38
Heating Rated 0.65 0.81
Min.-Max. 0.25 - 1.60 0.25 - 1.70
Current Cooling Rated A 2.7 4.2
Heating 3.3 4.0
EER Cooling kW/kW 4.90 4.07
COP Heating 4.92 4.57
Sensible capacity Cooling kW 1.62 2.28
Power factor Cooling %79 85
Heating 82 84
Moisture removal l/h (pints/h) 1.3 (2.3) 1.8 (3.2)
Maximum operating
current *
Cooling A6.0 6.5
Heating 7.5 9.0
Fan
Airflow
rate
Cooling
High
I/s (m3/h)
194 (700) 200 (720)
Med 156 (560) 169 (610)
Low 125 (450) 133 (480)
Quiet 86 (310) 86 (310)
Heating
High 194 (700) 200 (720)
Med 156 (560) 169 (610)
Low 131 (470) 144 (520)
Quiet 92 (330) 92 (330)
Type × Q't y Crossflow fan × 1
Motor output W 44
Sound pressure level
Cooling
High
dB (A)
40 42
Med 36 37
Low 31 32
Quiet 21 21
Heating
High 40 42
Med 34 37
Low 31 33
Quiet 22 22
Heat exchanger type
Dimensions
(H × W × D) mm
Main: 320 × 630 × 20
Sub: 84 × 630 × 13.3
Fin pitch Main: 1.1, Sub: 1.4
Rows × Stages Main: 2 × 20, Sub: 1 × 4
Pipe type Copper
Fin type Aluminium
Enclosure
Material Polystyrene
Colour White
Approximate colour of MUNSELL N9.25/
Dimensions
(H × W × D)
Net mm 268 × 840 × 203
Gross 270 × 884 × 336
Weight Net kg 8.5
Gross 10.5
Connection
pipe
Size Liquid mm Ø 6.35 (Ø 1/4 in.)
Gas Ø 9.52 (Ø 3/8 in.)
Method Flareless
Operation range Cooling °C 18 to 32
%RH 80 or less
Heating °C 16 to 30
Remote controller type Wireless
Drain hose Material PP + LLDPE
Size mm Ø 13.8 (I.D.), Ø 15.8 to Ø 16.7 (O.D.)
International Protection rating IPX0
NOTES :
Specifications are based on the following conditions.

•
Cooling: Indoor temperature of 27 °CDB / 19 °CWB and outdoor temperature of 35 °CDB / 24 °CWB.
Heating: Indoor temperature of 20 °CDB / 15 °CWB and outdoor temperature of 7 °CDB / 6 °CWB.
Pipe length: 7.5 m, Height difference: 0 m. (Outdoor unit - Indoor unit)
The protective function may work when using it in environment out of the temperature range mentioned above.

•
*: The maximum current is the maximum value when operated within the operation range.

-
(
01 - 06
)
-
WALL MOUNTED TYPE ASTG09-12KMCA WALL MOUNTED TYPE ASTG09-12KMCA
DIMENSIONS4.MODELS: ASTG09KMCA, ASTG12KMCA

(Unit: mm)

-
(
01 - 07
)
-
WALL MOUNTED TYPE ASTG09-12KMCA WALL MOUNTED TYPE ASTG09-12KMCA

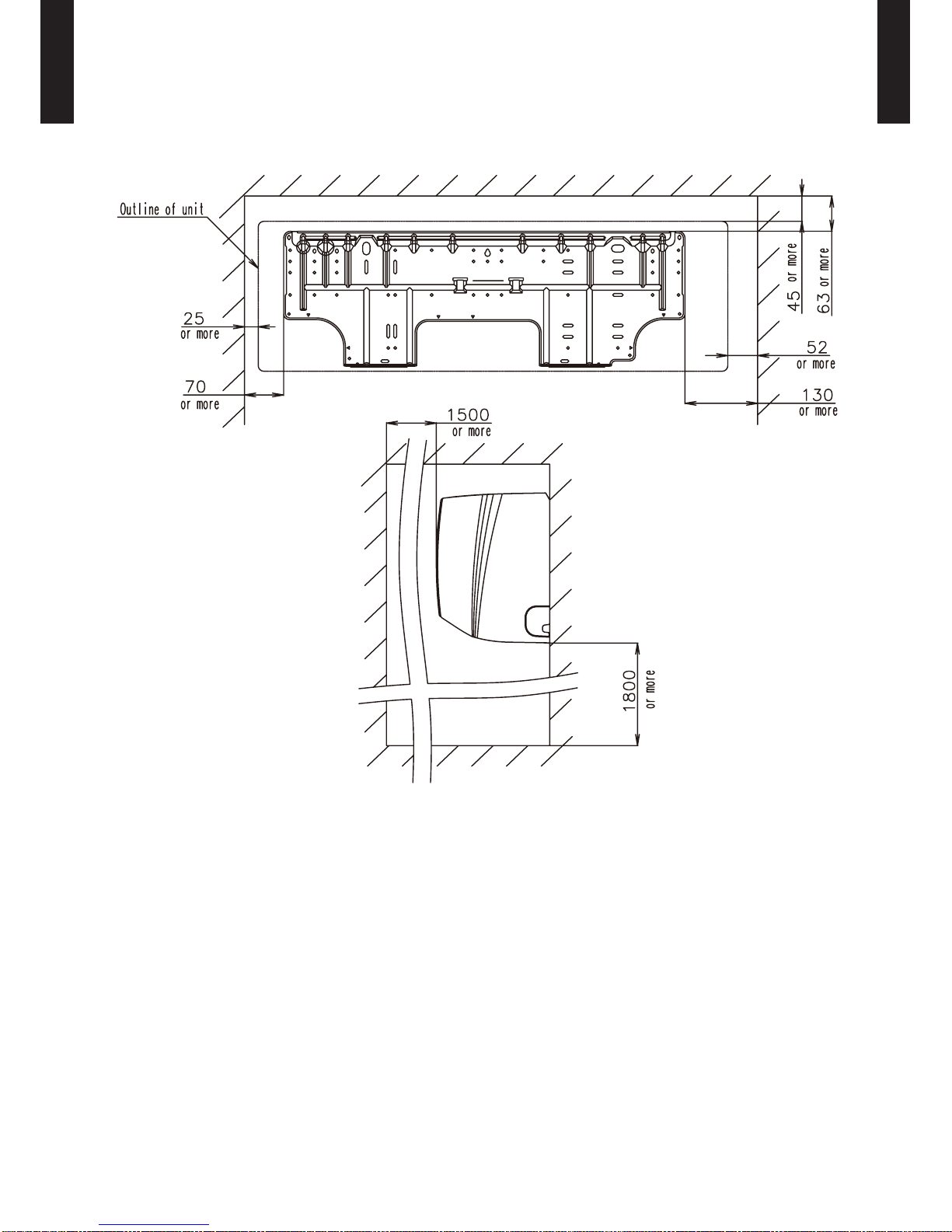

INSTALLATION PLACE

(Unit: mm)

-
(
01 - 08
)
-
WALL MOUNTED TYPE ASTG09-12KMCA WALL MOUNTED TYPE ASTG09-12KMCA
WIRING DIAGRAMS5.MODELS: ASTG09KMCA, ASTG12KMCA


-
(
01 - 09
)
-
WALL MOUNTED TYPE ASTG09-12KMCA WALL MOUNTED TYPE ASTG09-12KMCA
CAPACITY TABLE6. COOLING CAPACITY6-1.
MODEL
 : ASTG09KMCA
MODEL
 :ASTG12KMCA
AFR: Airflow Rate (m3/min)
TC: Total Capacity (kW)
SHC: Sensible Heat Capacity (kW)
IP: Input Power (kW)
AFR 11.7
Indoor temperature
°CDB 18 21 23 25 27 29 32
°CWB 12 15 16 18 19 21 23
Outdoor temperature
°CDB TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP
20 2.34 1.53 0.34 2.60 1.54 0.34 2.69 1.67 0.34 2.87 1.67 0.35 2.96 1.81 0.35 3.14 1.80 0.35 3.32 1.92 0.36
25 2.22 1.47 0.39 2.47 1.48 0.39 2.56 1.61 0.39 2.73 1.62 0.40 2.81 1.75 0.40 2.98 1.74 0.40 3.15 1.85 0.41
30 2.10 1.42 0.44 2.34 1.43 0.45 2.42 1.56 0.45 2.58 1.56 0.45 2.66 1.69 0.46 2.82 1.68 0.46 2.98 1.79 0.46
35 1.98 1.37 0.49 2.20 1.38 0.50 2.28 1.50 0.50 2.43 1.50 0.51 2.50 1.62 0.51 2.65 1.61 0.52 2.80 1.72 0.52
40 1.83 1.32 0.54 2.03 1.33 0.55 2.10 1.45 0.56 2.24 1.45 0.56 2.31 1.57 0.56 2.45 1.56 0.57 2.59 1.66 0.57
46 1.68 1.30 0.62 1.87 1.31 0.63 1.93 1.42 0.64 2.06 1.43 0.64 2.13 1.54 0.65 2.25 1.54 0.65 2.38 1.64 0.66
AFR 12.0
Indoor temperature
°CDB 18 21 23 25 27 29 32
°CWB 12 15 16 18 19 21 23
Outdoor temperature
°CDB TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP
20 3.28 2.15 0.59 3.65 2.16 0.60 3.78 2.35 0.61 4.03 2.36 0.61 4.15 2.55 0.62 4.40 2.54 0.62 4.65 2.70 0.63
25 3.12 2.08 0.67 3.48 2.10 0.68 3.59 2.28 0.68 3.83 2.29 0.69 3.95 2.47 0.70 4.19 2.46 0.70 4.42 2.62 0.71
30 2.95 2.00 0.75 3.28 2.01 0.76 3.39 2.19 0.77 3.62 2.20 0.78 3.73 2.37 0.78 3.95 2.36 0.79 4.18 2.52 0.79
35 2.77 1.92 0.83 3.08 1.94 0.84 3.19 2.10 0.85 3.40 2.11 0.86 3.50 2.28 0.86 3.71 2.27 0.87 3.92 2.42 0.88
40 2.56 1.85 0.92 2.85 1.86 0.93 2.95 2.03 0.94 3.14 2.03 0.95 3.24 2.20 0.95 3.43 2.19 0.96 3.62 2.33 0.97
46 2.26 1.76 0.97 2.51 1.77 0.99 2.60 1.92 0.99 2.77 1.93 1.00 2.86 2.09 1.01 3.03 2.08 1.02 3.20 2.21 1.03

-
(
01 - 10
)
-
WALL MOUNTED TYPE ASTG09-12KMCA WALL MOUNTED TYPE ASTG09-12KMCA
HEATING CAPACITY6-2.
MODEL
 : ASTG09KMCA
MODEL
 : ASTG12KMCA
AFR: Airflow Rate (m
3
/min)
TC: Total Capacity (kW)
IP: Input Power (kW)
AFR 11.7
Indoor temperature
(°CDB) 16 18 20 22 24
Outdoor temperature
(°CDB) (°CWB) TC IP TC IP TC IP TC IP TC IP
-15 -16 2.76 1.08 2.69 1.10 2.63 1.12 2.56 1.15 2.50 1.17
-10 -11 3.23 1.16 3.15 1.19 3.07 1.21 3.00 1.23 2.92 1.26
-5 -7 3.69 1.24 3.61 1.27 3.52 1.30 3.43 1.32 3.34 1.35
0 -2 4.16 1.33 4.06 1.36 3.96 1.38 3.86 1.41 3.76 1.44
5 3 4.90 1.44 4.79 1.47 4.67 1.50 4.55 1.53 4.44 1.56
7 6 5.57 1.54 5.43 1.57 5.30 1.60 5.17 1.63 5.04 1.66
10 8 5.80 1.46 5.66 1.49 5.52 1.52 5.38 1.55 5.24 1.58
15 10 5.87 1.31 5.73 1.34 5.59 1.36 5.45 1.39 5.31 1.42
AFR 12.0
Indoor temperature
(°CDB) 16 18 20 22 24
Outdoor temperature
(°CDB) (°CWB) TC IP TC IP TC IP TC IP TC IP
-15 -16 3.03 1.14 2.96 1.17 2.89 1.19 2.82 1.21 2.74 1.24
-10 -11 3.50 1.24 3.42 1.27 3.33 1.29 3.25 1.32 3.17 1.34
-5 -7 3.92 1.32 3.82 1.34 3.73 1.37 3.64 1.40 3.54 1.43
0 -2 4.42 1.42 4.31 1.45 4.21 1.48 4.10 1.51 4.00 1.54
5 3 5.21 1.54 5.09 1.57 4.96 1.60 4.84 1.64 4.72 1.67
7 6 5.88 1.63 5.74 1.67 5.60 1.70 5.46 1.73 5.32 1.77
10 8 6.12 1.54 5.97 1.57 5.83 1.60 5.68 1.63 5.53 1.67
15 10 6.20 1.45 6.05 1.48 5.90 1.51 5.76 1.54 5.61 1.57

-
(
01 - 11
)
-
WALL MOUNTED TYPE ASTG09-12KMCA WALL MOUNTED TYPE ASTG09-12KMCA
FAN PERFORMANCE7. AIR VELOCITY DISTRIBUTION7-1.
MODEL
 : ASTG09KMCA
Note:
Fan speed : High
Operation mode : FAN
2.0 1.0 0.5
2
1
0
1
2
Unit : m/s(m)
(m)
TOP VIEW
Vertical flap : Up
Horizontal flap : Center
0123456789
2.0
1.0
1.0
0.5
0.5
3
2
1
0
1
2
3
Unit : m/s(m)
TOP VIEW
Vertical flap : Up
Horizontal flap : Right & Left
(m)
0123456789
2.0
1.0 0.5
3
2
1
0
Unit : m/s(m)
SIDE VIEW
Vertical flap : Up
Horizontal flap : Center
(m)
0123456789
2.0
1.0
0.5
3
2
1
0
Unit : m/s(m)
SIDE VIEW
Vertical flap : Down
Horizontal flap : Center
(m)
0123456789

-
(
01 - 12
)
-
WALL MOUNTED TYPE ASTG09-12KMCA WALL MOUNTED TYPE ASTG09-12KMCA
MODEL
 : ASTG12KMCA
Note:
Fan speed : High
Operation mode : FAN
2.0 1.0 0.5
2
1
0
1
2
Unit : m/s(m)
(m)
TOP VIEW
Vertical flap : Up
Horizontal flap : Center
0123456789
2.0
1.0
1.0
0.5
0.5
3
2
1
0
1
2
3
Unit : m/s(m)
TOP VIEW
Vertical flap : Up
Horizontal flap : Right & Left
(m)
0123456789
2.0
1.0 0.5
3
2
1
0
Unit : m/s(m)
SIDE VIEW
Vertical flap : Up
Horizontal flap : Center
(m)
0123456789
2.0
1.0
0.5
3
2
1
0
Unit : m/s(m)
SIDE VIEW
Vertical flap : Down
Horizontal flap : Center
(m)
0123456789

-
(
01 - 13
)
-
WALL MOUNTED TYPE ASTG09-12KMCA WALL MOUNTED TYPE ASTG09-12KMCA
AIRFLOW7-2.
MODEL
 :ASTG09KMCA
Cooling

Heating

Fan speed
Number of
rotations
(r.p.m.)
Airflow
HIGH 1240
m3/h 700
l/s 194
CFM 412
MED 1050
m3/h 560
l/s 156
CFM 330
LOW 880
m3/h 450
l/s 125
CFM 265
QUIET 680
m3/h 310
l/s 86
CFM 182
Fan speed
Number of
rotations
(r.p.m.)
Airflow
HIGH 1240
m3/h 700
l/s 194
CFM 412
MED 1050
m3/h 560
l/s 156
CFM 330
LOW 910
m3/h 470
l/s 131
CFM 277
QUIET 710
m3/h 330
l/s 92
CFM 194

-
(
01 - 14
)
-
WALL MOUNTED TYPE ASTG09-12KMCA WALL MOUNTED TYPE ASTG09-12KMCA
MODEL
 :ASTG12KMCA
Cooling

Heating

Fan speed
Number of
rotations
(r.p.m.)
Airflow
HIGH 1280
m3/h 720
l/s 200
CFM 424
MED 1120
m3/h 610
l/s 169
CFM 359
LOW 930
m3/h 480
l/s 133
CFM 283
QUIET 680
m3/h 310
l/s 86
CFM 182
Fan speed
Number of
rotations
(r.p.m.)
Airflow
HIGH 1280
m3/h 720
l/s 200
CFM 424
MED 1120
m3/h 610
l/s 169
CFM 359
LOW 980
m3/h 520
l/s 144
CFM 306
QUIET 710
m3/h 330
l/s 92
CFM 194

-
(
01 - 15
)
-
WALL MOUNTED TYPE ASTG09-12KMCA WALL MOUNTED TYPE ASTG09-12KMCA
OPERATION NOISE (SOUND PRESSURE)8. NOISE LEVEL CURVE8-1.
MODEL
 :ASTG09KMCA
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
QUIET
HIGH
Octave band sound pressure level, dB: (0 dB=0.0002 μbar)
Octave band center frequency, Hz
80
70
60
50
40
30
20
10
0
63 125 250 500 1,000 2,000 4,000 8,000
MODEL
 :ASTG12KMCA
Cooling

NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
Heating

Octave band sound pressure level, dB: (0 dB=0.0002 μbar)
Octave band center frequency, Hz
80
70
60
50
40
30
20
10
0
63 125 250 500 1,000 2,000 4,000 8,000
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
Octave band sound pressure level, dB: (0 dB=0.0002 μbar)
Octave band center frequency, Hz
80
70
60
50
40
30
20
10
0
63 125 250 500 1,000 2,000 4,000 8,000
Octave band sound pressure level, dB: (0 dB=0.0002 μbar)
Octave band center frequency, Hz
80
70
60
50
40
30
20
10
0
63 125 250 500 1,000 2,000 4,000 8,000
Heating

Octave band sound pressure level, dB: (0 dB=0.0002 μbar)
Octave band center frequency, Hz
80
70
60
50
40
30
20
10
0
63 125 250 500 1,000 2,000 4,000 8,000
QUIET
HIGH
Cooling

Octave band sound pressure level, dB: (0 dB=0.0002 μbar)
Octave band center frequency, Hz
80
70
60
50
40
30
20
10
0
63 125 250 500 1,000 2,000 4,000 8,000
HIGH
QUIET
HIGH
QUIET

-
(
01 - 16
)
-
WALL MOUNTED TYPE ASTG09-12KMCA WALL MOUNTED TYPE ASTG09-12KMCA
SOUND LEVEL CHECK POINT8-2.

-
(
01 - 17
)
-
WALL MOUNTED TYPE ASTG09-12KMCA WALL MOUNTED TYPE ASTG09-12KMCA
ELECTRICAL CHARACTERISTICS9.
Model name ASTG09KMCA ASTG12KMCA
Power supply Voltage V 240 ~
Frequency Hz 50
Max. operating current A 7.5 9.0
Wiring spec. Connection cable mm21.5
Limited wiring length m 21
NOTES on Wiring spec.:
Selected sample based on Japan Electrotechnical Standards and Codes Committee E0005.

•
Limited wiring length: Limit voltage drop to less than 2 %. Increase cable gauge if voltage drop is 2 % or more.

•
Use conformed cable with Type 60245 IEC 57.

•
