Fujitsu AS*G18LFCA series Service manual

AIR CONDITIONER
Wall Mounted type
INDOOR
OUTDOOR
ASG18LFCA
ASG24LFCC
ASG30LFCA
AOG18LFC
AOG24LFCC AOG30LFT
DESIGN & TECHNICAL MANUAL

1. INDOOR UNIT
WALL MOUNTED TYPE :
ASG18LFCA
ASG24LFCC
ASG30LFCA
DTR_AS075E_04
2016.04.22

WALL MOUNTED TYPE ASG18-30LFC(C)A WALL MOUNTED TYPE ASG18-30LFC(C)A
CONTENTS
1. INDOOR UNIT
1. FEATURES.............................................................................................................. 01 - 01
2. WIRELESS REMOTE CONTROLLER............................................... 01 - 04
3. SPECIFICATIONS.............................................................................................. 01 - 06
4. DIMENSIONS........................................................................................................ 01 - 08
5. WIRING DIAGRAMS........................................................................................ 01 - 10
6. CAPACITY TABLE.............................................................................................01 - 11
6-1. COOLING CAPACITY.......................................................................................01 - 11
6-2. HEATING CAPACITY....................................................................................... 01 - 12
7. FAN PERFORMANCE.................................................................................... 01 - 13
7-1. AIR VELOCITY DISTRIBUTION..................................................................... 01 - 13
7-2. AIRFLOW........................................................................................................... 01 - 15
8. OPERATION NOISE (SOUND PRESSURE)................................. 01 - 18
8-1. NOISE LEVEL CURVE .................................................................................... 01 - 18
8-2. SOUND LEVEL CHECK POINT..................................................................... 01 - 20
9. ELECTRICAL CHARACTERISTICS................................................... 01 - 21
10. SAFETY DEVICES............................................................................................01 - 22
11. EXTERNAL INPUT & OUTPUT............................................................... 01 - 23
11-1. EXTERNAL INPUT........................................................................................... 01 - 23
11-2. EXTERNAL OUTPUT....................................................................................... 01 - 25
12. FUNCTION SETTINGS.................................................................................. 01 - 26
12-1. INDOOR UNIT (Setting by remote controller)........................................... 01 - 26
13. OPTIONAL PARTS........................................................................................... 01 - 30
13-1. CONTROLLERS...............................................................................................01 - 30
13-2. OTHERS............................................................................................................. 01 - 30

- (01 - 01) -
WALL MOUNTED TYPE ASG18-30LFC(C)A WALL MOUNTED TYPE ASG18-30LFC(C)A
FEATURES1.MODEL

ASG18LFCA
ASG24LFCC
ASG30LFCA
FEATURES

Energy efciency class
z
MODEL
ASG18LFCA ASG24LFCC ASG30LFCA
Cooling A++ A++ A+
Heating AAA
All DC
z
Large airflow and
quiet operation by
new airflow path
High efficiency
layout
DC fan motor
DC compressor
Super quiet
z
Airow mode can be set in 4 steps and more detailed airow setting is possible.
Easy maintenance
z
Easy maintenance and always clean. Troublesome maintenance has been made easy.
Since the front panel is easy to remove, maintenance is also easy.
10°C HEAT Operation
z
The room temperature can be set to go no lower than 10 °C,
thus ensuring that the room does not get too cold when not occupied
Caution)
When the room temperature is higher than 10 °C, “10°C HEAT” operation will not start. Operation starts and maintains the room •
temperature at 10 °C when the temperature drops below 10 °C.
10°C
20°C
“10°C HEAT”
Button ON
Indoor unit
operation START
“10°C HEAT”
Button ON
AOG18LFC
AOG24LFCC AOG30LFT

- (01 - 02) -
WALL MOUNTED TYPE ASG18-30LFC(C)A WALL MOUNTED TYPE ASG18-30LFC(C)A
Power diffuser
z
Adoption of large power diffuser
16
Outside air conditions: 2o
C
o
C
60%
( C)
Operation contents
Operating mode: Heating
Set temperature (Max. set temp): 30 o
2933 32 31 30
Airflow : Hi
Vertical airflow direction louver: Downward
Horizontal airflow direction louver: Center
2.1
1
03 6 9 12 (m)
(m)
Power diffuser
(full open)
46o
“Strong vertical airow” provides powerful
oor level heating.
“Healthy horizontal airow” does not blow cool air
directly at the occupants in the room.
Outside air conditions: 35
o
C 40%
( C)
Operation contents
Operating mode: Cooling
Set temperature (Min. set temp): o
18oC1815 16 17
2.1
1
03 6 9 12 (m)
(m)
Vertical airflow direction louver: Upward
Horizontal airflow direction louver: Center
Power diffuser
Low outdoor air temperature cooling and heating correspondence
z
Corresponds to cooling operation at -10 °C and heating operation at -15 °C outdoor air
temperature
Cooling -10 °C
Heating -15 °C
Corresponds to maximum 50m-long piping (30 type)
z

- (01 - 03) -
WALL MOUNTED TYPE ASG18-30LFC(C)A WALL MOUNTED TYPE ASG18-30LFC(C)A

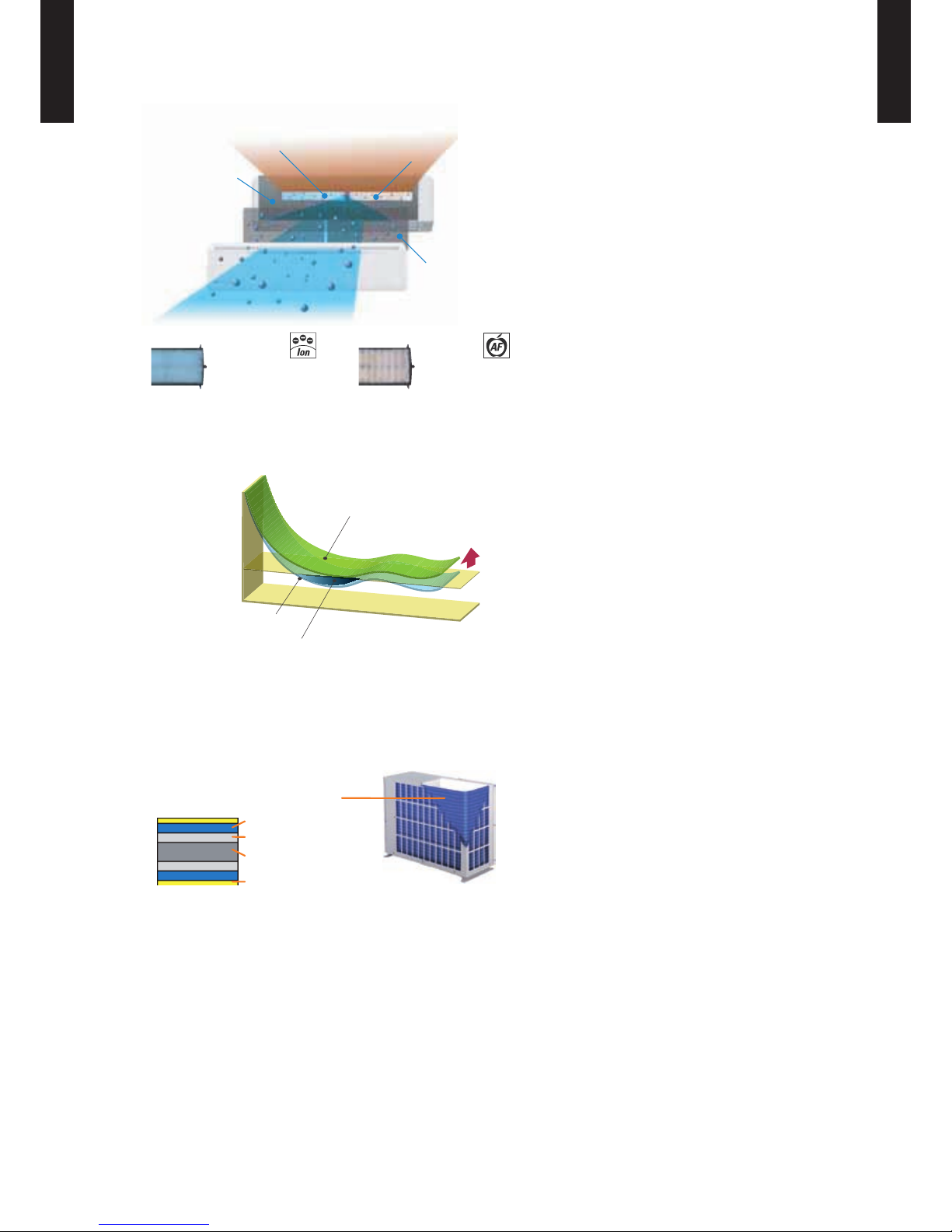

Air conditioner lter features
z
Organic coating fin used
heat exchanger
Air Filter
Ion Deodorization Filter Apple-catechin Filter
Apple-catechin Filter
Ion Deodorization Filter
Economy operation
z
Example: Cooling operation
Economy operation is energy saving, as ●
the set temperature of indoor unit is shifted
by 1 °C and the maximum electric value of
the outdoor unit is suppressed.
Temp.
Economy operation Shift
setting
temp
Control maximum current
Normal operation Time
Set temperature
Blue n heat exchanger (30 type)
z
Corrosion-resistance of the heat exchanger even in coastal areas has been improved by blue n
treatment of the outdoor unit heat exchanger.
Blue fin heat exchanger
Cobalt Blue protection
Standard chromate protection
Aluminium base material
Hydrophilic coating

- (01 - 04) -
WALL MOUNTED TYPE ASG18-30LFC(C)A WALL MOUNTED TYPE ASG18-30LFC(C)A

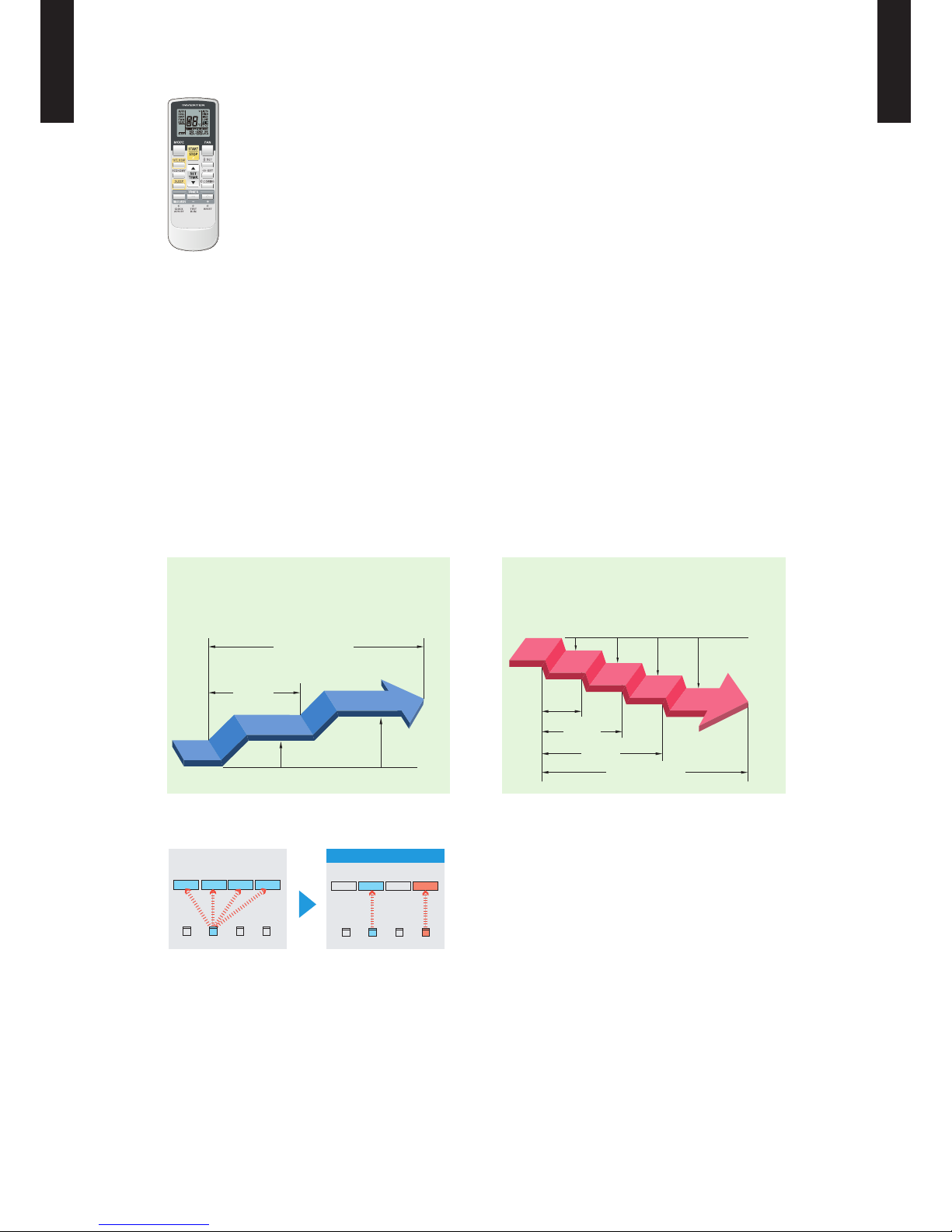

WIRELESS REMOTE CONTROLLER2.
FEATURES

Simple function setting
z
Setting of the air conditioner selection function is performed by remote controller.
Built-in timers
z
Select from 4 different timer programs (ON / OFF / PROGRAM / SLEEP).
Program timer
z
The program timer operates the on and off timer once within a 24-hour period.
Sleep timer
z
The sleep timer function automatically corrects the temperature thermostat setting according to
the time setting to prevent excessive cooling and heating while sleeping.
60min.
1°C 2°C
Timer setting
1°C 2°C 3°C 4°C
30min.
60min.
90min.
Timer setting
Cooling operation / dry operation
When the sleep timer is set, the set temperature
automatically rises 1 °C every hour. The set
temperature can rise up to a maximum of 2 °C.
Heating operation
When the sleep timer is set, the set temperature
automatically drops 1 °C every 30 minutes. The set
temperature can drop to a maximum of 4 °C.
Switching remote controller custom code
z
Code selector switch eliminates unit

•
being wrongly switched.
(Up to 4 codes can be set.)
*I.U.=Indoor unit
A B C D
A B CD
Mixed-up
I.U. I.U. I.U. I.U. I.U. I.U. I.U. I.U.
After code change
4 mode timer setup available (ON / OFF / PROGRAM / SLEEP).●
Can be used jointly with wired remote controllers .●
Easy to change custom code (max. 4 units) by button operation.●

- (01 - 05) -
WALL MOUNTED TYPE ASG18-30LFC(C)A WALL MOUNTED TYPE ASG18-30LFC(C)A

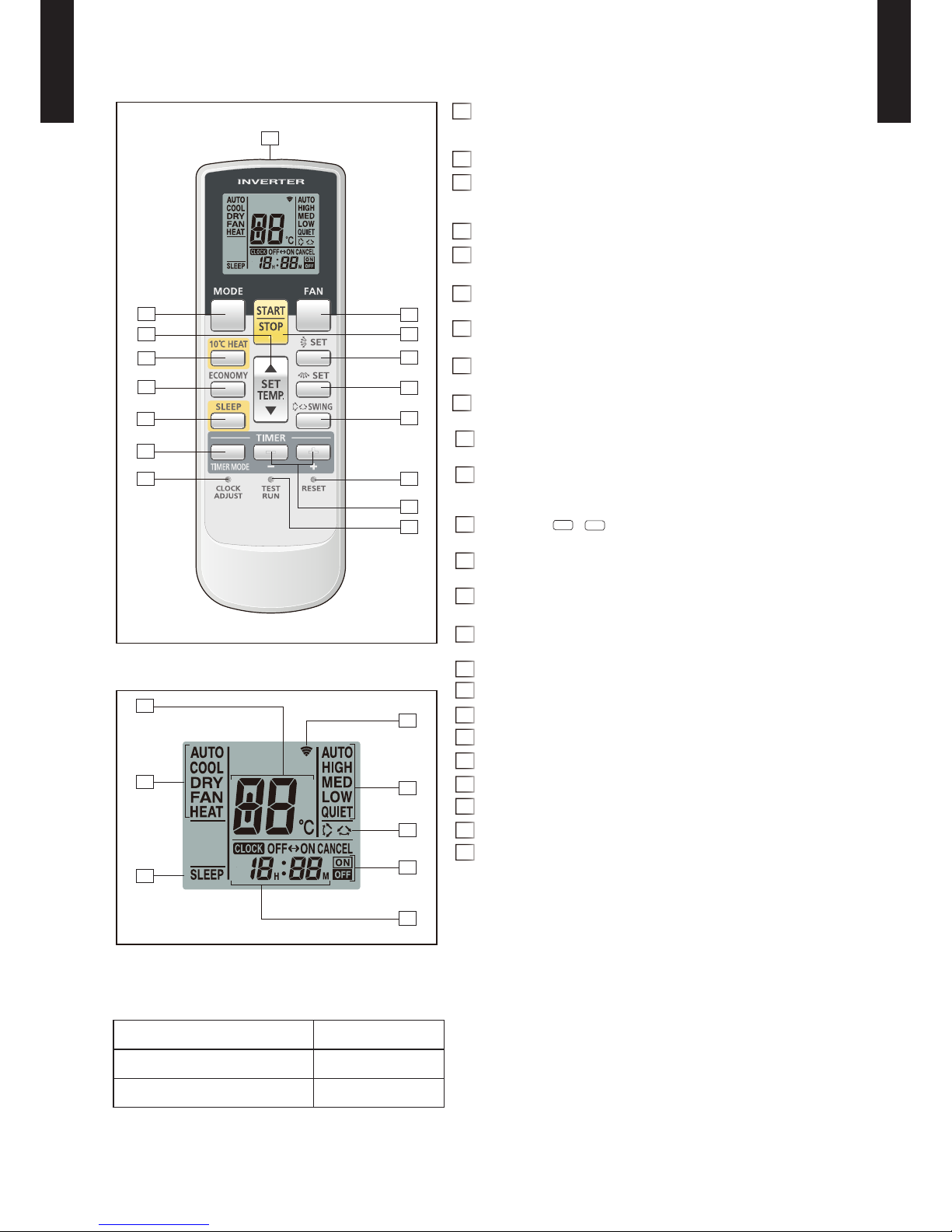

FUNCTIONS

MODE button1
Selects the operating mode (AUTO, COOL, DRY, FAN, HEAT).
/Start / end R.C. custom code change. (Max 4 types)
10°C2 HEAT button
SET TEMP. button ( ▲ / ▼ )3
Set remote controller custom code buttons
Sets the indoor temp./ Sets R.C. custom code.
ECONOMY button4
SLEEP button5
Pressed to select sleep timer.
FAN button6 Selects the fan speed (AUTO, HIGH, MED, LOW, QUIET).
START/STOP button7 Pressed to start and stop operation.
SET button (Vertical)8 Airow direction vertical set button.
SET button (Horizontal)9 Airow direction horizontal set button.
SWING button10 Airow direction swing button.
TIMER MODE button11 Pressed to select the timer mode. (OFF TIMER, ON TIMER,
PROGRAM TIMER, TIMER RESET)
TIMER set ( / ) button12 Sets the current time and on-off time.
CLOCK ADJUST button13 Sets the current time.
RESET button14 Used when replacing batteries.
TEST RUN button15 Used when testing the air conditioner after installation.
Signal transmitter16
Temperature set indicator17
Operating mode indicator18
Sleep indicator19
Transmit indicator20
Fan speed indicator21
Swing indicator22
Timer mode indicator23
Clock indicator24
Display panel
NOTE: Functions will be different due to type of indoor unit.
For details, refer to the operation manual.
+
-
SPECIFICATION

SIZE (H × W × D mm) 170 × 56 × 19
WEIGHT (g) 85 (w/o batteries)
ACCESSORY Holder
2
49
3
1
16
15
510
13
11
12
14
8
7
6
17
18
19
21
24
23
22
20

- (01 - 06) -
WALL MOUNTED TYPE ASG18-30LFC(C)A WALL MOUNTED TYPE ASG18-30LFC(C)A
SPECIFICATIONS3.
Type WALL MOUNTED
INVERTER HEAT PUMP
Model name ASG18LFCA ASG24LFCC ASG30LFCA
Power source 230 V~ 50 Hz
Available voltage range 198–264V
Capacity
Cooling Rated kW 5.20 7.10 8.00
Btu/h 17,700 24,200 2 7, 3 0 0
Min.–Max. kW 0.9–6.0 0.9–8.0 2.9–9.0
Btu/h 3,100–20,500 3,100–27,300 9,900–30,700
Heating Rated kW 6.30 8.00 8.80
Btu/h 21,500 2 7, 3 0 0 30,000
Min.–Max. kW 0.9–9.1 0.9–10.6 2.2–11.0
Btu/h 3,100–31,000 3,100–36,200 7, 50 0 – 3 7, 6 0 0
Input power
Cooling Rated
kW
1.52 2.20 2.49
Min.–Max. 0.09–2.07 0.30–3.07 0.58–3.87
Heating Rated 1.71 2.21 2.44
Min.–Max. 0.09–2.87 0.28–4.21 0.50–4.33
Current Cooling Rated A6.8 9.7 10.9
Heating 7.6 9.7 10.7
EER Cooling kW/kW 3.42 3.23 3.21
COP Heating 3.68 3.61 3.61
Sensible capacity Cooling kW 3.45 5.25 6.00
Power factor Cooling %97 99 99
Heating 98 99 99
Moisture removal l/h (pints/h) 2.6(4.6) 2.7(4.8) 3.2(5.6)
Maximum operating
current *
Cooling Max. A9.0 13.5 17.0
Heating 12.5 18.5 19.0
Fan
Airow
rate
Cooling
High
m3/h
900 1120 1100
Med 740 900 900
Low 620 740 740
Quiet 550 580 620
Heating
High 900 1120 1150
Med 740 900 900
Low 620 740 740
Quiet 550 580 620
Type × Q'ty Cross ow fan × 1
Motor output W 42 65 42
Sound pressure level
Cooling
High
dB (A)
43 49 48
Med 37 42 42
Low 33 37 37
Quiet 26 32 33
Heating
High 42 48 49
Med 37 42 42
Low 33 37 37
Quiet 25 32 33
Heat exchanger type
Dimensions
(H × W × D) mm
Main : 378 × 832 × 26.6
Sub : 84 × 832 × 13.3
Main : 378 × 832 × 26.6
Sub1 : 84 × 832 × 13.3,
Sub2 : 84 × 832 × 13.3
Fin pitch Main :1.2, Sub :1.4 Main : 1.2, Sub1 : 1.4, Sub2 : 1.4
Rows × stages Main : 2 × 18, Sub :1 × 4 Main : 2 × 18, Sub1 : 1 × 4, Sub2 : 1 × 4
Pipe type Copper
Fin type Aluminium
Enclosure
Material Polystyrene
Colour White
Approximate colour of MUNSELL N9.25/
Dimensions
(H × W × D) Net mm 320 × 998 × 238
Gross 329 × 1090 × 420
Weight Net kg 14
Gross 18
Connection pipe Size Liquid mm Ø 6.35 (Ø 1/4 in.) Ø 6.35 (Ø 1/4 in.) Ø 9.52 (Ø 3/8 in.)
Gas Ø 12.70 (Ø 1/2 in.) Ø 15.88 (Ø 5/8 in.) Ø 15.88 (Ø 5/8 in.)
Method Flare
Operation range Cooling °C 18 to 32 %RH 80 or less
Heating °C 30 or less
Remote controller type Wireless
Drain hose Material PVC
Size mm Ø 12 (I.D.), Ø 16 (O.D.)
NOTES:
l Specications are based on the following conditions:
Cooling : Indoor temperature of 27 °CDB/19 °CWB and outdoor temperature of 35 °CDB/24 °CWB
Heating : Indoor temperature of 20 °CDB/15 °CWB and outdoor temperature of 7 °CDB/6 °CWB
Pipe length : 5 m, Height difference : 0 m (Outdoor unit–Indoor unit)
l The protective function might work when using it in environment out of the temperature range mentioned above.
* : The maximum current is the maximum value when operated within the operation range.

- (01 - 07) -
WALL MOUNTED TYPE ASG18-30LFC(C)A WALL MOUNTED TYPE ASG18-30LFC(C)A
Model name ASG18LFCA ASG24LFCC ASG30LFCA
Energy efciency class Cooling A++ A++ A+
Heating (Average) AAA
Pdesign Cooling kW 5.2 (35 °C) 7.1 (35 °C) 8.0 (35 °C)
Heating (Average) 5.9 (-10 °C) 7.1 (-10 °C) 8.0 (-10 °C)
SEER Cooling kWh/kWh 6.94 6.11 5.69
SCOP Heating (Average) 3.87 3.80 3.80
Annual energy consumption QCE kWh/a 262 406 492
QHE (Average) 2130 2610 2941
Sound power level Cooling High dB (A) 58 64 64
Heating 58 64 64

- (01 - 08) -
WALL MOUNTED TYPE ASG18-30LFC(C)A WALL MOUNTED TYPE ASG18-30LFC(C)A
DIMENSIONS4.
MODEL
 : ASG18LFCA, ASG24LFCC, ASG30LFCA
(Unit : mm)
ASG18LF ASG24LF ASG30LF
Refrigerant pipe are
connection
Liquid ø 6.35 mm (1/4 in.) ø 9.52 mm (3/8 in.)
Gas ø 12.7 mm (1/2 in.) ø 15.88 mm (5/8 in.)
Drain hose connection Drain hose Ø12 (I.D.), Ø16 (O.D.)
Drain hose : L=670 mm
998
439
438 397
320: Unit size
269
20
37
26 x 11 hole
5 x 18: 14holes
21 x 5: 14holes
5 x 50: 3holes 13 x 5: 4holes
ø 80 hole
ø 5: 65holes
998: Unit size
Piping inlet
for tapping screw
18 x 11 hole
18 x 11 hole
122 172
75387 170
16 400
Unit center
126
133
130
113
75
243
238
320
520
520
590
721
ø 80 hole
Piping inlet
30
30
149
197
272
44
12
13
26 x 11 hole
25
ø 32
ø 16
ø 12

- (01 - 09) -
WALL MOUNTED TYPE ASG18-30LFC(C)A WALL MOUNTED TYPE ASG18-30LFC(C)A
INSTALLATION PLACE

(Unit : mm)
63 or more
80 or more
53 or more
52 or more
80 or more
Outline of unit
120 or more
1500 or more
1800 or more

- (01 - 10) -
WALL MOUNTED TYPE ASG18-30LFC(C)A WALL MOUNTED TYPE ASG18-30LFC(C)A
WIRING DIAGRAMS5.
MODEL
 : ASG18LFCA, ASG24LFCC, ASG30LFCA
TO OUTDOOR UNIT
CONTROOL BOARD
TEST
CN13
CN14
2
1
CN16
EX.OUT
(OPTION)
EX.IN
(OPTION) 1
2
3
BLACK
WHITE
RED
REMOTE CONTROL UNIT (OPTION)
3
2
1

- (01 - 11) -
WALL MOUNTED TYPE ASG18-30LFC(C)A WALL MOUNTED TYPE ASG18-30LFC(C)A
CAPACITY TABLE6. COOLING CAPACITY6-1.
MODEL
 : ASG18LFCA
MODEL
 : ASG24LFCC
MODEL
 : ASG30LFCA
AFR : Airow Rate (m3/min)
TC : Total Capacity (kW)
SHC : Sensible Heat Capacity (kW)
IP : Input Power (kW)
AFR 15.0
Indoor temperature
°CDB 18 21 23 25 27 29 32
°CWB 12 15 16 18 19 21 23
Outdoor temperature
°CDB TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP
20 4.62 3.14 1.03 5.15 3.15 1.05 5.33 3.43 1.05 5.68 3.44 1.06 5.85 3.71 1.07 6.20 3.70 1.08 6.56 3.94 1.09
25 4.63 3.14 1.17 5.16 3.16 1.19 5.34 3.43 1.20 5.69 3.45 1.21 5.86 3.72 1.22 6.21 3.71 1.23 6.57 3.95 1.24
30 4.38 2.97 1.32 4.88 2.99 1.34 5.04 3.25 1.35 5.38 3.26 1.36 5.54 3.52 1.37 5.87 3.50 1.38 6.21 3.73 1.39
35 4.11 2.91 1.47 4.58 2.93 1.49 4.73 3.18 1.50 5.04 3.19 1.51 5.20 3.45 1.52 5.51 3.44 1.54 5.82 3.66 1.55
40 3.56 2.41 1.35 3.96 2.43 1.38 4.10 2.64 1.38 4.37 2.65 1.40 4.50 2.86 1.40 4.78 2.85 1.42 5.05 3.03 1.43
46 3.08 2.09 1.65 3.43 2.10 1.68 3.55 2.28 1.68 3.78 2.29 1.70 3.90 2.48 1.71 4.13 2.47 1.73 4.37 2.63 1.74
AFR 18.7
Indoor temperature
°CDB 18 21 23 25 27 29 32
°CWB 12 15 16 18 19 21 23
Outdoor temperature
°CDB TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP
20 5.72 4.53 1.17 6.37 4.56 1.19 6.59 4.96 1.19 7.02 4.97 1.20 7.24 5.37 1.21 7.67 5.35 1.22 8.11 5.70 1.23
25 6.41 4.90 1.84 7.15 4.93 1.87 7.39 5.36 1.88 7.88 5.38 1.90 8.12 5.81 1.91 8.61 5.79 1.93 9.09 6.16 1.95
30 6.19 4.71 2.02 6.90 4.74 2.05 7.13 5.15 2.06 7.60 5.17 2.08 7.84 5.58 2.09 8.31 5.56 2.11 8.78 5.92 2.13
35 5.61 4.43 2.09 6.25 4.46 2.13 6.46 4.85 2.14 6.89 4.86 2.16 7.10 5.25 2.21 7.53 5.23 2.19 7.95 5.57 2.21
40 5.08 4.11 2.08 5.66 4.13 2.12 5.85 4.50 2.13 6.24 4.51 2.15 6.43 4.87 2.16 6.82 4.85 2.18 7.20 5.17 2.20
46 4.62 3.88 2.24 5.15 3.91 2.27 5.32 4.25 2.29 5.68 4.26 2.31 5.85 4.60 2.32 6.20 4.58 2.34 6.55 4.88 2.37
AFR 18.3
Indoor temperature
°CDB 18 21 23 25 27 29 32
°CWB 12 15 16 18 19 21 23
Outdoor temperature
°CDB TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP
20 6.31 5.01 1.29 7.03 5.04 1.31 7.27 5.48 1.32 7.75 5.50 1.33 7.99 5.94 1.34 8.47 5.92 1.35 8.95 6.30 1.37
25 6.99 5.45 2.03 7.79 5.48 2.06 8.05 5.96 2.07 8.58 5.98 2.09 8.85 6.46 2.10 9.38 6.43 2.12 9.91 6.85 2.14
30 6.66 5.23 2.26 7.42 5.26 2.29 7.67 5.72 2.30 8.18 5.74 2.33 8.43 6.20 2.34 8.94 6.18 2.36 9.44 6.58 2.39
35 6.32 5.06 2.40 7.04 5.09 2.44 7.28 5.54 2.45 7.76 5.56 2.48 8.00 6.00 2.49 8.48 5.98 2.51 8.96 6.37 2.54
40 5.68 4.63 2.68 6.33 4.66 2.72 6.54 5.07 2.74 6.97 5.08 2.77 7.19 5.49 2.78 7.62 5.47 2.81 8.05 5.82 2.84
46 5.17 4.22 2.89 5.76 4.25 2.93 5.96 4.62 2.95 6.35 4.63 2.98 6.55 5.00 2.99 6.94 4.98 3.02 7.34 5.31 3.05

- (01 - 12) -
WALL MOUNTED TYPE ASG18-30LFC(C)A WALL MOUNTED TYPE ASG18-30LFC(C)A
HEATING CAPACITY6-2.
MODEL
 : ASG18LFCA
MODEL
 : ASG24LFCC
MODEL
 : ASG30LFCA
AFR: Airow Rate (m3/min)
TC : Total Capacity (kW)
IP : Input Power (kW)
AFR 15.0
Indoor temperature
16 18 20 22 24
Outdoor temperature
(°CDB) (°CWB) TC IP TC IP TC IP TC IP TC IP
-15 -16 5.08 2.19 4.96 2.24 4.84 2.30 4.72 2.33 4.60 2.37
-10 -11 6.04 2.36 5.89 2.42 5.75 2.47 5.61 2.52 5.47 2.57
-5 -7 6.81 2.48 6.64 2.54 6.48 2.59 6.32 2.64 6.16 2.69
0-2 7.86 2.65 7.67 2.72 7.48 2.77 7.29 2.83 7.11 2.89
5 3 8.94 2.83 8.72 2.90 8.51 2.96 8.30 3.01 8.09 3.08
7 6 9.56 2.75 9.33 2.82 9.10 2.87 8.87 2.92 8.65 2.99
10 8 9.91 2.75 9.66 2.82 9.43 2.87 9.19 2.92 8.97 2.99
15 10 9.59 2.38 9.36 2.44 9.13 2.49 8.90 2.54 8.68 2.59
AFR 18.7
Indoor temperature
16 18 20 22 24
Outdoor temperature
(°CDB) (°CWB) TC IP TC IP TC IP TC IP TC IP
-15 -16 6.41 2.81 6.26 2.87 6.11 2.93 5.95 2.99 5.80 3.05
-10 -11 7.30 3.00 7.13 3.06 6.96 3.12 6.78 3.18 6.61 3.25
-5 -7 8.23 3.23 8.04 3.29 7.84 3.36 7.64 3.43 7.45 3.49
0-2 9.05 3.50 8.84 3.58 8.62 3.65 8.40 3.72 8.19 3.80
5 3 10.05 3.82 9.81 3.90 9.57 3.98 9.33 4.06 9.09 4.14
7 6 11.13 3.89 10.87 3.97 10.60 4.06 10.34 4.14 10.07 4.22
10 8 11.19 3.38 10.93 3.45 10.66 3.52 10.39 3.59 10.13 3.66
15 10 10.71 2.90 10.46 2.96 10.20 3.02 9.95 3.08 9.69 3.13
AFR 19.2
Indoor temperature
16 18 20 22 24
Outdoor temperature
(°CDB) (°CWB) TC IP TC IP TC IP TC IP TC IP
-15 -16 7.75 4.07 7.56 4.16 7.38 4.24 7.20 4.32 7.01 4.41
-10 -11 8.34 4.06 8.14 4.15 7.94 4.23 7.74 4.31 7.54 4.40
-5 -7 9.61 4.08 9.38 4.17 9.15 4.25 8.92 4.34 8.69 4.42
0-2 10.54 4.04 10.29 4.13 10.04 4.21 9.79 4.29 9.54 4.38
5 3 11.53 4.09 11.25 4.17 10.98 4.26 10.71 4.35 10.43 4.43
7 6 11.55 3.39 11.28 3.46 11.00 3.53 10.73 3.60 10.45 3.67
10 8 11.90 3.38 11.61 3.45 11.33 3.52 11.05 3.59 10.76 3.66
15 10 11.48 2.95 11.20 3.01 10.93 3.07 10.66 3.13 10.38 3.19

- (01 - 13) -
WALL MOUNTED TYPE ASG18-30LFC(C)A WALL MOUNTED TYPE ASG18-30LFC(C)A
FAN PERFORMANCE7. AIR VELOCITY DISTRIBUTION7-1.
MODEL
 : ASG18LFCA
Conditions:
Fan speed : HIGH
Operation mode : FAN
Voltage : 230 V
2
1
0
1
2
(m)
(m)
Unit : m/s
012345678
3
2
1
0
1
2
3
(m)
(m)
Unit : m/s
012345678
3
2
1
0
(m)
(m)
Unit : m/s
012345678
3
2
1
0
(m)
(m)
Unit : m/s
012345678
Side view
Vertical airow direction louver : Down
Horizontal airow direction louver : Center
2.0
1.0
0.5
Side view
Vertical airow direction louver : Up
Horizontal airow direction louver : Center
2.0 1.0 0.5
Top view
Vertical airow direction louver : Up
Horizontal airow direction louver : Right & Left
1.0
1.0
0.5
0.5
2.0
Top view
Vertical airow direction louver : Up
Horizontal airow direction louver : Center
2.0 1.0 0.5

- (01 - 14) -
WALL MOUNTED TYPE ASG18-30LFC(C)A WALL MOUNTED TYPE ASG18-30LFC(C)A
MODEL
 : ASG24LFCC, ASG30LFCA
Conditions:
Fan speed : HIGH
Operation mode : FAN
Voltage : 230 V
2
1
0
1
2
(m)
(m)
Unit : m/s
012345678
3
2
1
0
1
2
3
(m)
(m)
Unit : m/s
012345678
3
2
1
0
(m)
(m)
Unit : m/s
012345678
3
2
1
0
(m)
(m)
Unit : m/s
012345678
Side view
Vertical airow direction louver : Down
Horizontal airow direction louver : Center
2.0
1.0
0.5
Side view
Vertical airow direction louver : Up
Horizontal airow direction louver : Center
2.0 1.0 0.5
Top view
Vertical airow direction louver : Up
Horizontal airow direction louver : Right & Left
1.0
1.0
0.5
0.5
2.0
Top view
Vertical airow direction louver : Up
Horizontal airow direction louver : Center
2.0 1.0 0.5

- (01 - 15) -
WALL MOUNTED TYPE ASG18-30LFC(C)A WALL MOUNTED TYPE ASG18-30LFC(C)A
AIRFLOW7-2.
MODEL
 : ASG18LFCA
Cooling
z
Heating
z
Fan speed
Number of
rotations
(r.p.m.)
Airow
HIGH 1220
m3/h 900
l/s 250
CFM 530
MED 1020
m3/h 740
l/s 206
CFM 435
LOW 900
m3/h 620
l/s 172
CFM 365
QUIET 710
m3/h 550
l/s 153
CFM 324
Fan speed
Number of
rotations
(r.p.m.)
Airow
HIGH 1220
m3/h 900
l/s 250
CFM 530
MED 1020
m3/h 740
l/s 206
CFM 435
LOW 900
m3/h 620
l/s 172
CFM 365
QUIET 710
m3/h 550
l/s 153
CFM 324

- (01 - 16) -
WALL MOUNTED TYPE ASG18-30LFC(C)A WALL MOUNTED TYPE ASG18-30LFC(C)A
MODEL
 : ASG24LFCC
Cooling
z
Heating
z
Fan speed
Number of
rotations
(r.p.m.)
Airow
HIGH 1480
m3/h 1120
l/s 311
CFM 659
MED 1220
m3/h 900
l/s 250
CFM 530
LOW 1020
m3/h 740
l/s 206
CFM 435
QUIET 860
m3/h 580
l/s 161
CFM 341
Fan speed
Number of
rotations
(r.p.m.)
Airow
HIGH 1480
m3/h 1120
l/s 311
CFM 659
MED 1220
m3/h 900
l/s 250
CFM 530
LOW 1020
m3/h 740
l/s 206
CFM 435
QUIET 860
m3/h 580
l/s 161
CFM 341

- (01 - 17) -
WALL MOUNTED TYPE ASG18-30LFC(C)A WALL MOUNTED TYPE ASG18-30LFC(C)A
MODEL
 : ASG30LFCA
Cooling
z
Heating
z
Fan speed
Number of
rotations
(r.p.m.)
Airow
HIGH 1430
m3/h 1100
l/s 306
CFM 647
MED 1220
m3/h 900
l/s 250
CFM 530
LOW 1020
m3/h 740
l/s 206
CFM 435
QUIET 900
m3/h 620
l/s 172
CFM 365
Fan speed
Number of
rotations
(r.p.m.)
Airow
HIGH 1530
m3/h 1150
l/s 319
CFM 677
MED 1220
m3/h 900
l/s 250
CFM 530
LOW 1020
m3/h 740
l/s 206
CFM 435
QUIET 900
m3/h 620
l/s 172
CFM 365
