Fujitsu AS B09LDC User manual

AS B09LDC
AS B12LDC
AS B18LDC
R410A
D1D_AS011E/03
2008.02.20
1. WALL MOUNTED TYPE :
INDOOR UNIT

- (01 - 01) -
WALL MOUNTED TYPE AS B09-18LD WALL MOUNTED TYPE AS B09-18LD
MODEL : AS B09LDC
AS B12LDC
AS B18LDC

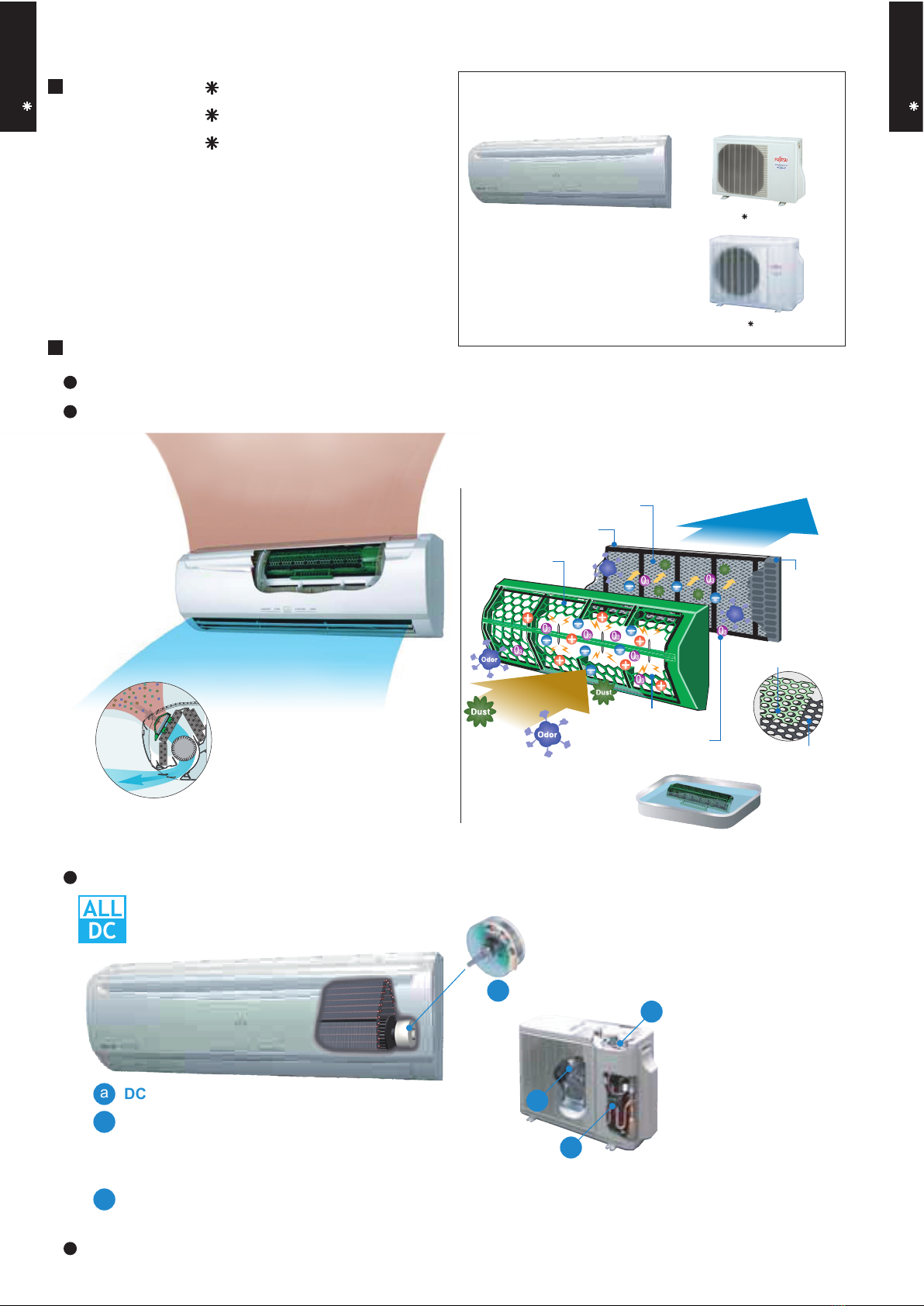

1. FEATURE
FEATURES
Original plasma air cleaning unit effectively cleans the air in the room.
Super quiet
ALL DC
More compact compared with conventional model
Front view
Air flow mode can be set in 4 steps and more detailed air flow setting is possible.
When operation starts, the machine operates at high voltage and high power
and when operation stabilizes, the set temperature is maintained at low voltage.
i-PAM control (09TYPE)
b
DC rotary compressor
c
aDC fan motor
b
a
c
Dirty Air
Clean Air
Pet odor and the smell of
cigarette smoke are
removed by decomposition
by weak ozone O3.
Clean Air
Activated charcoal
bacteria eliminating &
deodorizing filter
Polyphenol filter
(Grapefruit seed extract)
Earth conductor
Plasma filter generates
ions and ozone.
(AO S09/12LD)
(AO S18LD)
Electric pole
Electrostatic
filter
Dirty Air
Negatively-charged dust, etc. are attracted
to the earth section and are collected by a
bacteria eliminating & deodorizing filter.
High
efficiency
layout
Plasma air filter mechanism
Washable filter
Restored to the same performance
as when new each time it is washed.
Plasma unit
Mounts a plasma air cleaning unit.Minute dust
particles are collected by an electrostatic filter and odor
is suppressed by decomposition of foul odors by very
weak ions. Since a filter with a lower ventilation
resistance than in the past is used, high dust collection
design simultaneously cleans in the air in the room.
V-PAM technology makes a compressor more powerful.
V P
V-P
V-PAM control (12/18TYPE)
a
Energy saving Rank A (09/12 TYPE) Europe energy saving Rank A achieved

- (01 - 02) -
WALL MOUNTED TYPE AS B09-18LD WALL MOUNTED TYPE AS B09-18LD
Bacteria grows in beading,
and it causes bad odor.
Drying operation for
approx. fifteen minutes.
03
03
03
03
Ozone bacteria eliminating operation
for approx. fifteen minutes.
“Inner drying operation” and
“ozone bacteria eliminating
operation” keep the inside
of the air conditioner clean
at all times. That’s why air
from the air conditioner is
always clean and high
efficiency is realized.
After operation ends,
start approximately
30 minutes speed
cleaning operation
by merely pressing
the COIL DRY
button.
Removes moisture. Bacteria elimination
Covered with beading.
Easy maintenance
Easy maintenance and always clean. Troublesome maintenance has been made easy.
Since the front panel is easy to remove, maintenance is also easy.
Inner drying operation and plasma effect
This model is equipped with an inner drying function. After the power is turned off, the dry operation starts
inside the air conditioner. The plasma air cleaning unit eliminates bacteria, deodorizes, and keeps
the interior of the air conditioner clean by generating ozone and ions.
Low outdoor air temperature cooling correspondence
Corresponds to cooling operation at -10 °C outdoor air temperature
Corresponds to maximum 20m long piping

- (01 - 03) -
WALL MOUNTED TYPE AS B09-18LD WALL MOUNTED TYPE AS B09-18LD
FEATURES

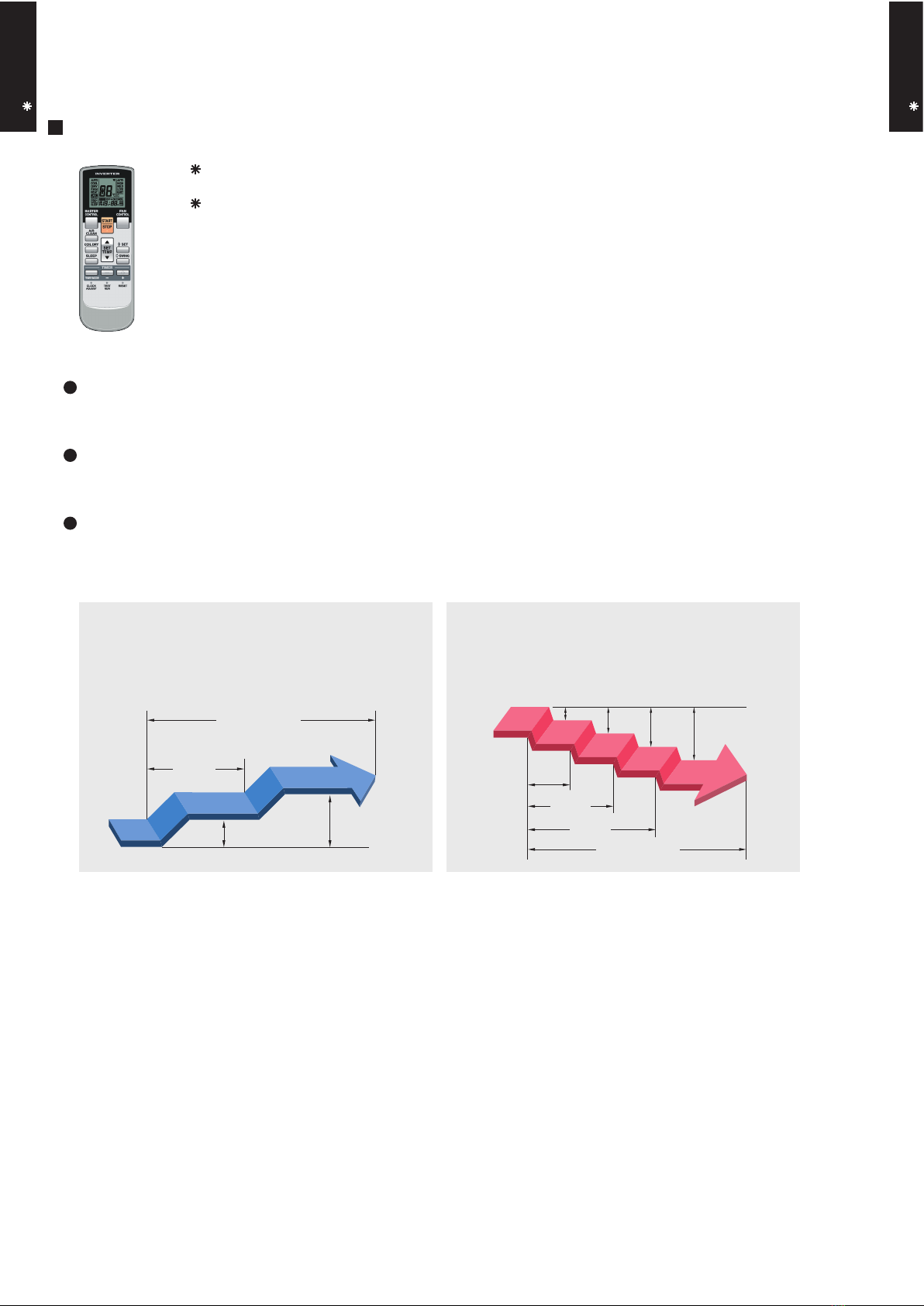

Four kinds of timer setup (ON / OFF / PROGRAM / SLEEP) are possible.
Four kinds of timers. Easy operation.
Select from four different timer programs (On/Off/Program/Sleep).
Built-in timers
The program timer operates the ON and OFF timer once within a 24 hour period.
Program timer
The sleep timer function automatically corrects the temperature thermostat setting according to the
time setting to prevent excessive cooling and heating while sleeping.
Sleep timer
2-1. WIRELESS REMOTE CONTROLLER
2. REMOTE CONTROLLER
Cooling operation/dry operation
60min.
1 °C 2 °C
When the sleep timer is set, the set temperature
automatically rises 1 °C every hour. The set
temperature can rise up to a maximum of 2 °C.
Heating operation
When the sleep timer is set, the set temperature
automatically drops 1 °C every 30 minutes. The
set temperature can drop to a maximum of 4 °C.
1 °C
30min.
60min.
90min.
2 °C 3 °C 4 °C
Timer setting
Timer setting

- (01 - 04) -
WALL MOUNTED TYPE AS B09-18LD WALL MOUNTED TYPE AS B09-18LD

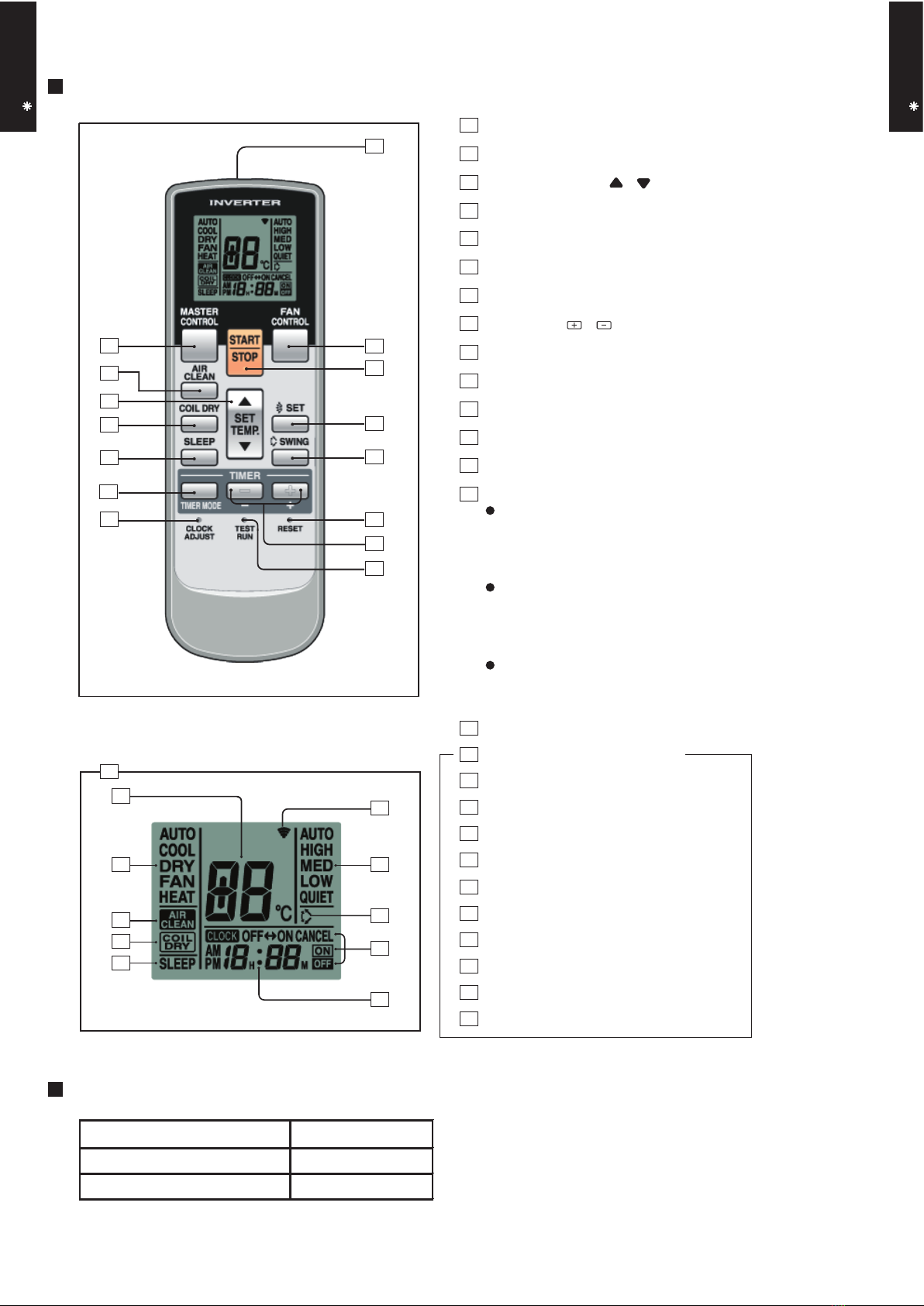

Display panel
FUNCTIONS
SPECIFICATION
SIZE (H x W x D mm) 176 x 56 x 18
WEIGHT ( g ) 110
ACCESSORY Holder
TIMER SET ( / ) button
SET button
TEST RUN button
This button is used when installing the
conditioner, and should not be used un-
der normal conditions, as it will cause the
air conditioner’s thermostat function to op-
erate incorrectly.
If this button is pressed during normal op-
eration, the unit will switch to test opera-
tion mode, and the Indoor Unit’s OPERA-
TION Indicator Lamp and TIMER Indicator
Lamp will begin to flash simultaneously.
To stop the test operation mode, press the
START/STOP button to stop the air condi-
tioner.
CLOCK ADJUST button
Remote Control Unit Display
Transmit Indicator
Clock Display
Operating Mode Display
Timer Mode Display
Fan Speed Display
Temperature SET Display
SLEEP button
MASTER CONTROL button
/ )
SET TEMP. button (
COIL DRY button
Signal Transmitter
TIMER MODE button
FAN CONTROL button
START/STOP button
SWING button
RESET button
AIR CLEAN Display
SLEEP Display
SWING Display
4
6
7
8
9
10
18
20
21
22
23
25
26
COIL DRY Display
24
19
17
2
3
11
13
12
15
16
1
14
AIR CLEAN button
5
2
4
10
3
1
15
6
17
18
19 21
25
24
22
26
13
11
12
14
9
8
7
20
5
23
16

- (01 - 05) -
WALL MOUNTED TYPE AS B09-18LD WALL MOUNTED TYPE AS B09-18LD
3. SPECIFICATIONS
AS B09LDC AS B12LDC
Cooling A A
Heating A A
kW 2.60 3.50
BTU/h 8,900 11,900
kW 0.5 - 3.7 0.9 - 4.3
BTU/h 1,700 - 12,600 3,100 - 14,700
kW 3.60 4.80
BTU/h 12,300 16,400
kW 0.5 - 6.1 0.9 - 6.7
BTU/h 1,700 - 20,800 3,100 - 22,900
0.61 0.91
0.25 - 1.38 0.25 - 1.61
0.81 1.22
0.25 - 1.96 0.25 - 2.30
2.9 4.3
6.0 7.0
3.9 5.5
8.5 10.0
4.26 3.85
4.44 3.93
kW 1.70 2.30
90 93
91 96
l/h (pints/h) 1.3 (2.7) 1.8 (3.8)
High 560 595
Med 470 485
Low 385 385
Quiet 260 260
High 605 630
Med 510 510
Low 410 410
Quiet 290 290
W 42 42
High 39 41
Med 34 35
Low 29 29
Quiet 20 20
High 40 41
Med 35 35
Low 28 28
Quiet 21 21
°C
%RH
°C
mm
Note :
Specifications are based on the following conditions.
Cooling : Indoor temperature of 27°CDB/19°CWB. and outdoor temperature of 35°CDB/24°CWB.
Heating : Indoor temperature of 20°CDB/15°CWB. and outdoor temperature of 7°CDB/6°CWB.
Pipe length : 7.5 m, Height difference : 0 m. (Outdoor unit - Indoor unit)
The maximum current is the maximum value when operated within the operation range (temperature).
Cross flow fan × 1
336 × 635 × 26.6
1.2
2 × 16
WALL MOUNTED
INVERTER HEAT PUMP
230V 50Hz
198 - 264V 50Hz
mm
Dimensions
(H × W × D)
PP + LLDPE
Outer diameter : 29 / Inner diameter : 13.6
Remote controller type
Drain pipe
Material
Cooling
Heating
m3/h
Operation range
kg (lb.)
Connection pipe
Size
mm
Weight
Heat exchanger type
Enclosure
Material
Colour
Net
Gross
Net
Gross
kW/kW
Cooling
Heating
%
Cooling
Heating
Cooling
Fan
Airflow
rate
Current
Cooling
SENSIBLE CAPACITY
POWER FACTOR
Min.-Max.
A
Heating
Rated
Max.
Rated
Max.
Type
Rated
Rated
Rated
Power source
Available voltage range
Capacity
Cooling
Heating
European energy label
Copper
Aluminium
Cooling
Heating
mm
Dimensions (H × W × D)
Fin pitch
Rows × Stages
Pipe type
Fin type
Polystyrene
White
6.35 ( 1/4 in.)
283 × 790 × 230
316 × 835 × 360
9.5 (21)
12 (17)
80 or less
30 or less
Wireless
9.52 ( 3/8 in.)
Flare
18 to 32
Model name
Min.-Max.
Min.-Max.
Min.-Max.
Min.-Max.
Moisture removal
Type × Q'ty
Motor output
Min.-Max.
Input power
Cooling
kW
Heating
Rated
Heating
Size
COP
EER
Liquid
Gas
Method
Cooling
Noise level
dB(A)

- (01 - 06) -
WALL MOUNTED TYPE AS B09-18LD WALL MOUNTED TYPE AS B09-18LD
WALL MOUNTED
INVERTER HEAT PUMP
AS B18LDC
230V 50Hz
198 - 264V 50Hz
Cooling B
Heating A
kW 5.20
BTU/h 17,700
kW 0.9 - 5.7
BTU/h 3,100 - 19,400
kW 6.25
BTU/h 21,300
kW 0.9 - 9.1
BTU/h 3,100 - 31,000
1.72
0.09 - 2.00
1.73
0.09 - 2.66
7.6
9.0
7.7
13.5
3.02
3.61
kW 3.30
98
98
l/h (pints/h) 2.8 (5.9)
High 700
Med 580
Low 460
Quiet 370
High 700
Med 600
Low 500
Quiet 420
Cross flow fan × 1
W 24
High 45
Med 39
Low 33
Quiet 26
High 42
Med 38
Low 33
Quiet 27
MAIN : 336 × 635 × 26.6
SUB : 84 × 635 × 13.3
Main : 1.2 / Sub : 1.4
Main : 2 × 16, Sub : 1 × 4
Copper
Aluminium
Polystyrene
White
283 × 790 × 230
316 × 835 × 360
10 (22)
12.5 (28)
6.35 ( 1/4 in.)
12.7 ( 1/2 in.)
Flare
°C 18 to 32
%RH 80 or less
°C 30 or less
Wireless
PP + LLDPE
mm Outer diameter : 29 / Inner diameter : 13.6
Note :
Specifications are based on the following conditions.
Cooling : Indoor temperature of 27°CDB/19°CWB. and outdoor temperature of 35°CDB/24°CWB.
Heating : Indoor temperature of 20°CDB/15°CWB. and outdoor temperature of 7°CDB/6°CWB.
Pipe length : 7.5 m, Height difference : 0 m. (Outdoor unit - Indoor unit)
The maximum current is the maximum value when operated within the operation range (temperature).
Cooling
Heating
Size
Gross
Liquid
Gas
Method
Colour
Net
Gross
Net
Model name
EER
COP
Moisture removal
Cooling
Heating
Sound pressure level
dB(A)
Type
mm
Rated
Min-Max
Rated
Min-Max
Rated
Min-Max
Power source
Available voltage range
Capacity
Cooling
Heating
European energy label
Input power
Cooling
kW
Heating
Rated
Min-Max
A
Heating
Rated
Max
Rated
Max
Fan
Airflow
rate
Current
Cooling
SENSIBLE CAPACITY
POWER FACTOR
Type × Q'ty
Motor output
kW/kW
Cooling
Heating
%
Cooling
Heating
Cooling
mm
Weight
Heat exchanger type
Enclosure
Dimensions (H × W × D)
Fin pitch
Rows × Stages
Pipe type
Fin type
Material
Remote controller type
Drain pipe
Material
Cooling
Heating
m
3
/h
Operation range
kg(lb.)
Connection pipe
Size
mm
Dimensions
(H × W × D)

- (01 - 07) -
WALL MOUNTED TYPE AS B09-18LD WALL MOUNTED TYPE AS B09-18LD

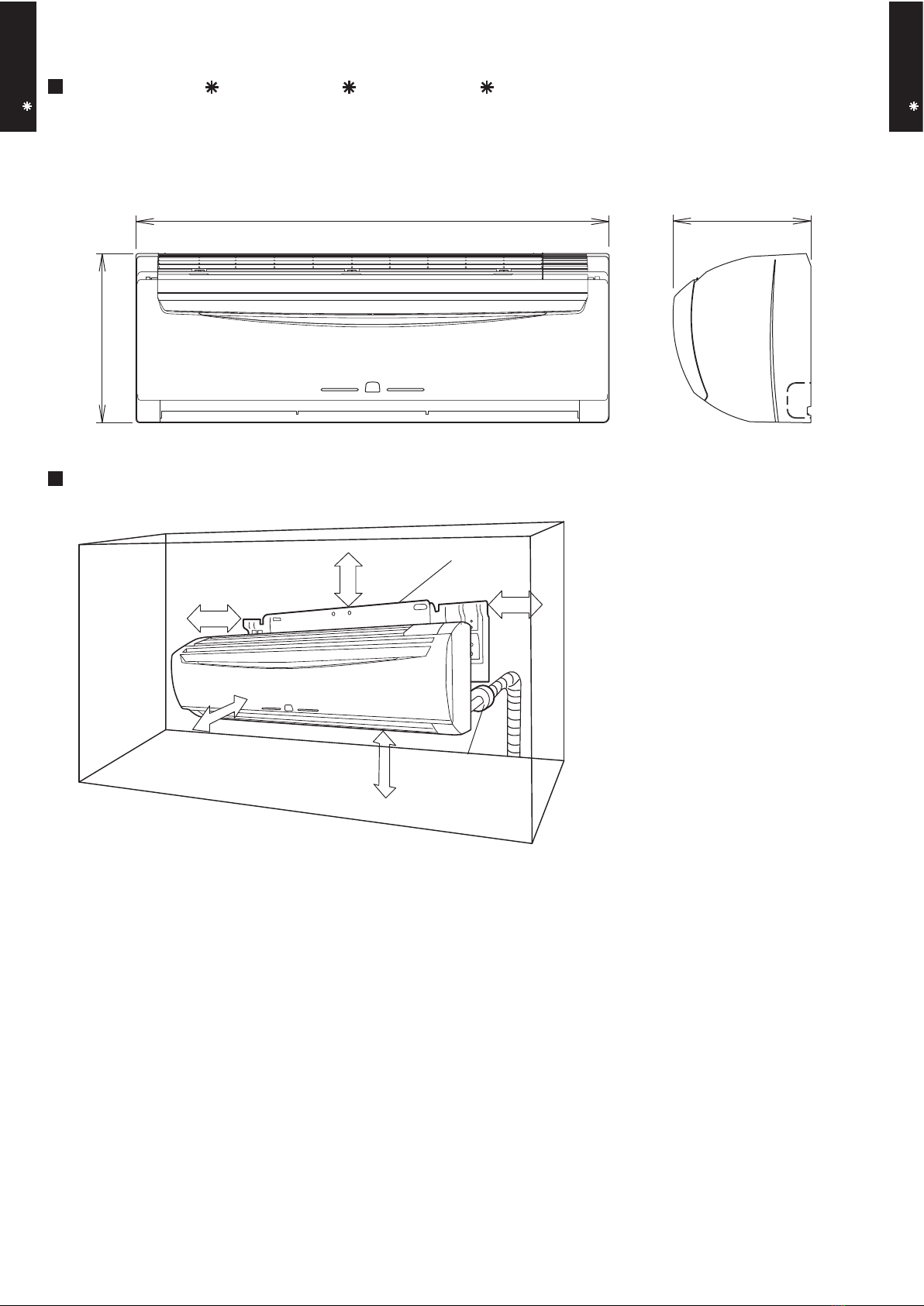

4. DIMENSIONS
MODEL : AS B09LD, AS B12LD, AS B18LD
(Unit : mm)
INSTALLATION PLACE
790 230
283
6 cm or more
Wall hook bracket
5 cm
or more
9 cm
or more
150 cm or more
(Wall cap)
230 cm
or more

- (01 - 08) -
WALL MOUNTED TYPE AS B09-18LD WALL MOUNTED TYPE AS B09-18LD

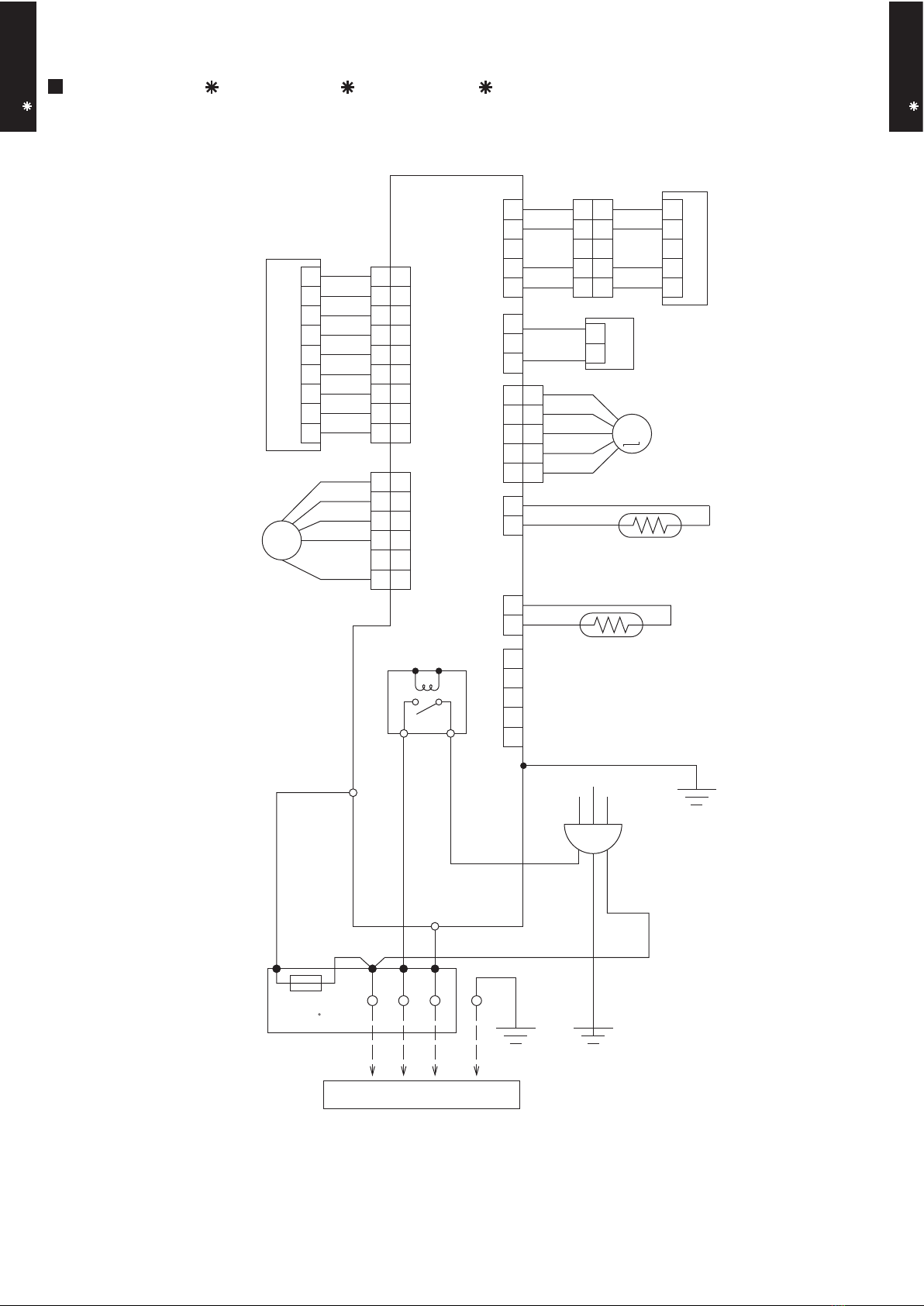

5. WIRING DIAGRAMS
MODEL : AS B09LD, AS B12LD, AS B18LD
FAN MOTOR
Indicator PCB Assy
AIR CLEAN UNIT
STEPPING
MOTOR
Controller PCB Assy
Power Relay
6
5
4
3
2
1
6
5
4
3
2
1
6
5
4
9
8
7
3
2
15
4
3
2
1
5
4
3
2
1
5
4
43
3
2
1
2
1
2
1
5
4
3
2
1
5
4
3
2
1
2
1
5
4
3
2
1
5
4
3
2
1
3
2
1
6
5
4
9
8
7
3
2
1
9
8
7
12
11
10
6
5
4
FM
M
TERMINAL
TO OUTDOOR UNIT
THERMAL FUSE
THERMISTOR
(PIPE TEMP.)
THERMISTOR
(ROOM TEMP.)
TEST
POWER
WHITE
TM1
CN201
CN101
TM2
W3
CN1 CN2 CN3 CN7 CN11
CN9CN4
CN10
WHITE
WHITE
WHITE
WHITE
WHITE
WHITE
WHITE
WHITE
WHITE
BLACK
RED
RED
BLUE
YELLOW
WHITE
WHITE
RED
RED
RED
BLUE
BLUE
BLACK or GRAY
BLACK or GRAY
BLACK
BLACK
GREEN
GREEN / YELLOW
BROWN BLACK
RED
BLUE
PINK
YELLOW
YELLOW
ORANGE
WHITE
RED
BLUE
YELLOW
L
L 3N
N
SWITCH
102 C

- (01 - 09) -
WALL MOUNTED TYPE AS B09-18LD WALL MOUNTED TYPE AS B09-18LD
6. CAPACITY TABLE
6-1. COOLING CAPACITY
MODEL : AS B18LD
AFR : Air Flow Rate (m
3
/min)
TC : Total Capacity (kW)
SHC : Sensible Heat Capacity (kW)
PI : Power Input (kW)
°CDB
°CWB
TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI
3.85 2.61 0.82 4.29 2.63 0.83 4.44 2.86 0.84 4.73 2.86 0.84 4.87 3.09 0.85 5.17 3.08 0.86 5.46 3.28 0.87
4.59 3.11 1.36 5.11 3.13 1.38 5.29 3.40 1.39 5.63 3.41 1.40 5.81 3.69 1.41 6.16 3.67 1.43 6.51 3.91 1.44
4.39 2.98 1.51 4.89 3.00 1.53 5.06 3.26 1.54 5.39 3.27 1.56 5.56 3.53 1.56 5.89 3.51 1.58 6.23 3.74 1.59
4.11 2.79 1.66 4.58 2.80 1.69 4.73 3.05 1.69 5.04 3.06 1.71 5.20 3.30 1.72 5.51 3.29 1.74 5.82 3.50 1.75
3.71 2.51 1.67 4.13 2.53 1.70 4.27 2.75 1.70 4.55 2.76 1.72 4.69 2.98 1.73 4.98 2.97 1.75 5.26 3.16 1.77
3.47 2.35 1.68 3.86 2.36 1.71 3.99 2.57 1.72 4.26 2.58 1.74 4.39 2.78 1.75 4.65 2.77 1.76 4.91 2.95 1.78
AFR
11.7
43
25
30
35
40
Indoor temperature
Outdoor temperature
12
15
°CDB
20
23
25
18
21
16
18
27
29
32
23
19
21
MODEL : AS B09LD
MODEL : AS B12LD
°CDB
°CWB
TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI
1.93 1.34 0.29 2.14 1.35 0.30 2.22 1.47 0.30 2.36 1.48 0.30 2.44 1.59 0.30 2.58 1.59 0.30 2.73 1.69 0.31
2.29 1.60 0.48 2.56 1.61 0.49 2.64 1.75 0.49 2.82 1.76 0.50 2.90 1.90 0.50 3.08 1.89 0.51 3.25 2.01 0.51
2.20 1.53 0.54 2.45 1.54 0.54 2.53 1.68 0.55 2.70 1.68 0.55 2.78 1.82 0.55 2.95 1.81 0.56 3.11 1.93 0.57
2.05 1.43 0.59 2.29 1.44 0.60 2.37 1.57 0.60 2.52 1.57 0.61 2.60 1.70 0.61 2.76 1.69 0.62 2.91 1.80 0.62
1.85 1.30 0.59 2.07 1.30 0.60 2.14 1.42 0.60 2.28 1.42 0.61 2.35 1.53 0.61 2.49 1.53 0.62 2.63 1.63 0.63
1.73 1.21 0.60 1.93 1.22 0.61 2.00 1.32 0.61 2.13 1.33 0.62 2.19 1.43 0.62 2.33 1.43 0.63 2.46 1.52 0.63
AFR
9.3
43
25
30
35
40
Indoor temperature
Outdoor temperature
12
15
°CDB
20
23
25
18
21
16
18
27
29
32
23
19
21
°CDB
°CWB
TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI
2.59 1.82 0.43 2.89 1.83 0.44 2.99 1.99 0.44 3.18 2.00 0.45 3.28 2.16 0.45 3.48 2.15 0.45 3.67 2.29 0.46
3.09 2.17 0.72 3.44 2.18 0.73 3.56 2.37 0.74 3.79 2.38 0.74 3.91 2.57 0.75 4.14 2.56 0.75 4.38 2.73 0.76
2.96 2.08 0.80 3.29 2.09 0.81 3.41 2.27 0.81 3.63 2.28 0.82 3.74 2.46 0.83 3.97 2.45 0.84 4.19 2.61 0.84
2.77 1.94 0.88 3.08 1.95 0.89 3.19 2.12 0.90 3.40 2.13 0.91 3.50 2.30 0.91 3.71 2.29 0.92 3.92 2.44 0.93
2.50 1.75 0.88 2.78 1.76 0.90 2.87 1.92 0.90 3.06 1.92 0.91 3.16 2.08 0.92 3.35 2.07 0.92 3.54 2.20 0.93
2.33 1.64 0.89 2.60 1.65 0.91 2.69 1.79 0.91 2.86 1.80 0.92 2.95 1.94 0.92 3.13 1.93 0.93 3.31 2.06 0.94
16
18
27
29
32
23
19
21
23
25
18
21
20
12
15
°CDB
AFR
9.9
43
25
30
35
40
Indoor temperature
Outdoor temperature

- (01 - 10) -
WALL MOUNTED TYPE AS B09-18LD WALL MOUNTED TYPE AS B09-18LD
6-2. HEATING CAPACITY
MODEL : AS B18LD
AFR: Air Flow Rate (m3/min)
TC : Total Capacity (kW)
PI : Power Input (kW)
TC PI TC PI TC PI TC PI TC PI
5.09 2.01 4.97 2.05 4.84 2.09 4.72 2.13 4.60 2.17
6.04 2.19 5.90 2.24 5.75 2.29 5.61 2.33 5.46 2.38
6.80 2.31 6.64 2.35 6.48 2.40 6.32 2.45 6.15 2.50
7.86 2.46 7.67 2.51 7.48 2.57 7.30 2.62 7.11 2.67
8.94 2.63 8.72 2.69 8.51 2.74 8.30 2.80 8.09 2.85
9.56 2.55 9.33 2.61 9.10 2.66 8.87 2.71 8.65 2.77
9.90 2.56 9.66 2.61 9.43 2.66 9.19 2.72 8.96 2.77
9.58 2.22 9.35 2.27 9.13 2.31 8.90 2.36 8.67 2.41
AFR
°CDB
11.7
-16
-11
-7
Outdoor temperature
15
10
6
0
-2
7
3
8
5
10
°CDB
°CWB
-15
24
-10
Indoor temperature
-5
16
18
20
22
MODEL : AS B09LD
MODEL : AS B12LD
TC PI TC PI TC PI TC PI TC PI
3.41 1.48 3.33 1.51 3.25 1.54 3.17 1.57 3.09 1.60
4.05 1.62 3.95 1.65 3.86 1.68 3.76 1.72 3.66 1.75
4.56 1.70 4.45 1.74 4.34 1.77 4.23 1.81 4.12 1.84
5.27 1.82 5.14 1.85 5.02 1.89 4.89 1.93 4.77 1.97
5.99 1.94 5.85 1.98 5.71 2.02 5.56 2.06 5.42 2.10
6.41 1.88 6.25 1.92 6.10 1.96 5.95 2.00 5.80 2.04
6.63 1.88 6.48 1.92 6.32 1.96 6.16 2.00 6.00 2.04
6.42 1.64 6.27 1.67 6.12 1.71 5.96 1.74 5.81 1.77
AFR
°CDB
10.1
-16
-11
-7
Outdoor temperature
15
10
6
0
-2
7
3
8
5
10
°CDB
°CWB
-15
24
-10
Indoor temperature
-5
16
18
20
22
TC PI TC PI TC PI TC PI TC PI
3.75 1.73 3.66 1.77 3.57 1.81 3.48 1.84 3.39 1.88
4.45 1.90 4.34 1.94 4.24 1.98 4.13 2.02 4.02 2.06
5.01 1.99 4.89 2.04 4.77 2.08 4.65 2.12 4.53 2.16
5.79 2.13 5.65 2.17 5.51 2.22 5.37 2.26 5.23 2.31
6.58 2.27 6.42 2.32 6.27 2.37 6.11 2.42 5.95 2.46
7.04 2.21 6.87 2.25 6.70 2.30 6.53 2.35 6.37 2.39
7.29 2.21 7.11 2.26 6.94 2.30 6.77 2.35 6.59 2.39
7.06 1.92 6.89 1.96 6.72 2.00 6.55 2.04 6.38 2.08
-10
Indoor temperature
-5
16
18
20
22
°CDB
°CWB
-15
24
0
-2
7
3
8
5
10
15
10
6
AFR
°CDB
10.5
-16
-11
-7
Outdoor temperature

- (01 - 11) -
WALL MOUNTED TYPE AS B09-18LD WALL MOUNTED TYPE AS B09-18LD

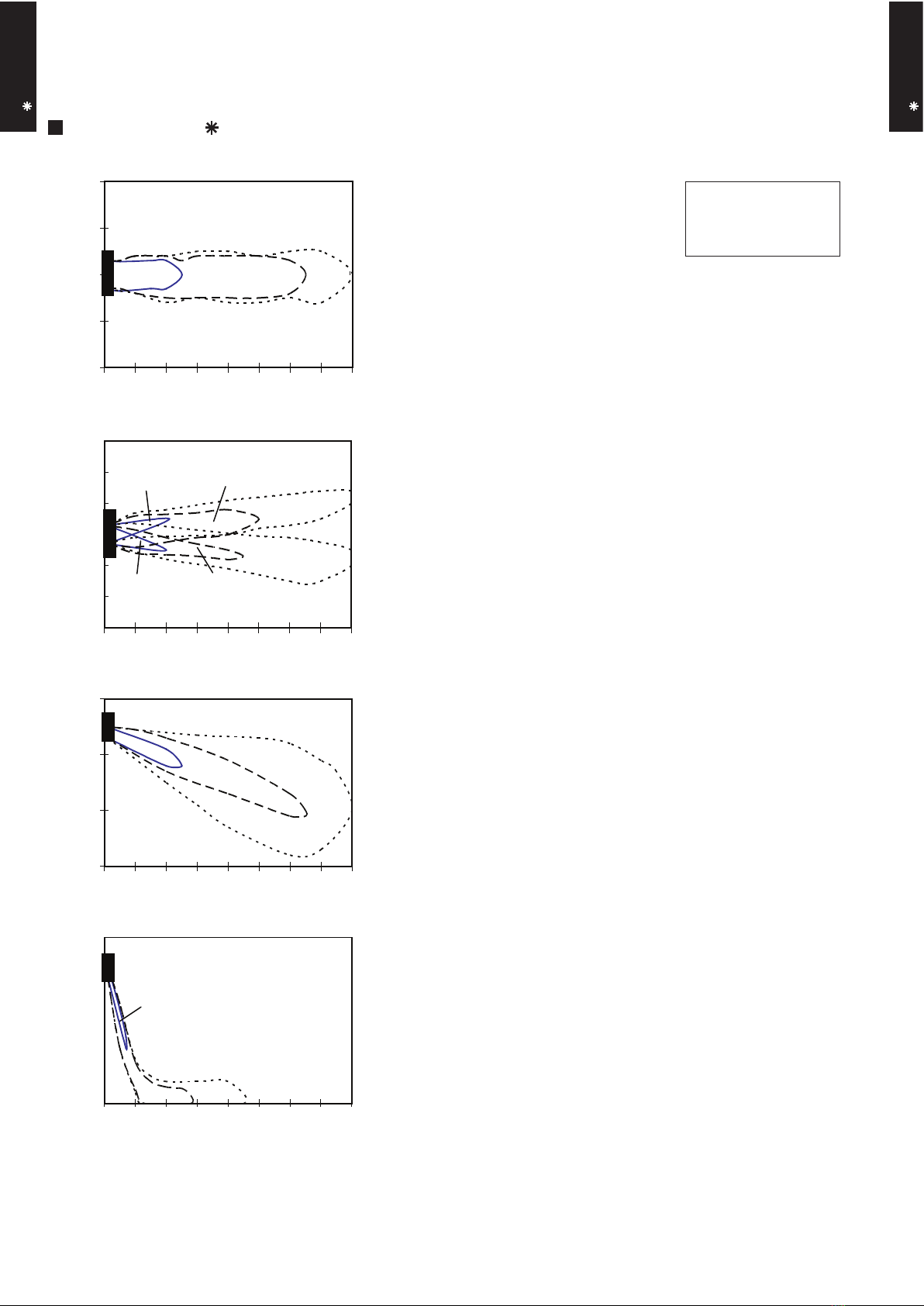

7. FAN PERFORMANCE
7-1. AIR VELOCITY DISTRIBUTION
MODEL : AS B09LD
Note :
Fan speed : High
Voltage : 230V
Unit : m/s
Unit : m/s
Unit : m/s
Unit : m/s
TOP VIEW
FLOW CONTROL PANEL : Horiz.
LOUVER : Center
TOP VIEW
FLOW CONTROL PANEL : Horiz.
LOUVER : Right & Left
SIDE VIEW
FLOW CONTROL PANEL : Horiz.
LOUVER : Center
SIDE VIEW
FLOW CONTROL PANEL : Vert.
LOUVER : Center
(m)
(m)
(m)
(m)
(m)
(m)
(m)
(m)
Operation mode :FAN
1765 43
2 8
1 765432 8
3
2
1
0
1
2
3
2
1
0
1
2
0
1
2
3
1765 43
2 8
0
1
2
3
1765 43
2 8
2.0 1.0 0.5
0.5
1.0
1.0
2.0
2.0
0.5
2.0
1.0
0.5
2.0
1.0 0.5

- (01 - 12) -
WALL MOUNTED TYPE AS B09-18LD WALL MOUNTED TYPE AS B09-18LD
MODEL : AS B12LD
Note :
Fan speed : High
Voltage : 230V
Unit : m/s
Unit : m/s
Unit : m/s
Unit : m/s
TOP VIEW
FLOW CONTROL PANEL : Horiz.
LOUVER : Center
TOP VIEW
FLOW CONTROL PANEL : Horiz.
LOUVER : Right & Left
SIDE VIEW
FLOW CONTROL PANEL : Horiz.
LOUVER : Center
SIDE VIEW
FLOW CONTROL PANEL : Vert.
LOUVER : Center
(m)
(m)
(m)
(m)
(m)
(m)
(m)
(m)
Operation mode :FAN
1765 43
2 8
1 765432 8
0
1
2
3
0
1
2
0
1
2
3
1765 43
2 8
0
1
2
3
1765 43
2 8
2.0 1.0 0.5
0.5
1.0
1.0
2.0
2.0
0.5
2.0
1.0 0.5
2.0
1.0 0.5
3
2
1
2
1

- (01 - 13) -
WALL MOUNTED TYPE AS B09-18LD WALL MOUNTED TYPE AS B09-18LD
MODEL : AS B18LD
Note :
Fan speed : High
Voltage : 230V
Unit : m/s
Unit : m/s
Unit : m/s
Unit : m/s
TOP VIEW
FLOW CONTROL PANEL : Horiz.
LOUVER : Center
TOP VIEW
FLOW CONTROL PANEL : Horiz.
LOUVER : Right & Left
SIDE VIEW
FLOW CONTROL PANEL : Horiz.
LOUVER : Center
SIDE VIEW
FLOW CONTROL PANEL : Vert.
LOUVER : Center
(m)
(m)
(m)
(m)
(m)
(m)
(m)
(m)
Operation mode :FAN
1765 43
2 8
1 765432 8
0
1
2
3
0
1
2
0
1
2
3
1765 43
2 8
0
1
2
3
1765 43
2 8
2.0 1.0 0.5
0.5
0.5
1.0
1.0
2.0
2.0
2.0
1.0 0.5
2.0
1.0 0.5
3
2
1
2
1

- (01 - 14) -
WALL MOUNTED TYPE AS B09-18LD WALL MOUNTED TYPE AS B09-18LD
MODEL : AS B09LD
COOLING
7-2. AIR FLOW
HEATING
560 m
3
/h
156 l/s
330 CFM
470 m
3
/h
131 l/s
277 CFM
385 m
3
/h
107 l/s
227 CFM
260 m
3
/h
72 l/s
153 CFM
Airflow
Fan speed
Number of
rotations
(r.p.m)
Number of
rotations
(r.p.m)
HIGH
MED
LOW
QUIET
1300
1120
950
700
605 m
3
/h
168 l/s
356 CFM
510 m
3
/h
142 l/s
300 CFM
410 m
3
/h
114 l/s
241 CFM
290 m
3
/h
81 l/s
171 CFM
Airflow
HIGH
1390
MED
1200
LOW
1000
Fan speed
QUIET
760

- (01 - 15) -
WALL MOUNTED TYPE AS B09-18LD WALL MOUNTED TYPE AS B09-18LD
MODEL : AS B12LD
COOLING
HEATING
595 m
3
/h
165 l/s
350 CFM
485 m
3
/h
135 l/s
285 CFM
385 m
3
/h
107 l/s
227 CFM
260 m
3
/h
72 l/s
153 CFM
Airflow
HIGH
1370
Fan speed
1150
MED
LOW
950
QUIET
700
630 m
3
/h
175 l/s
371 CFM
510 m
3
/h
142 l/s
300 CFM
410 m
3
/h
114 l/s
241 CFM
290 m
3
/h
81 l/s
171 CFM
Airflow
Fan speed
HIGH
1440
1200
MED
LOW
QUIET
1000
760
Number of
rotations
(r.p.m)
Number of
rotations
(r.p.m)

- (01 - 16) -
WALL MOUNTED TYPE AS B09-18LD WALL MOUNTED TYPE AS B09-18LD
MODEL : AS B18LD
COOLING
HEATING
700 m
3
/h
194 l/s
412 CFM
580 m
3
/h
161 l/s
341 CFM
460 m
3
/h
128 l/s
271 CFM
370 m
3
/h
103 l/s
218 CFM
1560
1320
1090
850
HIGH
MED
LOW
QUIET
Airflow
Fan speed
Number of
rotations
(r.p.m)
700 m
3
/h
194 l/s
412 CFM
600 m
3
/h
167 l/s
353 CFM
500 m
3
/h
139 l/s
294 CFM
420 m
3
/h
117 l/s
247 CFM
1560
1370
1170
950
HIGH
MED
LOW
QUIET
Airflow
Fan speed
Number of
rotations
(r.p.m)

- (01 - 17) -
WALL MOUNTED TYPE AS B09-18LD WALL MOUNTED TYPE AS B09-18LD

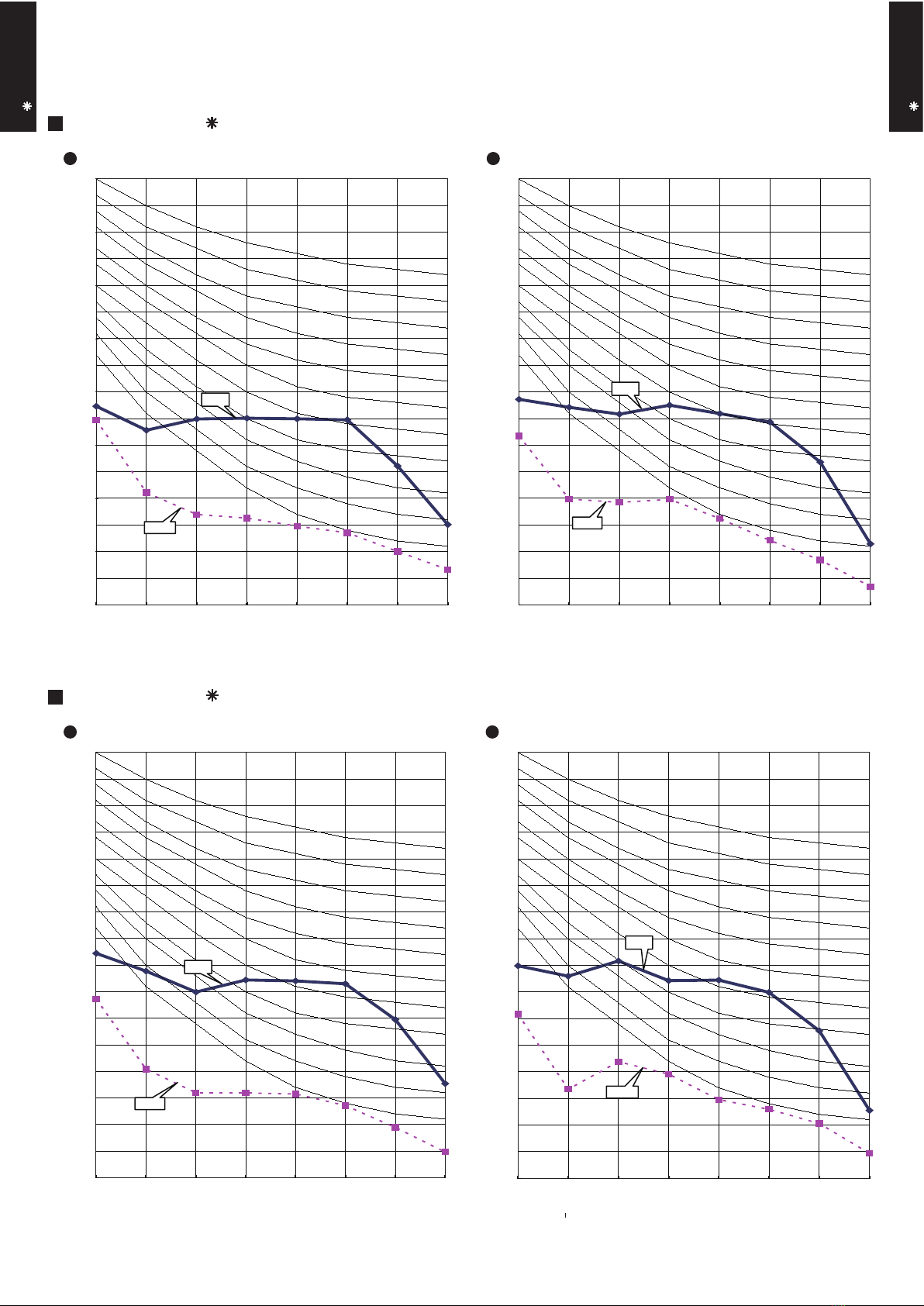

8-1. NOISE LEVEL CURVE
8. OPERATION NOISE
COOLING
Octave band sound pressure level, dB:(0dB=0.0002µbar)
Octave band center frequency,Hz
0
10
20
30
40
50
60
70
80
Octave band sound pressure level, dB:(0dB=0.0002µbar)
0
10
20
30
40
50
60
70
80
63 125 250 500 1,000 2,000 4,000 8,000
Octave band center frequency,Hz
63 125 250 500 1,000 2,000 4,000 8,000
COOLING
Octave band sound pressure level, dB:(0dB=0.0002µbar)
Octave band center frequency,Hz
0
10
20
30
40
50
60
70
80
63 125 250 500 1,000 2,000 4,000 8,000
HEATING
Octave band sound pressure level, dB:(0dB=0.0002µbar)
Octave band center frequency,Hz
0
10
20
30
40
50
60
70
80
63 125 250 500 1,000 2,000 4,000 8,000
HEATING
High
Quiet
High
Quiet
High
Quiet
High
Quiet
MODEL : AS B09LD
MODEL : AS B12 LD
NC-20
NC-40
NC-50
NC-60
NC-30
NC-15
NC-25
NC-35
NC-45
NC-55
NC-65
NC-20
NC-40
NC-50
NC-60
NC-30
NC-15
NC-25
NC-35
NC-45
NC-55
NC-65
NC-20
NC-40
NC-50
NC-60
NC-30
NC-15
NC-25
NC-35
NC-45
NC-55
NC-65
NC-20
NC-40
NC-50
NC-60
NC-30
NC-15
NC-25
NC-35
NC-45
NC-55
NC-65

- (01 - 18) -
WALL MOUNTED TYPE AS B09-18LD WALL MOUNTED TYPE AS B09-18LD
COOLING HEATING
MODEL : AS B18LD
Octave band sound pressure level, dB:(0dB=0.0002µbar)
Octave band center frequency,Hz
0
10
20
30
40
50
60
70
80
63 125 250 500 1,000 2,000 4,000 8,000
High
Quiet
NC-20
NC-40
NC-50
NC-60
NC-30
NC-15
NC-25
NC-35
NC-45
NC-55
NC-65
Octave band sound pressure level, dB:(0dB=0.0002µbar)
Octave band center frequency,Hz
0
10
20
30
40
50
60
70
80
63 125 250 500 1,000 2,000 4,000 8,000
High
Quiet
NC-20
NC-40
NC-50
NC-60
NC-30
NC-15
NC-25
NC-35
NC-45
NC-55
NC-65

- (01 - 19) -
WALL MOUNTED TYPE AS B09-18LD WALL MOUNTED TYPE AS B09-18LD
8-2. SOUND LEVEL CHECK POINT
