Fujitsu ASUG09LMAS User manual

AIR CONDITIONER
Wall mounted type
SERVICE MANUAL
INDOOR
ASUG09LMAS
ASUG12LMAS
OUTDOOR
AOUG09LMAS1
AOUG12LMAS1
SR_AS023EF_05
2020.03.25

Notices:
• Product specifications and design are subject to change without notice for future improvement.
• For further details, please check with our authorized dealer.
Trademarks
FGLair™ is trademark of Fujitsu General Limited in the United States, other countries or both.
Google Play™ is trademark of Google Inc.
App Store® is a service mark of Apple Inc., registered in the U.S. and other countries.
Copyright © 2020 Fujitsu General Limited. All rights reserved.

CONTENTS
1. GENERAL INFORMATION
2. TECHNICAL DATA AND PARTS LIST
3. TROUBLESHOOTING
4. CONTROL AND FUNCTIONS
5. FILED WORKING

1. GENERAL INFORMATION
2019.12.20
SR_CH01_AS023EF_01

CONTENTS
1. GENERAL INFORMATION
1. Specifications..............................................................................................01-1
1-1. Indoor unit ......................................................................................................................01-1
1-2. Outdoor unit....................................................................................................................01-3
2. Dimensions..................................................................................................01-4
2-1. Indoor unit ......................................................................................................................01-4
2-2. Outdoor unit....................................................................................................................01-6

1. Specifications
1-1. Indoor unit
Type Wall mounted
Inverter heat pump
Model name ASUG09LMAS ASUG12LMAS
Power supply 208/230 V ~ 60 Hz
Power supply intake Outdoor unit
Available voltage range 187—253 V
Capacity
Cooling
Rated kW 2.64 3.52
Btu/h 9,000 12,000
Min.—Max. kW 1.0—3.2 1.0—3.9
Btu/h 3,400—10,900 3,400—13,300
Heating
Rated kW 3.52 4.69
Btu/h 12,000 16,000
Min.—Max. kW 0.82—4.4 0.82—5.6
Btu/h 2,800—15,000 2,800—19,100
Heating
(17 °F)*1
Rated kW 2.17 3.02
Btu/h 7,400 10,300
Max. kW 2.96 3.72
Btu/h 10,100 12,700
Input power
Cooling Rated
kW
0.63 0.96
Min.—Max. 0.14—0.92 0.14—1.27
Heating Rated 0.84 1.28
Min.—Max. 0.14—1.61 0.14—1.67
Heating
(17 °F)*1
Rated 0.68 1.04
Max. 1.34 1.39
Current Cooling Rated A 3.1 4.7
Heating 4.0 6.0
EER Cooling kW/kW 4.19 3.66
Btu/hW 14.3 12.5
COP Heating kW/kW 4.19 3.66
Btu/hW 14.3 12.5
SEER Cooling Btu/hW 26.5 23.0
HSPF Heating Btu/hW 13.0 12.5
Power factor Cooling %88.4 88.8
Heating 91.3 92.8
Moisture removal pints/h (L/h) 2.7 (1.3) 3.8 (1.8)
Maximum operating current*2Cooling A6.4 6.9
Heating 7.9 9.4
Fan
Airflow rate
Cooling
HIGH
CFM (m3/h)
453 (770) 453 (770)
MED 353 (600) 353 (600)
LOW 265 (450) 265 (450)
QUIET 147 (250) 147 (250)
Heating
HIGH 453 (770) 453 (770)
MED 377 (640) 377 (640)
LOW 306 (520) 306 (520)
QUIET 182 (310) 182 (310)
Type × Q'ty Crossflow fan × 1
Motor output W 49
Sound pressure level*3
Cooling
HIGH
dB (A)
43 43
MED 36 36
LOW 30 30
QUIET 19 19
Heating
HIGH 43 43
MED 38 38
LOW 33 33
QUIET 21 21
Heat exchanger type
Dimensions (H × W × D) in (mm)
Main1: 8-1/4 × 26-3/8 × 1-1/16 (210 × 670 × 26.6)
Main2: 4-7/16 × 26-3/8 × 13/16 (112 × 670 × 20)
Sub: 3-5/16 × 26-3/8 × 1/2 (84 × 670 × 13.3)
Fin pitch FPI
Man1: 21
Main2: 23
Sub: 18
Rows × Stages
Main1: 2 × 10
Main2: 2 × 7
Sub: 1 × 4
Pipe type Copper
Fin type Aluminum
Enclosure
Material Polystyrene
Color White
Approximate color of Munsell N 9.25/
Dimensions
(H × W × D)
Net in (mm) 10-5/8 × 32-13/16 × 8-3/4 (270 × 834 × 222)
Gross 10-7/8 × 36 × 13-1/16 (277 × 914 × 332)
Weight Net lb (kg) 22 (10)
Gross 29 (13)
Connection pipe Size Liquid in (mm) Ø 1/4 (6.35) Gas Ø 3/8 (Ø 9.52)
Method Flare
Drain hose Material PP+HDPE
Tip diameter in (mm) Ø15/32 (Ø 11.8) (I.D.), Ø19/32 to 21/32 (Ø 15.0 to 16.8) (O.D.)
Operation range Cooling °F (°C) 64 to 90 (18 to 32) %RH 80 or less
Heating °F (°C) 60 to 86 (16 to 30)
Remote controller type Wireless (Wired, Mobile app*4 [FGLair™] [option])
1-1. Indoor unit - (01-1) - 1. Specifications
GENERAL INFORMATION GENERAL INFORMATION

Type Wall mounted
Inverter heat pump
Model name ASUG09LMAS ASUG12LMAS
NOTES:
• Specifications are based on the following conditions:
– Cooling: Indoor temperature of 80 °F (26.67 °CDB) /67 °FWB (19.44 °CWB), and outdoor temperature of 95 °FDB (35 °CDB) / 75 °FWB (23.9 °CWB).
– Heating: Indoor temperature of 70 °FDB (21.11 °CDB) /60 °FWB (15.56 °CWB), and outdoor temperature of 47 °FDB (8.33 °CDB) /43 °FWB (6.11 °CWB).
– *1: Heating (17 °F): Indoor temperature of 70 °FDB (21.11 °CDB) /60 °FWB (15.56 °CWB), and outdoor temperature of 17 °FDB (-8.33 °CDB) /15 °FWB (-9.44 °CWB).
– Pipe length: 25 ft (7.5 m), Height difference: 0 ft (0 m). (Between outdoor unit and indoor unit.)
• Protective function might work when using it outside the operation range.
• *2: Maximum current is maximum value when operated within the operation range.
• *3: Sound pressure level:
– Measured values in manufacturer’s anechoic chamber.
– Because of the surrounding sound environment, the sound levels measured in actual installation conditions might be higher than the specified values here.
• *4: Available on Google Play™ store or on App Store®. Optional WLAN adapter is also required. For details, refer to the setting manual.
1-1. Indoor unit - (01-2) - 1. Specifications
GENERAL INFORMATION GENERAL INFORMATION

1-2. Outdoor unit
Type Inverter heat pump
Model name AOUG09LMAS1 AOUG12LMAS1
Power supply 208/230 V ~ 60 Hz
Power supply intake Outdoor unit
Available voltage range 187—253 V
Starting current A 4.0 6.0
Fan
Airflow rate Cooling CFM (m3/h) 954 (1,620) 1,065 (1,810)
Heating 954 (1,620) 1,065 (1,810)
Type × Q'ty Propeller fan × 1
Motor output W 23
Sound pressure level *1 Cooling dB (A) 46 49
Heating 48 51
Heat exchanger type
Dimensions
(H × W × D) in (mm)
Main1: 19-13/16 × 34-15/16 × 11/16
(504 × 888 × 18.19)
Main2: 19-13/16 × 20-1/16 × 11/16
(504 × 510 × 18.19)
Main1: 19-13/16 × 34-11/16 × 11/16
(504 × 881 × 18.19)
Main2: 19-13/16 × 33-1/2× 11/16
(504 × 851 × 18.19)
Fin pitch FPI 20
Rows × Stages Main1: 1 × 24
Main2: 1 × 24
Pipe type Copper
Fin type Type (Material) Aluminum
Surface treatment PC fin
Compressor Type DC rotary
Motor output W 900
Refrigerant
Type R410A
Charge lb oz 2 lb 2 oz 2 lb 3 oz
g 950 1,000
Refrigerant oil Type RB68A
Amount in3 (cm3)20.7 (340)
Enclosure
Material Steel sheet
Color Beige
Approximate color of Munsell 10YR 7.5/1.0
Dimensions
(H × W × D)
Net in (mm) 21-5/16 × 31-7/16 × 11-7/16 (542 × 799 × 290)
Gross 23-11/16 × 37 × 14-3/4 (602 × 940 × 375)
Weight Net lb (kg) 68 (31) 71 (32)
Gross 75 (34) 77 (35)
Connection pipe
Size Liquid in (mm) Ø 1/4 (Ø 6.35)
Gas Ø 3/8 (Ø 9.52)
Method Flare
Pre-charge length
ft (m)
49 (15)
Max. length 66 (20)
Max. height difference 49 (15)
Operation range Cooling °F (°C) 14 to 115 (-10 to 46)
Heating 5 to 75 (-15 to 24)
Drain hose Material PP
Tip diameter in (mm) Ø 1/2 (Ø 13.0) (I. D.), Ø 5/8 to 11/16 (Ø 16.0 to 16.8) (O. D.)
NOTES:
• Specifications are based on the following conditions:
– Cooling: Indoor temperature of 80 °FDB (26.67 °CDB) / 67 °FWB (19.44 °CWB), and outdoor temperature of 95 °FDB (35 °CDB) / 75 °FWB (23.9 °CWB).
– Heating: Indoor temperature of 70 °FDB (21.11 °CDB) / 60 °FWB (15.56 °CWB), and outdoor temperature of 47 °FDB (8.33 °CDB) / 43 °FWB (6.11 °CWB).
– Pipe length: 25 ft (7.5 m), Height difference: 0 ft (0 m). (Between outdoor unit and indoor unit.)
• Protective function might work when using it outside the operation range.
• *1: Sound pressure level
– Measured values in manufacturer’s anechoic chamber.
– Because of the surrounding sound environment, the sound levels measured in actual installation conditions might be higher than the specified values here.
1-2. Outdoor unit - (01-3) - 1. Specifications
GENERAL INFORMATION GENERAL INFORMATION

2. Dimensions
2-1. Indoor unit
¢Models: ASUG09LMAS and ASUG12LMAS
Unit: in (mm)
(32-13/16 [834])
Outline of indoor unit 12-7/8 (327)
10-3/4 (273)10-3/4 (273) 2-1/8 (54)
(10-5/8 [270])
1-11/16 (43)
1-11/16 (43)
3/8 (9.5)8-11/16 (220)
for pipe inlet
Ø 2-9/16 (65)
for pipe inlet
Ø 2-9/16 (65)
7-3/16 (182) 7-3/16 (182)
14 (356)13-5/8 (346)1-7/8 (48) 3-5/16 (84)
2-1/2 (63) 2-1/2 (63)
32-13/16 (834)
10-5/8 (270)
8-3/4 (222)
1/8 (3.0)
2-1. Indoor unit - (01-4) - 2. Dimensions
GENERAL INFORMATION GENERAL INFORMATION

¢Installation space requirement
Provide sufficient installation space for product safety.
Wall hook bracket
Outline of the indoor unit
2 (50) or more
3 (67) or more
2 (40) or more
3 (70) or more
5 (107) or more
60 (1,500) or more
71 (1,800) or more
8 (183) or more
Unit: in (mm)
2-1. Indoor unit - (01-5) - 2. Dimensions
GENERAL INFORMATION GENERAL INFORMATION

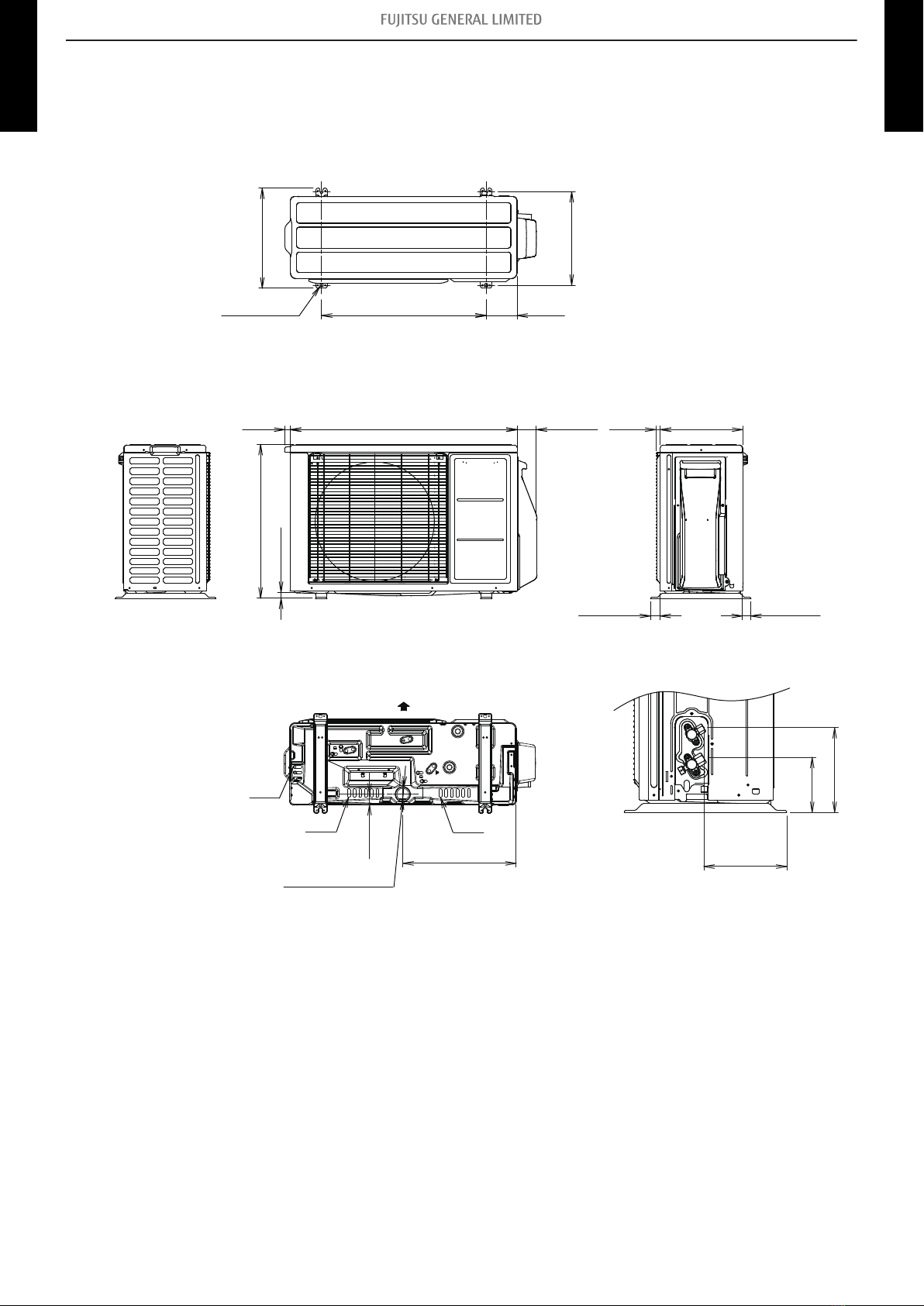

2-2. Outdoor unit
¢Models: AOUG09LMAS1 and AOUG12LMAS1
Top view
22-13/16 (580) 4-5/16 (109)
13 (330)
13-7/8 (353)
Pitch of bolts for installation
Pitch of bolts for installation
4- M1 0 hole
31-7/16 (799) 2-11/16 (68)
1-5/16 (33) 1-3/16 (30)
3/4 (19)
21-5/16 (542)
13/16 (20)
Side viewSide view Front view
11-7/16 (290)1/2 (13)
Unit: in (mm)
Bottom view
Airflow
Drain port Ø1-5/8 (42)
Side view (Valve part)
4-3/4 (120)
4-1/4 (184)
7-1/16 (180)
1-7/16 (37)
15-11/16 (399)
Hole
Hole
Hole
2-2. Outdoor unit - (01-6) - 2. Dimensions
GENERAL INFORMATION GENERAL INFORMATION

2. TECHNICAL DATA AND PARTS LIST
2020.01.28
SR_CH02_AS023EF_01

CONTENTS
2. TECHNICAL DATA AND PARTS LIST
1. Precautions..................................................................................................02-1
2. Indoor unit parts list....................................................................................02-2
2-1. Models: ASUG09LMAS and ASUG12LMAS ..................................................................02-2
3. Outdoor unit parts list.................................................................................02-6
3-1. Models: AOUG09LMAS1 and AOUG12LMAS1 .............................................................02-6
4. Accessories ...............................................................................................02-10
4-1. Indoor unit ....................................................................................................................02-10
4-2. Outdoor unit..................................................................................................................02-10
5. Optional parts ...........................................................................................02-11
5-1. Indoor unit ....................................................................................................................02-11
6. Refrigerant system diagrams...................................................................02-13
6-1. Models: AOUG09LMAS1 and AOUG12LMAS1 ...........................................................02-13
7. Wiring diagrams ........................................................................................02-14
7-1. Indoor unit ....................................................................................................................02-14
7-2. Outdoor unit..................................................................................................................02-15
8. PC board diagrams ...................................................................................02-16
8-1. Models: ASUG09LMAS and ASUG12LMAS ................................................................02-16
8-2. Models: AOUG09LMAS1 and AOUG12LMAS1 ...........................................................02-17

1. Precautions
When you start servicing, pay attention to the following points. For detailed precautions, refer to the
installation manual of the products.
CAUTION
• Service personnel
– Any person who is involved with working on or breaking into a refrigerant circuit should hold a
current valid certificate from an industry-accredited assessment authority, which authorizes
their competence to handle refrigerants safely in accordance with an industry recognized as-
sessment specification.
– Servicing shall only be performed as recommended by the equipment manufacturer. Mainte-
nance and repair requiring the assistance of other skilled personnel shall be carried out under
the supervision of the person competent in the use of flammable refrigerants.
– Servicing shall be performed only as recommended by the manufacturer.
• Work
– Work in confined spaces shall be avoided.
– The area around the workspace shall be sectioned off.
– Electric shock may occur. After turning off the power, always wait 5 minutes before touching
electrical components.
– Do not touch the fins of the heat exchanger. Touching the heat exchanger fins could result in
damage to the fins or personal injury such as skin rupture.
– Do not place any other electrical products or household belongings under the product.
– Condensation dripping from the product might get them wet, and may cause damage or mal-
function to the property.
• Service parts information and design are subject to change without notice for product improve-
ment.
• For the latest information of the service parts, refer to our Service Portal.
https://fujitsu-general.force.com/portal/
• Precise figure of the service parts listed in this manual may differ from the actual service parts.
- (02-1) - 1. Precautions
TECHNICAL DATA AND PARTS LIST TECHNICAL DATA AND PARTS LIST

2. Indoor unit parts list
2-1. Models: ASUG09LMAS and ASUG12LMAS

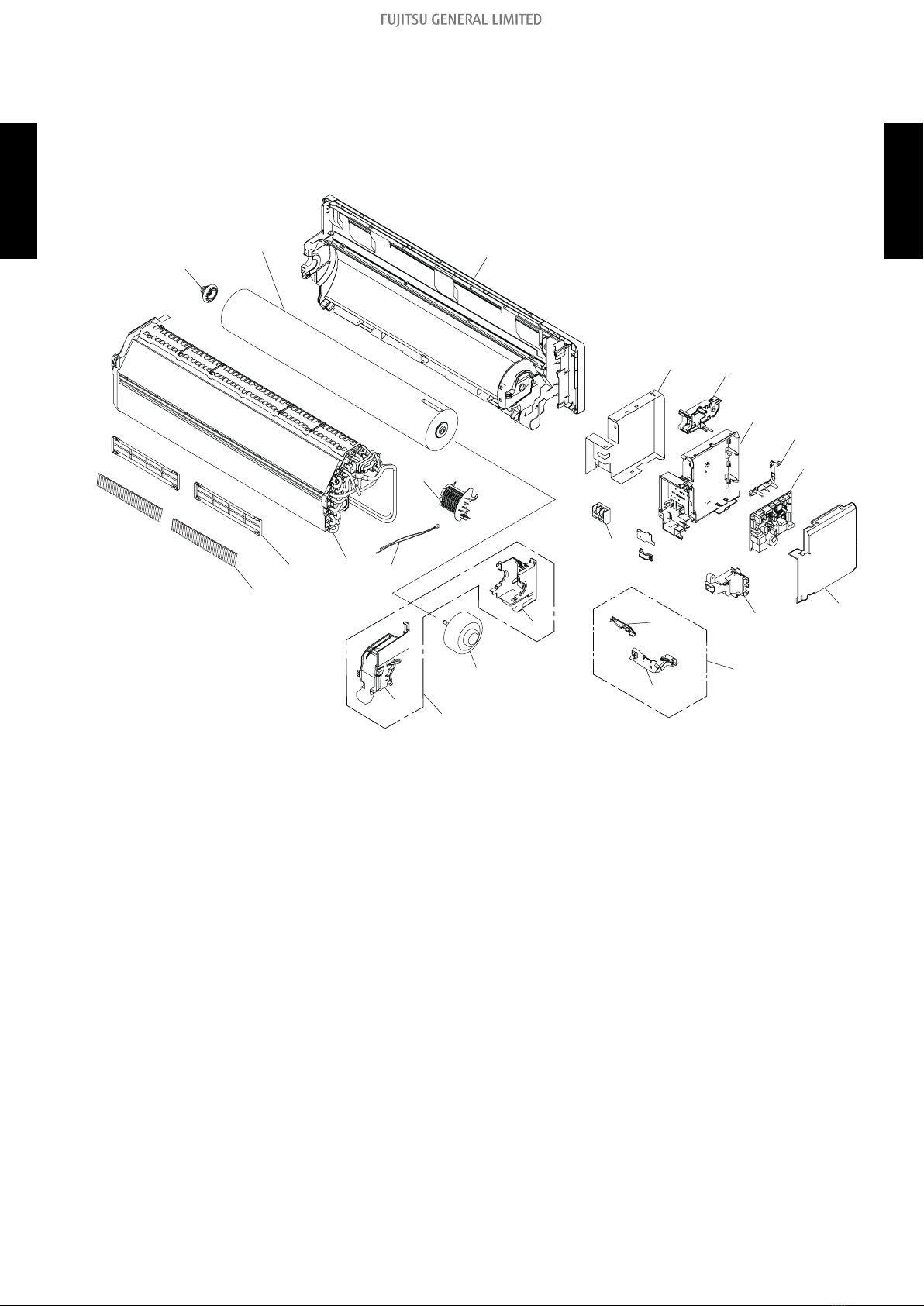

¢Exterior parts
18
1
4
a
5
6
8
9
10
13
16
2
17
15
12
3
14
19
20 21
b
7
11
9
22
2-1. Models: ASUG09LMAS and ASUG12LMAS - (02-2) - 2. Indoor unit parts list
TECHNICAL DATA AND PARTS LIST TECHNICAL DATA AND PARTS LIST

Item no. Part no. Part name Service part
1 9387480009 Bracket panel ♦
2 9387471007 Louver spring ♦
3 9333608006 Bush ♦
4 9313951047 Conduit holder ♦
5 9387714036 Step motor holder assy ♦
6 9901011047 Step motor ♦
7 9332861006 Shaft cover ♦
8 9387590050 Drain pan total assy ♦
9 9387476002 Screw cap ♦
10 9387479003 U/D louver assy ♦
11 9387597035 Wire cover assy ♦
12 9387478020 Under cover R ♦
13 9387596458 Front panel total assy ♦
14 9333704005 Grille clamper R ♦
15 9387799057 Intake grill B ♦
16 9333719009 Grille clamper L ♦
17 9387473001 Air filter ♦
18 9387477023 Under cover L ♦
19 9316177017 Drain cap ♦
20 9316904002 Drain hose assy ♦
21 9318912005 Remote controller holder ♦
22 9332438772 Remote controller ♦
a— Step motor holder —
b— Front panel —
2-1. Models: ASUG09LMAS and ASUG12LMAS - (02-3) - 2. Indoor unit parts list
TECHNICAL DATA AND PARTS LIST TECHNICAL DATA AND PARTS LIST

¢Base, evaporator, and control
50
51
a
b
c
52
d
53
54
55
56
58
57
59
e
f
60 61
63
62
g
65
64
2-1. Models: ASUG09LMAS and ASUG12LMAS - (02-4) - 2. Indoor unit parts list
TECHNICAL DATA AND PARTS LIST TECHNICAL DATA AND PARTS LIST

Item no. Part no. Part name Service part
50 9387587012 Base assy ♦
51 9383765032 WLAN adapter holder assy ♦
52 9711141422 Main PCB (For 09 model) ♦
9711141439 Main PCB (For 12 model) ♦
53 9387488043 Cable guide ♦
54 9711146076 Display assy ♦
55 9711147011 Indicator PCB ♦
56 9306489045 Terminal ♦
57 9603821012 Brushless motor ♦
58 9387589030 Motor case assy ♦
59 9317250009 Air clean filter assy ♦
60 9332911008 Electric filter holder ♦
61 9387593228 Evaporator total assy ♦
62 9900627041 Thermistor assy ♦
63 9387467000 Room thermistor holder ♦
64 9333628004 Bearing D assy ♦
65 9387055016 Crossflow fan assy ♦
a— Box shield —
b— Control box —
c— PCB holder A —
d— Control cover —
e— Display case assy —
f— Motor case —
g— Motor cover
2-1. Models: ASUG09LMAS and ASUG12LMAS - (02-5) - 2. Indoor unit parts list
TECHNICAL DATA AND PARTS LIST TECHNICAL DATA AND PARTS LIST

3. Outdoor unit parts list
3-1. Models: AOUG09LMAS1 and AOUG12LMAS1

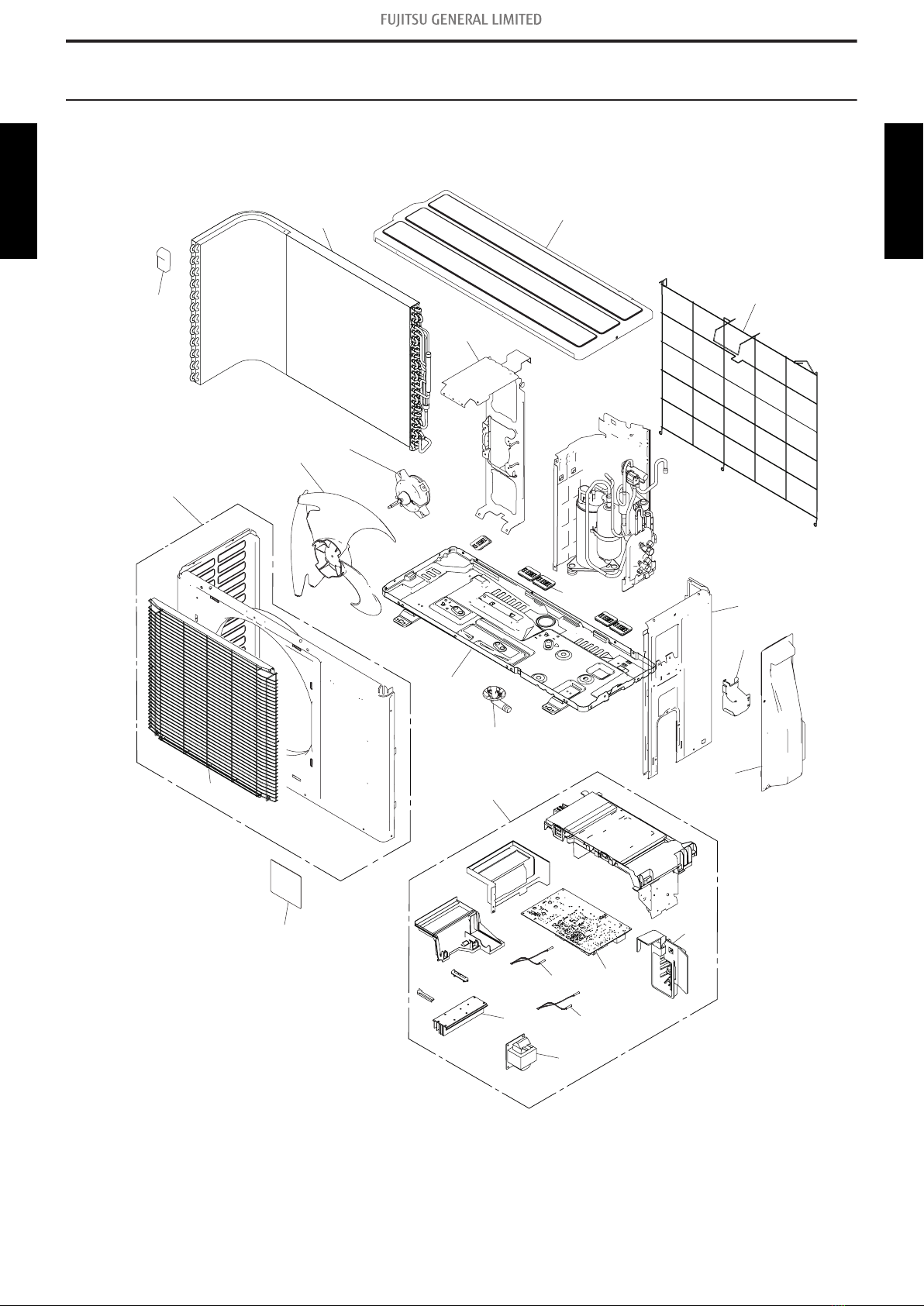

¢Exterior parts and Chassis
1
2
3
5
15
17
a
13
18 19
20
21
b
12
16
9
6
7
8
4
11
10
14
3-1. Models: AOUG09LMAS1 and AOUG12LMAS1 - (02-6) - 3. Outdoor unit parts list
TECHNICAL DATA AND PARTS LIST TECHNICAL DATA AND PARTS LIST
