Fujitsu AS G09LTCB Series Service manual

AIR CONDITIONER
Wall Mounted type
INDOOR
OUTDOOR
ASG09LTCB
ASG12LTCB
ASG14LTCB
AOG09LTCN AOG12LTCN
AOG14LTCN
DESIGN & TECHNICAL MANUAL

1. INDOOR UNIT
WALL MOUNTED TYPE :
ASG09LTCB
ASG12LTCB
ASG14LTCB
DTR_AS057E_03
2013.01.10

WALL MOUNTED TYPE ASG09-14LT WALL MOUNTED TYPE ASG09-14LT
CONTENTS
1. INDOOR UNIT
1. FEATURES.............................................................................................................. 01 - 01
2. WIRELESS REMOTE CONTROLLER............................................... 01 - 04
3. SPECIFICATIONS.............................................................................................. 01 - 06

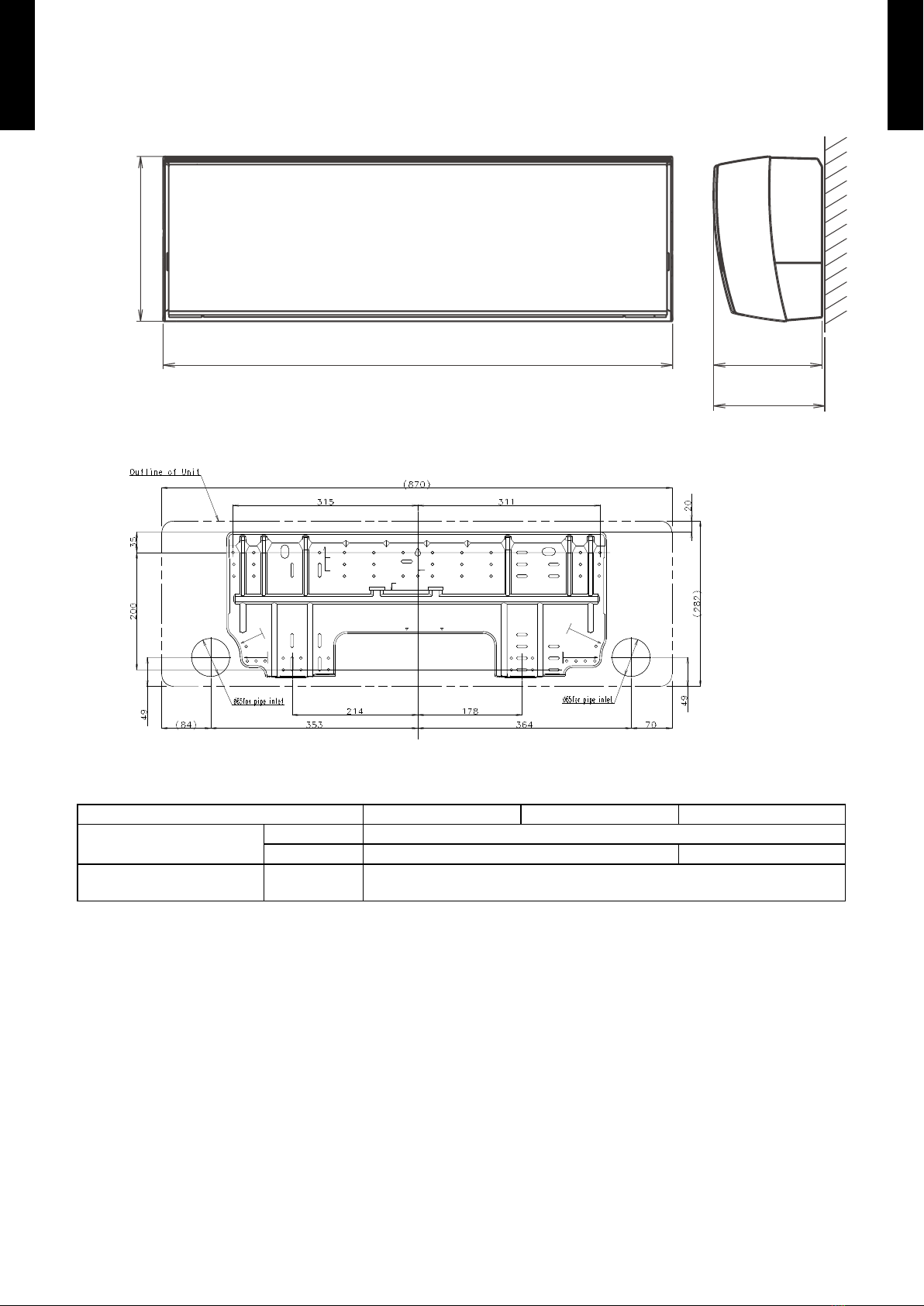

4. DIMENSIONS ........................................................................................................ 01 - 08

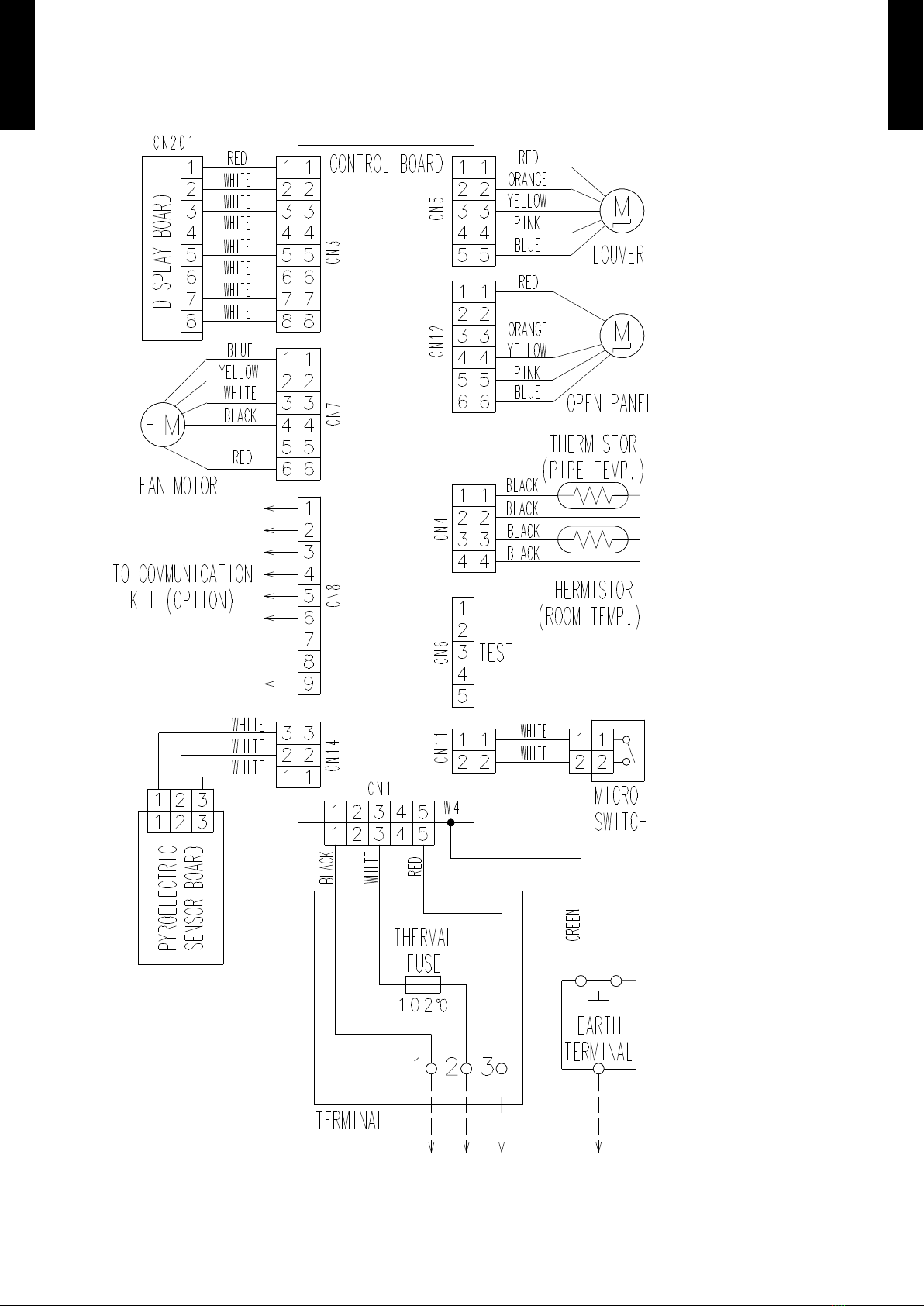

5. WIRING DIAGRAMS........................................................................................ 01 - 10
6. CAPACITY TABLE .............................................................................................01 - 11
6-1. COOLING CAPACITY.......................................................................................01 - 11
6-2. HEATING CAPACITY....................................................................................... 01 - 12
7. FAN PERFORMANCE.................................................................................... 01 - 13

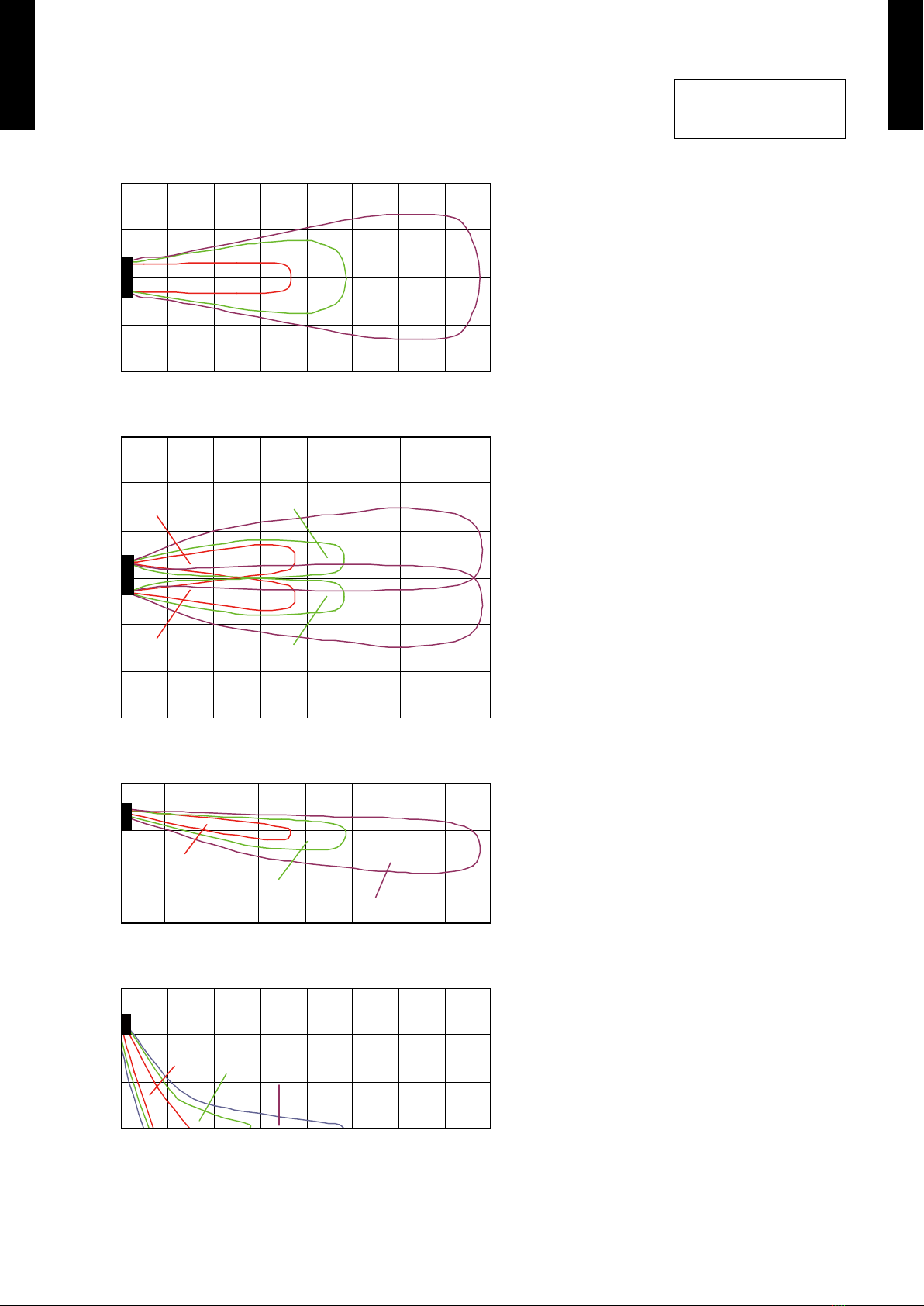

7-1. AIR VELOCITY DISTRIBUTION..................................................................... 01 - 13
7-2. AIRFLOW........................................................................................................... 01 - 16
8. OPERATION NOISE (SOUND PRESSURE)................................. 01 - 19
8-1. NOISE LEVEL CURVE .................................................................................... 01 - 19
8-2. SOUND LEVEL CHECK POINT..................................................................... 01 - 21
9. ELECTRIC CHARACTERISTICS........................................................... 01 - 22
10. SAFETY DEVICES ............................................................................................ 01 - 23
11. EXTERNAL INPUT & OUTPUT............................................................... 01 - 24
11-1. EXTERNAL INPUT ........................................................................................... 01 - 24
11-2. EXTERNAL OUTPUT....................................................................................... 01 - 26
12. FUNCTION SETTINGS .................................................................................. 01 - 28
13. OPTIONAL PARTS ........................................................................................... 01 - 32
13-1. CONTROLLER.................................................................................................. 01 - 32
13-2. OTHERS............................................................................................................. 01 - 32

- (01 - 01) -
WALL MOUNTED TYPE ASG09-14LT WALL MOUNTED TYPE ASG09-14LT
FEATURES1.
MODEL

ASG09LTCB / AOG09LTCN
ASG12LTCB / AOG12LTCN
ASG14LTCB / AOG14LTCN

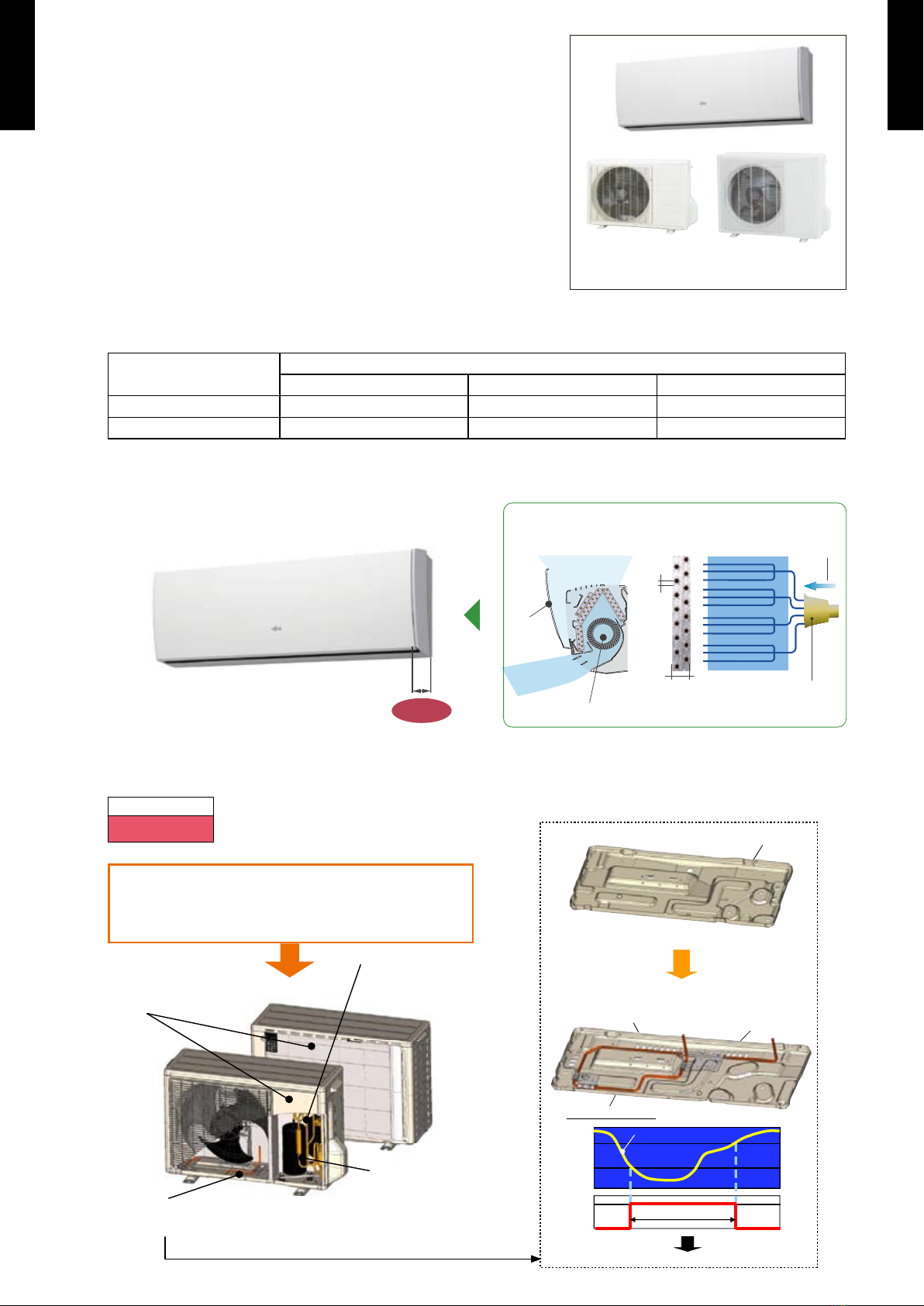

FEATURES

Energy ef
z ciency class
MODEL
ASG09LTCB ASG12LTCB ASG14LTCB
Cooling A+++ A+++ A++
Heating A++ A++ A+
Thin & Slim design
z
Low outdoor air temperature correspondence
z
Corresponds to heating operation at -25°C outdoor air temperature
Heating
-25 to 24°C
Ø5mm
20mm
Large fan
Open
panel
Distributor
4-path
Refrigerant
Large intake
Big open panel and High density multi path heat
exchanger
Thin and slim design is realized by Ø5mm heat
exchanger and high efficiency wind blower.
H282 X W870 X D185
185mm
Specication improvement to allow
operation under extremely low outdoor
temperature (-25°C) without trouble
Nordic model
Freezing
prevention of base
Structural
improvements
Expansion of
mechanical space
Improvement of cold-
proof specications
of parts
Standard model
Nordic model
Heater-less
Base
0°C
3°C
O F F
O N
Heater operation
Outdoor temperature
Tim e
Freezing prevention
150W Heater
Base
Many drain holes
AOG09LTCN AOG12LTCN
AOG14LTCN

- (01 - 02) -
WALL MOUNTED TYPE ASG09-14LT WALL MOUNTED TYPE ASG09-14LT

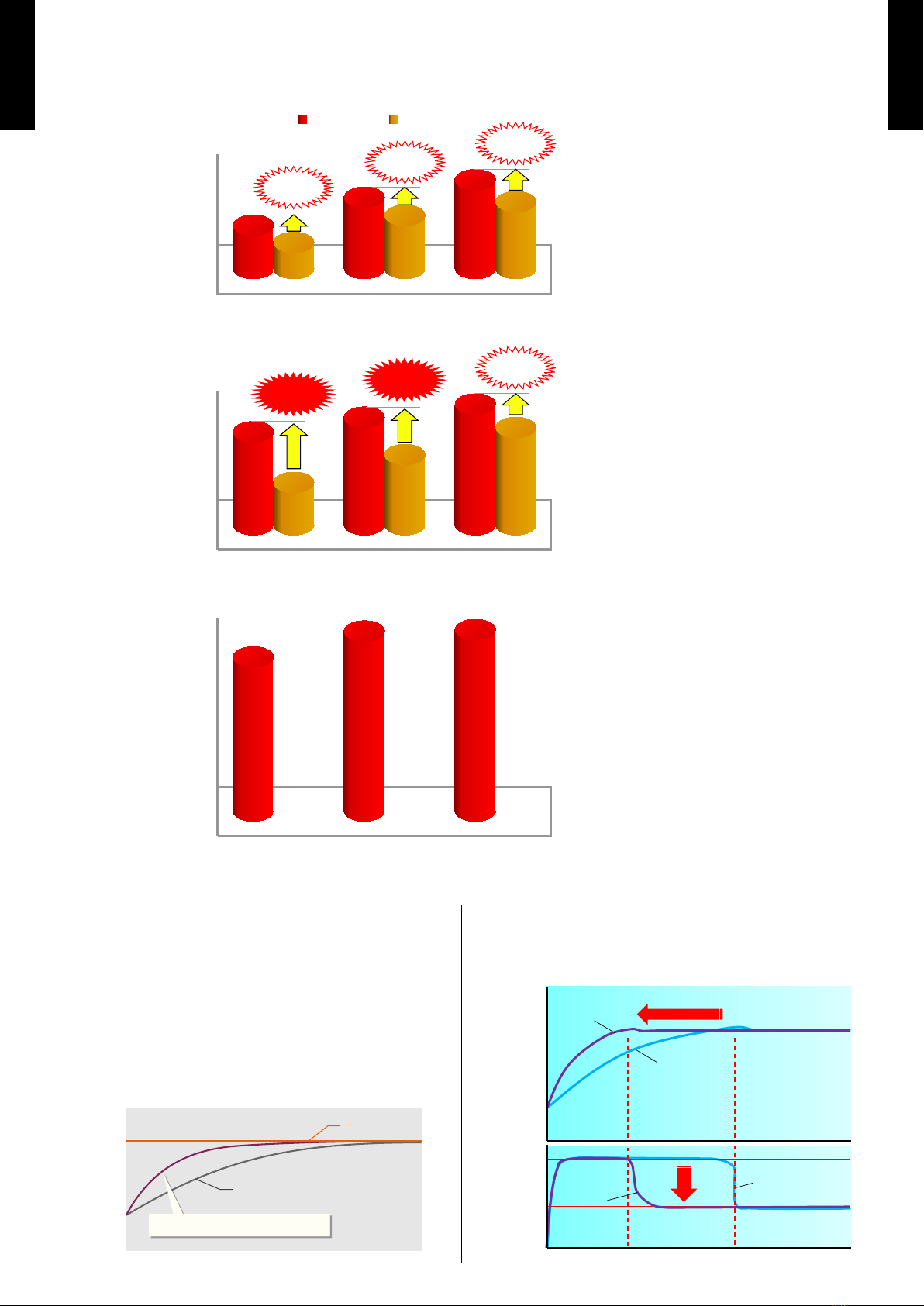

Powerful operation
z
*Only available with Wireless RC.
Powerful operation is boosted with the
maximum full power and strong airow.
Rapid cooling and heating makes the room
comfortable quickly.
Caution
Powerful mode operates for 6 minutes or more, and
stops automatically if reaching set temperature or 20
minutes pass.
Powerful heating capacity
z
Quick speed heating & Energy saving at low
ambient !
Temperature
Time
Powerful operation mode
Normal mode
Setting temp.
Indoor temperature (°C)
Compressor Rotated speed
Set
temp.
High
Low
LT series
LT series
LE series
LE series
Quick speed
Energy saving
Time
Powerful heating at low outdoor temperature
z
Keeping the high heating capacity at low outdoor temperature.
* : ASYA09LEC (09 Class)
ASYA12LEC (12 Class)
4.0
3.5
6.1
6.0
5.4
4.6
4.1
4.3
3.5
4.0
2.9
3.6
3.2
3.0
2.6
NEW model Current model *
23%up
38%up
12%up
13%up
15%up
14%up
Heating capacity
(kW)
Heating capacity
(kW)
Heating capacity
(kW)
09 Class
Outdoor temperature
-15°C -7°C 2°C
Outdoor temperature
-15°C -7°C 2°C
Outdoor temperature
-15°C -7°C 2°C
12 Class
14 Class

- (01 - 03) -
WALL MOUNTED TYPE ASG09-14LT WALL MOUNTED TYPE ASG09-14LT

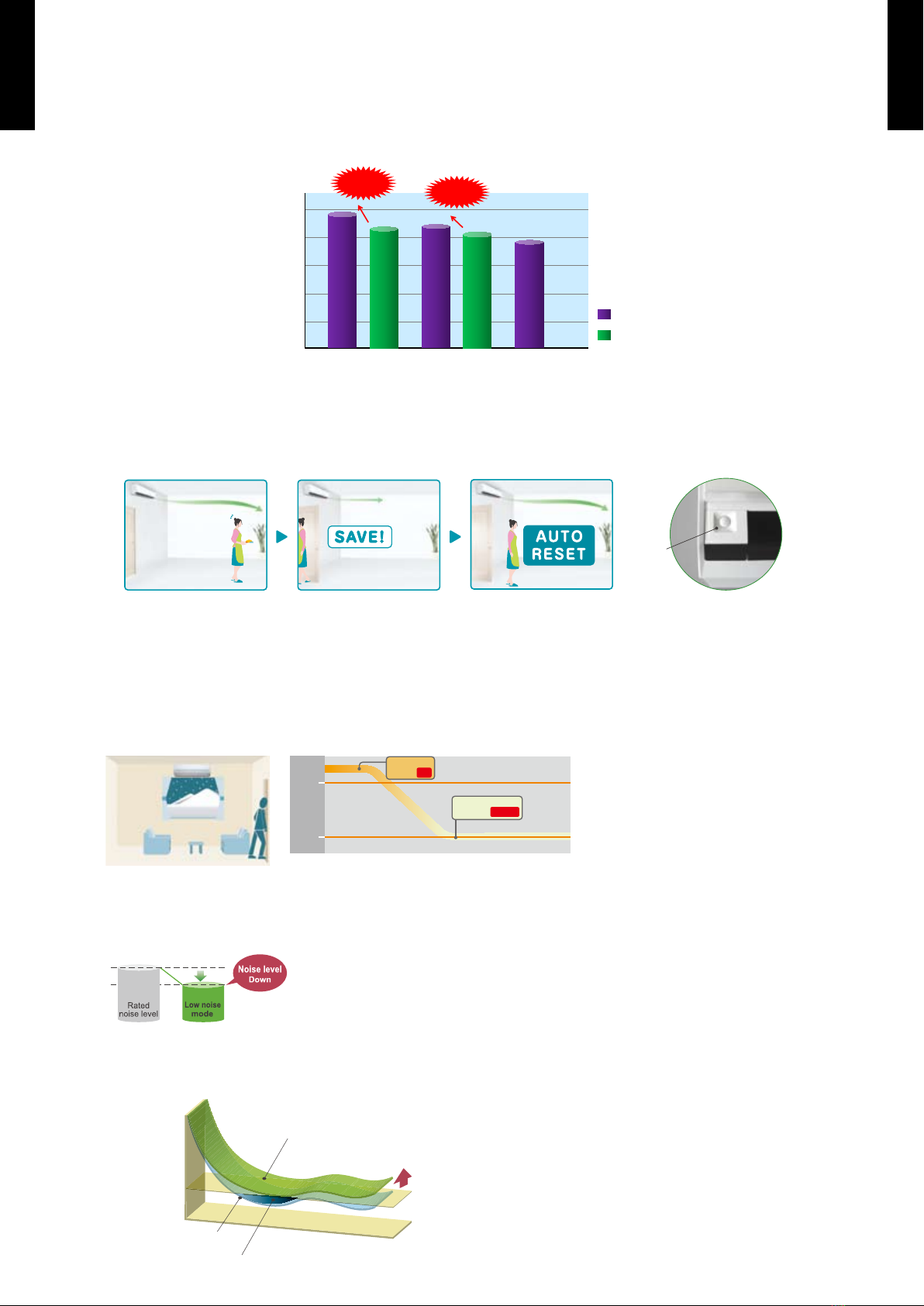

High energy saving
z
High COP is realized by using Large heat exchanger, DC rotary compressor, and inverter
technology.
Energy saving control
z
Human sensor catches movements of people in a room, and operates with lower capacity when the room
is empty. When people come back to the room, it automatically returns to previous operating mode.
Energy saving operation by detecting someone’s movement
Human
sensor
10°C HEAT Operation
z *Only available with Wireless RC.
The room temperature can be set to go no lower than 10°C,
thus ensuring that the room does not get too cold when not occupied
Caution)
When the room temperature is higher than 10°C, “•10°C HEAT” operation will not start. Operation starts and maintains the room
temperature at 10°C when the temperature drops below 10°C.
When “•10°C HEAT” operation stops, the room set temperature quickly returns to the preset temperature.
Outdoor unit low noise
z *Only available with Wireless RC.
When air-conditioner operates in large capacity, operation noise of outdoor unit will be suppressed. In case
of room temperature being close to setting temperature, operation noise might not decrease.
Economy operation
z
Example : Cooling operation
5.0
4.0
3.0
2.0
1.0
0.0
Heating efciency (COP)
09
Class
12
Class
14
Class
4.85
4.40
3.91
4.27 4.12
LT series
LE series
14%up! 7%up!
10°C
20°C
“10°C HEAT”
Button ON
Indoor unit
operation START
Economy operation is energy saving, as the set•
temperature of indoor unit is shifted by 1°C and
the maximum electric value of the outdoor unit is
suppressed.
Temp.
Economy operation
Shift
setting
temp
Control maximum current
Normal operation Time
Set temperature

- (01 - 04) -
WALL MOUNTED TYPE ASG09-14LT WALL MOUNTED TYPE ASG09-14LT

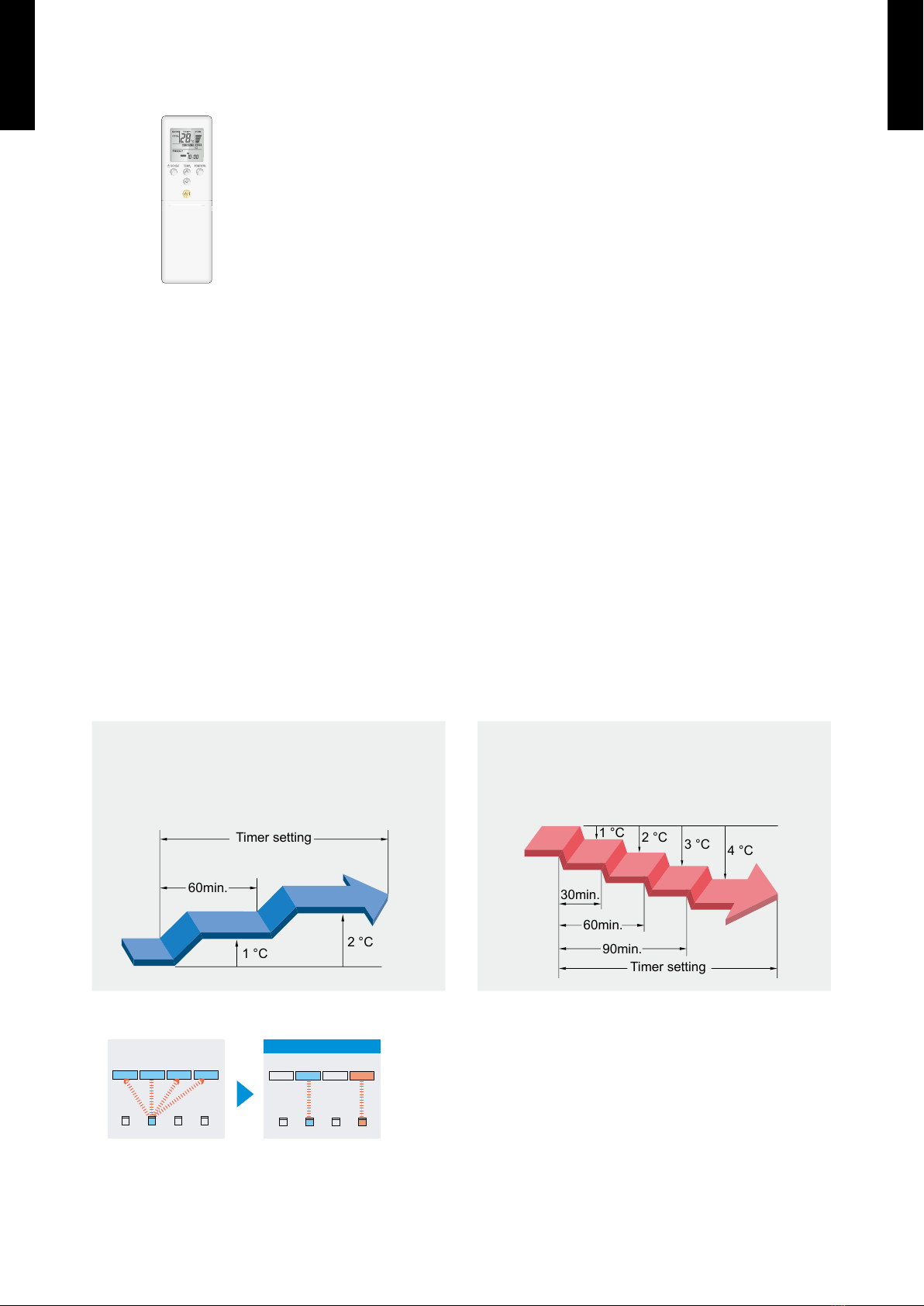

WIRELESS REMOTE CONTROLLER2.
FEATURES

3 mode timer setup available

(Weekly / Program / Sleep).
Easy operation.

Easy to change signal code (max. 4 units) by button operation.

Simple function setting
z
Setting of the air conditioner selection function is performed by remote controller.
Built-in timers
z
Select from Three different timer programs (Weekly / Program / Sleep).
Weekly timer
z
Weekly timer can be easily set by wireless remote controller.
ON, OFF can be set up to 4 times in 1 day and up to 28 times in 1 week.
Program timer
z
The program timer operates the on and off timer once within a 24 hour period.
Sleep timer
z
The sleep timer function automatically corrects the temperature thermostat setting according to
the timer setting to prevent excessive cooling and heating while sleeping.
60min.
1 °C 2 °C
Timer setting
1 °C
30min.
60min.
90min.
2 °C 3 °C 4 °C
Timer setting
Cooling operation/dry operation
When the sleep timer is set, the set temperature
automatically rises 1 °C every hour. The set
temperature can rise up to a maximum of 2 °C.
Heating operation
When the sleep timer is set, the set temperature
automatically drops 1 °C every 30 minutes. The set
temperature can drop to a maximum of 4 °C.
Switching remote controller signal code
z
A B C D
A B CD
Mixed-up
I.U. I.U. I.U. I.U. I.U. I.U. I.U. I.U.
After code change
Code selector switch eliminates unit

•
being wrongly switched.
(Up to 4 codes can be set.)
*I.U.=Indoor unit

- (01 - 05) -
WALL MOUNTED TYPE ASG09-14LT WALL MOUNTED TYPE ASG09-14LT

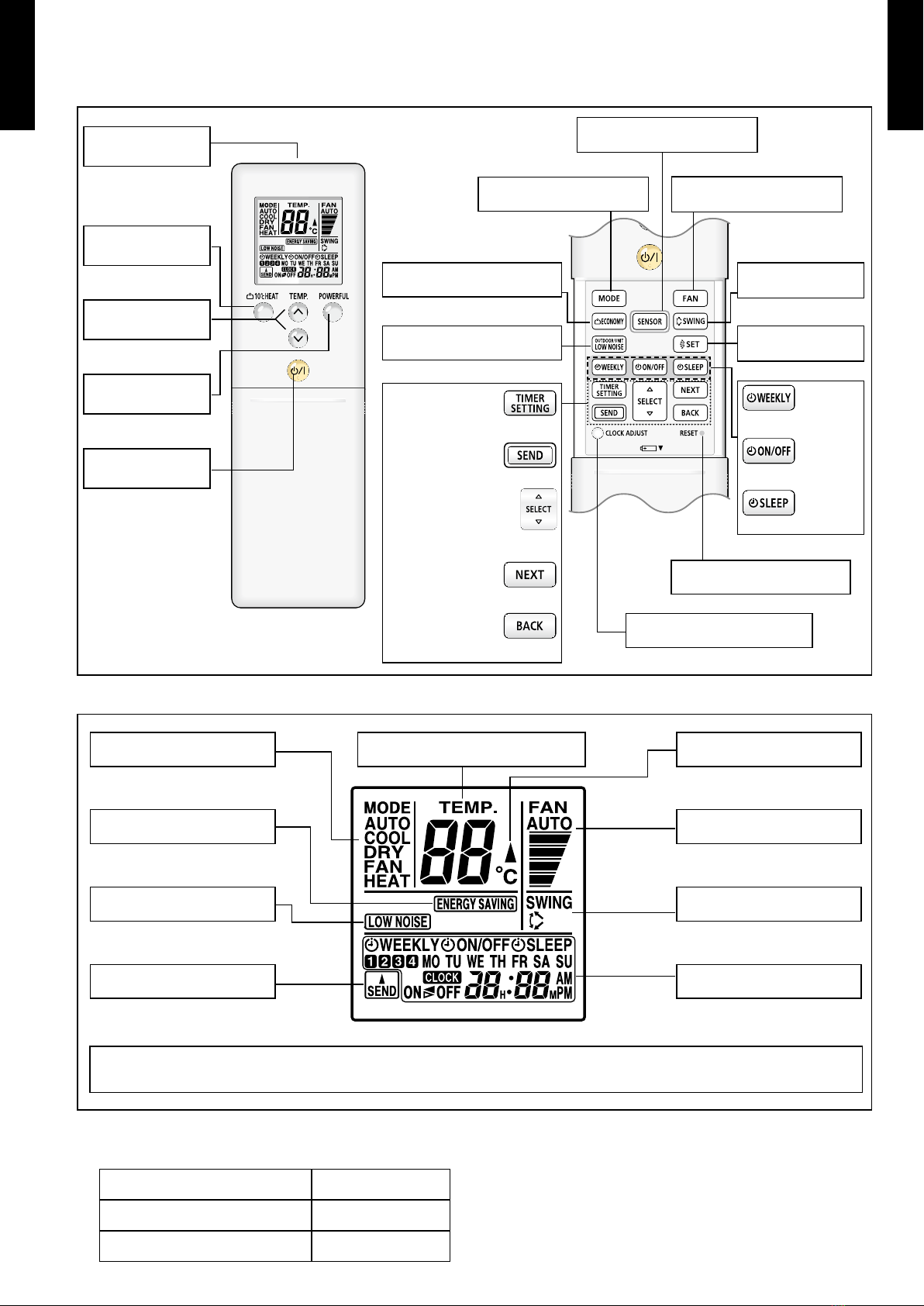

FUNCTIONS

Signal
Transmitter
10 °C HEAT
button
TEMP.
button
POWERFUL
button
START/STOP
button
MODE button
SENSOR button
ECONOMY button
OUTDOOR UNIT
LOW NOISE button
SWING button
TIMER SETTING button
SEND button
SELECT button
NEXT button
BACK button
SET button
WEEKLY button
ON/OFF button
SLEEP button
FAN button
RESET button
CLOCK ADJUST button
Display panel
To facilitate explanation, the accompanying illustration has been drawn to show all possible indicators; in actual operation,
however, the display will only show those indicators appropriate to the current operation.
MODE Display
ENERGY SAVING
MODE Display
LOW NOISE MODE
Display
Turns ON when the

SENSOR button is operated.
CLOCK & TIMER
Display
SEND Display
TEMPERATURE Display Transmit Indicator
Display
FAN Speed Display
SWING Display
SPECIFICATION

SIZE (H x W x D mm) 205 x 61 x 17
WEIGHT ( g ) 122
ACCESSORY Holder

- (01 - 06) -
WALL MOUNTED TYPE ASG09-14LT WALL MOUNTED TYPE ASG09-14LT
SPECIFICATIONS3.
Note:
Specications are based on the following conditions
Cooling:Indoor temperature of 27 °CDB/19 °CWB.and outdoor temperature of 35 °CDB/24 °CWB.
Heating:Indoor temperature of 20 °CDB/15 °CWB.and outdoor temperature of 7° CDB/6 °CWB.
Pipe length:5m,Height difference:0m(Outdoor unit-Indoor unit)
The protective function might work when using it outside the operation range.
*: The maximum current is the maximum value when operated within the operation range.
Type WALL MOUNTED
INVERTER HEAT PUMP
Model name ASG09LTCB ASG12LTCB ASG14LTCB
Power source 230V~ 50Hz
Available voltage range 198-264V~ 50Hz
Capacity
Cooling
Rated kW 2.50 3.50 4.20
Btu/h 8,500 11,900 14,300
Min-Max kW 0.9-3.5 1.1- 4.0 0.9-5.4
Btu/h 3,100-11,900 3,800-13,600 3,100-18,400
Heating
Rated kW 3.20 4.00 5.40
Btu/h 10,900 13,600 18,400
Min-Max kW 0.9-5.4 0.9-6.5 0. 9 -7.0
Btu/h 3,100-18,400 3,100-22,200 3,100-23,900
Input power
Cooling Rated
kW
0.505 0.850 1.160
Min-Max 0.25-1.26 0.20-1.70 0.18-2.16
Heating Rated 0.660 0.910 1.380
Min-Max 0.25-2.28 0.20-2.62 0.17-3. 30
Current Cooling Rated A2.6 4.0 5.1
Heating 3.3 4.3 6.1
EER Cooling kW/kW 4.95 4.12 3.62
COP Heating 4.85 4.40 3.91
Sensible capacity Cooling kW 1.62 2.28 2.78
Power factor Cooling %84 92 99
Heating 87 92 98
Moisture removal l/h(pints/h) 1.3(2.3) 1.8(3.2) 2.1(3.7)
Maximum operating
current *
Cooling Max. A6.5 9.0 9.5
Heating 10.0 11.5 14.5
FAN
Airow
rate
Cooling
High
m3/h
800 850 900
Med 640 670 740
Low 550 550 570
Quiet 330 330 390
Heating
High 800 850 950
Med 670 710 740
Low 550 550 600
Quiet 330 330 430
Type× Q’ty Cross ow fanx1
Motor output W 29
Sound pressure level
Cooling
High
dB(A)
42 43 45
Med 36 37 40
Low 32 32 33
Quiet 21 21 25
Heating
High 42 43 45
Med 37 38 40
Low 32 32 34
Quiet 21 21 27
Heat exchanger type
Dimensions
(H×W×D) mm
320x690x20
Sub 84x690x13.3
Fin pitch 1.1
Sub 1.4
Rows Stages 2x20
Sub 1x4
Pipe type Copper
Fin type Aluminium
Enclosure
Material Polystyrene
Colour White
Approximate colour of MUNSELL N9.3/
Dimensions
(H x W x D)
Net mm 282x870x185
Gross 247x920x373
Weight Net kg 9.5
Gross 12
Connection pipe Size Liquid mm Ø6.35(Ø1/4in)
Gas Ø9.52(Ø3/8in) Ø12.70(Ø1/2in)
Method Flare
Operation range Cooling °C 18 to 32
%RH 80 or less
Heating °C 16 to 30
Remote controller type Wireless
Drain pipe Material PP+LLDPE
Size mm Ø13.8(I.D.), Ø15.8 to 16.7(O.D.)

- (01 - 07) -
WALL MOUNTED TYPE ASG09-14LT WALL MOUNTED TYPE ASG09-14LT
Model name ASG09LTCB ASG12LTCB ASG14LTCB
Energy efciency class Cooling A+++ A+++ A++
Heating(Average) A++ A++ A+
Pdesign Cooling kW 2.5 (35°C) 3.5 (35°C) 4.2 (35°C)
Heating(Average) 2.5 (-10°C) 3.8 (-10°C) 5.0 (-10°C)
SEER Cooling kWh/kWh 8.50 8.50 7.40
SCOP Heating(Average) 4.60 4.60 4.00
Annual energy consumption QCE kWh/a 103 144 199
QHE(Average) 760 1156 1750
Sound power level Cooling High dB(A) 59 60 60
Heating 61 62 64

- (01 - 08) -
WALL MOUNTED TYPE ASG09-14LT WALL MOUNTED TYPE ASG09-14LT
DIMENSIONS4.
MODEL
 : ASG09LTCB, ASG12LTCB, ASG14LTCB
(Unit : mm)
282
581078
187: Installed state
ASG0 9 LTCB ASG12LTCB ASG14LTCB
Refrigerant pipe are
connection
Liquid Ø 6.35 mm (Ø 1/4 in.)
Gas Ø 9.52 mm (Ø 3/8 in.) Ø 12.7 mm (Ø 1/2 in.)
Drain hose connection Drain hose Ø 13.8 (I.D.), Ø 15.8 to Ø 16.7 (O.D.)
Drain hose : L=600mm

- (01 - 09) -
WALL MOUNTED TYPE ASG09-14LT WALL MOUNTED TYPE ASG09-14LT

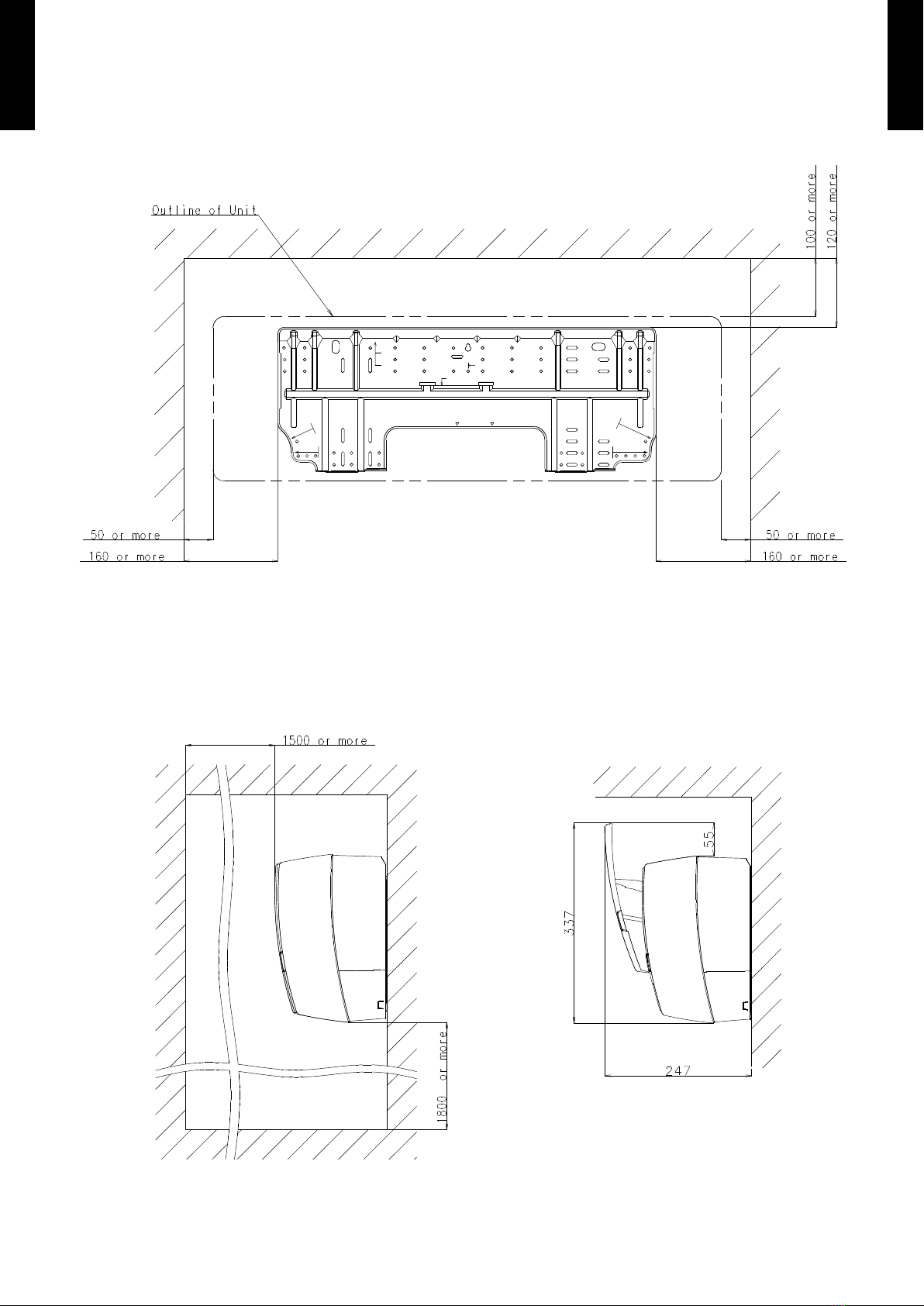

INSTALLATION PLACE

(Unit : mm)

- (01 - 10) -
WALL MOUNTED TYPE ASG09-14LT WALL MOUNTED TYPE ASG09-14LT
WIRING DIAGRAMS5.
MODEL
 : ASG09LTCB, ASG12LTCB, ASG14LTCB

- (01 - 11) -
WALL MOUNTED TYPE ASG09-14LT WALL MOUNTED TYPE ASG09-14LT
CAPACITY TABLE6.
COOLING CAPACITY6-1.
MODEL
 : ASG09LTCB
MODEL
 : ASG12LTCB
MODEL
 : ASG14LTCB
AFR : Air Flow Rate (m3/min)
TC : Total Capacity (kW)
SHC : Sensible Heat Capacity (kW)
IP : Input Power (kW)
AFR 13.3
Indoor temperature
°CDB 18 21 23 25 27 29 32
°CWB 12 15 16 18 19 21 23
Outdoor temperature
°CDB TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP
20 2.34 1.62 0.35 2.61 1.63 0.36 2.70 1.77 0.36 2.87 1.78 0.37 2.96 1.92 0.37 3.14 1.91 0.37 3.32 2.04 0.37
25 2.22 1.54 0.40 2.48 1.55 0.40 2.56 1.68 0.41 2.73 1.69 0.41 2.81 1.82 0.41 2.98 1.82 0.42 3.15 1.93 0.42
30 2.10 1.45 0.44 2.34 1.46 0.45 2.42 1.59 0.45 2.58 1.60 0.46 2.66 1.72 0.46 2.82 1.72 0.46 2.98 1.83 0.47
35 1.98 1.37 0.49 2.20 1.38 0.49 2.28 1.50 0.50 2.43 1.50 0.50 2.50 1.62 0.51 2.65 1.61 0.51 2.80 1.72 0.52
40 1.76 1.22 0.49 1.96 1.23 0.49 2.03 1.33 0.50 2.16 1.34 0.50 2.23 1.44 0.50 2.36 1.44 0.51 2.50 1.53 0.51
43 1.63 1.13 0.49 1.82 1.14 0.49 1.88 1.24 0.50 2.00 1.24 0.50 2.07 1.34 0.50 2.19 1.33 0.51 2.31 1.42 0.51
AFR 14.2
Indoor temperature
°CDB 18 21 23 25 27 29 32
°CWB 12 15 16 18 19 21 23
Outdoor temperature
°CDB TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP
20 3.28 2.28 0.58 3.65 2.30 0.59 3.77 2.50 0.59 4.02 2.50 0.60 4.15 2.70 0.60 4.40 2.69 0.61 4.64 2.87 0.62
25 3.12 2.17 0.66 3.47 2.18 0.67 3.59 2.37 0.67 3.83 2.38 0.68 3.95 2.57 0.68 4.18 2.56 0.69 4.42 2.72 0.70
30 2.95 2.05 0.74 3.28 2.06 0.75 3.40 2.24 0.75 3.62 2.25 0.76 3.73 2.43 0.77 3.96 2.42 0.77 4.18 2.57 0.78
35 2.77 1.93 0.82 3.08 1.94 0.83 3.19 2.11 0.84 3.40 2.11 0.85 3.50 2.28 0.85 3.71 2.27 0.86 3.92 2.42 0.87
40 2.34 1.72 0.76 2.60 1.73 0.77 2.69 1.88 0.78 2.87 1.88 0.79 2.96 2.03 0.79 3.14 2.02 0.80 3.31 2.16 0.81
43 2.15 1.59 0.76 2.40 1.60 0.78 2.48 1.74 0.78 2.64 1.75 0.79 2.72 1.89 0.79 2.89 1.88 0.80 3.05 2.00 0.81
AFR 15.0
Indoor temperature
°CDB 18 21 23 25 27 29 32
°CWB 12 15 16 18 19 21 23
Outdoor temperature
°CDB TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP
20 3.91 2.76 0.81 4.35 2.78 0.82 4.50 3.02 0.82 4.80 3.03 0.83 4.95 3.27 0.84 5.24 3.26 0.85 5.54 3.47 0.85
25 3.72 2.63 0.91 4.15 2.65 0.93 4.29 2.88 0.93 4.57 2.89 0.94 4.71 3.12 0.94 5.00 3.11 0.95 5.28 3.31 0.96
30 3.53 2.50 1.01 3.93 2.51 1.03 4.07 2.73 1.03 4.34 2.74 1.04 4.47 2.96 1.05 4.74 2.95 1.06 5.01 3.14 1.07
35 3.32 2.35 1.12 3.70 2.36 1.14 3.82 2.56 1.14 4.07 2.57 1.15 4.20 2.78 1.16 4.45 2.77 1.17 4.70 2.95 1.18
40 2.92 2.06 1.10 3.25 2.07 1.12 3.36 2.25 1.13 3.58 2.26 1.14 3.69 2.44 1.14 3.91 2.43 1.15 4.13 2.59 1.17
43 2.66 1.88 1.09 2.96 1.89 1.10 3.06 2.05 1.11 3.26 2.06 1.12 3.36 2.22 1.13 3.56 2.22 1.14 3.77 2.36 1.15

- (01 - 12) -
WALL MOUNTED TYPE ASG09-14LT WALL MOUNTED TYPE ASG09-14LT
HEATING CAPACITY6-2.
MODEL
 :
ASG09LTCB
MODEL
 : ASG12LTCB
MODEL
 : ASG14LTCB
AFR : Air Flow Rate (m3/min)
TC : Total Capacity (kW)
IP : Input Power (kW)
AFR 13.3
Indoor temperature
(°CDB) 16 18 20 22 24
Outdoor temperature
(°CDB) (°CWB) TC IP TC IP TC IP TC IP TC IP
-25 -26 3.07 1.31 2.99 1.34 2.92 1.36 2.85 1.39 2.77 1.42
-20 -21 3.35 1.38 3.27 1.41 3.19 1.44 3.11 1.47 3.03 1.50
-15 -16 3.74 1.46 3.65 1.49 3.56 1.52 3.47 1.55 3.38 1.58
-10 -11 4.03 1.54 3.93 1.57 3.84 1.61 3.74 1.64 3.64 1.67
-5 -7 4.25 1.59 4.15 1.62 4.04 1.66 3.94 1.69 3.84 1.72
0-2 4.36 1.58 4.26 1.62 4.16 1.65 4.05 1.68 3.95 1.72
5 3 5.17 1.50 5.04 1.53 4.92 1.56 4.80 1.59 4.67 1.62
7 6 5.67 1.54 5.54 1.57 5.40 1.61 5.27 1.64 5.13 1.67
10 8 6.27 1.51 6.12 1.54 5.97 1.57 5.82 1.60 5.67 1.63
15 10 6.49 1.41 6.34 1.44 6.18 1.47 6.03 1.50 5.88 1.53
AFR 14.2
Indoor temperature
(°CDB) 16 18 20 22 24
Outdoor temperature
(°CDB) (°CWB) TC IP TC IP TC IP TC IP TC IP
-25 -26 3.68 2.14 3.59 2.19 3.50 2.23 3.41 2.28 3.33 2.32
-20 -21 4.10 2.16 4.00 2.21 3.90 2.25 3.80 2.30 3.71 2.34
-15 -16 4.62 2.16 4.51 2.21 4.40 2.25 4.29 2.30 4.18 2.34
-10 -11 4.69 2.09 4.57 2.13 4.46 2.17 4.35 2.22 4.24 2.26
-5 -7 4.77 2.01 4.66 2.05 4.54 2.10 4.43 2.14 4.32 2.18
0-2 4.89 1.95 4.77 1.99 4.66 2.03 4.54 2.07 4.42 2.11
5 3 6.07 1.86 5.92 1.90 5.78 1.94 5.64 1.98 5.49 2.02
7 6 6.83 1.92 6.66 1.96 6.50 2.00 6.34 2.04 6.18 2.08
10 8 7.54 1.94 7.36 1.98 7.18 2.02 7.00 2.06 6.82 2.10
15 10 7.82 1.95 7.63 1.99 7.44 2.03 7.26 2.07 7.07 2.11
AFR 15.8
Indoor temperature
(°CDB) 16 18 20 22 24
Outdoor temperature
(°CDB) (°CWB) TC IP TC IP TC IP TC IP TC IP
-25 -26 4.73 2.24 4.61 2.28 4.50 2.33 4.39 2.38 4.28 2.42
-20 -21 5.15 2.26 5.02 2.30 4.90 2.35 4.78 2.40 4.66 2.44
-15 -16 5.67 2.28 5.54 2.33 5.40 2.38 5.27 2.43 5.13 2.48
-10 -11 6.06 2.33 5.92 2.38 5.78 2.42 5.63 2.47 5.49 2.52
-5 -7 6.32 2.43 6.17 2.48 6.02 2.53 5.87 2.58 5.72 2.63
0-2 6.38 2.62 6.23 2.68 6.08 2.73 5.93 2.78 5.77 2.84
5 3 6.97 2.32 6.81 2.37 6.64 2.42 6.47 2.47 6.31 2.52
7 6 7.35 2.17 7.18 2.21 7.00 2.26 6.83 2.31 6.65 2.35
10 8 8.12 1.94 7.93 1.98 7.74 2.02 7.54 2.06 7.35 2.10
15 10 8.42 1.95 8.22 1.99 8.02 2.03 7.82 2.07 7.62 2.11

- (01 - 13) -
WALL MOUNTED TYPE ASG09-14LT WALL MOUNTED TYPE ASG09-14LT
FAN PERFORMANCE7.
AIR VELOCITY DISTRIBUTION7-1.
MODEL
 : ASG09LTCB
Note:
Fan speed : High
Operation mode : FAN
1.5 1.0 0.5
2
1
0
-1
-2
Unit : m/s(m)
(m)
TOP VIEW
Vertical ap : Up
Horizontal ap : Center
012345678
1.5
1.5
1.0
1.0
0.5
0.5
3
2
1
0
-1
-2
-3
Unit : m/s(m)
TOP VIEW
Vertical ap : Up
Horizontal ap : Right & Left
(m)
012345678
1.5
1.0
0.5
3
2
1
0
Unit : m/s(m)
SIDE VIEW
Vertical ap : Up
Horizontal ap : Center
(m)
012345678
1.5
1.0
0.5
3
2
1
0
Unit : m/s(m)
SIDE VIEW
Vertical ap : Down
Horizontal ap : Center
(m)
012345678

- (01 - 14) -
WALL MOUNTED TYPE ASG09-14LT WALL MOUNTED TYPE ASG09-14LT
MODEL
 : ASG12LTCB
Note:
Fan speed : High
Operation mode : FAN
1.5
1.0
0.5
2
1
0
-1
-2
Unit : m/s(m)
(m)
TOP VIEW
Vertical ap : Up
Horizontal ap : Center
012345678
0.5
0.5
1.0
1.0
1.5
1.5
3
2
1
0
-1
-2
-3
Unit : m/s(m)
TOP VIEW
Vertical ap : Up
Horizontal ap : Right & Left
(m)
012345678
1.5
1.0
0.5
3
2
1
0
Unit : m/s(m)
SIDE VIEW
Vertical ap : Up
Horizontal ap : Center
(m)
012345678
1.5
1.0
0.5
3
2
1
0
Unit : m/s(m)
SIDE VIEW
Vertical ap : Down
Horizontal ap : Center
(m)
012345678

- (01 - 15) -
WALL MOUNTED TYPE ASG09-14LT WALL MOUNTED TYPE ASG09-14LT
MODEL
 : ASG14LTCB
Note:
Fan speed : High
Operation mode : FAN
1.5
1.0 0.5
2
1
0
-1
-2
Unit : m/s(m)
(m)
TOP VIEW
Vertical ap : Up
Horizontal ap : Center
012345678
0.5
0.5
1.0
1.0
1.5
1.5
3
2
1
0
-1
-2
-3
Unit : m/s(m)
TOP VIEW
Vertical ap : Up
Horizontal ap : Right & Left
(m)
012345678
1.5
1.0
0.5
3
2
1
0
Unit : m/s(m)
SIDE VIEW
Vertical ap : Up
Horizontal ap : Center
(m)
012345678
1.5
1.0 0.5
3
2
1
0
Unit : m/s(m)
SIDE VIEW
Vertical ap : Down
Horizontal ap : Center
(m)
012345678

- (01 - 16) -
WALL MOUNTED TYPE ASG09-14LT WALL MOUNTED TYPE ASG09-14LT
AIRFLOW7-2.
MODEL
 : ASG09LTCB
Cooling
z
Heating
z
Fan speed
Number of
rotations
(r.p.m.)
Airow
HIGH 1300
800 m3/h
222 l/s
471 CFM
MED 1080
640 m3/h
178 l/s
376 CFM
LOW 960
550 m3/h
153 l/s
324 CFM
QUIET 650
330 m3/h
92 l/s
194 CFM
Fan speed
Number of
rotations
(r.p.m.)
Airow
HIGH 1300
800 m3/h
222 l/s
471 CFM
MED 1120
670 m3/h
186 l/s
394 CFM
LOW 960
550 m3/h
153 l/s
324 CFM
QUIET 650
330 m3/h
92 l/s
194 CFM

- (01 - 17) -
WALL MOUNTED TYPE ASG09-14LT WALL MOUNTED TYPE ASG09-14LT
MODEL
 : ASG12LTCB
Cooling
z
Heating
z
Fan speed
Number of
rotations
(r.p.m.)
Airow
HIGH 1370
850 m3/h
236 l/s
500 CFM
MED 1120
670 m3/h
186 l/s
394 CFM
LOW 960
550 m3/h
153 l/s
324 CFM
QUIET 650
330 m3/h
92 l/s
194 CFM
Fan speed
Number of
rotations
(r.p.m.)
Airow
HIGH 1370
850 m3/h
236 l/s
500 CFM
MED 118 0
710 m3/h
197 l/s
418 CFM
LOW 960
550 m3/h
153 l/s
324 CFM
QUIET 650
330 m3/h
92 l/s
194 CFM
