Fujitsu AS*A09LKC Operating instructions

SPLIT TYPE
ROOM AIR CONDITIONER
WALL MOUNTEDtype
Models Indoor unit Outdoor unit
AS*A09LKC
AS*A12LKC
AO*R09LKC
AO*R12LKC
INVERTER
SERVICE
INSTRUCTION
R410A

CONTENTS
1. DESCRIPTION OF EACH CONTROL OPERATION
1. COOLING OPERATION................................................................................................
3. DRY OPERATION.........................................................................................................
2. HEATING OPERATION.................................................................................................
5. INDOOR FAN CONTROL..............................................................................................
4. AUTO CHANGEOVER OPERATION............................................................................
7. LOUVER CONTROL.....................................................................................................
6. OUTDOOR FAN CONTROL..........................................................................................
9. TIMER OPERATION CONTROL...................................................................................
8. COMPRESSOR CONTROL..........................................................................................
11. TEST OPERATION CONTROL...................................................................................
10. ELECTRONIC EXPANSION VALVE CONTROL........................................................
13. FOUR-WAY VALVE EXTENSION SELECT................................................................
12. PREVENT TO RESTART FOR 3 MINUTES (3 MINUTES ST)...................................
15. MANUAL AUTO OPERATION (Indoor unit body operation).......................................
14. AUTO RESTART.........................................................................................................
16. FORCED COOLING OPERATION..............................................................................
18. COIL DRY OPEARTION CONTROL...........................................................................
17. COMPRESSOR PREHEATING..................................................................................
19. DEFROST OPERATION CONTROL...........................................................................
21. VARIOUS PROTECTIONS..........................................................................................
20. OFF DEFROST OPERATION CONTROL...................................................................
01-01
01-02
01-03
01-04
01-05
01-07
01-08
01-09
01-10
01-12
01-12
01-12
01-12
01-13
01-13
01-13
01-13
01-14
01-16
01-17
01-12
2. TROUBLE SHOOTING
2-1 ERROR DISPLAY.......................................................................................................
2-1-1 INDOOR UNIT AND WIRED RMOTE CONTROLLER DISPLAY (OPTION)......
3. APPENDING DATA
2-1-2 WIRED REMOTE CONTROLLER DISPLAY (OPTION).....................................
2-2 TROUBLE SHOOTING WITH ERROR CODE............................................................
2-3 TROUBLE SHOOTING WITH NO ERROR CODE......................................................
1. Jumper setting of Indoor unit and Outdoor unit.............................................................
3. Thermistor Resistance Values.......................................................................................
2. Outdoor unit Pressure Value and Total Electric Current Curve.....................................
03-01
03-02
03-04
02-01
02-01
02-02
02-03
02-24
2-4 SERVICE PARTS INFORMATION.............................................................................. 02-29

1 . DESCRIPTION OF EACH
CONTROL OPERATION
R410A
WALL MOUNTED type
INVERTER

( Fig. 1 : Limit of Maximum Frequency based on Outdoor Temperature )
1. COOLING OPERATION
1-1 COOLING CAPACITY CONTROL
A sensor (room temperature thermistor) built in the indoor unit body will usually perceive
difference or variation between a set temperature and present room temperature, and
controls the operation frequency of the compressor.
* If the room temperature is 2°C higher than a set temperature, the compressor operation
frequency will attain to maximum performance.
minimum
frequency
maximum
frequency
maximum
frequency
AS*A09LKC 22Hz 76Hz 79Hz
AS*A12LKC 18Hz 80Hz 96Hz
Outside air Outside air
temperature temperature
36°C
A zone
34°C 32°C
B zone
30°C 21°C
C zone
19°C
D zone
Hi Me Lo Quiet
A zone 79Hz 61Hz 52Hz 37Hz
B zone 79Hz 61Hz 52Hz 37Hz
C zone 79Hz 61Hz 52Hz 38Hz
09LKC
D zone 52Hz 43Hz 37Hz 28Hz
A zone 96Hz 61Hz 51Hz 33Hz
B zone 96Hz 61Hz 51Hz 33Hz
C zone 96Hz 61Hz 51Hz 33Hz
12LKC
D zone 57Hz 42Hz 36Hz 27Hz
( Table 1 : Compressor Frequency Range )
When the compressor operates for 30 minutes continuously at over the maximum frequency ,
the maximum frequency is changed from Maximum Frequency to Maximum Frequency .
01-01
* When the room temperature is between +2°C to -2.5°C of the setting temperature,
the compressor frequency is controlled within the range shown in Table1.
However, the maximum frequency is limited in the range shown in Figure 1 based on the
fan speed mode and the outdoor temperature.
* If the room temperature is 2.5°C lower than a set temperature, the compressor will be
stopped.

2. HEATING OPERATION
2-1 HEATING CAPACITY CONTROL
A sensor (room temperature thermistor) built in the indoor unit body will usually perceive
difference or variation between a set temperature and present room temperature, and
controls the operation frequency of the compressor.
* If the room temperature is lower by 3°C than a set temperature, the compressor operation
frequency will attain to maximum performance.
* If the room temperature is higher 2.5°C than a set temperatire, the compressor will be
stopped.
* When the room temperature is between +2.5°C to -3°C of the setting temperature,
the compressor frequency is controlled within the range shown in Table2.
However, the maximum frequency is limited in the range shown in Figure 2 based on the
fan speed mode and the outdoor temperature.
( Table 2 : Compressor Frequency Range )
( Fig.2 : Limit of Maximum Frequency based on Outdoor Temperature )
* The room temperature is controlled 2°C higher than the setting temperature for 60 minutes
after starting the operation.
After 60 minutes, it is controlled based on the normal setting temperature.
01-02
minimum
frequency
maximum
frequency
AS*A09LKC 22Hz 99Hz
AS*A12LKC 18Hz 130Hz
Hi Me+ Lo Quiet
AA zone
99Hz 99Hz 79Hz 67Hz
A zone
99Hz 99Hz 79Hz 67Hz
B zone
99Hz 99Hz 79Hz 56Hz
09LKC
C zone
AA zone
A zone
B zone
C zone 99Hz 99Hz 79Hz 46Hz
130Hz 130Hz 80Hz 68Hz
130Hz 130Hz 80Hz 68Hz
130Hz 130Hz 80Hz 54Hz
130Hz 130Hz
Me
96Hz
96Hz
96Hz
96Hz
96Hz
96Hz
96Hz
96Hz 80Hz 45Hz
12LKC
Outside air Outside air
temperature temperature
19°C
C zone
B zone
A zone
AA zone
17°C
14°C
12°C 7°C
5°C

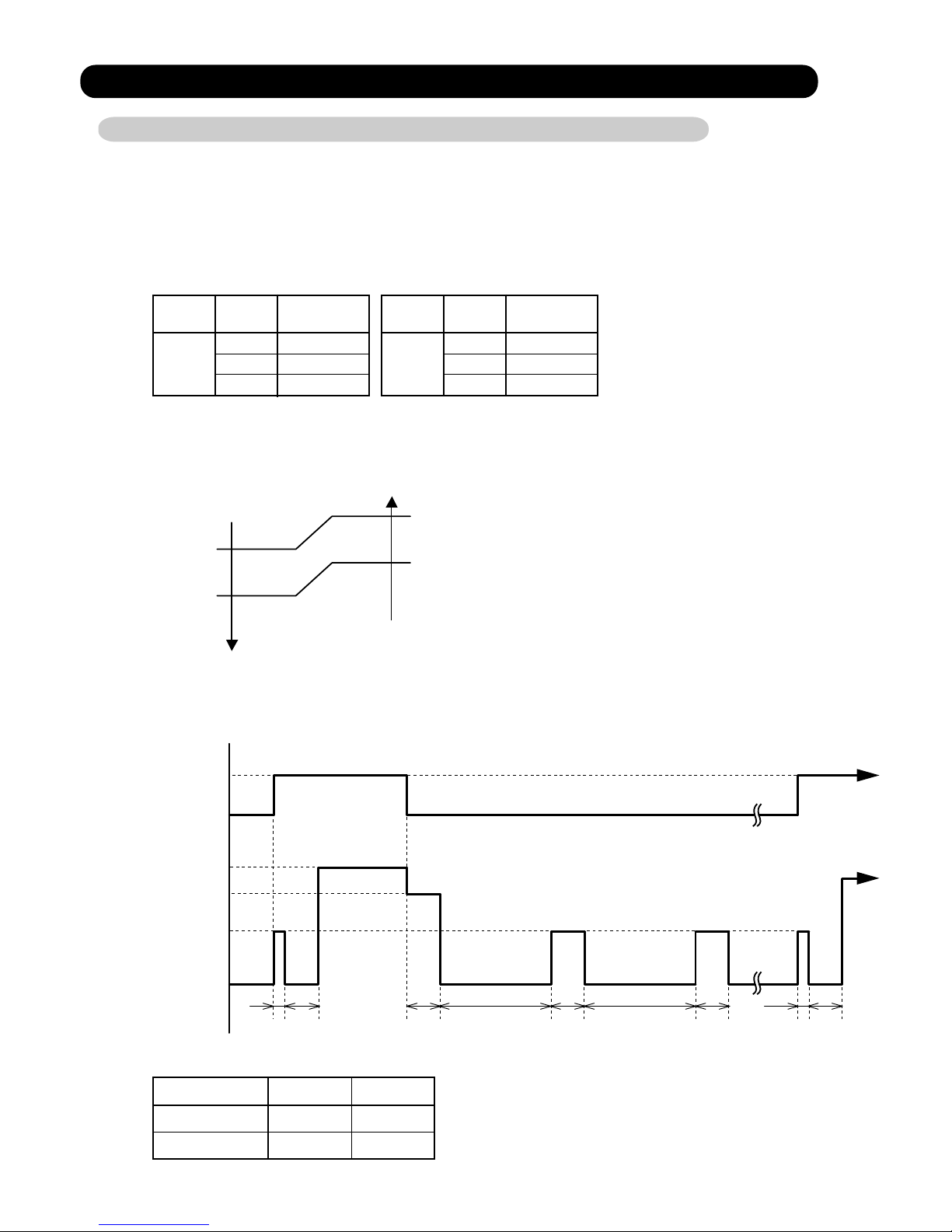

3. DRY OPERATION
3-1 INDOOR UNIT CONTROL
The compressor rotation frequency shall change according to the temperature, set temperature,
and room temperature variation which the room temperature sensor of the indoor unit body has
detected as shown in the Table 3.
However, after the compressor is driven, the indoor unit shall run at operation frequency of
70Hz (for AS*A09LKC) or 56Hz (for AS*A12LKC) , for a minute.
Ts+0.5°C
Ts -1.5°C
Ts -0.5°C
Ts+1.5°C
( Table 3 : Compressor frequency )
( Table 4 : Indoor fan speed )
( Fig.3 : Compressor Control based on Room Temperature )
( Fig.4 : Indoor Fan Control )
01-03
Operating
frequency
37Hz
28Hz
0Hz
09LKC X zone
J zone
Y zone
Operating
frequency
J zone
Y zone
X zone 33Hz
25Hz
0Hz
12LKC
Room Room
temperature temperature
X zone
J zone
Y zone
Compressor
ON
OFF
Indoor fan
Setting air flow
Indoor fan
(as shown in Table 4)
S-Lo
OFF
10 30 60 180 60 180 60 10 30
(SEC)
X zone J, Y zone
AS*A09LKC 620rpm 600rpm
AS*A12LKC 620rpm 600rpm

4. AUTO CHANGEOVER OPERATION
When the air conditioner is set to the AUTO mode by remote control, operation starts in the optimum
mode from among the HEATING, COOLING, DRY and MONITORING modes. During operation, the
optimum mode is automatically switched in accordance with temperature changes. The temperature
can be set between 18°C and 30°C in 1°C steps.
When operation starts, only the indoor and outdoor fans are operated for 1 minute. After 1 minute,
the room temperature and outside air temperature are sensed and the operation mode is
selected in accordance with the table below.
C zone
32°C
B zone
-10°C
A zone
( Table.5 Operation mode selection table)
Outside air temperature (TO)
Room temperature (TB)
A zone B zone C zone
TB > TS+2°C Monitoring Cooling
(automatic dry)
Cooling
(automatic dry)
TS+2°C TB TS - 2°C Monitoring Monitoring Monitoring
TB TS- 2°C Heating Heating Monitoring
When COOLING was selected at , the air conditioner operates as follow:
The same operation as COOLING OPERATION of item 1 above is performed.
When the room temperature has remained at (set temperature -1°C) for 8 minutes, operation is
automatically switched to DRY and the same operation as DRY OPERATION of item 3 above
is performed.
If the room temperature reaches (set temperature +2°C during DRY operation, operation returns to
COOLING operation.
When HEATING was selected at , the same operation as HEATING OPERATION of item 2
above is performed.
When the compressor was stopped for 6 consecutive minutes by the temperature control function
after the COOLING or HEATING operation mode was selected at above, operation is switched
to MONITORING and the operation mode is selected again.
1
<
1
2
31
4
1
( Fig.5 : Outside air temperature zone selection )
01-04

5. INDOOR FAN CONTROL
The airflow can be switched in 5 steps such as AUTO, QUIET, LOW, MED, HIGH,
while the indoor fan only runs.
When Fan mode is set at (Auto), it operates on (MED) Fan Speed.
01-05
1. Fan speed
2. FAN OPERATION
( Table 6 : Indoor Fan Speed )
AS*A09 / 12LKC
Operation mode Air flow mode Speed (rpm)
1440
1370
1200
980
Cooling
Hi
Hi
670
600
480
1400
Me+
Me
Me
Heating
Lo
Lo
1200
920
Quiet
Quiet
620
Dry
S-Lo
X zone: 620
J zone: 600
Cool air prevention
3. COOLING OPERATION
Switch the airflow [AUTO], and the indoor fan motor will run according to a room temperature,
as shown in Figure 6.
On the other hand, if switched in [HIGH] [QUIET], the indoor motor will run at a constant airflow of [COOL]
operation modes QUIET, LOW, MED, HIGH,as shown in Table 6.
( Fig.6 : Airflow change - over ( Cooling : AUTO ) )
When the room
temperature rises
When the room
temperature drops
TR : Room temperature
Ts : Setting temperature
TR-Ts > 2 degC
=
1 degC > TR-Ts
2 degC > TR-Ts > 1 degC
=
TR-Ts > 2.5 degC
=
1.5 degC > TR-Ts
2.5 degC > TR-Ts > 1.5 degC
=
HIGH mode
MED mode
LOW mode

Indoor heat exchanger Indoor heat exchanger
temperature temperature
47°C Hi
40°C Me+
37°C
Lo
Cool air prevention
30°C
S-Lo

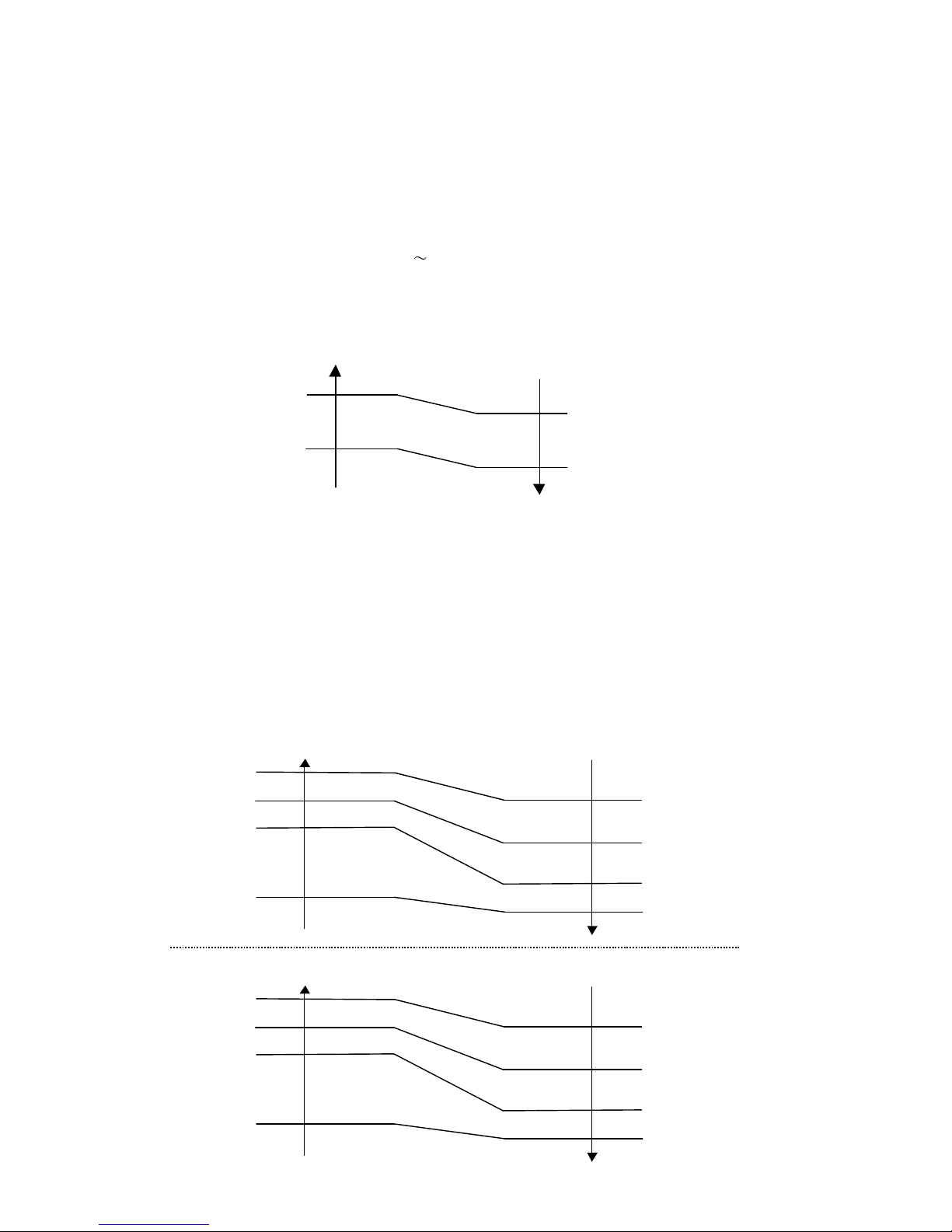

The maximum value of the indoor fan speed is set as shown in Figure 8, based on the detected
temperature by the indoor heat exchanger sensor on heating mode.
(Fig.8 : Cool Air Prevention Control)
01-06
40°C
28°C
32°C
34°C
5. HEATING OPERATION
Switch the airflow [AUTO], and the indoor fan motor will run according to a room temperature,
as shown in Figure 7.
On the other hand, if switched in [HIGH] [QUIET], the indoor motor will run at a constant airflow
of [HEAT] operation modes QUIET, LOW, MED, HIGH, as shown in Table 6.
6. COOL AIR PREVENTION CONTROL (Heating mode)
4. DRY OPERATION
Refer to the Table 6.
During the dry mode operation, the fan speed setting can not be changed.
( Fig.7 : Airflow change - over ( Heating : AUTO ) )
TR-Ts > - 1.5 degC
=
- 2.5 degC > TR-Ts
- 1.5 degC > TR-Ts > - 2.5 degC
=
TR-Ts > - 1 degC
=
- 2 degC > TR-Ts
- 1 degC > TR-Ts > - 2 degC
=
When the room
temperature rises When the room
temperature drops
TR : Room temperature
Ts : Setting temperature
LOW mode
MED mode
MED+ mode
42°C Hi
39°C Me+
37°C
Lo
Cool air prevention
30°C
S-Lo
35°C
28°C
31°C
33°C
AS*A09LKC
AS*A12LKC

6. OUTDOOR FAN CONTROL
Cooling Dry Heating
AS*A09LKC
AS*A12LKC
730/ 650/ 470
860/ 760/ 470
860/ 470/ 330
730/ 470/ 230
( Table 8 : Outdoor fan speed )
*The outdoor fan speed mentioned avobe depends on the compressor frequency.
(When the compressor frequency increases, the outdoor fan speed also changes to the higher
speed. When the compressor frequescy decreases, the outdoor fan speed also changes to the
lower speed.)
*It runs at 500(A-D ZONE)rpm for 20 seconds after starting up the outdoor fan.
*After the defrost control is operated on the heating mode, the fan speed keeps at the higher speed
as table 9 without relating to the compressor frequency.
01-07
A - C
D
A - C
D
ZONE
730/ 470
760/ 470
650/ 470
760/ 680/ 470
Refer to Fig1.
(rpm)
( Table 9 : Outdoor fan speed after the defrost )
1. Outdoor Fan Motor
2. Fan Speed
AC Motor DC Motor
AS*A09/ 12LKC
Following table shows the type of the outdoor fan motor. The control method is different
between AC motor and DC motor.
( Table 7 : Type of Motor )
Min
AS*A09/ 12LKC 900rpm

7. LOUVER CONTROL
1. VERTICAL LOUVER CONTROL
2. SWING OPERATION
Each time the button is pressed, the air direction range will change as follow:
Cooling / Dry mode
Heating mode
Fan mode
Use the air direction adjustments within the ranges shown above.
The vertical airflow direction is set automatically as shown, in accordance with the type of operation selected.
Cooling / Dry mode Horizontal flow
Heating mode Downward flow
When the temperature of the air being blown out is low at the start of heating operation or during
defrosting, the airflow direction temporarily becomes to prevent cold air being blown onto the body.
During use of the Cooling and Dry modes, do not set the Air Flow Direction Louver in the Heating
range ( ) for long period of time, since water vapor many condense near the outlet louvers and
drop of water may drip from the air conditioner. During the Cooling and Dry modes, if the Air Flow
Direction Louvers are left in the heating range for more than 30minutes, they will automatically
return to position .
During Monitor operation in AUTO CHANGEOVER mode, the airflow direction automatically
becomes , and it cannot be adjusted.
Cooling mode / Dry mode / Fan mode( )
Heating mode / Fan mode( )
(Function Range)
(Fig 9: Air Direction Range)
(Operation Range)
When the swing signal is received from the remote controller, the vertical louver starts to swing.
(Swinging Range)
When the indoor fan is either at S-lo or Stop mode, the swinging operation is interrrupted
and the louver stops at the memorized position.
01-08

8. COMPRESSOR CONTROL
1. OPEARTION FREQUENCY RANGE
The operation frequency of the compressor is different based on the operation mode as
shown in the table 10.
Cooling Heating
Min Max Min Max Min Max
Dry
AS*A09LKC
AS*A12LKC
22Hz 79Hz 22Hz 99Hz 28Hz 37Hz
18Hz 96Hz 18Hz 130Hz 25Hz 33Hz
AS*A09LKC
AS*A12LKC
70Hz 82Hz 92Hz 96Hz 96Hz 96Hz
56Hz 74Hz 87Hz 97Hz 108Hz 119Hz
80sec 60sec 60sec 180sec 60sec 60sec
80sec 60sec 60sec 180sec 60sec 60sec
(Table 10 : Compressor Operation Frequency Range)
2. OPEARTION FREQUENCY CONTROL AT START UP
The compressor frequency soon after the start-up is controlled as shown in the figure 10.
(Fig.10 : Compressor Control at Start-up)
Time Time Time Time Time Time
(Frequency)
(Time)
Frequency Frequency Frequency Frequency Frequency Frequency
Time Time Time Time Time Time
Frequency
Frequency
Frequency
Frequency
Frequency
Frequency
01-09
AS*A09LKC
AS*A12LKC

9. TIMER OPEARTION CONTROL
1. OPEARTION FREQUENCY RANGE
The table 11 shows the available timer setting based on the product model.
ON TIMER / OFF TIMER SLEEP TIMER
AS*A09 / 12LKC
OFF timer : When the clock reaches the set time, the air conditioner will be turned off.
Operation mode
Stop mode
Set time of timer
ON timer : When the clock reaches the set time, the air conditioner will be turned on.
Operation mode
Stop mode
Set time of timer
(Table 11 : Timer Setting)
01-10

2. SLEEP TIMER
If the sleep is set, the room temperature is monitored and the operation is stopped automatically.
If the operation mode or the set temperature is change after the sleep timer is set, the operation is
continued according to the changed setting of the sleep timer from that time ON.
Set temperature rises
( Ts : Set temperature )
Stop of operation
Set temperature lowers
( Ts : Set temperature )
Ts
Stop of operation
In the cooling operation mode
When the sleep timer is set, the setting temperature is increased 1°C.
It increases the setting temperature another 1°C after 1 hour.
After that, the setting temperature is not changed and the operation is stopped at the time
of timer setting.
Ts
+1°C
+2°C
Set 60min
In the heating operation mode
When the sleep timer is set, the setting temperature is decreased 1°C.
It decreases the setting temperature another 1°C every 30 minutes.
Upon lowering 4°C, the setting temperature is not changed and the operation stops at
the time of timer setting.
- 4°C
- 3°C
- 2°C
- 1°C
Set 30min 30min 30min
01-11

10. ELECTRONIC EXPANSION VALVE CONTROL
The most proper opening of the electronic expansion valve is calculated and controlled under the
present operating condition based on the following values.
The compressor frequency, the temperatures detected by the discharge temperature sensor, the
indoor heat exchanger sensor, the outdoor heat exchanger sensor,
and the outdoor temperature sensor.
The pulse range of the electronic expansion valve control is between 60 to 480 pulses.
The expansion valve is set at 480 pulses after 110 seconds of stopping compressor.
At the time of supplying the power to the outdoor unit, the initialization of the electronic
expansion valve is operated (528 pulses are input to the closing direction).
11. TEST OPERATION CONTROL
Under the condition where the air conditioner runs, press the test run button of the remote
control, and the test operation control mode will appear. During test running, the operation lamp
and timer lamp of the air conditioner body twinkle simultaneously. Set the test operation mode,
and the compressor will continue to run regardless of whether the room temperature sensor detects.
The test operation mode is released if 60 minutes have passed after setting up the test operation.
The compressor won't enter operation status for 2 minutes and 20 seconds after the compressor is
stopped, even if any operation is given.
At the time when the air conditioner is switched from the cooling mode to heating mode, the
compressor is stopped, and the four-way valve is switched in 2 minutes and 20 seconds later after
the compressor stopped.
When the power was interrupted by a power failure, etc. during operation, the operation contents
at that time are memorized and when power is recovered, operation is automatically started with
the memorized operation contents.
When the power is interrupted and recovered during timer operation, since the timer operation time
is shifted by the time the power was interrupted, an alarm is given by blinking (7 sec ON/2 sec OFF)
the indoor unit body timer lamp.
[Operation contents memorized when the power is interrupted]
Operation mode
Set temperature
Set air flow
Timer mode and timer time
Set air flow Direction
Swing
12. PREVENT TO RESTART FOR 3 MINUTES ( 3 MINUTES ST )
13. FOUR-WAY VALVE EXTENSION SELECT
14. AUTO RESTART
01-12
Econmy

15. MANUAL AUTO OPERATION (Indoor unit body operation)
If MANUAL AUTO Button is set, the operation is controlled as shown in Table 12.
If the remote control is lost or battery power dissipated, this function will work without the remote control.
OPERATION MODE Auto changeover
FAN CONT. MODE Auto
TIMER MODE Continuous
SETTING TEMP. 24°C
SETTING LOUVER Standard
SWING OFF
When the outdoor heat exchanger temperature is lower than 5°C and the heating operation has
been stopped for 30 minutes, power is applied to the compressor and the compressor is heated.
(By heating the compressor, warm air is quickly discharged when operation is started.)
When operation was started, and when the outdoor temperature rises to 7°C or greater,
preheating is ended.
AS*A09LKC
AS*A12LKC
780rpm 43Hz
780rpm 39Hz
(Table 12)
(No timer setting available)
17. COMPRESSOR PREHEATING
18. COIL DRY OPERATION CONTROL
The coil-dry operation functions by pressing COIL DRY button on the remote controller.
The coil-dry operation is consisted of Fan operation 50 minutes, Heating operation 3 minutes,
and Fan operates for 30 minutes at last before ending the air conditioner operation.
(Table 13 : COIL-DRY Operating Functions)
Indoor Fan Speed Compressor
Frequency
Louver
Position
01-13
Forced cooling operation
Cooling
16. FORCED COOLING OPERATION
Forced cooling operation is started when pressing MANUAL AUTO button for 10 seconds or more.
During the forced cooling operation, it operates regardless of room temperature sensor.
Operation LED and timer LED blink during the forced cooling operation. They blink for 1 second ON
and 1 second OFF on both operation LED and timer LED (same as test operation).
Forced cooling operation is released after 60 minutes of starting operation.
The FORCED COOLING OPERATION will start as shown in Table12.
Hi
Horizontal
OFF
Room Temp is not controlled
Manual auto operation
-

19. DEFROST OPERATION CONTROL
1. CONDITION OF STARTING THE DEFROST OPERATION
The defrost operation starts when the outdoor heat exchanger temperature sensor detects
the temperature lower than the values shown in Table 14.
(Table 14 : Condition of starting Defrost Operation)
AS*A09 / 12LKC
Less than 25 minutes 25 minutes to
4 hours
Does not operate
Compressor operating time
After 4 hours
- 6°C - 3°C
2. CONDITION OF THE DEFROST OPERATION COMPLETION
Defrost operation is released when the conditions become as shown in Table 15.
(Table 15 : Defrost Release Condition)
Release Condition
Outdoor heat exchanger temperature sensor value is higher than
16°C or Compressor operation time has passed 15 minutes.
01-14
AS*A09 / 12LKC

Defrost Flow Chart
The defrosting shall proceed by the integrating operation time
and outdoor heat exchanger temperature as follows.
(Not defrosted for 10 minutes)
Compressor OFF
Outdoor fan motor OFF
30 sec later 4 - way valve OFF
36 sec later compressor ON
Heating operation start : Compressor ON
Outdoor heat exchanger temperature:
Over 16°C or
Compressor ON time: Over 15 minutes
01-15
Compressor integrating
operation:
Over 25 minutes to
below 240 minutes
Compressor integrating
operation:
Over 240 minutes
Outdoor heat exchanger
temperature:
Below - 6°C
Outdoor heat exchanger
temperature:
Below - 3°C
Defrost start
Defrost Indicator:
[Operation lamp]
7 sec ON / 2 sec OFF
Defrost end

20. OFF DEFROST OPEARTION CONTROL
1. OFF DEFROST OPERATION CONDITION
When operation stops in the [Heating operation] mode, if frost is adhered to the outdoor unit heat
exchanger, the defrost operation will proceed automatically. In this time, if indoor unit operation
lamp flashes slowly (7 sec ON / 2 sec OFF), the outdoor unit will allow the heat exchanger to defrost,
and then stop.
In heating operation, the outdoor heat exchanger temperature is less than -4°C, and
compressor operation integrating time lasts for more than 30 minutes.
AS*A09/ 12LKC
OFF Defrost Flow Chart
Heating operation stop
Outdoor heat exchanger temperature:
Below -4°C
and
Compressor integrating operation:
Over 30 minutes
Defrost start
Defrost Indicater:
[Operation lamp]
7 sec ON / 2 sec OFF
Outdoor heat exchanger temperature:
Over 16°C or
Compressor ON time: Over 15 minutes
Defrost end
2. OFF DEFROST END CONDITION
Release Condition
Outdoor heat exchanger temperature sensor value is higher than 16°C or
Compressor operation time has passed 15 minutes.
01-16

21. VARIOUS PROTECTIONS
1. DISCHARGE GAS TEMPERATURE OVERRISE PREVENSION CONTROL
The discharge gas thermosensor (discharge thermistor : Outdoor side) will detect discharge gas
temperature.
AS*A09 / 12LKC 104°C 101°C 110°C
When the discharge temperature becomes higher than Temperature ,the compressor frequency
is decreased 20 Hz, and it continues to decrease the frequency for 20 Hz every 120 seconds until
the temperature becomes lower than Temperature .
When the discharge temperature becomes lower than Temperature ,the control of the control of the
compressor frequency is released.
When the discharge temperature becomes higher than Temperature ,the compressor is stopped
and the indoor unit LED starts blinking.
(Table 16 : Discharge Temperature Over Rise Prevension Control / Release Temperature)
Temperature Temperature Temperature
2. CURRENT RELEASE CONTROL
The compressor frequency is controlled so that the outdoor unit input current does not exceeds
the current limit velue that was set up with the outdoor temperature.
The compressor frequency returns to the designated frequency of the indoor unit at the time
when the frequency becomes lower than the release value.
(Table 17 : Current Release Operation Value / Release Value)
01-17
[ Heating ]
OT (Control / Release)
5.0A/ 4.5A
5.0A/ 4.5A
5.0A/ 4.5A
5.0A/ 4.5A
5.5A/ 5.0A
7.0A/ 6.5A
7.5A/ 7.0A
8.5A/ 8.0A
17°C
12°C
OT : Outdoor Temperature
5°C
AS*A09LKC
OT (Control / Release)
17°C
12°C
OT : Outdoor Temperature
5°C
AS*A12LKC
OT (Control / Release)
3.5A/ 3.0A
4.0A/ 3.5A
5.0A/ 4.5A
4.0A/ 3.5A
5.0A/ 4.5A
6.0A/ 5.5A
46°C
42°C
OT : Outdoor Temperature
AS*A09LKC
OT (Control / Release)
46°C
42°C
OT : Outdoor Temperature
AS*A12LKC
[ Cooling ]
