Fujitsu ASHG07KGTE User manual

AIR CONDITIONER
Wall mounted type
SERVICE MANUAL
INDOOR
ASHG07KGTE
ASHG09KGTE
ASHG12KGTE
ASHG14KGTE
OUTDOOR
AOHG07KGCA
AOHG09KGCA
AOHG12KGCA
AOHG14KGCA
SR_AS069EG_02
2022.03.30

Notices:
• Product specifications and design are subject to change without notice for future improvement.
• For further details, please check with our authorized dealer.
Trademarks
FGLair™ is trademark of Fujitsu General Limited in the United States, other countries or both.
Google Play™ is trademark of Google Inc.
App Store® is a service mark of Apple Inc., registered in the U.S. and other countries.
Copyright © 2022 Fujitsu General Limited. All rights reserved.

CONTENTS
1. GENERAL INFORMATION
2. TECHNICAL DATA AND PARTS LIST
3. TROUBLESHOOTING
4. CONTROL AND FUNCTIONS
5. FILED WORKING

1. GENERAL INFORMATION
2022.3.11
SR_CH01_AS069EG_01

CONTENTS
1. GENERAL INFORMATION
1. Specifications..............................................................................................01-1
1-1. Indoor units.....................................................................................................................01-1
1-2. Outdoor units ..................................................................................................................01-3
2. Dimensions..................................................................................................01-4
2-1. Indoor unit ......................................................................................................................01-4
2-2. Outdoor unit....................................................................................................................01-6

1. Specifications
1-1. Indoor units
Type Wall mounted
Inverter heat pump
Model name ASHG07KGTE ASHG09KGTE ASHG12KGTE ASHG14KGTE
Power supply 230 V ~ 50- Hz
Available voltage range 198—264 V
Capacity
Cooling
Rated k→ 2.00 2.50 3.40 4.20
Btu/h 6,800 8,500 11,600 14,300
Min.—Max. k→ 0.9—3.2 0.9—3.4 0.9—4.1 0.9—4.5
Btu/h 3,100—10,900 3,100—11,600 3,100—14,000 3,100—15,400
Heating
Rated k→ 2.50 2.80 4.00 5.40
Btu/h 8,500 9,500 13,600 18,400
Min.—Max. k→ 0.9—5.2 0.9—5.4 0.9—6.1 0.9—6.4
Btu/h 3,100—17,700 3,100—18,400 3,100—20,800 3,100—21,800
Input power
Cooling Rated
k→
0.400 0.555 0.805 1.175
Min.—Max. 0.25—0.95 0.25—1.04 0.25—1.29 0.25—1.46
Heating Rated 0.500 0.560 0.910 1.350
Min.—Max. 0.25—1.58 0.25—1.72 0.25—1.89 0.25—2.06
Fan
HIGH
→
22.9 26.9 26.6 32.5
MED 15.8 16.9 17.3 19.6
LO→ 10.8 10.8 11.8 12.5
QUIET 7.6 9.0 9.1
Current Cooling Rated A 2.3 3.0 4.3 5.3
Heating 2.8 3.5 4.8 6.4
EER Cooling k→/k→ 5.00 4.50 4.22 3.57
COP Heating 5.00 4.40 4.00
Sensible capacity Cooling k→ 1.2 1.6 2.2 3.2
Power factor Cooling %76 80 81 96
Heating 78 70 82 92
Moisture removal L/h (pints/h) 1.0 (1.8) 1.3 (2.3) 1.8 (3.2) 2.1 (3.7)
Maximum operating current *1 Cooling A6.5 9.0
Heating 9.0 10.5
Fan
Airflow rate
Cooling
HIGH
m3/h
650 700 770
MED 540 560 600
LO→ 430 450
QUIET 270 250 280
Heating
HIGH 720 750 770 800
MED 580 610 640 660
LO→ 460 470 520
QUIET 330 310 340
Type × Q'ty Crossflow fan × 1
Motor output → 30 49
Sound pressure level *2
Cooling
HIGH
dB (A)
38 40 43
MED 33 34 35 36
LO→ 29 30
QUIET 19 20
Heating
HIGH 41 42 44
MED 35 36 38 39
LO→ 31 33
QUIET 21 24
Heat exchanger type
Dimensions (H × → × D) mm
Main1: 210 × 670 × 26.6
Main2: 112 × 670 × 20
Main1: 210 × 670 × 26.6
Main2: 112 × 670 × 20
Sub: 84 × 670 × 13.3
Fin pitch Man1: 1.2, Main2: 1.1 Man1: 1.2, Main2: 1.1, Sub: 1.4
Rows × Stages Main1: 2 × 10, Main2: 2 × 7 Main1: 2 × 10, Main2: 2 × 7, Sub: 1 × 4
Pipe type Copper
Fin type Aluminum
Enclosure
Material Polystyrene
Color →hite + Pearl white (painted)
Approximate color of Munsell N 9.25/
Dimensions
(H × → × D)
Net mm 270 × 834 × 215
Gross 277 × 914 × 332
→eight Net kg 10.0
Gross 12.5 13.0
Connection pipe Size Liquid mm (in) Ø 6.35 (Ø 1/4) Gas Ø 9.52 (Ø 3/8)
Method Flare
Drain hose Material PP+HDPE
Tip diameter mm Ø 13.8 (I.D.), Ø 15 to Ø 16.8 (O.D.)
Operation range Cooling °C 18 to 32 %RH 80 or less
Heating °C 16 to 30
Remote controller type →ireless (→ired, Mobile app*3 [FGLair™] [option])
NOTES:
• Specifications are based on the following conditions:
– Cooling: Indoor temperature of 27 °CDB/19 °C→B, and outdoor temperature of 35 °CDB/24 °C→B.
– Heating: Indoor temperature of 20 °CDB/15 °C→B, and outdoor temperature of 7 °CDB/6 °C→B.
– Pipe length: 5 m, Height difference: 0 m. (Between outdoor unit and indoor unit.)
• Protective function might work when using it outside the operation range.
• *1: Maximum current is maximum value when operated within the operation range.
• *2: Sound pressure level:
– Measured values in manufacturer’s anechoic chamber.
– Because of the surrounding sound environment, the sound levels measured in actual installation conditions might be higher than the specified values here.
• *3: Available on Google Play™ store or on App Store®. Optional →LAN adapter is also required. For details, refer to the setting manual.
1-1. Indoor units - (01-1) - 1. Specifications
GENERAL INFORMATION GENERAL INFORMATION

Specifications for ErP Lot10
Model name ASHG07KGTE ASHG09KGTE ASHG12KGTE ASHG14KGTE
Energy efficiency class Cooling A+++ A++
Heating (Average) A+++ A+
Pdesign Cooling k→ 2.0 (35 °C) 2.5 (35 °C) 3.4 (35 °C) 4.2 (35 °C)
Heating (Average) 2.3 (-10 °C) 2.4 (-10 °C) 2.5 (-10 °C) 4.0 (-10 °C)
SEER Cooling k→h/k→h 9.1 9.2 8.3
SCOP Heating (Average) 5.3 5.2 4.5
Annual energy consumption QCE k→h/a 77 95 129 177
QHE (Average) 607 645 672 1,242
Sound power level Cooling HIGH dB (A) 54 55 56 57
Heating 56 57 58 59
1-1. Indoor units - (01-2) - 1. Specifications
GENERAL INFORMATION GENERAL INFORMATION

1-2. Outdoor units
Type Inverter heat pump
Model name AOHG07KGCA AOHG09KGCA AOHG12KGCA AOHG14KGCA
Power supply 230 V ~ 50 Hz
Available voltage range 198—264 V
Starting current A 2.8 3.5 4.8 6.4
Fan
Airflow rate Cooling m3/h 1,610 1,680
Heating 1,560 1,610 1,580
Type × Q'ty Propeller fan × 1
Motor output → 23
Sound pressure level *1 Cooling dB (A) 46 50
Heating 46 48 50
Sound power level Cooling dB (A) 61 65
Heating 62 63 66
Heat exchanger type
Dimensions
(H × → × D) mm
Main1: 504 × 888 × 18.19
Main2: 504 × 510 × 18.19
Main1: 504 × 881 × 18.19
Main2: 504 × 801 × 18.19
Fin pitch 1.3
Rows × Stages 1.5 × 24 2 × 24
Pipe type Copper
Fin type Type (Material) Aluminum
Surface treatment PC Fin
Compressor Type DC Rotary
Motor output → 900
Refrigerant Type (Global warming potential) R32 (675)
Charge g 750 850
Refrigerant oil Type RB68A
Amount cm3340
Enclosure
Material Steel sheet
Color Beige
Approximate color of Munsell 10↔R 7.5/1.0
Dimensions
(H × → × D)
Net mm 542 × 799 × 290
Gross 602 × 940 × 375
→eight Net kg 30 31 32
Gross 34 35 36
Connection pipe
Size Liquid mm (in) Ø 6.35 (Ø 1/4)
Gas Ø 9.52 (Ø 3/8)
Method Flare
Pre-charge length
m
15
Max. length 20
Max. height difference 15
Operation range Cooling °C -10 to 46
Heating -15 to 24
Drain hose Material PP
Size mm Ø 13.0 (I. D.), Ø 16.0 to Ø 16.8 (O. D.)
NOTES:
• Specifications are based on the following conditions:
– Cooling: Indoor temperature of 27 °CDB/19 °C→B, and outdoor temperature of 35 °CDB/24 °C→B.
– Heating: Indoor temperature of 20 °CDB/15 °C→B, and outdoor temperature of 7 °CDB/6 °C→B.
– Pipe length: 5 m, Height difference: 0 m.
• Protective function might work when using it outside the operation range.
• *1: Sound pressure level
– Measured values in manufacturer’s anechoic chamber.
– Because of the surrounding sound environment, the sound levels measured in actual installation conditions might be higher than the specified values here.
1-2. Outdoor units - (01-3) - 1. Specifications
GENERAL INFORMATION GENERAL INFORMATION

2. Dimensions
2-1. Indoor unit
¢Models: ASHG07KGTE, ASHG09KGTE, ASHG12KGTE, and
ASHG14KGTE
(834)
344 356
327 11332767
62
50
62
84
43 (270)
43

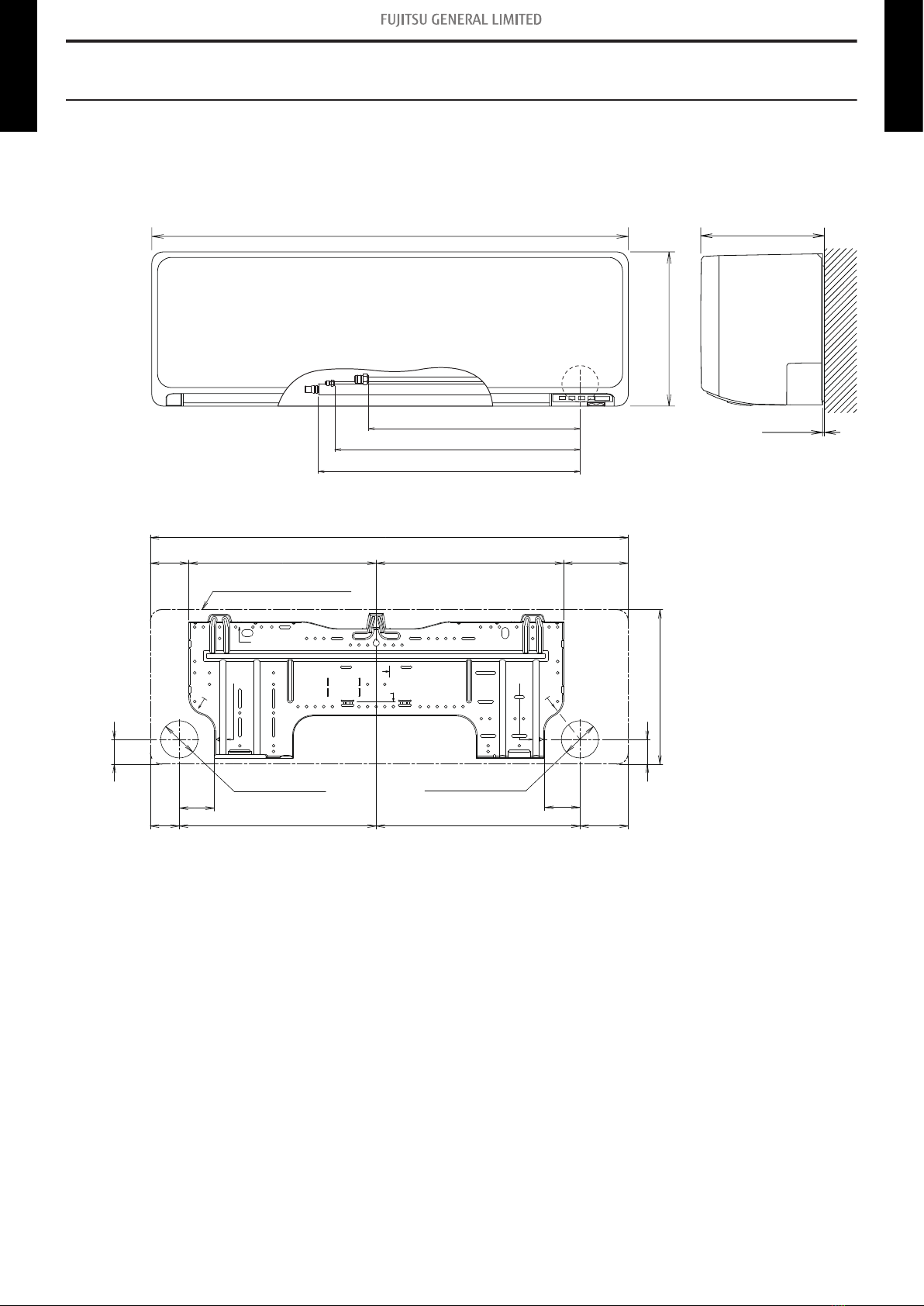

Outline of indoor unit
for pipe inlet Ø65 for pipe inlet Ø65
834 215
3.0
270
373.5
417.5
448
2-1. Indoor unit - (01-4) - 2. Dimensions
GENERAL INFORMATION GENERAL INFORMATION

Installation space requirement
Provide sufficient installation space for product safety.
Unit: mm
50 or more
71 or more
The flare connection
part should be installed
outdoors.
40 or more
70 or more
107 or more
1,500 or more
1,800 or more
183 or more
Wall hook bracket
Outline of the indoor unit
2-1. Indoor unit - (01-5) - 2. Dimensions
GENERAL INFORMATION GENERAL INFORMATION

2-2. Outdoor unit
¢Models: AOHG07KGCA, AOHG09KGCA, AOHG12KGCA, and
AOHG14KGCA
Unit: mm
580 109
330 353
Pitch of bolts for installation
Pitch of bolts for installation
Top view
4- M1 0 hole
Side viewSide view Front view
799 68 29016
33 30
19
542
20
Airflow
Bottom view Side view (Valve part)
37
399
Drain port Ø42
184
120
180
2-2. Outdoor unit - (01-6) - 2. Dimensions
GENERAL INFORMATION GENERAL INFORMATION

2. TECHNICAL DATA AND PARTS LIST
2022.3.11
SR_CH02_AS069EG_01

CONTENTS
2. TECHNICAL DATA AND PARTS LIST
1. Precautions..................................................................................................02-1
2. Indoor unit parts list....................................................................................02-2
2-1. Models: ASHG07KGTE, ASHG09KGTE, ASHG12KGTE, and ASHG14KGTE..............02-2
3. Outdoor unit parts list.................................................................................02-6
3-1. Models: AOHG07KGCA, AOHG09KGCA, AOHG12KGCA, and AOHG14KGCA ..........02-6
4. Accessories ...............................................................................................02-10
4-1. Indoor unit ....................................................................................................................02-10
4-2. Outdoor unit..................................................................................................................02-10
5. Optional parts ...........................................................................................02-11
5-1. Indoor unit ....................................................................................................................02-11
6. Refrigerant system diagrams...................................................................02-13
6-1. Models: AOHG07KGCA, AOHG09KGCA, AOHG12KGCA, and AOHG14KGCA ........02-13
7. Wiring diagrams ........................................................................................02-14
7-1. Indoor unit ....................................................................................................................02-14
7-2. Outdoor unit..................................................................................................................02-15
8. PC board diagrams ...................................................................................02-16
8-1. Models: ASHG07KGTE, ASHG09KGTE, ASHG12KGTE, and ASHG14KGTE............02-16
8-2. Models: AOHG07KGCA, AOHG09KGCA, AOHG12KGCA, and AOHG14KGCA ........02-17

1. Precautions
→hen you start servicing, pay attention to the following points. For detailed precautions, refer to the
installation manual of the products.
CAUTION
• Service personnel
– Any person who is involved with working on or breaking into a refrigerant circuit should hold a
current valid certificate from an industry-accredited assessment authority, which authorizes
their competence to handle refrigerants safely in accordance with an industry recognized as-
sessment specification.
– Servicing shall only be performed as recommended by the equipment manufacturer. Mainte-
nance and repair requiring the assistance of other skilled personnel shall be carried out under
the supervision of the person competent in the use of flammable refrigerants.
– Servicing shall be performed only as recommended by the manufacturer.
• →ork
– Prior to beginning work on systems containing flammable refrigerants, safety checks are nec-
essary to ensure that the risk of ignition is minimized. →hen repairing the refrigerant system,
refer to the precautions written in the installation manual of the products before you start ser-
vicing.
– →ork shall be undertaken under a controlled procedure so as to minimize the risk of a
flammable gas or vapor being present while the work is being performed.
– All maintenance staff and others working in the local area shall be instructed on the nature of
work being carried out.
– →ork in confined spaces shall be avoided.
– The area around the workspace shall be sectioned off.
– Ensure that the conditions within the area have been made safe by control of flammable ma-
terial.
– Electric shock may occur. After turning off the power, always wait 5 minutes before touching
electrical components.
– Do not touch the fins of the heat exchanger. Touching the heat exchanger fins could result in
damage to the fins or personal injury such as skin rupture.
– Do not place any other electrical products or household belongings under the product.
– Condensation dripping from the product might get them wet, and may cause damage or mal-
function to the property.
• Checking for presence of refrigerant
– The area shall be checked with an appropriate refrigerant detector prior to and during work, to
ensure the technician is aware of potentially flammable atmospheres.
– Ensure that the leak detection equipment being used is suitable for use with flammable refrig-
erants, i.e. non-sparking, adequately sealed or intrinsically safe.
• Service parts information and design are subject to change without notice for product improve-
ment.
• For the latest information of the service parts, refer to our Service Portal.
https://fujitsu-general.force.com/portal/
• Precise figure of the service parts listed in this manual may differ from the actual service parts.
- (02-1) - 1. Precautions
TECHNICAL DATA AND PARTS LIST TECHNICAL DATA AND PARTS LIST

2. Indoor unit parts list
2-1. Models: ASHG07KGTE, ASHG09KGTE, ASHG12KGTE, and
ASHG14KGTE
¢Exterior parts
17
1
3
5
7
8
12
15
18
16
11
4
13
19
20
21
a
6
8
22
14
2
9
10
2-1. Models: ASHG07KGTE, ASHG09KGTE, ASHG12KGTE, and ASHG14KGTE - (02-2) - 2. Indoor unit parts list
TECHNICAL DATA AND PARTS LIST TECHNICAL DATA AND PARTS LIST

Item no. Part no. Part name Service part
1 9388142005 Bracket panel ♦
29383729027 →ire cover B assy ♦
3 9387456004 Step motor holder ♦
4 9333608006 Bush ♦
5 9901011047 Step motor ♦
6 9332861006 Shaft cover ♦
7 9387590241 Drain pan total assy ♦
8 9387476002 Screw cap ♦
9 9387479003 U/D louver assy ♦
10 9387597066 →ire cover assy ♦
11 9387478051 Under cover R ♦
12 9384977113 Front panel total assy ♦
13 9333704005 Grille clamper R ♦
14 9387756029 Intake grill assy ♦
15 9333719009 Grille clamper L ♦
16 9387473001 Air filter ♦
17 9387477054 Under cover L ♦
18 9387471007 Louver spring ♦
19 9316177017 Drain cap ♦
20 9316904002 Drain hose assy ♦
21 9318912005 Remote controller holder ♦
22 9352446108 Remote controller ♦
a— Front panel —
2-1. Models: ASHG07KGTE, ASHG09KGTE, ASHG12KGTE, and ASHG14KGTE - (02-3) - 2. Indoor unit parts list
TECHNICAL DATA AND PARTS LIST TECHNICAL DATA AND PARTS LIST

¢Base, evaporator, and control
63
62
64
65
67
66
69
68
70
54
a
b
c
55
d
56
57
58
61
e
59
60
50
51
51
52
53
53
2-1. Models: ASHG07KGTE, ASHG09KGTE, ASHG12KGTE, and ASHG14KGTE - (02-4) - 2. Indoor unit parts list
TECHNICAL DATA AND PARTS LIST TECHNICAL DATA AND PARTS LIST

Item no. Part no. Part name Service part
50 9387587128 Base assy ♦
51 9388139005 Pipe bracket A ♦
52 9388138008 Under cover C ♦
53 9388182001 Screw cap ♦
54 9383765056 →LAN adapter holder assy ♦
55
9711732255 Main PCB (For 07 model) ♦
9711732262 Main PCB (For 09 model) ♦
9711732279 Main PCB (For 12 model) ♦
9711732286 Main PCB (For 14 model) ♦
56 9387488012 Cable guide ♦
57 9711146038 Display assy ♦
58 9711147011 Indicator PCB ♦
59 9317755061 Pyroelectric sensor ♦
60 9382134006 Front panel cover B assy ♦
61 9901013010 Terminal ♦
62 9384500014 Motor case sub assy ♦
63 9603768003 DC fan motor (For 07 and 09 model) ♦
9603631017 DC fan motor (For 12 and 14 model) ♦
64 9387713022 Motor cover assy ♦
65 9317250009 Air clean filter assy ♦
66 9387593334 Evaporator total assy (For 07 and 09 model) ♦
9387593426 Evaporator total assy (For 12 and 14 model) ♦
67 9900627041 Thermistor assy ♦
68 9387467000 Room thermistor holder ♦
69 9333628004 Bearing D assy ♦
70 9387055047 Crossflow fan assy ♦
— 9709626054 →ire with connector
(CN10 on Main PCB—Pyroelectric sensor) ♦
— 9901010071 →ire with connector
(USB adapter connection) ♦
a— Box shield —
b— Control box —
c— PCB holder A —
d— Control cover —
e— Display case assy —
2-1. Models: ASHG07KGTE, ASHG09KGTE, ASHG12KGTE, and ASHG14KGTE - (02-5) - 2. Indoor unit parts list
TECHNICAL DATA AND PARTS LIST TECHNICAL DATA AND PARTS LIST

3. Outdoor unit parts list
3-1. Models: AOHG07KGCA, AOHG09KGCA, AOHG12KGCA,
and AOHG14KGCA
¢Exterior parts and Chassis
1
2
3
4
14
16
12
17 18
19
20
a
15
9
5
7
8
11
10
13
6
3-1. Models: AOHG07KGCA, AOHG09KGCA, AOHG12KGCA, and AOHG14KGCA - (02-6) - 3. Outdoor unit parts list
TECHNICAL DATA AND PARTS LIST TECHNICAL DATA AND PARTS LIST
