Fujitsu AS*G07LECA Service manual

AIR CONDITIONER
Wall Mounted type
INDOOR
OUTDOOR
ASG07LECA
ASG09LECA
ASG12LECA
ASG14LECA
AOG07LEC
AOG09LEC
AOG12LEC
AOG14LEC
DESIGN & TECHNICAL MANUAL

1. INDOOR UNIT
WALL MOUNTED TYPE :
ASG07LECA
ASG09LECA
ASG12LECA
ASG14LECA
DTR_AS049E_03
2011.03.23

WALL MOUNTED TYPE ASG07-14LE WALL MOUNTED TYPE ASG07-14LE
CONTENTS
1. INDOOR UNIT
1. FEATURE.................................................................................................................. 01 - 01
2. WIRELESS REMOTE CONTROLLER............................................... 01 - 04
3. SPECIFICATIONS.............................................................................................. 01 - 06
4. DIMENSIONS ........................................................................................................ 01 - 07
5. WIRING DIAGRAMS........................................................................................ 01 - 10
6. CAPACITY TABLE .............................................................................................01 - 11
6-1. COOLING CAPACITY.......................................................................................01 - 11
6-2. HEATING CAPACITY....................................................................................... 01 - 12
7. FAN PERFORMANCE.................................................................................... 01 - 13
7-1. AIR VELOCITY DISTRIBUTION..................................................................... 01 - 13
7-2. AIR FLOW.......................................................................................................... 01 - 15
8. OPERATION NOISE......................................................................................... 01 - 17
8-1. NOISE LEVEL CURVE .................................................................................... 01 - 17
8-2. SOUND LEVEL CHECK POINT..................................................................... 01 - 19
9. ELECTRIC CHARACTERISTICS........................................................... 01 - 20
10. SAFETY DEVICES ............................................................................................ 01 - 21
11. EXTERNAL INPUT & OUTPUT............................................................... 01 - 22
11-1. EXTERNAL INPUT ........................................................................................... 01 - 22
11-2. EXTERNAL OUTPUT....................................................................................... 01 - 24
12. FUNCTION SETTING...................................................................................... 01 - 25
13. OPTIONAL PARTS ........................................................................................... 01 - 29

- (01 - 01) -
WALL MOUNTED TYPE ASG07-14LE WALL MOUNTED TYPE ASG07-14LE
FEATURE1.
MODEL

ASG07LECA / AOG07LEC
ASG09LECA / AOG09LEC
ASG12LECA / AOG12LEC
ASG14LECA / AOG14LEC
FEATURES

Energy-Efciency classication A
z
Europe Energy-Efciency classication A achieved
ALL DC
z
Quiet operation
z
INDOOR UNIT
Air ow mode can be set in 4 steps and more detailed air ow setting is possible.
Fan speed Noise level
Quiet 21dB(A)
(ASG07/09/12LE)
OUTDOOR UNIT
Low noise mode
Introduction of a low outdoor noise operation mode allow the outdoor unit to have quiet mode
operation setting.
* Performance may drop depending on the outside air temperature condition, etc.
Rated noise value -3dB
b
a
a
a
b
DC compressor
DC fan motor
Front view
AOG07LEC
AOG09LEC
AOG12LEC
AOG14LEC
ASG07LECA
ASG09LECA
ASG12LECA
ASG14LECA

- (01 - 02) -
WALL MOUNTED TYPE ASG07-14LE WALL MOUNTED TYPE ASG07-14LE

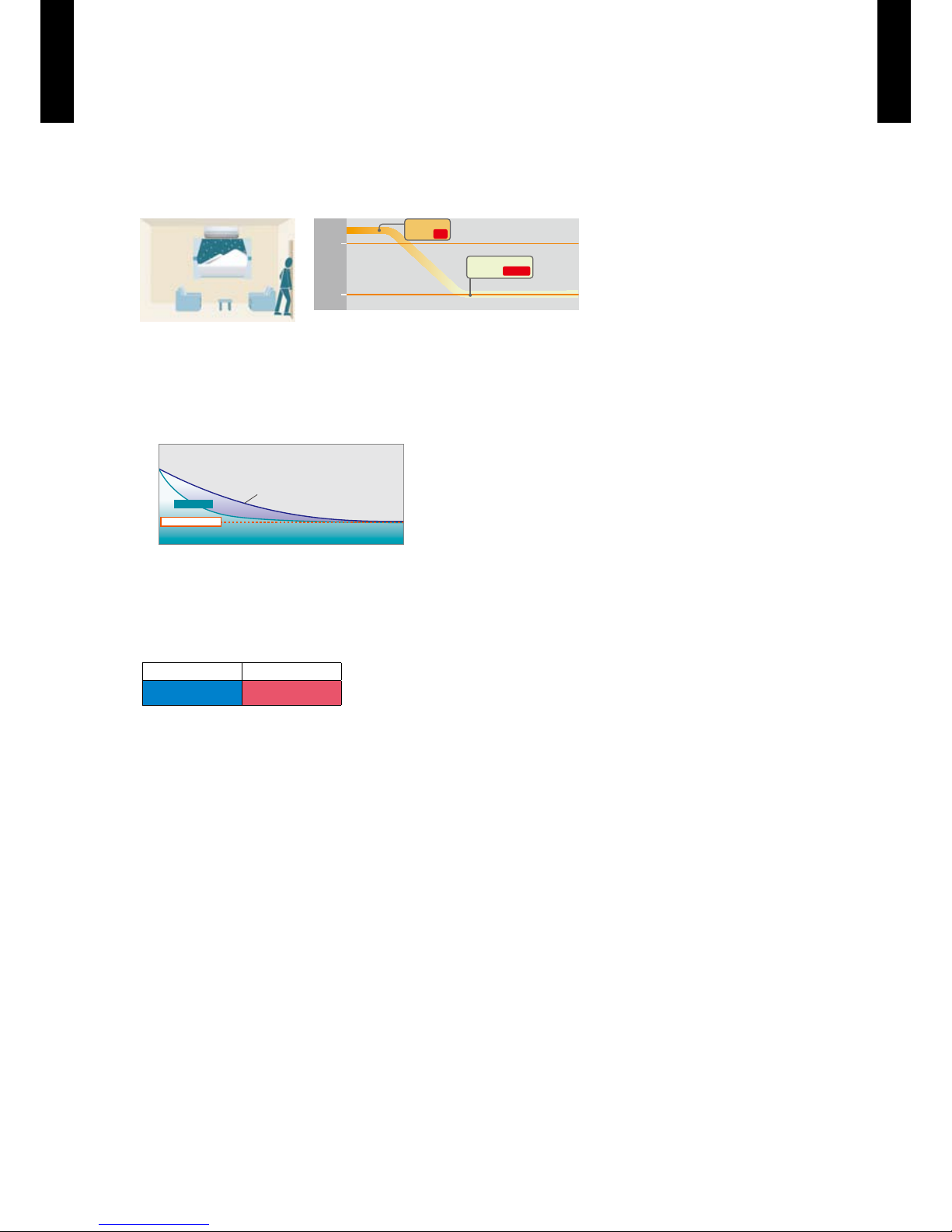

10°C HEAT Operation
z
The room temperature can be set to go no lower than 10°C,
thus ensuring that the room does not get too cold when not occupied
Caution)
When the room temperature is higher than 10°C, “10°C HEAT” operation does not start. Operation starts and maintains the room •
temperature at 10°C when the temperature drops below 10°C.
Powerful operation
z
20 minutes continuous operation by maximum airow and maximum compressor speed is
possible. Rapid cooling and heating makes the room comfortable quickly.
Powerful
Setting temp.
Normal mode
Time
Temperature
Low outdoor air temperature correspondence
z
Corresponds to cooling operation at -10°C outdoor air temperature
Corresponds to heating operation at -15°C outdoor air temperature
Cooling Heating
-10 to 43°C -15 to 24°C
Corresponds to maximum 20m long piping
z
10°C
20°C
“10°C HEAT”
Button ON
Indoor unit
operation START

- (01 - 03) -
WALL MOUNTED TYPE ASG07-14LE WALL MOUNTED TYPE ASG07-14LE
Air conditioner lter features
z
Easy maintenance
z
Easy maintenance and always clean. Troublesome maintenance has been made easy.
Since the front panel is easy to remove, maintenance is also easy.
Apple-
catechin Filter
Long-life Ion
Deodorization Filter
Ion Deodorization Filter
Apple-catechin Filter
Dirty Air
Clean Air

- (01 - 04) -
WALL MOUNTED TYPE ASG07-14LE WALL MOUNTED TYPE ASG07-14LE
WIRELESS REMOTE CONTROLLER2.
FEATURES

Four kinds of timer setup

(On / Off / Program / Sleep) are possible.
Four kinds of timers. Easy operation.

Easy to change transmission code (4 patterns) by button operation.

Simple function setting
z
Setting of the air conditioner selection function is performed by remote controller.
Built-in timers
z
Select from four different timer programs (On / Off / Program / Sleep).
Program timer
z
The program timer operates the on and off timer once within a 24 hour period.
Sleep timer
z
The sleep timer function automatically corrects the temperature thermostat setting according to
the timer setting to prevent excessive cooling and heating while sleeping.
60min.
1 °C 2 °C
Timer setting
1 °C
30min.
60min.
90min.
2 °C 3 °C 4 °C
Timer setting
Cooling operation/dry operation
When the sleep timer is set, the set temperature
automatically rises 1 °C every hour. The set
temperature can rise up to a maximum of 2 °C.
Heating operation
When the sleep timer is set, the set temperature
automatically drops 1 °C every 30 minutes. The set
temperature can drop to a maximum of 4 °C.
Switching remote controller signal code
z
A B C D
A B CD
Mixed-up
I.U. I.U. I.U. I.U. I.U. I.U. I.U. I.U.
After code change
Code selector switch eliminates unit

•
being wrongly switched.
(Up to 4 codes can be set.)
*I.U.=Indoor unit

- (01 - 05) -
WALL MOUNTED TYPE ASG07-14LE WALL MOUNTED TYPE ASG07-14LE
FUNCTIONS

Display panel
19
20
21
23
24
25
26
22
To facilitate explanation, the accompanying
illustration has been drawn to show all
possible indicators; in actual operation,
however, the display will only show those
indicators appropriate to the current
operation.
SPECIFICATION

2
3
6
1
18
9
15
12
13
11
10
14
16
17
4
8
7
5
SIZE (H x W x D mm) 205 x 61 x 17
WEIGHT ( g ) 122
ACCESSORY Holder
1 Signal Transmitter
2 10 °C HEAT button
3 MODE button
4 ECONOMY button
5 OUTDOOR UNIT LOW NOISE button
6 ON TIMER button
7 OFF TIMER button
8 CLOCK ADJUST button
9 POWERFUL button
10 SET TEMP. button ( / )
11 START/STOP button
12 FAN button
13 SWING button
14 SET button
15 SLEEP TIMER button
16 CANCEL button
17 RESET button
18 TIMER SET button ( / )
19 Remote Controller Display
20 Operation Mode Display
21 ENERGY SAVING MODE Display
22 LOW NOISE MODE Display
23 Temperature SET Display
24 FAN Speed Display
25 SWING Display
26 Clock & TIMER Display

- (01 - 06) -
WALL MOUNTED TYPE ASG07-14LE WALL MOUNTED TYPE ASG07-14LE
SPECIFICATIONS3.
Note:
Specications are based on the following conditions
Cooling:Indoor temperature of 27°C CDB/19°CCWB.and outdoor temperature of 35°C CDB/24°CCWB.
Heating:Indoor temperature of 20°C CDB/15°CCWB.and outdoor temperature of 7°C CDB/6°CCWB.
Pipe length:5m,Height difference:0m(Outdoor unit-Indoor unit)
The maximum current is the maximum value when the operated within the operation range(temperature).
Type WALL MOUNTED
INVERTER HEAT PUMP
Model name ASG07LECA ASG09LECA ASG12LECA ASG14LECA
Power source 230V~ 50Hz
Available voltage range 198-264V~ 50Hz
European energy label Cooling AAAA
Heating AAAA
Capacity
Cooling
Rated kW 2.10 2.50 3.40 4.00
BTU/h 7,200 8,500 11,600 13,600
Min-Max kW 0.5~3.0 0.5~3.2 0.9~3.9 0.9~5.0
BTU/h 1,700~10,200 1,700~10,900 3,100~13,300 3 ,10 0 ~17,10 0
Heating
Rated kW 3.00 3.20 4.00 5.00
BTU/h 10,200 10,900 13,600 17,10 0
Min-Max kW 0.5~4.0 0.5~4.2 0.9~5.3 0.9~6.4
BTU/h 1,700~13,600 1,700~14,300 3,100~18,000 3,100~21,800
Input power
Cooling Rated
kW
0.47 0.64 0.92 1.105
Min-Max 0. 25 ~1.19 0.25~1.27 0.25~1.40 0.25~2.03
Heating Rated 0.685 0.75 0.99 1.305
Min-Max 0.25~1.60 0.25~1.60 0.25~1.99 0.25~2.40
Current
Cooling Rated
A
2.7 3.5 4.4 5.3
Max 6.0 6.0 6.5 9.0
Heating Rated 3.5 3.8 4.7 6.0
Max 7.5 7.5 9.0 10.5
EER Cooling kW/kW 4.47 3.91 3.70 3.62
COP Heating 4.38 4.27 4.04 3.83
SENSIBLE CAPACITY Cooling kW 1.2 1.6 2.2 2.6
POWER FACTOR Cooling %76 80 91 91
Heating 85 86 92 94
Moisture removal l/h(pints/h) 1.3 (2.3) 1.3 (2.3) 1.8 (3.2) 2.1 (3.7)
FAN
Airow
rate
Cooling
High
m3/h
690 770
Med 610 680
Low 440 540
Quiet 300 410
Heating
High 710 770
Med 610 680
Low 480 580
Quiet 310 420
Type× Q’ty Cross ow fanx1
Motor output W30
Sound pressure level
Cooling
High
dB(A)
43 44
Med 38 40
Low 31 33
Quiet 21 25
Heating
High 43 44
Med 38 40
Low 31 35
Quiet 21 27
Heat exchanger type
Dimensions
(H×W×D) mm
256x630x20 320x630x20
Sub:84x630x13.3
Fin pitch 1.1 1.1
Sub:1.4
Rows Stages 2x16 2x20
Sub:1x4
Pipe type Copper
Fin type Aluminium
Enclosure
Material Polystyrene
Colour White
Approximate colour of MUNSELL N9.25/
Dimensions
(H×W×D)
Net mm 260x790x198 260x790x203
Gross 259x840x328 263x840x375
Weight Net kg(lbs.) 7.5(17 ) 8(18)
Gross 9.5(21) 10.5(23)
Connection pipe Size Liquid mm Ø6.35(Ø1/4in)
Gas Ø9.52(Ø3/8in) Ø12.7(Ø1/2in)
Method Flare
Operation range Cooling °C 18 to 32
%RH 80 or less
Heating °C 30 or less
Remote controller type Wireless
Drain pipe Material PP+LLDPE
Size mm Outer diameter:21/Outer diameter:13.6

- (01 - 07) -
WALL MOUNTED TYPE ASG07-14LE WALL MOUNTED TYPE ASG07-14LE
DIMENSIONS4.
MODEL
 : ASG07LE, ASG09LE, ASG12LE
(Unit : mm)

- (01 - 08) -
WALL MOUNTED TYPE ASG07-14LE WALL MOUNTED TYPE ASG07-14LE
MODEL
 : ASG14LE
(Unit : mm)
94
52
78
ø2-65
for pipe inlet
ø2-65
for pipe inlet
Outline of unit
323
353: Gas pipe
415: Liquid pipe
327
237
450
209
62
18
47
47
184
215
18
82

- (01 - 09) -
WALL MOUNTED TYPE ASG07-14LE WALL MOUNTED TYPE ASG07-14LE

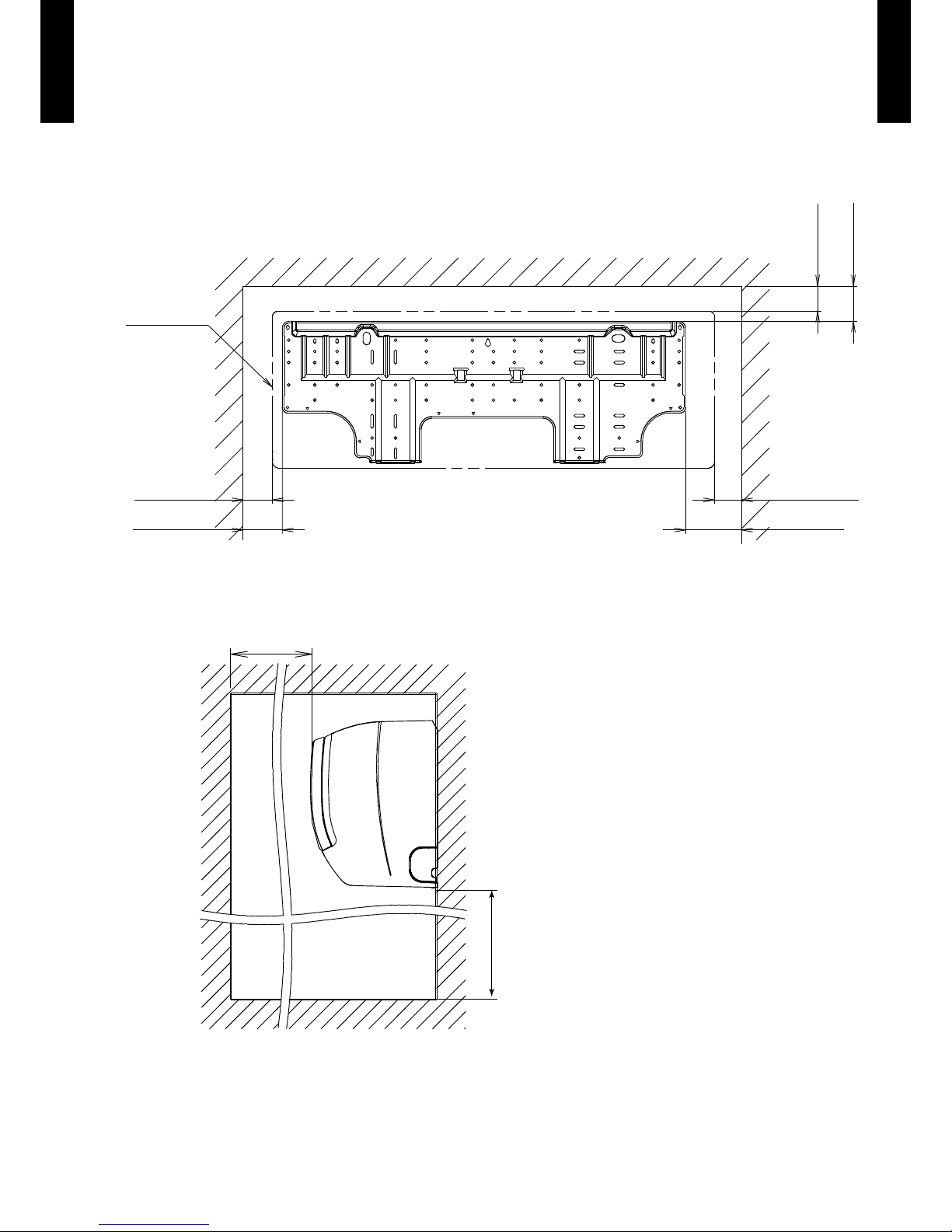

INSTALLATION PLACE

(Unit : mm)
1500 or more
1800 or more
63 or more 45 or more
48 or more
52 or more
Outline of unit
70 or more 100 or more

- (01 - 10) -
WALL MOUNTED TYPE ASG07-14LE WALL MOUNTED TYPE ASG07-14LE
WIRING DIAGRAMS5.
MODEL
 : ASG07LE, ASG09LE, ASG12LE, ASG14LE

- (01 - 11) -
WALL MOUNTED TYPE ASG07-14LE WALL MOUNTED TYPE ASG07-14LE
CAPACITY TABLE6.
COOLING CAPACITY6-1.
MODEL
 : ASG07LE
MODEL
 : ASG09LE
MODEL
 : ASG12LE
MODEL
 : ASG14LE
AFR : Air ow rate (m3/min)
TC : Total capacity (kW)
SHC : Sensible Heat capacity (kW)
IP :Input Power (kW)
AFR 11.5
Indoor temperature
°CDB 18 21 23 25 27 29 32
°CWB 12 15 16 18 19 21 23
Outdoor temperature
°CDB TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP
20 1.97 1.22 0.33 2.19 1.23 0.34 2.26 1.33 0.34 2.41 1.34 0.34 2.49 1.45 0.34 2.64 1.44 0.35 2.79 1.53 0.35
25 1.87 1.16 0.37 2.08 1.17 0.38 2.15 1.27 0.38 2.29 1.27 0.38 2.36 1.37 0.38 2.50 1.37 0.39 2.65 1.46 0.39
30 1.76 1.10 0.41 1.97 1.10 0.42 2.03 1.20 0.42 2.17 1.20 0.42 2.23 1.30 0.43 2.37 1.29 0.43 2.50 1.38 0.44
35 1.66 1.03 0.45 1.85 1.04 0.46 1.91 1.13 0.46 2.04 1.13 0.47 2.10 1.22 0.47 2.23 1.22 0.47 2.35 1.29 0.48
40 1.48 0.92 0.45 1.65 0.92 0.46 1.70 1.00 0.46 1.82 1.01 0.47 1.87 1.09 0.47 1.98 1.08 0.47 2.10 1.15 0.48
43 1.37 0.85 0.45 1.53 0.86 0.46 1.58 0.93 0.46 1.68 0.93 0.47 1.74 1.01 0.47 1.84 1.00 0.47 1.94 1.07 0.48
AFR 11.5
Indoor temperature
°CDB 18 21 23 25 27 29 32
°CWB 12 15 16 18 19 21 23
Outdoor temperature
°CDB TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP
20 2.34 1.62 0.45 2.61 1.63 0.46 2.70 1.77 0.46 2.87 1.78 0.46 2.96 1.92 0.47 3.14 1.91 0.47 3.32 2.04 0.48
25 2.22 1.54 0.50 2.48 1.55 0.51 2.56 1.68 0.52 2.73 1.69 0.52 2.81 1.82 0.52 2.98 1.82 0.53 3.15 1.93 0.53
30 2.10 1.45 0.56 2.34 1.46 0.57 2.42 1.59 0.57 2.58 1.60 0.58 2.66 1.72 0.58 2.82 1.72 0.59 2.98 1.83 0.59
35 1.98 1.37 0.62 2.20 1.38 0.63 2.28 1.50 0.63 2.43 1.50 0.64 2.50 1.62 0.64 2.65 1.61 0.65 2.80 1.72 0.65
40 1.76 1.22 0.62 1.96 1.23 0.63 2.03 1.33 0.63 2.16 1.34 0.64 2.23 1.44 0.64 2.36 1.44 0.65 2.50 1.53 0.65
43 1.63 1.13 0.62 1.82 1.14 0.62 1.88 1.24 0.63 2.00 1.24 0.63 2.07 1.34 0.64 2.19 1.33 0.64 2.31 1.42 0.65
AFR 11.5
Indoor temperature
°CDB 18 21 23 25 27 29 32
°CWB 12 15 16 18 19 21 23
Outdoor temperature
°CDB TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP
20 3.18 2.18 0.63 3.55 2.19 0.64 3.67 2.38 0.64 3.91 2.39 0.65 4.03 2.58 0.65 4.27 2.57 0.66 4.51 2.74 0.67
25 3.03 2.08 0.72 3.37 2.09 0.73 3.49 2.27 0.73 3.72 2.28 0.74 3.83 2.46 0.74 4.06 2.45 0.75 4.29 2.61 0.76
30 2.86 1.96 0.80 3.19 1.97 0.81 3.30 2.15 0.82 3.52 2.15 0.82 3.63 2.32 0.83 3.84 2.32 0.84 4.06 2.47 0.85
35 2.69 1.84 0.89 2.99 1.85 0.90 3.09 2.01 0.91 3.30 2.02 0.92 3.40 2.18 0.92 3.60 2.17 0.93 3.81 2.31 0.94
40 2.27 1.56 0.83 2.53 1.57 0.84 2.62 1.70 0.84 2.79 1.71 0.85 2.87 1.84 0.86 3.05 1.84 0.86 3.22 1.96 0.87
43 2.09 1.43 0.83 2.33 1.44 0.84 2.41 1.57 0.84 2.57 1.57 0.85 2.65 1.70 0.86 2.81 1.69 0.87 2.96 1.80 0.87
AFR 12.8
Indoor temperature
°CDB 18 21 23 25 27 29 32
°CWB 12 15 16 18 19 21 23
Outdoor temperature
°CDB TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP
20 3.72 2.58 0.77 4.14 2.60 0.78 4.29 2.83 0.79 4.57 2.83 0.79 4.71 3.06 0.80 4.99 3.05 0.81 5.28 3.25 0.81
25 3.55 2.46 0.87 3.95 2.48 0.88 4.08 2.69 0.89 4.35 2.70 0.89 4.49 2.92 0.90 4.76 2.91 0.91 5.03 3.10 0.92
30 3.36 2.34 0.97 3.75 2.35 0.98 3.87 2.55 0.99 4.13 2.56 1.00 4.26 2.77 1.00 4.51 2.76 1.01 4.77 2.94 1.02
35 3.16 2.19 1.07 3.52 2.21 1.08 3.64 2.40 1.09 3.88 2.41 1.10 4.00 2.60 1.11 4.24 2.59 1.12 4.48 2.76 1.13
40 2.78 1.93 1.05 3.09 1.94 1.07 3.20 2.11 1.07 3.41 2.12 1.08 3.51 2.28 1.09 3.73 2.28 1.10 3.94 2.42 1.11
43 2.53 1.76 1.03 2.82 1.77 1.05 2.91 1.92 1.06 3.11 1.93 1.07 3.20 2.08 1.07 3.39 2.07 1.08 3.59 2.21 1.09

- (01 - 12) -
WALL MOUNTED TYPE ASG07-14LE WALL MOUNTED TYPE ASG07-14LE
HEATING CAPACITY6-2.
MODEL
 : ASG07LE
MODEL
 : ASG09LE
MODEL
 : ASG12LE
MODEL
 : ASG14LE
AFR : Air ow rate (m3/min)
TC : Total capacity (kW)
IP :Input Power (kW)
AFR 11.8
Indoor temperature
(°CDB) 16 18 20 22 24
Outdoor temperature
(°CDB) (°CWB) TC IP TC IP TC IP TC IP TC IP
-15 -16 2.25 0.99 2.19 1.01 2.14 1.03 2.09 1.05 2.03 1.07
-10 -11 2.56 1.02 2.50 1.04 2.43 1.06 2.37 1.08 2.31 1.11
-5 -7 2.93 1.05 2.86 1.07 2.79 1.10 2.72 1.12 2.65 1.14
0-2 3.47 1.09 3.39 1.12 3.31 1.14 3.23 1.16 3.14 1.19
5 3 4.05 1.15 3.96 1.17 3.86 1.19 3.76 1.22 3.67 1.24
7 6 4.20 1.17 4.10 1.20 4.00 1.22 3.90 1.25 3.80 1.27
10 8 4.42 1.19 4.31 1.21 4.21 1.24 4.10 1.26 4.00 1.29
15 10 4.58 1.18 4.47 1.20 4.36 1.23 4.25 1.25 4.14 1.27
AFR 11.8
Indoor temperature
(°CDB) 16 18 20 22 24
Outdoor temperature
(°CDB) (°CWB) TC IP TC IP TC IP TC IP TC IP
-15 -16 2.25 0.99 2.19 1.01 2.14 1.03 2.09 1.05 2.03 1.07
-10 -11 2.56 1.02 2.50 1.04 2.43 1.06 2.37 1.08 2.31 1.11
-5 -7 2.93 1.05 2.86 1.07 2.79 1.10 2.72 1.12 2.65 1.14
0-2 3.47 1.09 3.39 1.12 3.31 1.14 3.23 1.16 3.14 1.19
5 3 4.05 1.15 3.96 1.17 3.86 1.19 3.76 1.22 3.67 1.24
7 6 4.41 1.17 4.31 1.20 4.20 1.22 4.10 1.25 3.99 1.27
10 8 4.64 1.19 4.53 1.21 4.42 1.24 4.31 1.26 4.20 1.29
15 10 4.81 1.18 4.69 1.20 4.58 1.23 4.46 1.25 4.35 1.27
AFR 11.8
Indoor temperature
(°CDB) 16 18 20 22 24
Outdoor temperature
(°CDB) (°CWB) TC IP TC IP TC IP TC IP TC IP
-15 -16 3.40 1.72 3.32 1.76 3.24 1.80 3.16 1.83 3.07 1.87
-10 -11 3.76 1.72 3.67 1.76 3.58 1.79 3.49 1.83 3.40 1.86
-5 -7 4.18 1.72 4.08 1.76 3.98 1.79 3.88 1.83 3.78 1.87
0-2 4.68 1.72 4.57 1.76 4.46 1.80 4.35 1.83 4.24 1.87
5 3 5.05 1.52 4.93 1.55 4.81 1.58 4.69 1.61 4.57 1.64
7 6 5.36 1.51 5.23 1.54 5.10 1.57 4.97 1.60 4.85 1.63
10 8 5.55 1.51 5.42 1.54 5.29 1.57 5.16 1.60 5.02 1.63
15 10 5.54 1.41 5.41 1.44 5.28 1.47 5.15 1.50 5.01 1.53
AFR 12.8
Indoor temperature
(°CDB) 16 18 20 22 24
Outdoor temperature
(°CDB) (°CWB) TC IP TC IP TC IP TC IP TC IP
-15 -16 3.47 1.78 3.39 1.81 3.30 1.85 3.22 1.89 3.14 1.93
-10 -11 4.15 1.87 4.05 1.91 3.95 1.95 3.85 1.99 3.76 2.03
-5 -7 4.78 1.97 4.67 2.01 4.55 2.06 4.44 2.10 4.33 2.14
0-2 5.59 2.07 5.46 2.11 5.32 2.16 5.19 2.20 5.06 2.24
5 3 6.40 2.17 6.24 2.21 6.09 2.26 5.94 2.30 5.79 2.35
7 6 6.72 1.80 6.56 1.83 6.40 1.87 6.24 1.91 6.08 1.94
10 8 7.14 1.80 6.97 1.84 6.80 1.88 6.63 1.92 6.46 1.96
15 10 7.46 1.81 7.28 1.85 7.11 1.89 6.93 1.93 6.75 1.97

- (01 - 13) -
WALL MOUNTED TYPE ASG07-14LE WALL MOUNTED TYPE ASG07-14LE
FAN PERFORMANCE7.
AIR VELOCITY DISTRIBUTION7-1.
MODEL
 : ASG07LE, ASG09LE, ASG12LE
Note:
Fan speed : High
Operation mode : FAN
2.0 1.0 0.5
2
1
0
1
2
Unit : m/s(m)
(m)
TOP VIEW
Vertical ap : Up
Horizontal ap : Center
012345678
2.0
1.0
1.0
0.5
0.5
3
2
1
0
1
2
3
Unit : m/s(m)
TOP VIEW
Vertical ap : Up
Horizontal ap : Right & Left
(m)
012345678
2.0
1.0 0.5
3
2
1
0
Unit : m/s(m)
SIDE VIEW
Vertical ap : Up
Horizontal ap : Center
(m)
012345678
2.0
1.0 0.5
3
2
1
0
Unit : m/s(m)
SIDE VIEW
Vertical ap : Down
Horizontal ap : Center
(m)
012345678

- (01 - 14) -
WALL MOUNTED TYPE ASG07-14LE WALL MOUNTED TYPE ASG07-14LE
MODEL
 : ASG14LE
Note:
Fan speed : High
Operation mode : FAN
2.0 1.0 0.5
2
1
0
1
2
Unit : m/s(m)
(m)
TOP VIEW
VERTICAL FLAP : Upward
HORIZONTAL FLAP : Center
012345678
2.0 1.0
0.5
3
2
1
0
Unit : m/s(m)
SIDE VIEW
VERTICAL FLAP : Upward
HORIZONTAL FLAP : Center
(m)
012345678
2.0
1.0 0.5
3
2
1
0
Unit : m/s(m)
SIDE VIEW
VERTICAL FLAP : Downward
HORIZONTAL FLAP : Center
(m)
012345678
2.0
1.0
1.0
0.5
0.5
2
1
0
1
2
Unit : m/s(m)
(m)
TOP VIEW
VERTICAL FLAP : Upward
HORIZONTAL FLAP : Right & Left
012345678

- (01 - 15) -
WALL MOUNTED TYPE ASG07-14LE WALL MOUNTED TYPE ASG07-14LE
AIR FLOW7-2.
MODEL
 : ASG07LE, ASG09LE, ASG12LE
Cooling
z
Heating
z
Fan speed
Number of
rotations
(r.p.m.)
Air ow
HIGH 1400
690 m3/h
191 l/s
406 CFM
MED 1200
610 m3/h
169 l/s
359 CFM
LOW 920
440 m3/h
122 l/s
259 CFM
QUIET 620
300 m3/h
83 l/s
176 CFM
Fan speed
Number of
rotations
(r.p.m.)
Air ow
HIGH 1440
710 m3/h
197 l/s
417 CFM
MED 1200
610 m3/h
169 l/s
359 CFM
LOW 980
480 m3/h
133 l/s
282 CFM
QUIET 670
310 m3/h
86 l/s
182 CFM

- (01 - 16) -
WALL MOUNTED TYPE ASG07-14LE WALL MOUNTED TYPE ASG07-14LE
MODEL
 : ASG14LE
Cooling
z
Heating
z
Fan speed
Number of
rotations
(r.p.m.)
Air ow
HIGH 1400
770 m3/h
213 l/s
453 CFM
MED 1230
680 m3/h
188 l/s
400 CFM
LOW 1000
540 m3/h
150 l/s
318 CFM
QUIET 750
410 m3/h
114 l/s
241 CFM
Fan speed
Number of
rotations
(r.p.m.)
Air ow
HIGH 1400
770 m3/h
213 l/s
453 CFM
MED 1230
680 m3/h
188 l/s
400 CFM
LOW 1050
580 m3/h
161 l/s
341 CFM
QUIET 770
420 m3/h
116 l/s
247 CFM

- (01 - 17) -
WALL MOUNTED TYPE ASG07-14LE WALL MOUNTED TYPE ASG07-14LE
OPERATION NOISE8.
NOISE LEVEL CURVE8-1.
MODEL
 : ASG07LE
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
Octave band sound pressure level, dB:(0dB=0.0002µbar)
Octave band center frequency,Hz
80
70
60
50
40
30
20
10
0
63 125 250 500 1,000 2,000 4,000 8,000
MODEL
 : ASG09LE
Cooling
z
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
Heating
z
Octave band sound pressure level, dB:(0dB=0.0002µbar)
Octave band center frequency,Hz
80
70
60
50
40
30
20
10
0
63 125 250 500 1,000 2,000 4,000 8,000
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
High
Quiet
Octave band sound pressure level, dB:(0dB=0.0002µbar)
Octave band center frequency,Hz
80
70
60
50
40
30
20
10
0
63 125 250 500 1,000 2,000 4,000 8,000
Octave band sound pressure level, dB:(0dB=0.0002µbar)
Octave band center frequency,Hz
80
70
60
50
40
30
20
10
0
63 125 250 500 1,000 2,000 4,000 8,000
Heating
z
Octave band sound pressure level, dB:(0dB=0.0002µbar)
Octave band center frequency,Hz
80
70
60
50
40
30
20
10
0
63 125 250 500 1,000 2,000 4,000 8,000
High
Quiet
High
Quiet
High
Quiet
Cooling
z
Octave band sound pressure level, dB:(0dB=0.0002µbar)
Octave band center frequency,Hz
80
70
60
50
40
30
20
10
0
63 125 250 500 1,000 2,000 4,000 8,000
