Fujitsu AS*G09LTCA Service manual

AIR CONDITIONER
Wall Mounted type
INDOOR
OUTDOOR
ASG09LTCA
ASG12LTCA
AOG09LTC AOG12LTC
DESIGN & TECHNICAL MANUAL

1. INDOOR UNIT
WALL MOUNTED TYPE :
ASG09LTCA
ASG12LTCA
DTR_AS054E_03
2011.11.14

WALL MOUNTED TYPE ASG09-12LT WALL MOUNTED TYPE ASG09-12LT
CONTENTS
1. INDOOR UNIT
1. FEATURE.................................................................................................................. 01 - 01
2. WIRELESS REMOTE CONTROLLER............................................... 01 - 03
3. SPECIFICATIONS.............................................................................................. 01 - 05
4. DIMENSIONS ........................................................................................................ 01 - 06
5. WIRING DIAGRAMS........................................................................................ 01 - 08
6. CAPACITY TABLE ............................................................................................ 01 - 09
6-1. COOLING CAPACITY...................................................................................... 01 - 09
6-2. HEATING CAPACITY....................................................................................... 01 - 10
7. FAN PERFORMANCE.....................................................................................01 - 11

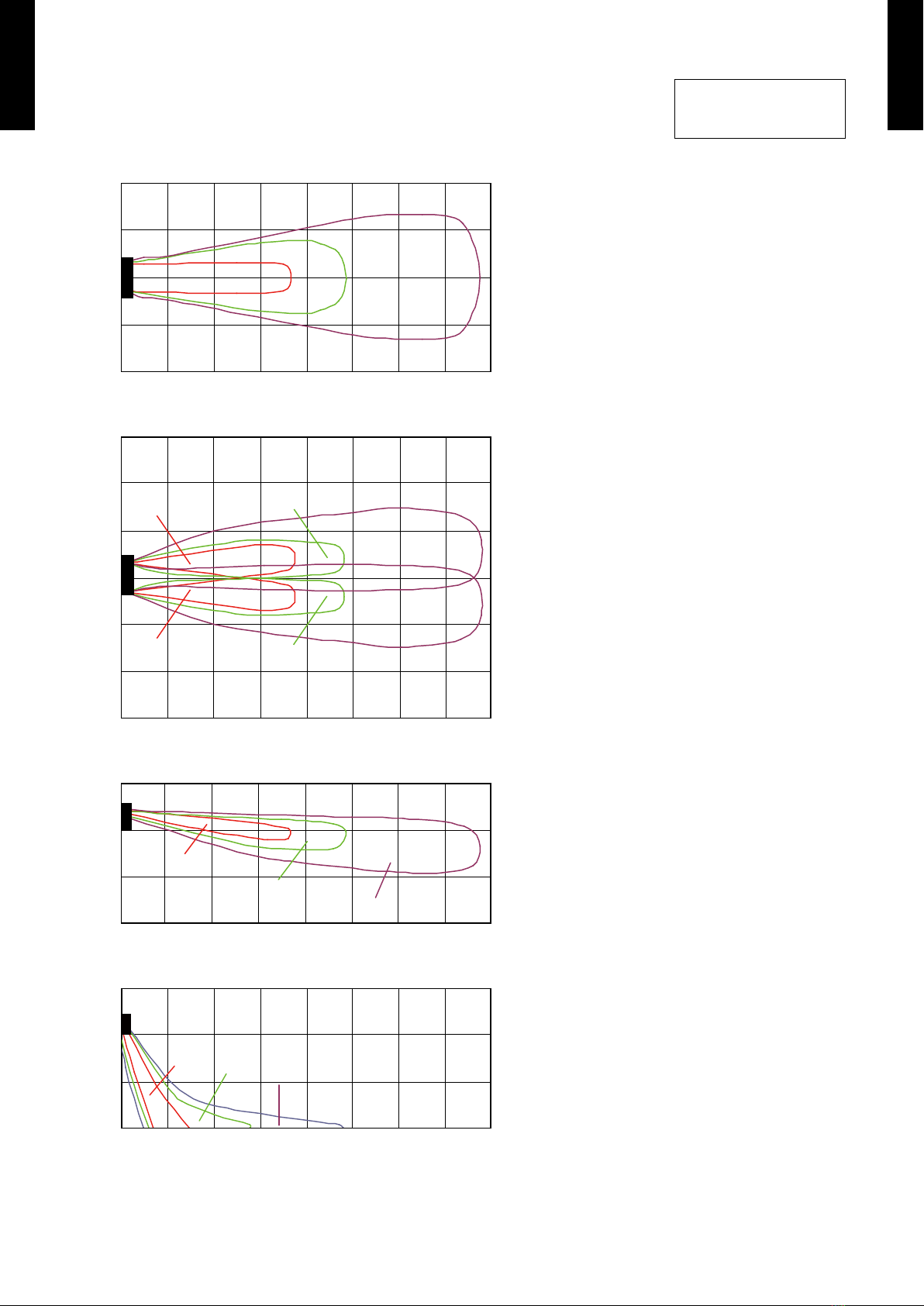

7-1. AIR VELOCITY DISTRIBUTION......................................................................01 - 11
7-2. AIR FLOW.......................................................................................................... 01 - 13
8. OPERATION NOISE......................................................................................... 01 - 15

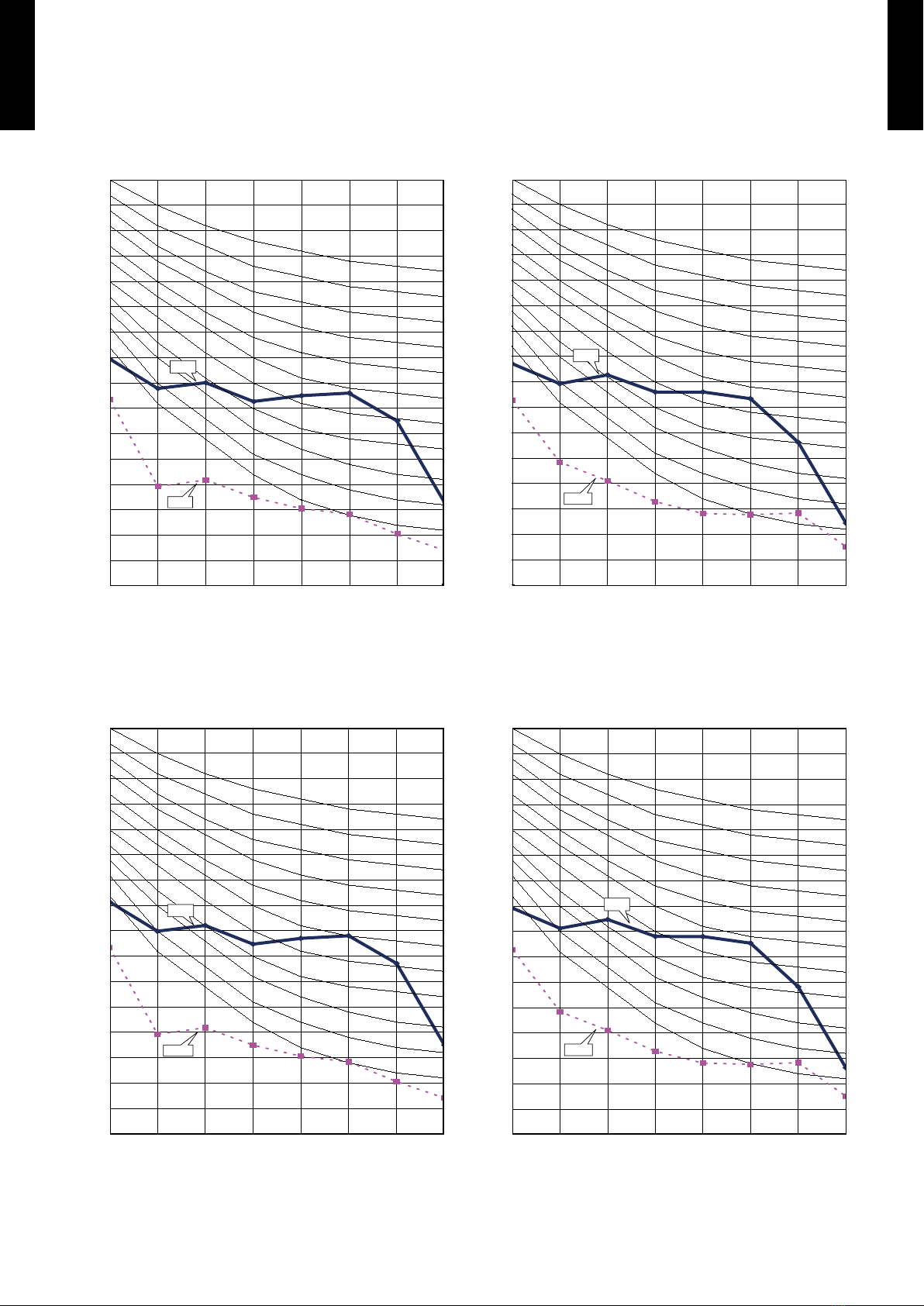

8-1. NOISE LEVEL CURVE .................................................................................... 01 - 15

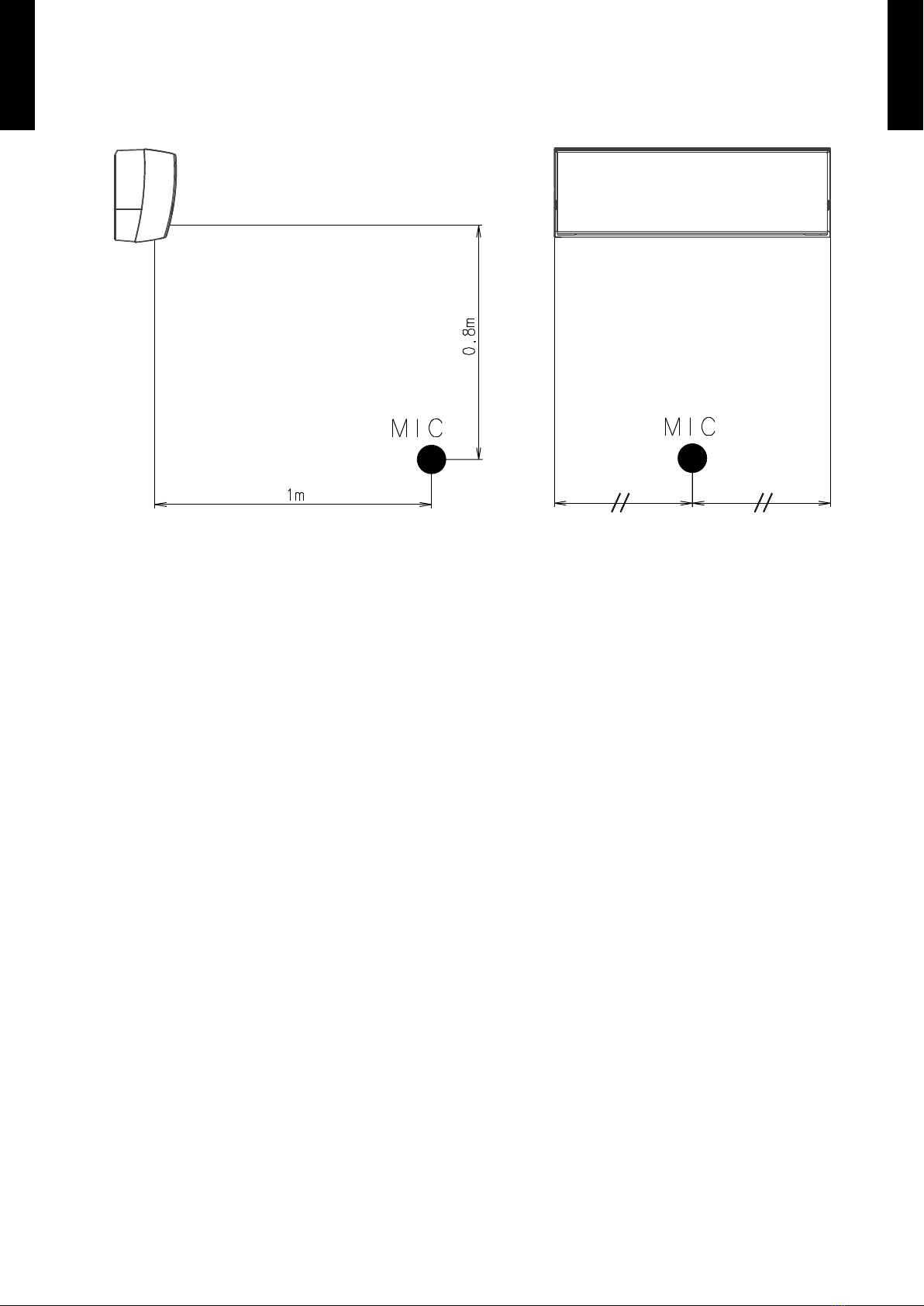

8-2. SOUND LEVEL CHECK POINT..................................................................... 01 - 16
9. ELECTRIC CHARACTERISTICS........................................................... 01 - 17
10. SAFETY DEVICES ............................................................................................ 01 - 18
11. EXTERNAL INPUT & OUTPUT............................................................... 01 - 19
11-1. EXTERNAL INPUT ........................................................................................... 01 - 19
11-2. EXTERNAL OUTPUT....................................................................................... 01 - 21
12. FUNCTION SETTING...................................................................................... 01 - 23
13. OPTIONAL PARTS ........................................................................................... 01 - 27

- (01 - 01) -
WALL MOUNTED TYPE ASG09-12LT WALL MOUNTED TYPE ASG09-12LT
FEATURE1.
MODEL

ASG09LTCA / AOG09LTC
ASG12LTCA / AOG12LTC
FEATURES

Energy-Efciency classication A
z
Europe Energy-Efciency classication A achieved
Thin & Slim design
z
Powerful heating
z
Heating capacity was improved at low outdoor temperature. Rated heating capacity is maintained
even at –7 °C outdoor temperature. This new model can operate even at –20 °C low outdoor
temperature.
0152- 50-5-10-15-20
1.0
2.0
3.0
4.0 New model
Current model
0152- 50-5-7-7 -10-15-20
1.0
2.0
3.0
4.0 New model
Current model
ssalcWk5.3ssalcWk5.2
Heating Capacity (kW) Heating Capacity (kW)
)C°(erutarepmeTroodtuO)C°(erutarepmeTroodtuO
Powerful operation
z *Only available with Wireless RC.
20 minutes continuous operation by maximum airow and maximum compressor speed is
possible. Rapid cooling and heating makes the room comfortable quickly.
Powerful
Setting temp.
Normal mode
Time
Temperature
Ø5mm
20mm
Large fan
Open
panel
Distributor
4-path
Refrigerant
Large intake
Big open panel and High density multi path heat
exchanger
Thin and slim design is realized by Ø5mm heat
exchanger and high efficiency wind blower.
H282 X W870 X D185
185mm
AOG09LTC AOG12LTC

- (01 - 02) -
WALL MOUNTED TYPE ASG09-12LT WALL MOUNTED TYPE ASG09-12LT
Energy saving control
z
Human sensor catches movements of people in a room, and operates with lower capacity when the room
is empty. When people come back to the room, it automatically returns to previous operating mode.
Energy saving operation by detecting someone’s movement
Human
sensor
10°C HEAT Operation
z *Only available with Wireless RC.
The room temperature can be set to go no lower than 10°C,
thus ensuring that the room does not get too cold when not occupied
Caution)
When the room temperature is higher than 10°C, “•10°C HEAT” operation does not start. Operation starts and maintains the room
temperature at 10°C when the temperature drops below 10°C.
When “•10°C HEAT” operation stops, the room set temperature quickly returns to the preset temperature.
Outdoor unit low noise
z *Only available with Wireless RC.
When air-conditioner operates in large capacity, operation noise of outdoor unit will be suppressed. In case
of room temperature being close to setting temperature, operation noise might not decrease.
Rated
noise level
3 dB
Down
Low noise
mode
Economy operation
z
Example : Cooling operation
Temp.
Economy operation
Shift
setting
temp
Control maxmum current
Nomal operation Time
Set temperature
3 Mode timer (Weekly/Program/Sleep)
z *Only available with Wireless RC.
Weekly timer can be easily set by wireless remote controller.
ON, OFF can be set up to 4 times in 1 day and up to 28 times in 1 week.
For other modes, program timer and sleep timer can be also selected by one push.
Low outdoor air temperature correspondence
z
50
40
30
20
10
0
-10
-20 -20°C
Cooling
24°C
Heating
43°C
-10°C
10°C
20°C
“10°C HEAT”
Button ON
Indoor unit
operation START
Economy operation is energy saving, as the set•
temperature of indoor unit is shifted by 1°C and
the maximum electric value of the outdoor unit is
suppressed.

- (01 - 03) -
WALL MOUNTED TYPE ASG09-12LT WALL MOUNTED TYPE ASG09-12LT
WIRELESS REMOTE CONTROLLER2.
FEATURES

3 Mode timer setup

(Weekly / Program / Sleep) are possible.
Easy operation.

Easy to change signal code (4 patterns) by button operation.

Simple function setting
z
Setting of the air conditioner selection function is performed by remote controller.
Built-in timers
z
Select from Three different timer programs (Weekly / Program / Sleep).
Weekly timer
z
Weekly timer can be easily set by wireless remote controller.
ON, OFF can be set up to 4 times in 1 day and up to 28 times in 1 week.
Program timer
z
The program timer operates the on and off timer once within a 24 hour period.

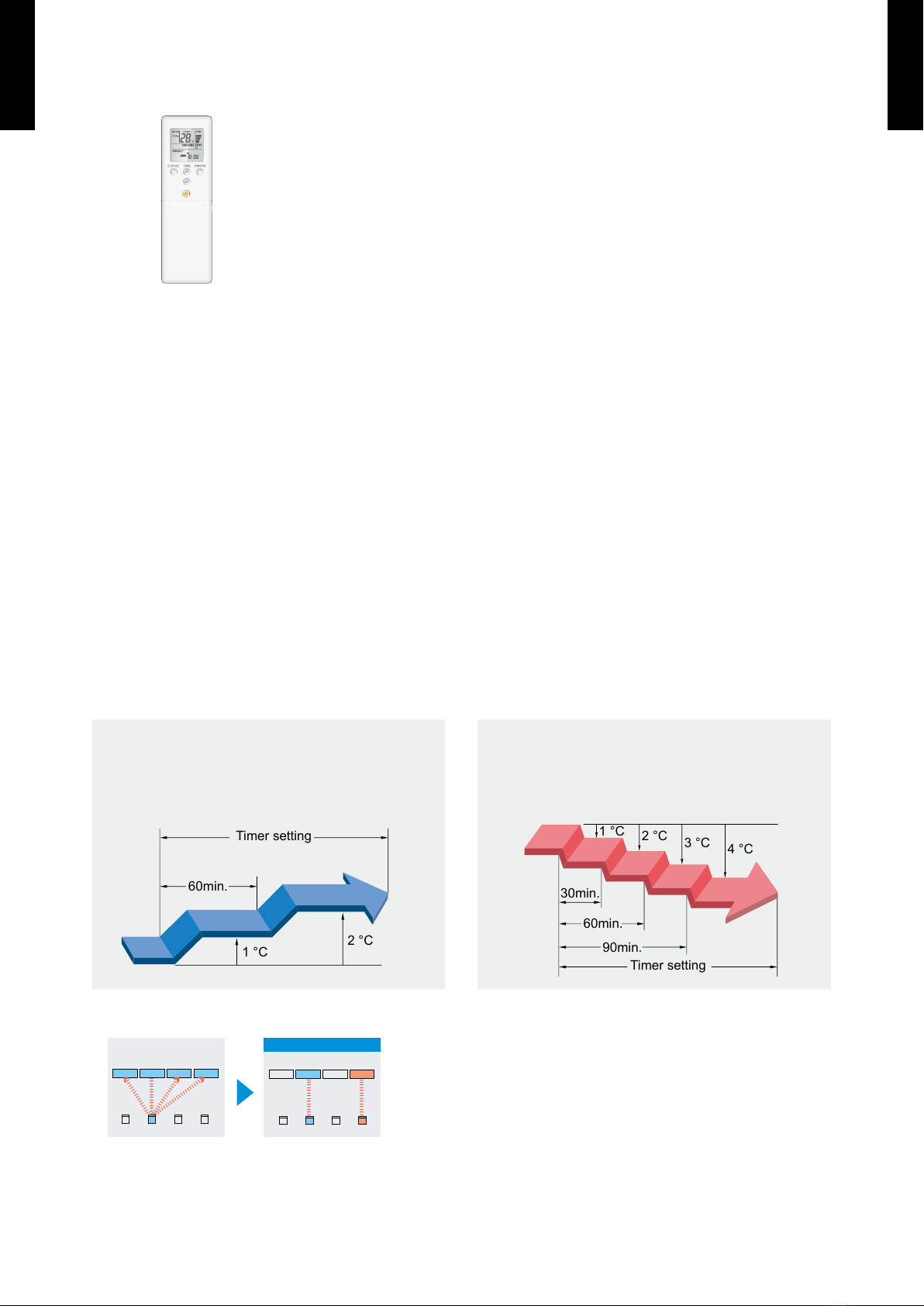

Sleep timer
z
The sleep timer function automatically corrects the temperature thermostat setting according to
the timer setting to prevent excessive cooling and heating while sleeping.
60min.
1 °C 2 °C
Timer setting
1 °C
30min.
60min.
90min.
2 °C 3 °C 4 °C
Timer setting
Cooling operation/dry operation
When the sleep timer is set, the set temperature
automatically rises 1 °C every hour. The set
temperature can rise up to a maximum of 2 °C.
Heating operation
When the sleep timer is set, the set temperature
automatically drops 1 °C every 30 minutes. The set
temperature can drop to a maximum of 4 °C.
Switching remote controller signal code
z
A B C D
A B CD
Mixed-up
I.U. I.U. I.U. I.U. I.U. I.U. I.U. I.U.
After code change
Code selector switch eliminates unit

•
being wrongly switched.
(Up to 4 codes can be set.)
*I.U.=Indoor unit

- (01 - 04) -
WALL MOUNTED TYPE ASG09-12LT WALL MOUNTED TYPE ASG09-12LT
FUNCTIONS

Signal
Transmitter
10 °C HEAT
button
TEMP.
button
POWERFUL
button
START/STOP
button
MODE button
SENSOR button
ECONOMY button
OUTDOOR UNIT
LOW NOISE button
SWING button
TIMER SETTING button
SEND button
SELECT button
NEXT button
BACK button
SET button
WEEKLY button
ON/OFF button
SLEEP button
FAN button
RESET button
CLOCK ADJUST button
Display panel
To facilitate explanation, the accompanying illustration has been drawn to show all possible indicators; in actual operation,
however, the display will only show those indicators appropriate to the current operation.
MODE Display
ENERGY SAVING
MODE Display
LOW NOISE MODE
Display
Turns ON when the

SENSOR button is operated.
CLOCK & TIMER
Display
SEND Display
TEMPERATURE Display Transmit Indicator
Display
FAN Speed Display
SWING Display
SPECIFICATION

SIZE (H x W x D mm) 205 x 61 x 17
WEIGHT ( g ) 122
ACCESSORY Holder

- (01 - 05) -
WALL MOUNTED TYPE ASG09-12LT WALL MOUNTED TYPE ASG09-12LT
SPECIFICATIONS3.
Note:
Specications are based on the following conditions
Cooling:Indoor temperature of 27 °CDB/19 °CWB.and outdoor temperature of 35 °CDB/24 °CWB.
Heating:Indoor temperature of 20 °CDB/15 °CWB.and outdoor temperature of 7° CDB/6 °CWB.
Pipe length:5m,Height difference:0m(Outdoor unit-Indoor unit)
The maximum current is the maximum value when the operated within the operation range(temperature).
The protective function might work when using it outside the operation range.
Type WALL MOUNTED
INVERTER HEAT PUMP
Model name ASG09LTCA ASG12LTCA
Power source 230V~ 50Hz
Available voltage range 198-264V~ 50Hz
European energy label Cooling A A
Heating A A
Capacity
Cooling
Rated kW 2.50 3.50
Btu/h 8,500 11,900
Min-Max kW 0.9-3.5 1.1- 4.0
Btu/h 3,100-11,900 3,800-13,600
Heating
Rated kW 3.20 4.00
Btu/hh 10,900 13,600
Min-Max kW 0.9-5.4 0.9-6.5
Btu/h 3,100-18,400 3,10 0 -2 2,10 0
Input power
Cooling Rated
kW
0.505 0.850
Min-Max 0.25-1.26 0.20-1.70
Heating Rated 0.660 0.910
Min-Max 0.25-1.92 0.20-2.60
Current
Cooling Rated
A
2.6 4.0
Max 6.5 9.0
Heating Rated 3.3 4.3
Max 9.0 10.5
EER Cooling kW/kW 4.95 4.12
COP Heating 4.85 4.40
SENSIBLE CAPACITY Cooling kW 1.62 2.28
POWER FACTOR Cooling %84 92
Heating 87 92
Moisture removal l/h(pints/h) 1.3(2.3) 1.8(3.2)
FAN
Airow
rate
Cooling
High
m3/h
800 850
Med 640 670
Low 550 550
Quiet 330 330
Heating
High 800 850
Med 670 710
Low 550 550
Quiet 330 330
Type× Q’ty Cross ow fanx1
Motor output W 29
Sound pressure level
Cooling
High
dB(A)
42 43
Med 36 37
Low 32 32
Quiet 21 21
Heating
High 42 43
Med 37 38
Low 32 32
Quiet 21 21
Heat exchanger type
Dimensions
(H×W×D) mm
320x690x20
Sub 84x690x13.3
Fin pitch 1.1
Sub 1.4
Rows Stages 2x20
Sub 1x4
Pipe type Copper
Fin type Aluminium
Enclosure Material Polystyrene
Colour Pearl silver
Dimensions
(H×W×D)
Net mm 282x870x185
Gross 247x920x373
Weight Net kg 9.5
Gross 12
Connection pipe Size Liquid mm Ø6.35(Ø1/4in)
Gas Ø9.52(Ø3/8in)
Method Flare
Operation range Cooling °C 18 to 32
%RH 80 or less
Heating °C 16 to 30
Remote controller type Wireless
Drain pipe
Material PP+LLDPE
Size mm Outer diameter:15.8 to 16.7
Inner diameter:13.8

- (01 - 06) -
WALL MOUNTED TYPE ASG09-12LT WALL MOUNTED TYPE ASG09-12LT
DIMENSIONS4.
MODEL
 : ASG09LT, ASG12LT
(Unit : mm)
282
581078
187: Installed state

- (01 - 07) -
WALL MOUNTED TYPE ASG09-12LT WALL MOUNTED TYPE ASG09-12LT

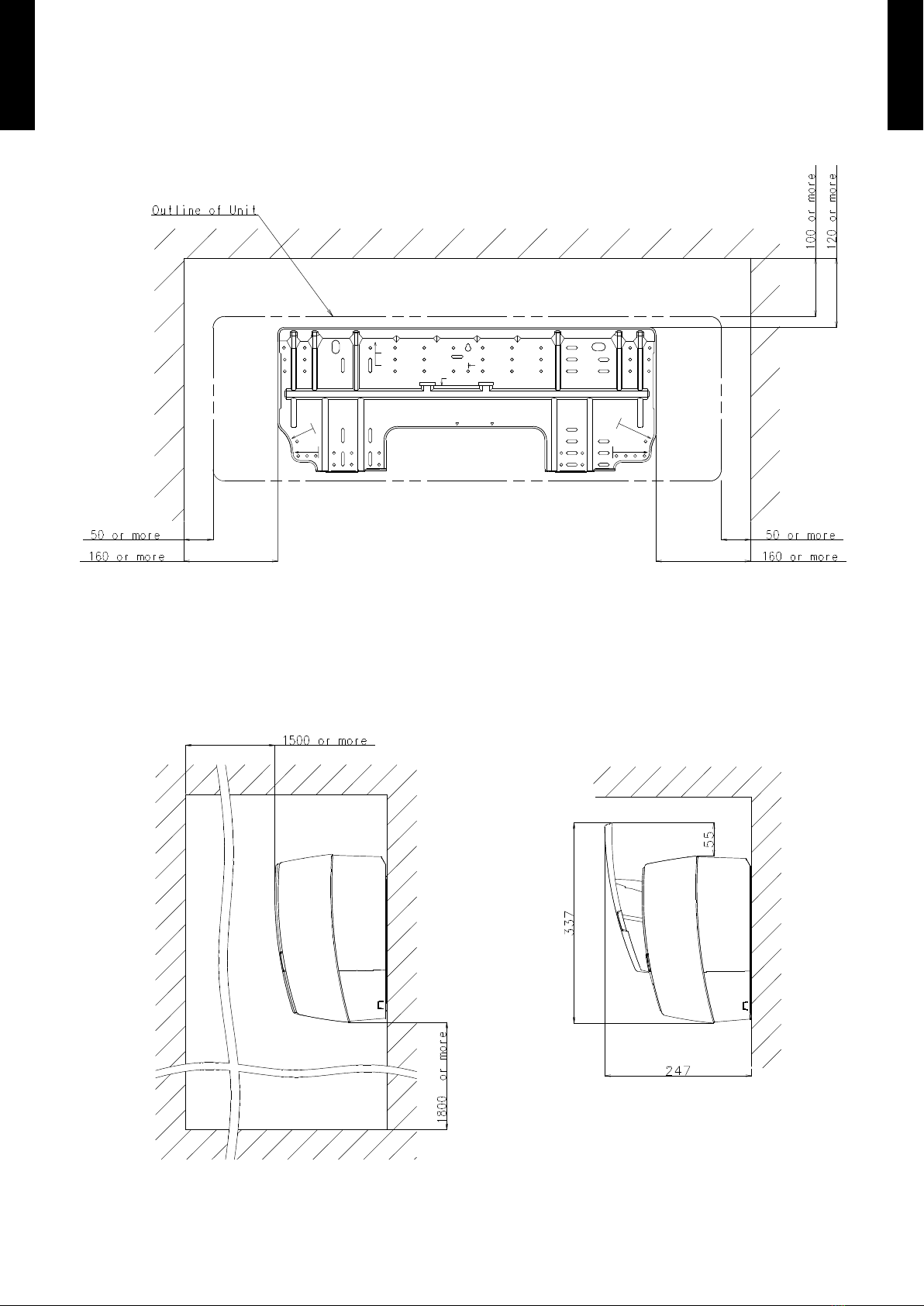

INSTALLATION PLACE

(Unit : mm)

- (01 - 08) -
WALL MOUNTED TYPE ASG09-12LT WALL MOUNTED TYPE ASG09-12LT
WIRING DIAGRAMS5.
MODEL
 : ASG09LT, ASG12LT

- (01 - 09) -
WALL MOUNTED TYPE ASG09-12LT WALL MOUNTED TYPE ASG09-12LT
CAPACITY TABLE6.
COOLING CAPACITY6-1.
MODEL
 : ASG09LT
MODEL
 : ASG12LT
AFR : Air Flow Rate (m3/min)
TC : Total Capacity (kW)
SHC : Sensible Heat Capacity (kW)
IP : Input Power (kW)
AFR 13.3
Indoor temperature
°CDB 18 21 23 25 27 29 32
°CWB 12 15 16 18 19 21 23
Outdoor temperature
°CDB TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP
20 2.34 1.62 0.35 2.61 1.63 0.36 2.70 1.77 0.36 2.87 1.78 0.37 2.96 1.92 0.37 3.14 1.91 0.37 3.32 2.04 0.37
25 2.22 1.54 0.40 2.48 1.55 0.40 2.56 1.68 0.41 2.73 1.69 0.41 2.81 1.82 0.41 2.98 1.82 0.42 3.15 1.93 0.42
30 2.10 1.45 0.44 2.34 1.46 0.45 2.42 1.59 0.45 2.58 1.60 0.46 2.66 1.72 0.46 2.82 1.72 0.46 2.98 1.83 0.47
35 1.98 1.37 0.49 2.20 1.38 0.49 2.28 1.50 0.50 2.43 1.50 0.50 2.50 1.62 0.51 2.65 1.61 0.51 2.80 1.72 0.52
40 1.76 1.22 0.49 1.96 1.23 0.49 2.03 1.33 0.50 2.16 1.34 0.50 2.23 1.44 0.50 2.36 1.44 0.51 2.50 1.53 0.51
43 1.63 1.13 0.49 1.82 1.14 0.49 1.88 1.24 0.50 2.00 1.24 0.50 2.07 1.34 0.50 2.19 1.33 0.51 2.31 1.42 0.51
AFR 14.2
Indoor temperature
°CDB 18 21 23 25 27 29 32
°CWB 12 15 16 18 19 21 23
Outdoor temperature
°CDB TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP
20 3.28 2.28 0.58 3.65 2.30 0.59 3.77 2.50 0.59 4.02 2.50 0.60 4.15 2.70 0.60 4.40 2.69 0.61 4.64 2.87 0.62
25 3.12 2.17 0.66 3.47 2.18 0.67 3.59 2.37 0.67 3.83 2.38 0.68 3.95 2.57 0.68 4.18 2.56 0.69 4.42 2.72 0.70
30 2.95 2.05 0.74 3.28 2.06 0.75 3.40 2.24 0.75 3.62 2.25 0.76 3.73 2.43 0.77 3.96 2.42 0.77 4.18 2.57 0.78
35 2.77 1.93 0.82 3.08 1.94 0.83 3.19 2.11 0.84 3.40 2.11 0.85 3.50 2.28 0.85 3.71 2.27 0.86 3.92 2.42 0.87
40 2.34 1.72 0.76 2.60 1.73 0.77 2.69 1.88 0.78 2.87 1.88 0.79 2.96 2.03 0.79 3.14 2.02 0.80 3.31 2.16 0.81
43 2.15 1.59 0.76 2.40 1.60 0.78 2.48 1.74 0.78 2.64 1.75 0.79 2.72 1.89 0.79 2.89 1.88 0.80 3.05 2.00 0.81

- (01 - 10) -
WALL MOUNTED TYPE ASG09-12LT WALL MOUNTED TYPE ASG09-12LT
HEATING CAPACITY6-2.
MODEL
 :
ASG09LT
MODEL
 : ASG12LT
AFR : Air Flow Rate (m3/min)
TC : Total Capacity (kW)
IP : Input Power (kW)
AFR 13.3
Indoor temperature
(°CDB) 16 18 20 22 24
Outdoor temperature
(°CDB) (°CWB) TC IP TC IP TC IP TC IP TC IP
-20 -21 3.35 1.24 3.27 1.26 3.19 1.29 3.11 1.32 3.03 1.34
-15 -16 3.74 1.31 3.65 1.34 3.56 1.37 3.47 1.39 3.38 1.42
-10 -11 4.03 1.40 3.93 1.43 3.84 1.46 3.74 1.49 3.64 1.51
-5 -7 4.25 1.45 4.15 1.48 4.04 1.51 3.94 1.54 3.84 1.57
0-2 4.36 1.44 4.26 1.47 4.16 1.50 4.05 1.53 3.95 1.56
5 3 5.17 1.50 5.04 1.53 4.92 1.56 4.80 1.59 4.67 1.62
7 6 5.67 1.54 5.54 1.57 5.40 1.61 5.27 1.64 5.13 1.67
10 8 6.27 1.51 6.12 1.54 5.97 1.57 5.82 1.60 5.67 1.63
15 10 6.49 1.41 6.34 1.44 6.18 1.47 6.03 1.50 5.88 1.53
AFR 14.2
Indoor temperature
(°CDB) 16 18 20 22 24
Outdoor temperature
(°CDB) (°CWB) TC IP TC IP TC IP TC IP TC IP
-20 -21 4.10 2.02 4.00 2.06 3.90 2.10 3.80 2 .14 3.71 2.18
-15 -16 4.62 2.02 4.51 2.06 4.40 2.10 4.29 2.15 4.18 2.19
-10 -11 4.69 1.94 4.57 1.98 4.46 2.02 4.35 2.06 4.24 2.10
-5 -7 4.77 1.87 4.66 1.91 4.54 1.95 4.43 1.99 4.32 2.02
0-2 4.89 1.80 4.77 1.84 4.66 1.88 4.54 1.91 4.42 1.95
5 3 6.07 1.86 5.92 1.90 5.78 1.94 5.64 1.98 5.49 2.02
7 6 6.83 1.92 6.66 1.96 6.50 2.00 6.34 2.04 6.18 2.08
10 8 7.54 1.94 7.36 1.98 7.18 2.02 7.00 2.06 6.82 2.10
15 10 7.82 1.95 7.63 1.99 7.44 2.03 7.26 2.07 7.07 2.11

- (01 - 11) -
WALL MOUNTED TYPE ASG09-12LT WALL MOUNTED TYPE ASG09-12LT
FAN PERFORMANCE7.
AIR VELOCITY DISTRIBUTION7-1.
MODEL
 : ASG09LT
Note:
Fan speed : High
Operation mode : FAN
1.5 1.0 0.5
2
1
0
-1
-2
Unit : m/s(m)
(m)
TOP VIEW
Vertical ap : Up
Horizontal ap : Center
012345678
1.5
1.5
1.0
1.0
0.5
0.5
3
2
1
0
-1
-2
-3
Unit : m/s(m)
TOP VIEW
Vertical ap : Up
Horizontal ap : Right & Left
(m)
012345678
1.5
1.0
0.5
3
2
1
0
Unit : m/s(m)
SIDE VIEW
Vertical ap : Up
Horizontal ap : Center
(m)
012345678
1.5
1.0
0.5
3
2
1
0
Unit : m/s(m)
SIDE VIEW
Vertical ap : Down
Horizontal ap : Center
(m)
012345678

- (01 - 12) -
WALL MOUNTED TYPE ASG09-12LT WALL MOUNTED TYPE ASG09-12LT
MODEL
 : ASG12LT
Note:
Fan speed : High
Operation mode : FAN
1.5
1.0
0.5
2
1
0
-1
-2
Unit : m/s(m)
(m)
TOP VIEW
Vertical ap : Up
Horizontal ap : Center
012345678
0.5
0.5
1.0
1.0
1.5
1.5
3
2
1
0
-1
-2
-3
Unit : m/s(m)
TOP VIEW
Vertical ap : Up
Horizontal ap : Right & Left
(m)
012345678
1.5
1.0
0.5
3
2
1
0
Unit : m/s(m)
SIDE VIEW
Vertical ap : Up
Horizontal ap : Center
(m)
012345678
1.5
1.0
0.5
3
2
1
0
Unit : m/s(m)
SIDE VIEW
Vertical ap : Down
Horizontal ap : Center
(m)
012345678

- (01 - 13) -
WALL MOUNTED TYPE ASG09-12LT WALL MOUNTED TYPE ASG09-12LT
AIR FLOW7-2.
MODEL
 : ASG09LT
Cooling
z
Heating
z
Fan speed
Number of
rotations
(r.p.m.)
Air ow
HIGH 1300
800 m3/h
222 l/s
471 CFM
MED 1080
640 m3/h
178 l/s
376 CFM
LOW 960
550 m3/h
153 l/s
324 CFM
QUIET 650
330 m3/h
92 l/s
194 CFM
Fan speed
Number of
rotations
(r.p.m.)
Air ow
HIGH 1300
800 m3/h
222 l/s
471 CFM
MED 1120
670 m3/h
186 l/s
394 CFM
LOW 960
550 m3/h
153 l/s
324 CFM
QUIET 650
330 m3/h
92 l/s
194 CFM

- (01 - 14) -
WALL MOUNTED TYPE ASG09-12LT WALL MOUNTED TYPE ASG09-12LT
MODEL
 : ASG12LT
Cooling
z
Heating
z
Fan speed
Number of
rotations
(r.p.m.)
Air ow
HIGH 1370
850 m3/h
236 l/s
500 CFM
MED 1120
670 m3/h
186 l/s
394 CFM
LOW 960
550 m3/h
153 l/s
324 CFM
QUIET 650
330 m3/h
92 l/s
194 CFM
Fan speed
Number of
rotations
(r.p.m.)
Air ow
HIGH 1370
850 m3/h
236 l/s
500 CFM
MED 118 0
710 m3/h
197 l/s
418 CFM
LOW 960
550 m3/h
153 l/s
324 CFM
QUIET 650
330 m3/h
92 l/s
194 CFM

- (01 - 15) -
WALL MOUNTED TYPE ASG09-12LT WALL MOUNTED TYPE ASG09-12LT
OPERATION NOISE8.
NOISE LEVEL CURVE8-1.
MODEL
 : ASG09LT
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
Octave band sound pressure level, dB:(0dB=0.0002µbar)
Octave band center frequency,Hz
80
70
60
50
40
30
20
10
0
63 125 250 500 1,000 2,000 4,000 8,000
MODEL
 : ASG12LT
Cooling
z
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
Heating
z
Octave band sound pressure level, dB:(0dB=0.0002µbar)
Octave band center frequency,Hz
80
70
60
50
40
30
20
10
0
63 125 250 500 1,000 2,000 4,000 8,000
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
High
Quiet
Octave band sound pressure level, dB:(0dB=0.0002µbar)
Octave band center frequency,Hz
80
70
60
50
40
30
20
10
0
63 125 250 500 1,000 2,000 4,000 8,000
Octave band sound pressure level, dB:(0dB=0.0002µbar)
Octave band center frequency,Hz
80
70
60
50
40
30
20
10
0
63 125 250 500 1,000 2,000 4,000 8,000
Heating
z
Octave band sound pressure level, dB:(0dB=0.0002µbar)
Octave band center frequency,Hz
80
70
60
50
40
30
20
10
0
63 125 250 500 1,000 2,000 4,000 8,000
High
Quiet
High
Quiet
High
Quiet
Cooling
z
Octave band sound pressure level, dB:(0dB=0.0002µbar)
Octave band center frequency,Hz
80
70
60
50
40
30
20
10
0
63 125 250 500 1,000 2,000 4,000 8,000

- (01 - 16) -
WALL MOUNTED TYPE ASG09-12LT WALL MOUNTED TYPE ASG09-12LT
SOUND LEVEL CHECK POINT8-2.

- (01 - 17) -
WALL MOUNTED TYPE ASG09-12LT WALL MOUNTED TYPE ASG09-12LT
ELECTRIC CHARACTERISTICS9.
Model name ASG09LT ASG12LT
Power supply Voltage V230~
Frequency Hz 50
Max. operating current A 0.4
*1)Wiring Spec. Connection cable mm21.0-1.5 1.5
Limited wiring length m 21
*1) Wiring Spec.
Selected Sample
(Selected based on Japan Electrotechnical Standard and Codes Committee E0005)
