Fujitsu ASYG07KGTE Service manual

AIR CONDITIONER
Wall mounted type
DESIGN & TECHNICAL MANUAL
INDOOR
ASYG07KGTE
ASYG09KGTE
ASYG12KGTE
ASYG14KGTE
OUTDOOR
AOYG07KGCA
AOYG09KGCA
AOYG12KGCA
AOYG14KGCA
DR_AS153EF_01
2022.03.11

Notices:
• Product specifications and design are subject to change without notice for future improvement.
• For further details, please check with our authorized dealer.
Trademarks
FGLair™ is trademark of Fujitsu General Limited in the United States, other countries or both.
Google Play™ is trademark of Google Inc.
App Store® is a service mark of Apple Inc., registered in the U.S. and other countries.
Copyright © 2022 Fujitsu General Limited. All rights reserved.

CONTENTS
Part 1. INDOOR UNIT...........................................................................1
1. Specifications................................................................................................2
2. Dimensions....................................................................................................4
2-1. Models: ASYG07KGTE, ASYG09KGTE, ASYG12KGTE, and ASYG14KGTE................4
3. Wiring diagrams ............................................................................................6
3-1. Models: ASYG07KGTE, ASYG09KGTE, ASYG12KGTE, and ASYG14KGTE................6
4. Capacity table................................................................................................7
4-1. Cooling capacity...............................................................................................................7
4-2. Heating capacity ..............................................................................................................9
5. Fan performance .........................................................................................10
5-1. Air velocity distributions..................................................................................................10
5-2. Airflow ............................................................................................................................12
6. Operation noise (sound pressure).............................................................16
6-1. Noise level curve............................................................................................................16
6-2. Sound level check point .................................................................................................18
7. Safety devices .............................................................................................19
8. External input and output...........................................................................20
8-1. External input.................................................................................................................21
8-2. External output...............................................................................................................24
8-3. Setting of external input and output ...............................................................................26
8-4. Details of control input function ......................................................................................27
8-5. Details of control output function....................................................................................31
9. Group connection .......................................................................................33
10. Remote controller .......................................................................................34
10-1.Wireless remote controller ............................................................................................34
11. Function settings .......................................................................................36
11-1.Function settings by using remote controller.................................................................36
11-2.Custom code setting for wireless remote controller.......................................................43
12. Accessories.................................................................................................44
12-1.Models: ASYG07KGTE, ASYG09KGTE, ASYG12KGTE, and ASYG14KGTE.............44
13. Optional parts .............................................................................................45
13-1.Controllers ....................................................................................................................45
13-2.Others ...........................................................................................................................46

Part 2. OUTDOOR UNIT.....................................................................47
1. Specifications..............................................................................................48
2. Dimensions..................................................................................................49
2-1. Models: AOYG07KGCA, AOYG09KGCA, AOYG12KGCA, and AOYG14KGCA...........49
3. Installation space ........................................................................................50
3-1. Models: AOYG07KGCA, AOYG09KGCA, AOYG12KGCA, and AOYG14KGCA...........50
4. Refrigerant circuit .......................................................................................53
4-1. Models: AOYG07KGCA, AOYG09KGCA, AOYG12KGCA, and AOYG14KGCA...........53
5. Wiring diagrams ..........................................................................................54
5-1. Models: AOYG07KGCA, AOYG09KGCA, AOYG12KGCA, and AOYG14KGCA...........54
6. Capacity compensation rate for pipe length and height difference........55
6-1. Models: AOYG07KGCA, AOYG09KGCA, AOYG12KGCA, and AOYG14KGCA...........55
7. Additional charge calculation ....................................................................56
7-1. Models: AOYG07KGCA and AOYG09KGCA ................................................................56
7-2. Models: AOYG12KGCA and AOYG14KGCA ................................................................56
8. Airflow..........................................................................................................57
8-1. Model: AOYG07KGCA...................................................................................................57
8-2. Model: AOYG09KGCA...................................................................................................57
8-3. Models: AOYG12KGCA and AOYG14KGCA ................................................................57
9. Operation noise (sound pressure).............................................................58
9-1. Noise level curve............................................................................................................58
9-2. Sound level check point .................................................................................................60
10. Electrical characteristics............................................................................61
11. Safety devices .............................................................................................62
12. Accessories.................................................................................................63
12-1.Models: AOYG07KGCA, AOYG09KGCA, AOYG12KGCA, and AOYG14KGCA..........63
CONTENTS (continued)

Part 1. INDOOR UNIT
WALL MOUNTED TYPE:
ASYG07KGTE
ASYG09KGTE
ASYG12KGTE
ASYG14KGTE

1. Specifications
Type
Wall mounted
Inverter heat pump
Model name ASYG07KGTE ASYG09KGTE ASYG12KGTE ASYG14KGTE
Power supply 230 V ~ 50- Hz
Available voltage range 198—264 V
Capacity
Cooling
Rated kW 2.00 2.50 3.40 4.20
Btu/h 6,800 8,500 11,600 14,300
Min.—Max. kW 0.9—3.2 0.9—3.4 0.9—4.1 0.9—4.5
Btu/h 3,100—10,900 3,100—11,600 3,100—14,000 3,100—15,400
Heating
Rated kW 2.50 2.80 4.00 5.40
Btu/h 8,500 9,500 13,600 18,400
Min.—Max. kW 0.9—5.2 0.9—5.4 0.9—6.1 0.9—6.4
Btu/h 3,100—17,700 3,100—18,400 3,100—20,800 3,100—21,800
Input power
Cooling Rated
kW
0.400 0.555 0.805 1.175
Min.—Max. 0.25—0.95 0.25—1.04 0.25—1.29 0.25—1.46
Heating Rated 0.500 0.560 0.910 1.350
Min.—Max. 0.25—1.58 0.25—1.72 0.25—1.89 0.25—2.06
Fan
HIGH
W
22.9 26.9 26.6 32.5
MED 15.8 16.9 17.3 19.6
LOW 10.8 10.8 11.8 12.5
QUIET 7.6 9.0 9.1
Current Cooling Rated A 2.3 3.0 4.3 5.3
Heating 2.8 3.5 4.8 6.4
EER Cooling kW/kW 5.00 4.50 4.22 3.57
COP Heating 5.00 4.40 4.00
Sensible capacity Cooling kW 1.2 1.6 2.2 3.2
Power factor Cooling %76 80 81 96
Heating 78 70 82 92
Moisture removal L/h (pints/h) 1.0 (1.8) 1.3 (2.3) 1.8 (3.2) 2.1 (3.7)
Maximum operating current *1 Cooling A6.5 9.0
Heating 9.0 10.5
Fan
Airflow rate
Cooling
HIGH
m3/h
650 700 770
MED 540 560 600
LOW 430 450
QUIET 270 250 280
Heating
HIGH 720 750 770 800
MED 580 610 640 660
LOW 460 470 520
QUIET 330 310 340
Type × Q'ty Crossflow fan × 1
Motor output W 30 49
Sound pressure level *2
Cooling
HIGH
dB (A)
38 40 43
MED 33 34 35 36
LOW 29 30
QUIET 19 20
Heating
HIGH 41 42 44
MED 35 36 38 39
LOW 31 33
QUIET 21 24
Heat exchanger type
Dimensions (H × W × D) mm
Main1: 210 × 670 × 26.6
Main2: 112 × 670 × 20
Main1: 210 × 670 × 26.6
Main2: 112 × 670 × 20
Sub: 84 × 670 × 13.3
Fin pitch Man1: 1.2, Main2: 1.1 Man1: 1.2, Main2: 1.1, Sub: 1.4
Rows × Stages Main1: 2 × 10, Main2: 2 × 7 Main1: 2 × 10, Main2: 2 × 7, Sub: 1 × 4
Pipe type Copper
Fin type Aluminum
Enclosure
Material Polystyrene
Color White + Pearl white (painted)
Approximate color of Munsell N 9.25/
Dimensions
(H × W × D)
Net mm 270 × 834 × 215
Gross 277 × 914 × 332
Weight Net kg 10.0
Gross 12.5 13.0
Connection pipe Size Liquid mm (in) Ø 6.35 (Ø 1/4) Gas Ø 9.52 (Ø 3/8)
Method Flare
Drain hose Material PP+HDPE
Tip diameter mm Ø 13.8 (I.D.), Ø 15 to Ø 16.8 (O.D.)
Operation range Cooling °C 18 to 32 %RH 80 or less
Heating °C 16 to 30
Remote controller type Wireless (Wired, Mobile app*3 [FGLair™] [option])
NOTES:
• Specifications are based on the following conditions:
– Cooling: Indoor temperature of 27 °CDB/19 °CWB, and outdoor temperature of 35 °CDB/24 °CWB.
– Heating: Indoor temperature of 20 °CDB/15 °CWB, and outdoor temperature of 7 °CDB/6 °CWB.
– Pipe length: 5 m, Height difference: 0 m. (Between outdoor unit and indoor unit.)
• Protective function might work when using it outside the operation range.
• *1: Maximum current is maximum value when operated within the operation range.
• *2: Sound pressure level:
– Measured values in manufacturer’s anechoic chamber.
– Because of the surrounding sound environment, the sound levels measured in actual installation conditions might be higher than the specified values here.
• *3: Available on Google Play™ store or on App Store®. Optional WLAN adapter is also required. For details, refer to the setting manual.
- 2 - 1. Specifications
WALL MOUNTED ASYG07-14KGT WALL MOUNTED ASYG07-14KGT

Specifications for ErP Lot10
Model name ASYG07KGTE ASYG09KGTE ASYG12KGTE ASYG14KGTE
Energy efficiency class Cooling A+++ A++
Heating (Average) A+++ A+
Pdesign Cooling kW 2.0 (35 °C) 2.5 (35 °C) 3.4 (35 °C) 4.2 (35 °C)
Heating (Average) 2.3 (-10 °C) 2.4 (-10 °C) 2.5 (-10 °C) 4.0 (-10 °C)
SEER Cooling kWh/kWh 9.1 9.2 8.3
SCOP Heating (Average) 5.3 5.2 4.5
Annual energy consumption QCE kWh/a 77 95 129 177
QHE (Average) 607 645 672 1,242
Sound power level Cooling HIGH dB (A) 54 55 56 57
Heating 56 57 58 59
- 3 - 1. Specifications
WALL MOUNTED ASYG07-14KGT WALL MOUNTED ASYG07-14KGT

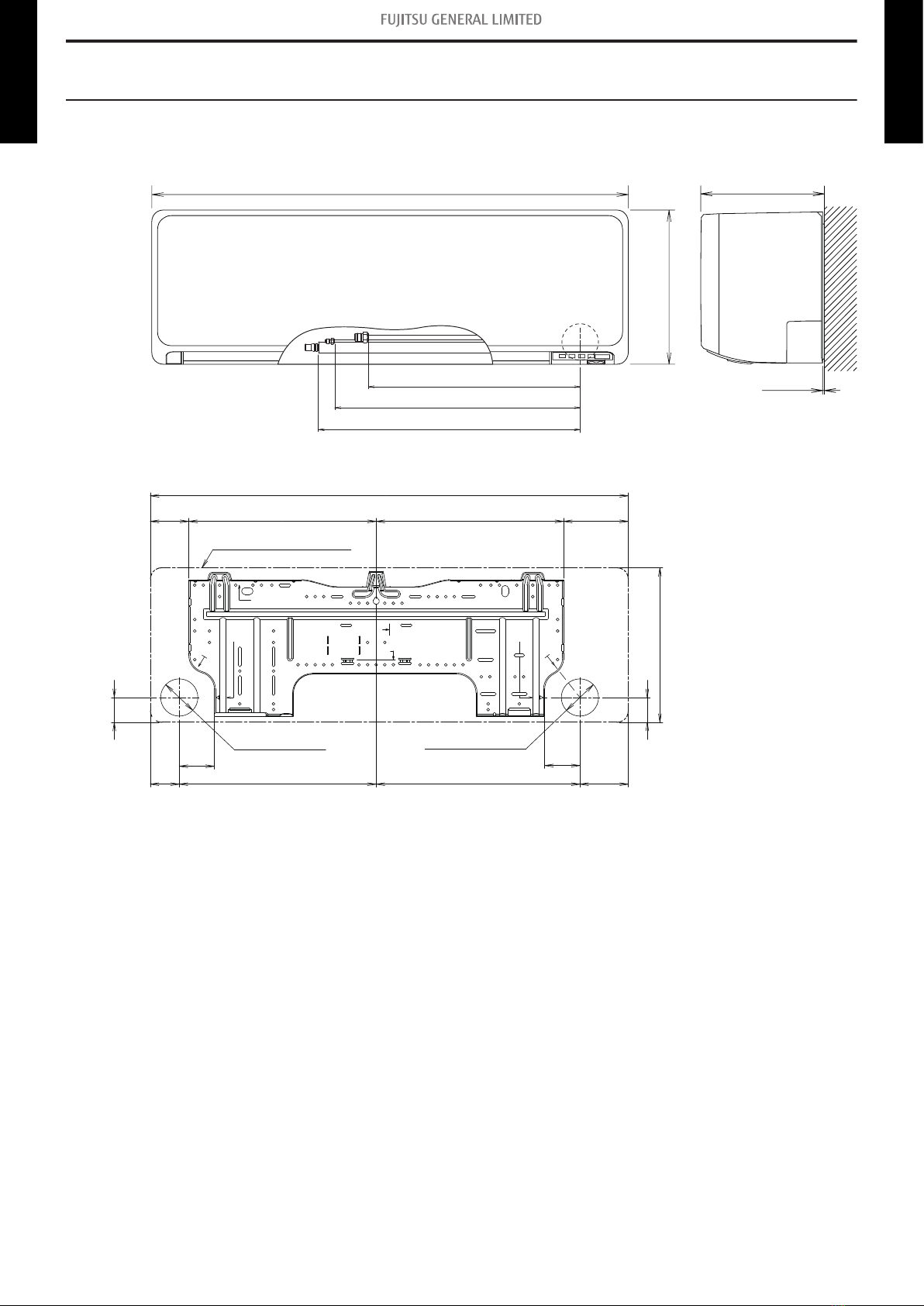

2. Dimensions
2-1. Models: ASYG07KGTE, ASYG09KGTE, ASYG12KGTE, and
ASYG14KGTE
(834)
344 356
327 11332767
62
50
62
84
43 (270)
43
Outline of indoor unit
for pipe inlet Ø65 for pipe inlet Ø65
834 215
3.0
270
373.5
417.5
448
- 4 -
2-1. Models: ASYG07KGTE, ASYG09KGTE, ASYG12KGTE, and ASYG14KGTE 2. Dimensions
WALL MOUNTED ASYG07-14KGT WALL MOUNTED ASYG07-14KGT

¢Installation space requirement
Provide sufficient installation space for product safety.
Unit: mm
50 or more
71 or more
The flare connection
part should be installed
outdoors.
40 or more
70 or more
107 or more
1,500 or more
1,800 or more
183 or more
Wall hook bracket
Outline of the indoor unit
- 5 -
2-1. Models: ASYG07KGTE, ASYG09KGTE, ASYG12KGTE, and ASYG14KGTE 2. Dimensions
WALL MOUNTED ASYG07-14KGT WALL MOUNTED ASYG07-14KGT

3. Wiring diagrams
3-1. Models: ASYG07KGTE, ASYG09KGTE, ASYG12KGTE, and
ASYG14KGTE
- 6 -
3-1. Models: ASYG07KGTE, ASYG09KGTE, ASYG12KGTE, and ASYG14KGTE 3. Wiring diagrams
WALL MOUNTED ASYG07-14KGT WALL MOUNTED ASYG07-14KGT

4. Capacity table
Capacity tables show each of following values calculated based on the outdoor temperature and the
indoor temperature, under given Airflow Rate (AFR):
For cooling capacity: Total Capacity (TC), Sensible Heat Capacity (SHC), and Input Power (IP)
For heating capacity: Total Capacity (TC) and Input Power (IP)
4-1. Cooling capacity
¢Model: ASYG07KGTE
AFR m3/h 650
Indoor temperature
°CDB 18 21 23 25 27 29 32
°CWB 12 15 16 18 19 21 23
Outdoor temperature
°CDB TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP
kW kW kW kW kW kW kW
-10 2.29 2.01 0.13 2.48 2.11 0.14 2.72 2.26 0.14 2.85 2.28 0.14 2.95 2.34 0.14 3.17 2.39 0.15 3.37 2.48 0.14
0 2.25 2.07 0.24 2.43 2.13 0.23 2.57 2.21 0.23 2.68 2.22 0.23 2.79 2.27 0.22 2.96 2.31 0.22 3.18 2.43 0.21
5 2.29 2.08 0.14 2.47 2.14 0.13 2.61 2.23 0.13 2.73 2.23 0.13 2.84 2.28 0.13 3.01 2.33 0.13 3.23 2.45 0.12
10 2.25 2.01 0.19 2.43 2.07 0.19 2.57 2.15 0.19 2.68 2.16 0.18 2.79 2.21 0.18 2.96 2.25 0.18 3.18 2.36 0.17
15 2.21 2.05 0.25 2.38 2.11 0.25 2.51 2.19 0.25 2.63 2.20 0.24 2.73 2.25 0.24 2.90 2.30 0.23 3.11 2.41 0.23
20 2.20 2.04 0.31 2.38 2.10 0.30 2.51 2.18 0.30 2.62 2.18 0.29 2.72 2.23 0.28 2.89 2.28 0.28 3.10 2.39 0.27
25 2.08 2.01 0.37 2.25 2.07 0.36 2.37 2.15 0.36 2.48 2.16 0.35 2.58 2.21 0.34 2.73 2.25 0.34 2.93 2.36 0.33
30 2.00 1.97 0.43 2.16 2.03 0.41 2.28 2.11 0.41 2.39 2.12 0.40 2.48 2.18 0.40 2.63 2.23 0.39 2.82 2.34 0.38
35 1.95 1.92 0.48 2.10 1.98 0.47 2.22 2.05 0.47 2.31 2.06 0.46 2.35 2.19 0.45 2.55 2.24 0.44 2.74 2.35 0.43
40 1.82 1.77 0.54 1.96 1.82 0.52 2.07 1.89 0.53 2.16 1.90 0.51 2.25 2.13 0.50 2.39 2.18 0.50 2.56 2.28 0.48
46 1.69 1.67 0.57 1.83 1.80 0.56 1.95 1.93 0.57 2.03 2.02 0.57 2.14 2.09 0.56 2.24 2.12 0.55 2.42 2.17 0.54
¢Model: ASYG09KGTE
AFR m3/h 700
Indoor temperature
°CDB 18 21 23 25 27 29 32
°CWB 12 15 16 18 19 21 23
Outdoor temperature
°CDB TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP
kW kW kW kW kW kW kW
-10 2.75 2.40 0.18 2.98 2.51 0.19 3.26 2.69 0.20 3.42 2.72 0.20 3.54 2.79 0.20 3.81 2.85 0.21 4.04 2.95 0.20
0 2.71 2.46 0.33 2.92 2.54 0.32 3.08 2.63 0.32 3.22 2.64 0.31 3.35 2.70 0.31 3.55 2.76 0.31 3.81 2.89 0.30
5 2.75 2.48 0.19 2.97 2.55 0.18 3.13 2.65 0.19 3.27 2.66 0.18 3.41 2.72 0.18 3.61 2.78 0.17 3.87 2.91 0.17
10 2.71 2.40 0.27 2.92 2.47 0.26 3.08 2.56 0.26 3.22 2.57 0.26 3.35 2.63 0.25 3.55 2.69 0.25 3.81 2.82 0.24
15 2.65 2.44 0.35 2.86 2.52 0.34 3.02 2.61 0.34 3.15 2.62 0.33 3.28 2.68 0.33 3.48 2.74 0.32 3.73 2.87 0.32
20 2.64 2.43 0.42 2.85 2.50 0.41 3.01 2.59 0.41 3.14 2.60 0.40 3.27 2.66 0.40 3.47 2.72 0.39 3.72 2.85 0.38
25 2.50 2.40 0.51 2.70 2.47 0.50 2.85 2.56 0.50 2.97 2.57 0.49 3.09 2.63 0.48 3.28 2.69 0.47 3.52 2.82 0.46
30 2.41 2.35 0.59 2.60 2.42 0.58 2.74 2.51 0.58 2.86 2.52 0.56 2.98 2.60 0.55 3.16 2.66 0.54 3.39 2.79 0.53
35 2.33 2.29 0.67 2.52 2.35 0.65 2.66 2.44 0.65 2.78 2.45 0.64 2.89 2.61 0.63 3.06 2.67 0.62 3.29 2.80 0.60
40 2.18 2.11 0.75 2.36 2.17 0.73 2.49 2.26 0.73 2.60 2.27 0.71 2.70 2.54 0.70 2.86 2.60 0.69 3.07 2.72 0.67
46 2.03 2.01 0.79 2.20 2.15 0.79 2.34 2.30 0.79 2.44 2.41 0.79 2.57 2.49 0.78 2.69 2.52 0.76 2.90 2.59 0.75
¢Model: ASYG12KGTE
AFR m3/h 700
Indoor temperature
°CDB 18 21 23 25 27 29 32
°CWB 12 15 16 18 19 21 23
Outdoor temperature
°CDB TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP
kW kW kW kW kW kW kW
-10 3.09 2.54 0.32 3.45 2.78 0.38 3.82 2.96 0.44 4.00 3.01 0.45 4.13 3.09 0.40 4.41 3.14 0.45 4.62 3.21 0.44
0 3.30 2.76 0.52 3.57 2.87 0.54 3.76 2.93 0.51 3.94 3.01 0.52 4.04 3.05 0.53 4.37 3.15 0.52 4.68 3.23 0.54
5 3.27 2.75 0.29 3.54 2.85 0.30 3.72 2.91 0.29 3.91 2.99 0.29 4.00 3.03 0.30 4.33 3.13 0.29 4.64 3.22 0.30
10 3.23 2.72 0.38 3.49 2.83 0.40 3.68 2.89 0.37 3.86 2.97 0.38 3.95 3.01 0.39 4.28 3.10 0.38 4.58 3.19 0.39
15 3.17 2.69 0.46 3.43 2.80 0.48 3.61 2.86 0.46 3.79 2.93 0.47 3.88 2.98 0.47 4.20 3.07 0.47 4.50 3.15 0.48
20 3.10 2.65 0.54 3.35 2.76 0.57 3.53 2.81 0.54 3.71 2.89 0.55 3.79 2.93 0.56 4.11 3.02 0.55 4.40 3.11 0.56
25 3.01 2.61 0.62 3.26 2.71 0.65 3.43 2.76 0.61 3.60 2.84 0.62 3.69 2.88 0.63 3.99 2.97 0.62 4.27 3.05 0.64
30 2.91 2.55 0.69 3.15 2.65 0.72 3.31 2.70 0.68 3.48 2.78 0.69 3.56 2.82 0.71 3.85 2.90 0.69 4.13 2.98 0.72
35 2.79 2.48 0.76 3.02 2.58 0.79 3.18 2.63 0.75 3.34 2.71 0.76 3.42 2.75 0.77 3.70 2.83 0.76 3.96 2.91 0.79
40 2.66 2.41 0.82 2.88 2.51 0.86 3.03 2.56 0.81 3.18 2.63 0.82 3.25 2.66 0.84 3.52 2.75 0.82 3.77 2.82 0.85
46 2.45 2.40 0.91 2.62 2.51 0.88 2.77 2.60 0.91 2.85 2.62 0.88 2.90 2.59 0.90 3.10 2.72 0.92 3.32 2.75 0.92
- 7 -
4-1. Cooling capacity 4. Capacity table
WALL MOUNTED ASYG07-14KGT WALL MOUNTED ASYG07-14KGT

¢Model: ASYG14KGTE
AFR m3/h 770
Indoor temperature
°CDB 18 21 23 25 27 29 32
°CWB 12 15 16 18 19 21 23
Outdoor temperature
°CDB TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP
kW kW kW kW kW kW kW
-10 3.35 2.71 0.35 3.74 2.97 0.42 4.14 3.16 0.48 4.34 3.22 0.49 4.48 3.30 0.44 4.78 3.35 0.49 5.01 3.43 0.49
0 3.57 2.95 0.57 3.87 3.06 0.60 4.07 3.13 0.56 4.27 3.21 0.57 4.37 3.26 0.58 4.73 3.36 0.57 5.07 3.45 0.59
5 3.54 2.93 0.32 3.84 3.05 0.33 4.04 3.11 0.31 4.24 3.20 0.32 4.34 3.24 0.32 4.70 3.34 0.32 5.03 3.43 0.33
10 3.50 2.91 0.42 3.79 3.02 0.43 3.98 3.09 0.41 4.18 3.17 0.42 4.28 3.21 0.42 4.63 3.31 0.42 4.96 3.41 0.43
15 3.44 2.88 0.51 3.72 2.99 0.53 3.91 3.05 0.50 4.11 3.13 0.51 4.21 3.18 0.52 4.55 3.28 0.51 4.88 3.37 0.53
20 3.36 2.83 0.60 3.63 2.94 0.62 3.82 3.01 0.59 4.02 3.09 0.60 4.11 3.13 0.61 4.45 3.23 0.60 4.77 3.32 0.62
25 3.26 2.78 0.68 3.53 2.89 0.71 3.72 2.95 0.67 3.90 3.03 0.68 3.99 3.07 0.69 4.32 3.17 0.68 4.63 3.26 0.71
30 3.58 3.09 1.05 3.87 3.21 1.09 4.08 3.28 1.04 4.28 3.37 1.05 4.38 3.42 1.06 4.74 3.52 1.05 5.07 3.62 1.09
35 3.43 3.01 1.15 3.71 3.13 1.20 3.90 3.19 1.13 4.11 3.28 1.16 4.20 3.33 1.18 4.55 3.43 1.16 4.87 3.53 1.19
40 3.27 2.93 1.24 3.54 3.04 1.30 3.72 3.10 1.23 3.92 3.19 1.24 4.01 3.24 1.27 4.34 3.33 1.26 4.64 3.42 1.30
46 3.01 2.91 1.38 3.22 3.04 1.33 3.42 3.16 1.38 3.50 3.18 1.34 3.58 3.13 1.35 3.81 3.29 1.40 4.08 3.34 1.40
- 8 -
4-1. Cooling capacity 4. Capacity table
WALL MOUNTED ASYG07-14KGT WALL MOUNTED ASYG07-14KGT

4-2. Heating capacity
NOTE: Values mentioned in the table are calculated based on the maximum capacity.
¢Model: ASYG07KGTE
AFR m3/h 720
Indoor temperature
16 18 20 22 24
Outdoor temperature
°CDB °CWB TC IP TC IP TC IP TC IP TC IP
kW kW kW kW kW
-15 -16 3.08 1.30 3.11 1.35 3.09 1.38 3.06 1.42 3.04 1.43
-10 -11 3.62 1.39 3.66 1.44 3.63 1.46 3.60 1.51 3.58 1.52
-5 -7 4.10 1.44 4.13 1.49 4.10 1.52 4.06 1.56 4.04 1.57
0 -2 4.50 1.48 4.54 1.53 4.43 1.53 4.36 1.56 4.35 1.59
5 3 4.86 1.45 4.94 1.51 4.82 1.51 4.74 1.55 4.73 1.57
7 6 5.24 1.48 5.33 1.58 5.20 1.58 5.12 1.62 5.11 1.64
10 8 5.39 1.51 5.49 1.61 5.28 1.59 5.27 1.65 5.26 1.67
15 10 5.29 1.31 5.38 1.40 5.16 1.40 5.17 1.43 5.16 1.45
20 15 5.54 1.25 5.54 1.23 5.38 1.24 5.26 1.23 5.11 1.25
24 18 5.69 1.18 5.69 1.17 5.53 1.17 5.40 1.16 5.26 1.18
¢Model: ASYG09KGTE
AFR m3/h 750
Indoor temperature
16 18 20 22 24
Outdoor temperature
°CDB °CWB TC IP TC IP TC IP TC IP TC IP
kW kW kW kW kW
-15 -16 3.20 1.42 3.23 1.47 3.21 1.50 3.18 1.54 3.16 1.55
-10 -11 3.76 1.51 3.80 1.57 3.77 1.59 3.74 1.64 3.72 1.65
-5 -7 4.26 1.56 4.29 1.62 4.26 1.65 4.22 1.70 4.19 1.71
0 -2 4.67 1.61 4.72 1.67 4.61 1.66 4.53 1.70 4.52 1.73
5 3 5.04 1.58 5.13 1.65 5.01 1.65 4.93 1.68 4.92 1.71
7 6 5.44 1.61 5.53 1.72 5.40 1.72 5.31 1.76 5.30 1.79
10 8 5.60 1.64 5.70 1.76 5.48 1.73 5.47 1.79 5.46 1.82
15 10 5.49 1.42 5.59 1.52 5.36 1.52 5.37 1.55 5.35 1.58
20 15 5.75 1.36 5.75 1.34 5.58 1.35 5.46 1.34 5.31 1.36
24 18 5.91 1.29 5.91 1.27 5.74 1.28 5.61 1.27 5.46 1.29
¢Model: ASYG12KGTE
AFR m3/h 770
Indoor temperature
16 18 20 22 24
Outdoor temperature
°CDB °CWB TC IP TC IP TC IP TC IP TC IP
kW kW kW kW kW
-15 -16 3.40 1.39 3.39 1.36 3.36 1.36 3.34 1.37 3.30 1.40
-10 -11 4.02 1.41 3.93 1.43 3.83 1.46 3.72 1.48 3.60 1.52
-5 -7 4.60 1.51 4.50 1.54 4.39 1.57 4.26 1.60 4.12 1.63
0 -2 5.29 1.63 5.17 1.66 5.04 1.69 4.89 1.72 4.73 1.76
5 3 6.06 1.77 5.93 1.79 5.78 1.83 5.61 1.87 5.43 1.91
7 6 6.40 1.82 6.26 1.85 6.10 1.89 5.92 1.93 5.73 1.97
10 8 6.94 1.92 6.78 1.94 6.61 1.98 6.42 2.02 6.21 2.07
15 10 6.33 1.58 6.19 1.60 6.03 1.63 5.86 1.66 5.67 1.70
20 15 6.61 1.38 6.46 1.41 6.29 1.43 6.11 1.46 5.91 1.50
24 18 6.89 1.32 6.75 1.40 6.50 1.37 6.14 1.36 5.66 1.39
¢Model: ASYG14KGTE
AFR m3/h 800
Indoor temperature
16 18 20 22 24
Outdoor temperature
°CDB °CWB TC IP TC IP TC IP TC IP TC IP
kW kW kW kW kW
-15 -16 3.57 1.51 3.56 1.49 3.52 1.48 3.51 1.50 3.46 1.53
-10 -11 4.22 1.53 4.12 1.56 4.02 1.59 3.90 1.62 3.77 1.66
-5 -7 4.83 1.65 4.72 1.67 4.60 1.71 4.47 1.74 4.33 1.78
0 -2 5.55 1.78 5.42 1.81 5.29 1.84 5.13 1.88 4.97 1.92
5 3 6.36 1.93 6.22 1.96 6.06 1.99 5.89 2.03 5.70 2.08
7 6 6.72 1.99 6.57 2.02 6.40 2.06 6.21 2.10 6.01 2.15
10 8 7.28 2.09 7.11 2.12 6.93 2.16 6.73 2.20 6.52 2.26
15 10 6.64 1.72 6.49 1.74 6.33 1.78 6.15 1.81 5.95 1.86
20 15 6.93 1.51 6.77 1.53 6.60 1.56 6.41 1.59 6.20 1.63
24 18 7.22 1.44 7.08 1.53 6.82 1.50 6.44 1.48 5.94 1.52
- 9 -
4-2. Heating capacity 4. Capacity table
WALL MOUNTED ASYG07-14KGT WALL MOUNTED ASYG07-14KGT

5. Fan performance

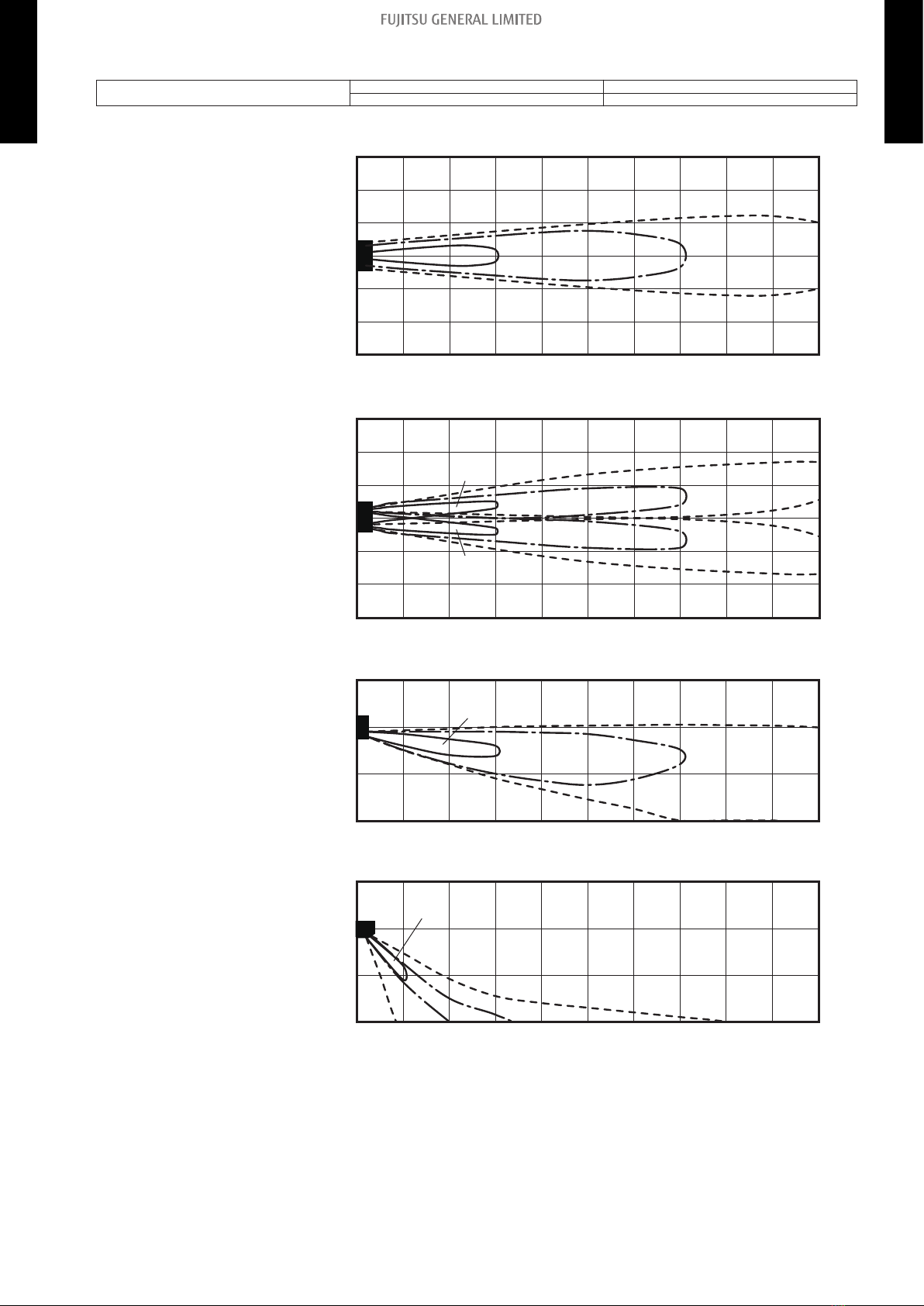

5-1. Air velocity distributions
¢Models: ASYG07KGTE and ASYG09KGTE
Measuring conditions Fan speed Operation mode
HIGH FAN
Top view
Vertical airflow direction louver: Up
Horizontal airflow direction louver: Center
(m)
-3
-2
-1
0
1
2
3
0.52.0 1.0
Unit: m/s
(m)
0 1 2 3 4 5 6 7 8 9 10
Top view
Vertical airflow direction louver: Up
Horizontal airflow direction louver: Left & Right
2.0
2.0
1.0
1.0
0.5
0.5
Unit: m/s
(m)
(m)
-3
-2
-1
0
1
2
3
012345678910
Side view
Vertical airflow direction louver: Up
Horizontal airflow direction louver: Center
(m)
(m)
3
2
1
0
0 1 2 3 4 5 6 7 8 9 10
Unit: m/s
2.0
0.5
1.0
Side view
Vertical airflow direction louver: Down
Horizontal airflow direction louver: Center
(m)
(m)
3
2
1
00 1 2 3 4 5 6 7 8 9 10
0.50.5
2.0
1.0
Unit: m/s
- 10 -
5-1. Air velocity distributions 5. Fan performance
WALL MOUNTED ASYG07-14KGT WALL MOUNTED ASYG07-14KGT

¢Models: ASYG12KGTE and ASYG14KGTE
Measuring conditions Fan speed Operation mode
HIGH FAN
Top view
Vertical airflow direction louver: Up
Horizontal airflow direction louver: Center
Unit: m/s
(m)
(m)
3
2
1
0
1
2
3
012345678910
0.52.0 1.0
Top view
Vertical airflow direction louver: Up
Horizontal airflow direction louver: Left & Right
1.0
1.0
0.5
0.5
2.0
2.0
Unit: m/s
(m)
(m)
3
2
1
0
1
2
3
012345678910
Side view
Vertical airflow direction louver: Up
Horizontal airflow direction louver: Center
2.0
0.5
1.0
(m)
(m)
3
2
1
0
0 1 2 3 4 5 6 7 8 9 10
Unit: m/s
Side view
Vertical airflow direction louver: Down
Horizontal airflow direction louver: Center
0.50.5
2.0
1.0
(m)
(m)
3
2
1
00 1 2 3 4 5 6 7 8 9 10
Unit: m/s
- 11 -
5-1. Air velocity distributions 5. Fan performance
WALL MOUNTED ASYG07-14KGT WALL MOUNTED ASYG07-14KGT

5-2. Airflow
¢Model: ASYG07KGTE
Cooling
Fan speed Airflow
HIGH
m3/h 650
l/s 181
CFM 383
MED
m3/h 540
l/s 150
CFM 318
LOW
m3/h 430
l/s 119
CFM 253
QUIET
m3/h 270
l/s 75
CFM 159
Heating
Fan speed Airflow
HIGH
m3/h 720
l/s 200
CFM 424
MED
m3/h 580
l/s 161
CFM 341
LOW
m3/h 460
l/s 128
CFM 271
QUIET
m3/h 330
l/s 92
CFM 194
- 12 -
5-2. Airflow 5. Fan performance
WALL MOUNTED ASYG07-14KGT WALL MOUNTED ASYG07-14KGT

¢Model: ASYG09KGTE
Cooling
Fan speed Airflow
HIGH
m3/h 700
l/s 194
CFM 412
MED
m3/h 560
l/s 156
CFM 330
LOW
m3/h 430
l/s 119
CFM 253
QUIET
m3/h 270
l/s 75
CFM 159
Heating
Fan speed Airflow
HIGH
m3/h 750
l/s 208
CFM 441
MED
m3/h 610
l/s 169
CFM 359
LOW
m3/h 470
l/s 131
CFM 277
QUIET
m3/h 330
l/s 92
CFM 194
- 13 -
5-2. Airflow 5. Fan performance
WALL MOUNTED ASYG07-14KGT WALL MOUNTED ASYG07-14KGT

¢Model: ASYG12KGTE
Cooling
Fan speed Airflow
HIGH
m3/h 700
l/s 194
CFM 412
MED
m3/h 560
l/s 156
CFM 330
LOW
m3/h 430
l/s 119
CFM 253
QUIET
m3/h 250
l/s 69
CFM 147
Heating
Fan speed Airflow
HIGH
m3/h 770
l/s 214
CFM 453
MED
m3/h 640
l/s 178
CFM 377
LOW
m3/h 520
l/s 144
CFM 306
QUIET
m3/h 310
l/s 86
CFM 182
- 14 -
5-2. Airflow 5. Fan performance
WALL MOUNTED ASYG07-14KGT WALL MOUNTED ASYG07-14KGT

¢Model: ASYG14KGTE
Cooling
Fan speed Airflow
HIGH
m3/h 770
l/s 214
CFM 453
MED
m3/h 600
l/s 167
CFM 353
LOW
m3/h 450
l/s 125
CFM 265
QUIET
m3/h 280
l/s 78
CFM 165
Heating
Fan speed Airflow
HIGH
m3/h 800
l/s 222
CFM 471
MED
m3/h 660
l/s 183
CFM 388
LOW
m3/h 520
l/s 144
CFM 306
QUIET
m3/h 340
l/s 94
CFM 200
- 15 -
5-2. Airflow 5. Fan performance
WALL MOUNTED ASYG07-14KGT WALL MOUNTED ASYG07-14KGT

6. Operation noise (sound pressure)
6-1. Noise level curve
¢Model: ASYG07KGTE
Cooling
Octave band sound pressure level, dB: (0 dB=0.0002 µbar)
Octave band center frequency, Hz
80
70
60
50
40
30
20
10
0
63 125 250 500 1,000 2,000 4,000 8,000
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
HIGH
QUIET
Heating
Octave band sound pressure level, dB: (0 dB=0.0002 µbar)
Octave band center frequency, Hz
80
70
60
50
40
30
20
10
0
63 125 250 500 1,000 2,000 4,000 8,000
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
HIGH
QUIET
¢Model: ASYG09KGTE
Cooling
Octave band sound pressure level, dB: (0 dB=0.0002 µbar)
Octave band center frequency, Hz
80
70
60
50
40
30
20
10
0
63 125 250 500 1,000 2,000 4,000 8,000
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
HIGH
QUIET
Heating
Octave band sound pressure level, dB: (0 dB=0.0002 µbar)
Octave band center frequency, Hz
80
70
60
50
40
30
20
10
0
63 125 250 500 1,000 2,000 4,000 8,000
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
HIGH
QUIET
- 16 -
6-1. Noise level curve 6. Operation noise (sound pressure)
WALL MOUNTED ASYG07-14KGT WALL MOUNTED ASYG07-14KGT
