Fujitsu ASYG09LZCA Service manual

DESIGN & TECHNICAL MANUAL
AIR CONDITIONER
Wall mounted type
INDOOR
ASYG09LZCA
ASYG12LZCA
ASYG14LZCA
OUTDOOR
AOYG09LZCAN
AOYG12LZCAN
AOYG14LZCAN
DR_AS020EF_01
2016.06.21

Notices:
• Product specifications and design are subject to change without notice for future improvement.
• For further details, please check with our authorized dealer.
Copyright © 2016 Fujitsu General Limited. All rights reserved.

CONTENTS
Part 1. INDOOR UNIT ........................................................................1
1. Product features ......................................................................................2
1-1. Model lineup ..............................................................................................................2
1-2. Features .....................................................................................................................2
2. Remote controller ....................................................................................4
2-1. Wireless remote controller ........................................................................................4
3. Specifications ..........................................................................................8
4. Dimensions ............................................................................................10
4-1. Models: ASYG09LZCA, ASYG12LZCA, and ASYG14LZCA ...................................10
5. Wiring diagrams .....................................................................................12
5-1. Models: ASYG09LZCA, ASYG12LZCA, and ASYG14LZCA ...................................12
6. Capacity table ........................................................................................13
6-1. Cooling capacity ......................................................................................................13
6-2. Heating capacity ......................................................................................................15
7. Fan performance ....................................................................................16
7-1. Air velocity distributions ...........................................................................................16
7-2. Airflow ......................................................................................................................18
8. Operation noise (sound pressure) .......................................................20
8-1. Noise level curve .....................................................................................................20
8-2. Sound level check point ...........................................................................................22
9. Safety devices ........................................................................................23
10. External input and output .....................................................................24
10-1.External input ..........................................................................................................24
10-2.External output ........................................................................................................26
11. Function settings ...................................................................................28
11-1.Function settings by using remote controller ..........................................................29
11-2.Custom code setting for wireless remote controller ................................................33
11-3.Switching the temperature unit of remote controller ...............................................34
12. Accessories ............................................................................................35
13. Optional parts ........................................................................................36
13-1.Controllers ...............................................................................................................36
13-2.Others .....................................................................................................................36

CONTENTS (continued)
Part 2. OUTDOOR UNIT ................................................................. 37
1. Specifications ........................................................................................38
2. Dimensions ............................................................................................39
2-1. Models: AOYG09LZCAN, AOYG12LZCAN, and AOYG14LZCAN ......................... 39
3. Installation space ...................................................................................40
3-1. Models: AOYG09LZCAN, AOYG12LZCAN, and AOYG14LZCAN ......................... 40
4. Refrigerant circuit ..................................................................................43
4-1. Models: AOYG09LZCAN and AOYG12LZCAN ...................................................... 43
4-2. Model: AOYG14LZCAN .......................................................................................... 44
5. Wiring diagrams .....................................................................................45
5-1. Models: AOYG09LZCAN and AOYG12LZCAN ...................................................... 45
5-2. Model: AOYG14LZCAN .......................................................................................... 46
6. Capacity compensation rate for pipe length and height difference .47
6-1. Models: AOYG09LZCAN and AOYG12LZCAN ...................................................... 47
6-2. Model: AOYG14LZCAN .......................................................................................... 48
7. Additional charge calculation ...............................................................49
7-1. Models: AOYG09LZCAN and AOYG12LZCAN ...................................................... 49
7-2. Model: AOYG14LZCAN .......................................................................................... 49
8. Airflow .....................................................................................................50
8-1. Model: AOYG09LZCAN .......................................................................................... 50
8-2. Model: AOYG12LZCAN .......................................................................................... 50
8-3. Model: AOYG14LZCAN .......................................................................................... 50
9. Operation noise (sound pressure) .......................................................51
9-1. Noise level curve ..................................................................................................... 51
9-2. Sound level check point .......................................................................................... 53
10. Electrical characteristics ......................................................................54
11. Safety devices ........................................................................................55
12. Accessories ............................................................................................56

Part 1. INDOOR UNIT
WALL MOUNTED TYPE:
ASYG09LZCA
ASYG12LZCA
ASYG14LZCA

- 2 -
WALL MOUNTED ASYG09-14LZCA
1. Product features
Implemented core technology provides easy-to-use product operations that realize a comfortable
space.
1-1. Model lineup
1-2. Features
Powerful operation
Energy saving control by using human sensor
Implemented human sensor detects the presence or absence of human in a room by sensing
movement of occupants, and suppress both of the air conditioner operation and energy con-
sumption.
ASYG09LZCA
ASYG12LZCA
ASYG14LZCA
AOYG09LZCAN
AOYG12LZCAN
AOYG14LZCAN
20 minutes continuous operation by maximum airflow and
maximum compressor speed is possible. Rapid cooling
and heating makes the room comfortable quickly.
Example: Cooling operation
Powerful
Setting temp.
Normal mode
Time
Temperature
Human
sensor

- 3 -
WALL MOUNTED ASYG09-14LZCA

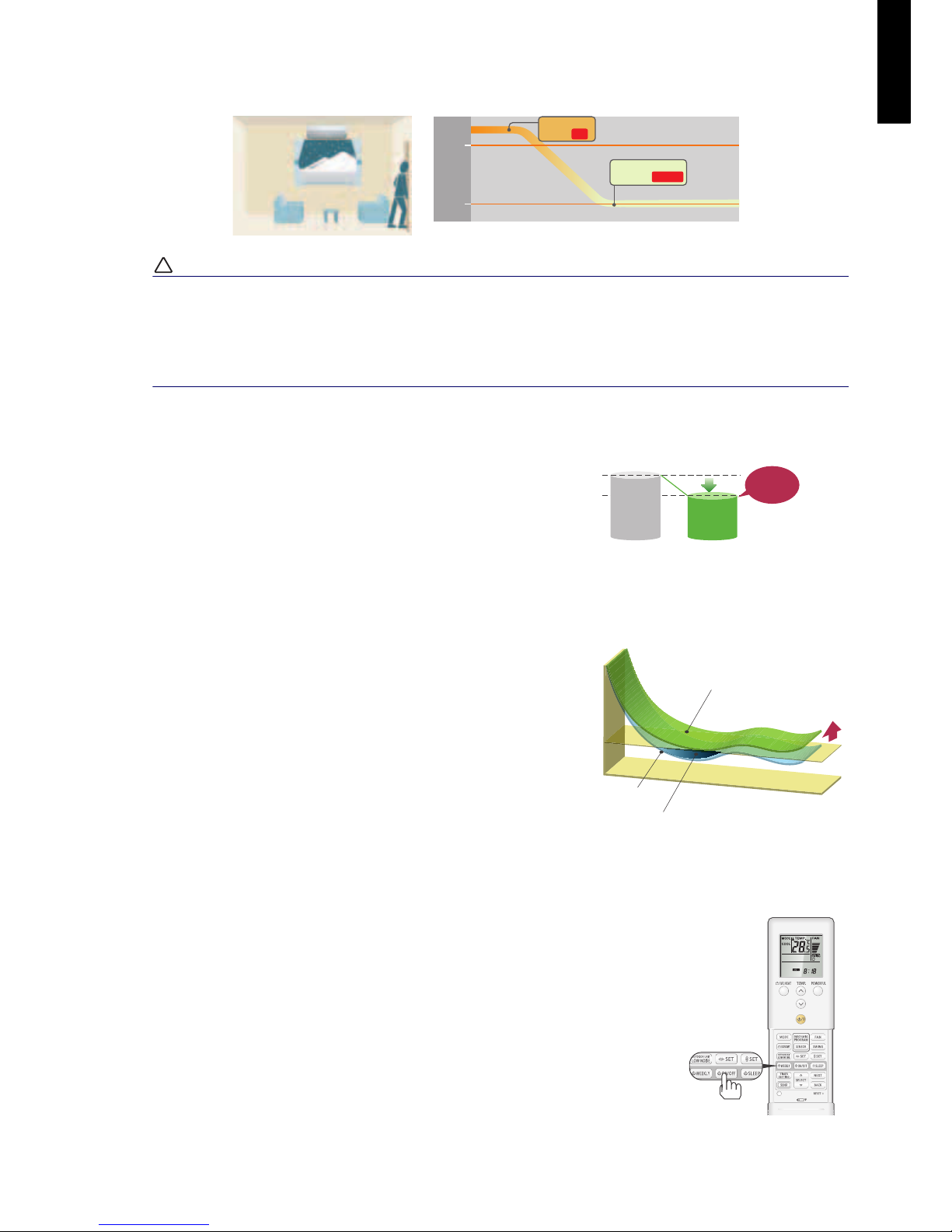

10 °C HEAT operation
The room temperature can be set to go no lower than 10 °C, thus ensuring that the room does
not get too cold when not occupied.
!
CAUTION
• When the room temperature is higher than 10 °C, 10 °C HEAT operation does not start. Oper-
ation starts and maintains the room temperature at 10 °C when the temperature drops below
10 °C.
• When 10 °C HEAT operation stops, the room set temperature quickly returns to the preset
temperature.
Outdoor unit low noise
Economy operation
5-mode timer (on, off, weekly, program, and sleep)
When air conditioner operates in large capacity, operation
noise of the outdoor unit will be suppressed. In case of the
room temperature being close to the set temperature,
operation noise might not decrease.
Economy operation is energy saving as the set
temperature of indoor unit is shifted by 1 °C, and the
maximum electric value of the outdoor unit is suppressed.
Example: Cooling operation
Weekly timer can be easily set by wireless remote controller.
On and off can be set up to 4 times in 1 day and up to 28 times in 1 week.
For other modes, program timer and sleep timer can be also selected by one
push.
10
°C
20
°C
“10 °C HEAT”
Button
ON
Indoor unit
operation
START
Rated
noise level
Down
Low noise
mode
Temp.
Economy operation
Shift
setting
temp
Control maxmum current
Nomal operation
Time
Set
temperature

- 4 -
WALL MOUNTED ASYG09-14LZCA

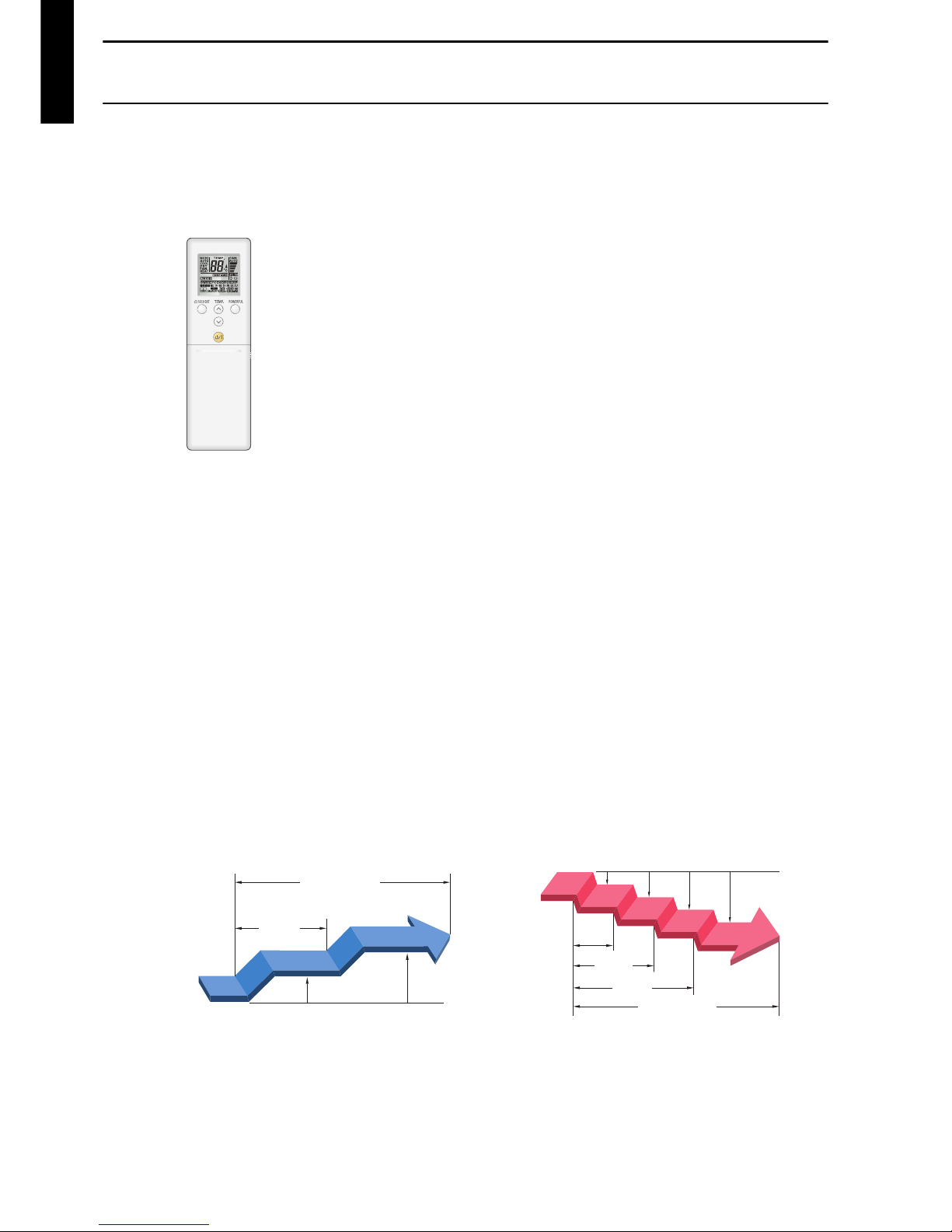

2. Remote controller
2-1. Wireless remote controller
Features
Simple function setting
Setting of the air conditioner selection function is performed by remote controller.
Weekly timer
Weekly timer can be easily set by wireless remote controller.
On and off can be set up to 4 times in a day, and up to 28 times in a week.
Program timer
The program timer operates the on and off timer once within a 24-hour period.
Sleep timer
The sleep timer function automatically corrects the temperature thermostat setting according to
the time setting to prevent excessive cooling and heating while sleeping.
• 5-mode timer setup (on, off, weekly, program, and sleep) available.
• Easy operation.
• Easy to change custom code (max. 4 custom code).
• Can be used jointly with wired remote controllers.
Cooling operation/Dry operation
When the sleep timer is set, the set temperature
automatically rises 1 °C every hour. The set
temperature can rise up to a maximum of 2 °C.
Heating operation
When the sleep timer is set, the set temperature
automatically drops 1 °C every 30 minutes. The
set temperature can drop to a maximum of 4 °C.
60 min
1 °C 2 °C
Timer setting
1 °C 2 °C
3 °C
4 °C
30 min
60 min
90 min
Timer setting

- 5 -
WALL MOUNTED ASYG09-14LZCA

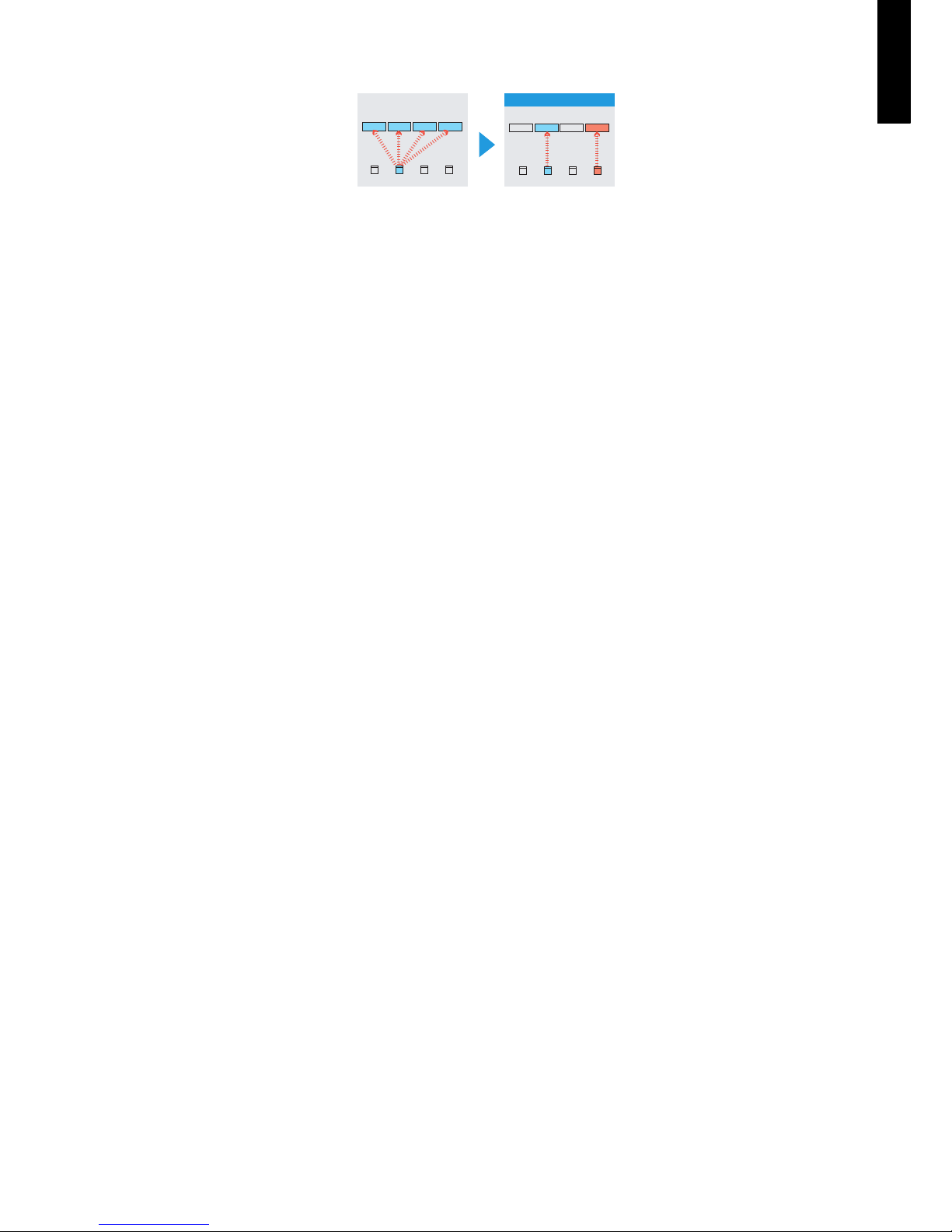

Switching remote controller custom code
Code selector switch eliminates unit being wrongly switched. (Up to 4 codes can be set.)
* I.U.: Indoor unit
AB C D
ABCD
Mixed-up
I.U. I.U. I.U. I.U. I.U. I.U. I.U. I.U.
After code change

- 6 -
WALL MOUNTED ASYG09-14LZCA

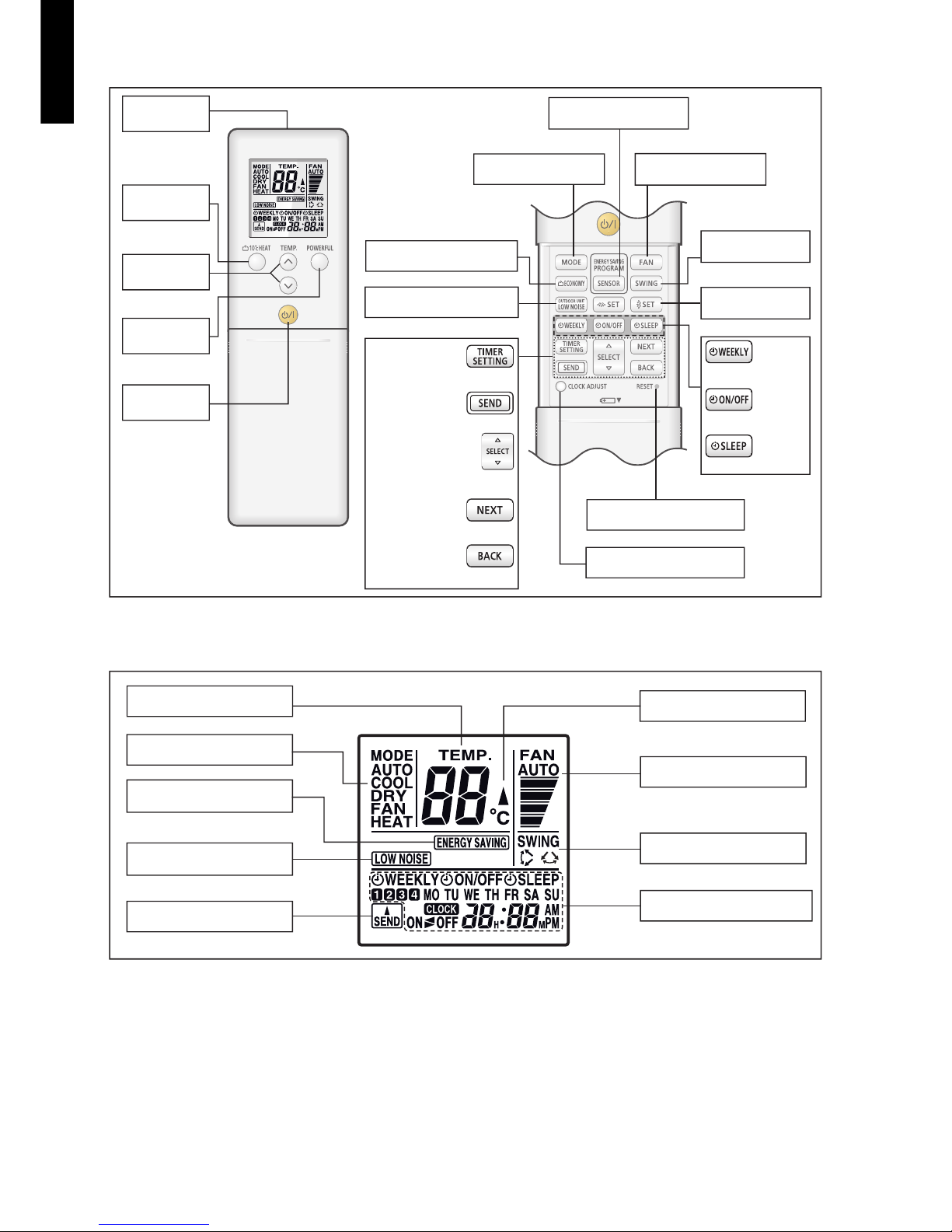

Overview
NOTE: Functions may differ by type of the indoor unit. For details, refer to the operation manual.
Display panel
To facilitate explanation, the accompanying illustration has been drawn to show all possible indicators; in
actual operation, however, the display will only show those indicators appropriate to the current operation.
Signal
transmitter
10°C HEAT
button
TEMP.
button
POWERFUL
button
Start/Stop
button
TIMER SETTING button
SEND button
SELECT button
NEXT button
BACK button
OUTDOOR UNIT
LOW NOISE button
SWING button
SET button
WEEKLY button
ON/OFF button
SLEEP button
MODE button
SENSOR button
FAN button
RESET button
CLOCK ADJUST button
ECONOMY button
Mode indicator
ENERGY SAVING mode
indicator
LOW NOISE mode
indicator
Turns on when
the SENSOR button is operated.

Clock and Timer indicator
SEND indicator
Transmit indicator
Temperature indicator
Fan speed indicator
Swing indicator

- 7 -
WALL MOUNTED ASYG09-14LZCA
Specifications
Controller
Holder
Unit: mm
Size (H × W × D) mm 205 × 61 × 17
Weight g 122 (without batteries)
Unit: mm
Size (H × W × D) mm 150 × 69.3 × 26.2
Weight g 27
Top view
Front view Side view
205
1761
48.5
5.5
26.2
69.3
6.5
Front View Side View Bottom View
Ø 3.5
(Hole)
150
106.8
Hole
3.5
2-R

- 8 -
WALL MOUNTED ASYG09-14LZCA
3. Specifications
Type
Wall mounted
Inverter heat pump
Model name ASYG09LZCA ASYG12LZCA ASYG14LZCA
Power supply 230 V ~ 50 Hz
Available voltage range 198—264 V
Capacity
Cooling
Rated kW 2.50 3.50 4.20
Btu/h 8,500 11,900 14,300
Min.—Max. kW 0.90—4.65 0.90—4.80 0.90—6.40
Btu/h 3,100—15,800 3,100—16,300 3,100—21,800
Heating
Rated kW 3.20 4.00 5.40
Btu/h 10,900 13,600 18,400
Min.—Max. kW 0.90—7.20 0.90—7.40 0.90—8.90
Btu/h 3,100—24,500 3,100—25,200 3,100—30,300
Input power
Cooling Rated
kW
0.48 0.80 1.05
Max. 0.85 0.99 1.56
Heating Rated 0.555 0.76 1.17
Max. 1.93 1.94 2.19
Fan
HIGH
W
23 23 32
MED 13 13 20
LOW 9 9 12
QUIET 5 5 6
Current Cooling Rated A 2.7 4.0 4.8
Heating 2.9 3.9 5.3
EER Cooling kW/kW 5.21 4.38 4.00
COP Heating 5.77 5.26 4.62
Power factor Cooling %77 87 95
Heating 83 85 96
Moisture removal L/h (pints/h) 1.0 (2.1) 1.1 (2.3) 1.7 (3.6)
Maximum operating current *1 Cooling A9.4 9.4 9.9
Heating 11.9 11.9 14.9
Fan
Airflow rate
Cooling
HIGH
m3/h
830 900
MED 680 780
LOW 580 630
QUIET 380 440
Heating
HIGH 830 900
MED 680 780
LOW 580 630
QUIET 380 500
Type × Q'ty Cross flow fan × 1
Motor output W 61
Sound pressure level *2
Cooling
HIGH
dB (A)
42 45
MED 37 40
LOW 32 34
QUIET 23 26
Heating
HIGH 41 44
MED 35 39
LOW 31 33
QUIET 23 27
Heat exchanger type
Dimensions (H × W × D) mm
Main: 384 × 720 × 30
Sub 1: 84 × 720 × 13.3
Sub 2: 126 × 720 × 13.3
Fin pitch Main: 1.2, Sub 1 and Sub 2: 1.4
Rows × Stages Main: 3 × 24, Sub 1: 1 × 4, Sub 2: 1 × 6
Pipe type Copper tube
Fin type Aluminum
Enclosure
Material Polystyrene
Color White
Approximate color of MUNSELL 5PB 9.25/0.5
Dimensions
(H × W × D)
Net mm 295 × 940 × 270
Gross 365 × 1,040 × 355
Weight Net kg 14
Gross 17
Connection pipe Size Liquid mm (in) Ø 6.35 (Ø 1/4) Gas Ø 9.52 (Ø 3/8) Ø 12.7 (Ø 1/2)
Method Flare
Drain hose Material PP+LLDPF
Size mm Ø 13.8 (I.D.), Ø 15.8 to Ø 16.7 (O.D.)
Operation range Cooling °C 18 to 32 %RH 80 or less
Heating °C 16 to 30
Remote controller type Wireless (Wired [option])
NOTES:
• Specifications are based on the following conditions:
– Cooling: Indoor temperature of 27 °CDB/ 19 °CWB, and outdoor temperature of 35 °CDB/ 24 °CWB.
– Heating: Indoor temperature of 20 °CDB/ 15 °CWB, and outdoor temperature of 7 °CDB/ 6 °CWB.
– Pipe length: 5 m, Height difference: 0 m. (Between outdoor unit and indoor unit.)
• Protective function might work when using it outside the operation range.
• *1: Maximum current is maximum value when operated within the operation range.
• *2: Sound pressure level:
– Measured values in manufacturer’s anechoic chamber.
– Because of the surrounding sound environment, the sound levels measured in actual installation conditions might be higher than the specified values here.

- 9 -
WALL MOUNTED ASYG09-14LZCA
Model name ASYG09LZCA ASYG12LZCA ASYG14LZCA
Energy efficiency class Cooling A+++ A+++ A++
Heating (Average) A+++ A++ A+
Pdesign Cooling kW 2.5 (35 °C) 3.5 (35 °C) 4.2 (35 °C)
Heating (Average) 2.5 (-10 °C) 3.5 (-10 °C) 4.2 (-10 °C)
SEER Cooling kWh/kWh 9.51 8.60 7.92
SCOP Heating (Average) 5.31 4.93 4.44
Annual energy consumption QCE kWh/a 92 142 186
QHE (Average) 659 993 1322
Sound power level Cooling HIGH dB (A) 56 56 59
Heating 56 56 59

- 10 -
WALL MOUNTED ASYG09-14LZCA
4. Dimensions
4-1. Models: ASYG09LZCA, ASYG12LZCA, and ASYG14LZCA
Unit: mm
375 for pipe inlet Ø 65
for pipe inlet Ø 65
387
Outline of unit
470 470
270
43
295
295
940
940
387 83
77 393
40
9
43

- 11 -
WALL MOUNTED ASYG09-14LZCA

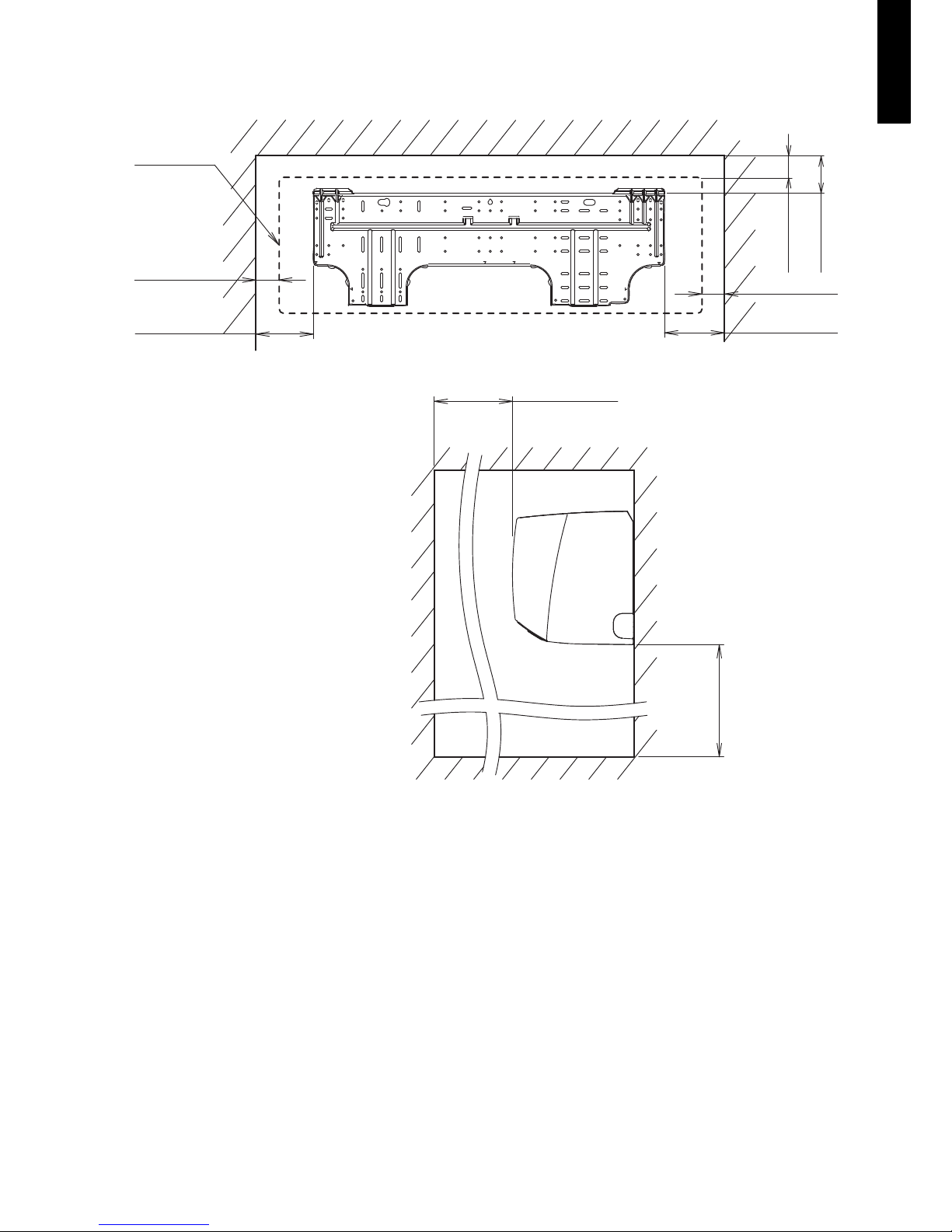

Installation space requirement
Provide sufficient installation space for product safety.
Outline of unit
Unit: mm
50 or more
127 or more
50 or more
133 or more
1,500 or more
50 or more
84 or more
1,800 or more

- 12 -
WALL MOUNTED ASYG09-14LZCA
5. Wiring diagrams
5-1. Models: ASYG09LZCA, ASYG12LZCA, and ASYG14LZCA

- 13 -
WALL MOUNTED ASYG09-14LZCA
6. Capacity table
Capacity tables show each of following values calculated based on the outdoor temperature and the
indoor temperature, under given Airflow Rate (AFR):
For cooling capacity: Total Capacity (TC), Sensible Heat Capacity (SHC), and Input Power (IP)
For heating capacity: Total Capacity (TC) and Input Power (IP)
6-1. Cooling capacity
Model: ASYG09LZCA
Model: ASYG12LZCA
AFR m3/h 830
Indoor temperature
°CDB 18 21 23 25 27 29 32
°CWB 12 15 16 18 19 21 23
Outdoor temperature
°CDB TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP
kW kW kW kW kW kW kW
-10.0 2.31 2.27 0.19 2.58 2.28 0.19 2.71 2.38 0.19 2.85 2.49 0.20 2.93 2.68 0.19 3.10 2.67 0.19 3.28 2.76 0.20
-5.0 2.27 2.21 0.21 2.53 2.22 0.21 2.66 2.32 0.21 2.79 2.43 0.22 2.87 2.62 0.22 3.04 2.61 0.22 3.21 2.70 0.22
0.0 2.22 2.16 0.22 2.47 2.18 0.22 2.60 2.28 0.22 2.73 2.37 0.23 2.81 2.57 0.22 2.97 2.56 0.22 3.14 2.65 0.23
5.0 2.17 2.13 0.23 2.42 2.14 0.23 2.55 2.24 0.23 2.67 2.33 0.24 2.75 2.52 0.23 2.91 2.50 0.23 3.08 2.60 0.24
10.0 2.12 2.07 0.21 2.36 2.08 0.21 2.49 2.18 0.22 2.61 2.27 0.23 2.69 2.46 0.22 2.84 2.44 0.22 3.01 2.54 0.23
15.0 2.07 2.04 0.26 2.31 2.04 0.26 2.43 2.14 0.26 2.55 2.22 0.27 2.63 2.41 0.26 2.78 2.39 0.26 2.94 2.49 0.27
20.0 2.34 2.29 0.33 2.61 2.30 0.33 2.70 2.40 0.34 2.87 2.51 0.34 2.96 2.71 0.34 3.14 2.70 0.34 3.32 2.77 0.35
25.0 2.22 2.17 0.38 2.48 2.18 0.38 2.56 2.28 0.38 2.73 2.39 0.39 2.81 2.57 0.39 2.98 2.56 0.39 3.15 2.63 0.39
30.0 2.10 2.05 0.42 2.34 2.07 0.42 2.42 2.16 0.42 2.58 2.25 0.43 2.66 2.43 0.43 2.82 2.43 0.44 2.98 2.48 0.44
35.0 1.98 1.93 0.46 2.20 1.94 0.47 2.28 2.03 0.47 2.43 2.12 0.48 2.50 2.29 0.48 2.65 2.28 0.49 2.80 2.33 0.49
40.0 1.76 1.59 0.43 1.96 1.73 0.44 2.03 1.81 0.44 2.16 1.88 0.45 2.23 2.04 0.45 2.36 2.03 0.45 2.50 2.08 0.45
46.0 1.51 1.50 0.43 1.69 1.60 0.44 1.74 1.68 0.44 1.85 1.75 0.45 1.92 1.89 0.45 2.03 1.88 0.45 2.13 1.93 0.45
AFR m3/h 830
Indoor temperature
°CDB 18 21 23 25 27 29 32
°CWB 12 15 16 18 19 21 23
Outdoor temperature
°CDB TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP
kW kW kW kW kW kW kW
-10.0 3.02 2.85 0.28 3.36 2.86 0.28 3.54 3.00 0.29 3.77 3.18 0.29 3.83 3.38 0.29 4.05 3.35 0.29 4.28 3.57 0.30
-5.0 2.99 2.82 0.33 3.34 2.83 0.33 3.51 2.97 0.34 3.74 3.14 0.34 3.80 3.34 0.34 4.02 3.32 0.34 4.25 3.54 0.35
0.0 2.97 2.80 0.37 3.31 2.81 0.37 3.49 2.94 0.37 3.71 3.12 0.38 3.77 3.32 0.38 3.99 3.30 0.38 4.22 3.52 0.39
5.0 2.95 2.78 0.39 3.29 2.80 0.39 3.46 2.92 0.40 3.68 3.10 0.40 3.74 3.30 0.41 3.96 3.28 0.41 4.19 3.49 0.42
10.0 2.93 2.75 0.40 3.26 2.77 0.40 3.43 2.90 0.41 3.65 3.07 0.41 3.71 3.26 0.41 3.93 3.25 0.41 4.15 3.47 0.43
15.0 2.90 2.74 0.42 3.24 2.76 0.42 3.40 2.88 0.42 3.62 3.05 0.43 3.68 3.24 0.43 3.90 3.23 0.43 4.12 3.44 0.44
20.0 3.28 3.09 0.55 3.65 3.11 0.56 3.77 3.25 0.56 4.02 3.44 0.57 4.15 3.66 0.57 4.40 3.64 0.57 4.64 3.88 0.58
25.0 3.12 2.93 0.63 3.47 2.95 0.63 3.59 3.09 0.64 3.83 3.27 0.64 3.95 3.48 0.64 4.18 3.46 0.65 4.42 3.68 0.66
30.0 2.95 2.77 0.70 3.28 2.78 0.71 3.40 2.91 0.71 3.62 3.09 0.71 3.73 3.28 0.72 3.96 3.27 0.73 4.18 3.49 0.74
35.0 2.77 2.61 0.77 3.08 2.62 0.78 3.19 2.74 0.79 3.40 2.90 0.80 3.50 3.09 0.80 3.71 3.08 0.81 3.92 3.27 0.82
40.0 2.34 2.33 0.72 2.60 2.34 0.73 2.69 2.44 0.74 2.87 2.58 0.74 2.96 2.75 0.74 3.14 2.74 0.75 3.31 2.92 0.76
46.0 1.98 1.97 0.72 2.22 2.10 0.73 2.29 2.20 0.74 2.43 2.32 0.74 2.50 2.48 0.74 2.66 2.47 0.75 2.81 2.63 0.76

- 14 -
WALL MOUNTED ASYG09-14LZCA
Model: ASYG14LZCA
AFR m3/h 900
Indoor temperature
°CDB 18 21 23 25 27 29 32
°CWB 12 15 16 18 19 21 23
Outdoor temperature
°CDB TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP
kW kW kW kW kW kW kW
-10.0 3.69 2.91 0.36 4.11 3.24 0.37 4.32 3.26 0.37 4.53 3.57 0.39 4.67 3.68 0.37 4.94 3.89 0.38 5.22 4.12 0.39
-5.0 3.63 2.85 0.39 4.04 3.18 0.40 4.25 3.20 0.40 4.46 3.50 0.42 4.59 3.61 0.41 4.86 3.82 0.41 5.14 4.04 0.42
0.0 3.57 2.81 0.41 3.98 3.13 0.41 4.18 3.16 0.41 4.39 3.46 0.43 4.52 3.56 0.42 4.79 3.77 0.42 5.06 3.99 0.43
5.0 3.52 2.77 0.41 3.92 3.09 0.42 4.12 3.11 0.42 4.32 3.40 0.44 4.45 3.51 0.43 4.71 3.71 0.43 4.98 3.93 0.44
10.0 3.46 2.72 0.43 3.85 3.03 0.43 4.05 3.06 0.43 4.25 3.34 0.45 4.38 3.45 0.44 4.64 3.65 0.44 4.90 3.86 0.45
15.0 3.40 2.67 0.45 3.79 2.98 0.46 3.98 3.00 0.46 4.18 3.28 0.48 4.31 3.38 0.47 4.56 3.59 0.47 4.82 3.79 0.48
20.0 3.91 3.29 0.73 4.35 3.31 0.75 4.50 3.46 0.75 4.80 3.60 0.75 4.95 3.90 0.75 5.24 3.87 0.76 5.54 4.14 0.76
25.0 3.72 3.13 0.82 4.15 3.15 0.83 4.29 3.29 0.84 4.57 3.44 0.85 4.71 3.71 0.85 5.00 3.70 0.86 5.28 3.94 0.86
30.0 3.53 2.97 0.92 3.93 2.99 0.93 4.07 3.12 0.94 4.34 3.26 0.95 4.47 3.52 0.95 4.74 3.51 0.96 5.01 3.74 0.96
35.0 3.32 2.79 1.02 3.70 2.81 1.03 3.82 2.94 1.04 4.07 3.06 1.04 4.20 3.31 1.05 4.45 3.29 1.06 4.70 3.51 1.06
40.0 2.92 2.45 1.00 3.25 2.46 1.02 3.36 2.58 1.02 3.58 2.69 1.03 3.69 2.90 1.03 3.91 2.89 1.04 4.13 3.08 1.05
46.0 2.42 2.24 0.98 2.70 2.25 1.00 2.79 2.35 1.00 2.97 2.45 1.02 3.06 2.64 1.02 3.24 2.63 1.03 3.44 2.81 1.02

- 15 -
WALL MOUNTED ASYG09-14LZCA
6-2. Heating capacity
Model: ASYG09LZCA
Model: ASYG12LZCA
Model: ASYG14LZCA
AFR m3/h 830
Indoor temperature
16 18 20 22 24
Outdoor temperature
°CDB °CWB TC IP TC IP TC IP TC IP TC IP
kW kW kW kW kW
-25 -26 3.53 2.15 3.44 2.19 3.36 2.23 3.27 2.32 3.19 2.36
-20 -21 4.45 2.16 4.34 2.20 4.24 2.24 4.13 2.33 4.02 2.38
-15 -16 4.88 2.17 4.77 2.21 4.65 2.25 4.53 2.34 4.42 2.39
-10 -11 5.19 2.13 5.07 2.17 4.95 2.22 4.82 2.30 4.70 2.35
-5 -7 5.50 2.10 5.37 2.14 5.24 2.18 5.11 2.27 4.98 2.31
0 -2 5.65 2.06 5.52 2.10 5.38 2.14 5.25 2.23 5.11 2.27
5 3 6.97 1.88 6.81 1.92 6.64 1.95 6.47 2.03 6.31 2.07
7 6 7.55 1.85 7.38 1.89 7.20 1.93 7.02 2.01 6.84 2.05
10 8 8.35 1.84 8.15 1.88 7.95 1.91 7.75 1.99 7.55 2.03
15 10 8.65 1.63 8.45 1.67 8.24 1.70 8.03 1.77 7.83 1.80
20 15 8.97 1.45 8.75 1.48 8.54 1.51 8.33 1.57 8.11 1.60
24 18 9.29 1.29 9.07 1.32 8.85 1.34 8.63 1.40 8.41 1.43
AFR m3/h 830
Indoor temperature
16 18 20 22 24
Outdoor temperature
°CDB °CWB TC IP TC IP TC IP TC IP TC IP
kW kW kW kW kW
-25 -26 3.75 2.15 3.66 2.19 3.57 2.23 3.39 2.32 3.30 2.36
-20 -21 4.79 2.16 4.67 2.20 4.56 2.24 4.33 2.33 4.22 2.38
-15 -16 5.11 2.17 4.99 2.21 4.87 2.25 4.63 2.34 4.50 2.39
-10 -11 5.55 2.13 5.42 2.18 5.29 2.22 5.03 2.31 4.89 2.35
-5 -7 6.00 2.10 5.85 2.14 5.71 2.18 5.42 2.27 5.28 2.31
0 -2 6.17 2.07 6.02 2.11 5.87 2.15 5.58 2.23 5.43 2.28
5 3 7.52 1.88 7.34 1.92 7.16 1.96 6.80 2.04 6.62 2.08
7 6 7.77 1.86 7.58 1.90 7.40 1.94 7.03 2.02 6.84 2.06
10 8 8.58 1.85 8.38 1.89 8.18 1.93 7.77 2.00 7.56 2.04
15 10 8.90 1.64 8.68 1.68 8.47 1.71 8.05 1.78 7.84 1.81
20 15 9.22 1.46 9.00 1.49 8.78 1.52 8.34 1.58 8.12 1.61
24 18 9.55 1.30 9.32 1.33 9.10 1.35 8.64 1.41 8.41 1.43
AFR m3/h 900
Indoor temperature
16 18 20 22 24
Outdoor temperature
°CDB °CWB TC IP TC IP TC IP TC IP TC IP
kW kW kW kW kW
-25 -26 5.07 2.92 4.95 2.97 4.83 3.03 4.58 3.15 4.46 3.21
-20 -21 5.80 2.93 5.66 2.99 5.52 3.04 5.25 3.16 5.11 3.22
-15 -16 6.53 2.94 6.38 3.00 6.22 3.05 5.91 3.18 5.75 3.24
-10 -11 7.41 2.83 7.24 2.88 7.06 2.93 6.71 3.05 6.53 3.11
-5 -7 8.30 2.71 8.10 2.76 7.90 2.81 7.51 2.92 7.31 2.98
0 -2 8.93 2.60 8.72 2.64 8.51 2.69 8.08 2.80 7.87 2.85
5 3 9.18 2.18 8.96 2.22 8.74 2.27 8.30 2.36 8.09 2.41
7 6 9.34 2.10 9.12 2.15 8.90 2.19 8.45 2.28 8.23 2.32
10 8 9.72 1.97 9.49 2.01 9.26 2.05 8.80 2.13 8.57 2.17
15 10 10.12 1.75 9.88 1.79 9.64 1.82 9.16 1.89 8.91 1.93
20 15 10.53 1.55 10.28 1.59 10.03 1.62 9.53 1.68 9.28 1.72
24 18 10.96 1.38 10.70 1.41 10.44 1.44 9.92 1.50 9.66 1.53

- 16 -
WALL MOUNTED ASYG09-14LZCA
7. Fan performance
7-1. Air velocity distributions
Models: ASYG09LZCA and ASYG12LZCA
Measuring conditions Fan speed Operation mode
HIGH FAN
Top vi ew
Vertical airflow direction louver: Up
Horizontal airflow direction louver: Center
Top vi ew
Vertical airflow direction louver: Up
Horizontal airflow direction louver: Left & Right
Side view
Vertical airflow direction louver: Up
Horizontal airflow direction louver: Center
Side view
Vertical airflow direction louver: Down
Horizontal airflow direction louver: Center
2
1
0
1
2
Unit: m/s(m)
(m)
0123456789
2.0 1.0
0.5
3
2
1
0
1
2
3
Unit: m/s
(m)
(m)
0123456789
2.0
2.0
1.0
1.0
0.5
0.5
2.0
0.5
1.0
3
2
1
0
Unit: m/s
(m)
(m)
012345678
9
2.0
0.5
1.0
3
2
1
0
Unit: m/s
(m)
(m)
012345678
9
