Fujitsu TeamPad500 System User manual

TeamPad500
System
User's Guide
Revision 1.00.00
March 27, 2001
P/N 90000455

TeamPad 500 User’s Guide
Copyright 2001 by Fujitsu-ICL Systems Inc.
2 of 47
Revision History
Revision Number Date Description of Change
1.00.00 2-1-2001 Original Release

TeamPad 500 User’s Guide
Copyright 2001 by Fujitsu-ICL Systems Inc.
3 of 47
Read this manual before using this product.
User's Guide
Thank you for purchasing the TeamPad 500 (referred to as the "equipment" in this document).
To ensure proper operation and satisfactory performance of this product, be sure to read this manual
thoroughly before using this equipment.
Intention of the User’s Guide
To document the functionality of the display screens that are unique to the equipment. This
document is not intended to document Windows CE 2.12.It is assumed that the user has knowledge
of the features and functionality of Windows CE.
Windows, Windows CE, Visual C++, and Visual Basic are registered
tra
de
mark
s
o
f Mi
c
r
oso
ft
Co
r
po
rati
o
n in th
e
U.S.
an
d
o
th
e
r
cou
ntri
es.

TeamPad 500 User’s Guide
Copyright 2001 by Fujitsu-ICL Systems Inc.
4 of 47
Table of Contents
1 Quick Start Checklist ......................................................7
1.1 Open the Package ........................................................7
1.2 Turn the Power On .......................................................7
1.3 Equipment Startup .......................................................7
1.4 Application Setup and Configuration .....................................7
1.5 Run Installed Applications ..............................................7
2 Equipment Startup ..........................................................8
2.1 Startup check ...........................................................8
2.2 Touch Panel Calibration .................................................9
2.3 Date and Time Settings .................................................10
3 Application Setup and Configuration .......................................11
3.1 Setup Menu .............................................................11
3.2 Control Panel ..........................................................12
3.2.1 System Properties...................................................13
3.2.2 Power Management Properties.........................................14
3.2.3 Display Properties..................................................15
3.2.4 Date and Time Properties............................................16
3.2.5 Screen Input Panel (SIP) Keyboard Size..............................17
3.3 Application Installation ...............................................19
3.4 TeamPad Configuration ..................................................21
3.4.1 Initialize Settings.................................................21
3.4.2 Launcher Keys.......................................................23
3.4.3 Registry Backup and Restore.........................................25
3.4.4 Combination Keys....................................................27
3.5 Application Backup and Restore ............................................28
3.6 Registry Editor ........................................................30
3.7 TeamPad Explorer .......................................................32
3.8 Run a Program ..........................................................35
3.9 Debug Mode .............................................................36
4 Basic Operations ..........................................................37
4.1 Turning on the backlight ...............................................37
4.2 Battery Status .........................................................37
4.3 Adjusting the Sound Volume .............................................39
4.4 Touch Panel Calibration ................................................40
4.5 Alpha Keyboard Pop-up ..................................................41
4.6 Low Main Battery Warning ...............................................42
4.7 Low Sub Battery Warning ................................................43
5 Restoring the Application .................................................44
5.1 Touch Panel Calibration ................................................45
5.2 Date and Time Settings .................................................46
5.3 Restore/Re-Initialize the Application ..................................47

TeamPad 500 User’s Guide
Copyright 2001 by Fujitsu-ICL Systems Inc.
5 of 47
Warnings
This manual uses various indications to urge the user to use the equipment safely, to prevent
personal injury or property damage. Be sure to understand these indications and their meanings
before continuing to read this manual.
Symbol Description
This alert signal also indicates that damage to the product or other
property may occur if the user does not perform the procedure correctly.
Other symbols
Symbol Description
This indicates precautions on use or what must not be done. Read the
statement carefully.
Indicates advice or reference information. Read the statement when
necessary.
Screen and entry examples
The screen display examples are given purely as examples and apply to individual situations. Keep
in mind that the actual screens may differ.
The data in the entry examples is given purely as example and applies to individual situations.
Keep in mind that the actual data required for entry may differ.
Key notations
Key Meaning
PWR key Use this key to turn the power to the equipment on or off (this key is
called the power key in this document).
Numerical keys
(0 to 9) Use these keys to enter numbers
ENT key Enter key. Use this key to confirm and execute operations.
Cursor keys Use these keys to move the cursor in the desired direction.
CLR key Use this key to cancel operations and clear data entries.
BKS key Backspace key.
SFT key Shift key. Use this key to perform shifted operations.
F1-F5 keys Function keys. Use these keys to perform special operations.
Key Backlight key.
Key (+/-) This key is used to adjust the contrast (“+” for more contrast and “-
“ for less contrast).
CAUTION
Important
Remember

TeamPad 500 User’s Guide
Copyright 2001 by Fujitsu-ICL Systems Inc.
6 of 47
Touch panel operation
The equipment has a touch panel display. Tapping on the screen has the same effect as left tapping
with the mouse.
Method of screen tapping is explained below.
Notation Meaning
Tap Similar to left tapping a mouse. Denotes” touching” a point on the
screen. This is done to execute an operation.
Double tap Corresponds to double tapping a mouse. Denotes “double touching” a
point on the screen. This is done to run a program.
When tapping the screen, use your finger or a dedicated accessory stylus (a pen for tapping). Do
not use a tool with a sharp edge in place of the dedicated stylus, as this may damage the panel.
CAUTION

TeamPad 500 User’s Guide
Copyright 2001 by Fujitsu-ICL Systems Inc.
7 of 47
When using the equipment for the first time, follow the procedure given below.
1.1 Open the Package
Remove the equipment from the package. For details, refer to the “Quick Reference Guide” that
comes with the equipment.
1.2 Turn the Power On
Connect the equipment to an AC adapter or charging unit to provide power to the main and sub
batteries.
Press the power switch to turn on the power. For details, refer to the “Quick Reference Guide” that
comes with the equipment.
1.3 Equipment Startup
After turning the power on, follow the steps in “Equipment Startup” (see section 2) to initialize the
equipment.
1.4 Application Setup and Configuration
Configure the equipment through the “Setup Menu”. For details, refer to Section 3. Follow the
installation instructions provided by the application provider.
1.5 Run Installed Applications
Start the equipment to verify that the unit is properly configured.
The main battery is not charged. Be sure to charge it or connect the AC adapter to the equipment
before starting with operations.

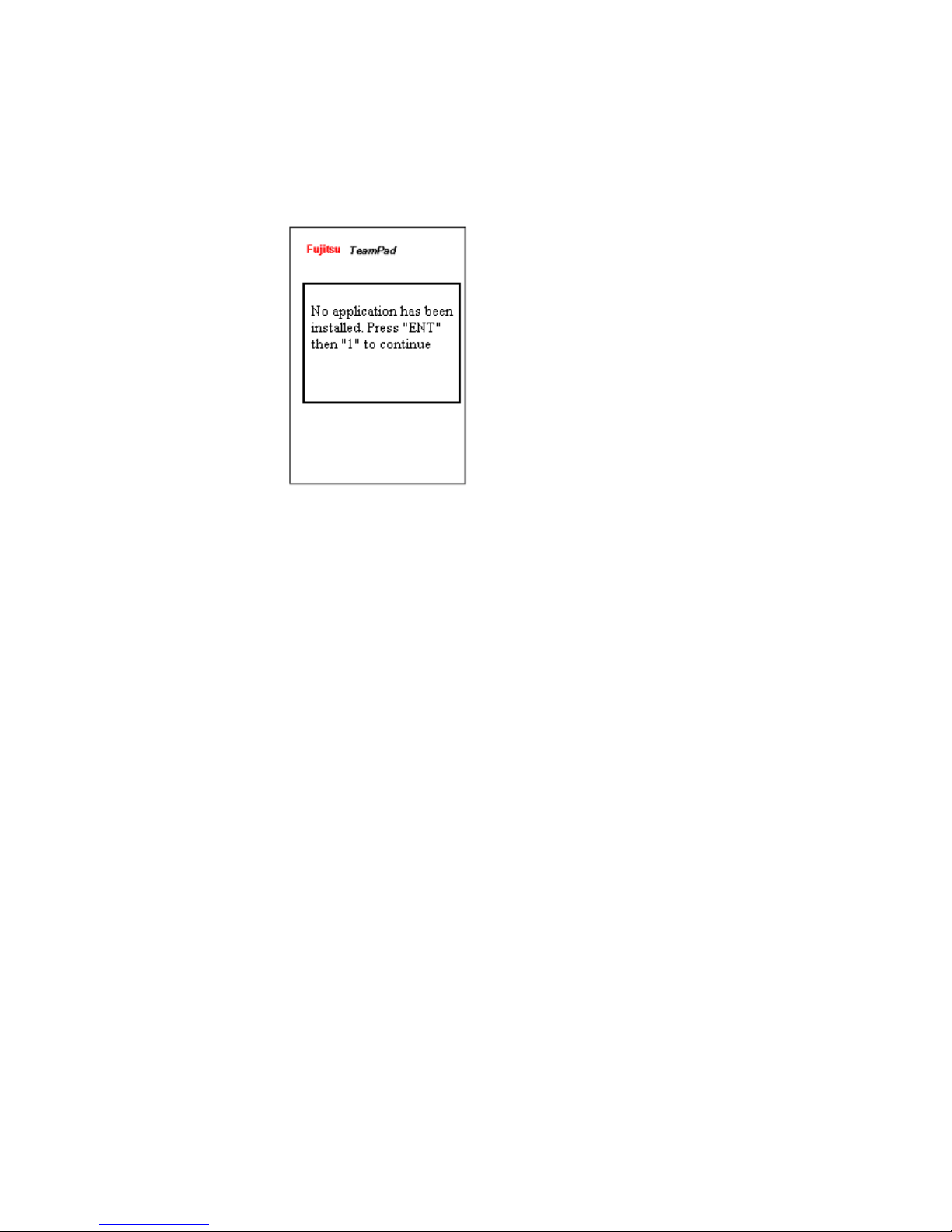

When turning on the power for the first time, or after a hard reset (ie both batteries removed) a
check is made on the equipment. If the unit has never been installed and configured through the
“Setup Menu” the following equipment check screen is displayed.
1Quick Start Checklist
Remember

TeamPad 500 User’s Guide
Copyright 2001 by Fujitsu-ICL Systems Inc.
8 of 47
2Equipment Startup
2.1 Startup check
To begin the startup procedure: Hold down the ENT/SYS key, then press the “1” Key to Start the
Touch panel calibration.
To stop the startup procedure: Turn off the power by pressing the power key.

TeamPad 500 User’s Guide
Copyright 2001 by Fujitsu-ICL Systems Inc.
9 of 47
2.2
2.22.2
2.2 Touch Panel Calibration
The following calibration screen will appear. Follow the instructions on the screen. Tap the target
(+) with a stylus as it moves from the center to the four corners of the screen.
If the system detects the touch too far from the target, the calibration must be done again from the
beginning. When all the positions have been successfully tapped, the target ceases to be displayed
and the following message appears: "Press the ENT key to accept the new setting". Press the ENT
key to register the calibration data and terminate the function. Proceed to “Date and Time
Settings”.
Do not use an item with a sharp edge, such as a pencil or ballpoint pen, for tapping the screen, as
this may damage or break the screen. Do not place the palm of your hand on the screen when
tapping it.
Tap the center of the target with the
stylus. Repeat as the target moves
around the screen.
Press the SFT+BKS key to cancel.

TeamPad 500 User’s Guide
Copyright 2001 by Fujitsu-ICL Systems Inc.
10 of 47
2.3
2.32.3

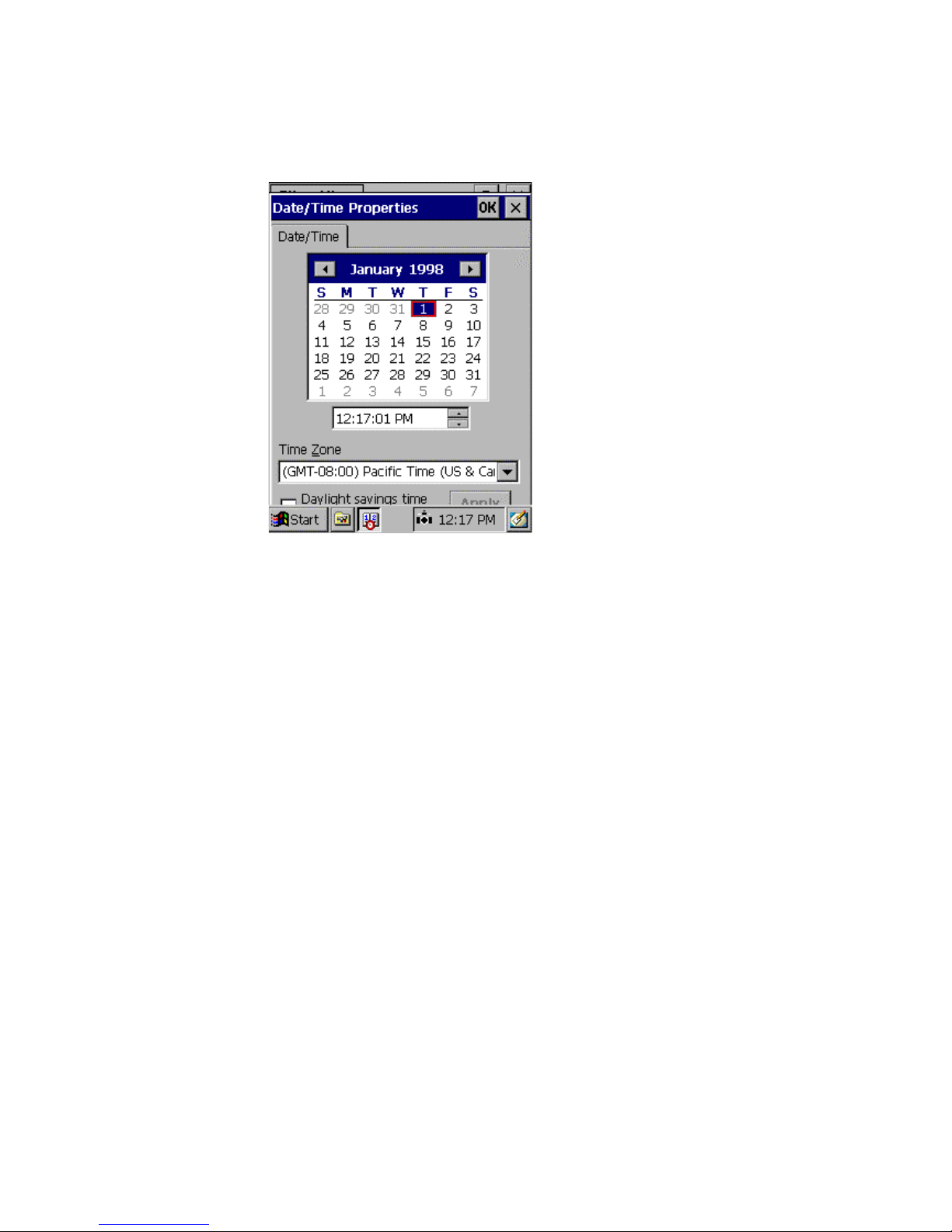

2.3 Date and Time Settings
Set the date and time and tap the OK button.
[1] Time zone
Select your local time zone. Use the drop down list to display the possible choices and then
select one. .
[2] Calendar
Switch the calendar to current year, month, and day. Use either the arrow’s next to the
month and year to scroll to the desire month and year, or tap on the month or year to
change them.
[3] Current time
Set the time based on a 24-hour clock. After either selecting the hours, minutes or seconds,
use the arrow keys or keyboard to change to the desire time.
[4] OK and Apply Button
Register the date and time that you have set and proceed to Section 3.
[5] Xbutton
Cancel the date & time process and proceed to Section 3.

TeamPad 500 User’s Guide
Copyright 2001 by Fujitsu-ICL Systems Inc.
11 of 47
The Application “Setup Menu” is used to define the application environment and define system
wide configuration settings, such as Suspend and Backlight timers. This “Setup Menu” is displayed
automatically after the Touch Screen calibration and the Date/Time settings. The “Setup Menu” is
only displayed if an application is loaded to start automatically or the re-install box has been tapped
(for details, see Section 5.3) after a memory loss. The following “Setup Menu” is presented to the
user for the equipment’s configuration and software installation.

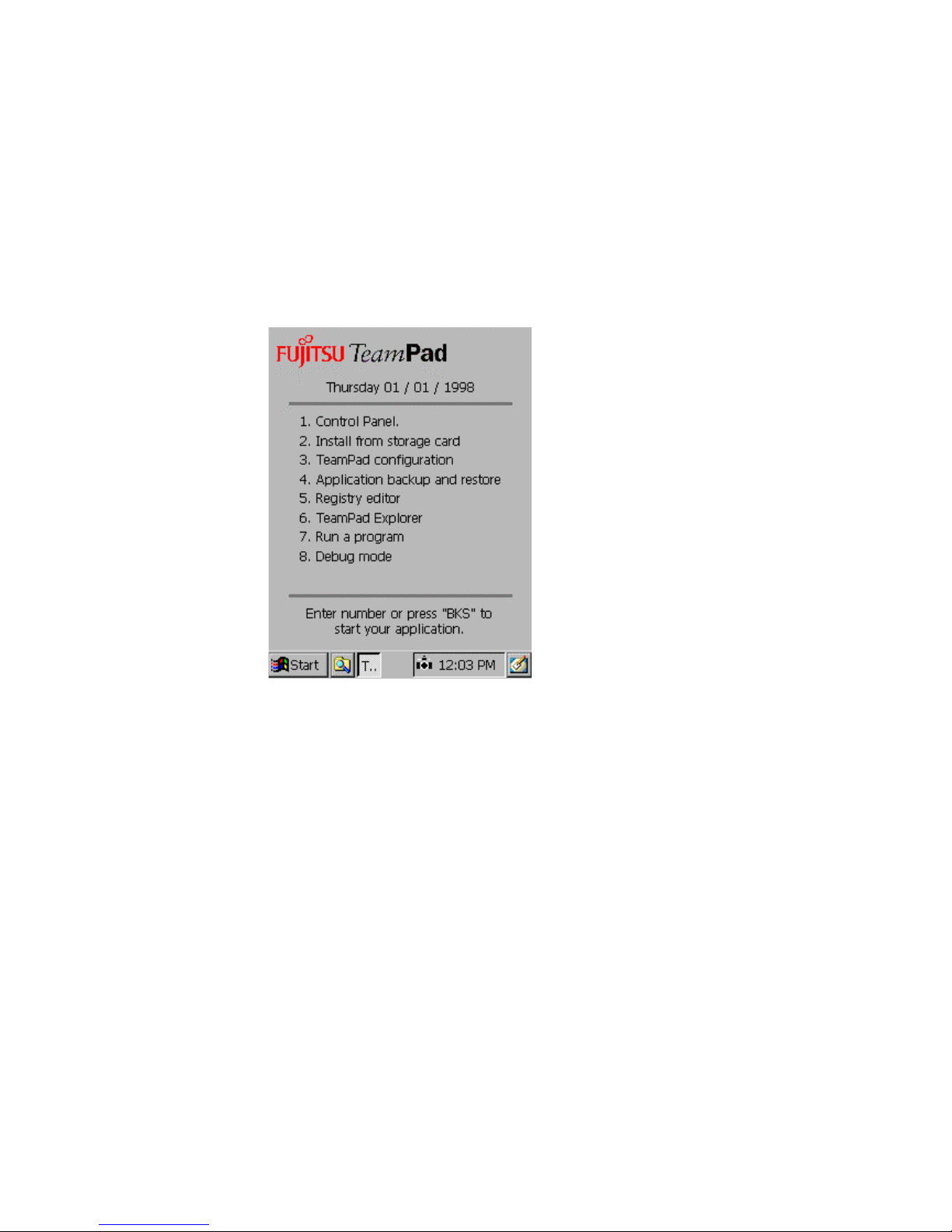

3.1 Setup Menu
[1] Configure the operating environment via the Control Panel. For details, refer to Section 3.2.

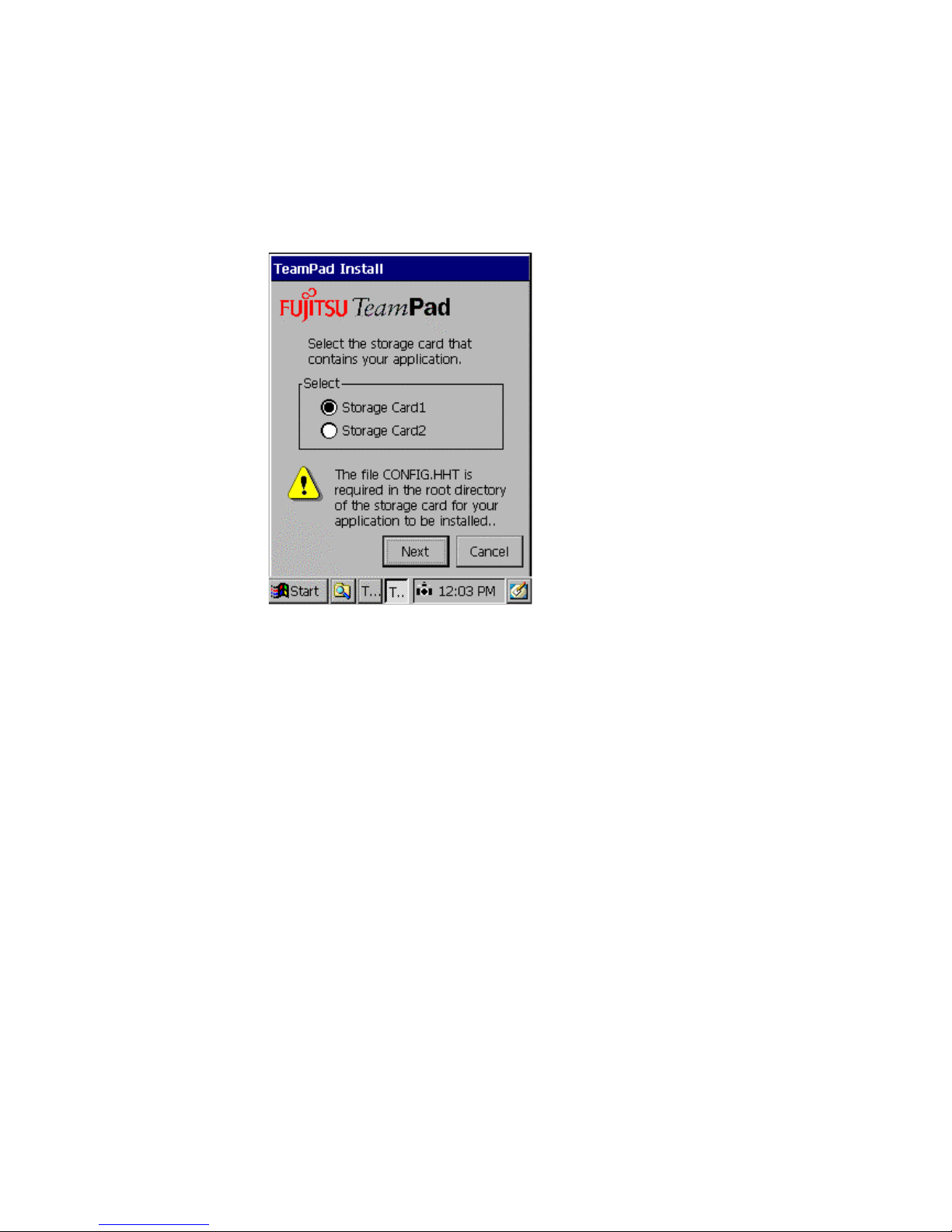

[2] Application Installation from a storage card. For details, refer to Section 3.3.
[3] TeamPad Configuration. For details, refer to Section 3.4.
[4] Application Backup and Restore. For details, refer to Section 3.5
[5] Registry Editor. For details, refer to Section 3.6
[6] TeamPad Explorer. For details, refer to Section 3.7.
[7] Running a program. For details, refer to Section 3.8
[8] Run the defined startup program (if any) in debug mode. For details refer to Section 3.9.
3Application Setup and Configuration

TeamPad 500 User’s Guide
Copyright 2001 by Fujitsu-ICL Systems Inc.
12 of 47
3.2 Control Panel
To update the operating environment of the equipment, press the “1” key, from the "Setup Menu”.
The control panel will then open.
The following settings may need to be updated.
[1] System Properties
Specify if the RAM area (data storing memory and program running memory) is to be
increased or decreased. For details, refer to Section 3.2.1
[2] Power management
Automatic power off can be configured. For details, refer to Section 3.2.2
[3] Display Properties
Automatic backlight can be configured. For details, refer to Section 3.2.3
[4] Date/time Properties
The date and time can be updated. For details, refer to Section 3.2.4

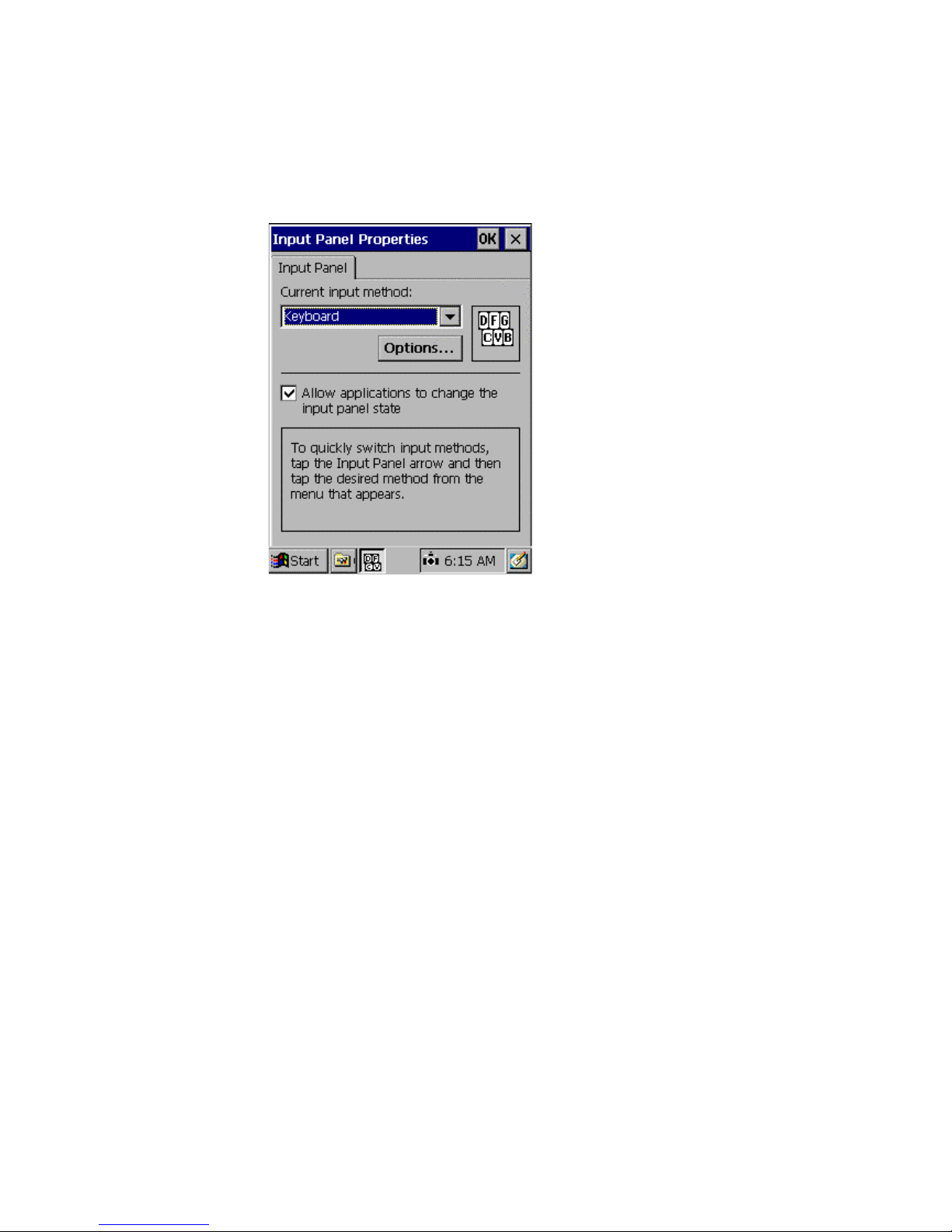

[5] Input Panel Properties
Change the Screen Pop-up keyboard size. For details, refer to Section 3.2.5.
[6] XButton
Return to the “Setup Menu”.

TeamPad 500 User’s Guide
Copyright 2001 by Fujitsu-ICL Systems Inc.
13 of 47
3.2.1 System Properties
RAM usage can be updated from the System Properties function.
To activate this function, double tap the System icon on the control panel and tap the Memory tab.
[1] Memory area bar
The data storage area and program area in memory (RAM), are isolated from each other by
moving the bar. The bar can only be moved to the right of the default, reserving more of
the RAM for program execution. While the bar will automatically grow to the right, as an
application needs more memory, the bar will never automatically move to the left if more
storage area is needed. The primary purpose of this function is to provide a method to
guarantee a minimum amount of executable memory.
[2] OK Button
Apply the new RAM area memory allocation and return to the Control Panel.
[3] XButton
Cancel the RAM area memory allocation changes and return to the Control Panel.
Do not update the memory area unnecessarily. Retain the default state. Otherwise, an application
program may not be able to run.
The memory area will return to the default state when data is erased in memory because of a dead
battery.
Important

TeamPad 500 User’s Guide
Copyright 2001 by Fujitsu-ICL Systems Inc.
14 of 47
3.2.2
3.2.23.2.2
3.2.2Power Management Properties
The equipment’s automatic power off feature can be configured using the Power Properties
function. These settings will affect the equipments battery life.
To activate this function, double tap the Power management icon on the control panel and tap the
Power Off tab.
[1] Idle time until activation of suspend mode when battery is used
Specify a time for activating the automatic power OFF feature when the main battery is
used and the AC power is not connected. It is set to three minutes at factory shipment.
[2] Enable suspend mode when an external power supply is used
Specify whether automatic power OFF is to be executed when the AC adapter is connected
or in the CIU or Vehicle Holder. By checking box, the automatic power OFF feature is
activated. The automatic power OFF feature is disabled at factory shipment.
[3] Idle time until activation of suspend mode when an external power supply is used
Specify the time until automatic power OFF when the AC adapter is connected and item
[2] is checked.
[4] OK Button
Apply the new Power Management Settings and return to the Control Panel.
[5] XButton
Cancel the Power Management changes and return to the Control Panel.

TeamPad 500 User’s Guide
Copyright 2001 by Fujitsu-ICL Systems Inc.
15 of 47
3.2.3
3.2.33.2.3
3.2.3Display Properties
Controls the period of time before the backlight will be automatically turned off. These settings
will affect the equipments battery life.
To activate this function, double tap the Display icon on the control panel and tap the Backlight tab.
[1] Turn off the backlight automatically when a battery is used
Specify whether the backlight is to be automatically turned off when the main battery is
used (when the AC adapter is not connected). By pressing the !, the automatic backlight
OFF feature is enabled. The feature is enabled at factory shipment and configured for 1
minute.
[2] Turn off the backlight automatically when an external power supply is used.
Specify whether the automatic backlight OFF feature is to be activated when an AC
adapter is connected or in the CIU or Vehicle Holder. By pressing the !, the automatic
backlight OFF feature is enabled. It is enabled at factory shipment and configured for 10
minutes.
[3] OK Button
Apply the new Backlight Settings and return to the Control Panel.
[4] XButton
Cancel the Backlight Setting changes and return to the Control Panel.

TeamPad 500 User’s Guide
Copyright 2001 by Fujitsu-ICL Systems Inc.
16 of 47
3.2.4 Date and Time Properties
Set the date and time for the equipment.
[1] Time zone
Select your local time zone. Use the drop down list to display the possible choices and then
select one. .
[2] Calendar
Switch the calendar to current year, month, and day. Use either the arrow’s next to the
month and year to scroll to the desire month and year, or tap on the month or year to
change them.
[3] Current time
Set the time based on a 24-hour clock. After either selecting the hours, minutes or seconds,
use the arrow keys or keyboard to change to the desire time.
[4] OK and Apply Button
Register the date and time that you have set and proceed to Section 3.
[5] Xbutton
Cancel the date & time process and proceed to Section 3.

TeamPad 500 User’s Guide
Copyright 2001 by Fujitsu-ICL Systems Inc.
17 of 47
3.2.5 Screen Input Panel (SIP) Keyboard Size
The Screen Input Panel (SIP) can be configured to have small keys or larger keys. To configure the
keyboard size, double tap the “Input Panel” icon on the control panel and the following Screen will
be displayed. Both keyboards require the use of a stylist.
[1] Options button
Change the Screen Input Panel keyboard size. When tapped, the following window will be
displayed.
[2] OK button
Register the Input Panel Changes and return to the Control Panel.
[3] Xbutton
Cancel the Input Panel process and return to the Control Panel.

TeamPad 500 User’s Guide
Copyright 2001 by Fujitsu-ICL Systems Inc.
18 of 47
[1] Large keys Radio Button
Change the Screen Input Panel keyboard size to “Large Keys”. When the SFT+F5 keys
are pressed, the SIP will be displayed with the larger keys.
[2] Small keys Radio Button
Change the Screen Input Panel keyboard size to “Small Keys”. When the SFT+F5 keys
are pressed, the SIP will be displayed with the smaller keys.
[3] OK button
Register the Input Panel Changes and return to the previous Window.
[4] Xbutton
Cancel the Input Panel process and return to the Previous Window.

TeamPad 500 User’s Guide
Copyright 2001 by Fujitsu-ICL Systems Inc.
19 of 47
3.3 Application Installation
To install the application(s) on the equipment, press the “2” key from the “Setup Menu” and the
following window opens.
Select the Storage Card from which the software installation will occur. Select Storage Card1 if the
application is to be loaded from a compact flash card located in the side of the unit. Select Storage
Card2 if the application is to be loaded from a Type II flash card located in the top of the unit. For
information regarding the CONFIG.HHT process, please refer to the “TeamPad 500 Programmer’s
Reference Guide”.
[1] Next Button
Continue the Application Installation process.
[2] Cancel Button
Cancel the Application Installation Process. Return to the “Setup Menu”.

TeamPad 500 User’s Guide
Copyright 2001 by Fujitsu-ICL Systems Inc.
20 of 47

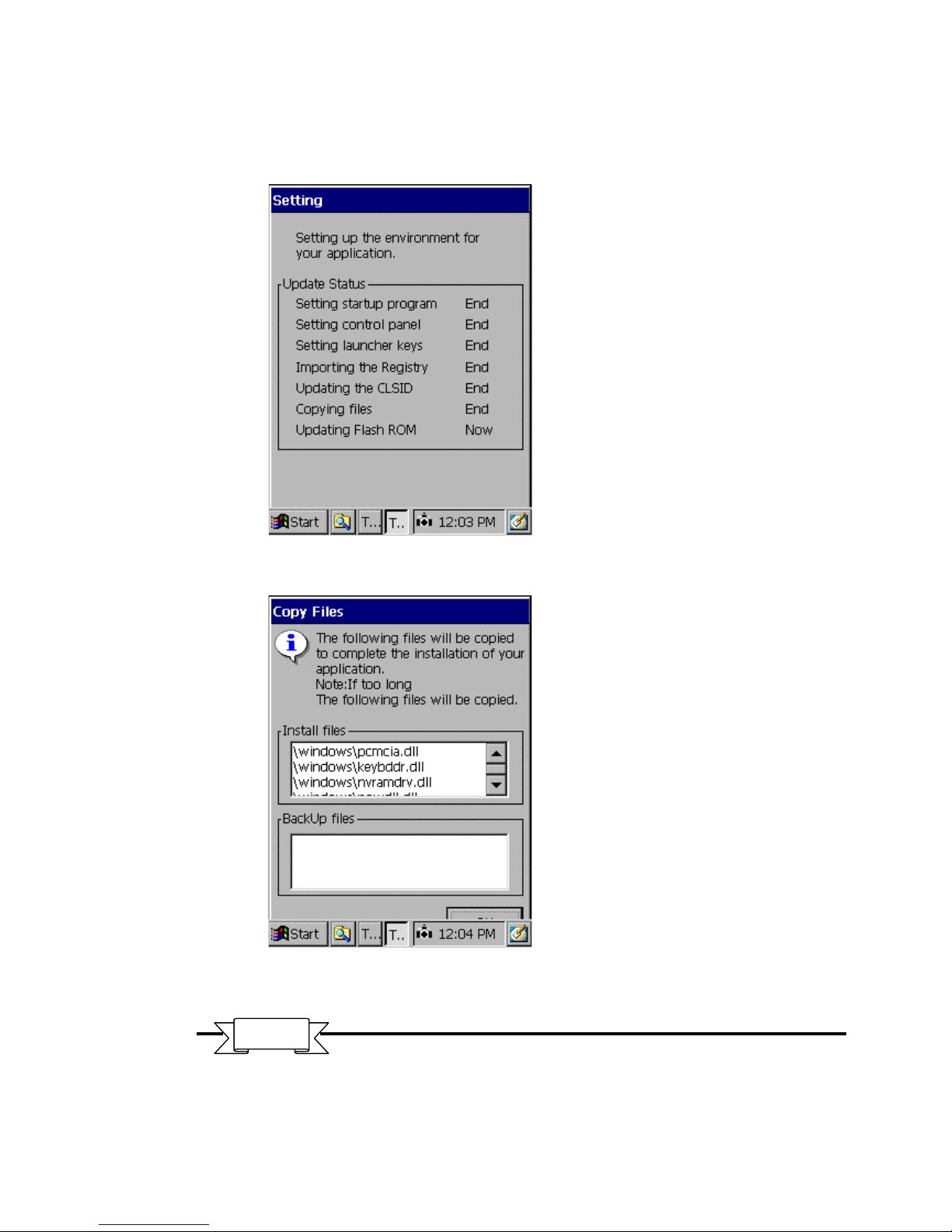

As the CONFIG.HHT file is being processed, a status box is displayed.
At completion a screen similar to the following will be displayed.
[1] Apply Button
Finishes the Application Installation process, and returns to the “Setup Menu”.
When installing an application program, it’s best to initialize the system to a known state. See
Section 3.4.1 for more details.
Important
