Fujitsu P-600 - Stylistic LT User manual

User’s Guide
Guide de I’utilisateur
Benutzerhandbuch
Manual del Usuario
Manuale Utente

User’s Guide
Guide de I’utilisateur
Benutzerhandbuch
Manual del Usuario
Manuale Utente

Copyright
Fujitsu PC Corporation has made every effort to ensure the accuracy and completeness of this document;
however, because ongoing development efforts are made to continually improve the capabilities of our
products, we cannot guarantee the accuracy of the contents of this document. We disclaim liability for
errors, omissions, or future changes herein.
Fujitsu and the Fujitsu logo are registered trademarks of Fujitsu Limited.
Stylistic LT P-600 is a trademark of Fujitsu PC Corporation.
IBM, IBM PC AT, and IBM PS/2 are registered trademarks of IBM Corporation.
Kensington and MicroSaver are registered trademarks of the Kensington Technology Group.
PCMCIA and CardBus are registered trademarks of the Personal Computer Memory Card International
Association.
Intel and Pentium are registered trademarks of Intel Corporation.
Microsoft is a registered trademark of Microsoft Corporation. Windows 98 and Windows 2000 are
trademarks of Microsoft Corporation.
All other trademarks mentioned herein are the property of their respective owners.
Copyright 2001 - Fujitsu PC Corporation. All rights reserved. No part of this publication may be copied, reproduced,
or translated, without the prior written consent of Fujitsu PC Corporation. No part of this publication may be stored
or transmitted in any electronic form without the prior consent of Fujitsu PC Corporation.
Stylistic LT P-600 User’s Guide - FPC58-0536-01
For more detailed information about the FCC rules and their applicability to the Stylistic LT
P-600 pen tablet, refer to Appendix C of this document.
DECLARATION OF CONFORMITY
according to FCC Part 15
Responsible Party Name: Fujitsu PC Corporation
Address: 5200 Patrick Henry Drive
Santa Clara, CA 95054
Telephone: [phone]
Declares that product: Model: Stylistic LT P-600,
FPC1701ATS
FPC1701AVS
Complies with Part 15 of the FCC Rules
This device complies with Part 15 of the FCC rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may
cause undesired operation.
58_0536_00.book Page 1 Wednesday, August 22, 2001 9:07 AM

Stylistic LT P-600 Pen Tablet
58_0536_00.book Page 2 Wednesday, August 22, 2001 9:07 AM

Table of Contents
Table of Contents
1
GETTING STARTED
Getting to Know Your Pen Tablet
In-box Items for the
Stylistic LT P-600 Pen Tablet . . . . . . . . . . . . . . 1
Optional Accessories . . . . . . . . . . . . . . . . . . . . . . 2
Stylistic LT P-600 Pen Tablet Features . . . . . . . . . 3
Status Display . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Connectors and Peripheral Interfaces . . . . . . . . . 8
2
USING THE STYLISTIC LT P-600
System States . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Powering Up the Pen Tablet . . . . . . . . . . . . . . . 14
Shutting Down the System . . . . . . . . . . . . . . . . 15
Suspending System Operation . . . . . . . . . . . . . . 15
Resuming System Operation . . . . . . . . . . . . . . . 17
Using Hotpads . . . . . . . . . . . . . . . . . . . . . . . . . 17
Using the Pen . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Using Hovering Mode . . . . . . . . . . . . . . . . . . . . 21
Charging the Battery Pack . . . . . . . . . . . . . . . . . 22
Removing and Installing the Battery Pack . . . . . 23
Tips for Conserving Battery Power . . . . . . . . . . 24
Modem Connection . . . . . . . . . . . . . . . . . . . . . 25
PC Card Slot . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Compact Flash Slot . . . . . . . . . . . . . . . . . . . . . . 26
Changing the BIOS . . . . . . . . . . . . . . . . . . . . . . 27
3
CARE AND MAINTENANCE
Caring for Your Stylistic LT P-600
Protecting the Display Screen . . . . . . . . . . . . . . 31
Storing the Stylistic LT P-600 Pen Tablet . . . . . . 32
Avoiding Overheating . . . . . . . . . . . . . . . . . . . . 32
Troubleshooting Your Stylistic
System Will Not Resume Operation . . . . . . . . . 33
Display Screen Is Blank or Difficult to Read . . . . 33
Cursor Is Not Tracking Pen . . . . . . . . . . . . . . . . 33
Infrared Data Transfer Is Not Working . . . . . . . 33
Pen Tablet Is Not Responding to the Pen . . . . . 34
Audio Volume Too Low . . . . . . . . . . . . . . . . . . 34
Configuring Peripherals Interfaces . . . . . . . . . . . 34
APPENDIX A
HARDWARE SPECIFICATIONS
Stylistic LT P-600 Specifications . . . . . . . . . . . . 37
APPENDIX B
DIGITIZER TECHNOLOGY NOTICE
Additional Display Information . . . . . . . . . . . . . 43
APPENDIX C
AGENCY NOTICES
FCC Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
DOC (Industry Canada) Compliance Notices 50
58_0536_00.book Page 1 Wednesday, August 22, 2001 9:07 AM

Stylistic LT P-600 Pen Tablet - Table of Contents
58_0536_00.book Page 2 Wednesday, August 22, 2001 9:07 AM

1
1
Getting Started
58_0536_00.book Page 1 Wednesday, August 22, 2001 9:07 AM

2
Stylistic LT P-600 Pen Tablet - Chapter One
58_0536_00.book Page 2 Wednesday, August 22, 2001 9:07 AM

1
Getting Started
Getting to Know Your Stylistic LT P-600
The Stylistic™LT P-600 pen tablet is a high-performance, pen-based computer that is designed to
work with Microsoft®Windows®98 or Windows 2000. This chapter provides an overview of the
Stylistic LT P-600 pen tablet and its features.
In-box Items for the Stylistic LT P-600 Pen Tablet 0
The following items are included with the Stylistic LT P-600 pen tablet:
•Stylistic LT P-600 pen tablet
•Stylistic LT P-600 pen
•Stylistic LT P-600 battery pack
•AC adapter (with country-specific power cord)
•Screen protectors (quantity: 2)
•Certificate of Authenticity for operating system software
•Stylistic LT P-600 Warranty Card
58_0536_00.book Page 1 Wednesday, August 22, 2001 9:07 AM

2
Stylistic LT P-600 Pen Tablet - Chapter One
Optional Accessories 0
The following optional accessories can be used with the Stylistic LT P-600 pen tablet. Refer to the instruc-
tions provided with these accessories for details on their use.
Peripheral/Accessory Fujitsu Part Number
Stylistic LT P-600 mini-dock FPCPR25
Stylistic LT P-600 portfolio case FMWCC45
Stylistic LT Series slipcase FPCCC14
Stylistic LT Series holster FMWCC34
External floppy disk drive FPCFDD02
Mobile USB keyboard (US) FMWKB5A, (UK) FMWKB5B,
(FR) FMWKB5F, (GR) FMWKB5D,
(IT) FMWKB5E
Infrared keyboard (US) FMWKB4A, (UK) FMWKB4B,
(FR) FMWKB4F, (GR) FMWKB4D
Auto adapter FPCAA03
VGA Out Adapter FMW43VA1
Serial Adapter FMW43SA1
Compact Desk Stand FMWDS4
AC adapter FPCAC23
Stylistic LT Series battery pack (spare, 6-cell) FPCBP48
Stylistic LT Series external battery charger FMW51BC1
Screen protectors (package of 12) FMWSP11
Stylistic pens (package of 5) FMW29PN1
58_0536_00.book Page 2 Wednesday, August 22, 2001 9:07 AM

3
Getting Started
Stylistic LT P-600 Pen Tablet Features 0
Features and controls that you use to operate the Stylistic LT P-600 pen tablet are described briefly
below and illustrated in Figures 1-1 and 1-2. Details on using these features and controls are
provided later in this manual.
Figure 1-1 Stylistic LT P-600 Pen Tablet Features (Front View)
Front / Top / Left Features:
•Infrared keyboard port: The infrared port wraps around the front and bottom of the display, and
is used for communicating with a proprietary infrared keyboard.†
•System status LEDs: Indicate the operational status of the pen tablet and hard disk drive, the
charge level of the battery, and the status of the hovering mode.
•Microphone: Allows you to record voice memos.
•Hotpads: Contains several keys that allow you to change settings for the display brightness and
speaker volume, and to allow emulation of a right mouse button. The hotpads also let you select
hovering mode and to Save-to-Disk by tapping with the pen.
•Pen: The main pointing device that you use to execute programs and enter data. A pen holder is
built into the pen tablet to store the pen when not in use.
•Kensington™ lock slot: Allows you to attach a Kensington MicroSaverTM-compatible security
cable.†
Suspend/Resume
Hotpad Area
Infrared
System
Status LEDs
Pen Holder
Cooling Button
Keyboard Port
Vents
Microphone
Infrared I/O Port
Headphone Jack
Microphone Jack
Speaker
Kensington Lock Slot
58_0536_00.book Page 3 Wednesday, August 22, 2001 9:07 AM

4
Stylistic LT P-600 Pen Tablet - Chapter One
•Speaker: Allows you to play back audio files without external hardware.
•Headphone Jack: Allows you to connect a set of headphones.
•Microphone Jack: Allows you to connect an external microphone.
•Infrared I/O port: Provides an infrared interface for communication with devices compliant with
IrDA Standard Revision 1.1.
•Suspend/Resume button: Allows you to suspend and resume pen tablet operation in order to
optimize battery life.
•Cooling vents: Provides secondary cooling for processor. (These vents should not be obstructed.)

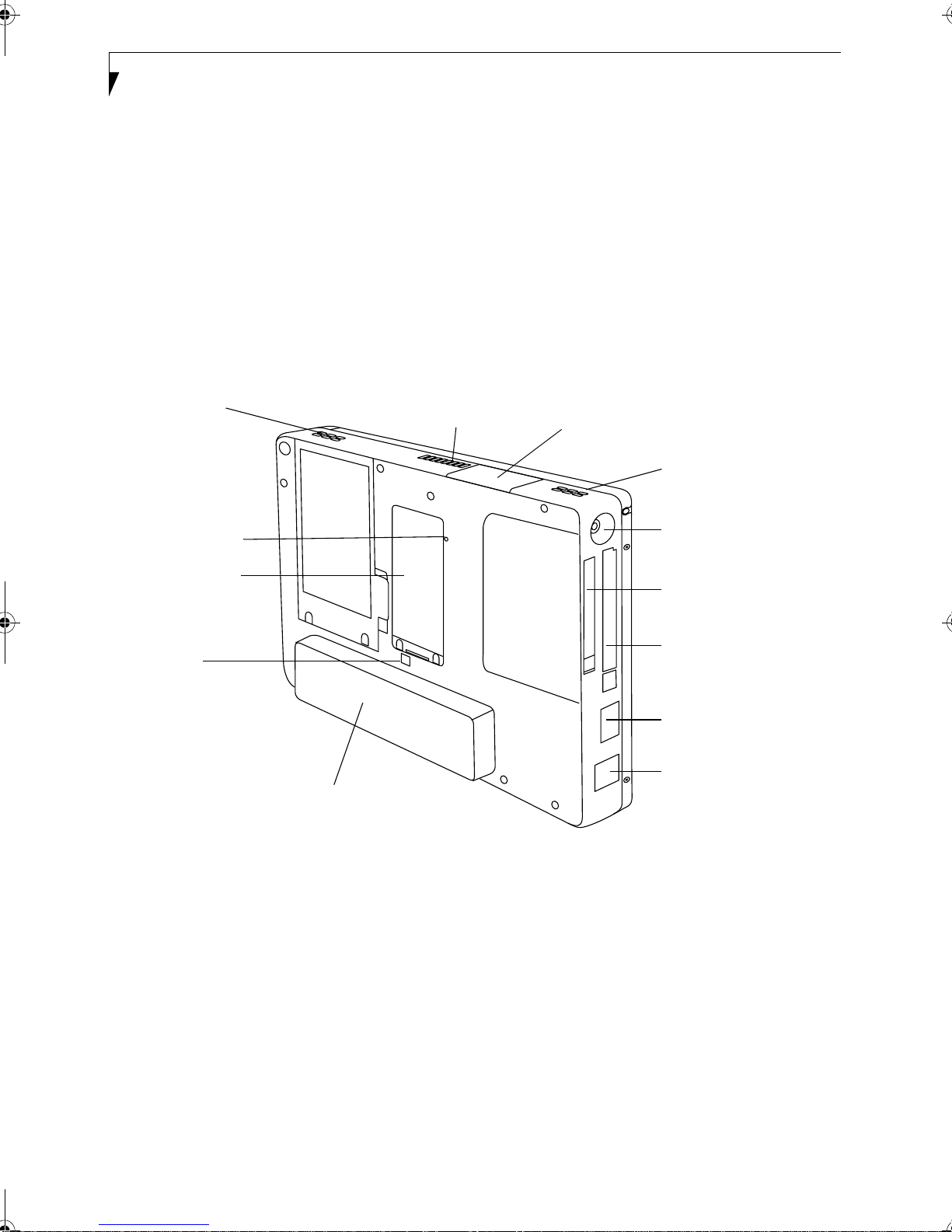

Figure 1-2 Stylistic LT P-600 Pen Tablet Features (Rear View)
Rear / Bottom / Right Features:
•DC input connector: Allows you to connect the AC adapter or auto adapter.†
•Modem port: Allows you to connect a standard RJ-11 connector to the pen tablet’s internal 56
Kbps modem.
Note: The port for the LAN element of the internal LAN/Modem module is available on the
optional mini-dock.†
•USB port A: Allows you to connect Universal Serial Bus-compliant devices to the pen tablet. USB
port B is located on the optional mini-dock.†
†These peripherals and accessories are sold separately.
Battery Pack
Memory Cover
Battery
Release
Switch
Compact
Flash Slot
Cooling
Vents
DC Input
Connector
Modem Port
USB Port A
(under cover)
(under cover)
PCMCIA
Card Slot
Charging Mini-dock Interface
(under cover)
Cooling Vents
Contacts
Reset Button
58_0536_00.book Page 4 Wednesday, August 22, 2001 9:07 AM

5
Getting Started
•PCMCIA Card Slot: Allows you to install PC Cards in the system.†
•Charging contacts: Allows you to charge the battery pack and supply power to the Stylistic LT P-
600 in an optional mini-dock.†
•Mini-dock interface: Allows you to install the Stylistic LT P-600 in an optional mini-dock†for
enhanced connectivity
•Reset button: Allows you to reset the system in the event of system difficulty. Note that pressing
this button results in loss of active data.
•Battery release switch: Used to release the removable battery pack.
•Compact flash slot: Used to accommodate a compact flash card.
•Memory cover: Removable cover over the RAM chips.
•Removable battery pack: Can be removed and charged in an optional external charger.†
•Cooling vents: Provide secondary cooling for processor. (Do not obstruct the vents.)
†These peripherals and accessories are sold separately.
Status Display 1
Icons appear in the Status display indicating the status of system functions such as system power and
battery charge level. The location of icons in the Status display is shown in Figure 1-3.
Figure 1-3 Status Display Icons
Table 1-1 explains how individual icons are displayed, and describes what the variations of that
display indicate. (If an icon is not displayed, it indicates that the related system function is off or
inactive.
Power
Charge/DC In
Battery
HDD Access
Hovering
58_0536_00.book Page 5 Wednesday, August 22, 2001 9:07 AM

6
Stylistic LT P-600 Pen Tablet - Chapter One
Note: In the following table, a “blinking” LED flashes at the rate of once per second; an LED that is
“blinking, slow” flashes at the rate of one second on, five seconds off.
Table 1-1 System Status Indicators
Icon Mode/State LED State Remarks
Power
•On State
•Idle Mode
Green
(continuous)
•Suspend-to-RAM Green
(blinking)
•Off State
•Save-to-Disk
Off
Charge/DC
Input •On State
•Idle Mode
•Suspend-to-RAM
•Save-to-Disk
•Off State
Green •AC adapter and battery pack are
available and system is not
charging (battery fully charged).
•AC adapter is available but battery
pack is not present.
Amber AC adapter and battery pack are
available and system is charging.
Amber
(blinking)
AC adapter and battery pack are
available and waiting to charge (battery
pack is out of thermal range).
Off AC adapter is not available.
58_0536_00.book Page 6 Wednesday, August 22, 2001 9:07 AM

7
Getting Started
Battery •On State
•Idle Mode
•Suspend-to-RAM
with AC adapter
•Save-to-Disk,
with AC adapter
•Off State
Green
(continuous)
Battery pack charge is between 100%-
50%
Amber
(continuous)
Battery pack charge is between 49%-
13%
Red
(continuous)
Battery pack charge is between 12%-
0%
Red
(blinking)
There is a battery error.
Off Battery pack is not installed.
•Suspend-to-RAM,
without AC
adapter
Green (blinking
slow)
Battery pack charge is between 100%-
50%.
Amber
(blinking slow)
Battery pack charge is between 49%-
13%.
Red
(blinking slow)
Battery pack charge is between 12%-
0%.
•Save-to-Disk,
without AC
adapter
•Off State
Off If battery is inserted during power off,
LED blinks amber for 4 seconds to
detect battery. Battery status is
displayed for 5 seconds after that.
HDD
Access •On State Green Displayed when hard disk drive is accessed.
•Suspend-to-RAM
•Save-to-Disk
•Idle Mode
•Off State
Off Hard disk drive is not being accessed.
Hovering •On State
(Hovering
enabled)
Green Hovering mode is enabled
•On State
(Hovering
disabled)
Off Hovering mode is disabled.
•Suspend-to-RAM
•Save-to-Disk
•Off State
Off Not available when system is in
Suspend-to-RAM, Save-to-Disk, or Off
state.
Table 1-1 System Status Indicators
58_0536_00.book Page 7 Wednesday, August 22, 2001 9:07 AM

8
Stylistic LT P-600 Pen Tablet - Chapter One
Connectors and Peripheral Interfaces 1
Connectors and peripheral interfaces on the Stylistic LT P-600 pen tablet allow you to connect a
variety of devices. Specific interface locations are illustrated in Figure 1-4, Figure 1-5, and Figure 1-6.
Figure 1-4 Right-Side Connectors and Interfaces
Figure 1-5 Left-Side Connectors and Interfaces
Figure 1-6 Bottom Connectors and Interfaces
PC Card Door
PC Card
Eject Button Modem Port
USB Port
DC Input
Compact Flash Slot Compact Flash
Eject Button
Infrared I/O Port
Microphone
Jack
Headphone
Jack
Speaker
Mini-dock
Interface Cover
Infrared
Keyboard Port Charging Contacts
Cooling Vents Cooling Vents
58_0536_00.book Page 8 Wednesday, August 22, 2001 9:07 AM

9
Getting Started
Table 1-2 provides a description of each peripheral connector on the Stylistic LT P-600 pen tablet.
Each of the illustrated icons is printed on the pen tablet case.
Table 1-2 Peripheral Connectors/Interfaces
Connector/
Peripheral
Fig.
Ref. Pen Tablet Icon Purpose
DC input
connector
1-4 Connect an external power source such as the AC
adapter or auto adapter.
USB Port 1-4 Connect Universal Serial Bus-compliant devices to
the pen tablet. USB (B) port is located on the
optional Stylistic LT P-600 mini-dock.
PCMCIA
CardBus slot
1-4 Install a Type I or Type II PC Card.
Microphone
jack
1-5 Connect an external microphone. The internal
microphone is disabled when you plug in an
external microphone.
Headphone
jack
1-5 Connect stereo headphones or powered external
speakers. The internal speaker is disabled when
you plug in external headphones or speakers.
IrDA/FIR port 1-5 An infrared transceiver built into the pen tablet
allows you to communicate with other devices that
are compliant with the IrDA Standard Rev. 1.1.
Effective range for infrared communication is about
3 feet, and within 15 degrees off of center. A clear
line-of-sight path must exist between the IrDA port
on the pen tablet and the IrDA transceiver on the
other device.
Modem 1-4 Connect a telephone line to the optional internal
modem using a standard RJ-11 telephone plug.
Charging
Contacts
1-6 Install the pen tablet in an approved docking
device. The contacts provide DC input.
Mini-dock
port†
1-6 Connect the Stylistic LT P-600 mini-dock. Refer to
the documentation accompanying the docking
device for more information.
58_0536_00.book Page 9 Wednesday, August 22, 2001 9:07 AM

10
Stylistic LT P-600 Pen Tablet - Chapter One
In addition to the connector and interface icons, there are a number of icons that illustrate component
orientation and buttons. These icons are illustrated in Table 1-3.
Infrared
keyboard port
1-6 An infrared receiver built into the pen tablet allows
you to communicate with a wireless infrared
keyboard. The keyboard infrared port works
optimally between 10 to 30 cm (approximately
4 in. to 12 in.) from the keyboard infrared port,
located on the bottom edge of the pen tablet.
Ensure that there is a clear line-of-sight path
between the infrared receiver on the pen tablet
and the infrared transmitter on the keyboard.
Compact Flash
Slot
1-4 CF CARD Install a compact flash card to expand system
memory.
†Remove the mini-dock interface cover to access this port.
Table 1-3 Additional System Icons
Icon Description Icon
Illustration Purpose
Battery Indicates the location of the removable
battery cover.
Battery Release Switch Indicates the battery release button.
Suspend/Resume
(Power On) Button
Indicates the Suspend/Resume button. This
button can be reconfigured as a Power On
button through the BIOS.
Shut Off Button No icon Powers down the system in the event of
system difficulty. Use the tip of your stylus
to press this button.
Table 1-2 Peripheral Connectors/Interfaces
Connector/
Peripheral
Fig.
Ref. Pen Tablet Icon Purpose
58_0536_00.book Page 10 Wednesday, August 22, 2001 9:07 AM
