Full Boar FBT-3100 User manual

KNOW YOUR PRODUCT
WARNING: Read all safety warnings and all instructions. Failure to follow the
warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
1215
INVERTER
GENERATOR
•2200WMAX.POWER
•KEYSTARTWITHREMOTE
•2X240V15APOWEROUTLETS
•USBPORT
•SMARTTHROTTLE
TECHNOLOGY
INSTRUCTIONMANUAL

2
ENGINE
Motor Type: 4-stroke, OHV, 1-cylinder
Displacement: 125cc
Engine Speed: 5000/min-1(ECON switch
is off)
Ignition System: T.D.I
Oil Capacity: 450ml
Fuel Tank Capacity: 7 litres
Fuel Type: 91 RON Unleaded Petrol
Spark Plug: Torch A7RTC
Fuse: 20 Amp
Battery Type: Sealed Lead Acid (SLA)
12 Volt, 6Ah
Battery Part No.: MFQ-6L or equivalent
Noise Level Rating (7m): 65dB
SPECIFICATIONS - MODEL NO. FBT-3100
KNOW YOUR PRODUCT
1. Fuel cap
2. Fuel cap lever
3. Spark plug socket
4. Control panel
5. Recoil starter
6. Fuel valve
7. Rear maintenance cover
8. Top maintenance cover
9. AC sockets
10. Oil Fill bottle
11. Overload indicator LED
12. Power indicator LED
13. Oil alert indicator LED
14. Battery power LED
15. Econ throttle switch
16. DC socket
17. DC circuit breaker reset
18. Engine switch
19. Emergency stop button
20. USB port
21. Keys and remote
22. Convertible screwdriver
23. Charging cable and clamp set
24. Oil drain tube
25. Fuse (spare)
26. Retractable handle
27. Wheels
28. Primer bulb
29. Battery charging socket
30. Grounding terminal
31. Battery access cover
32. Remote switch
GENERATOR
AC Output: 240V
50Hz
15Amp
2000W
2200W Max.
DC output: 12V, 8.3Amp
USB output: 5V, 5W, 1Amp
L x W x H: 545 x 290 x 500mm
Weight: 28kg

REMOTE CONTROL
12V DC 8.3A
12 V APPLIANCE OUTLET 8.3A
5V DC USB
BATTERY POWER
OVERLOAD RUN LOW OIL
STOP
ECONOMY
ON
ON
OFF
240V
OFF
STOP
START
ON
DC OVERLOAD
RESET
REMOTE CONTROL
12V DC 8.3A
12 V APPLIANCE OUTLET 8.3A
5V DC USB
BATTERY POWER
OVERLOAD RUN LOW OIL
STOP
ECONOMY
ON
ON
OFF
240V
OFF
STOP
START
ON
DC OVERLOAD
RESET
REMOTE CONTROL
12V DC 8.3A
12 V APPLIANCE OUTLET 8.3A
5V DC USB
BATTERY POWER
OVERLOAD RUN LOW OIL
STOP
ECONOMY
ON
ON
OFF
240V
OFF
STOP
START
ON
DC OVERLOAD
RESET
4
3
KNOW YOUR PRODUCT (cont.)
10
1829
17
1126
21
22 23 27
24
12 13 20 14 15 1916
1
3 56 2528 7
1 2
8
9
Rear Front
31
32
30

4
TABLE OF CONTENTS
SPECIFICATIONS....................................................... Page 02
KNOW YOUR PRODUCT........................................... Page 02
INTRODUCTION........................................................ Page 05
SAFETY INSTRUCTIONS........................................... Page 05
EXPLANATION OF RISKS ......................................... Page 08
PRE-OPERATION CHECK.......................................... Page 12
OPERATION............................................................... Page 15
MAINTENANCE......................................................... Page 24
TRANSPORTING & STORAGE .................................. Page 29
TROUBLE SHOOTING .............................................. Page 30
DESCRIPTION OF SYMBOLS.....................................Page 31
CONTENTS................................................................ Page 32
WARRANTY................................................................ Page 34

5
Congratulations on purchasing a Full Boar Digital
Inverter Generator.
Your Full Boar Digital Inverter Generator FBT-3100
has been designed to give regulated electricity for
a continuous, uninterrupted power supply. Inverter
technology provides a suitable power source for
camping applications, outdoor lights, sound systems,
televisions, microwaves and power tools.
Read and understand the Instruction Manual before
operating the generator. Failure to do so could result in
personal injury or equipment damage.
INTRODUCTION
WARNING! When using this equipment, basic safety precautions, including the
following, should always be followed to reduce risk of fire, electric shock, personal
injury and material damage.
SAFETY INSTRUCTIONS
ELECTRICAL SAFETY
Read and understand the manual prior to operating this tool.
Save these instructions and other documents supplied with this tool for future reference.
The petrol generator has been designed to output 240V only. Always check that the power
supply corresponds to the voltage on the rating plate.
Note: The supply of 230V and 240V on Full Boar tools are interchangeable for Australia and
New Zealand.
Using an Extension Lead
Always use an approved extension lead suitable for the power output from this generator.
Before use, inspect the extension lead for signs of damage, wear and ageing. Replace the
extension lead if damaged or defective. When using an extension lead on a reel, always
unwind the lead completely. Use of an extension lead not suitable for the power input of the
tool or which is damaged or defective may result in a risk of fire and electric shock.

6
• The generator is designed to give safe and dependable service if operated according to
instructions.
• Read and understand the Owner’s Manual before operating the generator. Failure to do
so could result in personal injury or equipment damage.
• Gasoline is extremely ammable and explosive under certain conditions. Refuel in a well
ventilated area with the engine stopped.
• Keep away from cigarette, smoke and sparks when re-fuelling the generator. Always
refuel in a well ventilated location.
• Prevent the spilling of fuel as this may also ignite with the hot motor. Wipe up spilled
gasoline at once. Never refuel whilst the engine running.
• Connections for standby power to a building’s electrical system must be made by a
qualified electrician and must comply with all applicable laws and electrical codes.
Improper connections can allow electrical current from the generator to back feed
into the utility lines. Such back feed may electrocute utility company workers or others
who contact the lines during a power outage, and when utility power is restored, the
generator may explode, burn, or cause res in the building’s electrical system.
• Store the generator in a dry area away from inammable liquids.
• Always make a pre-operation inspection before you start the engine. You may prevent an
accident or equipment damage.
• Place the generator at least 1m (3ft) away from buildings or other equipment during
operation. ALWAYS operate generator a minimum of 2 meters from any conductive
surface eg. metals.
• Persons who are fitted with a heart pacemaker, or similar medical conditions should take
care when using this device. Even the extra low voltage of the Battery charging output
should not be handled by a person with medical conditions as or similar to the above.
• Operate the generator on a level surface. If the generator is tilted, fuel spillage may
result.
• Do not operate in a hazardous location. Such areas include where there is a risk of
explosion of petrol fumes, leaking gas or explosive dust.
• Know how to stop the generator quickly and understand operation of all the controls.
Never permit anyone to operate the generator without proper instructions.
• Keep children and pets away from the generator when it is in operation.
• Keep away from rotating parts while the generator is running.
• The generator is a potential source of electrical shocks when misused; do not operate
with wet hands.
SAFETY WARNINGS FOR GENERATORS
IMPORTANT! When using the equipment, a few safety precautions must be
observed to avoid injuries and damage. Please read the complete operating manual
with due care. Keep this manual in a safe place so that the information is available at
all times. If you give the equipment to any other person, give them these operating
instructions as well.
We cannot accept any liability for damage or accidents which arise due to a failure
to follow these instructions and the safety information.

7
SAFETY WARNINGS FOR GENERATORS (cont.)
• Generator can be operated in light rain and mist. IP23M weather proof rating
• Your power tool should only be passed on with these instructions.
• Children should be supervised to ensure they do not play with the appliance.
WARNING! Exhaust contains poisonous carbon monoxide. Do not operate
generator in confined area. Be sure to operate the generator in a well-ventilated
environment or with an aerator. Using a generator indoors will kill you in minutes.
Never use in the home or in a partly enclosed area such as garages. Only use
outdoors and far from open windows doors and vents.
WARNING! The inverter generator is supplied with a grounding terminal (30)
that may reduce the risk of electrocution in certain applications. Always consult
a qualified electrician before connecting the grounding terminal or when using
the generator for applications other than direct connection of appliances (such as
connection to a caravan).
WARNING! The output of this generating set is potentially lethal. The set should
not be connected to a fixed electrical installation except by an appropriately
licensed person.
WARNING! The mufer becomes very hot during operating and remains hot for a
while after stopping the engine. Be careful not to touch the mufer while it is hot.
Let the engine cool before storing the generator indoors.
WARNING! Do not parallel connect other cables to receptacles, use special jack, or
it may cause an electrical shock.

8
RISK OF ELECTROCUTION AND FIRE
Hazard What could happen How to prevent it
Improper storage
of extension cord.
Extension cord can come into
contact with hot engine parts
resulting in damage. Using a
damaged extension cord can
result in electrocution or death.
Remove extension cord from the
generator and store separately
away from generator.
Operation of
generator in
heavy rain, wet,
icy, or flooded
conditions.
Water is an excellent conductor
of electricity! Water which
comes in contact with electrically
charged components can
transmit electricity
to the frame and other surfaces,
resulting in electrical shock to
anyone contacting them.
Operate generator in a clean, dry,
well ventilated area. Make sure
hands are dry before touching
unit.
Placing generator
on or against
highly conductive
surface, such as a
steel walkway or
metal roof.
Accidental leakage of electrical
current could charge conductive
surfaces in contact with the
generator.
Place generator on low
conductivity surface such as a
concrete slab.
ALWAYS operate generator a
minimum of 2 meters from any
conductive surface.
Operation of unit
when damaged,
or with guards or
panels removed.
Attempting to use the unit when
it has been damaged, or when it
is not functioning normally could
result in fire or electrocution.
Removal of guarding could
expose electrically charged
components and result in
electrocution.
Do not operate generator with
mechanical or electrical problem.
Have unit repaired by an
Authorized Service Centre.
Do not operate generator with
protective guarding removed.

9
RISK OF FIRE
Hazard What could happen How to prevent it
Attempting to fill
the fuel tank while
the engine
is running
Fuel and fuel vapours can
become ignited by coming in
contact with hot components
such as the mufer, engine
exhaust gases, or from an
electrical spark.
Turn engine off and allow it to
cool before adding fuel to the
tank. Equip area of operation
with a fire extinguisher certified
to handle fuel fires.
Sparks, fire, hot
objects
Cigarettes, sparks, fires, or other
hot objects can cause fuel or
fuel vapours to ignite.
Add fuel to tank in well
ventilated area. Make sure there
are no sources of ignition near
the generator.
Improper storage
of fuel
Improperly stored fuel could
lead to accidental ignition. Fuel
improperly secured could get
into the hands of children or
other unqualified persons.
Store fuel in an approved
container designed to hold
fuel. Store container in secure
location to prevent use by
others.
Tampering with
factory set engine
speed settings
Engine speed has been factory
set to provide safe operation.
Tampering with the engine
speed adjustment could result in
overheating of attachments and
could cause a fire.
Never attempt to “speed-up”
the engine to obtain more
performance. Both the output
voltage and frequency will
be thrown out of standard by
this practice, endangering
attachments and the user.
Inadequate
ventilation for
generator
Materials placed against or near
the generator or operating the
generator in areas where the
temperature exceeds 40° C.
ambient (such as storage rooms
or garages) can interfere with
its proper ventilation features
causing overheating and
possible ignition of the materials
or buildings.
Operate generator in a clean,
dry, well ventilated area.
DO NOT OPERATE UNIT
INDOORS OR IN ANY
CONFINED AREA.
Overfilling the fuel
tank - fuel spillage
Spilled fuel and its vapours
can become ignited from hot
surfaces or sparks.
Use care in filling the tank to
avoid spilling fuel. Make sure
fuel cap is secured tightly and
check engine for fuel leaks
before starting engine. Move
generator away from refuelling
area or any spillage before
starting engine. Allow for fuel
expansion. Never refuel with
the engine running.

10
Hazard What could happen How to prevent it
Fire, Inhalation,
Damage to Vehicle
Surfaces
Fuel or oil can leak or spill and
could result in fire or breathing
hazard, serious injury or death
can result. Fuel or oil leaks can
damage carpet, paint or other
surfaces in vehicles or trailers.
Transport fuel only in an
approved fuel container.
Always place generator
on a protective mat when
transporting to protect against
damage to vehicle from leaks.
Remove generator from vehicle
immediately upon arrival at
your destination.
RISK OF INJURY AND PROPERTY DAMAGE
WHEN TRANSPORTING GENERATOR
Hazard What could happen How to prevent it
Contact with
hot engine
and generator
components
Contact with hot surfaces,
such as engines exhaust
components, could result in
serious burns.
During operation, touch only
the control surfaces of the
generator. Keep children
away from the generator at all
times. They may not be able to
recognize the hazards of this
product.
Hazard What could happen How to prevent it
Lifting a very heavy
object
Serious injury can result from
attempting to lift too heavy an
object.
When lifting, always keep the
object you are lifting near
the vertical axis of your body.
DO NOT use you back to lift
heavy loads. Both people
should crouch down, grab the
underside of unit and use your
legs to carry the weight. Keep
the object as near the centre of
your body’s gravity as possible.
Avoid twisting your bodies
when carrying the unit; instead,
turn your whole body using
your feet.
RISK OF HOT SURFACES
RISK FROM LIFTING

11
Hazard What could happen How to prevent it
Gasoline engines
produce toxic
carbon monoxide
exhaust fumes
Breathing exhaust fumes will
cause serious injury or death.
Operate generator in clean,
dry, well ventilated area. Never
operate unit in enclosed areas
such as garages, basements,
storage, sheds, or in any
location occupied by humans
or animals. Keep children, pets
and others away from area of
operating unit.
Hazard What could happen How to prevent it
Operation of
generator in careless
manner
All sources of energy include
the potential for injury. Unsafe
operation or maintenance of
your generator could lead to
serious injury or death to you or
others.
Review and understand all of
the operating instructions and
warnings in this manual.
Become familiar with the
operation and controls of the
generator. Know how to shut it
off quickly.
Equip area of operation with
a fire extinguisher certified to
handle gasoline or fuel fires.
Keep children or others away
from the generator at all times.
Operating generator
while suspended
Generator will not operate
properly and will cause damage
to the generator and could
cause serious injury or death to
you or others.
Never operate generator while
suspended or in an unlevel
position. Always operate
generate on a at, level
surface.
RISK OF BREATHING - INHALATION HAZARD
RISK OF UNSAFE OPERATION
Hazard What could happen How to prevent it
Contact with moving
parts can result in
serious injury
The generator contains parts
which rotate at high speed
during operation. These parts
are covered by guarding to
prevent injury.
Never operate generator
with guarding or cover plates
removed. Avoid wearing loose
fitting clothing or jewellery
which could be caught by
moving parts.
RISK OF MOVING PARTS

12

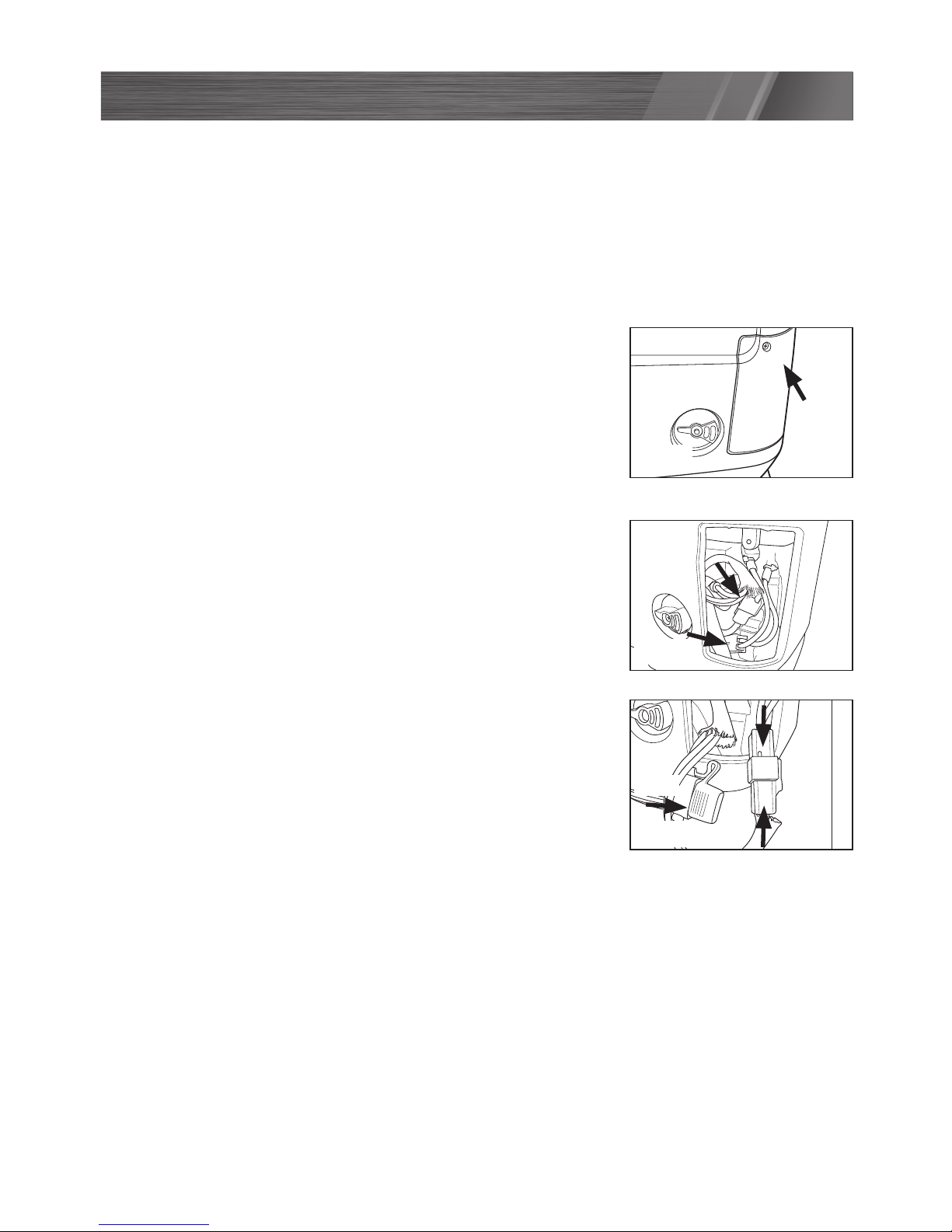

Connect leads to battery terminal
The Full Boar FBT-3100 contains a battery to power the starter motor and remote start
function. In the case of a at battery, the generator can still be started with the recoil starter.
Note: The battery is shipped fully charged from the factory. To minimize self-discharge, the
leads are shipped disconnected from the battery.
1. Remove battery access cover (31) (Fig. 1).
2. Locate the battery lead connector and battery terminal
connector (Fig. 2).
3. Connect the two connectors (Fig. 3).
4. With the leads connected, reinstall the battery access cover (31) and tighten the cover
screw securely.
Note: The in-line fuse protects the electric short circuit. If this fuse is blown, or the battery
isn’t present, the generator can still be used with the pull start method.
PRE-OPERATION CHECK
REMOTE CONTROL
12V DC 8.3A
12 V APPLIANCE OUTLET 8.3A
5V DC USB
BATTERY POWER
OVERLOAD RUN LOW OIL
STOP
ECONOMY
ON
ON
OFF
240V
OFF
STOP
START
ON
DC OVERLOAD
RESET
Fuse
Fig. 1
Fig. 2
Fig. 3

13
KNOW YOUR PRODUCT

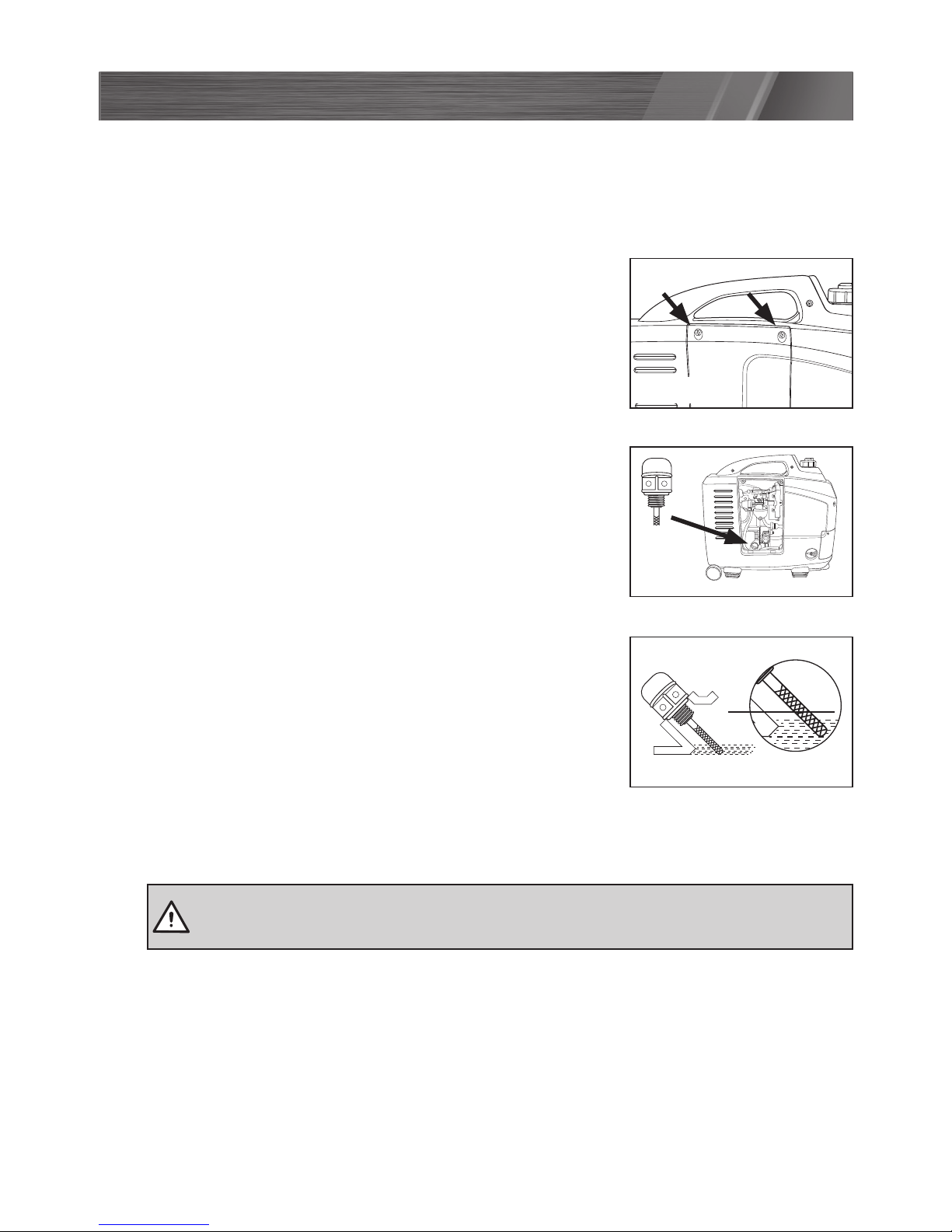

Checking the oil
Note: The generator is shipped without oil and must be filled before starting. Oil tank
capacity 450ml. (Use SAE30 or 15W40 oil).
1. Be sure to check that the generator is on a level surface with the engine stopped.
2. To check the oil level, first loosen the 2 cover screws and
remove the rear maintenance cover (7) (Fig. 4).
3. Remove the oil filler cap, and wipe the dipstick with a
clean rag. Check the oil level by inserting the dipstick in the filler hole without
screwing it in and then removing it again (Fig. 5).
4. If the oil level is below the end of the dipstick, refill using
oil fill bottle (10) until it registers on the halfway mark of
the dipstick (Fig. 6). Use premium quality 4-stroke engine oil. Recommended SAE30 or
15W40 for most climate conditions in Australia.
Note. The Oil Alert System will automatically stop the engine
before the oil level falls below the safe limit. However, to
avoid the inconvenience of an unexpected shutdown, it is still
advisable to visually inspect the oil level regularly.
PRE-OPERATION CHECK (cont.)
CAUTION! Using non-detergent oil or 2-stroke engine oil could shorten the
engine’s service life.
REMOTE CONTROL
12V DC 8.3A
12 V APPLIANCE OUTLET 8.3A
5V DC USB
BATTERY POWER
OVERLOAD RUN LOWOIL
STOP
ECONOMY
ON
ON
OFF
240V
OFF
STOP
START
ON
DC OVERLOAD
RESET
Upper
level
allowed
Fig. 4
Fig. 5
Fig. 6

14
KNOW YOUR PRODUCT

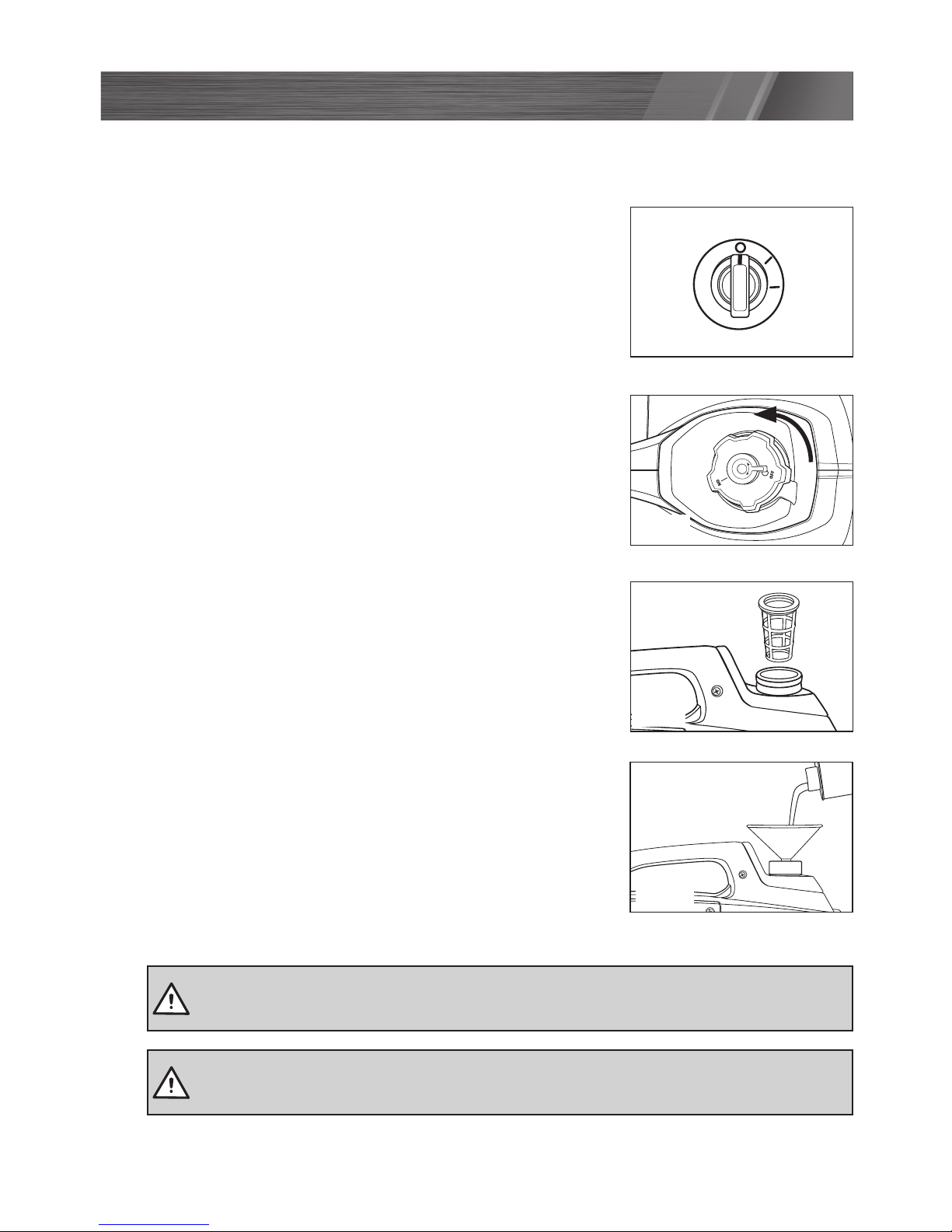

Refuelling the generator
1. Switch off engine by moving the engine switch (18) to the
OFF position (Fig. 7) and switching off the remote control
switch (32).
2. Remove the fuel cap (1) by rotating in a anti-clockwise
direction (Fig. 8).
3. Lift out the fuel filter and visually check the fuel level
(Fig. 9).
4. Replace the fuel filter and, if necessary, add fuel to the
tank (91 RON Unleaded Petrol). Do not overfill the fuel
tank (Fig. 10). Do not use ethenol blended fuels.
5. After refuelling, make sure the fuel cap (1) is closed
properly and securely.
ON
STOP
START
ON
STOP
START
ON
STOP
START
REMOTE CONTROL
ON
OFF
REMOTE CONTROL
12V DC 8.3A
12 V APPLIANCE OUTLET 8.3A
5V DC USB
BATTERY POWER
OVERLOAD RUN LOW OIL
STOP
ECONOMY
ON
ON
OFF
240V
OFF
STOP
START
ON
Fig. 9
Fig. 7
Fig. 8
Fig. 10
WARNING! Be careful not to spill fuel when refuelling. Spilled fuel or fuel vapour
may ignite. If any fuel is spilled, make sure the area is dry before starting the engine.
WARNING! Keep away from cigarettes, smoke and sparks when refuelling the
generator. Always refuel in a well-ventilated location.
PRE-OPERATION CHECK (cont.)

15
KNOW YOUR PRODUCT

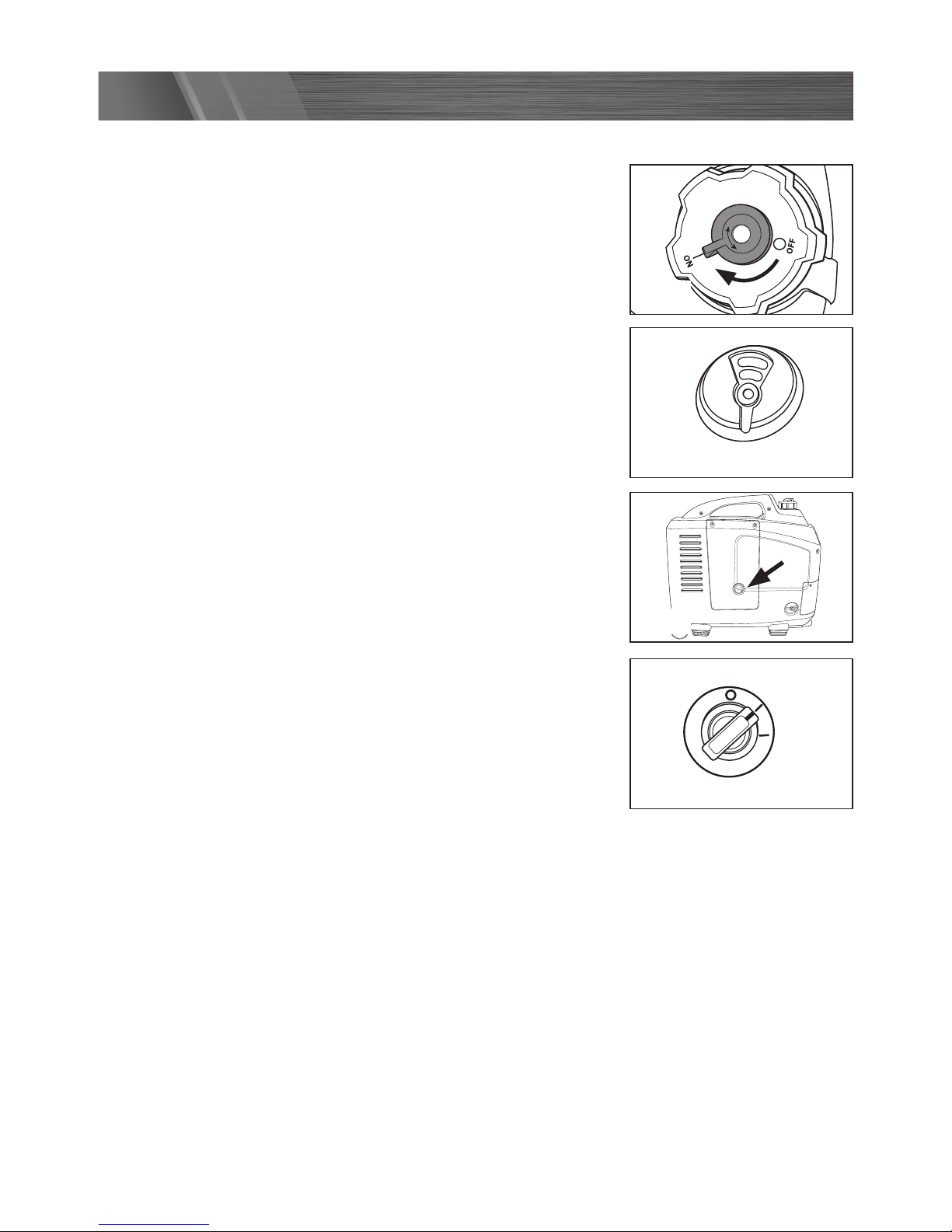

Preparing to start
Note. Before starting the engine, disconnect all appliances
from the generator.
1. Turn the fuel cap lever fully (2) clockwise to the ON
position (Fig. 11).
2. Set the fuel valve (6) to the “ON” position (Fig. 12).
3. If the generator has not been used in a while or has run
out of fuel, press the primer bulb (28) (Fig. 13) approx 5-10
times.
4. Put the electric start key (21) into the engine switch (18),
and turn it to “ON” position (Fig. 14).
Starting the engine
There are three ways in which the generator can be started: Manual start, Key start and
Remote start.
OPERATION
OFF
ON
REMOTECONTROL
12VDC 8.3A
12V APPLIANCE OUTLET 8.3A
5VDC USB
BATTERYPOWER
OVERLOAD RUN LOWOIL
STOP
ECONOMY
ON
ON
OFF
240V
OFF
STOP
START
ON
DCOVERLOAD
RESET
ON
STOP
START
ON
STOP
START
ON
STOP
START
REMOTE CONTROL
ON
OFF
REMOTE CONTROL
12V DC 8.3A
12 V APPLIANCE OUTLET 8.3A
5V DC USB
BATTERY POWER
OVERLOAD RUN LOW OIL
STOP
ECONOMY
ON
ON
OFF
240V
OFF
STOP
START
ON
Fig. 11
Fig. 12
Fig. 13
Fig. 14

16
OPERATION (cont.)
Manual start
1. Follow steps 1 to 4 in the “Preparing to start” section on the previous page.
2. Hold the carrying handle firmly with one hand. With the other hand, pull slightly on the
rip cord (5) until you feel resistance and then pull hard and
swiftly on the cord (Fig. 15). Do not let the rip cord retract
by itself, guide it back by hand.
3. After the engine starts, allow it to run for a short period of
time to warm up.
4. When using the manual start method, make sure that you
use the key to turn the engine off after operation (Fig. 16),
not the remote.
Note: Pressing and holding the emergency stop button (19)
will stop the generator from any starting modes.
Key start
1. Follow steps 1 to 4 in the “Preparing to start” section on the previous page.
Note: The Battery power LED (14) illuminates when sufficient battery power is available
for a key start.
2. From the “ON” position turn the engine switch to the “START” position (Fig. 17).
3. After the engine starts, release the key and it will revert to the “ON” position (Fig 18).
The engine should continue running.
4. When using the key start method, make sure that you use the key to turn the engine off
after operating (Fig. 19), not the remote.
Note: Pressing and holding the emergency stop button (19) will stop the generator from all
starting modes.
ON
STOP
START
ON
STOP
START
ON
STOP
START
REMOTE CONTROL
ON
OFF
REMOTE CONTROL
12V DC 8.3A
12 V APPLIANCE OUTLET 8.3A
5V DC USB
BATTERY POWER
OVERLOAD RUN LOW OIL
STOP
ECONOMY
ON
ON
OFF
240V
OFF
STOP
START
ON
ON
STOP
START
ON
STOP
START
ON
STOP
START
REMOTE CONTROL
ON
OFF
REMOTE CONTROL
12V DC 8.3A
12 V APPLIANCE OUTLET 8.3A
5V DC USB
BATTERY POWER
OVERLOAD RUN LOW OIL
STOP
ECONOMY
ON
ON
OFF
240V
OFF
STOP
START
ON
Fig. 15
Fig. 17 Fig. 18
Fig. 16
ON
STOP
START
ON
STOP
START
ON
STOP
START
REMOTE CONTROL
ON
OFF
REMOTE CONTROL
12V DC 8.3A
12 V APPLIANCE OUTLET 8.3A
5V DC USB
BATTERY POWER
OVERLOAD RUN LOW OIL
STOP
ECONOMY
ON
ON
OFF
240V
OFF
STOP
START
ON
ON
STOP
START
ON
STOP
START
ON
STOP
START
REMOTE CONTROL
ON
OFF
REMOTE CONTROL
12V DC 8.3A
12 V APPLIANCE OUTLET 8.3A
5V DC USB
BATTERY POWER
OVERLOAD RUN LOW OIL
STOP
ECONOMY
ON
ON
OFF
240V
OFF
STOP
START
ON
Fig. 19

17
OPERATION (cont.)
WARNING! Keep the generator away from other electric cables or wires such as
distribution network.
WARNING! Limit operation requiring maximum power to 30 minutes. For
continuous operation, do not exceed the rated power. In either case, the total
wattage of all appliances connected must be considered .
WARNING! Do not exceed the current limit specified for any one receptacle.
WARNING! Keep the generator on a level surface when running. If generator is
tilted while in operation, it may cause fuel spillage or low oil level warning.
Remote start
1. Follow steps 1 to 4 in the “Preparing to start” section on page 15.
Note: The Battery power LED (14) illuminates when sufficient battery power is available
for a remote start.

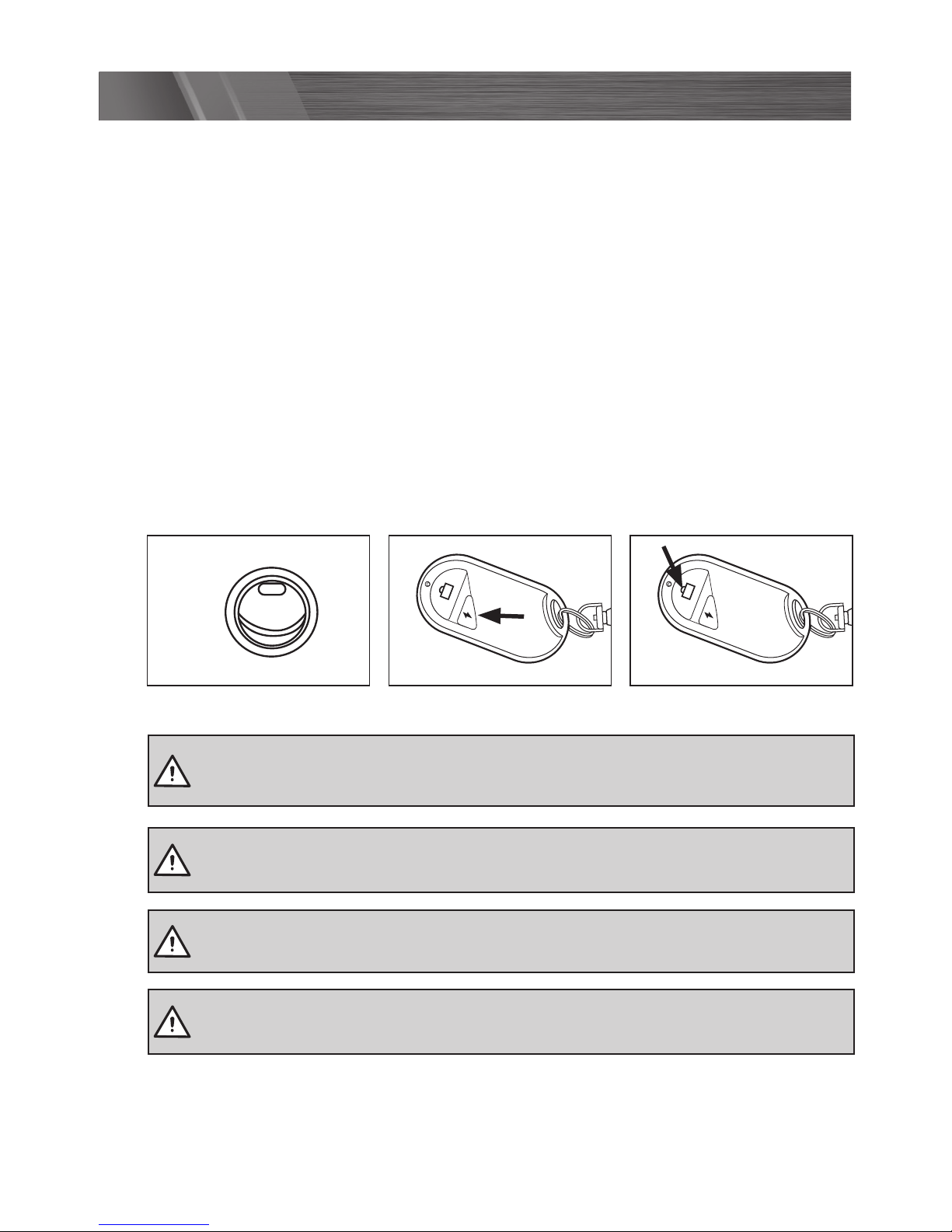

2. Make sure that the remote control switch (32) is in the “ON” position (Fig. 20).
3. Point the remote in the direction of the generator. Press the start button (Fig. 21) once,
then press again and hold it until the generator is started.
4. When using the remote start method use the remote stop button to turn the engine
off after operation (Fig. 22) or switch the remote control switch (32) (Fig. 20) to “OFF”
position, not the key.
Note: Pressing and holding the emergency stop button (19) will stop the generator from all
starting modes.
ON
STOP
START
ON
STOP
START
ON
STOP
START
REMOTE CONTROL
ON
OFF
REMOTE CONTROL
12V DC 8.3A
12 V APPLIANCE OUTLET 8.3A
5V DC USB
BATTERY POWER
OVERLOAD RUN LOW OIL
STOP
ECONOMY
ON
ON
OFF
240V
OFF
STOP
START
ON
Fig. 20 Fig. 21 Fig. 22

18
KNOW YOUR PRODUCT
ECON Switch (Fig. 23)
When the Econ Switch (15) is turned ON, the engine will
automatically enter idle mode after an electrical appliance has
been disconnected. It will return to the proper speed required
when the appliance is connected. Having the Econ switch ON
is recommended, as it minimizes the fuel consumption while
in operation.
IMPORTANT!: In DC operation, turn the Econ switch to the
OFF position.
WARNING! When an extension cable is required, be sure to use a rubber sheathed
exible cable. Limit length of extension cables: 60m for cables of 1.5mm2and 100m
for cables of 2.5mm2.
WARNING! Keep the generator a distance at least 1 metre from other equipment
during operation.
ON
STOP
START
ON
STOP
START
ON
STOP
START
REMOTE CONTROL
ON
OFF
REMOTE CONTROL
12V DC 8.3A
12 V APPLIANCE OUTLET 8.3A
5V DC USB
BATTERY POWER
OVERLOAD RUN LOW OIL
STOP
ECONOMY
ON
ON
OFF
240V
OFF
STOP
START
ON
Fig. 23
CAUTION! When high electrical loads are connected simultaneously, turn the Econ
switch to the OFF position to reduce voltage vibration.
OPERATION (cont.)

19
OPERATION (cont.)

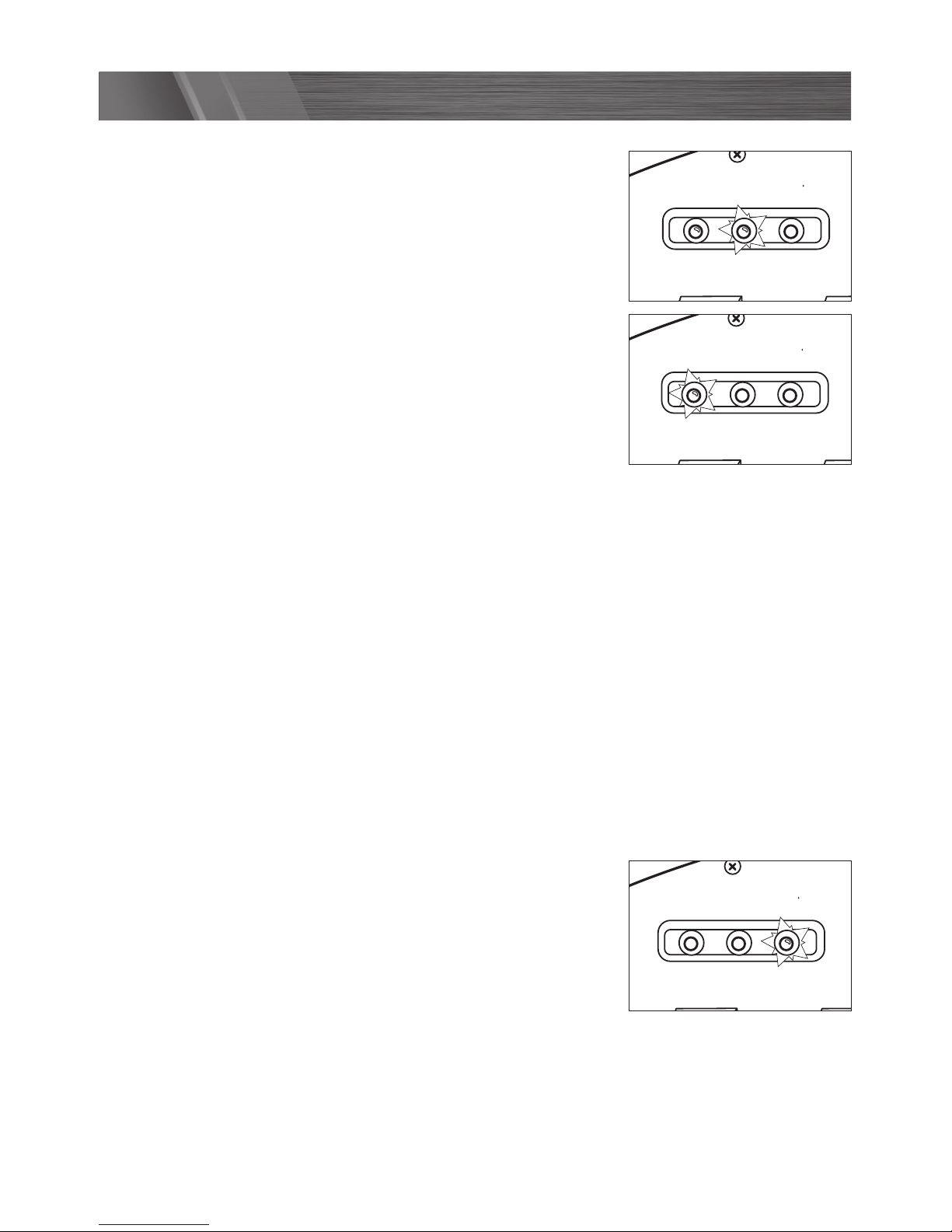

Output Indicator.
• The power indicator LED (12) (green) illuminates when
power is available to outputs (Fig. 24).
Overload Indicator.
• If the generator is overloaded or if there is a short in the
connected appliance the overload indicator LED (11) (red)
will go ON and current to the connected appliance will be
shut off (Fig. 25). The output indicator LED green will turn
off.
• Substantial overloading that continuously lights the
overload indicator light (red) may damage the generator.
Marginal overloading that temporarily lights the overload
indicator LED (11) (red) may shorten the service life of
the generator. Stop the engine if the overload indicator light (red) switches ON and
investigate the overload source.
• Before connecting an appliance to the generator, check that it is in good & order, and
that its electrical rating does not exceed that of the generator.
• Be sure all equipment is turned off before plugging in the power cord.
• When an electric motor is started, both the overload indicator LED (red) (11) and
the output indicator light (green) (12) may go on simultaneously. This is normal if the
overload indicator LED (red) (11) goes off after about four seconds.
• If the overload indicator LED (red) stays on, contact customer service.
Oil alert indicator
• The oil alert system is designed to prevent engine damage caused by an insufcient
amount of oil in the crankcase. Before the oil level in the crankcase falls below a safe
limit, the oil alert system will automatically shut down the engine (the engine switch will
remain in the ON position).
• If the oil alert system shuts down the engine, the oil alert
indicator LED (red) (13) will come on when you operate the
starter, and the engine will not run (Fig. 26). If this occurs,
add engine oil.
OVERLOAD RUN LOW OIL
240V AC
USB
12V DC 8.3A
BATTERY CHARGE
REMOTE
CONTROL
STOP
ECON
12V APPLIANCE OUTLET 8.3A
ON OFF
ON
ON
START
OFF
ON OFF
5V DC USB
OVERLOAD RUN LOW OIL
240V AC
USB
12V DC 8.3A
BATTERY CHARGE
REMOTE
CONTROL
STOP
ECON
12V APPLIANCE OUTLET 8.3A
ON OFF
ON
ON
START
OFF
ON OFF
5V DC USB
OVERLOAD RUN LOW OIL
240V AC
USB
12V DC 8.3A
BATTERY CHARGE
REMOTE
CONTROL
STOP
ECON
12V APPLIANCE OUTLET 8.3A
ON OFF
ON
ON
START
OFF
ON OFF
5V DC USB
OVERLOAD RUN LOW OIL
240V AC
USB
12V DC 8.3A
BATTERY CHARGE
REMOTE
CONTROL
STOP
ECON
12V APPLIANCE OUTLET 8.3A
ON OFF
ON
ON
START
OFF
ON OFF
5V DC USB
OVERLOAD RUN LOW OIL
240V AC
USB
12V DC 8.3A
BATTERY CHARGE
REMOTE
CONTROL
STOP
ECON
12V APPLIANCE OUTLET 8.3A
ON OFF
ON
ON
START
OFF
ON OFF
5V DC USB
OVERLOAD RUN LOW OIL
240V AC
USB
12V DC 8.3A
BATTERY CHARGE
REMOTE
CONTROL
STOP
ECON
12V APPLIANCE OUTLET 8.3A
ON OFF
ON
ON
START
OFF
ON OFF
5V DC USB
OVERLOAD RUN LOW OIL
240V AC
USB
12V DC 8.3A
BATTERY CHARGE
REMOTE
CONTROL
STOP
ECON
12V APPLIANCE OUTLET 8.3A
ON OFF
ON
ON
START
OFF
ON OFF
5V DC USB
OVERLOAD RUN LOW OIL
240V AC
USB
12V DC 8.3A
BATTERY CHARGE
REMOTE
CONTROL
STOP
ECON
12V APPLIANCE OUTLET 8.3A
ON OFF
ON
ON
START
OFF
ON OFF
5V DC USB
OVERLOAD RUN LOW OIL
240V AC
USB
12V DC 8.3A
BATTERY CHARGE
REMOTE
CONTROL
STOP
ECON
12V APPLIANCE OUTLET 8.3A
ON OFF
ON
ON
START
OFF
ON OFF
5V DC USB
Fig. 24
Fig. 25
Fig. 26

20
OPERATION (cont.)
AC Applications
Check the total rating of the appliance to be connected and ensure the rating of the appliance/s
does not exceed the rating of the generator.
1. Start the engine and make sure the output indicator LED (green)
(12) illuminates. (see “Starting the engine”)
2. Confirm that the equipment to be used is switched off, and
insert the plug of the equipment to be used into an AC socket
(9) (Fig. 27).
Note. If the connected appliance does not operate, refer to the overload indicator section on the
previous page.
Fig. 27
AC Electric lamps Power tools Electromotor DC battery
Power factor 1 0.8-0.9 0.4-0.7
(Efficiency 0.85) Rated voltage
12V
Rated current 8A
0 - 2000W 0 - 1400W 0 - 600W
