Full Boar FBBS-750 User manual

KNOW YOUR PRODUCT
WARNING: Read all safety warnings and all instructions. Failure to follow the
warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
01/18
305MM
BANDSAW
WITH STAND
INSTRUCTION MANUAL
• 750W MOTOR
• 305MM THROAT CAPACITY
• 2 SPEED BELT DRIVE
• HEAVY DUTY STAND

2
Voltage: 220-240V ~50Hz
Power: 750W
Idle speed: 1400/min
Throat: 305mm
Saw Band: 2320 x 12.7 mm
Number of saw teeth: 4 / 25.4mm
Saw band speed: 370 / 800 m/min
Number of speed steps: 2 settings
Max. cutting height at 45°: 75 mm
Max. cutting height at 90°: 170mm
Size of working table: 495 x 390 mm
Table tiltable: 0 - 45 °
Tool weight: 65 kg
SPECIFICATIONS - MODEL NO. FBBS-750
KNOW YOUR PRODUCT
a. Small washer
b. Small spring washer
c. Small nut
d. Short hex bolt
e. Long hex bolt
f. Long bolt
g. Dome head bolt
h. Large nut
i. Large spring washer
j. Large washer
k. Large bolt
l. Stabilising bar
m. Stand leg
n. Long lower support
o. Long upper support
p. Short lower support
q. Short upper support
r. Stabilising legs
s. Rubber feet
a
b
c
d
e
f
g
h i j k l m n o p q r s

3
KNOW YOUR PRODUCT
1. Push stick holder
2. Upper pulley door
3. On/Off switch
4. Rip fence
5. Lower pulley door
6. Rubber feet
7. Blade tension knob
8. Upper door lock
9. Blade tracking knob
10. Blade tracking lock
11. Guard adjustment knob
12. Guard adjustment lock
13. Upper guides
14. Blade
15. Saw table
16. Rip fence ruler
17. Lower guides
18. Locker door lock
19. Drive belt tensioning crank
20. Stabilising leg
21. Angle indicator
22. Table tilt locking knob
23. Table level stop
24. Drive belt tension wheel
25. Drive belt wheel
26. Blade belt wheel
7
1
2
4
5
6
8
9
10
14
15
16
17
3
18
19
21 22 23
24 25 26 19
20
11
12
13

4
SPECIFICATIONS....................................................... Page 02
KNOW YOUR PRODUCT........................................... Page 02
INTRODUCTION........................................................ Page 05
SAFETY INSTRUCTIONS........................................... Page 05
STAND ASSEMBLY..................................................... Page 09
SETUP & PREPARATION............................................ Page 11
SAW ASSEMBLY......................................................... Page 15
OPERATION............................................................... Page 17
MAINTENANCE......................................................... Page 20
TROUBLE SHOOTING .............................................. Page 22
DESCRIPTION OF SYMBOLS.....................................Page 23
CONTENTS................................................................ Page 24
WARRANTY................................................................ Page 26
TABLE OF CONTENTS

5
Congratulations on purchasing a Full Boar Bandsaw.
Your Full Boar Bandsaw FBBS-750 has been designed for
cutting wood and wood composition products. It can be used
for curve cuts and straight line cutting operations such as
cross cutting, ripping, bevelling and compound cutting.
INTRODUCTION
WARNING! When using mains-powered tools, basic safety precautions, including the
following, should always be followed to reduce risk of fire, electric shock, personal injury
and material damage.
Read the whole manual carefully and make sure you know how to switch the tool off in an emergency,
before operating the tool. Save these instructions and other documents supplied with this tool for
future reference. The manufacturer cannot accept any liability for damage or accidents which arise
due to a failure to follow these instructions and the safety information.
This product has been designed for 230V and 240V only. Always check that the power supply
corresponds to the voltage on the rating plate.
Note: The supply of 230V and 240V is interchangeable for Australia and New Zealand.
The power supply for this product should be protected by a residual current device (rated at 30mA or
less). A residual current device reduces the risk of electric shock.
If the supply cord of this power tool is damaged, it must be replaced by a specially prepared cord
available through the service organization.
Note: Double insulation does not take the place of normal safety precautions when operating this
tool. The insulation system is for added protection against injury resulting from a possible electrical
insulation failure
within the tool.
Using an Extension Lead
Always use an approved extension lead suitable for the power input of this tool. Before use, inspect
the extension lead for signs of damage, wear and ageing. Replace the extension lead if damaged or
defective.
When using an extension lead on a reel, always unwind the lead completely. Use of an extension lead
not suitable for the power input of the tool or which is damaged or defective may result in a risk of fire
and electric shock.
ELECTRICAL SAFETY

6
GENERAL SAFETY INSTRUCTIONS
WARNING! Read all safety warnings and all instructions. Failure to follow the
warnings and instructions may result in electric shock, fire and/or serious
injury.
Save all warnings and instructions for future reference. The term “power tool” in the
warnings refers to your mains-operated (corded) power tool or battery-operated
(cordless) power tool.
1. Work area safety
a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b. Do not operate power tools in explosive atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool. Distractions can
cause you to lose control.
2. Electrical safety
a. Power tool plugs must match the outlet. Never modify the plug in any way.
Do not use any adapter plugs with earthed (grounded) power tools. Unmodified
plugs and matching outlets will reduce risk of electric shock.
b. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators,
ranges and refrigerators. There is an increased risk of electric shock
if your body is earthed or grounded.
c. Do not expose power tools to rain or wet conditions. Water entering a power tool
will increase the risk of electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging
the power tool. Keep cord away from heat, oil, sharp edges or moving parts.
Damaged or entangled cords increase the risk of electric shock.
e. When operating a power tool outdoors, use an extension cord suitable
for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric
shock.
f. If operating a power tool in a damp location is unavoidable, use a residual current
device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
3. Personal safety
a. Stay alert, watch what you are doing and use common sense when operating a
power tool. Do not use a power tool while you are tired or under the influence of
drugs, alcohol or medication. A moment of inattention while operating power tools
may result in serious personal injury.
b. Use personal protective equipment. Always wear eye protection. Protective
equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection
used for appropriate conditions will reduce personal injuries.
c. Prevent unintentional starting. Ensure the switch is in the off-position before
connecting to power source and/or battery pack, picking up or carrying the tool.
Carrying power tools with your finger on the switch or energising power tools that have
the switch on invites accidents.
d. Remove any adjusting key or wrench before turning the power tool on.
A wrench or a key left attached to a rotating part of the power tool may result
in personal injury.
GENERAL POWER TOOL SAFETY WARNINGS

7
GENERAL POWER TOOL SAFETY WARNINGS
e. Do not overreach. Keep proper footing and balance at all times. This enables
better control of the power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing
and gloves away from moving parts. Loose clothes, jewellery or long hair can be
caught in moving parts.
g. If devices are provided for the connection of dust extraction and collection
facilities, ensure these are connected and properly used. Use of dust collection can
reduce dust-related hazards.
h. Do not let familiarity gained from frequent use of tools allow you to become
complacent and ignore tool safety principles. A careless action can cause severe
injury within a fraction of a second.
4. Power tool use and care
a. Do not force the power tool. Use the correct power tool for your application.
The correct power tool will do the job better and safer at the rate for which it was
designed.
b. Do not use the power tool if the switch does not turn it on and off. Any power
tool that cannot be controlled with the switch is dangerous and must be repaired.
c. Disconnect the plug from the power source and/or the battery pack from the
power tool before making any adjustments, changing accessories, or storing
power tools. Such preventive safety measures reduce the risk of starting the power
tool accidentally.
d. Store idle power tools out of the reach of children and do not allow persons
unfamiliar with the power tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained users.
e. Maintain power tools. Check for misalignment or binding of moving parts,
breakage of parts and any other condition that may affect the power tool’s
operation. If damaged, have the power tool repaired before use. Many accidents
are caused by poorly maintained power tools.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp
cutting edges are less likely to bind and are easier to control.
g. Use the power tool, accessories and tool bits etc. in accordance with these
instructions, taking into account the working conditions and the work to be
performed. Use of the power tool for operations different from those intended could
result in a hazardous situation.
h. Keep handles and grasping surfaces dry, clean and free from oil and grease.
Slippery handles and grasping surfaces do not allow for safe handling and control of
the tool in unexpected situations.
5. Service
a. Have your power tool serviced by a qualified repair person using only identical
replacement parts. This will ensure that the safety of the power tool
is maintained.

8
ADDITIONAL SAFETY RULES FOR BANDSAWS
This appliance is not intended for use by young or infirm persons unless supervised
by a responsible person to ensure that they can use the appliance safely. Young
children should be supervised to ensure that they do not play with the appliance.
Recommendations for the use of a residual current device with a rated residual
current of 30mA or less.
• Do not use saw bands that are damaged or worn.
• When cutting round timber use a suitable device to prevent twisting of the workpiece.
• When bevel-cutting with the table inclined, place the guide on the lower part of the
table.
• Connect the bandsaw to a dust collection device when operating.
• Do not operate the machine when the door or guard protecting the band is not closed.
• Adjust the blade guard as close as possible to the workpiece to be cut.
• Take care that the selection of the saw band and the speed depends on the material to
be cut.
• Do not touch moving parts with your fingers or hands.
• Ensure that you have tensioned the blade prior to starting the machine.
• Do not touch the saw blade immediately after use. Allow time for the blade to cool,
otherwise it could burn you due to the heat generated during sawing.
• Always check accessories to ensure that they are suitable for the operating speeds of
this tool.
• Incorrect accessories can break apart at high speed and cause serious damage or
personal injury.
• Never turn your bandsaw on before clearing the table of all objects (tools, scraps of
wood, etc.) except for the workpiece.
• Hold the work firmly against the table.
• Do not feed the material too fast while cutting. Only feed the material fast enough so
that the blade will cut.
• Never leave the bandsaw running unattended. Always turn the saw off, make sure that
it has come to a complete stop, and then remove plug from the power supply before
leaving the work area.

9
STAND ASSEMBLY
Unpacking:
1. Open carton and remove top packing material.
2. Carefully lift the Bandsaw from the packaging and place it on a level work surface.
3. Unpack the contents. Ensure you do not loose the small metal pin that goes into the
front of the saw table
Assembly of stand:
The legs are constructed by assembling each half of the
structure and then joining them together.
Note: Nuts & Bolts should only be finger tight at this stage.
1. Lay two legs on the ground, parallel to each other. Place
one long upper support in between the legs and align the
bolt holes.
2. The long upper support should have its lip on the high
side (facing up). Before bolting the long upper support,
ensure that it sits inside of the legs.
3. Once aligned, insert the bolts from the outside and
tighten with the washer, spring washer and nut on the
inside (only hand tight at this initial stage).
4. Assemble the long side support halfway down the legs
where the bolt holes align. The long side support sits
inside of the legs with the lip facing up.
5. At this stage your frame should look like this.
Note: The band saw is heavy and it is recommend that two people are used in lifting
or moving the bandsaw.

10

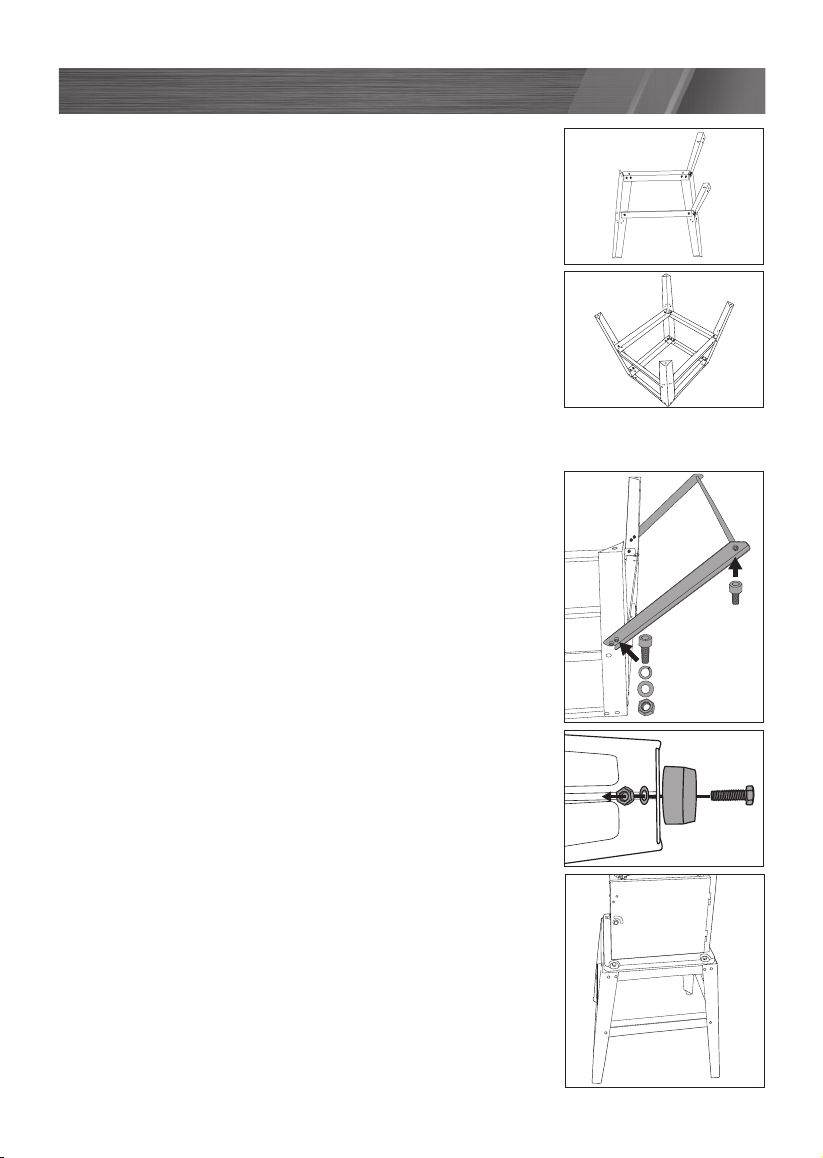

STAND ASSEMBLY
6. Assemble one of the short upper support and short lower
support pieces, ensuring it sits inside of both the leg &
long supports.
7. Once the nuts are hand tight, lift the frame up with only
the legs contacting the floor. One half of the frame is now
complete.
8. Repeat the exact process for the other side, which should
leave you with 2 identical halves. These halves can now
be joined together to complete the frame.
9. Align the holes of each opposing member. If the holes are
misaligned and cannot be aligned by hand, use of a soft
hammer to ‘tap’ the members together is recommended.
Bolts and nuts can be inserted & tightened with hand
force only.
10. Then mount the stabilising legs and bar.
11. Once all of the members are joined together and all
fasteners are assembled, use a spanner to tension the
bolts.
12. The rubber feet can now be attached to complete the
stand.
Note: Be sure not to over tighten the bolts as this can
damage the feet.
13. Place the bandsaw on the stand and attached using the
large bolts nuts and washers.
x2

11
SETUP & PREPARATION
WARNING! Prior to assembly, ensure you switch the machine off and disconnect
it from the power supply.
!
Tensioning the blade for tracking
Before adjusting the tension & tracking of the blade, please
ensure the upper & lower guides are well clear of the blade
(following the steps below).
1. Loosen all 5 hex bolts on the upper guide block ensuring
that the guide pins do not fall out.
2. Loosen all 5 hex bolts on the lower guide block ensuring
that the guide pins do not fall out.
3. The blade tension can be checked by applying pressure
to the side of the blade with your finger. Before adjusting
the tracking of the blade, the blade should move approx.
8-10mm when applying pressure.
4. If the measurement is greater than 8-10mm, turn the
blade tension knob clockwise to increase the tension. If
measurement is less than 8-10mm, turn the knob anti-
clockwise to ease off the tension.
The blade is now ready for tracking
Note: The blade will require further tensioning for operation
after completing the steps in the following section ‘Adjust the
blade tracking’.
Note: If the band saw is not going to be used for some time,
remove the tension from the blade. Be sure to re-tension the
blade before you start the machine.
!WARNING! The blade may break if the tension is too high. BEWARE OF INJURY!
If the tension is too low, the powered blade pulley will spin while the blade does not.

12
SETUP & PREPARATION
Adjusting the blade tracking
1. Undo the door locks and open the upper and lower doors.
2. Manually turn the upper wheel slowly in a clockwise
direction. The blade should run centrally on the upper
wheel. If it does not, the angle at which the upper wheel
tilts must be adjusted.
3. Unlock the tracking adjustment lock at the back of the
bandsaw to allow the tracking to be adjusted.
4. If the blade runs more towards the rear of the upper blade
pulley, the blade tracking knob must be turned in a anti-
clockwise direction. Then turn the upper wheel slowly with
the other hand to check the position of the blade.
5. If the blade runs towards the front of the upper wheel
the blade tracking adjustment must be turned clockwise
direction.
6. After adjusting the upper wheel, check the position of
the blade on the lower wheel. The blade should run in
the middle of the lower wheel. If it does not, the angle at
which the upper wheel tilts must be adjusted again.
7. The upper & lower wheels must be turned several times
until the adjustment of the upper wheel has an effect on
the position of the blade on the lower wheel. Once the
lower wheel has been adjusted double check the upper
wheel to see the whole blade is tracking correctly.
9. Secure the tracking position by tightening the tracking
adjustment lock.
!WARNING! Do not operate the machine when the door or guard protecting the band is
not closed.

13
SETUP & PREPARATION
WARNING! The blade may break if the tension is too high. BEWARE OF INJURY!
If the tension is too low, the powerd blade pulley will spin while the blade does not.
!

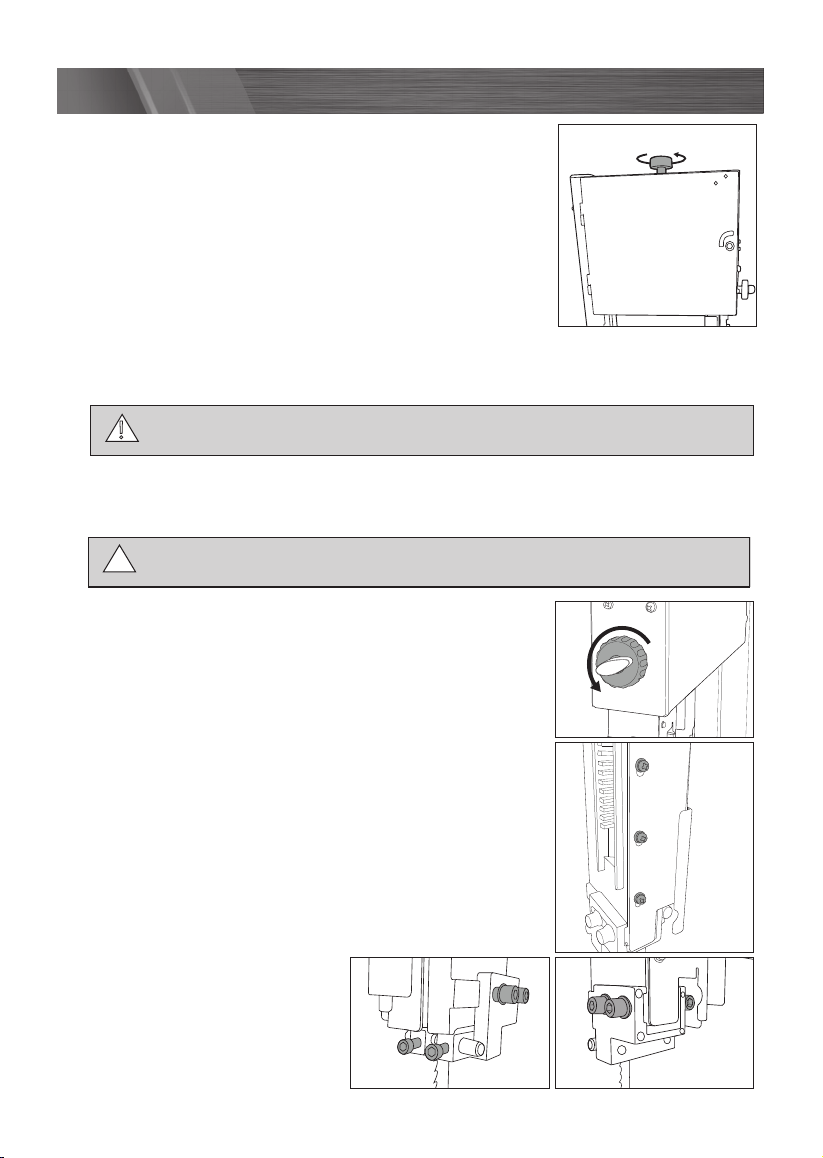

Upper guides & support bearing.
1. Lower the blade guard all the way down by loosening
the guard adjustment lock and then rotating the guard
adjustment knob. Secure in this position.
2. Remove the 3 phillips head screws from the back of the
blade guard and remove the guard cover.
3. Loosen all 5 hex bolts on the upper guide block ensuring
that the guide pins do not fall out.
4. Move the entire upper guide block forward or backwards
to ensure that there is a small 0.5mm gap between the
back guide bearing and the back edge of the blade. Also
ensure the 2 guide pins align with the side of the blade.
5. Secure this position by tightening the 2 hex bolts on the
right side of the upper guide
block.
!
Adjusting the Blade Guides
Guide bearings must be adjusted before using the bandsaw for the first time and anytime
the blade is changed.
Tensioning the blade for operation
1. Re-tension blade by turning the blade tension knob
clockwise. The tension should be increased so the blade
moves 1-2mm when applying pressure to the side of the
blade.
2. Final tensioning of the blade may slightly affect the
tracking. Minor adjustments to the tracking can be made
at operating tension.
3. Close the Upper and lower housing doors, secure with the
door lock.
WARNING! The blade will be rendered useless if the teeth touch the guide pins while the
blade is running

14

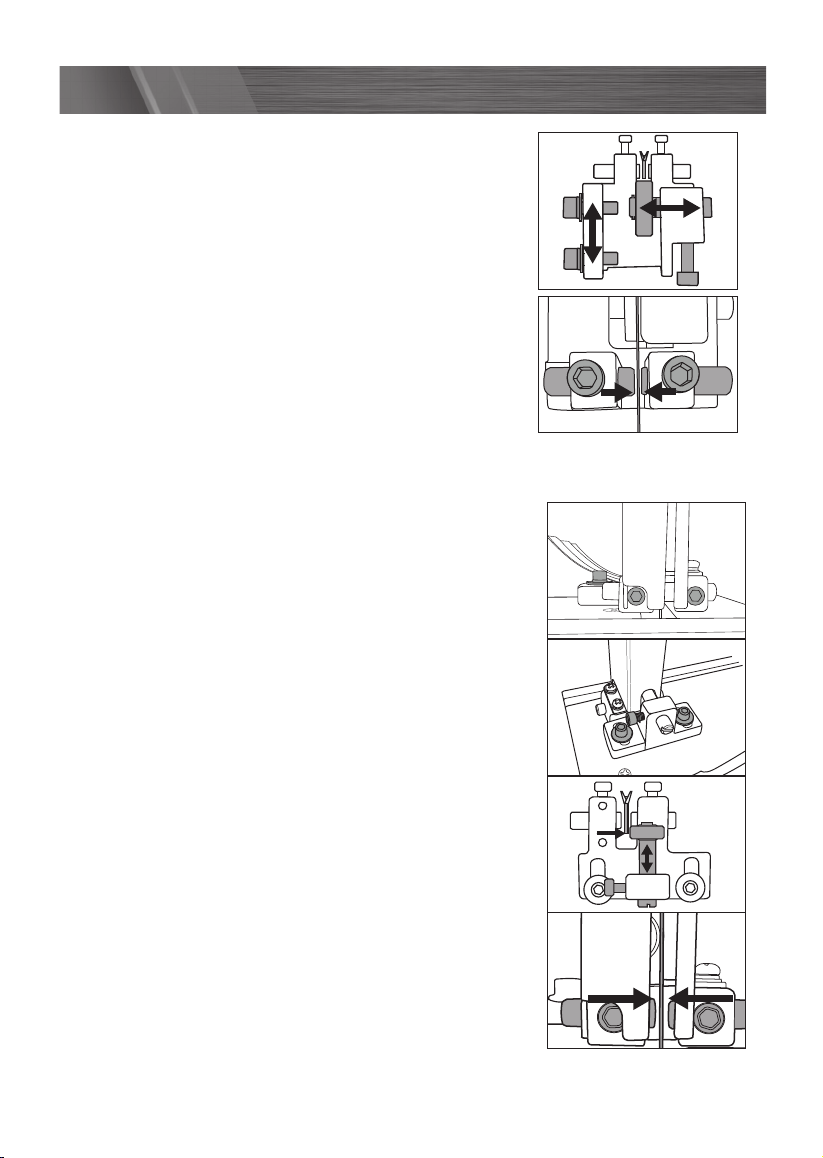

6. Adjust the guide bearing at the back left or right to
ensure the centre of the bearing and the blade align.
Secure by tightening the hex bolt at the back.
7. Adjust the 2 guide pins so that a 0.5mm gap is created
between them and the side of the blade. Lock in
position by tightening the remaining 2 hex bolts at the
front.
8. Refit the guard cover and fasten using the 3 phillips
head screws at the back. Ensure that the sliding plate on
the left of the cover has it’s upper lip above the screw
on the side.
Note: Ensure the guide pins are NOT touching the blade when the unit is idle. The
blade must have some movement to ensure performance and durability.
Lower guide & support bearing
Note: It is recommend that the saw table is removed prior to
these steps for easier access.
1. Loosen all 5 hex bolts on the lower guide block ensuring
that the guide pins do not fall out.
2. Move the entire lower guide block forward or backwards
to ensure the 2 side guide pins align with the middle of
the blade. Secure this position by tightening the 2 hex
bolts at the back.
3. Adjust the guide bearing at the back of the blade so that
half of the bearing overlaps with the back of the blade.
Secure by tightening the 1 bearing hex bolt.
4. Adjust the 2 guide pins so that a 0.5mm gap is created
between them and the side of the blade. Lock in position
by tightening the remaining 2 hex bolts at the front.
Note: Ensure the guide bearings are NOT touching the
blade when the unit is idle. The blade must have some
movement to ensure optimal performance and durability.
SETUP & PREPARATION

15
SAW ASSEMBLY
Assembling of saw table:
1. Ensure the blade guard is raised out of the way prior to
fitting the saw table.
2. Remove the pin at the front of the table by opening
the groove in the saw table by levering and twisting
simultaneously, e.g. with a screwdriver.
3. Slide the saw table onto it’s mount by aligning the blade
with the slot in the table.
4. Lower onto it’s mount and attach the knob to the screw
under the table. Secure the table by tightening the knob.
5. Attach the tilt mounting plate and set the angle scale
pointer precisely. The table should read 0° when perfectly
flat. You can adjust the table support screw using a hex
key and a spanner and check the level using a spirt level.
6. Insert the pin at the front of the table so that it is flush
with the front surface. This may require tapping with a
soft hammer.
7. Manually check that the blade runs freely and does not
touch the saw table.
8. Loosely fit the four bolts though the front of the table
with the nuts and washers fitted under the table and the
bolt heads sticking out the front.
9. Slide the rip fence ruler onto the bolts using the channels
in the rear of the rip fence ruler. The zero position can be
adjusted by shifting sideways. Tightening the bolts from
behind when the desired location is found to fix the rip
fence ruler in place.
10. To disassemble, proceed in reverse order
WARNING! Prior to assembly, ensure you switch the machine off and disconnect
it from the power supply.
!

16

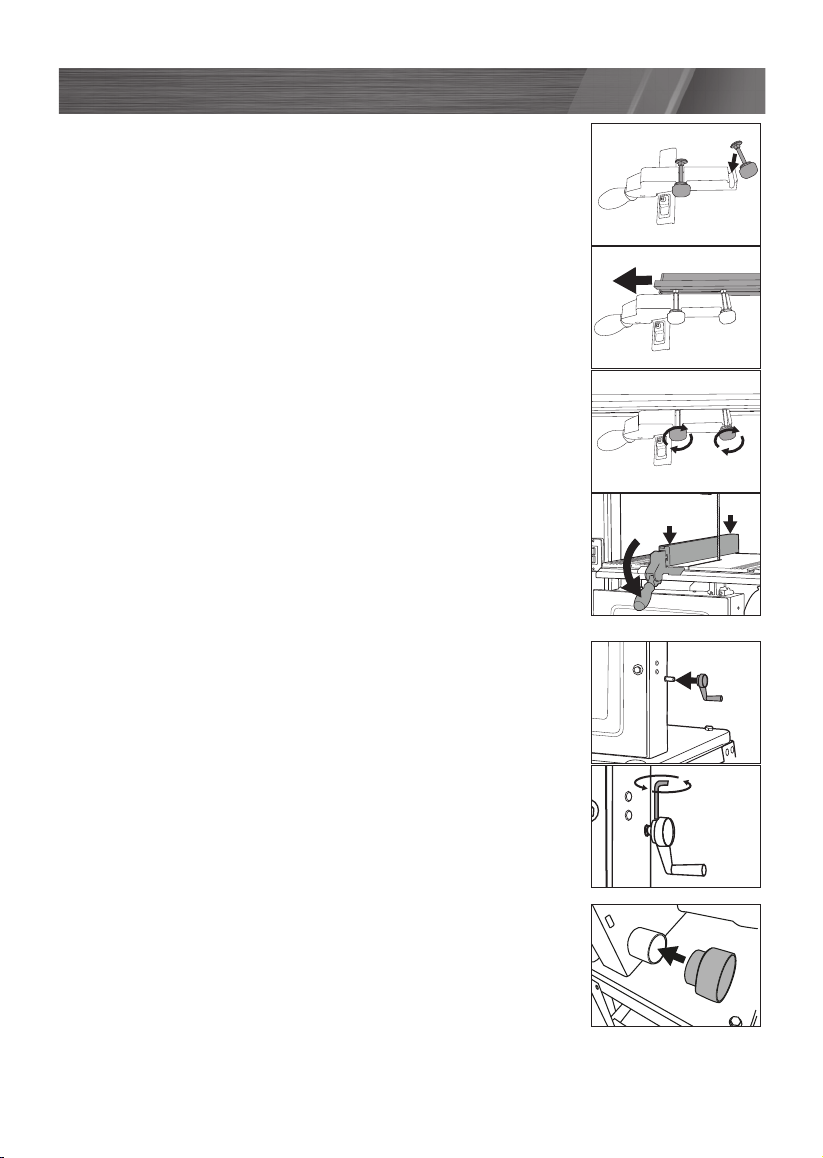

Rip Fence:
1. Slide the two rip fence screws into the grooves at the top
of the black leaver section
2. Slide the fence onto the two bolts in one of the two
orientations
3. Lock in position by tightening the two knobs
4. Place onto the ruler and secure using the fence lever
Crank Handle:
1. Slide the crank handle onto the shaft at the right of the
bandsaw being sure to align the small hex screw with the
hole in the crank shaft.
2. Tighten the small hex screw on the crank handle
SAW ASSEMBLY
Dust extractor Adaptor:
The dust extractor adaptor enables different sized dust
extractor hoses to mounted to the rear of the band saw.
1. Slide the dust extractor adaptor onto the rear dust
extraction port.
2. Slide the dust extraction hose to the adaptor.
If no adaptor is needed simply attach the dust extraction hose
to the rear dust extraction port or if no dust extraction is used,
slide the dust extractor adaptor onto the rear extraction port
for safe keeping.

17
KNOW YOUR PRODUCT
OPERATION
Adjusting the Upper Blade Guard
The upper blade guard should always be set as close as
practical against the workpiece.
1. While holding the upper blade guard, loosen the upper
blade guard locking knob.
2. Lower or raise the upper blade guide as close as possible to
the workpiece to be cut, approx. 2-3mm.
3. Tighten upper blade guard locking knob.
4. Check the setting before each cut and re-adjust if necessary.
Adjusting the Saw Table
For bevel cuts the table saw can be tilted though 45°
1. Loosen the table tilt locking knob on underside of the saw
table.
2. Set saw table to the required angle as shown by the bevel
angle pointer.
3. Tighten the table tilt locking knob at selected bevel angle.
Note: It is recommended to verify the correct angle setting by
making trial cuts in scrap wood.
WARNING! Prior to assembly, ensure you switch the machine off and
disconnect it from the power supply
!
!WARNING! Connect bandsaw to a dust collection device when operating.
!WARNING! When bevel cutting with the table inclined, place the guide on the lower part
of the table.

18
On/Off Switch
1. To turn the bandsaw on, press the green button ON (I).
2. To turn the bandsaw off, press the red button OFF (O).
Note: In the event of a voltage failure an undervoltage relay
will trip. This prevents the bandsaw from starting up when the
power is restored. To restart, the green button ON (I) must be
pressed.
Rip Fence
The rip fence clamps to the front of the saw table, either to the
left of right of the blade.
1. Clamp the rip fence in the desired position by pressing the
clamping lever.
Mitre Fence
The mitre fence is inserted into the saw table slot from the saw
tables front edge. For mitre cuts the mitre fence turns to 60° in
both directions.
1. Loosen the knurled screw
2. Turn the mitre fence until the arrow points to the desired
angle.
3. Retighten the knurled screw. The auxiliary fence extrusion
can be adjusted after loosening the knurled nuts.
Note: Do not push the auxiliary fence extrusion too far toward
the blade, the distance should be approx. 20mm.
OPERATION

19
KNOW YOUR PRODUCT
Blade Selection
Blade supplied with the bandsaw is designed for general purpose use.
• Use a narrow blade to cut tighter radii than you can with a wider blade.
• Wide blades are used to saw straight cuts. This is particularly important in cutting wood
because the blade has a tendency to follow the grain of the wood and thereby deviate
easily from the cutting line.
• Finely toothed blades provided smoother cuts but are slower than coarse blades.
OPERATION

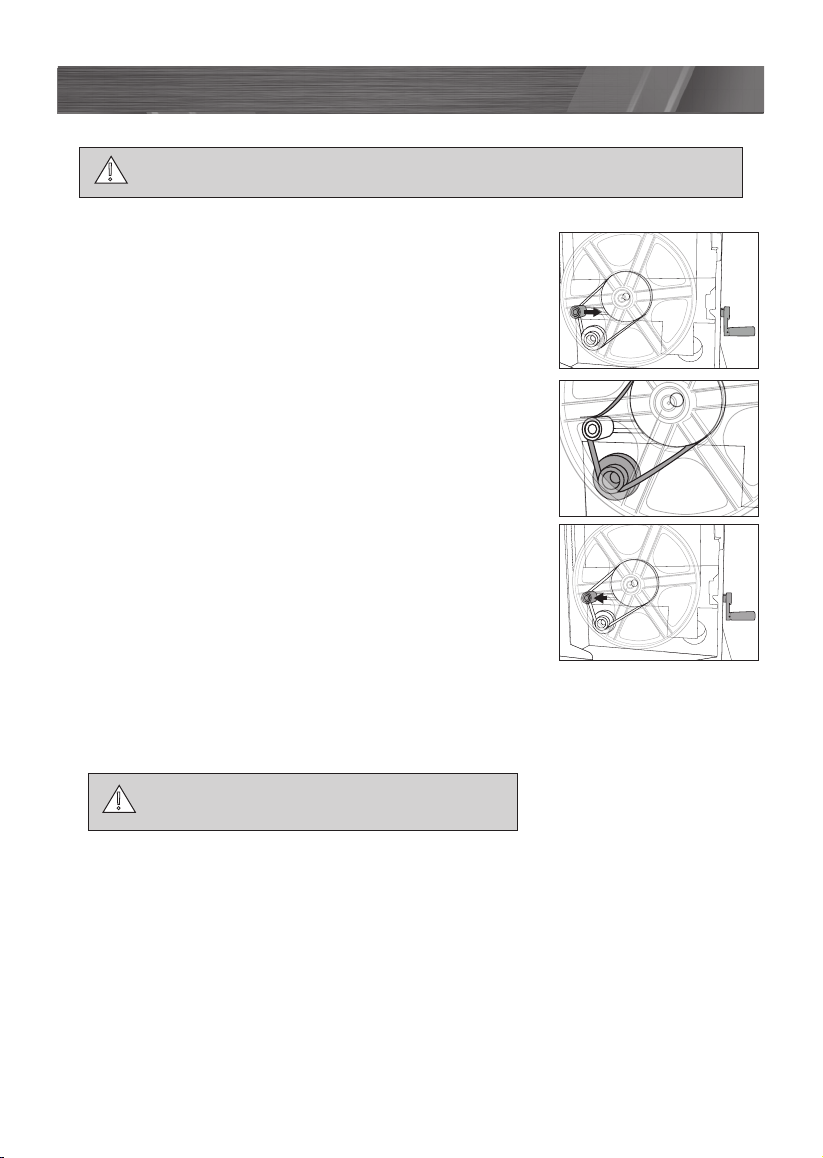

Adjusting the cutting speed
The bandsaw can be operated at two blade speeds.
1. Open the lower housing door.
2. Remove the tension from the drive belt by turning the
drive belt tensioning crank, located on the right side of the
bandsaw, in an anti-clockwise direction.
3. Put the drive belt on the required pulley of the driving
wheel and the corresponding motor pulley.
4. Tension the drive belt by turning the belt tension hand
wheel in a clockwise direction.
5. Close the lower housing door.
Push Stick
When handling narrower work pieces, it is essential to use a
push stick. Always keep the push stick close at hand at the
hook provided.
WARNING! The drive belt must run either on both front or both rear pulleys.
Never have the belt run diagonally.
!
!WARNING! Take care that the selection of saw band
and speed depends on the material to be cut.

20
OPERATION
Sawing
• Always guide the workpiece with both hands, holding flat on
the table in order to prevent the blade from jamming.
• Feed the workpiece at a uniform speed that enables the
blade to cut through the material without difficult and
without blocking.
• Always use the Rip fence on all cuts for which they are
intended.
• Always aim at making a complete cut in one pass rather
then a stop-and-go operation requiring the workpiece to be
withdrawn.
• Curve cuts which are too tight for the blade to cut correctly,
it can help to make a series of close-lying cuts right angles to
the curve line.
• Keep the ventilation vents of the tool clean at all times, if possible, prevent
foreign matter from entering the vents.
• After each use, blow air through the tool housing to ensure it is free from all dust
particles which may build up. Build up of dust particles may cause the tool to
overheat and fail.
• If the enclosure of the tool requires cleaning do not use solvents but a moist soft
cloth only. Never let any liquid get inside the tool; never immerse any part of the
tool into a liquid.
Note: Ozito Industries will not be responsible for any damage or injuries caused by
the repair of the tool by an unauthorised person or by mishandling of the tool.
MAINTENANCE
!WARNING! To prevent serious injury from accidental operation:
Turn the Power Switch of the bandsaw to its position and unplug the
bandsaw from its electrical outlet before performing any inspection, maintenance,
or cleaning procedures.
OFF
!WARNING!
WARNING!
When handling narrower workpieces, it is essential to use the push stick
!
Remove the tension from the blade if the bandsaw is not going to be
used for some time. Ensure that you re-tension the blade before you start the machine.
!WARNING! When cutting round timber use a suitable device to prevent twisting of the
workpiece.
