KNOW YOUR PRODUCT
INSTRUCTION MANUAL
WARNING: Read all safety warnings and all instructions. Failure to follow the
warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
0719
• 1200W MOTOR
• BAGLESS DUST & LIQUID
COLLECTION
• CYCLONIC ACTION, HIGH
POWER SUCTION
WET & DRY
VACUUM
25L CYCLONIC

2
SPECIFICATIONS - MODEL NO. FBCWDV-1225PT
KNOW YOUR PRODUCT
1
2
10
411
3
5
8
6
7
9
Mains Voltage: 220Ð240V ~ 50Hz
Input Power: 1200W
Power Outlet Max.: 1200W
Psum: 2400W
Suction Power Max.: 200 mbar
Suction Volume: 24 l/s
Tank Capacity: 25 l
Suction Hose:: ¯35mm x 1.5m
IP Rating IPX4
Sound Power Lever: 83 dB (A)
Gross Weight: 14 kg
12
13
14
15

3
KNOW YOUR PRODUCT (cont.)
23
24
20
21
22
19
17
18

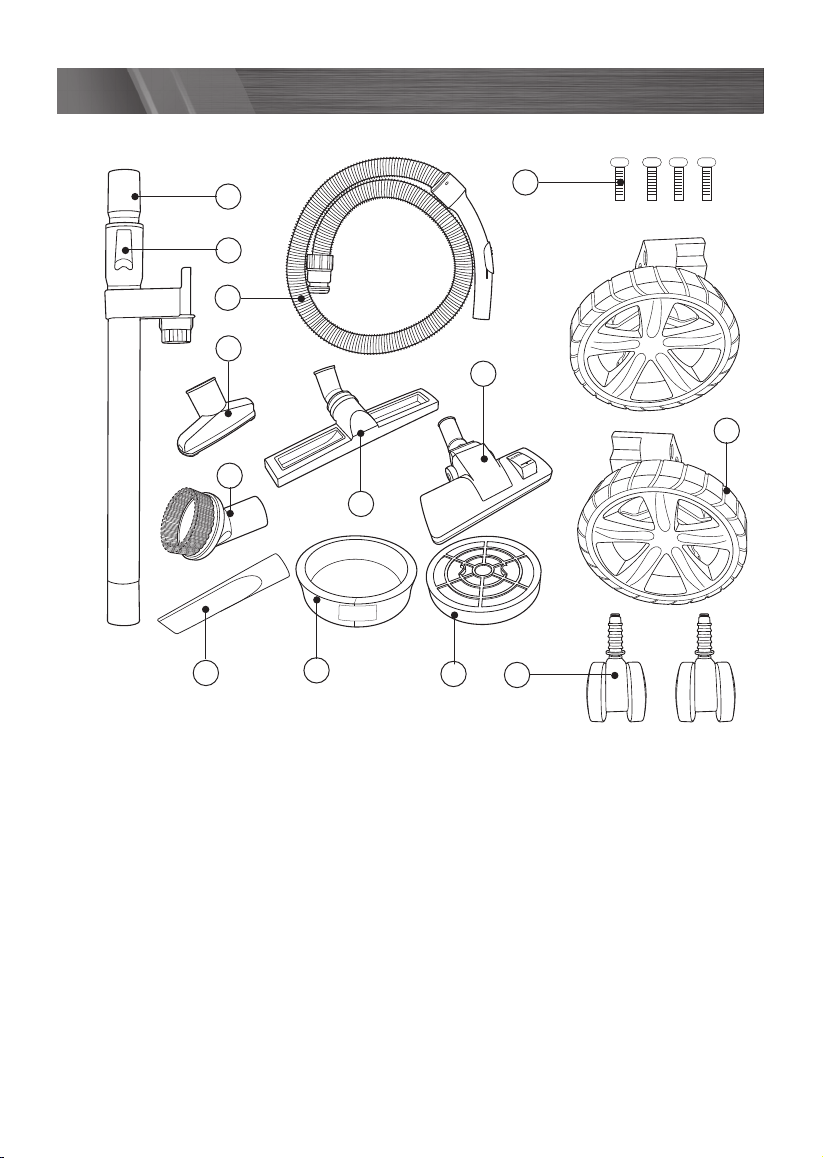

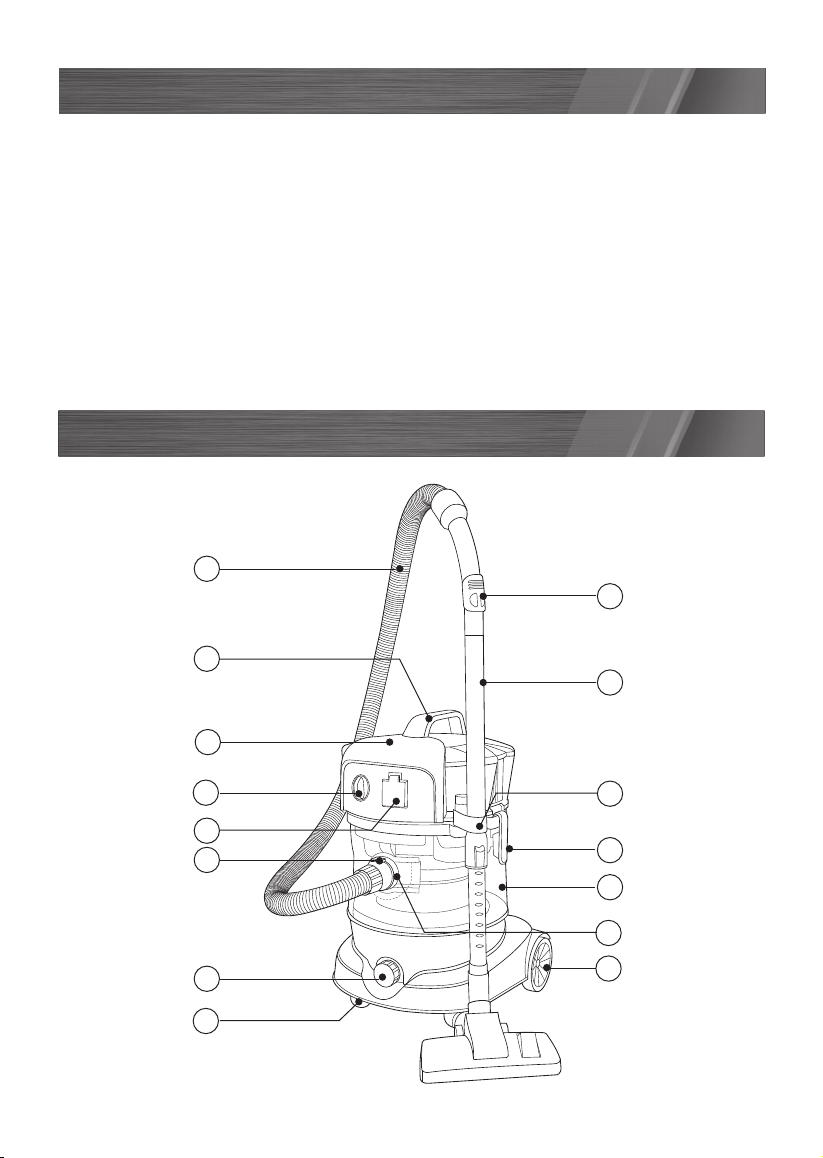

1. Flexible suction hose
2. Carry handle
3. Appliance head
4. On/off/automatic switch
5. Automatic power take-off outlet
6. Release button
7. Water drain outlet
8. Castors x 2
9. Air regulator
10. Telescopic suction tube
11. Accessory mount.
12. 2 x Appliance securing clip
13. Transparent tank
14. Vacuum inlet.
15. Wheels x 2
16. Quick height adjustment
17. Small floor tool
18. Upholstery tool
19. Crevice tool
20. Wet floor tool
21. Foam filter
22. Screws x 4
23. Dual purpose floor tool
24. Filter cartridge
16
10
1
8
15

4
SPECIFICATIONS....................................................... Page 02
KNOW YOUR PRODUCT........................................... Page 02
INTRODUCTION........................................................ Page 05
SAFETY INSTRUCTIONS........................................... Page 05
ASSEMBLY..................................................................Page 10
SUCTION TOOLS.......................................................Page 13
OPERATION...............................................................Page 14
MAINTENANCE......................................................... Page 16
DESCRIPTION OF SYMBOLS.....................................Page 18
CONTENTS................................................................ Page 19
WARRANTY................................................................ Page 20
TABLE OF CONTENTS

5
INTRODUCTION
WARNING! When using mains-powered equipment, basic safety precautions,
including the following, should always be followed to reduce risk of fire, electric
shock, personal injury and material damage.
SAFETY INSTRUCTIONS
ELECTRICAL SAFETY
Read and understand the manual prior to operating this tool.
Save these instructions and other documents supplied with this tool for future reference.
Congratulations on purchasing a Full Boar Cyclonic Wet
and Dry Vac.
The Full Boar Cyclonic Wet and Dry Vac is designed
for wet and dry vacuuming without the need of a dust
bag. The appliance is not suitable for the vacuuming of
combustible, explosive or harmful substances.
The electric motor has been designed for 220V and 240V only. Always check that the power
supply corresponds to the voltage on the rating plate.
Note: The supply of 230V and 240V on Full Boar tools are interchangeable for Australia and
New Zealand.
Note: The power outlet used for the vacuum must be protected by a 30mA residual current
device or earth leakage circuit breaker.
The supply cored assessed as type Y attached by using AS/NZS 60335.1.
If the supply cord is damaged, it must be replaced by an electrician or a power tool repairer
in order to avoid a hazard.
Using an Extension Lead
Always use an approved extension lead suitable for the power input of this tool. Before use,
inspect the extension lead for signs of damage, wear and ageing. Replace the extension lead
if damaged or defective. When using an extension lead on a reel, always unwind the lead
completely. Use of an extension lead not suitable for the power input of the tool or which is
damaged or defective may result in a risk of fire and electric shock.

6
GENERAL POWER TOOL SAFETY WARNINGS
SAVE THESE INSTRUCTIONS
1. Work area safety
a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b. Do not operate power tools in explosive atmospheres, such as in the presence of
ammable liquids, gases or dust. Power tools create sparks which may ignite the dust
or fumes.
c. Keep children and bystanders away while operating a power tool.
Distractions can cause you to lose control.
2. Electrical safety
a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not
use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and
matching outlets will reduce risk of electric shock.
b. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators,
ranges and refrigerators. There is an increased risk of electric shock if your body is
earthed or grounded.
c. Do not expose power tools to rain or wet conditions. Water entering a power tool
will increase the risk of electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the
power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged
or entangled cords increase the risk of electric shock.
e. When operating a power tool outdoors, use an extension cord suitable for outdoor
use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
3. Personal safety
a. Stay alert, watch what you are doing and use common sense when operating a
power tool. Do not use a power tool while you are tired or under the inuence of
drugs, alcohol or medication. A moment of inattention while operating power tools
may result in serious personal injury.
b. Use personal protective equipment. Always wear eye protection. Protective
equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection
used for appropriate conditions will reduce personal injuries.
c. Prevent unintentional starting. Ensure the switch is in the off-position before
connecting to power source and/or battery pack, picking up or carrying the tool.
Carrying power tools with your finger on the switch or energising power tools that have
the switch on invites accidents.
d. Remove any adjusting key or wrench before turning the power tool on. A wrench or
a key left attached to a rotating part of the power tool may result in personal injury.
WARNING! Read all safety warnings and instructions. Failure to follow all
instructions listed below may result in electric shock, fire and/or serious injury. The
term “power tool” in all of the warnings listed below refers to your mains operated
(corded) power tool or battery operated (cordless) power tool.

7
GENERAL POWER TOOL SAFETY WARNINGS (cont.)
e. Do not overreach. Keep proper footing and balance at all times. This enables better
control of the power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing
and gloves away from moving parts. Loose clothes, jewellery or long hair can be
caught in moving parts.
g. If devices are provided for the connection of dust extraction and collection
facilities, ensure these are connected and properly used. Use of dust collection can
reduce dust-related hazards.
h. Do not let familiarity gained from frequent use of tools allow you to become
complacent and ignore tool safety principles. A careless action can cause severe injury
within a fraction of a second.
4. Power tool use and care
a. Do not force the power tool. Use the correct power tool for your application. The
correct power tool will do the job better and safer at the rate for which it was designed.
b. Do not use the power tool if the switch does not turn it on and off. Any power tool
that cannot be controlled with the switch is dangerous and must be repaired.
c. Disconnect the plug from the power source and/or the battery pack from the
power tool before making any adjustments, changing accessories, or storing
power tools. Such preventive safety measures reduce the risk of starting the power tool
accidentally.
d. Store idle power tools out of the reach of children and do not allow persons
unfamiliar with the power tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained users.
e. Maintain power tools. Check for misalignment or binding of moving parts,
breakage of parts and any other condition that may affect the power tool’s
operation. If damaged, have the power tool repaired before use. Many accidents
are caused by poorly maintained power tools.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp
cutting edges are less likely to bind and are easier to control.
g. Use the power tool, accessories and tool bits etc. in accordance with these
instructions, taking into account the working conditions and the work to be
performed. Use of the power tool for operations different from those intended could
result in a hazardous situation.
h. Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery
handles and grasping surfaces do not allow for safe handling and control of the tool in
unexpected situations.
5. Service
a. Have your power tool serviced by a qualied repair person using only identical
replacement parts. This will ensure that the safety of the power tool is maintained.
b. If the supply cord is damaged, it must be replaced by an electrician or a power tool
repairer in order to avoid a hazard.

8
• Do not leave appliance unattended when plugged in. Unplug from outlet when not in
use and before servicing and cleaning.
• To avoid electric shock, do not expose to rain. Store indoors.
• Never use in the presence of explosive liquids, vapours or explosive dust
– such as coal or grain.
• Never pick up asbestos or asbestos dust.
• Wood dust and chips in a conned area can give rise to re or an explosion. Guard
against possible ignition sources.
• Do not pick up anything that is burning or smouldering – such as metal grinding dust,
cigarette ends, hot coals, matches or similar.
• The appliance is not intended for use by young children or inrm persons without
supervision. Young children should be supervised to ensure they do not play with the
appliance.
• Use only manufacturer’s recommended attachments and consumables.
• Never modify the cleaner in any way - this is dangerous and will invalidate the warranty.
• Do not use cleaner without the lter in place.
• If motor sound becomes higher pitched always check for the following:
- Blocked hose or accessory. - Blocked filter - Full container.
• Never try to move the cleaner by pulling with the mains lead.
• Always check that the lter is clear and not blocked. Keep all openings clear of any
blockages.
•When lifting the unit, always lift it with the handle or under rim of bucket.
Beware of excess weight.
• Always switch the unit off before changing attachments or connecting different
power tools.
• Always disconnect equipment from the appliance when it is not in use.
• If the cordset is damaged have it repaired by an authorised service centre.
WET & DRY VACUUM SAFETY WARNINGS
IMPORTANT! When using the equipment, a few safety precautions must be
observed to avoid injuries and damage. Please read the complete operating manual
with due care. Keep this manual in a safe place so that the information is available at
all times. If you give the equipment to any other person, give them these operating
instructions as well.
The manufacturer cannot accept any liability for damage or accidents which arise
due to a failure to follow these instructions and the safety information.
WARNING! DO NOT connect power tools to outlet when using the vacuum for wet
pick up.

9
WET & DRY VACUUM SAFETY WARNINGS (cont.)
• This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the appliance
by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• The wet and dry vacuum cleaner is designed for wet and dry vacuuming using the
appropriate lter. The appliance is not suitable for the vacuuming of combustible,
explosive or harmful substances.
• The equipment is to be used only for its prescribed purpose. Any other use is
deemed to be a case of misuse. The user / operator and not the manufacturer will be
liable for any damage or injuries of any kind caused as a result of this.

10
KNOW YOUR PRODUCT
Fitting the wheels (15):
Each of the wheels has a different shaped bracket. You will need to identify each
before fitting into the underside of the vacuum.
1. Align the correct shaped bracket with its corresponding mounting on the
underside of the vacuum. Push the wheels (15) firmly into the mounting until
they engage with a clicking noise (fig. 1).
2. Secure each in position with the four supplied screws (22) (fig. 2)
ASSEMBLY
Fig. 2
WARNING! During assembly ensure the cyclonic wet and dry vac is switched OFF
and disconnected from the power supply.
Fig. 1
Fitting the castors (8):
1. Fit the castors (8) into the appropriate
mountings on the underside of the
vacuum. Push the castors (8) firmly into the
mounting until they engage with a clicking
noise (fig. 3).
Fig. 3

11
KNOW YOUR PRODUCTASSEMBLY (cont.)
IMPORTANT! Never use the cyclonic wet and dry vacuum cleaner without the filter
cartridge (24) and foam filter (21). Check that both filters are securely fitted at all
times.
Fitting the filter
Fig. 5
Filter cartridge (24) - for wet and dry
vacuuming
1. When vacuuming always use the filter
cartridge (24). Sit the filter in the vacuum
(fig. 5).
Foam filter (21) - for wet & dry vacuuming.
1. When vacuuming always use the foam
filter (21). Wrap the filter around the
cyclonic cone (fig. 6).
Fitting the appliance head (3)
1. The appliance head (3) is fastened to the
transparent tank (13) by the appliance
securing clips (12 ).
2. To remove the appliance head (3), open
the clips (12) and lift the appliance head (3)
by the carry handle (2) (fig. 4).
3. When fitting the appliance head (3), make
sure that the appliance securing clips (12)
lock into place correctly (fig 4).
Fig. 6
Fig. 4

12
ASSEMBLY (cont.)
Fitting the flexible suction hose (1)
1. Connect the suction hose (1) to the vacuum inlet (14) on the cyclonic wet and
dry vacuum (fig. 7)
2. Press the release button (6) to remove suction hose (1) (fig. 8)..
Fig. 7
Telescopic suction tube (10)
The flexible suction hose (1) can be extended
by attaching the telescopic suction tube (10)
(fig. 9).
The height of the telescopic suction tube (10)
can be adjusted by using the quick height
adjustment (16) (fig. 10).
Fig. 10
Fig. 9
Fig. 8

13
SUCTION TOOLS
Fig. 11
Dual purpose floor tool (23)
The dual-purpose floor tool is for vacuuming solids,
dust on carpet and hard floors over medium and
large areas (fig. 11).
Fig. 12
Wet floor tool (20)
The wet floor tool is for vacuuming liquids over
medium to large area (fig. 12).
Fig. 13
Small floor tool (17)
The small floor tool is for vacuuming solids on
carpet and hard floors, over small areas such as
stairs. Suitable in the car or work van to clean
carpets and floor mats (fig. 13).
Fig. 14
Upholstery tool (18)
The upholstery tool is for vacuuming
solids and dust in cars, on furniture,
blinds, curtains, bookshelves, and
windows (fig. 14).
Fig. 15
Crevice tool (19)
The crevice tool is designed for vacuuming solids
and liquids in narrow, hard-to-reach areas like in
between car seats, in corners, skirting boards and
along edges (fig. 15)

14
ON/OFF/AUTOMATIC switch (4)
Switch position 0: Off (fig. 16)
Switch position I: Normal operation
Switch position: Automatic mode
Water drain outlet (7)
To make the transparent tank (13) easier to
empty after wet vacuuming, it is fitted with a
water drain outlet (7).
Open the water drain outlet (7) by turning it
anti-clockwise (fig. 17) and drain the liquid.
Note: If after emptying the tank the vacuum
fails to start refer to Water sensor in the
maintenance section.
OPERATION
IMPORTANT! The cyclonic wet and dry vacuum cleaner is not suitable for the
vacuuming of combustible liquids.
WARNING! The power supply for this product should be protected by a residual
current device rated at 30mA or less.
Fig. 16
Fig. 17
Fig. 18
Air regulator (9)
The suction power of the floor tool can
be adjusted by using the band on the air
regulator (9) (fig. 18). When wet vacuuming,
make selective use of the air regulator to
suck in air as well as liquids. This will help
to take some strain off the equipment when
vacuuming liquids.
IMPORTANT! When wet vacuuming, the water sensor prevents operation when the
maximum tank level is reached. You must then switch off the equipment and empty
the transparent tank (13).

15
Automatic mode (1200W max.)
Connect the power cable on your electric
tool to the automatic power take off outlet (5)
and connect the flexible suction hose (1) to
the extractor connector on your electric tool.
Check that the connections are secure and
airtight.
Set the switch (4) on the cyclonic wet and
dry vacuum cleaner to drill icon position,
automatic mode (fig. 19). The moment you
switch on the electric tool, the cyclonic wet and dry vacuum cleaner switches on
as well. When you switch off the electric tool, the cyclonic wet and dry vacuum
cleaner switches off as well after a preset delay.
Emptying the transparent tank (13)
You do not have to empty the transparent tank after each use; however it is best to
do so. The cyclonic wet & dry vacuum will work until the tank is full, although you
may find a loss of performance as the transparent tank nears capacity.
1. Switch the power off, remove the plug from the wall power outlet, and leave for
a minute to allow the dust settle.
2. Remove the appliance motor head (3), open the securing clips (12 ) and lift the
appliance head (3) by the carry handle (2).
3. Remove the cyclonic cone from inside the transparent tank (13).
4. Empty contents in the transparent tank (13) into a garbage bag or directly into a
rubbish bin.
5. Refit all parts removed in reverse order.
Note: Align the cyclonic cone with the
vacuum inlet (14) (fig. 20) for correct fitment.
OPERATION (cont.)
Fig. 19
Fig. 20

16
MAINTENANCE
Cleaning
Keep all safety devices, air vents and the motor housing free of dirt and dust as far
as possible.
We recommend that you clean the appliance immediately after you use it.
Cleaning the appliance head (3)
Clean the appliance head regularly with a damp cloth and some soft soap. Do not
use cleaning agents or solvents; these may be aggressive to the plastic parts in
the appliance.
Cleaning the transparent tank (13)
The tank can be cleaned with a damp cloth and some soft soap or under running
water, depending on the amount of dirt.
Cleaning internal parts (fig. 21)
The internal parts with a little soft soap under running water and allow them to
air-dry.
WARNING! Before cleaning your cyclonic wet & dry vac or carrying out any
maintenance procedure, make sure that the motor is off and the vac disconnected
from the power supply to prevent accidental starting.
Fig. 21

17
MAINTENANCE (cont.)
Cleaning the filter cartridge (24)
Remove the foam from the underside of the
filter cartridge (fig. 22).
Clean both parts with a little soft soap under
running water and allow them to air-dry.
Note: Ensure the filters are completely dry
after cleaning as water may drip from the
filters and come into contact with the water
sensor preventing normal operation.
Cleaning the foam filter (21)
Tear open the hook & loop and remove the
foam filter from around the cyclonic cone
(fig. (23). Clean with a little soft soap under
running water and allow to air-dry.
Water sensor
After wet vacuuming, even after draining
the transparent tank (13) water or dirt may
accumulate around the water sensors (fig. 24).
This may prevent the operation of the cyclonic
wet & dry vacuum. Clean and dry the sensor
before resuming normal operation.
Fig. 22
Fig. 23
Fig. 24

18

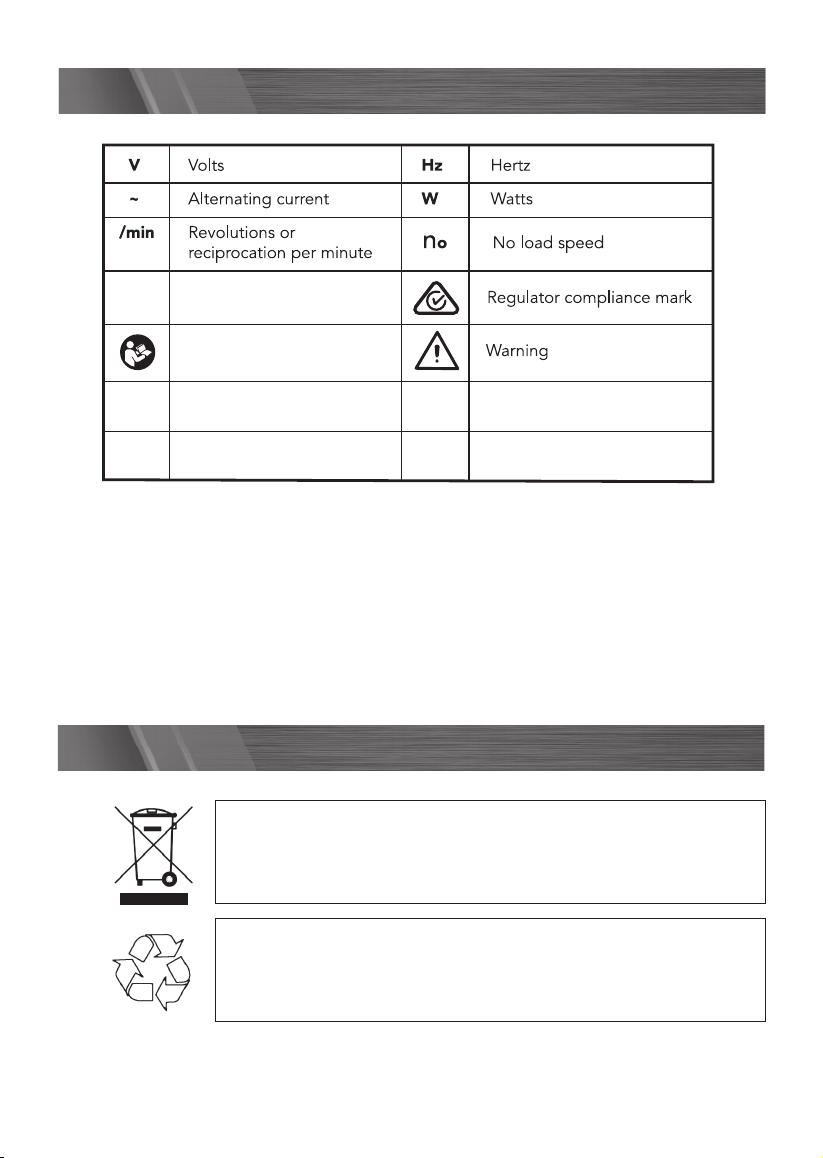

DESCRIPTION OF SYMBOLS
Power tools that are no longer usable should not be
disposed of with household waste but in an environmentally
friendly way. Please recycle where facilities exist. Check with
your local council authority for recycling advice.
Recycling packaging reduces the need for landfill and raw
materials. Reuse of recycled material decreases pollution in the
environment. Please recycle packaging where facilities exist.
Check with your local council authority for recycling advice.
Read instruction manual
Ingress protection from water
Litres
l
lPX4 mbar Pressure rating (millibar)
l/s Litres per second
CARING FOR THE ENVIRONMENT

19
CONTENTS
1 x Cyclonic wet & dry vac
2 x Wheels
4 x Screws
2 x Castors
1 x Suction tube, telescopic
1 x Crevice tool
1 x Upholstery tool
1 x Small floor tool
1 x Dual purpose floor tool
1 x Wet floor tool
1 x Foam filter
1 x Filter cartridge
1 x Suction hose
1 x Instruction manual
Distributed by:
Ozito Industries Pty Ltd
AUSTRALIA (Head Ofce)
1-23 Letcon Drive, Bangholme Victoria, Australia, 3175
Telephone: [phone]

20
WARRANTY EXCLUSIONS
The following actions will result in the warranty being void.
If the tool has been operated on a supply voltage other than that specified on the tool.•
If the tool shows signs of damage or defects caused by or resulting from abuse, accidents•
or alterations.
Failure to perform maintenance as set out within the instruction manual.•
If the tool is disassembled or tampered with in any way.
The warranty excludes damage resulting from product misuse or product neglect.
•
•
This warranty is given by Ozito Industries Pty Ltd.
ABN: 17 050 731 756
Ph.1800 069 486
Australia/New Zealand (Head Office)
1-23 Letcon Drive, Bangholme, Victoria, Australia 3175
FB1
WARRANTY
TO ENSURE A SPEEDY RESPONSE PLEASE HAVE THE MODEL NUMBER AND DATE OF
PURCHASE AVAILABLE. A CUSTOMER SERVICE REPRESENTATIVE WILL TAKE YOUR CALL
AND ANSWER ANY QUESTIONS YOU MAY HAVE RELATING TO THE WARRANTY POLICY
OR PROCEDURE.
The benefits provided under this warranty are in addition to other rights and remedies which
are available to you under law. The warranty covers manufacturer defects in materials,
workmanship and finish under normal use.
1 YEAR WARRANTY
Your product is guaranteed for a period of 12 months from the original date of purchase.
If a product is defective it will be repaired in accordance with the terms of this warranty.
Warranty excludes consumable parts, for example: wheels, bearings.
Our goods come with guarantees that cannot be excluded under Australian Consumer law &
Consumer Guarantees Act 1993 (NZ). You are entitled to a replacement or refund for a major
failure and to compensation for other reasonably foreseeable loss or damage. You are also
entitled to have the goods repaired and replaced if the goods fail to be of acceptable quality
and the failure does not amount to a major failure.
`Australia 1800 069 486
New Zealand 0508 069 486
YOUR WARRANTY FORM SHOULD BE RETAINED BY YOU AT ALL TIMES. IN ORDER TO MAKE A
CLAIM UNDER THIS WARRANTY YOU MUST RETURN THE PRODUCT TO YOUR NEAREST
BUNNINGS WAREHOUSE (see www.bunnings.com.au or www.bunnings.co.nz for store locations)
WITH YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO RETURNING YOUR PRODUCT FOR
WARRANTY PLEASE TELEPHONE OUR CUSTOMER SERVICE HELPLINE:
