Full Boar FBT-6000 User manual

KNOW YOUR PRODUCT
•550W(3/4HP)
INDUCTIONMOTOR
•1850WAUTOMATIC
POWEROUTLET
•65LCOLLECTIONBAG
•ø100MMX2.5MSUCTION
HOSE
DUST
EXTRACTOR
INSTRUCTIONMANUAL
WARNING:Readallsafetywarningsandallinstructions.Failuretofollowthe
warningsandinstructionsmayresultinelectricshock,reand/orseriousinjury.
Saveallwarningsandinstructionsforfuturereference.
1214

2
Input: 230-240 V ~ 50 Hz
Power 550 W
No load speed: 2850/min
Max. power consumption of the
automatic socket-outlet: 1850 W
Max. total power consumption: 2400 W
Protection type: IP40
Max. vacuum: 1600 Pa (677 cfm)
Max. extraction volumes: 1150 m3/h
Hose diameter: 100 mm
Sawdust bag volumes: 65 L
LWA sound power level: 104 dB(A)
Weight: 23 kg
SPECIFICATIONS - MODEL NO. FBT-6000
KNOW YOUR PRODUCT
1. Dust bag hook
2. Dust bag
3. Quick clamp device for
dust bag
4. Transportation handle
5. Quick clamp for debris
bag
6. Debris bag
7. Base plate
8. Chassis
9. Internal Side support
10. Wheels
11. Extractor hose
12. Side panels
13. Extractor housing
14. Hole for dust bag hook
15. ON/OFF switch with
automatic function
16. Motor
17. Automatic socket-outlet
1
9
12
13
17
10
11
8
15
14
16 2
6
7
3
4
5

3
KNOW YOUR PRODUCT (cont.)
18. 4 x Screws for chassis
19. 4 x Screws for side support
20. 8 x Nuts
21. 2 x Hose fastening
22. Connection adapter
Accessories:
20
18
19
21
22
53

4
SPECIFICATIONS....................................................... Page 02
KNOW YOUR PRODUCT........................................... Page 02
INTRODUCTION........................................................ Page 05
SAFETY INSTRUCTIONS............................................ Page 05
UNPACKING .............................................................. Page 09
ASSEMBLY ................................................................. Page 10
OPERATION............................................................... Page 12
MAINTENANCE......................................................... Page 14
TROUBLE SHOOTING............................................... Page 15
DESCRIPTION OF SYMBOLS .................................... Page 16
CONTENTS................................................................ Page 17
WARRANTY................................................................ Page 18
TABLE OF CONTENTS

5
Congratulations on purchasing a Full Boar
Dust Exctractor.
Your Full Boar Dust Extractor FBT-6000 has been
designed for extracting chippings and dust arising from
the processing of wood or wood-type materials.
INTRODUCTION
SAFETY INSTRUCTIONS
WARNING! When using mains-powered equipment, basic safety precautions,
including the following, should always be followed to reduce risk of fire, electric
shock, personal injury and material damage.
ELECTRICAL SAFETY
Read and understand the manual prior to operating this tool.
Save these instructions and other documents supplied with this tool for future reference.
The electric motor has been designed for 230V and 240V only. Always check that the power
supply corresponds to the voltage on the rating plate.
Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and
New Zealand.
If the supply cord is damaged, it must be replaced by an electrician or a power tool repairer
in order to avoid a hazard.
Using an Extension Lead
Always use an approved extension lead suitable for the power input of this tool. Before use,
inspect the extension lead for signs of damage, wear and ageing. Replace the extension lead
if damaged or defective. When using an extension lead on a reel, always unwind the lead
completely. Use of an extension lead not suitable for the power input of the tool or which is
damaged or defective may result in a risk of fire and electric shock.

6
GENERAL SAFETY INSTRUCTIONS
WARNING! Read all instructions. Failure to follow all instructions listed below
may result in electric shock, fire and/or serious injury. The term “Power Tool” in
all of the warnings listed below refers to your mains operated (corded) power
tool or battery operated (cordless) power tool.
SAVE THESE INSTRUCTIONS
1. Work area safety
a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b. Do not operate power tools in explosive atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools create sparks which may ignite the dust
or fumes.
c. Keep children and bystanders away while operating a power tool.
Distractions can cause you to lose control.
2. Electrical safety
a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not
use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and
matching outlets will reduce risk of electric shock.
b. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators,
ranges and refrigerators. There is an increased risk of electric shock if your body is
earthed or grounded.
c. Do not expose power tools to rain or wet conditions. Water entering a power tool
will increase the risk of electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the
power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged
or entangled cords increase the risk of electric shock.
e. When operating a power tool outdoors, use an extension cord suitable for outdoor
use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f. If operating a power tool in a damp location is unavoidable, use a residual current
device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
3. Personal safety
a. Stay alert, watch what you are doing and use common sense when operating a
power tool. Do not use a power tool while you are tired or under the influence of
drugs, alcohol or medication. A moment of inattention while operating power tools
may result in serious personal injury.
b. Use personal protective equipment. Always wear eye protection. Protective
equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection
used for appropriate conditions will reduce personal injuries.
c. Prevent unintentional starting. Ensure the switch is in the off-position before
connecting to power source and/or battery pack, picking up or carrying the tool.
Carrying power tools with your finger on the switch or energising power tools that have
the switch on invites accidents.

7
GENERAL SAFETY INSTRUCTIONS (cont.)
d. Remove any adjusting key or wrench before turning the power tool on. A wrench or
a key left attached to a rotating part of the power tool may result in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This enables better
control of the power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing
and gloves away from moving parts. Loose clothes, jewellery or long hair can be
caught in moving parts.
g. If devices are provided for the connection of dust extraction and collection
facilities, ensure these are connected and properly used. Use of dust collection can
reduce dust-related hazards.
4. Power tool use and care
a. Do not force the power tool. Use the correct power tool for your application. The
correct power tool will do the job better and safer at the rate for which it was designed.
b. Do not use the power tool if the switch does not turn it on and off. Any power tool
that cannot be controlled with the switch is dangerous and must be repaired.
c. Disconnect the plug from the power source and/or the battery pack from the
power tool before making any adjustments, changing accessories, or storing
power tools. Such preventive safety measures reduce the risk of starting the power tool
accidentally.
d. Store idle power tools out of the reach of children and do not allow persons
unfamiliar with the power tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained users.
e. Maintain power tools. Check for misalignment or binding of moving parts,
breakage of parts and any other condition that may affect the power tool’s
operation. If damaged, have the power tool repaired before use. Many accidents
are caused by poorly maintained power tools.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp
cutting edges are less likely to bind and are easier to control.
g. Use the power tool, accessories and tool bits etc. in accordance with these
instructions, taking into account the working conditions and the work to be
performed. Use of the power tool for operations different from those intended could
result in a hazardous situation.
5. Service
a. Have your power tool serviced by a qualified repair person using only identical
replacement parts. This will ensure that the safety of the power tool is maintained.
b. If the supply cord is damaged, it must be replaced by the manufacturer, its service
agent or similarly qualified persons in order to avoid a hazard.

8
• Neverpickupmetal,glassorwater.
• When wood dust and wood shavings are confined to an area, the possibility of an
explosion exists. Be aware of the existence of possible sources of ignition and take
steps to minimise these.
• Do not pick up any material that is burning or smouldering such as metal grinding dust,
cigarette ends, matches, etc.
• Never try to move the dust extractor by the cordset.
• Always switch the machine off before emptying the dust collection bags.
• Regularly inspect the dust collection bags for damage. Replace damaged bags.
• Regularly check that the motor housing is secured to the dust collection bag by the
locking strap.
• Always wear personal protection equipment such as a dust mask, safety glasses and ear
muffs.
• When emptying debris bag or dust collection bag, be careful not to inhale dust.
• This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• If the supply cord is damaged, it must be replaced by an electrician or power tool
repairer in order to avoid a hazard.
• This machine is intended for commercial use, for example in hotels, schools, hospitals,
factories, shops, offices and rental businesses.
• WARNING Operators shall be adequately instructed on the use of these machines.
• WARNING Only use the socket outlet on the machine for purposes specified in the
instructions.
ADDITIONAL SAFETY RULES FOR DUST EXTRACTORS
IMPORTANT! When using the equipment, a few safety precautions must be
observed to avoid injuries and damage. Please read the complete operating manual
with due care. Keep this manual in a safe place so that the information is available at
all times. If you give the equipment to any other person, give them these operating
instructions as well.
We cannot accept any liability for damage or accidents which arise due to a failure
to follow these instructions and the safety information.
CAUTION! This dust extractor is not suitable for picking up hazardous dust.
CAUTION! This appliance is for dry use only and is not to be used or stored
outdoors in wet or damp conditions.

9
KNOW YOUR PRODUCTUNPACKING
• Openthepackagingandtakeouttheequipmentwithcare.
• Removethepackagingmaterialandanypackagingand/ortransportationbraces
(if available).
• Checktoseeifallitemsaresupplied.
• Inspecttheequipmentandaccessoriesfortransportdamage.
• Ifpossible,pleasekeepthepackaginguntiltheendoftheguaranteeperiod.
IMPORTANT
The equipment and packaging material are not toys. Do not let children play with
plastic bags, foils or small parts. There is a danger of swallowing or suffocating!
1 x Dust bag hook (1)
1 x Dust bag (2)
2 x Quick-release device (3,5)
1 x Debris bag (6)
1 x Chassis (8)
1 x Side support (9)
1 x Suction hose (11)
2 x Side panel (12)
1 x Extractor housing (13)
1 x Connection adapter (22)
1 x Assembly fasteners
1 x Instruction manual
Before starting the equipment
• Unpackthevacuumextractionsystemandcheckitfordamagewhichmayhaveoccurred
in transit.
• Themachinehastobesetupwhereitcanstandsecurely.Allcoversandsafetydevices
have to be properly fitted before the machine is switched on.
• BeforeyouactuatetheOn/Offswitch,makesurethatthedebrisbagsaresecurely
fastened!

10
KNOW YOUR PRODUCT
1. Undo the two nuts (E) on both sides of the extractor housing (13) (Fig. 3).
2. Guide the side panels (12) over the screws on the extractor housing (13) and secure
them with the nuts (E) (Fig. 4-5).
3. Place the internal side support (9) between the side panels (12) and secure it with the
screws (19) and nuts (20) (Fig. 6).
4. Secure the chassis (8) to the side panels (12) using the screws (18) and nuts (20) (Fig. 7).
5. Now thread the quick-release device (3) through the sewn-in guide in the dust bag (2)
(Fig. 8-9).
6. Place the dust bag hook
(1) into the hole for the
dust bag hook (14) on the
extractor housing (13) and
attach the dust bag (2) to
the dust bag hook (1) (Fig.
10).
ASSEMBLY
Fig. 3
WARNING! During assembly ensure the dust extractor is switched OFF and
unplugged from the power supply.
Fig. 4 Fig. 5
Fig. 6
Fig. 8 Fig. 9 Fig. 10
Fig. 7
13
13
13
912
12
3
3
2
2
12
8
19 20
1
14
2
12
E E
E
18 18
20

11
KNOW YOUR PRODUCT

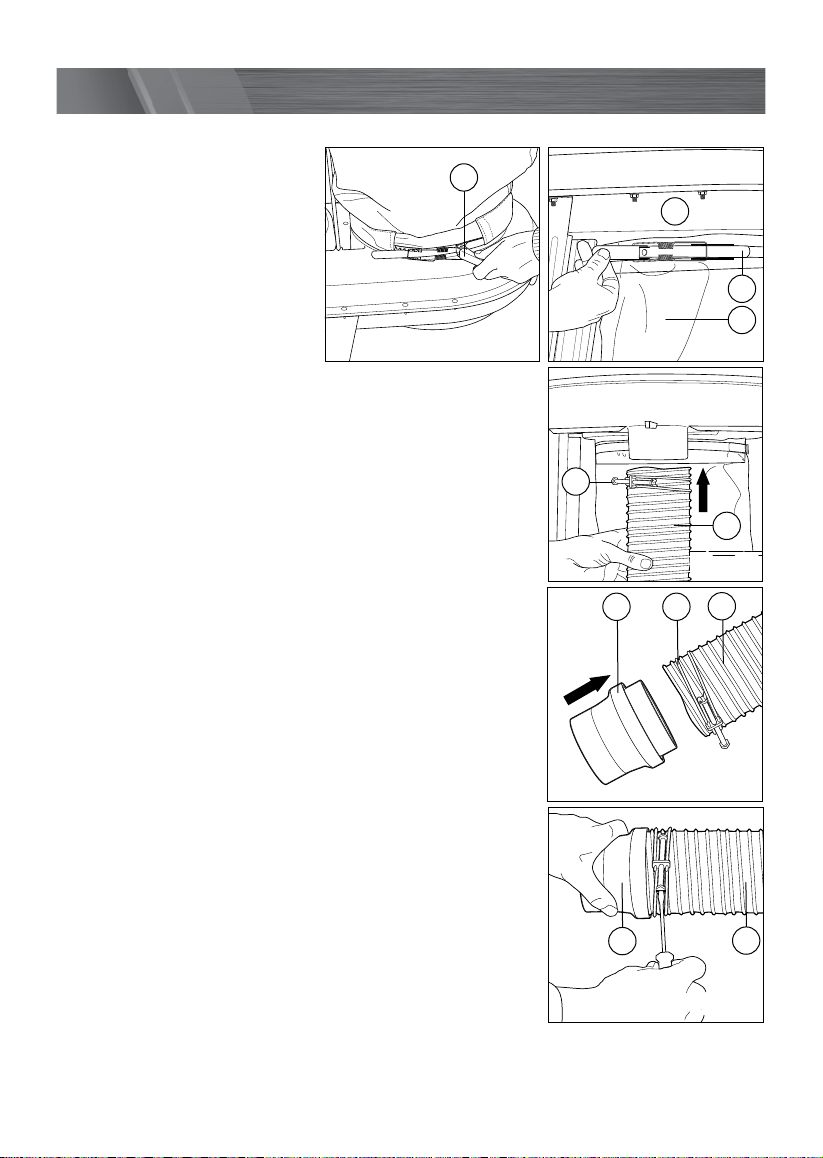

7. Fit the dust bag (2) over
the top opening in the
extractor housing (13)
so that it completely
surrounds the opening
and secure it using the
quick-release device (3)
(Fig. 11).
8. Pull the debris bag (6)
over the bottom opening
in the extractor housing
(13) so that it completely surrounds the opening and
secure it using the quick-release device (5) (Fig. 12).
9. Move a hose fastening (21) over the extractor hose
(11). Plug the extractor hose (11) onto the extractor
connection of the equipment as far as the stop and
secure the hose to the connection using the hose clip
(21) (Figure 13).
10. To fit equipment with an extractor connection diameter
of 100 mm, slip a hose fastener (21) over the extractor
hose (11). Now plug the connection adapter (22) into the
extractor hose (11) as far as the stop (Fig. 14).
11. Secure the connection adaptor (22) by tightening the
hose fastener (21) (Fig. 15). Plug the connection adapter
(22) onto the extractor connection of the equipment you
want to use.
ASSEMBLY (cont.)
Fig. 13
Fig. 14
Fig. 15
Fig. 11 Fig. 12
3
5
6
11
11
21
22
22
11
21
13

12
OPERATION
Fig. 12
Tools can be connected directly to the dust extractor if
the tools power is less than 1850W. The dust extractor has
3 settings (On, Off and Automatic). The automatic setting
allows the dust extractor to turn on once the directly
connect power tool is turned on.
Switching on
1. Check whether the extractor hose (11) is tightly
connected to the vacuum extraction system and to the
extractor adaptor of the wood processing machine.
2. Check whether the debris bags (2, 6) are securely
fastened.
3. Switch on the vacuum extraction system by pressing the
on/off switch (15) into the on (“I”) position (Fig.16).
Switching off (Fig.16)
1. Switch off the vacuum extraction system by pressing the
on/off switch (15) into the off (“0”) position.
Switching into automatic mode
1. Switch the vacuum extraction system into automatic mode by pressing the on/off switch
(15) into the auto (“AUTO”) position (Fig.16).
2. Connect the power cable of your electric tool to the automatic socket-outlet (17) (Fig.17).
3. Connect the extractor hose (11) to the dust extractor connection of your electric tool.
Check that the connection is secure and air-tight.
4. As soon as you switch on the electric tool the extractor system will start up.
5. When you switch off the electric tool, the extractor system will switch off as well after a
pre-set delay.
AUTO
AUTO
Fig. 17
Fig. 16
WARNING! The power supply for this product should be protected by a residual current
device (rated at 30mA or less). A residual current device reduces the risk of electric shock.
15
15
17

13
Fig. 18
OPERATION (cont.)
Emptying the debris bag
Inspect and empty the sawdust bag (6) regularly.
1. Hold the filled sawdust bag in place with one hand.
2. Open the quick clamp device (5).
3. Remove the bag and dispose of the contents.
4. Put the bag back into the holder and secure with the quick clamp device (5).
Transportation (Fig. 18)
1. The vacuum extraction system has a standard chassis (8).
2. For transportation, gently lift the vacuum extraction system
by the transportation handle (4) and move it to the desired
location.
4
WARNING! Before emptying the debris bags ensure the dust extractor is switched
OFF and unplugged from the power supply.

14
MAINTENANCE
•Keepairventscleanofdustanddirt.
•Werecommendthatyoucleanthedeviceaftereachtimeyouhavenishedusingit.
•Emptydustanddirtfromthedebrisbagsregularly.
•Removedustanddirtfromthedustextractorhousingandmotorhousingregularlywith
a soft cloth, brush or compressed air.
•Ifthepowercordisdamaged,haveitreplacedbyanelectricianorapowertoolrepairer.
•Regularlycheckthatallbolts,screwsandnutsaresecurelyfixedasthesecouldwork
loose during normal operation.
Note: Ozito Industries will not be responsible for any damage or injuries caused by the
repair of the drill press by an unauthorised person or by mishandling of the pedestal drill.
WARNING! Ensure the dust extractor is switched off and disconnected from the
power supply before performing any maintenance or cleaning.

15
TROUBLE SHOOTING
Problem Cause Remedy
Dust extractor does not start -Power cord not connected
properly
-On/off switch in the incorrect
position
- Connect
- Switch on/off switch to on
(“I”) Position
Power tool does not start -Power cord not connected
properly
-On/off switch in the incorrect
position
-Connect
- Switch on/off switch to
either the on (“I”) position or
auto (“II”) position
Dust is escaping the dust
extractor
- Extractor hose loose
- Debris bags may be loose
- Ensure hose fasteners are
secure
- Ensure quick clamps are
secure

16
DESCRIPTION OF SYMBOLS
Power tools that are no longer usable should not be
disposed of with household waste but in an environmentally
friendly way. Please recycle where facilities exist. Check with
your local council authority for recycling advice.
Recycling packaging reduces the need for landfill and raw
materials. Reuse of recycled material decreases pollution in the
environment. Please recycle packaging where facilities exist.
Check with your local council authority for recycling advice.
CARING FOR THE ENVIRONMENT
104
Sound power level
Read instruction manual
Wear hearing protection
Wear breathing protection
IP40 Ingress protection from water cfm Cubic foot per minute
lLitres Total power consumtion Psum
øDiameter

17
CONTENTS
1 x Dust bag hook
1 x Dust bag
2 x Quick-release device
1 x Debris bag
1 x Chassis
1 x Side support
1 x Suction hose
2 x Side panel
1 x Extractor housing
1 x Connection adapter
1 x Assembly fasteners
1 x Instruction manual
Distributed by:
Ozito Industries Pty Ltd
AUSTRALIA (Head Office)
1-23 Letcon Drive, Bangholme Victoria, Australia, 3175
Telephone: [phone]

18
