Fumex FA1 MINI User manual

FA1 MINI
1150 Cobb International Place, Suite D, Kennesaw, Georgia 30066
tel [phone] •fax [phone] •toll 800.432.7550 •www.fumexinc.com
PRODUCT SPECIFICATIONS
Multi - stage filtration
•Inexpensive large capacity pre-filters
•HEPA filter
•High efficiency gas/odor filters featuring “dustless” bonded
carbon technology
Modular filter system allows for easy application-specific configuration
Digital Controls
• Electronic variable speed blower control
• Filter monitoring with display
• Calibrated electronic VOC/gas sensor
• Electronic relays for remote start/stop
Quiet, Powerful Blower
• Centrifugal, direct-drive brushless, no lube bearings
Optional Accessories
• State-of-the-art articulating arms and a wide selection of hoods and flex hoses for source-capture use
FUMEX®... your guarantee of safety, reliability, flexibility and ease of operation.
AIR FILTRATION SYSTEM
Eliminates light-duty process dust, gases and odors
Applications Include:
•Laser Fume Extraction
•Soldering
•Engraving
•Grinding
•Drilling
High efficiency filtration in a compact footprint:
• Easy integration into mobile carts/cabinets
• Mobile or “demo” applications
• Small footprint for lab or testing services

FA1 MINI

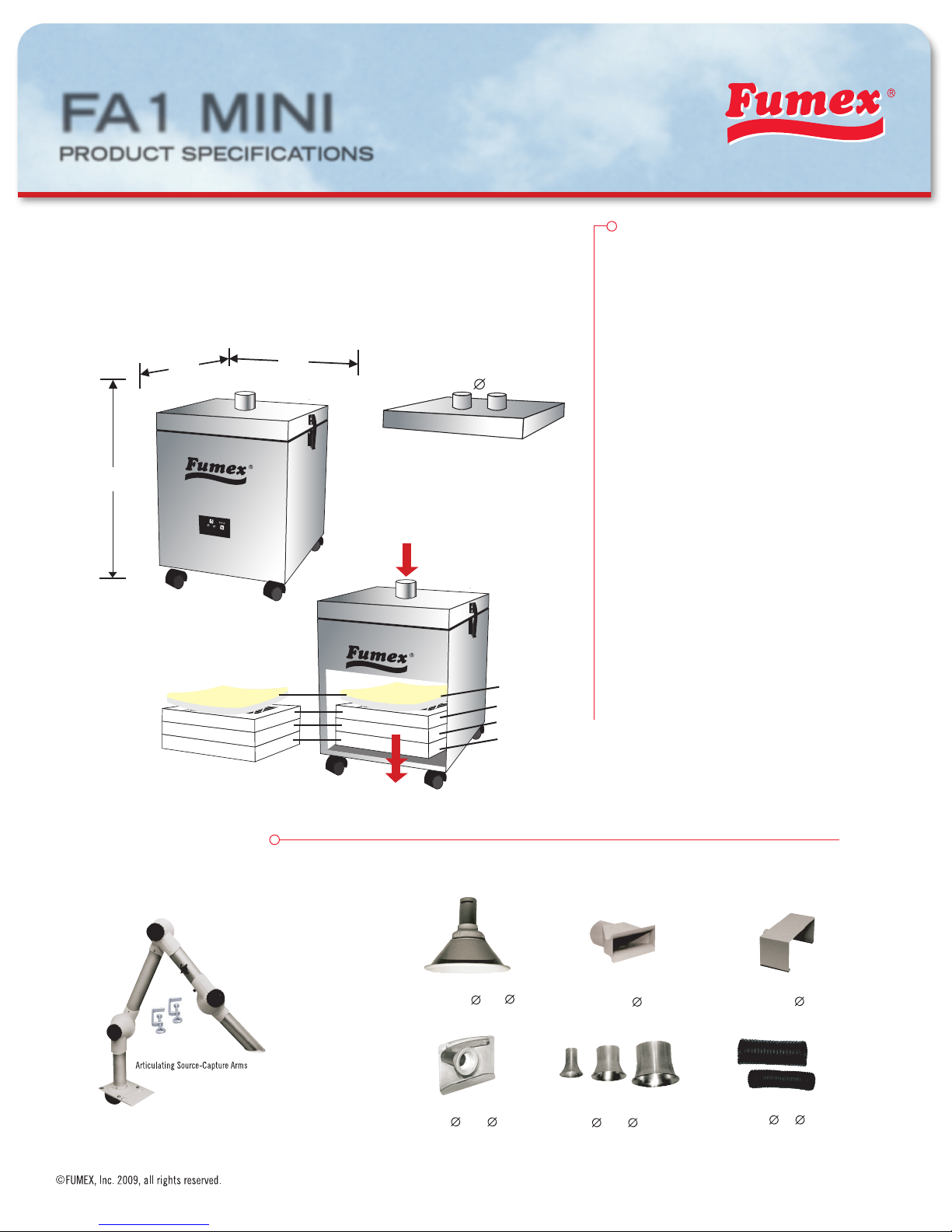

TECH DATA FA1 MINI
Ideal for light duty applications
DIMENSIONS - INCHES
PRODUCT SPECIFICATIONS
Change
Fil
ter
Change
Gas
Fi l
ter
1
2
3
12.5” 13.5”
18”
FA1 Mini Specifications
Construction:
Cabinet: 16 ga . welded steel, powdercoat finish
Baffled – sound attenuated
Sound Level: 59 dbA
Weight: 45 lbs
Blowers:
Performance: 165 cfm @ 19” wc
Centrifugal - direct-drive, brushless motor
Electrics/Controls:
120/1/50-60 or 230/1/50-60
Pre-wired 3 wire power cable, 7.5 ft (2.3m) w/plug
Digital Controls
• Electronic variable speed blower control
• Electronic individual lter monitoring w/ display
• Calibrated electronic VOC /gas sensor
• Electronic relays for remote start/stop and lter
monitoring
Amp Draw: 6.0 / 4.0
Standard Equipment
UL listed compliance
Standard Filter Set
1 x 3” or 2 x 2” air inlet
5 ft. 2-ply rubber hose, smooth core
2”/51mm or 3”/76mm inside diameter w/hose clamps
(4) Industrial grade wheels
Installation guide / Operations manual
Standard Filter Set
Pre-Filter(s):Polyester pre-filter
Large capacity MERV 11 panel filter
HEPA Filter: 99.97% efficient @ 0.3 micron
Adsorbent Cell: Large capacity gas filter
• Blended activated carbon and activated alumina
impregnated with potassium permanganate (provides
broad spectrum gas control)
• 100 % recyclable environmentally safe cell.
Options:
High efficiency hoods
Optional ducted exhaust
Gas-specific filters
FUMEX ACCESSORIES
Articulating Source - Capture Arms Source Capture Hoods
Domed Hood
14” diameter x 2” or 3” Hose
Rectangular Hood
4” x 1” x 2” Hose
Bench-Mounted Metal Hood
12” x 5” x 5” x 2” Hose
Clear Flat Screen Hood
12” x 8” x 2” or 3” Hose
High Efficiency Aluminum Hoods
1”, 2” or 3” Hoses
Flexible Rubber Hoses
2” , 3”
2x2” Inlet
Purified air recirculated
to workplace
Polyester pre-filter
HEPA Filter
Adsorbent Cell
100 % recyclable
environmentally
safe cell
Dirty air inlet
