FUNAI WD6D-M100 User manual

SERVICE MANUAL
DVD / VIDEO
CASSETTE RECORDER
WD6D-M100
Main Section
ISpecifications
IPreparation for Servicing
IAdjustment Procedures
ISchematic Diagrams
ICBA
IExploded Views
IParts List
When servicing the deck
mechanism, refer to MK14 Deck
Mechanism Section.
Deck Mechanism Part No.:
N25E1FL

MAIN SECTION
DVD / VIDEO
CASSETTE RECORDER
WD6D-M100
TABLE OF CONTENTS
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1-1
Laser Beam Safety Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2-1
Important Safety Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3-1
Standard Notes for Servicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4-1
Preparation for Servicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5-1
Cabinet Disassembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6-1
Electrical Adjustment Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7-1
How to Initialize the DVD recorder & VCR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8-1
Firmware Renewal Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9-1
Function Indicator Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10-1
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-11-1
Block Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-12-1
Schematic Diagrams / CBA and Test Points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-13-1
Waveforms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-14-1
Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-15-1
IC Pin Function Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-16-1
Lead Identifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-17-1
Exploded Views . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-18-1
Mechanical Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-19-1
Electrical Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-20-1
Main Section
ISpecifications
IPreparation for Servicing
IAdjustment Procedures
ISchematic Diagrams
ICBA
IExploded Views
IParts List

1-1-1 E9TFASP
SPECIFICATIONS
Note
The specifications and design of this product are subject to change without notice.
General
VCR video heads Four heads
Power requirements 220–240 V ± 10 %, 50 Hz ± 0.5 %
Power consumption 35 W
Power consumption (standby) 0.5 W (When “Antenna Out” is set to “OFF”)
Weight 5.0 kg
Dimensions (width x height x depth) 435 x 99.5 x 388 mm
Operating temperature 5°C to 40°C
Operating humidity Less than 80 % (no condensation)
TV system PAL-B/G, SECAM-LL’
Recording
Recording format Video Recording (VR) format (DVD-RW only), video format (DVD-RW, DVD-R)
Recordable discs DVD-ReWritable, DVD-Recordable
Video recording format
Sampling frequency
Compression format
13.5 MHz
MPEG
Audio recording format
Sampling frequency
Compression format
48 kHz
Dolby Digital
Tuner
Analogue channels
L (SECAM L)
BG (PAL B/G)
F1 - E69
E2 - E69
DVB-T channels
VHF
UHF
F5 - F10
E21 - E69
Available source coding method MPEG-2
Input/Output
Front Panel :
DV input
DV 4-pin jack
IEEE 1394
USB input
TYPE A
USB 2.0
Bus power current: MAX. 500 mA
Rear Panel :
VHF/UHF antenna input/output terminal 75 Ω
Audio input /output
Input /output level
Two 21-pin scart sockets (AV1, AV2)
2 Vrms (input impedance: more than 10 k Ω / output impedance: less than 1 k Ω )
Video input /output
Input /output level
Two 21-pin scart sockets (AV1, AV2)
1 Vp-p (75 Ω) each
Component video output
Output level
Three RCA connectors
Y: 1.0 Vp-p (75 Ω)
PB/CB, PR/CR: 0.7 Vp-p (75 Ω) each
Audio output
Output level
Two RCA connectors
2 Vrms (output impedance: 680 Ω)
Digital audio output
Output level
One Coaxial pin jack
500 mVp-p (75 Ω)
HDMI output HDMI jack (HDMI 1.4)

1-2-1 DVRP_LBSP
LASER BEAM SAFETY PRECAUTIONS
This DVD player uses a pickup that emits a laser beam.
The laser beam is emitted from the location shown in the figure. When checking the laser diode, be sure to keep
your eyes at least 30 cm away from the pickup lens when the diode is turned on. Do not look directly at the laser
beam.
CAUTION: Use of controls and adjustments, or doing procedures other than those specified herein, may result in
hazardous radiation exposure.
Location: Inside Top of DVD mechanism.
Do not look directly at the laser beam coming
from the pickup or allow it to strike against your
skin.
Drive Mechanism Assembly
Laser Beam Radiation
Laser Pickup
Turntable

1-3-1 DVDP_ISP
IMPORTANT SAFETY PRECAUTIONS
Product Safety Notice
Some electrical and mechanical parts have special
safety-related characteristics which are often not
evident from visual inspection, nor can the protection
they give necessarily be obtained by replacing them
with components rated for higher voltage, wattage,
etc. Parts that have special safety characteristics are
identified by a !on schematics and in parts lists. Use
of a substitute replacement that does not have the
same safety characteristics as the recommended
replacement part might create shock, fire, and/or other
hazards. The Product’s Safety is under review
continuously and new instructions are issued
whenever appropriate. Prior to shipment from the
factory, our products are carefully inspected to confirm
with the recognized product safety and electrical
codes of the countries in which they are to be sold.
However, in order to maintain such compliance, it is
equally important to implement the following
precautions when a set is being serviced.
Precautions during Servicing
A. Parts identified by the !symbol are critical for
safety. Replace only with part number specified.
B. In addition to safety, other parts and assemblies
are specified for conformance with regulations
applying to spurious radiation. These must also be
replaced only with specified replacements.
Examples: RF converters, RF cables, noise
blocking capacitors, and noise blocking filters, etc.
C. Use specified internal wiring. Note especially:
1) Wires covered with PVC tubing
2) Double insulated wires
3) High voltage leads
D. Use specified insulating materials for hazardous
live parts. Note especially:
1) Insulation tape
2) PVC tubing
3) Spacers
4) Insulators for transistors
E. When replacing AC primary side components
(transformers, power cord, etc.), wrap ends of
wires securely about the terminals before
soldering.
F. Observe that the wires do not contact heat
producing parts (heatsinks, oxide metal film
resistors, fusible resistors, etc.).
G. Check that replaced wires do not contact sharp
edges or pointed parts.
H. When a power cord has been replaced, check that
5 - 6 kg of force in any direction will not loosen it.
I. Also check areas surrounding repaired locations.
J. Be careful that foreign objects (screws, solder
droplets, etc.) do not remain inside the set.
K. When connecting or disconnecting the internal
connectors, first, disconnect the AC plug from the
AC outlet.
L. Be sure to confirm the FAN motor has completely
stopped when disconnecting the AC cord for
termination processing is activated during inner P-
on immediately after turning Power off.
M. When reassembling, be sure to use the original
screws or specified screws listed in the parts list.
N. This unit is classified as a CLASS 1 LASER
PRODUCT.

1-3-2 DVDP_ISP
Safety Check after Servicing
Examine the area surrounding the repaired location for
damage or deterioration. Observe that screws, parts,
and wires have been returned to their original positions.
Afterwards, do the following tests and confirm the
specified values to verify compliance with safety
standards.
1. Clearance Distance
When replacing primary circuit components, confirm
specified clearance distance (d) and (d’) between
soldered terminals, and between terminals and
surrounding metallic parts. (See Fig. 1)
Table 1 : Ratings for selected area
Note: This table is unofficial and for reference only.
Be sure to confirm the precise values.
2. Leakage Current Test
Confirm the specified (or lower) leakage current
between B (earth ground, power cord plug prongs) and
externally exposed accessible parts (RF terminals,
antenna terminals, video and audio input and output
terminals, microphone jacks, earphone jacks, etc.) is
lower than or equal to the specified value in the table
below.
Measuring Method (Power ON) :
Insert load Z between B (earth ground, power cord plug
prongs) and exposed accessible parts. Use an AC
voltmeter to measure across the terminals of load Z.
See Fig. 2 and the following table.
AC Line Voltage Clearance Distance (d), (d’)
230 V ≥3.2 mm(d)
≥6.0 mm(d’)
Chassis or Secondary Conductor
Primary Circuit
Fig. 1
d' d
AC Voltmeter
(High Impedance)
Exposed Accessible Part
BOne side of
Power Cord Plug Prongs
Z
Fig. 2
Table 2: Leakage current ratings for selected areas
Note: This table is unofficial and for reference only. Be sure to confirm the precise values.
AC Line Voltage Load Z Leakage Current (i) One side of power cord plug
prongs (B) to:
230 V
2kΩ RES.
Connected in
parallel
i≤0.7mA AC Peak
i≤2mA DC
RF or
Antenna terminals
50kΩRES.
Connected in
parallel
i≤0.7mA AC Peak
i≤2mA DC A/V Input, Output

1-4-1 DVDP_SN
STANDARD NOTES FOR SERVICING
Circuit Board Indications
1. The output pin of the 3 pin Regulator ICs is
indicated as shown.
2. For other ICs, pin 1 and every fifth pin are
indicated as shown.
3. The 1st pin of every male connector is indicated as
shown.
Instructions for Connectors
1. When you connect or disconnect the FFC (Flexible
Foil Connector) cable, be sure to first disconnect
the AC cord.
2. FFC (Flexible Foil Connector) cable should be
inserted parallel into the connector, not at an
angle.
Pb (Lead) Free Solder
When soldering, be sure to use the Pb free solder.
How to Remove / Install Flat Pack-IC
1. Removal

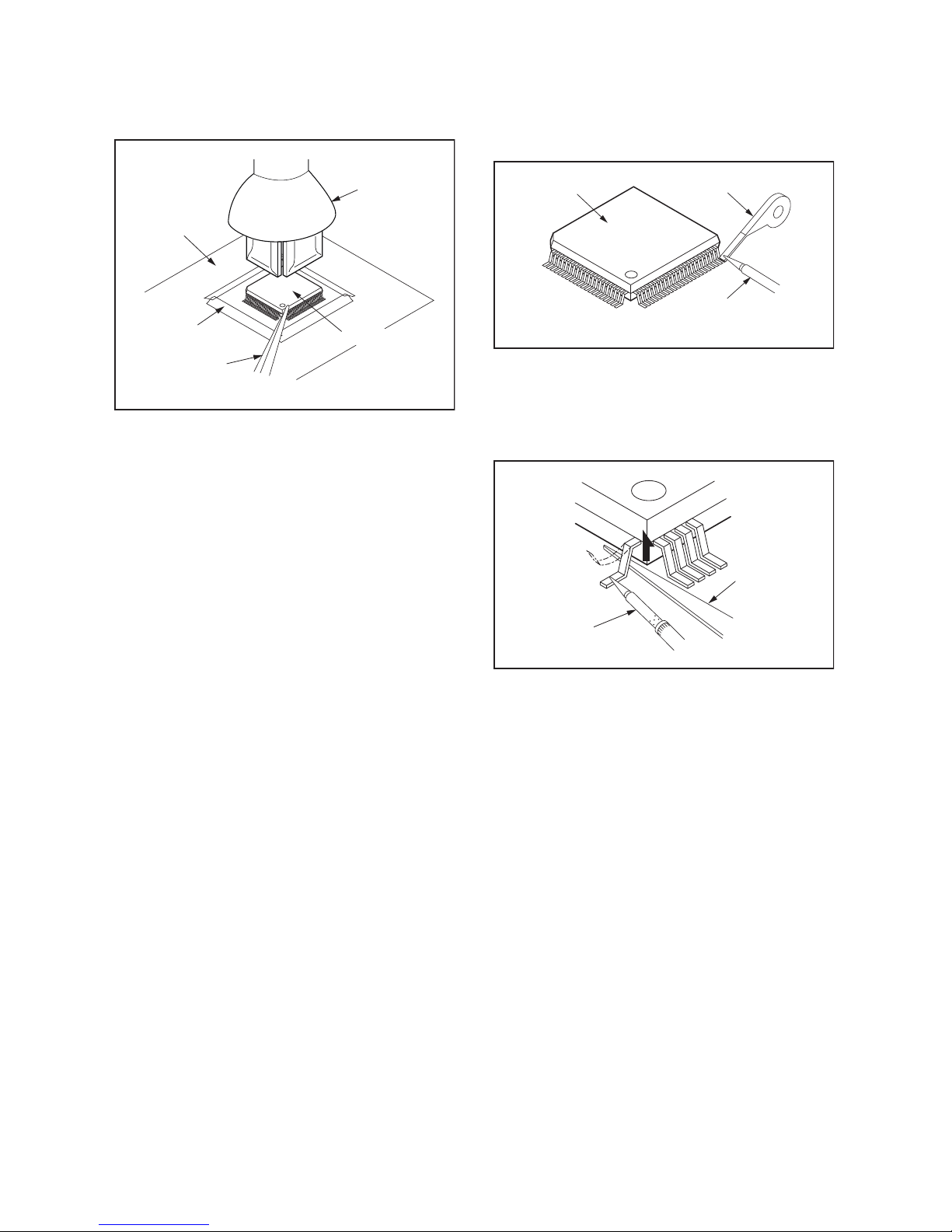

With Hot-Air Flat Pack-IC Desoldering Machine:
1. Prepare the hot-air flat pack-IC desoldering
machine, then apply hot air to the Flat Pack-IC
(about 5 to 6 seconds). (Fig. S-1-1)
2. Remove the flat pack-IC with tweezers while
applying the hot air.
3. Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)
4. Release the flat pack-IC from the CBA using
tweezers. (Fig. S-1-6)
CAUTION:
1. The Flat Pack-IC shape may differ by models. Use
an appropriate hot-air flat pack-IC desoldering
machine, whose shape matches that of the Flat
Pack-IC.
2. Do not supply hot air to the chip parts around the
flat pack-IC for over 6 seconds because damage
to the chip parts may occur. Put masking tape
around the flat pack-IC to protect other parts from
damage. (Fig. S-1-2)
Top View
Out In
Bottom View
Input
5
10
Pin 1
Pin 1
FFC Cable
Connector
CBA
* Be careful to avoid a short circuit.
Fig. S-1-1

1-4-2 DVDP_SN
3. The flat pack-IC on the CBA is affixed with glue, so
be careful not to break or damage the foil of each
pin or the solder lands under the IC when
removing it.
With Soldering Iron:
1. Using desoldering braid, remove the solder from
all pins of the flat pack-IC. When you use solder
flux which is applied to all pins of the flat pack-IC,
you can remove it easily. (Fig. S-1-3)
2. Lift each lead of the flat pack-IC upward one by
one, using a sharp pin or wire to which solder will
not adhere (iron wire). When heating the pins, use
a fine tip soldering iron or a hot air desoldering
machine. (Fig. S-1-4)
3. Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)
4. Release the flat pack-IC from the CBA using
tweezers. (Fig. S-1-6)
Hot-air
Flat Pack-IC
Desoldering
Machine
CBA
Flat Pack-IC
Tweezers
Masking
Tape
Fig. S-1-2
Flat Pack-IC Desoldering Braid
Soldering Iron
Fig. S-1-3
Fine Tip
Soldering Iron
Sharp
Pin
Fig. S-1-4

1-4-3 DVDP_SN
With Iron Wire:
1. Using desoldering braid, remove the solder from
all pins of the flat pack-IC. When you use solder
flux which is applied to all pins of the flat pack-IC,
you can remove it easily. (Fig. S-1-3)
2. Affix the wire to a workbench or solid mounting
point, as shown in Fig. S-1-5.
3. While heating the pins using a fine tip soldering
iron or hot air blower, pull up the wire as the solder
melts so as to lift the IC leads from the CBA
contact pads as shown in Fig. S-1-5.
4. Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)
5. Release the flat pack-IC from the CBA using
tweezers. (Fig. S-1-6)
Note: When using a soldering iron, care must be
taken to ensure that the flat pack-IC is not
being held by glue. When the flat pack-IC is
removed from the CBA, handle it gently
because it may be damaged if force is applied.
2. Installation
1. Using desoldering braid, remove the solder from
the foil of each pin of the flat pack-IC on the CBA
so you can install a replacement flat pack-IC more
easily.
2. The “●” mark on the flat pack-IC indicates pin 1.
(See Fig. S-1-7.) Be sure this mark matches the 1
on the PCB when positioning for installation. Then
presolder the four corners of the flat pack-IC. (See
Fig. S-1-8.)
3. Solder all pins of the flat pack-IC. Be sure that
none of the pins have solder bridges.
To Solid
Mounting Point
Soldering Iron
Iron Wire
or
Hot Air Blower
Fig. S-1-5
Fine Tip
Soldering Iron
CBA
Flat Pack-IC
Tweezers
Fig. S-1-6
Example :
Pin 1 of the Flat Pack-IC
is indicated by a " " mark. Fig. S-1-7
Presolder
CBA
Flat Pack-IC
Fig. S-1-8

1-4-4 DVDP_SN
Instructions for Handling Semi-
conductors

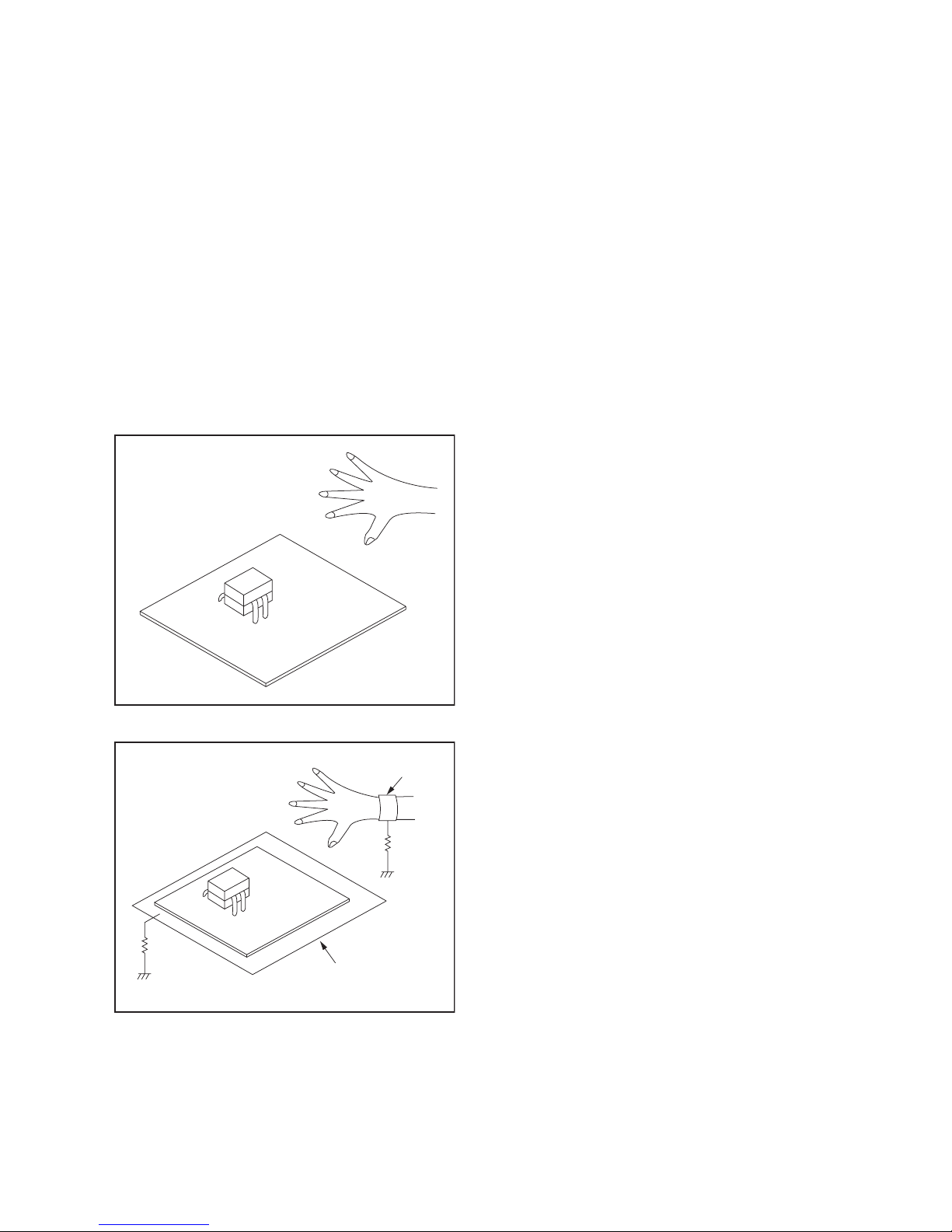

Electrostatic breakdown of the semi-conductors may
occur due to a potential difference caused by
electrostatic charge during unpacking or repair work.
1. Ground for Human Body
Be sure to wear a grounding band (1 MΩ) that is
properly grounded to remove any static electricity that
may be charged on the body.
2. Ground for Workbench
Be sure to place a conductive sheet or copper plate
with proper grounding (1 MΩ) on the workbench or
other surface, where the semi-conductors are to be
placed. Because the static electricity charge on
clothing will not escape through the body grounding
band, be careful to avoid contacting semi-conductors
with your clothing.
<Incorrect>
CBA
Grounding Band
Conductive Sheet or
Copper Plate
1MΩ
1MΩ
<Correct>
CBA

1-5-1 E9TK0PFS
PREPARATION FOR SERVICING
How to Enter the Service Mode
About Optical Sensors
Caution:
An optical sensor system is used for the Tape Start
and End Sensors on this equipment. Carefully read
and follow the instructions below. Otherwise the unit
may operate erratically.
What to do for preparation
Insert a tape into the Deck Mechanism Assembly and
press [ B] (VCR) button. The tape will be loaded into
the Deck Mechanism Assembly. Make sure the power
is on, connect JP278(S-INH) to GND. This will stop the
function of Tape Start Sensor, Tape End Sensor and
Reel Sensors. (If these TPs are connected before
plugging in the unit, the function of the sensors will
stay valid.) See Fig. 1.
Note: Because the Tape End Sensors are inactive,
do not run a tape all the way to the start or the
end of the tape to avoid tape damage.
Q504
Q503
JP278 (S-INH)
Fig. 1

1-6-1 E9TFCDC
CABINET DISASSEMBLY INSTRUCTIONS

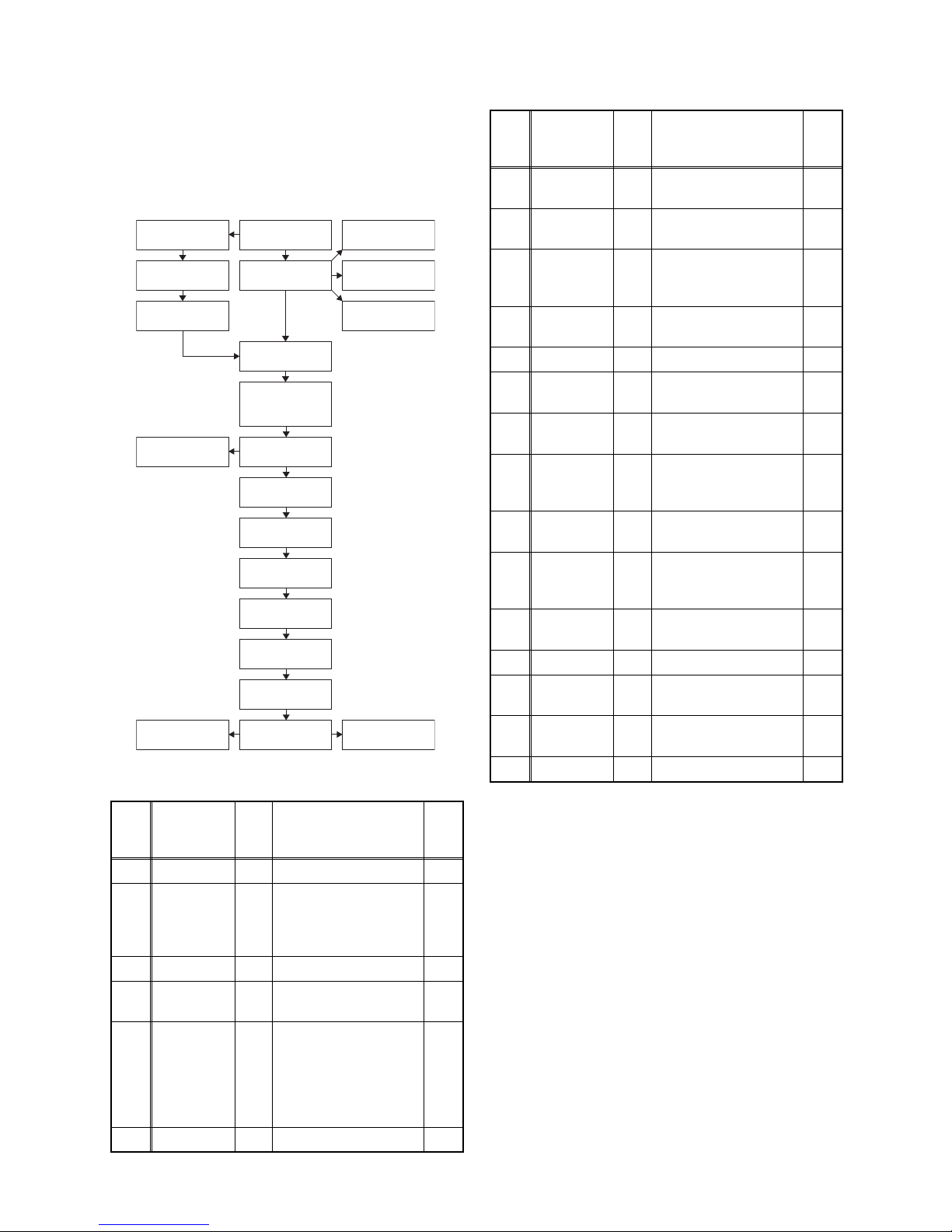

1. Disassembly Flowchart
This flowchart indicates the disassembly steps to gain
access to items to be serviced. When reassembling,
follow the steps in reverse order. Bend, route, and
dress the cables as they were originally.
2. Disassembly Method
Note:
(1) Identification (location) No. of parts in the figures
(2) Name of the part
(3) Figure Number for reference
(4) Identification of parts to be removed, unhooked,
unlocked, released, unplugged, unclamped, or
desoldered.
P = Spring, L = Locking Tab, S = Screw,
CN = Connector
e.g. 2(S-2) = two Screws of (S-2),
2(L-2) = two Locking Tabs of (L-2)
(5) Refer to “Reference Notes.”
ID/
Loc.
No.
Part Fig.
No. Removal Note
[1] Top Cover D1 9(S-1) ---
[2] Front
Assembly D2
5(L-1), 3(L-2), (S-2),
2(S-3), CN6001, USB
Holder,
USB Earth Plate
1
[3] USB CBA D2 ---------- ---
[4] Front
Bracket D2 3(S-4), (S-5), Front Support ---
[5]
DVD
Mechanism
& DVD
Main CBA
Assembly
D3
(S-6), 2(S-7), 2(S-8),
2(S-9), CN101,
CN502, CN701,
CN901, CN981, Dust
Cover, Mecha Earth
Plate, Hook
2
[6] Fan Holder D4 2(S-10), CN1002 ---
[1] Top Cover
[2] Front
Assembly
[4] Front Bracket
[20] Front
Bracket R [21] Bracket R
[17] Rear Jack
CBA
[5] DVD Mechanism
& DVD Main
CBA Assembly
[9] Power Supply
CBA
[10] Power Holder
[12] Function CBA
[6] Fan Holder
[7] Motor DC Fan
[8] Rear Panel
[15] Deck
Assembly
[19] Deck Pedestal
[14] VCR
Chassis Unit
[11] SW CBA
[13] Power SW
CBA
[3] USB CBA
[18] AV CBA
[16] DTV Module
CBA Unit
[7] Motor DC
Fan D4 2(S-11) ---
[8] Rear Panel D4 (S-12), 5(S-13), Rear
Holder, Earth Spring 5
[9]
Power
Supply
CBA
D5
(S-14), 3(S-15),
(S-16), CL1001,
CN3605, FFC Guide
---
[10] Power
Holder D5 ---------- ---
[11] SW CBA D5 (S-17), Desolder ---
[12] Function
CBA D5 2(S-18), CN1504, Mode Lens Holder ---
[13] Power SW
CBA D6 (S-19), Desolder ---
[14]
VCR
Chassis
Unit
D6 5(S-20), 4(S-21) ---
[15] Deck
Assembly D7 (S-22), (S-23) 3 4
[16]
DTV
Module
CBA Unit
D7 Desolder ---
[17] Rear Jack
CBA D7 Desolder ---
[18] AV CBA D7 ---------- ---
[19] Deck
Pedestal D8 7(S-24) ---
[20] Front
Bracket R D8 (S-25), 2(S-26), DV Cable, DV Earth Plate ---
[21] Bracket R D8 2(S-27) ---
↓
(1)
↓
(2)
↓
(3)
↓
(4)
↓
(5)
ID/
Loc.
No.
Part Fig.
No. Removal Note

1-6-2 E9TFCDC
Reference Notes
1. Locking Tabs (L-1) and (L-2) are fragile. Be careful
not to break them.
1-1. Remove Screw (S-2).
1-2. Release four Locking Tabs (L-1).
1-3. Release three Locking Tabs (L-2).
1-4. Disconnect Connector (CN6001), and
remove the Front Assembly.
2. The DVD Mechanism & DVD Main CBA
Assembly is adjusted as a unit at factory.
Therefore, do not disassemble it. Replace the
DVD Mechanism & DVD Main CBA Assembly
as a unit.
3. When reassembling, solder wire jumpers as
shown in Fig. D7.
4. Before installing the Deck Assembly, be sure to
place the pin of LD-SW on the AV CBA as shown
in Fig. D7. Then, install the Deck Assembly while
aligning the hole of Cam Gear with the pin of LD-
SW, the shaft of Cam Gear with the hole of LD-SW
as shown in Fig. D7.
5. When reassembling, be sure to use the original
screws or specified screws listed in the parts
list.
(S-1)
(S-1)
(S-1)
(S-1)

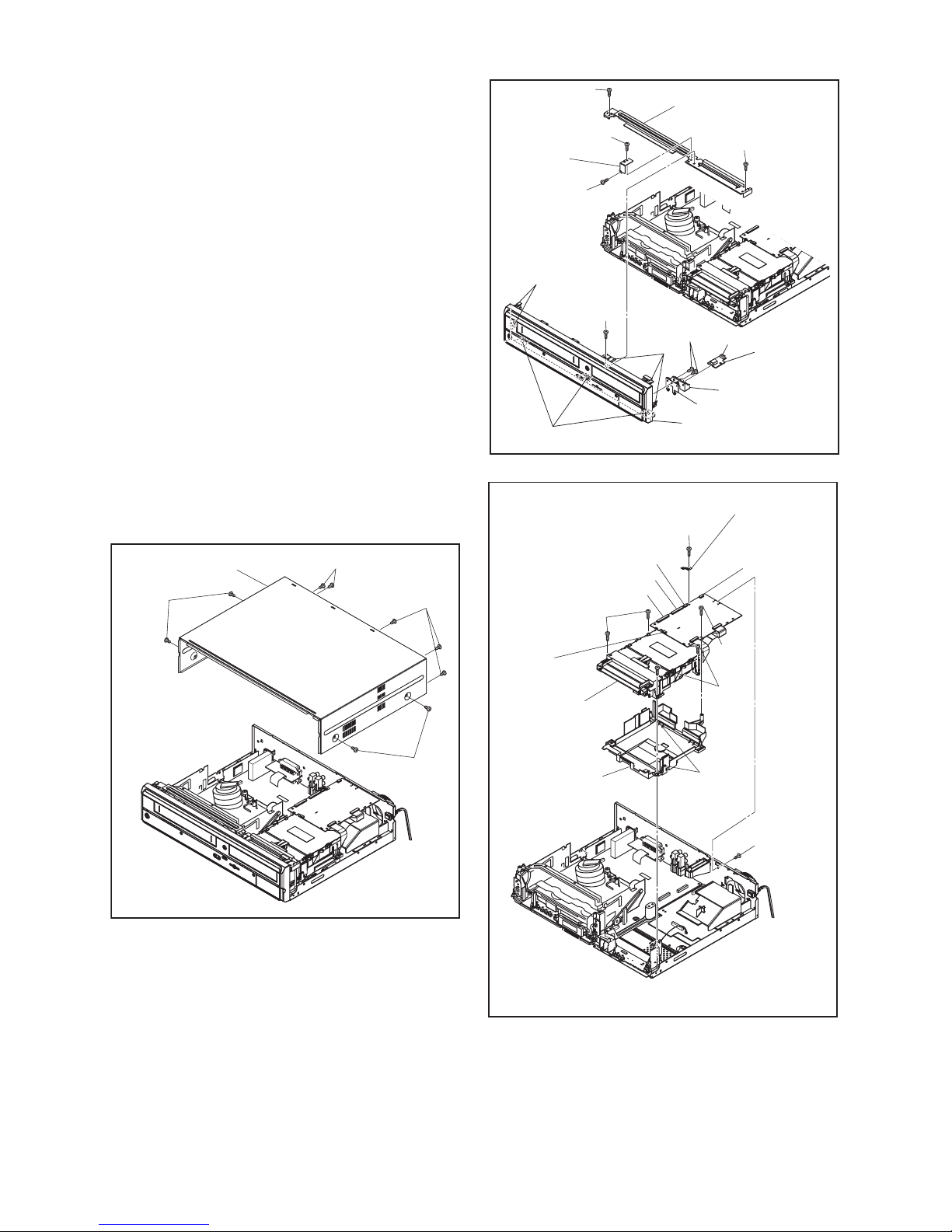

[1] Top Cover
Fig. D1
(L-1)
(L-2)
(L-1)
(S-5)
(S-4)
(S-2)
Front
Support
USB Holder
CN6001
USB Earth Plate
[2] Front Assembly
[3] USB
CBA
[4] Front Bracket
(S-4)
(S-4)
(S-3)
Fig. D2
(S-9)
CN101
CN901
CN701
CN981
Mecha Earth
Plate
CN502
(S-7)
(S-6)
* See Reference Note 2.
Dust
Cover
Hook
[5] *DVD
Mechanism
& DVD Main
CBA Assembly
(S-7)
(S-8)
Fig. D3

1-6-3 E9TFCDC
(S-10)
(S-13)
(S-12)
(S-13)
(S-11)
[7] Motor
DC Fan
[6] Fan Holder
CN1002
Rear Holder
[8] Rear Panel*1
*1: See Reference Note 5.
Earth Spring
Fig. D4
FFC Guide
Mode Lens
Holder
CL1001
CN3605
(S-17)
(S-18)
(S-14)
(S-15)
(S-16)
[9] Power Supply CBA
[10] Power
Holder
[12] Function
CBA
[11] SW CBA
Desolder
CN1504
Fig. D5
(S-20)
(S-19)
(S-21)
[14] VCR
Chassis Unit
[13] Power SW
CBA
Desolder
Lead with
blue stripe
Fig. D6

1-6-4 E9TFCDC
Note: When removing FFC of Capstan Motor from AV CBA, be sure to replace it with a new FFC.
(Don’t solder FFC which was once removed again.)
[18] AV CBA
[16] DTV Module
CBA Unit
[15] Deck
Assembly
[17] Rear Jack
CBA
FE Head
Cylinder
Assembly
ACE Head
Assembly
[18] AV CBA
SW507
LD-SW
From
FE Head
BOTTOM VIEW
Lead connections of Deck Assembly and AV CBA
Desolder
FFC of
Capstan
Motor
Printing side
Desolder
Desolder
Desolder
Desolder
From
Cylinder
Assembly
From
ACE Head
Assembly
Lead with
blue stripe
Lead with
white stripe
(S-22)
(S-23)
Fig. D7
LD-SW Pin
Pin
Hole
Hole
Shaft
Cam Gear
[18] AV CBA
[15] Deck Assembly

1-6-5 E9TFCDC
(S-24)
(S-25)
(S-26)
DV Earth Plate
DV Cable
(S-27)
[19] Deck Pedestal
[21] Bracket R
[20] Front
Bracket R
Fig. D8

1-6-6 E9TFCDC
3. How to Eject Manually
Note: When rotating the gear, be careful not to damage the gear.
1. Remove the Top Cover, Front Assembly, Front Bracket, DVD Mechanism & DVD Main CBA Assembly.
2. Remove the Dust Cover.
3. Rotate the gear in the direction of the arrow manually as shown below the tray descends.
4. Pull the tray out manually and remove a disc.
View for A
A
Hook
Rotate this gear in
the direction of the arrow

1-7-1 E9TF0EA
ELECTRICAL ADJUSTMENT INSTRUCTIONS
Note:
1. Electrical adjustments are required after replacing
circuit components and certain mechanical parts.
It is important to do these adjustments only after
all repairs and replacements have been
completed. Also, do not attempt these adjustments
unless the proper equipment is available.
2. To perform these alignment / confirmation
procedures, make sure that the tracking control is
set in the center position: Press either [PROG. ?K]
or [PROG. ?L] button on the front panel first, then
the [ B] (VCR) button on the front panel.
Test Equipment Required
1. Oscilloscope: Dual-trace with 10:1 probe,
V-Range: 0.001~50V/Div.,
F-Range: DC~AC-20MHz
2. Alignment Tape (FL6A)
Head Switching Position Adjustment
Purpose:
To determine the Head Switching position during
playback.
Symptom of Misadjustment:
May cause Head Switching noise or vertical jitter
in the picture.
Reference Notes:
Playback the Alignment tape and adjust VR501 so
that the V-sync front edge of the CH1 video output
waveform is at the 6.5H±1H (416µs±64µs)
delayed position from the rising edge of the CH2
head switching pulse waveform.
Test point Adj.Point Mode Input
J171(V-OUT)
TP504(RF-SW)
GND
VR501
(Switching Point)
(AV CBA)
PLAY B
(SP) -----
Tape Measurement
Equipment Spec.
FL6A Oscilloscope 6.5H±1H
(416µs±64µs)
Connections of Measurement Equipment
Figure 1
Oscilloscope
AV CBA
J171
CH1 CH2
Trig. (+)
GND
TP504
EXT. Syncronize Trigger Point
1.0H
CH1
CH2
Switching Pulse
V-Sync
0.5H
6.5H±1H (416 µs ±64 µs)

1-8-1 E9TF0INT
HOW TO INITIALIZE THE DVD RECORDER & VCR
To put the program back at the factory-default, initialize the DVD recorder & VCR as the following procedure.
< DVD Section >
1. Turn on the DVD recorder & VCR.
2. Confirm that no disc is loaded or that the disc tray
is open. To put the DVD recorder & VCR into the
Version display mode, press [DVD], [CM SKIP],
[1], [2], and [3] buttons on the remote control unit
in this order.
Fig. a appears on the screen.
Fig. a Version Display Mode Screen
3. Press [ENTER/OK] button, then the DVD recorder
& VCR starts initializing. When the initializing is
completed, the DVD recorder & VCR exits the
Version display mode and turns off the power
automatically.
* To move into the Normal mode from the
Version display mode, press [RETURN/BACK]
button on the remote control unit instead of
[ENTER/OK] button.
* When [STANDBY-ON] button is pressed
before [ENTER/OK] button is pressed, the
DVD recorder & VCR exits the Version display
mode, then the power turns off.
Note: By initializing, “Current Clock”, “Setup
Changing Item”, “Channel Setup” and “Timer
Program” are initialized.
MODEL NAME :
DVB-T VERSION:
FE VERSION :
BE VERSION :
TT VERSION :
DV UNIQUE ID:
LD ADJUSTMENT :
DISC ADJUSTMENT :
DEFAULT SETTING : ENTER
EXIT : RETURN
OK
OK
*******
***.***
***_***_***
*************
************
******** ********
*1: "*******" differs depending on the models.
*2: Firmware Version differs depending on the
models, and this indication is one example.
F/W VERSION DISP

1-9-1 E9TF0FW
FIRMWARE RENEWAL MODE
1. Turn the power on and remove the disc on the tray.
2. To put the DVD recorder & VCR into version up
mode, press [DVD], [CM SKIP], [6], [5], and [4]
buttons on the remote control unit in this order.
Then the tray will open automatically.
Fig. a appears on the screen and Fig. b appears
on the VFD.
Fig. a Version Up Mode Screen
Fig. b VFD in Version Up Mode
3. Load the disc for version up.
Fig. c appears on the screen. The file on the top is
highlighted as the default.
When there is only one file to exist, Step 4 will
start automatically.
Fig. c Update Disc Screen
4. Select the firmware version pressing arrow
buttons, then press [ENTER/OK].
Fig. d appears on the screen and Fig. e appears
on the VFD. The DVD recorder & VCR starts
updating.
About VFD indication of Fig. e:
1) When Fig. d is displayed on the screen, “F-UP”
is displayed on the VFD.
2) When “Firmware Updating... XX% Complete.”
is displayed on the screen, BE version number
is displayed on the VFD such as 194000.
Fig. d Programming Mode Screen
Fig. e VFD in Version Up Mode (Example)
The appearance shown in (*1) of Fig. d is
described as follows.
5. After updating is finished, the tray opens
automatically.
At this time, no button is available.
6. Pull out the AC code once, then insert it again.
* Firmware Version differs depending on the
models, and this indication is one example.
Current
F/W version
is displayed.
Firm Update Mode
Please insert a disc.
ver. *************
* Firmware Version differs depending on the
models, and this indication is one example.
Disc name
is displayed.
Firm Update Mode ver. *************
VOL_************
************
************
************
************
1 / 1
Files included
in the disc are
displayed.
No. Appearance State
1 File Loading... Sending files into the memory
2
Firmware
Updating...
XX% Complete.
Writing new version data
--- Firmware
Update Failure Failed in updating
* Firmware Version differs depending on the
models, and this indication is one example.
Firm Update Mode ver. *************
File Loading...
************
Selected
F/W version
is displayed.
(*1)
