Introduction
The iDol drone is portable and easy to use, the body is collapsible and
compact and is a fully functional aircraft.
As well as a remote control, the user can control flight and video/picture
through an app or supported controller.
Featuring AI technology, the iDol drone features gesture control, smart
following functions as well as one-button record and other features.
Take stable 1080p HD video with headless mode, electric fence and
several built in security modes.
Make flight safe and reliable.
Package
Before using this product, please make sure the following items are
included in the package. If there are any items missing please contact
your dealer.
Item Quantity
iDol Done (not including battery or propeller) 1
Lithium Polymer Rechargeable Battery 1
Propeller（CW×2，CCW×2）8
Charger 1
Adapter 1
user manual 1

6th
It is recommended that you first check the package contents and read
the Disclaimer, safety information, battery safety instructions and quick
start guide in order to get a basic understanding of the product. For
more detailed information, read the user manual.
Main Components
1) Propeller
2) Smart Battery
3) Motor
4) Micro USB Port
5) Visual Positioning System
6) Sonar
7) Drone Status Indicator/Power
Indicator
8) GPS Module
9) Camera/Video Indicator
10）Camera

Flight Preparation
1) Charging Battery
7th
Align the battery with the charger slot, then insert the battery into the
charger, making sure the battery connects correctly.
Connect the power adapter and start charging.
Solid red light: No battery inserted or the battery is not connected
correctly.
Flashing blue light: Charging.
Illuminated blue light: Battery is at full capacity.
Precautions:
Do not leave charging batteries unattended.
It takes around 1.5 hours to fully charge the battery. Do not charge
for too long and make sure to disconnect the power once the battery
is charged.
Not using the battery for extended periods of time may result it
battery malfunction. Recharge the battery regularly to maintain
battery health. Transport and store the battery according to the

requirements in the Battery Safety Instructions.
8th
When the charger detect the battery temperature is outside of the
normal operating range (5°C to 40°C), it will stop charging until the
temperature returns to normal.
2) Battery Installation and Removal
Installing the Battery
Ensure that battery is being inserted into the aircraft in the right
direction. Insert side A first, then insert side B into the battery slot
and apply a small amount of pressure. Once the battery clicks into
place it is secure.
Removing the Battery
Press in the tabs on either side of the B side of the battery and pull
the battery upwards.

9th
Download APP
Search for Funsnap in the app store or scan the QR code to download the
FUNSNAP app from the APP Store.
iOS Android
FUNSNAP requires iOS 9.0 and above or Android 5.0 or higher.
This manual is subject to change without notice. Please visit
www.fun-snap.com for the latest version.
Preflight Check
Before flight please do the following checks before you take off.
Whether the area is a no-fly zone.
Check whether the propeller blade and fuselage are loose or
damaged.
Make sure that the cameras are clean and undamaged.

10th
Flight Environment Requirements
Outdoors
1、Do not fly in bad weather such as rain, snow or strong winds.Keep the
Drone in line of sight at all times. Keep away from obstacles such as
high-voltage lines, trees, dense crowds and water.
2、Fly in a clear open area, do not fly near buildings and maintain a good
distance from tall buildings to avoid GPS issues.
3、Do not fly near sources of large electromagnetic fields such as signal
towers and WIFI base station to avoid interference.
4、Stay away from sources of large magnetic fields in order to avoid any
interference with the onboard compass.
5、When above 4000 meters above sea level, environmental factors may
affect flight.
6、If the GPS signal is low the drone will automatically use the ultrasonic
sensor.
Indoors
1、Indoor flight uses camera and ultrasonic positioning (<2m). It is
recommended that the floor have a distinctive texture in order for the
drone to use these positioning methods.
2、Indoor flight requires a well-lit environment (>15 lux).
3、The optical and ultrasonic position may be unreliable at low altitude
(<5m) when flying at high speeds.

11th
Basic Use
LED Status Indicator
The tail of the drone has a status indicator that gives various information
about the state of the drone. The indicator above the camera is a
photo/video indicator that shows the camera’s mode. Please refer to the
table below for information on the status indicators:
LED Color & Status Meaning
status/power
indicator
Green Power On
Green Power is Normal
Flashing Red Low Power
Red
No connection to APP or
Remote control
Green GPS Lock
Flashing Yellow No GPS Lock
Flashing Blue Firmware Update
Red、Green and Blue
LED Alternating
Hardware Malfunction
photo/video
indicator
Flashing Red Picture
Slow Flashing Red Video

12th
Power On/Power Off
Press and hold the power key for 3 seconds. When the iDol powers on
the power indicator light will turn green. The status indicator below the
power switch will also turn green.
Press and hold the power key for 3 seconds. Once the status and power
indicators go out let go of the power key.
Connecting to Drone
Wi-Fi connection to drone from mobile devices:
Turn on the drone and make sure it is in it’s normal state.
Enter into the Wi-Fi setting page of the mobile device. The default Wi-Fi
name is: DY-XXXXX (XXXXX is an independent SN identifier), The default
password is: 123456789.
Notice:
You can change the Wi-Fi name and password in the APP settings.

13th
Horizon Calibration
Unfold the drone, place it on a horizontal surface and turn it on. Connect
to the APP and navigate to the APP’s settings page, select “Sensor
Calibration”, then “Level Calibration” and touch “start”. The status
indicator will flash quickly for 5 seconds, after which the APP will display
“successful calibration”.
Tips:
The flashing blue light indicates that the horizon calibration is not
ready.
If this happens place the drone on another horizontal surface and
calibrate it again.
Compass Calibration
In the APP go to "Settings" / "Sensor Calibration" / "Magnetic
Calibration" in the app and click "Start". The status indicator will start
flashing white.

14th

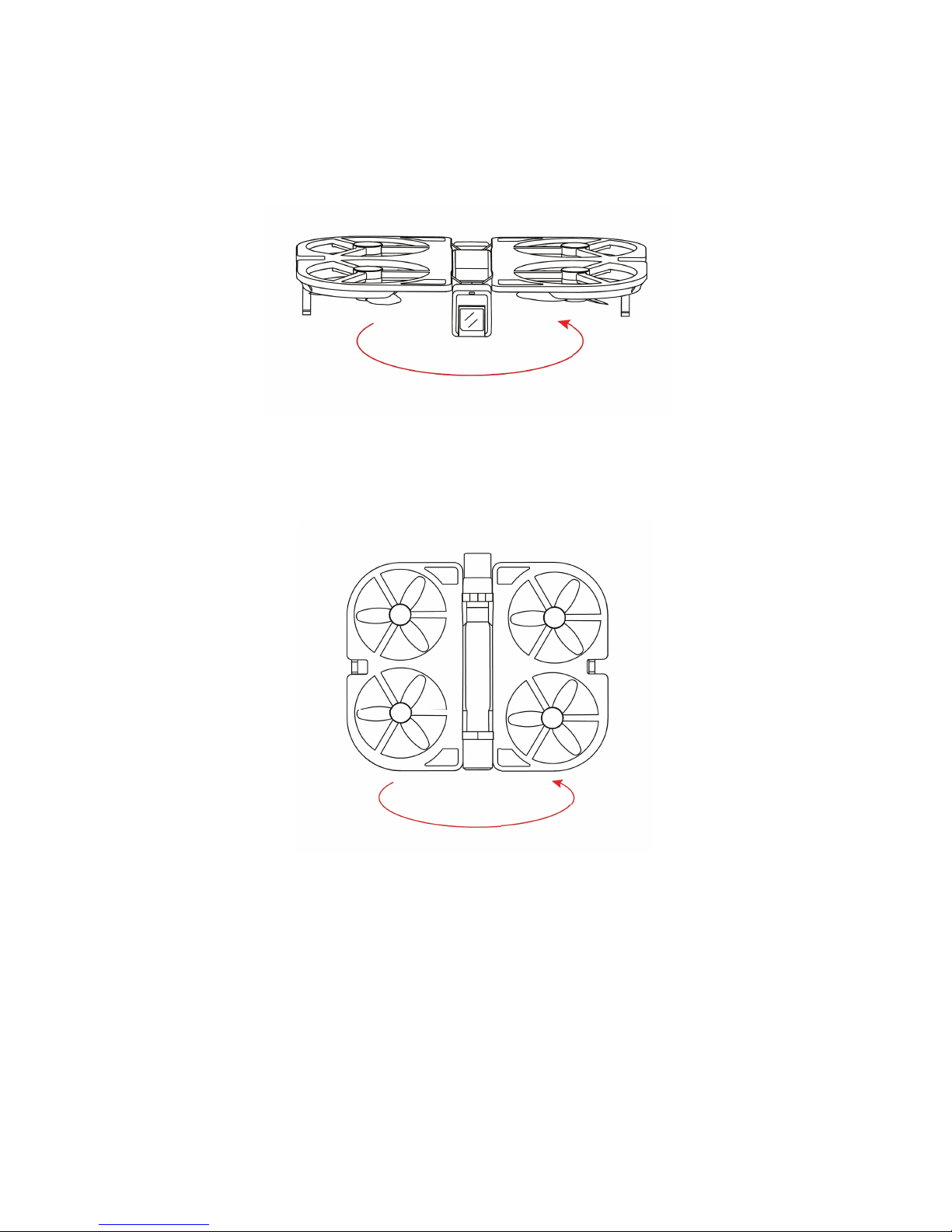

1、Rotate the drone horizontally 4 times. When the status indicator
flashes twice go to the next step.
2、Rotate the aircraft as if doing a roll 4 times. When the status indicator
flashes again the calibration is complete.
Precautions:
Before flying a new drone, or if the flight is more than 100km away
from the last flight location, please calibrate the compass before
takeoff.
Do not calibrate the compass near strong magnetic fields or large
metal objects.

15th
If the calibration failed, restart the drone and repeat the above steps.
One Button Takeoff/Landing
Once the aircraft is turned on, place it horizontally on the ground and
connect it to the APP. Touch the icon, the APP will display “Confirm
Takeoff?”, select“Yes”and the drone will take off. Touch again, the
APP will prompt “Confirm Landing”, touch “Yes” and the drone will
land.
Note:
Do not take off or land in your hand, or touch the blades when in use.
Gravity Mode
Click the right stick and tilt the phone to control the flight by using the
gravity perceptive system of the phone.
This mode is only available in the U.S.
On the left side of the screen is an onscreen slide style control area which
controls altitude and yaw.

16th
The control on the right side of the screen controls forward, back, left
and right.
Forward, Back, Left, Right: When AFM is active tilting the device forward
and back will control the forward and back motions of the drone. Tilting
the device left or right will move the drone left and right.
Up/down:Place your finger inside the control area on the left stick, then
slide it up or down to control the drone’s altitude.
Turn Left/Right:Place your finger inside the control area on the left stick,
then slide it left or right to control the drone’s yaw.

17th
App
APP Overview
The FUNSNAP App is a companion app developed specifically for iDol.
Users can use the FUNSNAP App instead of the remote control to control
the flight and shooting pictures/video. It can also share the photos and
videos directly to social networks.
The APP is divided into the main interface and the control interface. Click
on the main interface to connect the device.

APP Control Interface
The FUNSNAP APP s control interface integrates status information and
function controls required for flight and taking pictures/video.
18th
1. Return To Main Screen
2. Camera Up
3. Camera Down
4. Auto Return Home
5. Auto Takeoff/Landing
6. Modes
7. Flight Settings
8. Real-time Function
9. Take Photo
10. Take Video
11. Album
12. Current Height, Distance And Speed
13. Warning Banner
(Flight Status/Remote Control
connection/Low Battery Alert)
14. Remote Controller Connection
15. Battery Power
16. SD Card Space
17. GPS Signal Strength
18. Left And Right Stick

19th
1、Return to Main Screen
Return to the main screen.
2、Camera Up
Move up the camera lens.
3、Camera Down
Move down the camera lens.
4、Return Home
5、Takeoff/Landing
the icon, the system will prompt“Confirm Takeoff”,
,
select
“Yes”and the drone will take off automatically.
the system will prompt“ Confirm Landing ”
the drone will land automatically.
6、Modes
Auto
Auto
Taking-off while GPS signal is good, tap drone will automatically
return to the takeoff point.
the icon,
Tap
Tap
Tap
Tap to enter into 5 auto flight modes selecting page
Takeoff : Tap
select “Yes”and
Taking-off while GPS signal is good, tap drone will automatically
Landing : Tap
Modes
Smart Follow
①

Turn on smart follow and select the object need to be
followed, the drone will track on heading, drone stay
hover, and rotate head to let camera focus on object.
* Operating distance: within 1.5 meters, between
the camera and object.
Turn on gesture control, and give gesture , it will take
photo automatically with photographic prompt.
*Operating distance: within 1.5 meters.
Tap Rocket ascend with the camera pointing downward.
Tap Dronie fly backward and upward, with the camera locked on
Tap 360° Cricle to spin the aircraft in place.
Tap 360° Cricle to spin the aircraft in place.
Turn on gesture control, and give gesture , it will give
a confirm window, then press “yes”, drone will enforce
auto lading with prompt tone.
*Operating distance: within 1.5meters
②Gesture Control
③Rocket
④Dronie
⑤360° Cricle
20th
your subject.
