Furrion Net-Zero FSPP95SA-BL User manual

95W Solar Suitcase
Valise solaire 95W
Model/Modèle :
FSPP95SA-BL
Instruction Manual
Manuel d'instructions

1
Welcome
English
Thank you and congratulations for purchasing the Furrion®95W Solar Suitcase. Before
operating your new product, please read these instructions carefully. This instruction manual
contains information for safe use, installation and maintenance of the product.
Please keep this instruction manual in a safe place for future reference. This will ensure safe
use and reduce the risk of injury. Be sure to pass on this manual to new owners of this product.
The manufacturer does not accept responsibility for any damages due to not observing these
instructions.
If you have any further questions regarding our products, please contact us at
supportfurrion.com

2
Contents
English
Welcome ............................................................................................1
Contents ............................................................................................2
Important Safety Instructions............................................................3
Product Overview ..............................................................................4
Installation Instructions ....................................................................7
General Installation Notes......................................................................................7
Wiring ......................................................................................................................7
Stand Setup.............................................................................................................8
Operation...........................................................................................9
PWM Technology (Series Pulse Width Modulation)................................................9
Battery Charging Information.................................................................................9
LED Indicators.........................................................................................................11
Setting Operation ....................................................................................................11
Protection..........................................................................................13
Troubleshooting.................................................................................14
Specifications ....................................................................................15
Warranty............................................................................................16

3
Important Safety Instructions
Warning
This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they are
supervised or have been instructed on how to use the appliance by a person responsible for
their safety. Children should be supervised to ensure that they do not play with the appliance.
Do not use the Solar Panel Kit to charge non-rechargeable batteries. Doing so may result in
harm to the user and/or damage to the Regulator and/or Solar Panel. Only use the Solar Panel
Kit for charging Standard Lead Acid, calcium content, Gel & AGM type 12V batteries.
All lead acid batteries produce harmful, explosive gases. The battery should be mounted in a
well ventilated area, as far as possible from any ignition sources. Do not smoke when in the
vicinity of the battery under charge.
Battery acid is a harmful substance. Care should be taken when working with lead acid
batteries.If the acid comes into contact with your eyes or skin, immediately wash the affected
area with cold running water and seek medical assistance. Eye protection and gloves should be
worn when handling lead acid batteries.
The Solar Panel Kit will achieve best results when proper battery maintenance is regularly
performed. This includes but is not limited to checking water and specific gravity levels of the
battery.
WARNING!
Check the manufacturers data for your battery and ensure that the ‘Absorption’ voltage of
the profile you select does not exceed the manufacturers recommended maximum charging
voltage. If the ‘Absorption’ voltage for your battery type is too high, please select another
charging profile.
English

4
Product Overview
The Portable Folding Solar Panel Kit
Furrion’s portable folding solar panel kits are designed to provide a complete solar charging
solution for your RV or auxiliary battery. They include a folding panel, 10 Amp solar regulator,
25ft of cabling and a strong nylon carry bag. The panel itself features reinforced aluminum legs,
top quality hinges and latches and a fold-away handle.
English
Poly Crystalline Solar Suitcase
Solar Charger
Solar Charging Cable
Regulator to Panel Cable
Connector
Canvas Carry Bag
1 2
3
5
4
6
1
2
3
4
5
6
Kit Contents

5
Product Overview
English
Poly
Crystalline
Solar
Suitcase
Tempered
Glass
Coating
Strong
Aluminium
Frame
Diode Protected
Junction Box
95W Solar Panel
Supporting Legs
Solar
Charging
Cable
Solar
Charger
The Folding Solar Module

6
Product Overview
English
The Solar Regulator
Mounting hole ø5
Charging status LED indicator
Battery status LED indicator
Temperature Sensor*
PV positive wire
PV negative wire
Digital tube
Button
1
2
3
4
5
7
6
8
1
2 73 8
4 5 6
* If the temperature sensor short-circuits or is damaged, the controller will charge or
discharge at the internal temperature of device.

7
Installation Instructions
General Installation Notes
●Read through the entire installation section first before beginning installation.
●Be very careful when working with batteries. Wear eye protection. Have fresh water
available to wash and clean any skin contact with battery acid.
●Uses insulated tools and avoid placing metal objects near the batteries.
●Explosive battery gases may be present during charging. Be certain there is sufficient
ventilation to release the gases.
●Loose power connections and/or corroded wires may result in resistive connections
that melt wire insulation, burn surrounding materials, or even cause fire. Ensure tight
connections by using cable clamps to secure cables and prevent them from swaying in
mobile applications.
●Use with Gel, Sealed or Flooded batteries only.
●Battery connection may be wired to one battery or a bank of batteries. The following
instructions refer to a singular battery, but it is implied that the battery connection can be
made to either one battery or a group of batteries in a battery bank.
●Select the system cables according to 2.5mm2.
Wiring
NOTE
A recommended connection order has been provided for maximum safety during installation.
NOTE
The controller is a common positive ground controller.
CAUTION
Don’t connect the loads with surge power exceeding the ratings of the controller.
CAUTION
For mobile applications, be sure to secure all wiring. Use cable clamps to prevent cables
from swaying when the vehicle is in motion. Unsecured cables create loose and resistive
connections which may lead to excessive heat and/or fire.
English

8
Installation Instructions
Stand Setup
Diode Protected
Junction Box
95W Solar Panel
Supporting Legs
10A Fuse
Solar Charging
Cable
Solar Charger
Furrion Solar Inlet (FSPINS-PS)
fitted to your RV or boat (not included)
English
* When battery power is applied and the controller starts up, the battery LED indicator will be
green.

9
Operation
PWM Technology (Series Pulse Width Modulation)
The controller adopts the advanced series pulse width modulation (PWM) charging mode.
With range of 0-100%, it can charge the battery quickly and stably under any condition of solar
photovoltaic system.
PWM charging mode uses automatic conversion duty ratio pulses current to charge the battery.
The battery can be fully charged safely and rapidly with the pulse current. Intermissions allow
the oxygen and hydrogen generated by chemical reactions to be combined again and absorbed.
It can eliminate concentration polarization and ohm polarization naturally and reduce the
internal pressure of the battery so that the battery can absorb more power. Pulse current
charging mode allows the battery more time to react, which reduces the gassing volume and
improves the acceptance rate of the charging current.
Battery Charging Information
●Bulk Charge
In this stage, the battery voltage has not yet reached boost voltage and 100% of available
solar power is used to charge the battery.
●Boost Charge
When the battery has recharged to the Boost voltage setpoint, constant- current regulation
is used to prevent overheating and excessive battery gassing. The Boost stage lasts for 120
minutes and then goes to Float Charge.
●Float Charge
After the battery is fully charged in the Boost voltage stage, the controller reduces the
battery voltage to the Float voltage set point. When the battery is fully recharged, there
will be no more chemical reactions and all the charge current transmits into heat and gas
at this time. Then the controller reduces the voltage to the floating stage, charging with
a smaller voltage and current. This reduces the temperature of the battery and prevents
gassing, while also charging the battery slightly at the same time. The purpose of Float
stage is to offset the power consumption caused by self consumption and small loads in
the whole system, while maintaining full battery storage capacity. In Float stage, loads
can continue to draw power from the battery. In the event that the system load(s) exceed
English

10
Operation
the solar charge current, the controller will no longer be able to maintain the battery at
the Float setpoint. Should the battery voltage remains below the boost reconnect charging
voltage, the controller will exit Float stage and return to Bulk charge.
●Equalize Charge
WARNING: Risk of explosion
Equalizing flooded battery can produce explosive gases, so ventilation of battery box is
necessary.
NOTE: Equipment damage
Equalization may increase battery voltage to a level that is damaging to sensitive DC loads.
Ensure that all load allowable input voltages are greater than the equalizing charging set
point voltage.
NOTE: Equipment damage
Over-charging and excessive gas precipitation may damage the battery plates and activate
material shedding on them. Too high (or too long) an equalizing charge may cause damage.
Please carefully review the specific requirements of the battery used in the system.
Certain types of batteries benefit from periodic equalizing charge, which can stir the electrolyte,
balance battery voltage and complete a chemical reaction. Equalizing charge increases the
battery voltage, higher than the standard complement voltage, which gasifies the battery
electrolyte. If the battery is being over discharged, the solar controller will automatically turn
to equalize charging stage, which lasts for 120 minutes. Equalize charge and boost charge
are not carried out constantly in a full charge process to avoid too much gas precipitation or
overheating of battery.
English

11
Operation

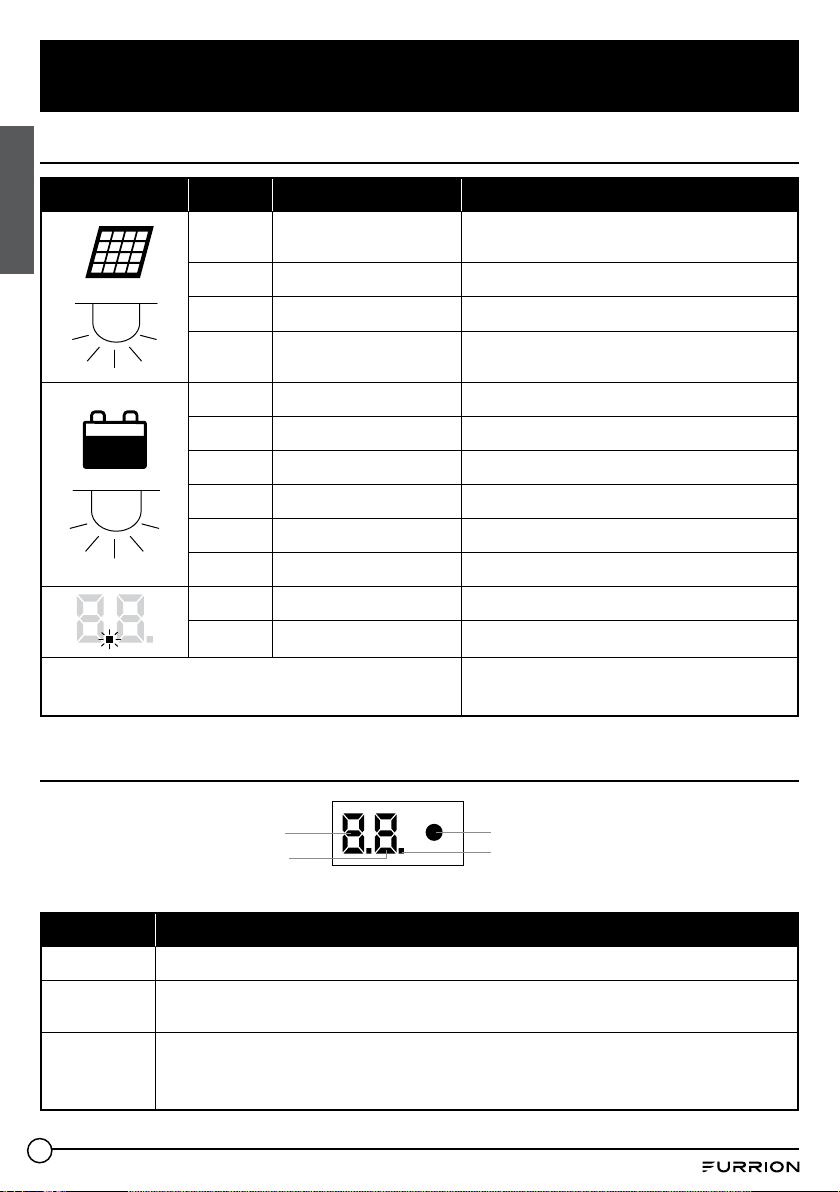

LED Indicators
Indicator Color Status Instruction
Green Solid PV connection normal but low voltage
(irradiance) from PV, no charging
Green Slowly Flashing (1Hz) In charging
Green Fast Flashing (4Hz) PV reverse polarity
Green OFF No PV voltage (night time) or PV
connection problem
Green Solid Normal
Green Slowly Flashing (1Hz) Full
Green Fast Flashing (4Hz) Over voltage
Orange Solid Under voltage
Red Solid Over discharged
Red Fast Flashing (4Hz) Battery Overheating
Red Solid Load ON
Red OFF Load OFF
Charging (green) and battery indicator (orange)
flashing simultaneously Controller overheating
Setting Operation
Button
Radix point
LED1
LED2
Button function - The controller parameters can be set via the button:
Mode Note
Clear error Press the button
Browse
mode
Press the button and hold for 5 seconds until the digital tube turns on. Press
the button to roll the item in circle.
Parameter
set mode
Press the button to roll the item in the browse mode and hold on 5 seconds to
enter edit parameters with the LED2 flashing. Modify the value by pressing the
button. Save the data and return to the menu until the LED2 stops flashing.
English

12
Operation
Digital Tube Display - The reference of LED for parameter and setting value is shown in the table:
LED1 Item LED2 Value
Default Range
1 Battery type 1 1-3
1: Sealed
2: Gel
3: Flooded
2 Low voltage disconnect voltage+5 0-4#10.6V-12.0V Unit value
= 0.1V (x2/24V)
+ Low Voltage Reconnect Voltage = Low Voltage Disconnect Voltage +0.5V/12V (x2/24V).
# Radix point of LED segment display indicates the value added “10”, for example 0. = 10, 4. = 14.
LED Code:
Code Detail
E1 Over discharged If the fault and working state on the left appear, the
corresponding code will be displayed. If several states
occur at the same time, these codes will be displayed
circularly (at 1 second intervals). If only one state
occurs, the code flashes once per second. You can
still enter the setting mode and set parameters even
if an error shows.
E2 Under voltage
The radix point of LED1
lighting up indicates that
load is ON. Oppositely, load
is OFF.
Load state (radix point) will conceal during fault
displaying and parameter setting
NOTE:
Only the Load over load and the Load short circuit can be cleared by pressing the button.
English

13
Protection
PV Short Circuit
If the PV array short circuits, the controller will stop charging, so clear it to resume normal
operation.
PV Reverse Polarity
For full protection against PV reverse polarity, correct the wire connection to resume normal
operation.
Battery Reverse Polarity
For full protection against battery reverse polarity, correct the wire connection to resume
normal operation.
Battery Over Voltage
When the battery voltage reaches the set point of Over Voltage Disconnect Voltage, the
controller will stop charging the battery to protect the battery from being over charged.
Battery Over Discharge
When the battery voltage reaches the set point of Low Voltage Disconnect Voltage, the
controller will stop discharging the battery to protect the battery from being over discharged.
Battery Overheating
The controller detects the environment temperature through the external temperature sensor.
If the environment temperature exceeds 65ºC, the controller will automatically start the
overheating protection until the unit recovers to a temperature of below 50ºC.
Controller Overheating
If the internal temperature of the controller exceeds 85ºC, the controller will automatically
start the overheating protection, and recover below 75ºC.
High Voltage Transients
The controller is protected against small high voltage transients. In lightning prone areas,
additional external suppression is recommended.
English

14
Troubleshooting
Faults Possible reasons Troubleshooting
LED Charging indicator turns
off during daytime when
sunshine falls on PV modules
properly
PV array disconnection Confirm that PV and battery wire
connections are correct and tight
No LED indicator Battery voltage may be
less than 8V
Measure battery voltage with the
multi-meter. Min.8V will start up
the controller
Battery LED indicator is
flashing green quickly
Battery voltage higher
than over voltage
disconnect voltage
(OVD)
Check if battery voltage is higher
than OVD, and disconnect the PV
Battery LED indicator red and
display “E1” Battery over discharged
When the battery voltage is
restored to or above LVR point (low
voltage reconnect voltage), the load
will recover
Battery LED indicator
flashing red Battery Overheating
The controller will automatically
turn the system off. Once the
temperature declines below 50˚C,
the controller will resume
Charging (green) and battery
indicator (orange) flashing
simultaneously
Controller overheating
Please try to lower the
environment’s temperature, the
power of PV or the power of the load
Notes: No LED indicator.
Measure battery voltage with multimeter.
Min.6V will start up the controller.
Notes: No charging status LED indicator with normal connection.
Measure the input voltage of solar module, the input voltage must be
higher than the battery voltage!
English

15
Specifications
42½”
Solar charger
Diode Protected Junction Box
Specifications
95W Poly Crystalline Solar Suitcase
26⁄"
Model No. FSPP95SA-BL Short circuit Current 5.48A
Construction Poly Crystalline Tolerance ±5%
Peak Power 95W Max system Voltage 1000V
Net Weight 11KG Frame Aluminium
Dimensions (Closed) 21.26”x26.54”x2.76” Cable length 25ft
Dimensions (Open) 42.52”x26.54”x1.38” Operating temp. -10˚ to +85˚C
Max power Voltage 18V Std. test conditions AM1.5 100W/m2 25˚C
Max power Current 5.28A Manufactured in China
Open circuit Voltage 21.60W Certification CE
Regulator PWM Max Current 10A
English

16
English
Warranty
FURRION WARRANTS FOR A PERIOD OF 1 YEAR FROM DATE OF RETAIL PURCHASE BY THE
ORIGINAL END-USE PURCHASER, THAT THIS PRODUCT, WHEN DELIVERED TO YOU IN NEW
CONDITION, IN ORIGINAL PACKAGING, FROM A FURRION AUTHORIZED RESELLER AND USED
IN NORMAL CONDITIONS, IS FREE FROM ANY DEFECTS IN MANUFACTURING, MATERIALS,
AND WORKMANSHIP. IN CASE OF SUCH DEFECT, FURRION SHALL REPLACE OR REPAIR THE
PRODUCT AT NO CHARGE TO YOU. THIS WARRANTY DOES NOT COVER: PRODUCTS WHERE
THE ORIGINAL SERIAL NUMBERS HAVE BEEN REMOVED, ALTERED OR CANNOT READILY
BE DETERMINED; DAMAGE OR LOSS CAUSED BY ACCIDENT, MISUSE, ABUSE, NEGLECT,
PRODUCT MODIFICATION, FAILURE TO FOLLOW INSTRUCTIONS IN INSTRUCTION MANUAL,
COMMERCIAL OR INDUSTRIAL USE; DAMAGE OR LOSS CAUSED TO THE DECORATIVE
SURFACE OF PRODUCT; TO ANY DATA, SOFTWARE OR INFORMATION; AND NORMAL WEAR
AND TEAR. THIS WARRANTY ONLY PROTECTS THE ORIGINAL END-USER (“YOU”) AND
IS NOT TRANSFERABLE; ANY ATTEMPT TO TRANSFER THIS WARRANTY SHALL MAKE IT
IMMEDIATELY VOID. THIS WARRANTY IS ONLY VALID IN THE COUNTRY OF PURCHASE.
THIS WARRANTY AND REMEDIES SET FORTH ABOVE ARE EXCLUSIVE AND IN LIEU OF ALL
OTHER WARRANTIES, REMEDIES AND CONDITIONS, WHETHER ORAL OR WRITTEN, EXPRESS
OR IMPLIED. FURRION SPECIFICALLY DISCLAIMS ANY AND ALL IMPLIED WARRANTIES,
INCLUDING, WITHOUT LIMITATION, WARRANTIES OF MERCHANTABILITY AND FITNESS FOR
A PARTICULAR PURPOSE. IF FURRION CANNOT LAWFULLY DISCLAIM IMPLIED WARRANTIES
UNDER THIS LIMITED WARRANTY, ALL SUCH WARRANTIES, INCLUDING WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE LIMITED IN DURATION
TO THE DURATION OF THIS WARRANTY.
No Furrion reseller, agent, or employee is authorized to make any modification, extension, or
addition to this warranty.

17
English
Warranty
FURRION IS NOT RESPONSIBLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR
CONSEQUENTIAL DAMAGES RESULTING FROM ANY BREACH OF WARRANTY OR CONDITION,
OR UNDER ANY OTHER LEGAL THEORY, INCLUDING BUT NOT LIMITED TO LOST PROFITS,
DOWNTIME, GOODWILL, DAMAGE TO OR REPLACEMENT OF ANY EQUIPMENT OR PROPERTY,
ANY COSTS OF RECOVERING, REPROGRAMMING, OR REPRODUCING ANY PROGRAM OR DATA
STORED IN OR USED WITH FURRION PRODUCTS. FURRION’S TOTAL LIABILITY IS LIMITED
TO THE REPAIR OR REPLACEMENT OF THIS PRODUCT PURSUANT TO THE TERMS OF THIS
WARRANTY.
SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES OR EXCLUSIONS OR LIMITATIONS ON THE DURATION OF IMPLIED
WARRANTIES OR CONDITIONS, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY
TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE
OTHER RIGHTS THAT VARY BY STATE OR (WHERE APPLICABLE IN THE COUNTRIES WHERE
FURRION HAS NON-US/CANADIAN AUTHORIZED DEALERS) COUNTRY. NO ACTION OR CLAIM
TO ENFORCE THIS WARRANTY SHALL BE COMMENCED AFTER THE EXPIRATION OF THE
WARRANTY PERIOD.
Keep your receipt, delivery slip, or other appropriate payment record to establish the warranty
period. Service under this warranty must be obtained by contacting Furrion at warranty@
furrion.com
Product features or specifications as described or illustrated are subject to change without
notice.

18
Bienvenue
Français
Merci et félicitations pour votre achat de la valise solaire Furrion®95W. Avant utiliser votre
nouvel appareil, veuillez lire ces consignes attentivement. Le présent guide d’utilisation
contient des informations permettant l’utilisation, l’installation et l’entretien en toute sécurité
de l’appareil.
Veuillez conserver le présent guide d’utilisation en lieu sûr pour vous y référer ultérieurement,
afin d’assurer votre sécurité et de réduire les risques de blessure. Veuillez aussi remettre le
présent manuel à tout nouveau propriétaire de cet appareil.
Le fabricant décline toute responsabilité en cas de dommages dus au non-respect des
présentes consignes.
Si vous avez des questions sur nos produits, veuillez nous contacter: [email protected]

19
Contenu
Français
Bienvenue..........................................................................................18
Contenu .............................................................................................19
Consignes de sécurité importantes ...................................................20
Présentation du produit.....................................................................21
Instructions d’installation..................................................................24
Notes d’installation générales................................................................................24
Câblage....................................................................................................................24
Configuration du support........................................................................................25
Fonctionnement.................................................................................26
Technologie MID (modulation d’impulsions en durée)...........................................26
Informations relatives à la charge de la batterie ...................................................26
Témoins DEL ...........................................................................................................28
Fonctionnement des réglages ................................................................................28
Protection..........................................................................................30
Dépannage.........................................................................................31
Caractéristiques ................................................................................32
Garantie.............................................................................................33
