Furrion FGR24D3A1A-SS User manual

24" FURRION CHEF COLLECTION RV 3-BURNER GAS RANGE
CUISINIÈRE À GAZ À 3BRÛLEURS 24PO FURRION CHEF
COLLECTION RV
COCINA DE GAS DE 24" FURRION CHEF COLLECTION CON 3
QUEMADORES PARA VEHÍCULOS RECREATIVOS



* Picture shown here is for reference only.
* L’image présentée ici n’est qu’une référence
* La imagen que se muestra es solo como referencia.


English
 
Thank you for purchasing this Furrion® product. Before operating your new appliance, please read these instructions carefully. This
instruction manual contains information for safe use, installation and maintenance of the appliance.
Please keep this instruction manual in a safe place for future reference. This will ensure safe use and reduce the risk of injury. Be sure to
pass on this manual to new owners of this appliance.
The manufacturer does not accept responsibility for any damages due to not observing these instructions.
WARNING: If the information in this manual is not followed exactly, a fire or explosion
may result causing property damage, personal injury or death.
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or
any appliance.
WHAT TO DO IF YOU SMELL GAS:
●Do not try to light any appliances.
●Do not touch any electrical switches.
●Do not use any phone in your recreational vehicle.
●Clear the recreational vehicle of all occupants.
●Turn off the LP container valve or main container.
●Immediately call your gas supplier for instructions.
●If you cannot reach your gas supplier, call the fire department.
Have the gas system checked and leakage source corrected by a qualified installer, service
agency, manufacturer, dealer or the gas supplier.

English


TABLE OF CONTENTS
 
 3
 3
General Safety Warnings..........................................................................................................................................................................................................................3
Cooktop Safety..............................................................................................................................................................................................................................................4
Oven Safety Warnings ...............................................................................................................................................................................................................................5
 5
 6
What’s in the Box...........................................................................................................................................................................................................................................6
Cabinet Cutout Instructions....................................................................................................................................................................................................................6
Oven Installation............................................................................................................................................................................................................................................7
Grate Installation...........................................................................................................................................................................................................................................9
Front Decorative Panel Installation.....................................................................................................................................................................................................9
 
Lighting Instructions....................................................................................................................................................................................................................................10
 
 
How to Keep Your Oven in Shape.......................................................................................................................................................................................................11
Transit Instructions.......................................................................................................................................................................................................................................11
The Burner Flame.........................................................................................................................................................................................................................................11
Oven Rack Guide..........................................................................................................................................................................................................................................12
Diffuser Tray Guide......................................................................................................................................................................................................................................12
Removing the Oven Door.........................................................................................................................................................................................................................12
Replacing the Oven Light.........................................................................................................................................................................................................................13
Replacing the Control Knob LED ........................................................................................................................................................................................................14
Storage ..............................................................................................................................................................................................................................................................14
 
 

English
 
EXPLANATION OF SYMBOLS
This manual has safety information and instructions to help you
eliminate or reduce the risk of accidents and injuries. Always
respect all safety warnings identified with these symbols. A
signal word will identify safety messages and property damage
messages, and will indicate the degree or level of hazard
seriousness.
DANGER
Indicates an imminently hazardous situation which, if not
avoided, will result in death or serious injury.
WARNING
Indicates a potentially hazardous situation which, if not avoided,
could result in death or serious injury.
CAUTION
Indicates a potentially hazardous situation which, if not avoided,
may result in minor or moderate personal injury, or property
damage.
IMPORTANT SAFETY INSTRUCTIONS
Warning and important safety instructions appearing in this guide
are not meant to cover all possible conditions and situations that
may occur. Common sense, caution, and care must be exercised
when installing, maintaining, or operating the appliance.
Always contact the manufacturer about problems or conditions
you do not understand.
Read and follow all instructions before using this appliance to
prevent the potential risk of fire, electric shock, personal injury
or damage to the appliance as a result of improper usage of
the appliance. Use appliance only for its intended purpose as
described in this guide.
If an external electrical source is utilized, the appliance must be
electrically grounded in accordance with state or other codes or,
in the absence of such codes, with the National Electrical Code,
ANSI/NFPA 70. Do not attempt to adjust, repair, service or replace
any part of your appliance unless it is specifically recommended
in this guide. All other servicing should be referred to a qualified
service technician.
General Safety Warnings
WARNING
●Improper installation, adjustment, service or maintenance
can cause injury, property damage or death. Refer to this
manual. For assistance or additional information, consult a
qualified installer, service agency, manufacturer or the gas
supplier.
●Avoid using your appliance or any other appliance if you
smell gas. Do not assume that the smell of gas in your RV
is normal. Any time you detect the odor of gas, it is to be
considered life threatening and corrected immediately.
Extinguish any open flames including cigarettes and
evacuate all persons from the vehicle. Shut off gas supply at
LP gas bottle.
●If the user of this appliance fails to maintain it in the condition
in which it was shipped from the factory or if the appliance is
not used solely for its intended purpose or if appliance is not
maintained in accordance with the instructions in this manual,
then the risk of a fire and/or the production of carbon monoxide
exists, which can cause personal injury, property damage or
loss of life.
WARNING
EXPLOSION OR FIRE
●Shut off all gas appliances and pilot lights when refueling
gasoline tanks, LP tanks or when vehicle is in motion.
●Furrion gas operated cooking appliances are for use with LP
gas only, and for installation in recreation vehicles only (e.g.
travel trailers, motor homes, tent campers, etc.).
WARNING
CARBON MONOXIDE POISONING
●NEVER use this appliance as a space heater to heat or warm
the room. Doing so may result in carbon monoxide poisoning
and overheating of the oven.
●A window or air vent should be open slightly while using any
cooking appliance. Gas flames consume oxygen which must
be replaced to assure proper combustion.
●DO NOT store or use gasoline or other flammable vapors and
liquids in the vicinity of this or any other appliance.
●DO NOT operate the appliance if it is damaged or not working
properly.
●Never attempt to repair the appliance by yourself. Any repairs
to or installation of this appliance must be performed by a
qualified installer, service agency or the gas supplier and in
accordance with the instructions in this manual. Service of your
appliance by a non-approved service person or agency could
result in failure of the integrity of the appliance and could lead
to property damage, serious injury or loss of life.
●Have your dealer show you where the main gas shut-off valve is
located and how to shut it off in an emergency.
●Use your appliance only for its intended use.
●Children should be taught that the appliance is not a toy. They
should not be allowed to play with the controls or any other
parts of the appliance. Do not allow anyone to stand or sit on
top of the appliance. Not only can this damage the appliance,
but personal injuries could result.
●Do not store items of interest to children in cabinets above or
near the appliance. Children climbing on the appliance to reach
items could be seriously injured.
●All control knobs must be turned off when not in use. Fire and/
or burning hazard may occur if a burner is accidentally left on.

English
 

●If any burner should extinguish (after initially lighting or due to
accidental blow-out), turn all burner knobs off and wait five (5)
minutes before attempting to relight the burner.
●DO NOT store flammable materials on, in, or near the appliance.
Any fumes can create an explosion and/or fire hazard.
●Do not wear loose fitting clothing or long-hanging sleeved
clothing while using the appliance. If they contact the open
flame of the burner, they could ignite and cause severe burns.
●Use only dry potholders to remove hot utensils. Using damp
potholders on hot surfaces could result in burns to hands. Do
not use a towel or bulky cloth for a pot holder. The cloth could
contact open flame and catch fire.
●Never heat an unopened container. Pressure build-up within the
container can cause it to explode.
●Do not use water on grease fires. Never pick-up a flaming pan.
Smother a flaming pan with a lid or flat pan. Flaming grease
outside the pan can be extinguished with baking soda or a
multipurpose dry chemical fire extinguisher.
●

●Ensure the manual valve is installed in an accessible location
in the gas piping external to the appliance for the purpose of
turning on or shutting off gas to the appliance.
●Ensure that any opening in the wall behind the appliance and
on the floor under the appliance shall be sealed.
●The appliance and its individual shutoff valve must be
disconnected from the gas supply piping system during any
pressure testing of that system at test pressures in excess of ½
psi (3.5 kPa).
●The appliance must be isolated from the gas supply piping
system by closing its individual manual shutoff valve during
any pressure testing of the gas supply piping system at test
pressures equal to or less than ½ psi (3.5 kPa).
Cooktop Safety
●If the cooktop is near a window, proper precautions should be
taken to prevent curtains from blowing over burners creating a
fire hazard.
●Keep the area around the cooktop clean and clear of any
combustible materials, gasoline or other flammable vapors and
liquids. Not doing so can cause an explosion and/or fire.
●Do not leave children alone or unsupervised in area where
cooktop is being used. The top burners, burner grates and
other areas near the burners become hot enough to cause
severe burns.
●Do not wear loose fitting clothing or long-hanging sleeved
clothing while using the appliance. If they contact the open
flame of the burner, they could ignite and cause severe burns.
●Use only dry potholders to remove hot utensils. Using damp
potholders on hot surfaces could result in burns to hands. Do
not use a towel or bulky cloth for a pot holder. The cloth could
contact open flame and catch fire.
●Never heat an unopened container. Pressure build-up within the
container can cause it to explode.
●Keep the appliance clean. The build-up of grease and food boil-
over and/or spillage can create a fire hazard.
●Turn pan handles inward or toward back of cooktop and out
of the way of people walking past cooktop and/or out of the
reach of children. Do not turn handles to where they are over
the burners.
●Do not use water on grease fires. Never pick-up a flaming pan.
Smother a flaming pan with a lid or flat pan. Flaming grease
outside the pan can be extinguished with baking soda or a
multipurpose dry chemical fire extinguisher.
●Never leave top burner(s) unattended.
For such reasons as down drafts that could be created
by opening and closing of cabinet doors or doors within
the RV or by positive or negative air pressures affecting
burners due to improper installation. (See Installation
section) The burner could extinguish resulting in gas
escaping into the RV. Remember, gas flow to each burner
is controlled manually, you must turn gas flow “ON” and
“OFF”.
A boil over could occur and the spill could ignite.

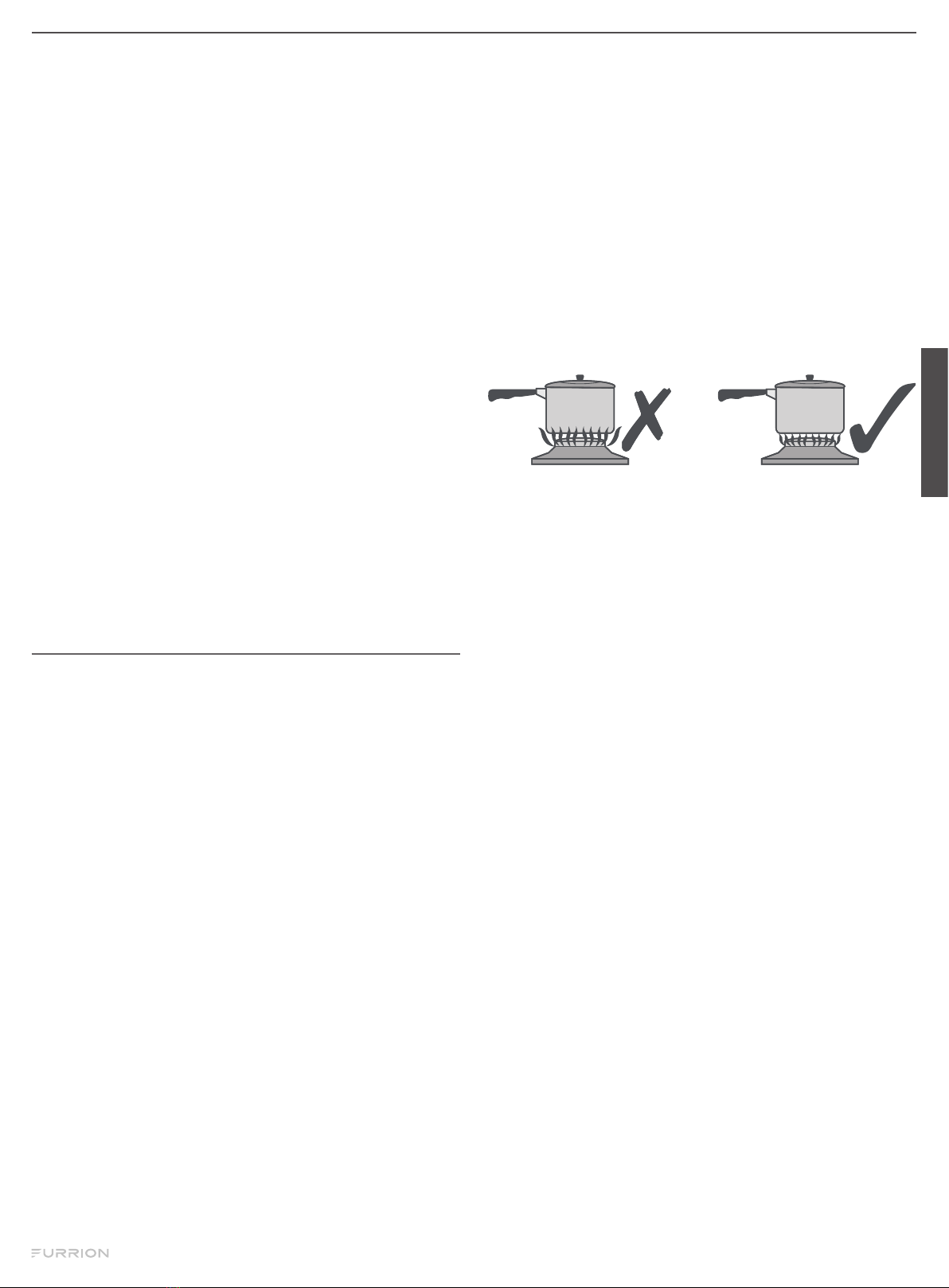

●Flame size
Never extend the flame beyond the outer edge of the
utensil. A higher flame simply wastes heat and energy.
Correct flame size is determined by utensil size and
material, what you are cooking and whether or not you
are cooking with liquid.
●To prevent damage to the cooktop, top burners, or top grate,
never operate a top burner without a pan in place. The top
burners, especially the high input burner, should not be
operated on high for an extended period of time. The high
setting should be used only to start the food cooking or to
bring liquids to a boil, then reduce the flame to a lower setting
to continue cooking. Use the low flame setting to keep food
warm. Remember, a gas range heats quicker than an electric
range, therefore, experiment with various settings until you feel
comfortable cooking with gas.
●Never use cookware which extends beyond one inch of the
grate (maximum pan size 12" diameter). Never place cooking
utensil on grate to where it rests over two operating top burners.
This will cause excessive heat buildup, which could result in
damage in damage to the grate, top burner(s) and cooktop.
●Verify sufficient gas supply before attempting to light any top
burner. Air in the gas supply line will significantly delay burner
ignition, and a burner may light unexpectedly as the air in the
line clears out and is replaced by LP gas, this unexpected
ignition may burn you. Air may be introduced into the supply
line when the vehicle gas bottle is replaced, during servicing of
other gas appliances, etc.
●DO NOT touch top burners, burner grates, or other areas near
top burners during and after use. Do not let clothing or other
flammable materials to contact top burners or areas near top
burners until they have had sufficient time to cool.
●Make sure the utensils you use are large enough to contain
food and avoid boil overs and spillovers. Heavy splattering or
spillovers left on the cooktop can ignite and burn you.
●Be sure that glass cooking utensils are safe for use on the
cooktop. Only certain kinds of glass utensils are suitable for
surface or top burner use without breaking due to the sudden
changes in temperature.
●Grease is flammable. Never allow grease to collect around top
burners or on cooktop surface. Wipe spillovers immediately.
●Use care when lighting a top burner by hand. If the burner lights
unexpectedly, or your hand is close to the burner, you may be
burned.
●DO NOT drop pans on the porcelain surface. Cracks or chips in

English
 
PRODUCT OVERVIEW
5
8
9
11
12
10
7
6
3
2
1
4
Item Description
1Rear Decorative Panel
2Ventilator Panel
3Burner Grates
4Light for Cooktop Control Knob
5Cooktop Control Knob (Left, Middle and Right)
6Oven Control Knob
7Light for Oven
8Adjustable Oven Rack - Flat
9Adjustable Oven Rack - U Shape
10 Diffuser Tray
11 Oven Door
12 Bottom Decorative Panel
the porcelain surface may result.
●DO NOT leave an empty utensil, or one which has boiled dry, on
a hot top burner. The utensil could overheat and damage the
utensil or the cooking appliance.
Oven Safety Warnings
●DO NOT TOUCH HEATING ELEMENTS OR INTERIOR
SURFACES OF OVEN – Heating elements may be hot even
though they are dark in color. Interior surfaces of an oven
become hot enough to cause burns. During and after use, do
not touch, or let clothing or other flammable materials contact
heating elements or interior surfaces of oven until they have
had sufficient time to cool. Other surfaces of the appliance
may become hot enough to cause burns – among these
surfaces are (identification of surfaces – for example, oven vent
openings and surfaces near these openings, oven doors, and
windows of oven doors).
●DO NOT touch the outer surface of the oven door or the oven
vent while the oven is in use. These areas may become hot
enough to cause burns. During and after use, do not let clothing
or other flammable materials contact these areas until they
have had sufficient time to cool.
●DO NOT cover the ventilation holes in the Flame Spreader
Rack (shelf above oven burner). The air circulation inside
the oven will be interrupted and cooking times will vary from
normal, food may be burned or undercooked.
●DO NOT use oven as a storage area.
●If oven pilot should extinguish after initial lighting or due to
accidental blowout, turn oven knob off and wait five (5) minutes
before again attempting to relight the oven.
●


●Use care when opening the oven door, let hot air or steam
escape before removing or replacing food.
●NEVER cover any slots, holes or passages in the oven bottom
or cover an entire rack with materials such as aluminum foil.
Doing so blocks airflow through the oven the may cause
carbon monoxide poisoning. Aluminum foil linings may also trap
heat, causing a fire hazard.
Oven Vent

English
 

INSTALLATION
WARNING
FIRE, EXPLOSION, BURN INJURY CARBON MONOXIDE
POISONING
●The cooking appliance must be completely separated
and/or sealed from other air moving or air consuming
devices such as, but not limited to furnaces, microwave
ovens clothes dryers, cooling fans and doors or drawers in
common cabinets. Failure to do so will affect the appliance(s)
combustion air supply by creating either a negative or
positive draft.
●NEGATIVE DRAFT caused by air moving appliances may
draw the top burner flame down into or toward the cooktop
resulting in cooktop damage, burn hazard, explosion
possibility and/or carbon monoxide build up.
●POSITIVE DRAFT may blow out the top burner flame during
use resulting in an explosion and/or fire hazard and/or injury
to the occupants of the vehicle.
●DO NOT operate the appliance in excessive windy conditions
as this may cause a negative or positive draft.
WARNING
Installation of this appliance must be made in accordance
with the written instructions provided in this manual. No agent,
representative or employee of Furrion or other persons has
the authority to change, modify or waive any provision of the
instructions contained in this manual.
NOTE: Ensure the countertop, surrounding materials and bonding
agents have a temperature rating of no less than 203°F (95°C).
The installation must conform with local codes or in the absence
of such codes, refer to the latest edition of:
In the U.S.A.:
a. Standard for Recreational Vehicles NFPA 1192.
b. National Fuel Gas Code ANSI Z223.1/NFPA 54.
In Canada, the installation must conform with:
a. Standard CAN/CSA Z-240.4.2-08, Installation Requirements
for Propane Appliances and Equipment in Recreational
Vehicles.
b. Any applicable local codes and regulations.
What’s in the Box
Make sure you have all the following items included in the
packaging. If any item is damaged or missing, contact your dealer.
●24" Furrion Chef Collection RV 3-Burner Gas Range x 1
●Cooktop Grate x 2
●Adjustable Oven Rack - Flat x 1
●Adjustable Oven Rack - U Shape x 1
●Diffuser Tray x 1
●Rear Decorative Panel x 1
●Ventilator Panel x 1
●Bottom Decorative Panel x 1
●User Manual x 1
●Warranty Manual x 1
Cabinet Cutout Instructions
For proper operation of your cooking appliance, the cabinets must
be properly constructed and squared with respect to the counter
top and the cabinet face.
For proper operation of these units, the cabinet must be level and
the bottom of the range must be supported.
NOTE: When planning the location, consider curtains or other
combustible materials installed around the appliance so as not
to create a fire hazard. The cabinet cutout must be located with
respect to the minimum clearance to combustible materials.
(Fig. 1)
K
C
E
I
Fig. 1
Add 2 wooden pieces after cutout
NOTE: The wood piece shall be
installed flush with the countertop
4" (102mm)
(Recommended dimension)
Hole X
Hole Y
A B C D E F G

(597-600mm)

(619mm)

(559~597mm)

(485mm)
C-D 
(25.4mm)

(50.8mm)
H I J K Hole X Hole Y

110mm


(278mm)

(180mm)

(25.4mm)

For Gas Pipe
Cutout

For Electrical
Cord Cutout
The recommended minimum distance between the floor and the
bottom of the cutout opening is 4" (101mm).

English
 
15" (381mm)
18"
(457mm)
Fig. 2
30" (762mm)
From bottom of
overhead cabinet
to cooking surface
(top of grates)
The minimum horizontal distance(s) from sides and back of
appliance to adjacent vertical combustible walls extending above
the top panel: (Fig. 2)
Item Dimension
A
B
NOTE: These distances shall be from the burner center of the
appliance.
Oven Installation
NOTE: When the cabinet has been prepared according to the
dimensions given above (Fig. 1 and Fig. 2) and the gas line is in
place.
Remove the oven from its packaging and slide it ¾ of the way into
the cabinet opening. (Fig. 3)
¾ of cabinet opening
Fig. 3
Gas Connection
WARNING
Gas supply pipe must be installed with clearance from knives
contacting or cutting gas lines.
nection
to the gas oven in the upper left rear corner of the cabinet as
shown below. Tighten the gas line joint to the gas oven using a
wrench.
Gas Pipe Cutout
IMPORTANT: Leave adequate space around the gas supply pipe
in case of bend or damage during installation. Make sure the gas
supply pipe cannot contact any moving parts after installed. Be
sure all openings in the cabinet around the gas line are sealed at
time of installation.

When installation is completed, check the pipe fittings for leaks
using a gas leak detection solution. Never use a flame.
NOTE: Let the hose unfold and extend naturally. Do not fold the
hose, do not put the hose against the back panel or vent channel
of the appliance. (Fig, 4)
Fig. 4
Gas Pipe Cutout
Gas Pipe Cutout
Leak Check
Leak testing of the appliance shall be conducted according to the
following instructions.
WARNING
FIRE OR EXPLOSION
●Extinguish all open flames.
●NEVER leak test when smoking. Never use a flame.
●Do not use the appliance until connection has been leak
tested and does not leak.
●Pressure/Leak test using 11-13.8 WC pressure.
WARNING
●Gas leaks may occur in your system and result in a
dangerous situation. Always perform a leak test for possible
leaks according to the manufacturer’s instructions after
installation and before any operation.
●Gas leaks may not be detected by smell alone. Gas suppliers
recommend you purchase and install a UL approved gas detector.

English
 

WARNING
●DO NOT use matches, candles or other sources of ignition
when checking for gas leaks.
●Do not smoke while leak testing.
●Never leak test with an open flame.
Please follow below steps to make leak test for the appliance:
1. Extinguish all open flames.
2. Turn the gas supply valve and control knobs off.
3. Prepare soap solution mixing of equal parts mild detergent or
liquid soap and water.
4. Spray the soap solution on all gas connections and gas pipes
of the appliance.
5. Turn the gas supply valve on and inspect all gas connections
for bubbles:
If no bubbles appeared, there is no gas leak in the
appliance
If bubbles appeared, where there are bubbles, where there
is a leak point.
6. If a gas leak is detected, tighten the connection and repeat the
above steps. If the leak is on the gas supply line connection,
replace the gas supply line and repeat above steps.
NOTE: It is also recommended that you perform a leak test at
least once a year whether the propane gas supply cylinder has
been disconnected or not.
Pressure Check
1. Extinguish all open flames.
2. Turn the gas supply valve and control knobs off.
3. Remove the rear vent decoration panel if the rear vent
decoration panel has been installed.
(NOTE: See Rear Decorative Panel installation section for
screw locations.)
4. Remove the Screw with the sealing gasket from the pressure
test port on the range. (Fig. 5)
Fig. 5
5. Using the rubber tube from the pressure check measuring
device, slide the rubber tube down over the gas pressure test
port. The rubber tube should seal around the pressure test
port on the range.
6. Turn on the LP gas to the appliance.
7. The pressure gauge tester should measure between 10” WC
to 13.8” WC. (Fig. 6)
Fig. 6
8. Write down the pressure reading on the gauge and wait 5 min.
Recheck to see if the reading on the gauge has decreased.
If the gauge reading has decreased, there is a potential leak.
Please check the various gas connections using the bubble
test. If the leak can not be found, please consult with a service
professional and ensure the gas flow to the appliance is off.
9. Turn off the LP gas to the appliance.
10. Remove the rubber tube of the pressure check measuring
device.
11. Replace the screw with the gasket from step 2. Before
replacing the screw, inspect the rubber gasket seal for any
signs of damage. Replace seal if damaged.
12. Tighten the screw to 1.3 Nm to 1.7 Nm.
NOTE: Ensure the product is gas leak checked after the pressure
check test is completed by also testing the pressure check port
screw. If any leaks are detected around the pressure check port
screw and gasket, a new one can be purchased. Call Furrion
support for a replacement.
Electrical Connection
WARNING
PRODUCT DAMAGE HAZARD
●Connect to 12V DC service only.
●Connect only to protected circuit fused for not more than 15
Amps.
●DO NOT hi-pot range unless electronic ignition system has
been disconnected.
●The power supply of this oven is 12V. Connect the components
below separately. (See Wiring Diagram)
NOTE: Ensure to connect the wires with the correct polarity.
Red is “+” and Black is “-”.
●12V power for: Igniter, Oven Light, Cooling fan, Electronic
Timer & Display, 140oF (60oC) Thermostat Control.
Feed the cable through the electrical cord cutout on the
upper rear-right corner of the cabinet, use a 15A fuse at
the power source for protection.
The nameplate is located on the cavity frame (near the
door) of the oven, refer to the label for the technical
specifications.
Nameplate Positon

Switch 6
Switch 5
Switch 4
Switch 3
Switch 2
Switch 1
DV12V+
DV12V-
Lighter
Ignition needle 1
Ignition needle 2
Ignition needle 3
Ignition needle 4
LED 1
Lamp
LED 2 LED 3 LED 4

English
 
Oven Installation Continued
13. After attaching the gas line and the electrical connection,
finish sliding the range into the cabinet opening.
14. Verify the oven is level from side to side and front to rear.
15. Open the oven door and securely fasten the oven in place with
four screws (not provided). (Fig. 7)
16. Securely fasten the rear of oven to the pre-installed wood piece
(Fig. 1) in place with two screws (not provided). (Fig. 7)
Wooden Pieces
Wooden Pieces
Fig. 7
Rear Decorative Panel Installation
Align the arrows from the rear decoration panel with the arrows
on the rear mounting tabs on the back of the range and push up
against the wall behind the range. Use 2 screws (not provided) and
attach to the pre-installed wood piece from Fig. 1.
NOTE: Before fastening the screws, align the two arrows, one is on
the rear range tab, one is on the decorative panel tab. (Fig. 8)
Fig. 8

Ventilation Installation
1. Loosen the 4 screws on the rear of the cooktop and leave a
gap of 3 to 4 mm. (Fig. 9)
3~4mm
Fig. 9
2. Align the 2 plastic guides located on the each side of the vent
cover and insert them into the groove of the rear decorative
panel. (Fig. 10)
3. Place the vent panel onto the rear decorative panel with
the VENT LOUVERS towards the front. Slide the vent panel
along the groove towards the wall until it is directly behind the
cooktop. (Fig. 10)
4. The mounting slots will slide under the 4 screw heads when
the vent panel is correctly positioned. Then tighten the four
screws to secure the vent panel to the cooktop. (Fig. 10)
2
side plastic pillar
1
3
Fig. 10
Aligned
Plastic Guide
VENT LOUVERS
Grate Installation
Align the grate pins with the holes in the cooktop. (Fig. 11)
NOTE: Ensure to insert each burner grate pin into the right hole.
After the installation ensure the burner grates surface is flat and
stable and the burner is aligned with the grate's opening correctly.
Fig. 11
Grate Pin
Front Decorative Panel Installation
1. Align the rubber plug into the bottom of the range to fix the
front decorative panel. (Fig. 12)
2. Secure the front panel and use 2 screws (not provided) on the
front of the range. (Fig. 12)
1
2
Fig. 12
Rubber Plug

English
 

OPERATION
WARNING
Keep your arms and face away from being directly above the
cooking area when operating the appliance.
1 2 3 4 5 6
Item Icon Description
1Light for Oven
2Oven Control Knob
3Left Cooktop Control Knob
4Middle Cooktop Control Knob
5Right Cooktop Control Knob
6Light for Cooktop Control Knob
Lighting Instructions
NOTE: This range is equipped with a flame detection device on
each cooktop burner and the oven burner. During the lighting
process, ensure that the knob is held in for 5-10 seconds to heat up
the thermocouple. If not held in long enough, the flame detection
device will stop gas flow to the burner.
Operating the Cooktop Burners
1. Before lighting, reset gas control knobs
to the OFF position.
2. Check that the main inlet gas valve is OPEN.
3. Push and turn the gas control knob
counterclockwise to position
until burner lights. (You will hear a
clicking sound when the knob is pushed in.)
4. If ignition does not occur in 5 seconds, turn gas control knob
off, wait 5 minutes and repeat the lighting procedure.
5. Once the burner flame is lit, continue to hold the cooktop
control knob in for 5-10 seconds, then release knob and verify
the cooktop burner stays lit. Repeat the above steps if the
cooktop burner flame goes out after releasing the control
knob.
6. After the cooktop burner flame is ignited and the control knob
is released, then turn the control knob counter-clockwise to
the desired burner flame setting.
7. Verify visually that the cooktop burner has ignited once the
control knob has been set to the desired setting. The burner
flame should ignite within a few seconds.
8. To turn off the cooktop burner, rotate the cooktop knob
clockwise to the off position.
Operating the Oven
1. Before lighting, reset gas control knobs
to the OFF position.
2. Check that the main inlet gas valve is OPEN.
3. Keep the oven door in the open
position for the full ignition process to
view the pilot and that the oven burner has lit.
4. Push and turn the gas control knob counterclockwise to the
position until pilot lights. (You will hear a clicking sound when
the knob is pushed in.)
5. If ignition does not occur in 5 seconds, turn gas control knob
off, wait 5 minutes and repeat the lighting procedure.
6. Once the pilot flame is lit, continue to hold the oven control
knob in for 5-10 seconds, then release the knob and verify the
pilot flame stays lit. Repeat the above steps if the pilot flame
goes out after releasing the knob. (Keep the oven door open
for this process)
7. After the pilot flame is ignited and the control knob is released,
then turn the control knob counter-clockwise to the required
temperature setting.
8. Verify visually that the oven burner has ignited once the
control knob has been set to the desired temperate. The
burner flame should ignite within a few seconds.
9. After verifying the burner has ignited, please close the oven
door to continue the preheat process.
10. To turn off the oven burner, rotate the oven control knob
clockwise to the off position. Ensure the burner flame and the
pilot flame have extinguished.
If the burner does not ignite
In the event of failure to light the burner within 5 seconds,
immediately turn the control knob clockwise to the OFF position.
Wait at least 5 minutes and repeat the igniting procedure. If ignition
still not occur, use a gas lighter or a match to light the burner. Refer
to the ‘Manual Ignition’ section.
Manual Ignition
WARNING
Use care when lighting the burners by hand. If a burner lights unexpectedly,
or your hand is to close to the burner, you could be burned.
In the event of failure to ignite the burner in standard ignition, you may
light the burner manually by following the steps below:
1. Push in and turn the appropriate burner
control knob counterclockwise to the position.
2. Immediately strike and place a burning long wooden
match or a gas lighter near the burner of cooktop
(
1
) or pilot of oven (
2
aand
2
b) to light.
2a
1
2b
Remove the
diffuser tray
3. Once the burner flame or pilot frame is lit, continue to hold the control
knob in for 5-10 seconds, then release knob and verify the frame
stays lit. Repeat the above steps if the flame goes out after releasing
the control knob.
4. Repeat steps 1 to 3 to light the other burner(s) as required.
5. Rotate the burner control knob to adjust the flame to desired level.

English
 
If the Flame Goes Out
WARNING
RISK OF FIRE
If the flame goes out accidentally, gas will escape. Never leave
the gas burner unattended during operation. Ensure that there
are no drafts that can affect the burner flame.
This product is equipped with flame sense and the gas flow
should shut off. Always be cautious and check for gas leaking
before lighting the burners.
Immediately turn the control knob to OFF position. Wait at least 5
minutes and light the burner again.
Transit Instructions
1. Ensure the cooktop and oven control knobs are in the OFF
position.
2. Ensure the main gas supply is turned off at the LP tanks.
The Burner Flame
Flames should appear similar to the good flame shown in right
diagram.
Good Bad Blue
Blue
Yellow
Yellow
Holes in Burner
A good flame should be blue with a yellow tip.
Some yellow tips on flames up to 1 inch in length are acceptable
as long as no carbon or soot deposits appear.
If flames are excessively yellow and irregular, the oil residue may
not be completely burned off, or the venturi may be clogged or
may not be properly positioned over the orifices.
COOKING ADVICE
The oven offers a wide range of alternatives which allow you to
cook any type of food in the best possible way. With time, you will
learn to make the best use of this versatile cooking appliance. WARNING
Food Poisoning Hazard
Do not let food sit in oven more than one hour before or after
cooking. Doing so can result in food poisoning sickness.
CLEANING AND MAINTENANCE
●Make sure all the control knobs are off and the appliance is cool
before cleaning.
●Make sure all the appliance surfaces, burner grates and burners
are cool before cleaning or disassembling.
●DO NOT use bleach or rust removers on the cooktop or burner
grates.
●DO NOT obstruct the flow of combustion and ventilation air.
●Keep the appliance area clear of combustible materials,
gasoline and other flammable vapors and liquids.
●Never use a wire brush or metallic item for cleaning burner
ports or orifices. Brush may “shed” bristles that may lodge in the
orifice or burner ports and cause a fire or explosion.
●Clean all surfaces as soon as possible after boilovers or
spillovers.
●Use warm soapy water only to clean the burner grates,
cooktops, painted surfaces, porcelain surfaces, stainless steel
surfaces and plastic items on your range or cooktop. Do not use
grit or acid-type cleaners. Do not use cleaners with ammonia,
Cleaners of these types are corrosive and could damage
component parts in the range.
●DO NOT use steel wool, or abrasive cleaners, or acid type
cleaners such as chlorine bleach on your cooktop or grate
systems. They will damage your range or cooktop. Use only
non-abrasive plastic scrubbing pads.
●DO NOT allow foods containing acids (such as lemons or
tomato juice, or vinegar) to remain on porcelain or painted
surfaces. Acids may remove the glossy finish. Wipe up egg
spills when cooktop is cool.
●DO NOT wash warm porcelain surfaces. Allow these areas to
cool before cleaning. You could burn yourself or the porcelain
could crack.
●Pitting and discoloration will result if spills are allowed to remain
for any length of time on stainless steel.
●DO NOT allow spillovers to remain on the burner caps. The
caps could become permanently stained.
●When cleaning around the burners, use care to prevent damage
to the electrode (if so equipped). If a sponge or cloth should
catch the metal igniter electrode, it could damage or break the
electrode. If this occurs the burner will not light.
How to Keep Your Oven in Shape
Before cleaning your oven, or performing maintenance,
disconnect it from the power supply.
To extend the life of your oven, it must be cleaned frequently. Keep
in mind that:
●Do not use steam equipment to clean the appliance.
●The enameled or stainless steel parts should be washed
with lukewarm water without using any abrasive powders or
corrosive substances which could ruin them; Stainless steel
could get stained. If these stains are difficult to remove, use
special products available on the market. After cleaning, it is
advisable to rinse thoroughly and dry.

English
 

●The inside of the oven should preferably be cleaned after use,
when it is still warm, when it is still warm, with hot water and
soap; the soap should be rinsed away and the interior should be
dried throughly. Avoid using abrasive detergents (for example
cleaning powders, etc…) and abrasive sponges for dishes or
acids (such as limescale-remover, etc…) as these could damage
the enamel. If the grease spots and dirt are particularly tough
to remove, use a special product for oven cleaning by following
the instructions provided on the packet.
●If you use your oven for an extended period of time,
condensation may form. Dry it using a soft cloth.
●There is a rubber seal surrounding the oven opening which
guarantees its perfect functioning. Check the condition of
this seal on a regular basis. If necessary, clean it and avoid
using abrasive products or objects to do so. Should it become
damaged, please contract your nearest After-sales Service
Center. We recommend you avoid using the oven until it has
been repaired.
●Never line the oven bottom with aluminium foil ,as the
consequent accumulation of heat could compromise the
cooking and even damage the enamel.
●Clean the glass door using non-abrasive products or sponges
and dry it with a soft cloth.
Oven Rack Guide
The oven rack features an anti-tip locking system.
●To remove the rack push inside fully, then unclip the rear tabs
from the locking channel by pushing upwards and pulling the
rack forward.
●To insert the oven rack, position the oven rack just above the
rack position desired. The rack should slide towards the back
and will drop down once fully pushed in. To lock the rack into
position, pull the rack forward slightly and then push the rack in
to lock down the front section of the rack. (Fig. 13)
Fig. 13
Rack Position
Rack
Rack
Diffuser Tray Guide
The diffuser tray is removable for cleaning, it is integrated with an
anti tip locking feature.
●To remove the diffuser tray - Pull the diffuser tray outward
until both the rear tab and front tab from the locking system are
aligned to the 2 opening area of the embossed rail. Then unclip
these tabs by pushing upwards and sliding forward.
●To insert the diffuser tray, position it just above the lowest
position. The diffuser tray should slide towards the back and
will drop down once fully pushed in. (Fig. 14)
NOTE: The diffuser tray only can be used and placed in the lowest
position for correct function. Ensure it is flat after assembling it
back after cleaning.
Diuser Tray
Fig. 14
Removing the Oven Door
WARNING
When removing the door:
●Do not place excessive weight on an open oven door or stand
on an open oven door as, in some cases, it could cause the
range to tip over, break or damage the door to the extent that
the range would be unsafe to use, or cause serious injury to the
user.
●When opening the oven door, allow steam and hot air to escape
before reaching in oven to check, add or remove food.
●Make sure oven is cooled down and powered off before
removing the door. Failure to do so could result in electrical
shock or burns.
●The oven door is heavy and fragile. Use both hands to remove
the oven door. The door front is glass. Handle carefully to avoid
breaking.
●Grasp only the left and right sides of the oven door. Do not
grasp the handle as it may swing in your hand and cause
damage or injury.
●Failure to grasp the oven door firmly and properly could result
in personal injury or product damage.
●To avoid injury from the hinge bracket snapping closed, be sure
that both levers are securely in place before removing door
(Fig. 15a). Also, do not force door open or closed - the hinge
could be damaged and injury could result.
1. Be sure to read the above WARNING before attempting to
remove oven door.
2. Open the door to its fully open position. (Fig. 15)
Fig. 15

English
 
3. Rotate the Hinge (one on each side) toward you to buckle the
lever. (Fig. 16)
c
b
b
a
a
Fig. 16
Hinge Lever
4. Close the door until it stops. (Fig. 17)
Fig. 17
5. Holding the door firmly on the left and right sides using both
hands, pull the door straight out of the hinge slots. (Fig. 18 and
Fig. 19)
WARNING
Hold firmly, the door is heavy.
Fig. 18
Fig. 19
6. Place the door on a protected flat place so that the glass door
will not be damaged.
7. Follow the steps below to re-attach to the oven door
(Fig. 20):
Insert the hinge into the top slot as shown in Fig 20
a
.
Open the door to its fully open position as shown
in Fig 20
b
. Ensure the hinge buckle has released from
the lever as shown in Fig 20 c.
c
b
b
a
a
Fig. 20
HingeLever
Replacing the Oven Light
1. Disconnect the oven from the power supply by the electrical
mains or fuse.
2. Ensure the oven has cooled before servicing the oven light.
3. Remove the glass cover of the lamp-holder. (Fig. 21)
Fig. 21
4. Remove the lamp and replace with a lamp resistant to high
temperatures (572oF) with the following characteristics:
- Voltage: 12V
- Wattage: 20W
- Type: G4
- Lamp Type: Halogen
5. Replace the glass cover.
6. Reconnect the power to the oven.
To reorder the Furrion oven light bulb replacement, please call
Furrion service for assistance.

English
 

Replacing the Control Knob LED
1. Disconnect the oven from the power supply by means of the
switch used to connect the appliance to the electrical mains
or fuse. Grasp and pull out the control knob with the broken
LED light. (Fig. 22
a
)
2. Remove the two screws holding the LED light guide using a
phillips screwdriver. (Fig. 22
b
)
3. Remove the LED assembly after disconnecting the wire from
the base of the LED PCB board. (Fig. 22 c)
.
abc
Fig. 22
TROUBLESHOOTING
Before calling for service, review this list. It may save you both time and expense. This list includes common experiences that are not the
result of defective workmanship or material in your appliance.
Problem Possible Causes / Solution
Burners do not light
Ensure gas supply valve is open.
Burner ports or slots are clogged. With the burner off, use a small-gauge wire or needle to clean ports or slots.
During the lighting process of the cooktop burner or the oven pilot flame, ensure you hold the knob in for 5 to 10 seconds to ensure the
thermocouple is heated.
Low gas supply level in cylinder.
Burner flame burns
half way around
Moisture is present on the burner, dry burner thoroughly.
Burner ports or slots are clogged. With the burner off, clean ports with a small-gauge wire or needle to clean ports or slots.
Burner flame is
orange
Dust particles in main line. Allow the burner to operate a few minutes until flame turns blue.
In coastal areas, a slightly orange flame is unavoidable due to salt air.
SPECIFICATIONS
W
Front View
Top View Side View
22⁄-23½"
560-597mm
19⁄"
503mm
H
3⅛"
80mm
24¼"
616mm
25"
635mm
D
4. Plug the wire harness connector into the new LED assembly.
5. Reattach the LED assembly to the console with the 2 screws
removed in step 3. Ensure the wires are not pinched during
this process.
6. Reattach the control knob by aligning the stem of the control
into the opening in the control knob housing and pushing it
back into position.
Storage
Dry all surfaces and burner box, then spray surfaces with cooking
oil substance to preserve the surface from rusting during long
term storage. Wipe off oil coating before reuse.
Specifications
BTU/HR
Left and Right Burner: 7500 BTU
Center Burner: 9000 BTU
Oven: 9500 BTU
Fuel Propane Gas
Inlet Pressure 
Voltage DC 12V
Current Input 2A
Inner Volume of the Oven 2.24 cu. ft.
Overall Dimension (W x H x D) 
This appliance conforms with the directives:
●CAN1-1.16-M79 (R2016)
●Canada, the Natural Gas and Propane Installation Code, CSA
B149.1.

Français
 
Nous vous remercions d’avoir acheté ce produit Furrion®. Avant d’utiliser votre nouvel appareil, veuillez lire attentivement ces instructions. Ce manuel d’instruction
contient des informations pour une utilisation, une installation et un entretien sûrs de l’appareil.
Veuillez conserver ce manuel d’instructions dans un endroit sûr afin de pouvoir vous y référer ultérieurement. Cela permettra de garantir une utilisation sûre et de
réduire les risques de blessures. Veillez à transmettre ce manuel aux nouveaux propriétaires de l'appareil.
Le fabricant n’accepte aucune responsabilité pour tout dommage dû au non-respect de ces instructions.
AVERTISSEMENT: Si les informations contenues dans ce manuel ne sont pas suivies à la lettre, un incendie
ou une explosion peut se produire et entraîner des dommages matériels, des blessures ou la mort.
Ne stockez pas et n’utilisez pas d’essence ou d’autres vapeurs et liquides inammables à proximité de cet
appareil ou de tout autre appareil.
QUE FAIRE SI VOUS SENTEZ UNE ODEUR DE GAZ:
●N’essayez pas d’allumer un appareil.
●Ne touchez pas les interrupteurs électriques.
●N’utilisez pas de téléphone dans votre véhicule de loisirs.
●Faites sortir tous les occupants du véhicule de loisirs.
●Fermez le robinet du réservoir de GPL ou le réservoir principal.
●Appelez immédiatement votre fournisseur de gaz pour obtenir des instructions.
●Si vous ne pouvez pas joindre votre fournisseur de gaz, appelez les pompiers.
Faites vérier le système de gaz et corrigez la source de la fuite par un installateur qualié, une agence de
service, un fabricant, un revendeur ou le fournisseur de gaz.

Français
 

TABLE DES MATIÈRES



Avertissements de sécurité générale................................................................................................................................................................................................17
Sécurité de la table de cuisson.............................................................................................................................................................................................................18
Avertissements de sécurité pour le four..........................................................................................................................................................................................19


Contenu de la boîte......................................................................................................................................................................................................................................20
Instructions de découpe des armoires.............................................................................................................................................................................................20
Installation du four........................................................................................................................................................................................................................................21
Installation de la grille .................................................................................................................................................................................................................................23
Installation du panneau décoratif avant...........................................................................................................................................................................................23

Instructions d’éclairage.............................................................................................................................................................................................................................24


Comment maintenir votre four en bon état....................................................................................................................................................................................25
Instructions pour le transport.................................................................................................................................................................................................................25
La flamme du brûleur..................................................................................................................................................................................................................................25
Guide des grilles du four...........................................................................................................................................................................................................................26
Guide du plateau de diffusion................................................................................................................................................................................................................26
Retrait de la porte du four.........................................................................................................................................................................................................................26
Remplacement de la lampe du four ...................................................................................................................................................................................................27
Remplacement du voyant du bouton de commande...............................................................................................................................................................28
Stockage ..........................................................................................................................................................................................................................................................28



Français
 
EXPLICATION DES SYMBOLES
Ce manuel contient des informations et des instructions de sécurité pour vous
aider à éliminer ou à réduire les risques d’accidents et de blessures. Respectez


relatifs aux dommages matériels, et indiquera le degré ou le niveau de gravité
du danger.
DANGER
Indique une situation dangereuse imminente qui, si elle n’est pas évitée,
entraînera la mort ou des blessures graves.
AVERTISSEMENT
Indique une situation potentiellement dangereuse qui, si elle n’est pas évitée,
peut entraîner la mort ou des blessures graves.
MISE EN GARDE
Indique une situation potentiellement dangereuse qui, si elle n’est pas évitée,
peut entraîner des blessures mineures ou modérées, ou des dommages
matériels.
INSTRUCTIONS DE SÉCURITÉ IMPORTANTES

ce guide ne sont pas destinés à couvrir toutes les conditions et situations
possibles. Il faut faire preuve de bon sens, de prudence et d’attention lors de
l’installation, de l’entretien ou de l’utilisation de l’appareil.
Contactez toujours le fabricant en cas de problème ou de situation que vous
ne comprenez pas.

tout risque d’incendie, de décharge électrique, de blessure ou de dommage à
l’appareil résultant d’une utilisation incorrecte de celui-ci. N’utilisez l’appareil que
pour l’usage auquel il est destiné, tel que décrit dans ce guide.
Si une source électrique externe est utilisée, l’appareil doit être mis à la terre
conformément aux codes nationaux ou autres ou, en l’absence de tels codes,
au National Electrical Code, ANSI/NFPA 70. N’essayez pas d’ajuster, de
réparer, d’entretenir ou de remplacer une pièce de votre appareil, sauf si cela


Avertissements de sécurité générale
AVERTISSEMENT
●Une installation, un réglage, un service ou une maintenance incorrects
peuvent entraîner des blessures, des dommages matériels ou la mort.
Reportez-vous à ce manuel. Pour obtenir de l’aide ou des informations

service, le fabricant ou le fournisseur de gaz.
●Évitez d’utiliser votre appareil ou tout autre appareil si vous sentez une
odeur de gaz. Ne supposez pas que l’odeur de gaz dans votre VR est
normale. Chaque fois que vous détectez une odeur de gaz, il faut la
considérer comme un danger de mort et y remédier immédiatement.

les personnes du véhicule. Coupez l’alimentation en gaz à la bouteille de
GPL.
●Si l’utilisateur de cet appareil ne le maintient pas dans l’état dans lequel
il a été expédié de l’usine ou si l’appareil n’est pas utilisé uniquement
pour l’usage auquel il est destiné ou si l’appareil n’est pas entretenu
conformément aux instructions de ce manuel, il existe un risque d’incendie
et/ou de production de monoxyde de carbone, qui peut causer des
blessures corporelles, des dommages matériels ou des pertes de vie.
AVERTISSEMENT
EXPLOSION OU INCENDIE
●Fermez tous les appareils à gaz et les lampes témoins lorsque vous faites
le plein d’essence ou de GPL ou lorsque le véhicule est en mouvement.
●Les appareils de cuisson au gaz Furrion ne doivent être utilisés qu’avec

véhicules de loisirs (caravanes, camping-cars, tentes de camping, etc.).
AVERTISSEMENT
EMPOISONNEMENT AU MONOXYDE DE CARBONE
●


●Une fenêtre ou un conduit d’aération doit être légèrement ouvert lorsque

de l’oxygène qui doit être remplacé pour assurer une bonne combustion.
●NE PAS stocker ni utiliser d’essence ou d’autres vapeurs ou liquides

●NE PAS faire fonctionner l’appareil s’il est endommagé ou s’il ne fonctionne
pas correctement.
●N’essayez jamais de réparer l’appareil par vous-même. Toute réparation

une agence de service ou le fournisseur de gaz et conformément aux
instructions de ce manuel. L’entretien de votre appareil par une personne
ou une agence non agréée peut entraîner une défaillance de l’intégrité de
l’appareil et des dommages matériels, des blessures graves ou la mort.
●Demandez à votre revendeur de vous montrer où se trouve le robinet
d’arrêt de gaz principal et comment le fermer en cas d’urgence.
●N’utilisez votre appareil que pour l’usage auquel il est destiné.
●Les enfants doivent apprendre que l’appareil n’est pas un jouet. Ils ne
doivent pas être autorisés à jouer avec les commandes ou toute autre
partie de l’appareil. Ne laissez personne s’asseoir ou se tenir debout sur
l’appareil. Cela pourrait non seulement endommager l’appareil, mais aussi
entraîner des blessures.
●Ne stockez pas d’objets susceptibles d’intéresser les enfants dans les armoires
situées au-dessus ou à proximité de l’appareil. Les enfants qui grimpent sur
l’appareil pour atteindre des objets pourraient être gravement blessés.
●Tous les boutons de commande doivent être éteints lorsqu’ils ne sont pas
utilisés. Un risque d’incendie et/ou de brûlure peut se produire si un brûleur
reste accidentellement allumé.
●Si un brûleur s’éteint (après l’allumage initial ou à cause d’une explosion
accidentelle), éteignez tous les boutons de commande et attendez cinq (5)
minutes avant d’essayer de rallumer le brûleur.

Français
 

●
Toute fumée peut créer un risque d’explosion et/ou d’incendie.
●Ne portez pas de vêtements amples ou à manches longues lorsque vous


●Utilisez uniquement des maniques sèches pour retirer les ustensiles
chauds. L’utilisation de maniques humides sur des surfaces chaudes
pourrait entraîner des brûlures aux mains. N’utilisez pas de serviette ou de
tissu volumineux comme manique. Le tissu pourrait entrer en contact avec

●
l’intérieur du récipient peut le faire exploser.
●N’utilisez pas d’eau sur les feux de graisse. Ne ramassez jamais une


peut être éteinte avec du bicarbonate de soude ou un extincteur à poudre
polyvalent.
●

●Assurez-vous que la vanne manuelle est installée dans un endroit

de fermer le gaz à l’appareil.
●Assurez-vous que toute ouverture dans le mur derrière l’appareil et sur le
plancher sous l’appareil est scellée.
●L’appareil et son robinet d’arrêt individuel doivent être déconnectés du
système de tuyauterie d’alimentation en gaz pendant tout essai de pression

●L’appareil doit être isolé du système de tuyauterie d’alimentation en gaz
en fermant son robinet d’arrêt manuel individuel pendant tout essai de
pression du système de tuyauterie d’alimentation en gaz à des pressions

Sécurité de la table de cuisson
●Si la table de cuisson se trouve près d’une fenêtre, il faut prendre les

brûleurs, créant ainsi un risque d’incendie.
●Gardez la zone autour de la table de cuisson propre et exempte de
tout matériau combustible, d’essence ou d’autres vapeurs et liquides

explosion et/ou un incendie.
●Ne laissez pas les enfants seuls ou sans surveillance dans la zone où la
table de cuisson est utilisée. Les brûleurs supérieurs, les grilles des brûleurs

pour provoquer de graves brûlures.
●Ne portez pas de vêtements amples ou à manches longues lorsque vous


●Utilisez uniquement des maniques sèches pour retirer les ustensiles
chauds. L’utilisation de maniques humides sur des surfaces chaudes
pourrait entraîner des brûlures aux mains. N’utilisez pas de serviette ou de
tissu volumineux comme manique. Le tissu pourrait entrer en contact avec

●
l’intérieur du récipient peut le faire exploser.
●Maintenez l’appareil propre. L’accumulation de graisse et l’ébullition et/ou le
déversement d’aliments peuvent créer un risque d’incendie.
●Tournez les poignées des casseroles vers l’intérieur ou vers l’arrière de
la table de cuisson, hors de la portée des personnes passant devant la
table de cuisson et/ou hors de la portée des enfants. Ne tournez pas les
poignées pour qu’elles se trouvent au-dessus des brûleurs.
●N’utilisez pas d’eau sur les feux de graisse. Ne ramassez jamais une casserole


du bicarbonate de soude ou un extincteur à poudre polyvalent.
●Ne laissez jamais le(s) brûleur(s) supérieur(s) sans surveillance.
Pour des raisons telles que les courants d’air descendants qui
pourraient être créés par l’ouverture et la fermeture des portes
de l’armoire ou des portes à l’intérieur du véhicule récréatif, ou par

en raison d’une installation inadéquate (voir la section Installation).

pourrait s’échapper dans le véhicule récréatif. Rappelez-vous que le

devez activer et désactiver le débit de gaz.
Un débordement pourrait se produire et le déversement pourrait

●


de l’énergie.
 
matériau de l’ustensile, par ce que vous cuisinez et par la présence
ou non de liquide.
●Pour éviter d’endommager la table de cuisson, les brûleurs supérieurs ou la
grille supérieure, n’utilisez jamais un brûleur supérieur sans casserole en place.
Les brûleurs supérieurs, en particulier le brûleur à haute intensité, ne doivent
pas être utilisés à haute intensité pendant une période prolongée. Le réglage
élevé ne doit être utilisé que pour démarrer la cuisson des aliments ou pour




réglages jusqu’à ce que vous vous sentiez à l’aise pour cuisiner au gaz.
●N’utilisez jamais d’ustensiles de cuisson qui dépassent d’un pouce la
 de diamètre). Ne placez
jamais d’ustensile de cuisson sur la grille de manière à ce qu’elle repose
sur deux brûleurs supérieurs en fonctionnement. Cela provoquerait une
accumulation excessive de chaleur qui pourrait endommager la grille, le ou
les brûleurs supérieurs et la table de cuisson.
●
brûleur supérieur. La présence d’air dans la conduite d’alimentation en gaz
retarde considérablement l’allumage du brûleur, et un brûleur peut s’allumer
de manière inattendue lorsque l’air dans la conduite est éliminé et remplacé

peut être introduit dans la conduite d’alimentation lorsque la bouteille de gaz
du véhicule est remplacée, lors de l’entretien d’autres appareils à gaz, etc.
●NE TOUCHEZ PAS les brûleurs supérieurs, les grilles des brûleurs
ou d’autres zones proches des brûleurs supérieurs pendant et après

entrer en contact avec les brûleurs supérieurs ou les zones proches des
brûleurs supérieurs avant qu’ils n’aient eu le temps de refroidir.
●
grands pour contenir les aliments et éviter les débordements et les
éclaboussures. Les éclaboussures ou les débordements importants

●Assurez-vous que les ustensiles de cuisson en verre peuvent être utilisés
en toute sécurité sur la table de cuisson. Seuls certains types d’ustensiles
en verre peuvent être utilisés sur les brûleurs de surface ou supérieurs sans
se briser en raison des changements soudains de température.
●
des brûleurs supérieurs ou sur la surface de la table de cuisson. Essuyez
immédiatement les débordements.
●Faites attention lorsque vous allumez un brûleur supérieur à la main. Si
le brûleur s’allume de manière inattendue ou si votre main est proche du
brûleur, vous risquez de vous brûler.
●NE laissez PAS tomber les casseroles sur la surface en porcelaine. Cela

Français
 
APERÇU DU PRODUIT
5
8
9
11
12
10
7
6
3
2
1
4
Article Description
1Panneau décoratif arrière
2Panneau de ventilation
3Grilles des brûleurs
4Voyant du bouton de commande de la table de cuisson
5Bouton de commande de la table de cuisson (gauche, milieu et
droite)
6Bouton de commande du four
7Voyant du four
8Grille de four réglable - plate
9Grille de four réglable - en forme de U
10 
11 Porte du four
12 Panneau décoratif inférieur

●NE laissez PAS un ustensile vide, ou un ustensile qui a bouilli à sec, sur un

l’ustensile ou l’appareil de cuisson.
Avertissements de sécurité pour le four
●NE TOUCHEZ PAS LES ÉLÉMENTS CHAUDS OU LES SURFACES

même s’ils sont de couleur foncée. Les surfaces intérieures d’un four


intérieures du four et ne laissez pas vos vêtements ou d’autres matériaux




four et les surfaces situées près de ces ouvertures, les portes du four et les
fenêtres des portes du four).
●NE touchez PAS la surface extérieure de la porte du four ou de l’évent du
four lorsque le four est en cours d’utilisation. Ces zones peuvent devenir


entrer en contact avec ces zones avant qu’elles n’aient eu le temps de
refroidir.
●



●N’utilisez PAS le four comme lieu de stockage.
●Si la veilleuse du four s’éteint après l’allumage initial ou en raison d’une
explosion accidentelle, éteignez le bouton du four et attendez cinq (5)
minutes avant de tenter de rallumer le four.
●


●Faites attention en ouvrant la porte du four, laissez l’air chaud ou la vapeur
s’échapper avant de retirer ou de replacer les aliments.
●Ne recouvrez JAMAIS les fentes, les trous ou les passages de la sole du
four ou une grille entière avec des matériaux tels que du papier d’aluminium.
Cela bloque la circulation de l’air dans le four et peut provoquer une
intoxication au monoxyde de carbone. Les feuilles d’aluminium peuvent
également retenir la chaleur et présenter un risque d’incendie.
Ventilation du
four
