Furuno FI-3001 User manual

0

1

2

3
CONTENTS:
1Applications...........................................................................................................4
2Tools and Materials Needed.................................................................................4
3Mounting Location................................................................................................5
3.1 Acoustic Noise................................................................................................5
3.2 Placement ......................................................................................................5
3.3 Boat Types .....................................................................................................6
3.4 Fairing ............................................................................................................7
4Installation.............................................................................................................7
4.1 Hole Drilling....................................................................................................7
4.2 Bedding ..........................................................................................................8
5Installing ................................................................................................................8
5.1 Checking for Leaks.........................................................................................9
5.2 Blanking Plug .................................................................................................9
5.3 Installation in a Cored Fiberglass Hull..........................................................10
6CONNECTION TO INSTRUMENT/CONTACTS...................................................11
7Calibration ...........................................................................................................11
8Maintenance ........................................................................................................11
8.1 Antifouling Paint ...........................................................................................11
8.2 Cleaning .......................................................................................................11
9TECHNICAL DATA...............................................................................................12

4

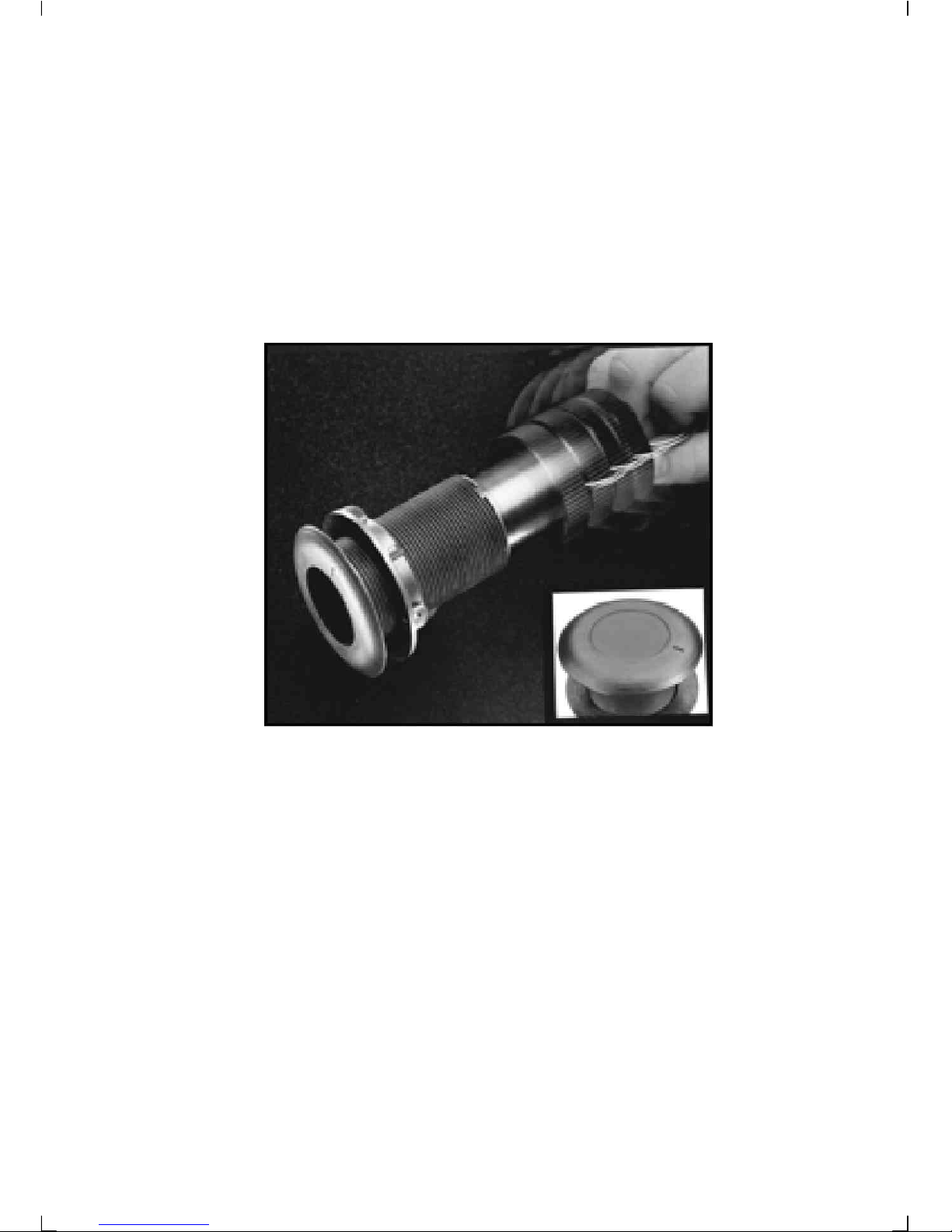

INSTALLATION INSTRUCTIONS
Thru-Hull Depth Transducer
Low Profile, Flush, and Retractable Models
WARNING: NEVER USE SOLVENTS!
Certain cleaners, fuel, paints, sealants, and other products may contain strong
solvents, such as acetone, which attack many plastics greatly reducing their strength.
1Applications
•Plastic housing is recommended for fiberglass or metal hulls only. Never install a
plastic thru-hull sensor in a wood hull, since swelling of the wood may overstress
the plastic causing a fracture.
•Bronze housing is recommended for fiberglass or wood hulls only. Never install a
bronze housing in a metal hull, because electrolytic corrosion will occur.
•Stainless steel housing is recommended for metal hulls to prevent electrolytic
corrosion.
•Never install a metal housing in a vessel with a positive ground system.
2Tools and Materials Needed
Safety goggles
Dust mask
Electric drill with 10mm (3/8") or larger chuck capacity
Drill bit: 3mm or 1/8"
Hole saw (see table on page 1)
Beveled countersink tool for B21, P269, and P314
Countersink tool for B119, P217, and P219
Sandpaper
Mild household detergent or weak solvent (alcohol)
File (installation in a metal hull)
Marine sealant
Additional washer for some aluminum installations
Slip-joint pliers for metal housing
Silicone grease or petroleum jelly (Vaseline ® ) (retractable units)
Zip-ties
Water-based antifouling paint (mandatory in salt water)
Installation in a cored fiberglass hull:
Hole saw for hull interior: (see table on page 1)
Fiberglass cloth and resin (see page 4, #5)
or Cylinder, wax, tape, and casting epoxy (see page 4, #5)
IMPORTANT: Please read these instructions completely before proceeding
with the installation. These directions supersede any other instructions in
your instrument manual if they differ.

5
3Mounting Location
3.1 Acoustic Noise
Acoustic noise is always present and these sound waves can interfere with the
operation of the transducer. Background noise from sources such as: waves, fish, and
other vessels cannot be controlled. However, carefully selecting the transducer
mounting location can minimize the affect of vessel generated noise from the
propeller(s) and shaft(s), other machinery, and other echosounders. The lower the
noise level, the higher the echosounder gain that can be used.
3.2 Placement
Choose a location where:
•The water flowing across the hull is smoothest with a minimum of bubbles and
turbulence (especially at high speeds).
•The transducer will be continuously immersed in water.
•The transducer beam is unobstructed by the keel or propeller shaft(s).
•There is a minimum deadrise angle.
•There is adequate headroom inside the vessel for the height of the housing,
tightening the nuts, and removing any insert (see table below).
Model Minimum Headroom Outside Hull Hole Saw Size Inside Hull Hole Saw Size
P17, Retractable 200mm (8”) 51mm (2”) 60mm (2-3/8”)
Caution: Do not mount the sensor:
Near water intake or discharge openings, Behind strakes, fittings,
or hull irregularities, Behind eroding paint (an indication of
turbulence)

6
3.3 Boat Types
(see Figure 1)
•Displacement hull powerboat—Locate 1/3 aft LWL and 150–300mm (6–12") off
the centerline on the side of the hull where the propeller is moving downward.
•Planing hull powerboat—Mount well aft, on or near the centerline, and well
inboard of the first set of lifting strakes to insure that the transducer is in contact
with the water at high speeds. Mount on the side of the hull where the propeller is
moving downward.
Outboard and I/O—Mount just forward of the engine(s).
Inboard—Mount well ahead of the propeller(s) and shaft(s).
Step-hull—Mount just ahead of the first step.
Boat capable of speeds above 25kn (29MPH)—Review the installation location
and operating results of similar boats before proceeding.
•Fin keel sailboat—Mount to the side of the centerline and forward of the fin keel
300–600mm (1–2').
•Full keel sailboat—Locate amidships and away from the keel at the point of
minimum deadrise angle.

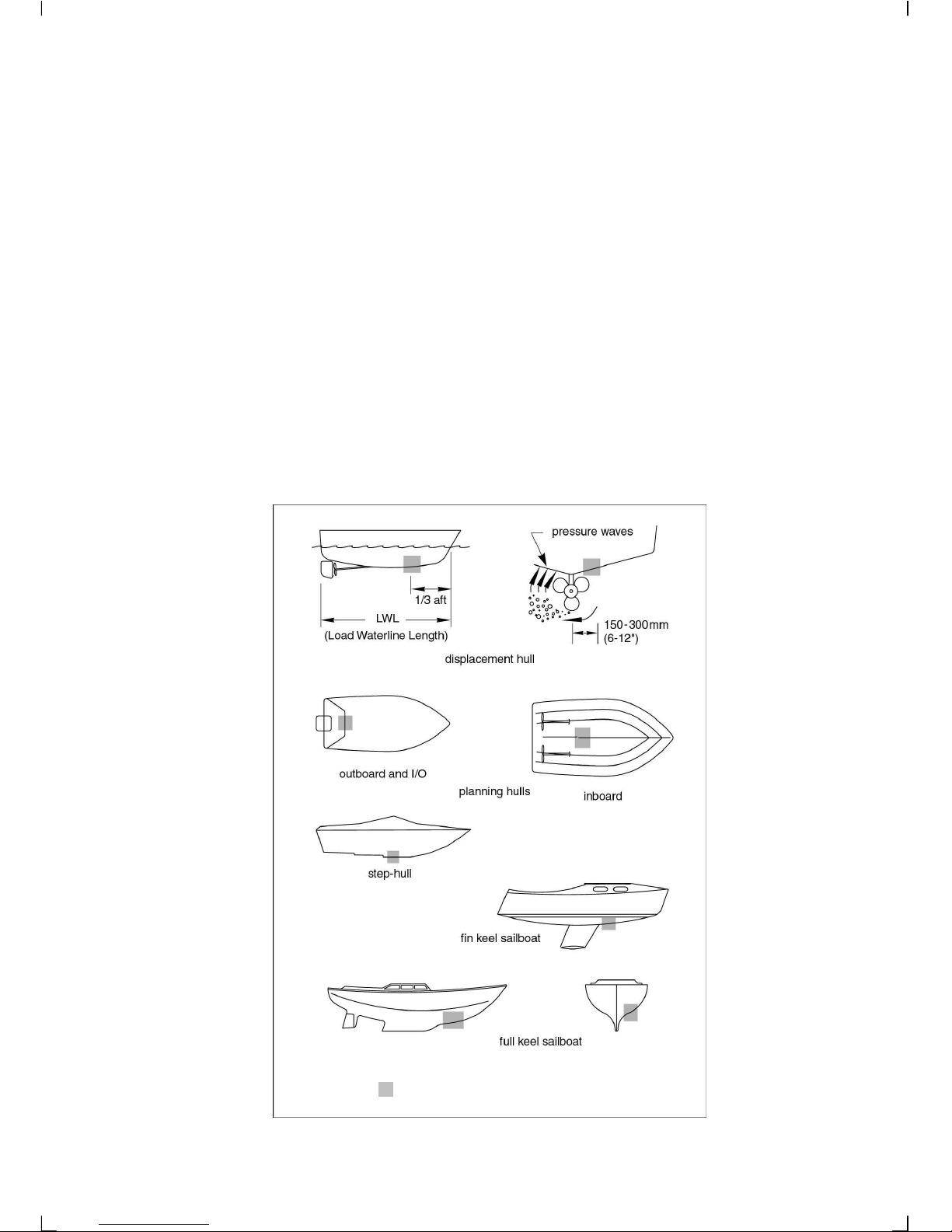

Figure1. Best location for the transducer

7
3.4 Fairing
Generally, the sensor is mounted without a fairing. However, a fairing does provide a
level mounting surface. Nearly all vessels have some deadrise angle at the transducer
mounting location. If the transducer is mounted directly to the hull, the sound beam will
be tilted off the vertical at the same angle as the deadrise angle. A fairing is
recommended for metal housings if the deadrise angle at the mounting location
exceeds 10.
Caution: Never use a fairing with a plastic housing; the protruding transducer would
be vulnerable to damage from impact.
4Installation
Cored fiberglass hull—Follow separate instructions on page 4.
4.1 Hole Drilling
Warning: Always wear safety goggles and a dust mask.
1. Drill a 3 mm or 1/8" pilot hole from inside the hull. If there is a rib, strut, or other
hull irregularity near the selected mounting location, drill from the outside.
Note: If the pilot hole is drilled in the wrong location, drill a second hole in a better
location. Apply masking tape to the outside of the hull over the incorrect hole and
fill it with epoxy.
2. Using the appropriate size hole saw, cut a hole from outside of the hull (see table
on page 1).
Note: All flush models require a countersink tool to create a “seat” in the hull.
3. Sand and clean the area around the hole, inside and outside, to ensure that the
sealant will adhere properly to the hull. If there is any petroleum residue inside the
hull, remove it with either mild household detergent or a weak solvent (alcohol)
before sanding.
Metal hull—Remove all burrs with a file and sandpaper.

8
4.2 Bedding
Caution: Never pull, carry, or hold the transducer by its cable; this may sever internal
connections.

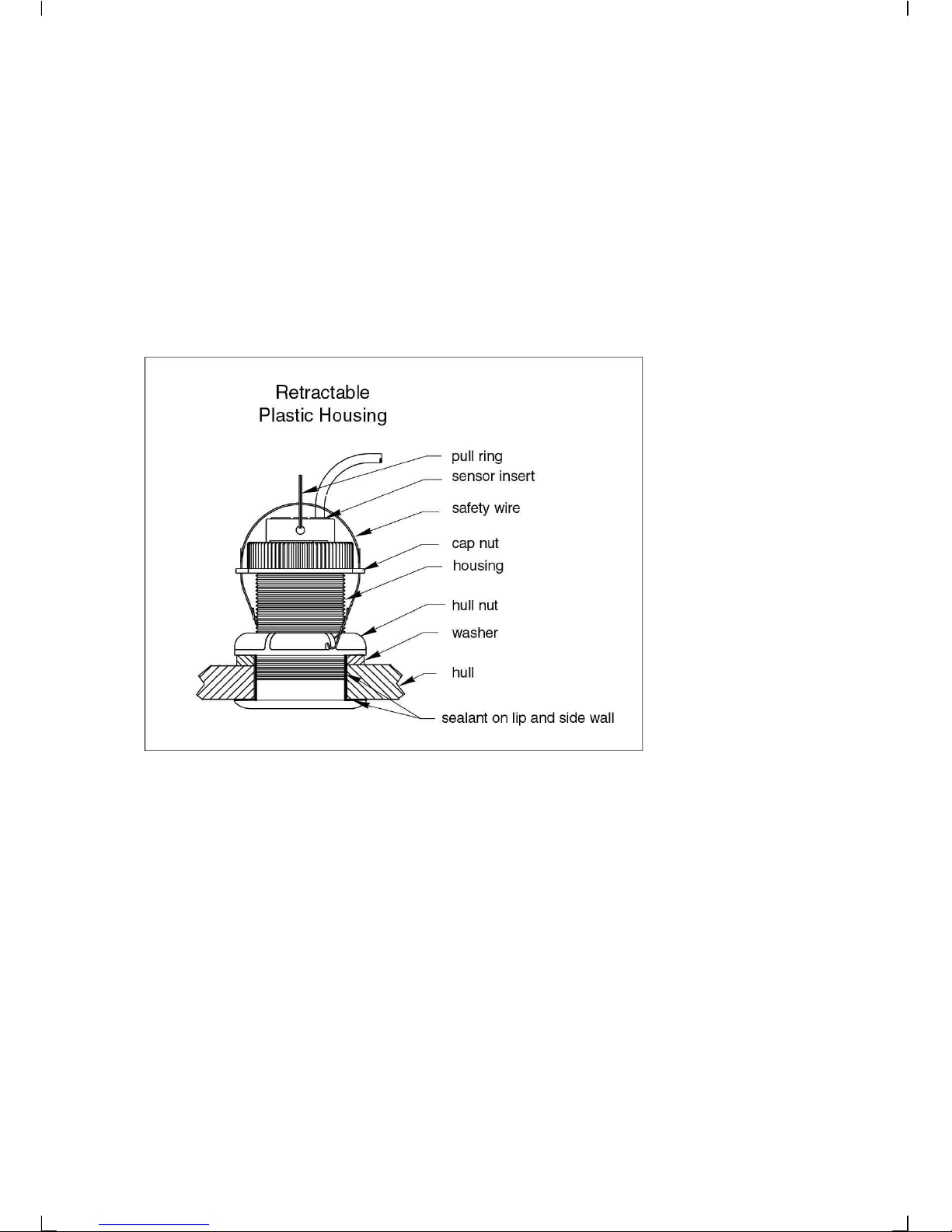

1. Remove the hull nut and any washer (see Figure 2). Also remove the cap nut and
the transducer insert.
2. Apply a 2mm (1/16") thick layer of sealant around the lip of the housing that
contacts the hull and up the sidewall of the housing, 6 mm (1/4") higher than the
combined thickness of the hull, washer(s), and the hull nut. This will ensure there
is sealant in the threads to seal the hull and to hold the hull nut securely in place.
5Installing
Note: Ignore any arrows on the housing, insert, and blanking plug.
1. From outside the hull, push the housing into the mounting hole using a twisting
motion to squeeze out excess sealant (see Figure 2).
2. Slide the washer onto the housing inside the hull
Aluminum hull less than 6mm (1/4") thick—Use an additional washer. Never use
bronze, since electrolytic corrosion will occur.
3. Screw the hull nut in place. Hand-tighten only. Do not over-tighten.
4. Remove the excess sealant on the outside of the hull to ensure smooth water flow
over the transducer.
5. After the sealant cures, inspect and lubricate the O-rings on the insert with silicone
grease or petroleum jelly. Slide the insert into the housing. Seat the insert into
place with a twisting motion until the key fits into the notch. Be careful not to rotate
the outer housing and disturb the sealant. Screw the cap nut in place and hand-
tighten only. Do not over tighten.
Figure 2

9
Warning: Always attach the safety wire to prevent the insert from backing out in
the unlikely event that the cap nut fails or is screwed on incorrectly.
6. Attach the safety wire. Attach the safety wire to one eye in the hull nut. Lead the
wire in a counterclockwise direction and thread it through one eye in the cap nut,
the pull ring, the second eye in the cap nut, and the second eye in the hull nut.
Twist the wire securely to itself.
7. Route the cable to the Server, being careful not to tear the cable jacket when
passing it through the bulkhead(s) and other parts of the boat. To reduce electrical
interference, separate the sensor cable from other electrical wiring and the engine.
Coil any excess cable and secure it in place using zip-ties to prevent damage.
8. Refer to the Server manual to connect the sensor to the instrument.
5.1 Checking for Leaks
Caution: Never install a thru-hull transducer and leave the boat in the water
unchecked for several days.
When the boat is placed in the water, immediately check around the thru-hull
transducer for leaks. Note that very small leaks may not be readily observed. It is best
not to leave the boat in the water for more than 3 hours before checking it again. If
there is a small leak, there may be considerable bilge water accumulation after 24
hours. If a leak is observed, repeat “Bedding” and “Installing” immediately.
5.2 Blanking Plug
1. Inspect and lubricate the O-rings on the blanking plug with silicone grease or
petroleum jelly.
2. Remove the safety wire from the pull ring and cap nut. Then, unscrew the cap nut
(see Figure 2).
3. With the blanking plug ready in one hand, pull the insert most of the way out.
Remove the insert and rapidly replace it with the plug. Seat it into place with a
pushing twisting motion until the key fits into the notch in the housing. With
practice, only 250ml (10oz.) of water will enter the boat. Screw the cap nut in place
and hand-tighten only.
Warning: Always attach the safety wire to prevent the insert from backing out in
the unlikely event that the cap nut fails or is screwed on incorrectly.
4. Reattach the safety wire.

10
5.3 Installation in a Cored Fiberglass Hull
The core (wood or foam) must be cut and sealed carefully. The core must be protected
from water seepage, and the hull must be reinforced to prevent it from crushing under
the hull nut allowing the housing to become loose.
Warning: Always wear safety goggles and a dust mask.
1. Drill a 3 mm or 1/8" pilot hole from inside the hull (see Figure 3). If there is a rib,
strut, or other hull irregularity near the selected mounting location, drill from the
outside. If the hole is drilled in the wrong location, drill a second hole in a better
location. Apply masking tape to the outside of the hull over the incorrect hole and
fill it with epoxy.
2. Using the appropriate size outside hull hole saw, cut a hole from outside the hull
through the outer skin only (see table on page 1).
3. Using the appropriate size inside hull hole saw, cut through the inner skin and
most of the core from inside the hull. The core material can be very soft. Apply
only light pressure to the hole saw after cutting through the inner skin to avoid
accidentally cutting the outer skin.
4. Remove the plug of core material, so the inside of the outer skin and the inner
core of the hull is fully exposed. Sand and clean the inner skin, core, and the outer
skin around the hole.
Caution: Always completely seal the hull to prevent water seepage into the core.
5. If you are skilled with fiberglass, saturate a layer of fiberglass cloth with a suitable
resin and lay it inside the hole to seal and strengthen the core. Add layers until the
hole is the correct diameter.
Alternatively, a hollow or solid cylinder of the correct diameter can be coated with
wax and taped in place. Fill the gap between the cylinder and hull with casting
epoxy. After the epoxy has set, remove the cylinder (see Figure 3).
6. Sand and clean the area around the hole, inside and outside, to ensure that the
sealant will adhere properly to the hull. If there is any petroleum residue inside the
hull, remove it with either mild household detergent or a weak solvent (alcohol)
before sanding.
7. Proceed with “Bedding” and “Installing”.

11
6CONNECTION TO INSTRUMENT/CONTACTS
The depth transducer connects to the FI-30 Server or directly.
The transducer cable is clearly marked with No 2 and the colours will correspond to
input screw terminal on the Server.
IMPORTANT! DO NOT CUT OR EXTEND THE 8 M TRANSDUCER CABLE!
7Calibration
Calibration is carried out in the Multi Control instrument (see manual).
8Maintenance
8.1 Antifouling Paint
Surfaces exposed to salt water must be coated with anti-fouling paint. Use water-
based antifouling paint only. Never use ketone based antifouling paint, since ketones
can attack many plastics possibly damaging the transducer. Apply antifouling paint
every 6 months or at the beginning of each boating season.
8.2 Cleaning
Aquatic growth can accumulate rapidly on the transducer’s surface, reducing its
performance within weeks. Clean the surface with a soft cloth and mild household
detergent. If the fouling is severe, use a stiff brush or putty knife to remove the growth
taking care to avoid making scratches. Wet sanding is permissible with fine grade
wet/dry paper.

12
9TECHNICAL DATA
Dimensions Transducer: 51 x 86 mm (1 5/8” x 3 3/8”)
Transducer cable: 8 m (9.9 ft + 26.2 ft)
Power supply: 12V DC (10-16V)
Power consumption: 0.2 W
Depth range: 0.8 - 150 m (3 - 450 ft) at
speed up to 30 knots.
Accuracy: ±0.1 %
Type of transducer: Piezocrystal 200 kHz
Temperature range: Operation -10°C to + 70°C
Storage -35°C to +85°C
The depth measuring is based on the echos speed in water which is 1.463 m/sec.

13
22345-1 Edidtion 2
