FWE PTS-0709-135-B User manual

OPERATING
INSTRUCTIONS
PTS BACK HEAT BOX
Prisoner Tray Server with
Removable Back Heat Box Module
TM

FWE PTS SERVER BACK HEAT BOX
2
CONGRATULATIONS...
...and thank you for purchasing an FWE PTS with Removable Back
Heat Box Module. Your unit has been designed and manufactured
under rigid controls to assure you the most efficient service.
Please take a moment to read through this booklet of important
information pertaining to your cabinet. By following a routine of
proper use and care described on the following pages, your cabinet
and heat module will last for many years.
IMPORTANT: Your Manufacturer Registration Card must be
returned within 30 days after initial delivery to activate the warranty.
PTS-0709-135-B

FWE PTS SERVER BACK HEAT BOX
3
Heat Box
Security
Lock
Power
Indicator
Light
ON / OFF
Switch
Handle
Grip

FWE Removable Back Heat Module or models operate on
120 volt or 220-240 volt, 60 Hz, 1 ph, A.C. (unless ordered
otherwise), and are equipped with a three prong grounding
cord plug for your protection against possible shock hazards.
Be sure to plug only into a properly grounded three prong wall
receptacle. If you have any questions with regard to adequate
wiring or grounding in your building, a qualified electrician should
be contacted before using your cabinet. The amperage of your
heat module is stamped on the name plate attached to the unit.
DO NOT, UNDER ANY CIRCUMSTANCES, CUT OR REMOVE
THE GROUNDING PRONG FROM THE CORD PLUG.
WARNING: ONLY A QUALIFIED ELECTRICIAN SHOULD
ATTEMPT TO REPAIR OR REPLACE ELECTRICAL
COMPONENTS OR WIRING.
BE SURE THAT MODEL IS UNPLUGGED FROM ELECTRICAL
SOURCE BEFORE REMOVING CONTROL PANEL.
FWE PTS SERVER BACK HEAT BOX
SERIAL AND MODEL NUMBER
INSTALLATION AND CARE
UNPACKING
ELECTRICAL REQUIREMENTS AND GROUNDING
These numbers are found on the nameplate (serial tag) affixed
to the back of the unit. Please record them in this booklet, in the
space provided. When ordering parts and/or service, you will
need to provide this information. The voltage and amperage of
the unit are also stamped on the serial tag.
After uncrating your cabinet and heating unit, remove all tape
and padding which held all doors, shelves, racks, cord, etc., in
place during shipment.
4

Keep your cabinet clean by simply wiping the interior and
exterior, as needed, with a damp cloth or sponge and a mild
soapy solution.
CLEANING
5
!
CAUTION
NEVER USE ABRASIVES, ACIDS, OR
STRONG CLEANERS. Do not flood or allow
electrical parts to become wet. A stainless steel
cleaner / polish is recommended for the exterior
to maintain a "like-new" appearance.
DO NOT USE WAX OR STRONG CLEANERS
ON DOOR GASKETS OR VINYL TRIM.
WARNING: BE SURE THE HEAT MODULE
IS UNPLUGGED, COOLED, OR REMOVED
BEFORE CLEANING CABINET.
THE HEAT BOX AREA IS HOT WHEN
IN USE. Handle with caution.
WARNING: DO NOT USE WET JET TO
HOSE DOWN HEAT MODULE. DO NOT
RUN THROUGH DISHWASHER TO
CLEAN REMOVABLE HEAT MODULE.
DAMAGE TO ELECTRICAL COMPONENTS
WILL OCCUR.
FWE PTS SERVER BACK HEAT BOX
INSTALLATION AND CARE
CAUTION: HOLDING FOOD AT TEMPERATURES OF
LESS THAN 140°F MAY BE DANGEROUS.
TEMPERATURES UNDER 140°F PROMOTE THE GROWTH
OF HARMFUL BACTERIA AND TOXINS IN SOME FOODS.

GENERAL OPERATING INSTRUCTIONS
1) PLUG UNIT INTO OUTLET, making sure that it is a
properly grounded power receptacle. Press ON-OFF
rocker switch to "ON" position. Power indicator light
will be on.
2) TEMPERATURE SETTING. Pre-set by factory at #7
on temperature dial. Temperature controls may be
specified to be
‘hidden’ (or internal) on this heat box
to be tamper-proof. For most foods, a holding
temperature of 150° - 160°F should be adequate.
3) PRE-HEAT CABINET FOR APPROXIMATELY
60 MINUTES. AVOID PUTTING YOUR HOT FOODS
INTO A COLD CABINET!
By pre-heating the unit 60 minutes before each use,
you can be assured of maintaining the temperature
and obtaining the best results from your cabinet.
4) LOAD THE CABINET. During the loading procedure,
keep the door(s) closed as much as possible.
After loading is completed, do not open doors
again until you are ready to serve.
5) TRANSPORTING HOT FOODS. Your cabinet is
equipped with a positive latch to assure safety during
transportation. Plug the unit into an electrical outlet
at the serving location (if available), so that the
thermostat will re-activate and automatically hold
your pre-selected temperature.
6
FWE PTS SERVER BACK HEAT BOX

7
PARTS LIST
FWE PARTS DEPARTMENT: 815 459 7500
DESCRIPTION PART NUMBER
MECHANICAL PARTS:
Casters for PTS-0709-135-B
10'' Rigid CSTR 10 R-6
10'' Swivel CSTR 10 S-6
10'' Swivel with locking brake CSTR 10 SB-6
Locking Paddle Latch LTH PDL LK
ELECTRICAL PARTS:
Thermostat T-STAT OVN1
Rear Mount Heat Box: 120v Z-800-1593
Rear Mount Heat Box: 220-240v Z-800-1571
Service Cord, 10ft., 115v CRDSET-10/115
Service Cord, 10ft., 220v CRDSET-10-220-12-3
Cord Grip, aluminum mesh CRD GRIP MESH-AL-50-3043
Heating Element: 120v EL1000-120-18-STRP
Heating Element: 220-240v EL1000-240-18-STRP
Pilot Light, Amber LT PTL A1
Cooling Fan, 115v FAN BLOW 115
Cooling Fan, 220v FAN BLOW RTH
Knob for Thermostat KNB-H6
Thermometer T-METER-H1
On/Off Switch SWH-RCK-E1
Blower Motor 115-230v Z-600-2065
Cool Down Switch SNAP DISC 150-130
High Limit Switch HI-LIMIT 500 DEG
Terminal Block TERM BLK RTH

FWE PTS SERVER BACK HEAT BOX

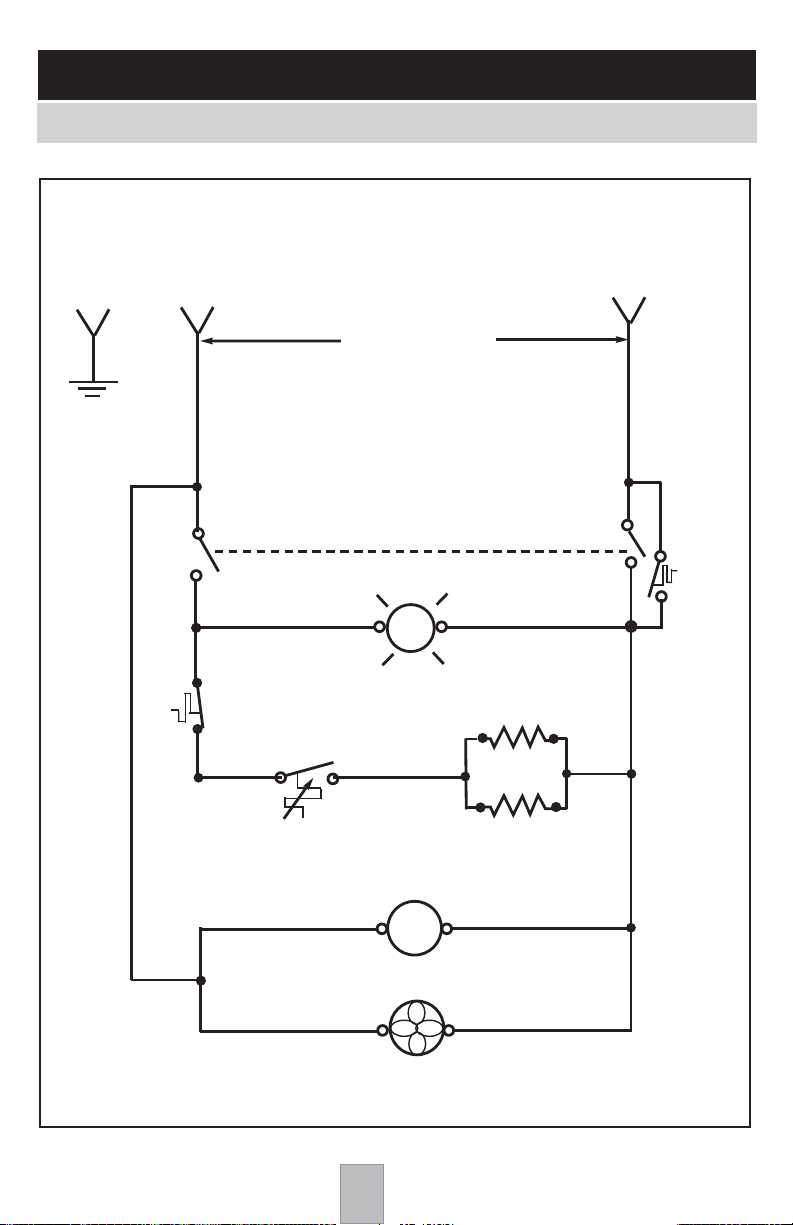

WIRING DIAGRAM: 120 V
8
GND
SWI
PLT LT
SWI
EL1
RLY
EL2
M1
M2
500°F
(N.C.)
T-STAT
120-250°F
COOLING FAN
BLOWER MOTOR
150°F
(N.O.)
(N.O.)
COIL
L1
120 V
N
RLY

9
FWE PTS SERVER BACK HEAT BOX
WIRING DIAGRAM: 220 - 240 V
GND
SWI
PLT LT
SWI
EL1
EL2
M1
M2
500°F
(N.C.)
T-STAT
120-250°F
COOLING FAN
BLOWER MOTOR
150°F
(N.O.)
L1
220 - 240 V
L2

FWE PTS SERVER BACK HEAT BOX
SERVICE RECORD
Model Number ______________________
Serial Number ______________________
Date of Purchase ____________________
Notes:
___________________________________________________
___________________________________________________
___________________________________________________
___________________________________________________
___________________________________________________
___________________________________________________
___________________________________________________
___________________________________________________
___________________________________________________
___________________________________________________
___________________________________________________
___________________________________________________
___________________________________________________
___________________________________________________
___________________________________________________
___________________________________________________
___________________________________________________
___________________________________________________
___________________________________________________
___________________________________________________
___________________________________________________
___________________________________________________
___________________________________________________
___________________________________________________
___________________________________________________
___________________________________________________
10

FWE / Food Warming Equipment Company, Inc. (Seller) warrants to the original purchaser,
subject to the exceptions and conditions below, that FWE manufactured equipment shall be
free from defects in material or factory workmanship, under ordinary use for the purpose for
which it is designed. The effective warranty period is as follows:
PARTS: Seller will furnish without charge to the original purchaser, FOB Sellers’ factory,
replacement parts for repairs to all new standard catalog products and factory custom /
modified units, which in Seller’s sole judgement, prove defective in materials or workmanship
under normal and proper use with the reserved right to request the return of any part claimed
to be defective, prior to issuing replacement part or authorizing warranty service, for a period
of two (2) years from date of original shipment from Seller’s plant,
except for equipment used
in a Correctional Environment / Facilities, which is warranted for a period of one (1) year
from date of original shipment from Seller’s plant.
LABOR: Seller’s labor warranty shall be performed by a Seller-approved Service Agency who
must contact Seller to obtain a Warranty Service Authorization (WSA) number prior to
performing any repairs. If service is required during overtime periods, the difference between
overtime and standard labor rates shall be paid by the purchaser. Seller does not assume any
responsibility for any charges not expressly authorized, incidental to the repair or replacement
of equipment covered by this warranty, nor charges exceeding, in Sellers sole judgement,
normal and customary amounts. Only approved travel charges will be allowed. Seller’s labor
warranty shall be from the date of original shipment date from Seller’s plant for a period of one
(1) year,
except for equipment used in a Correctional Environment / Facilities which is
warranted for a period of six (6) months.
This warranty is for normal usage and does not apply to any product or parts thereof that have
been misused, altered, or where Seller’s operating instructions or specific voltage is not
observed; nor shall this warranty apply to defective products or parts resulting from accident
following date of original shipment, nor extend to or cover removal, installation, reinstallation
or calibration, or service calls or cost of repairs undertaken by a customer. This warranty is
also subject to the following:
1.] Customer returning the warranty registration card, accompanying Sellers original
shipment, to Seller within thirty (30) days of receipt;
2.] Giving immediate notice of any allegedly defective part or product to Seller; and
3.] Customer, at Sellers request, returning said defective parts or product to Seller.
This is the sole warranty applicable to the merchandise. It is expressly understood that Seller’s
liability hereunder is limited to the repair or replacement, at Seller’s option, of products or
parts, defective materials or workmanship as provided above. Seller’s judgement as to the
cause and nature of any defect will be final.Seller shall in no case be responsible for special
or con-sequential damages or any other obligation or liability with respect to products sold by
Seller.
This warranty, as stated above, applies to equipment installed in the Continental United States.
FWE equipment installed outside the Continental United States shall carry parts coverage
only. All labor costs are approved on a discretionary basis, based on like repairs in the
Continental U.S. This warranty shall stand in whole or in part as allowed by law. Any exclusion
of a part of this warranty, as may be allowed by law, shall not void balance of warranty.
This is a limited warranty pursuant to the Consumer Product Warranties Act, 15 U.S. Code. section 2303.
