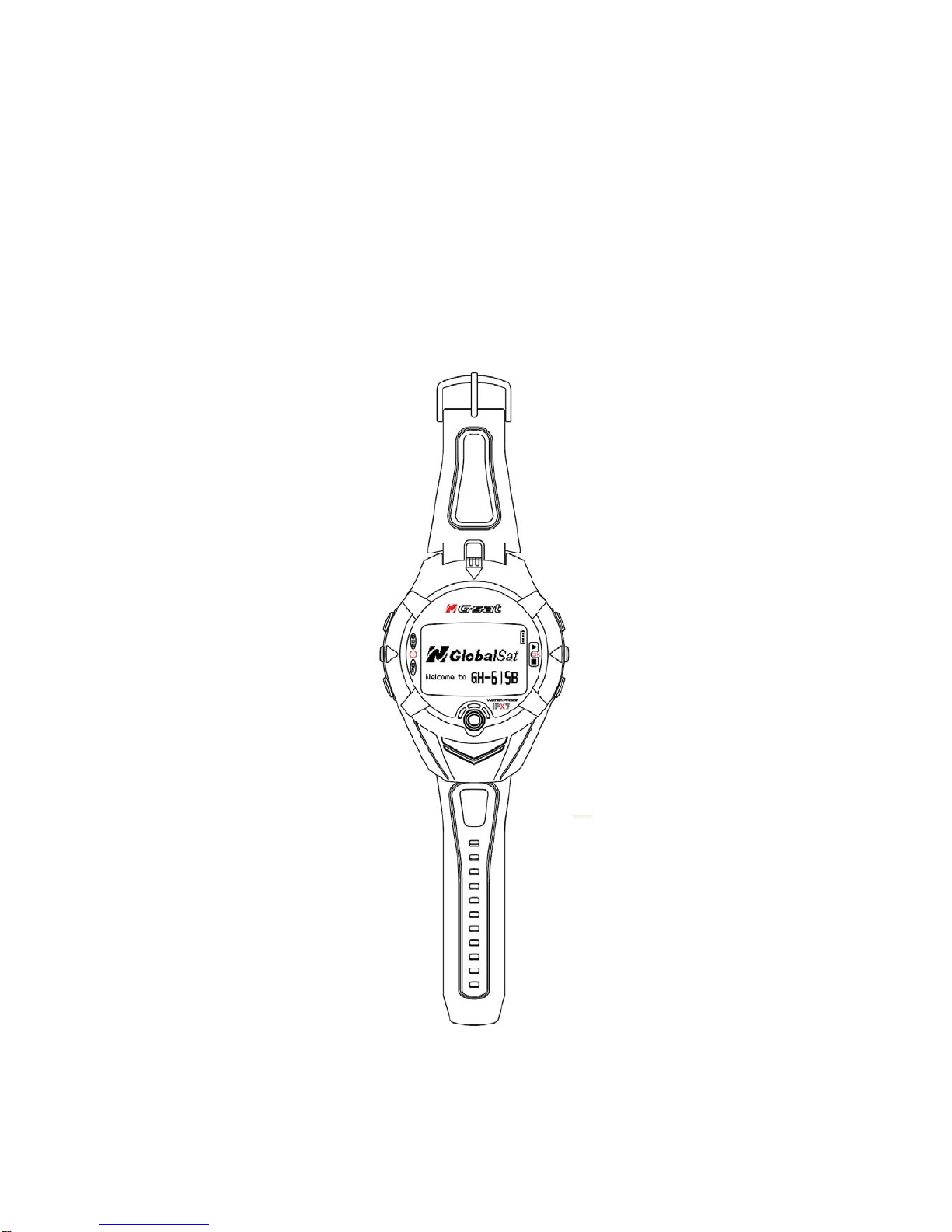

G Sat GH-615 GH-615B/GH-615M User manual

GH-615B / GH-615M
User Manual
Version 1.1

GH-615
Page 2
Table of Content
Introduction and Features................................................................................................ 4
Introduction.............................................................................................................................................4
Features..................................................................................................................................................4
Specifications ................................................................................................................... 5
Hardware overview........................................................................................................... 7
Package contents ...................................................................................................................................7
Button introduction..................................................................................................................................8
Hardware Introduction ............................................................................................................................9

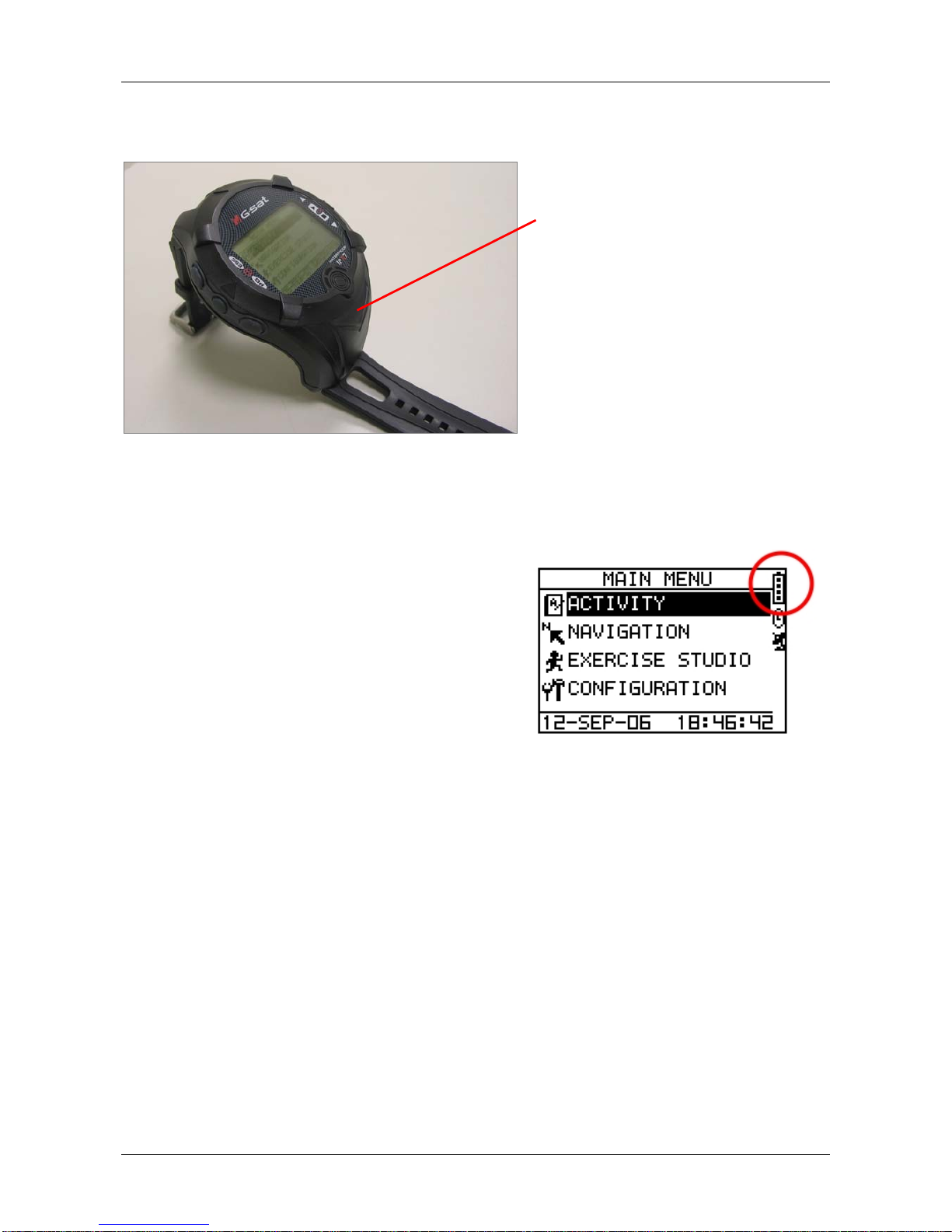

Charge the GH-615 ................................................................................................................................9

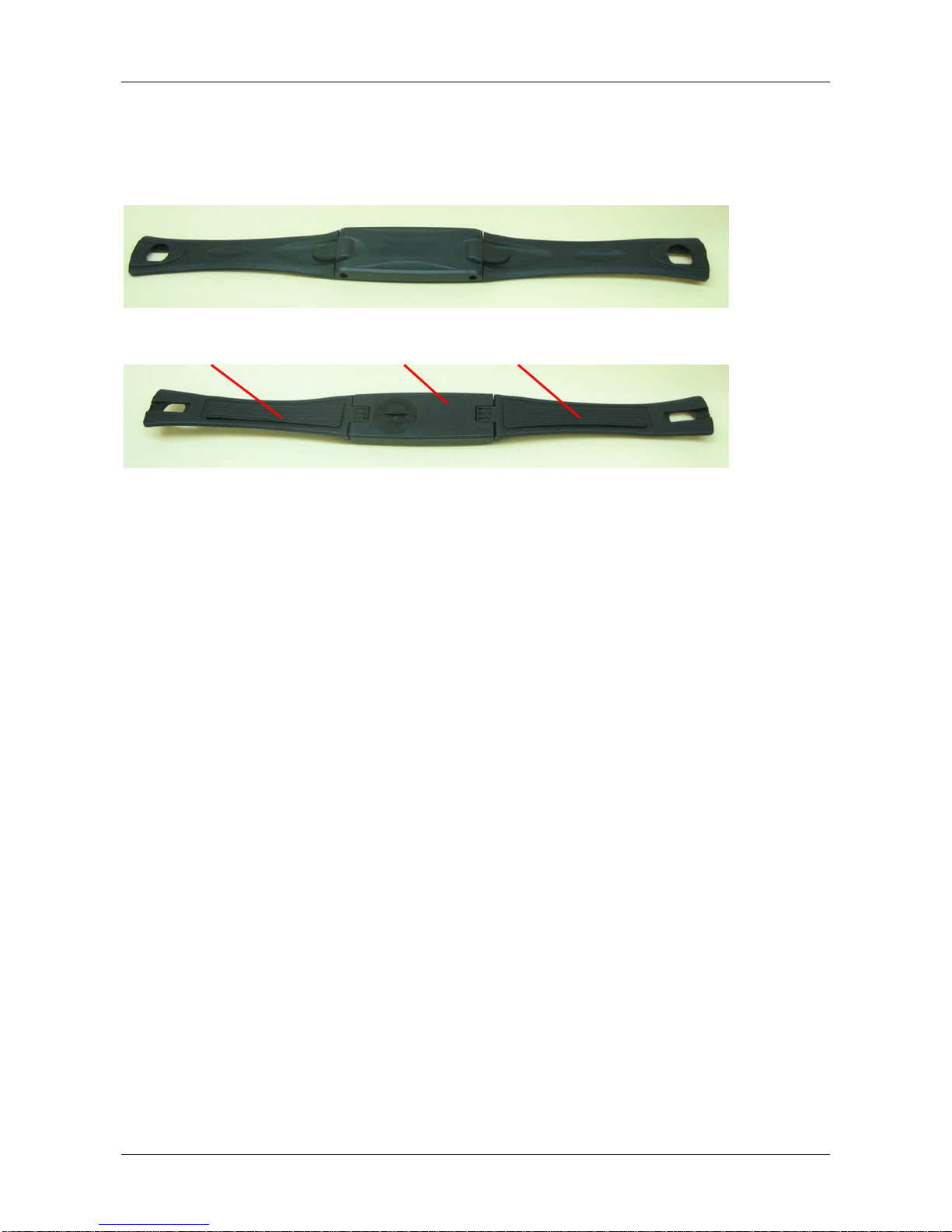

Wear the Heart Rate Monitor................................................................................................................11
Getting Started................................................................................................................ 12
Starting up your GH-615.......................................................................................................................12
Change the Mode .................................................................................................................................13
Menu Structure - Main Menu ................................................................................................................15
Activity............................................................................................................................. 16

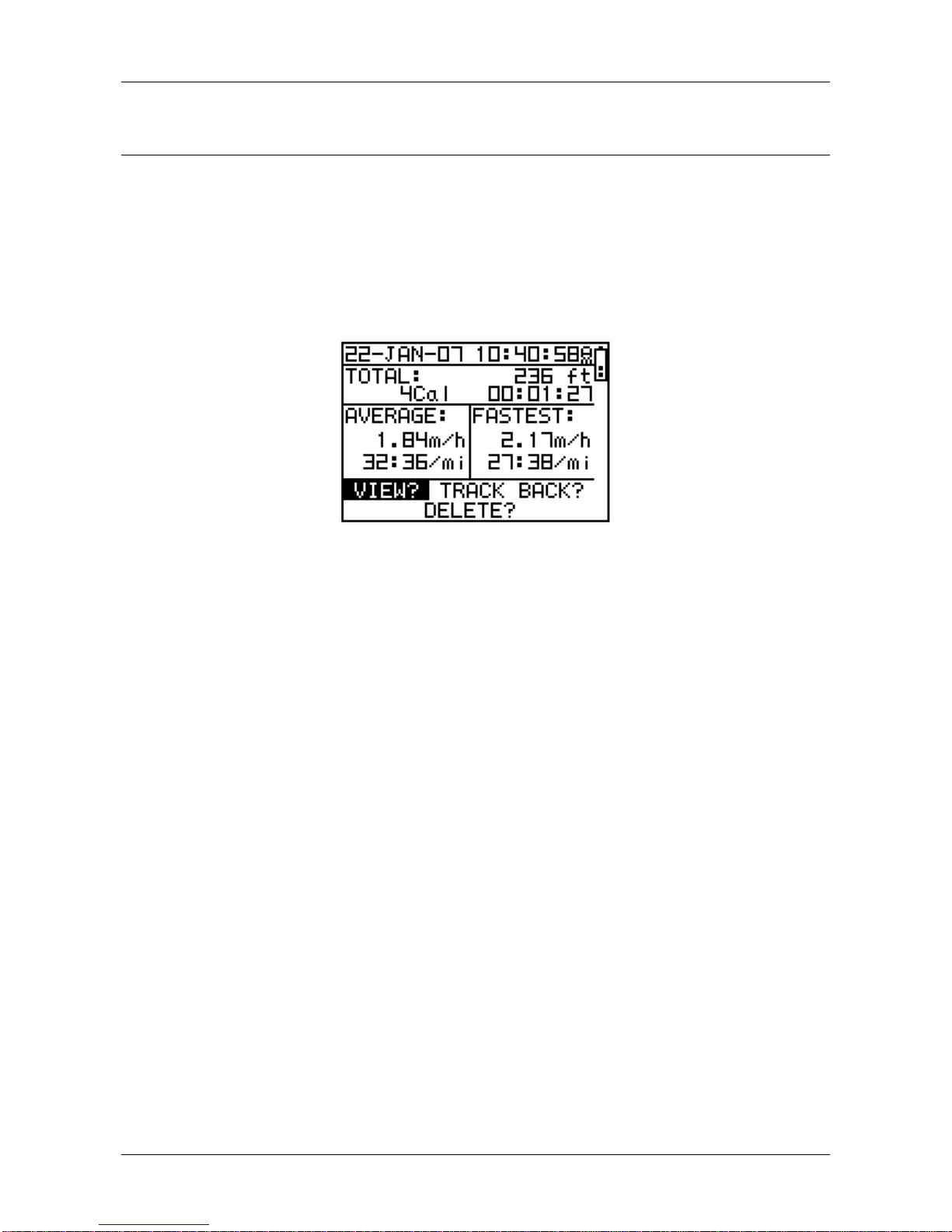

Display/Delete the training data............................................................................................................16

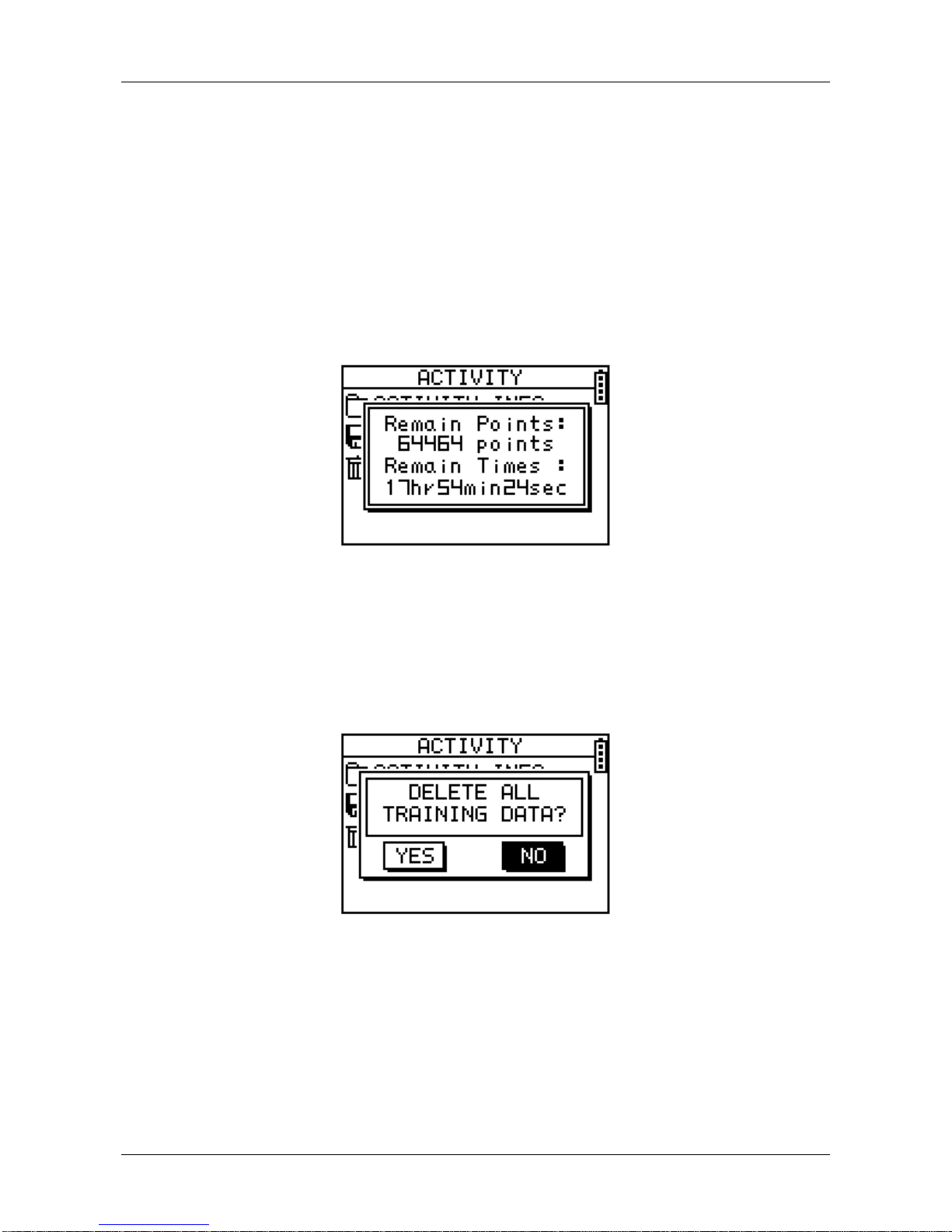

Memory capacity...................................................................................................................................17
Delete all training data..........................................................................................................................17
Navigation ....................................................................................................................... 18
Record the route when you are jogging................................................................................................18
Add / Remove Map Mode.....................................................................................................................18
Save a Waypoint...................................................................................................................................19

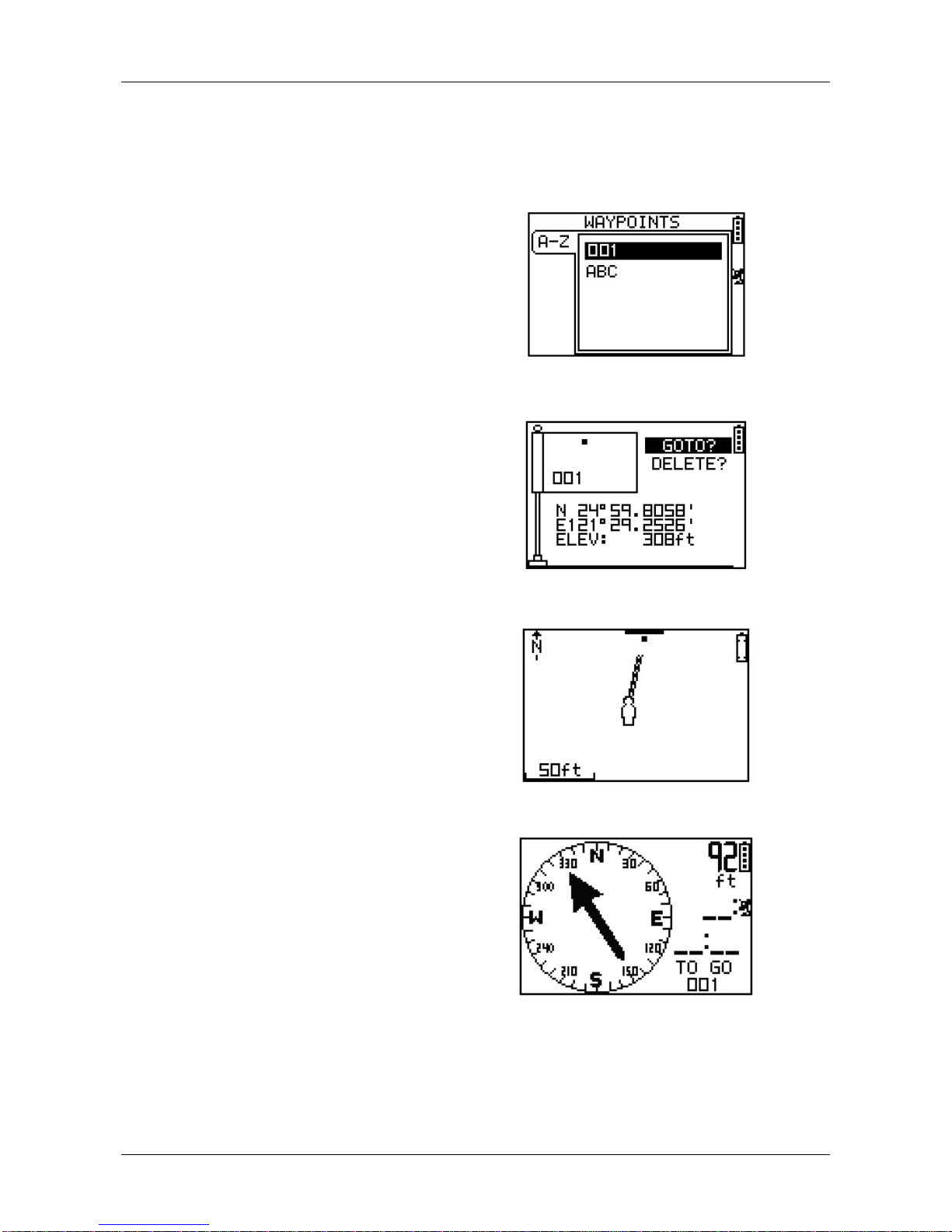

Find and Go to a Waypoint...................................................................................................................20
Delete a Waypoint.................................................................................................................................21
Delete all Waypoint...............................................................................................................................21
Turn PC-GPS on/off..............................................................................................................................21
Return to start.......................................................................................................................................22
Create a route.......................................................................................................................................22
Navigate or delete a route ....................................................................................................................23
Delete all routes....................................................................................................................................23
GPS Info ...............................................................................................................................................23
Exercise Studio............................................................................................................... 24
Auto Hold..............................................................................................................................................24
Alert — Time / Distance Alert...........................................................................................................24
Alert — Speed Alert..........................................................................................................................25
Set Sport Type for calories calculation .................................................................................................25

GH-615
Page 3
Configuration..................................................................................................................26
Setup Time............................................................................................................................................26
Setup GPS............................................................................................................................................26
Set units................................................................................................................................................27
Set Backlight.........................................................................................................................................27
Adjust screen contrast ..........................................................................................................................28
Setup beeper ........................................................................................................................................28
Setup language.....................................................................................................................................28
Set Record Point...................................................................................................................................29
Setup user profile..................................................................................................................................29
Transfer data to PC...............................................................................................................................30
Factory reset.........................................................................................................................................30
About GH-615.......................................................................................................................................31
System upgrade....................................................................................................................................31
PC Utility.......................................................................................................................... 32
Install USB driver..................................................................................................................................32
Install PC Utility.....................................................................................................................................33
System requirement..............................................................................................................................33
Run the PC Utility..................................................................................................................................34
Scan COM port.....................................................................................................................................34
Menu Structure .....................................................................................................................................36
Download Data from GH-615 ...............................................................................................................37
View statistic curve ...............................................................................................................................38
View Track points in Google Earth........................................................................................................39
View Track points in Google Maps........................................................................................................40
View Track points information for details ..............................................................................................41
View GPS Information...........................................................................................................................42
Firmware Upgrade................................................................................................................................42
Display the system information of GH-615...........................................................................................43
Maintenance.................................................................................................................... 44
Take care of you GH-615......................................................................................................................44

GH-615
Page 4
Thank you for purchasing GSat GH-615. We sincerely hope you to enjoy using
this high technology GPS device. For fully understand the functions and features
of GH-615, please read the user manual before you get started.
Introduction and Features
Introduction
Globalsat GH-615 is a stylish, fully-sealed, waterproof, wrist type GPS device
with the features of “Tracking”, “GPS positioning”, “Time alert”, “Heart rate
monitor (GH-615M only)”, etc. The GPS navigation function can locate and track
points anywhere you go. GH-615 is powered by SiRF Star III high performance
chip that can fix your position even with a weak signal status. It is adopted for
people who exercise for broad kinds of outdoor sports, such as Jogging, Running,
Biking, Snow Skiing, etc. It also can be used as a GPS receiver by USB interface.
Features
The main features of GH-615:
zBuilt-in SiRF Star III high performance GPS chipset. Excellent sensitivity for
position fixing even with a weak signal status.
zBuilt-in rechargeable high capacity lithium-ion battery.
zLarge LCD for easy reading.
zWAAS/ ENGOS support.
zWaterproof, rigid design to avoid careless damage.
zRecords all history of self-training by defined day.
zGH-615 series can be used as a GPS receiver with an easy setup.
zThe firmware of the GH-615 can be upgraded through PC.
zNavigation. Tracking your route as crumb method; marking and saving your
tracking points by a special algorithm; finding specified locations.

GH-615
Page 5
Specifications
Model GH-615B GH-615M
Heart Rate Monitor: NO YES
Number of Waypoints: 100
Tracking point: 60000
Frequency: L1, 1575.42MHz
C/A code: 1.023 MHz chiprate
Channels: 20 channel all-in-view tracking
Antenna: Built-in patch antenna
GPS
Chipset
SiRF Star
III
Position: (10meters,2DRMS), (5meters,2DRMS,WAASenabled)
Display Size: 24.9 x 39.88(H x W in mm.)
Display type: Black & White LCD
Pixels (H x W): 80x120
Unit Weight: 86 g (Estimated)
Waterproof Standard: IPX7
Unit Size: 58H x 78W x 20D (Estimated in mm.)
Backlit Display: Single level
Operating temperature: -10°C to 60°C
Storage temperature: -20°C to 70°C (Power off, storage for 72 hours)
Humidity: 5% to 95% Non-condensing
Voltage: 3.7 V for a rechargeable battery, 5V for charging input.
Charging connector: DC5V
Battery: Rechargeable 750mAh Li-ion Polymer battery
